Products Description

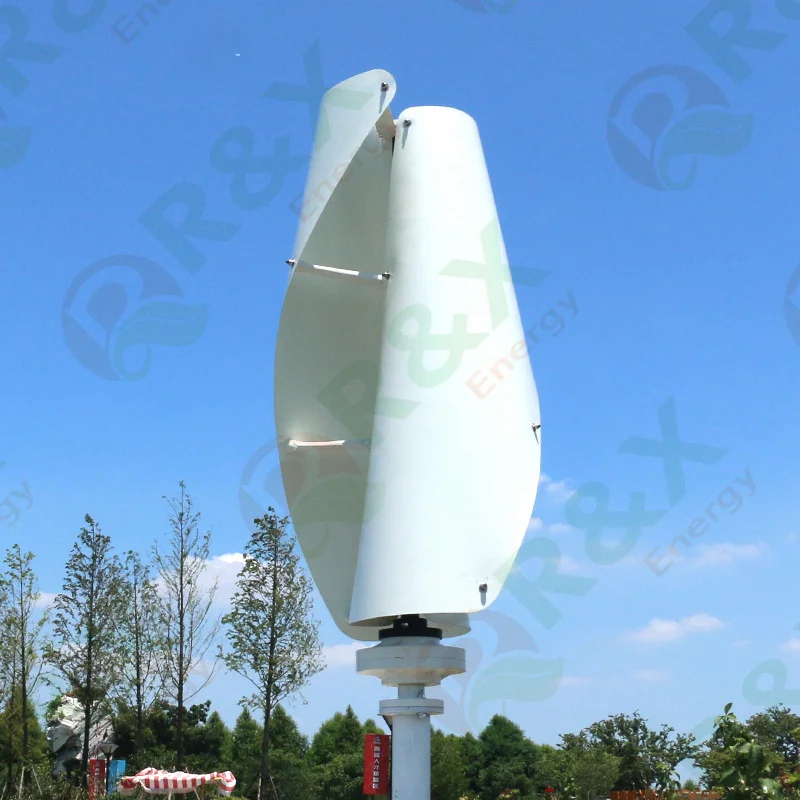

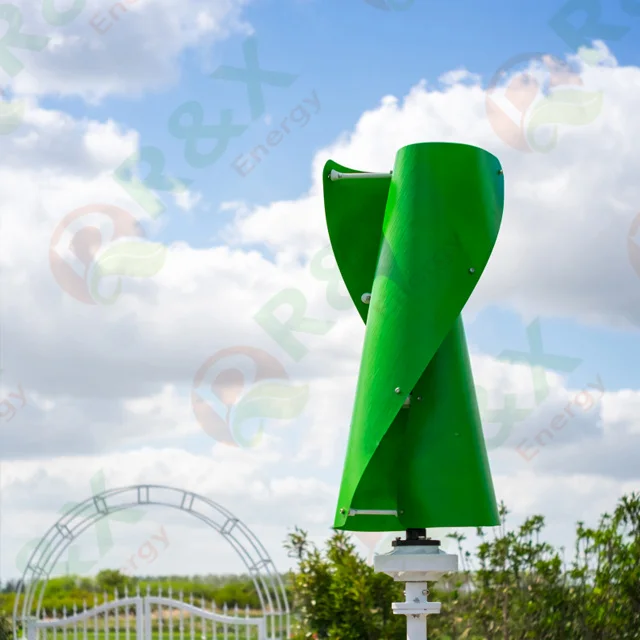

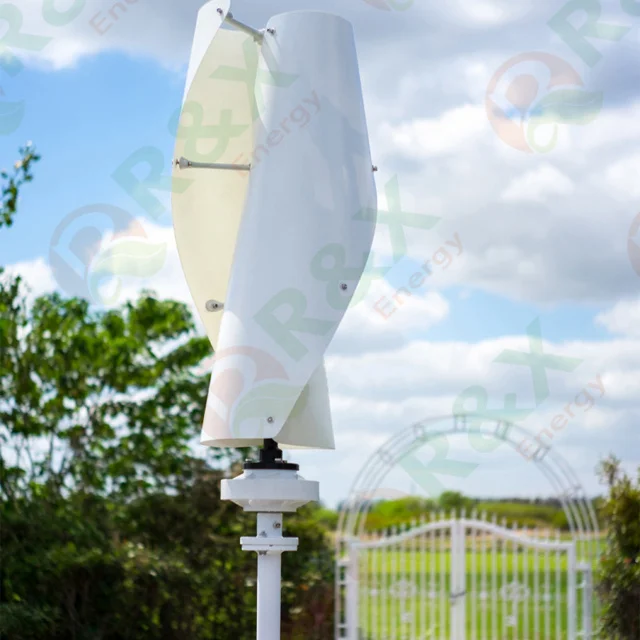

5KW Vertical Wind Turbine Spiral Shape
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such
advantages: high utilization of wind energy which contributes to the annual energy output.
4.The generators, adopting patented maglev generator,with a special kind of stator design, efficiently decrease resistance torque.
Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such
advantages: high utilization of wind energy which contributes to the annual energy output.
4.The generators, adopting patented maglev generator,with a special kind of stator design, efficiently decrease resistance torque.
Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.
Recommended for
--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Power curve
Specification
Model | RX-SV4000 | RX-SV5000 | RX-SV6000 | RX-SV8000 | RX-SV10K | RX-SV15K | |||||
Rated Power | 4KW | 5KW | 6KW | 8KW | 10KW | 15KW | |||||
Max Power | 4500W | 5500W | 6500W | 8500W | 11W | 16KW | |||||
Blades Length | 2.5M | 3.0M | 3.5M | 3.5M | 4.0M | 4.0M | |||||
Wheel Diameter | 0.65M | 1.2M | 1.2M | 1.2M | 1.2M | 1.2M | |||||
Rated Voltage | 96V~220V | ||||||||||
Start Up Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s | 2.5m/s | 2.5m/s | |||||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | |||||
Cut-in Speed | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | |||||
Survival Speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | |||||
Blades Quantity | 2 Pcs | ||||||||||
Blades Material | Fiber glass | ||||||||||
Generator Type | Iron-Core permanent magnet Generator | Iron-Core permanent magnet Generator | Iron-Core permanent magnet Generator | Maglev coreless permanent magnet generator | Iron-Core permanent magnet Generator | Maglev coreless permanent magnet generator | |||||
Working Temperature | -40℃~+40℃ | ||||||||||
Protection Level | IP54 | ||||||||||
Working environment humidness | ≤90% | ||||||||||
Altitude | ≤4500m | ||||||||||
Install Height | 6~12m | ||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||
Gross Weight | 120kg | 140kg | 265 kg | 280kg | 300kg | 340kg | |||||
Load Name | Load’s Watt | Quantity |
lights | 10w | 10 |
fan | 80w | 2 |
computer | 150w | 2 |
printer | 250w | 1 |
Fax machine | 300w | 2 |
Refrigerator | 120w | 1 |
Washing machine | 300w | 2 |
microwave | 1000w | 1 |
Electric cooker | 300w | 1 |
Air conditioner(2HP) | 1500w | 1 |
Color TV | 100w | 2 |

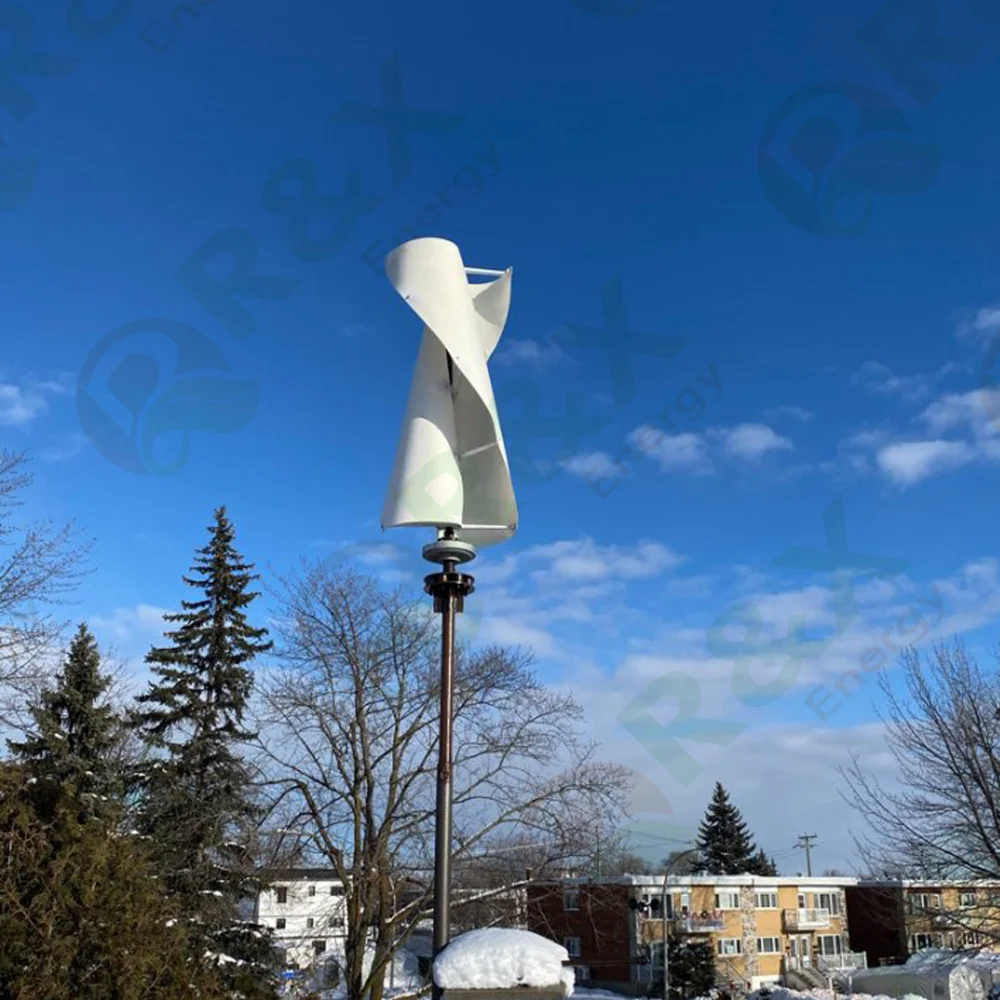

Project Photos Show
Wiring Diagram
