4m X 3m Complete System P2.6 P2.9 P3.91 P4.81 LED Display 500mmx500mm LED Panel Backdrop Full color Indoor Outdoor LED Screen
- Category: >>>
- Supplier: Shenzhen Raybo Led Display Manufactory Co. Ltd.Shenzhen Ltd.
Share on (1601265154739):
Product Overview
Description

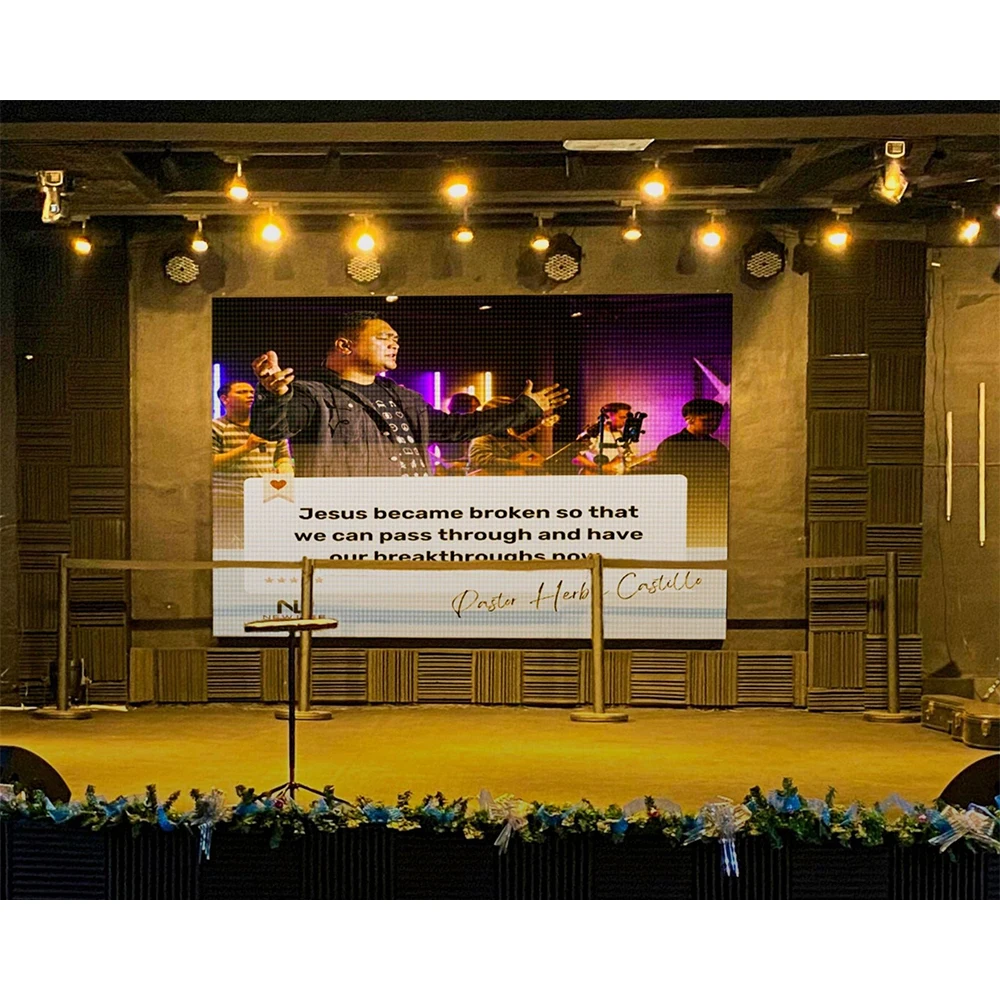

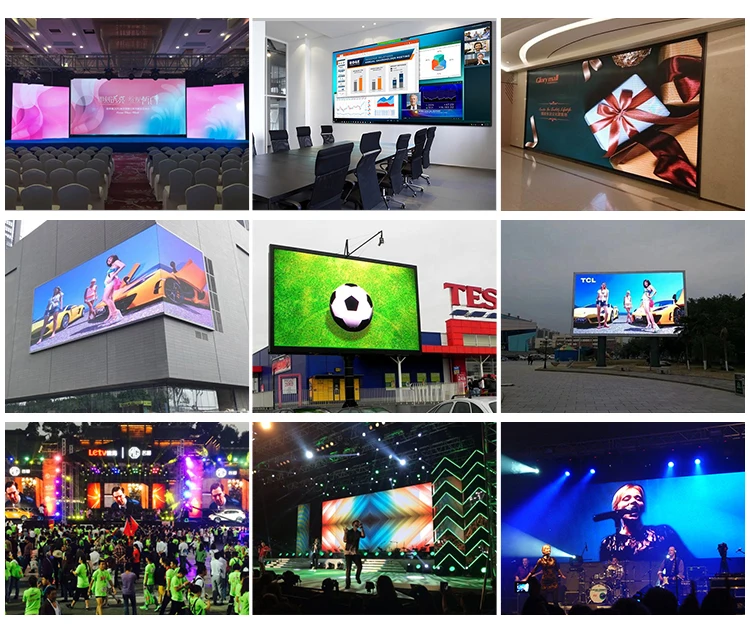

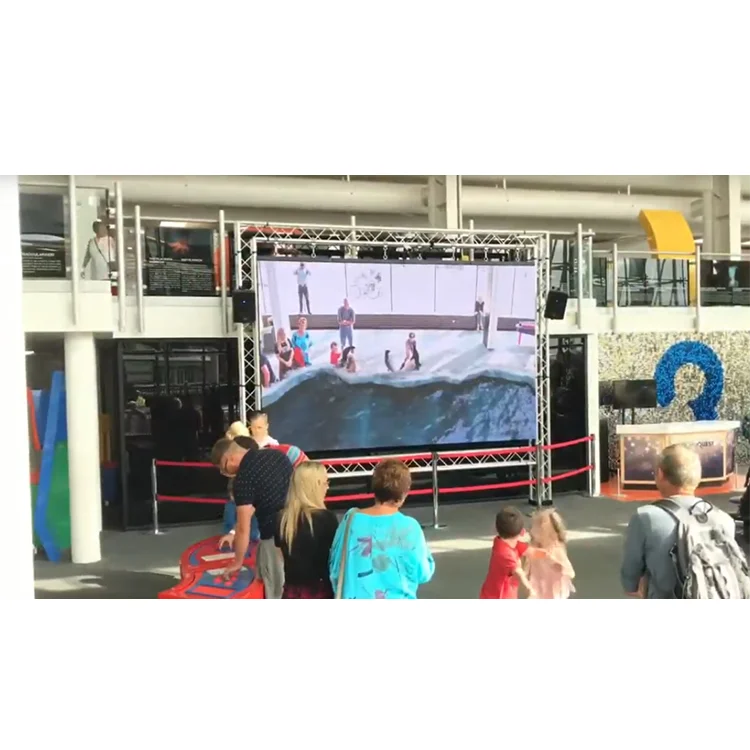

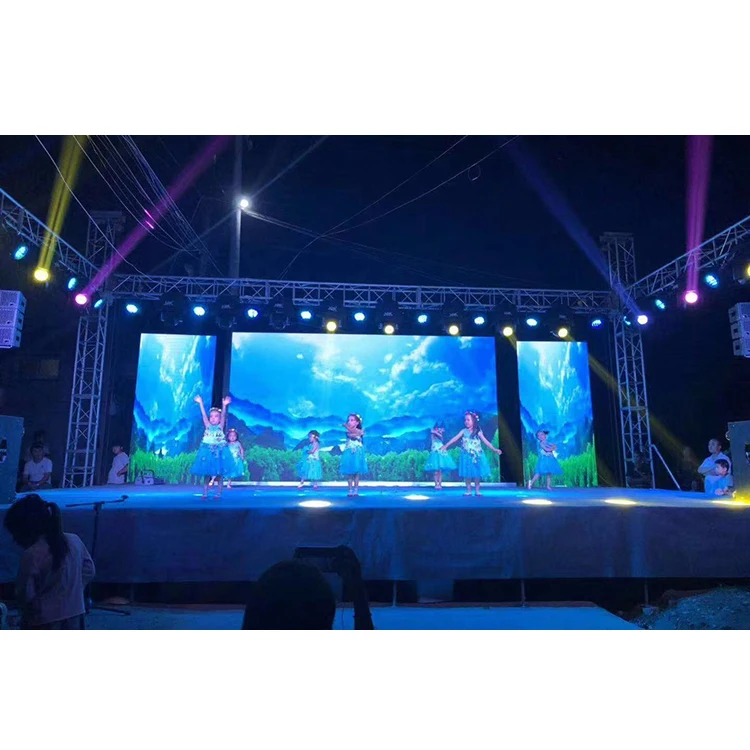

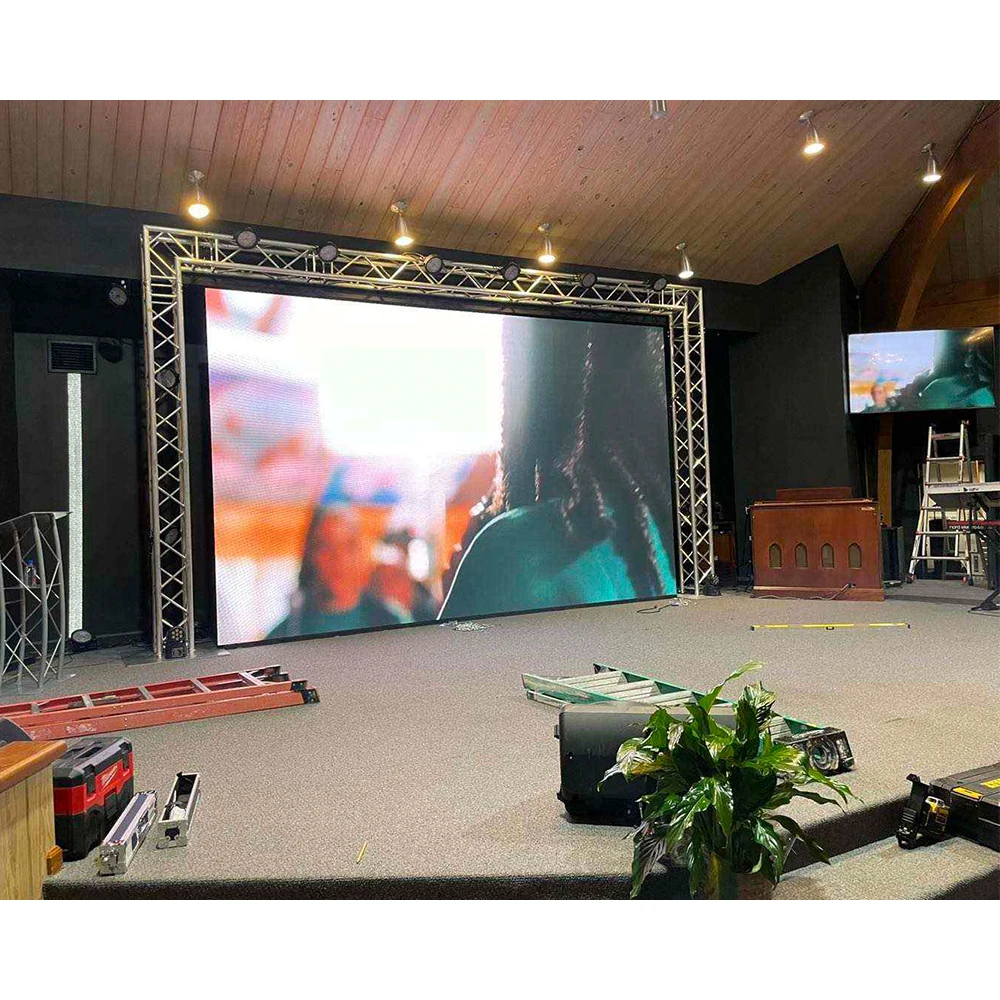

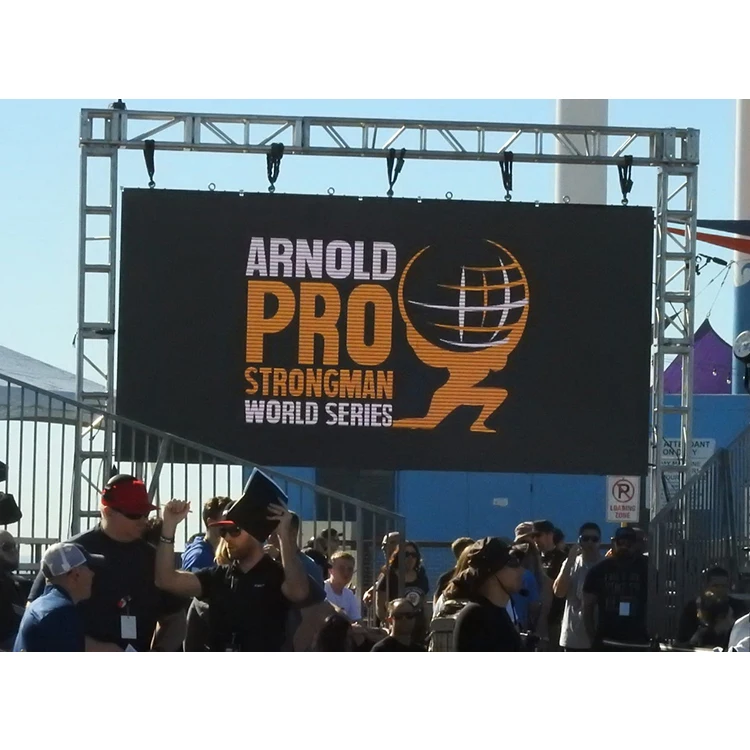

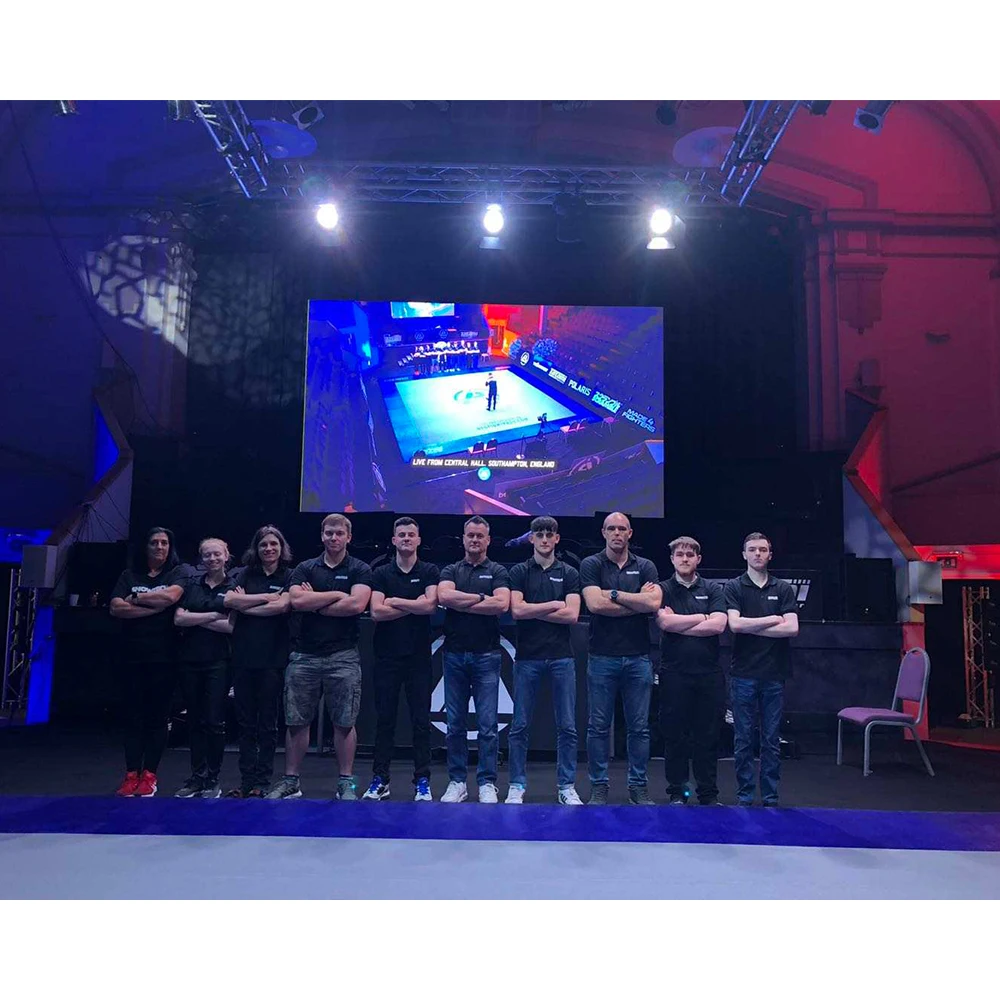

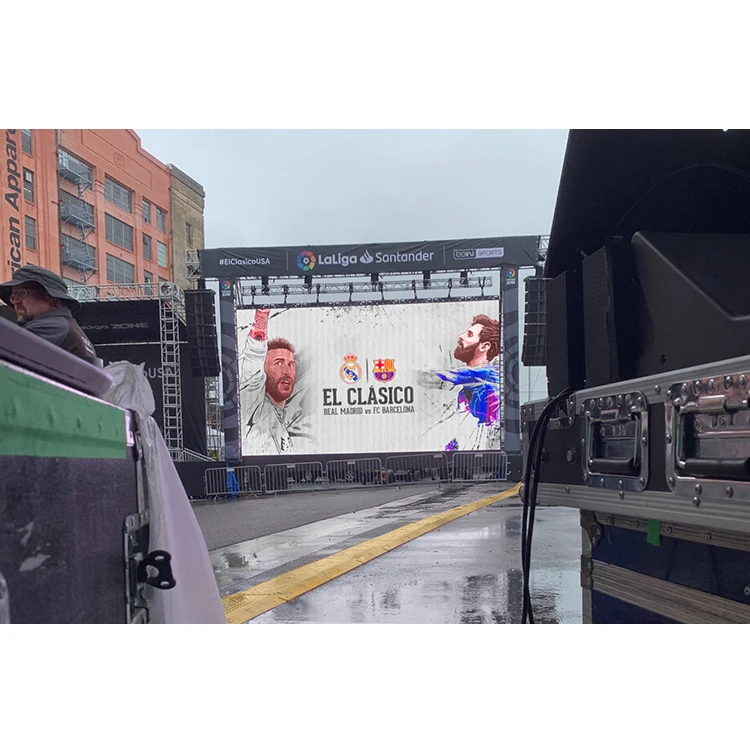

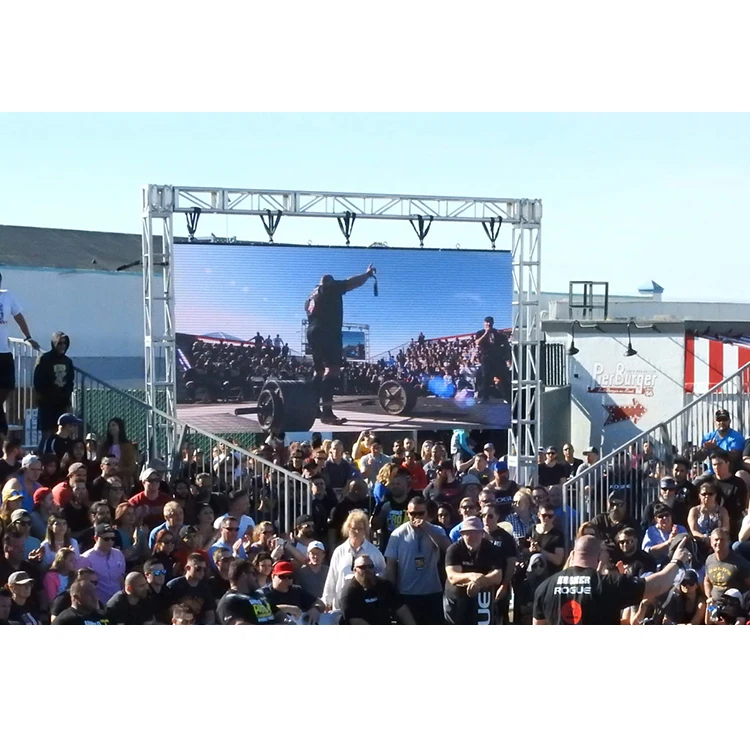

Project Cases
Pixel Pitch: 4.81mm
LEDs package: SMD2121
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 43264dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 43264dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7.5KG
Location: USA
Location: USA
Pixel Pitch: 3.91mm
LEDs package: SMD2121
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm
Cabinet Weight: 13KG
Location: Australia
Location: Australia
Pixel Pitch: 2.97mm
LEDs package: SMD1515
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 112896dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 112896dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm
Cabinet Weight: 13KG
Location: China
Location: China
Outdoor P3.91
Pixel Pitch: 3.91mm
LEDs package: SMD2121
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7KG
Location: USA
Pixel Pitch: 2.604mm
LEDs package: SMD1515
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 147456dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 147456dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7KG
Location: UK
Location: UK
Pixel Pitch: 3.91mm
LEDs package: SMD2121
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm
Cabinet Weight: 7KG
Location: USA
Location: USA
Recommend Products
Products Description

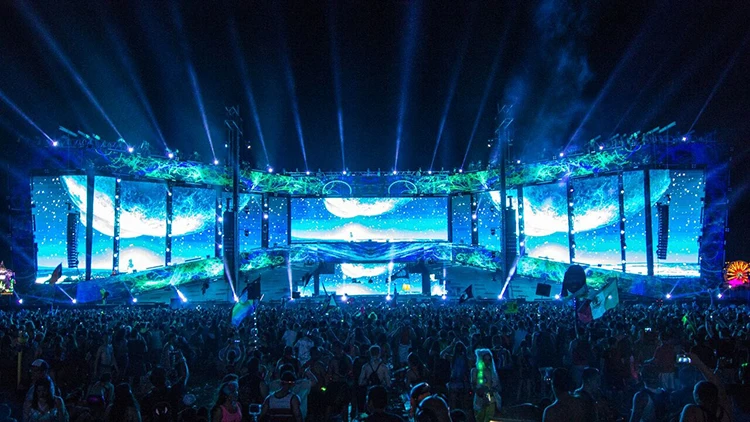

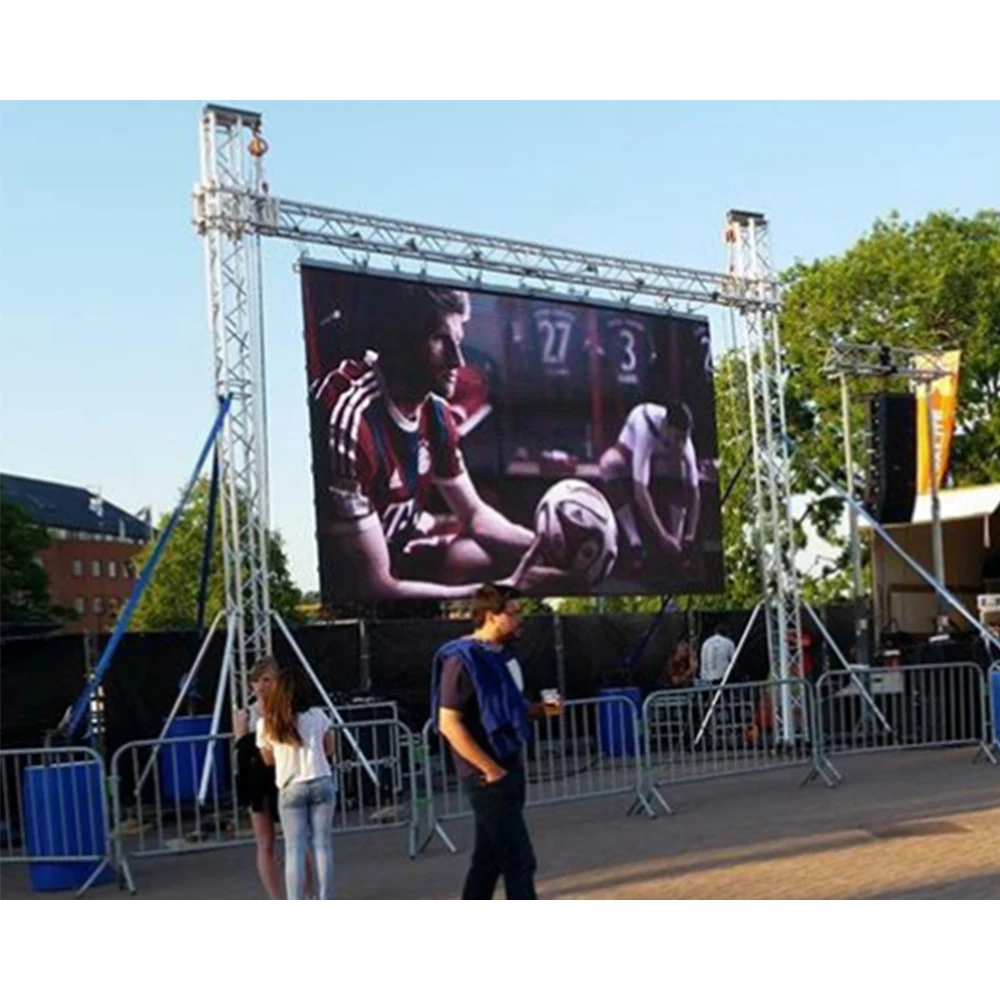

Outdoor LED Screen Rental
Our company strives to give our customers the most options for LED screen rental solutions. Whether you are hosting a large conference, a huge music festival, or a state fair we have the screen for you. With both indoor and outdoor led video screen rentals we are not limited to any venue.
Model | P2.604 | P2.97 | P3.91 | P4.81 | |||
Pixel Pitch | 2.604mm | 2.97mm | 3.91mm | 4.81mm | |||
Pixel Matrix Per Sq.m | 147,456dots | 112,896dots | 65,536dots | 43,264dots | |||
LEDs package | SMD1515 | SMD1515 | SMD2121 | SMD2121 | |||
Brightness | 4000/5,500cd/㎡ | ≥5,500cd/㎡ | ≥5,500cd/㎡ | ≥5,500cd/㎡ | |||
Scan | 1/32 | 1/28 | 1/16 | 1/13 | |||
Module Dimension | 250*250mm/0.82*0.82ft | 250*250mm /0.82*0.82ft | 250*250mm /0.82*0.82ft | 250*250mm /0.82*0.82ft | |||

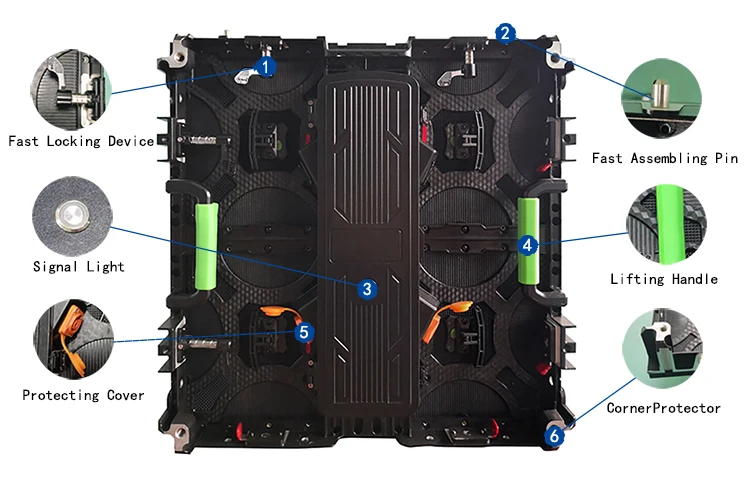

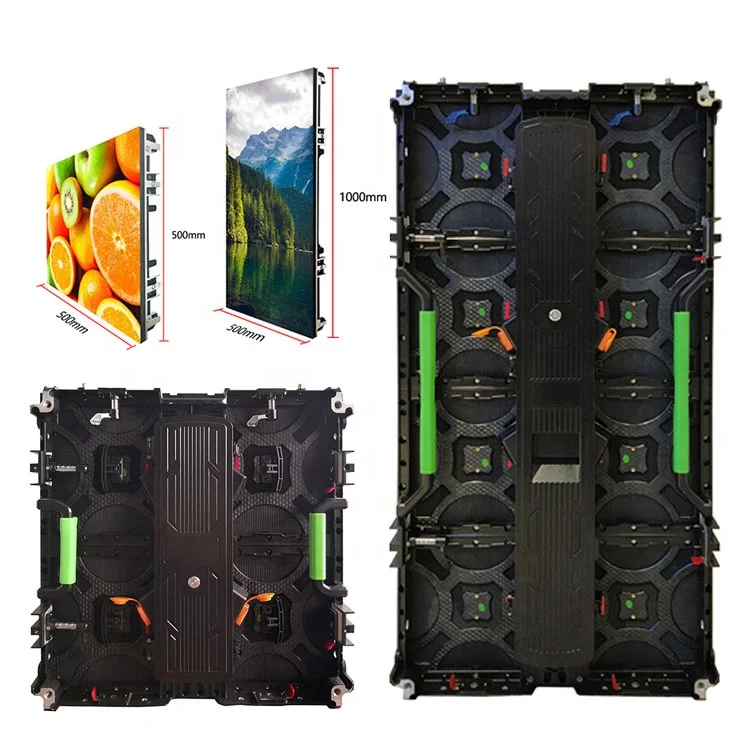

Cabinet Dimension | 500*500*77mm/500*1000*77mm | 500*500*77mm /500*1000*77mm | 500*500*77mm /500*1000*77mm | 500*500*77mm /500*1000*77mm | |||
Module Resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots | |||
Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | |||
Cabinet Weight | 7.3KG/13.95KG | 7.3KG/14KG | 7.3KG/14KG | 7.3KG/14KG | |||
Max. Power Consumption | 800W | 800W | 800W | 800W | |||
Ave. Power Consumption | 200-300W | 200-300W | 200-300W | 200-300W | |||
Service Access | Rear | Rear | Rear | Rear | |||
Refresh Rate (HZ) | 1920/3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | |||
Grey Scale | 16 Bit | 16 | 16 | 16 | |||
Viewing Angle (H/V) | 140°/120° | 160°/160° | 160°/160° | 160°/160° | |||
Best Viewing Distance | 2.6-26meters | 2.97-29.7meters | 3.91-39.1meters | 4.81-48.1meters | |||
IP Rate | IP65 | IP65 | IP65 | IP65 | |||
Input Voltage (AC) | 110V-240V,50/60HZ | 110V-240V,50/60HZ | 110V-240V, 50/60HZ | 110V-240V,50/60HZ | |||
Our Advantages

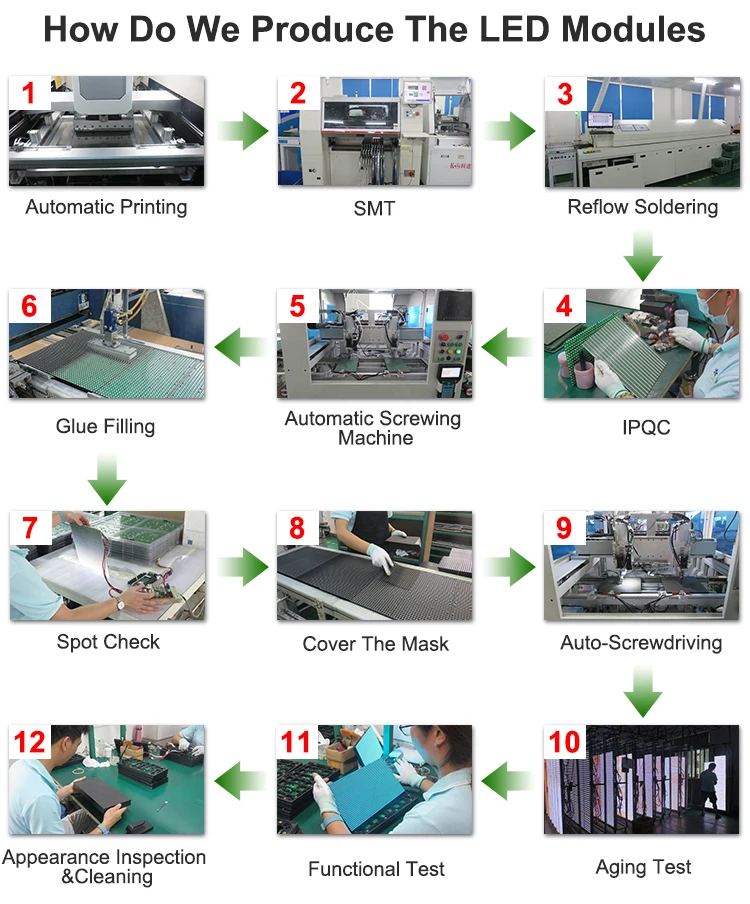

Work Process
Why Choose Us

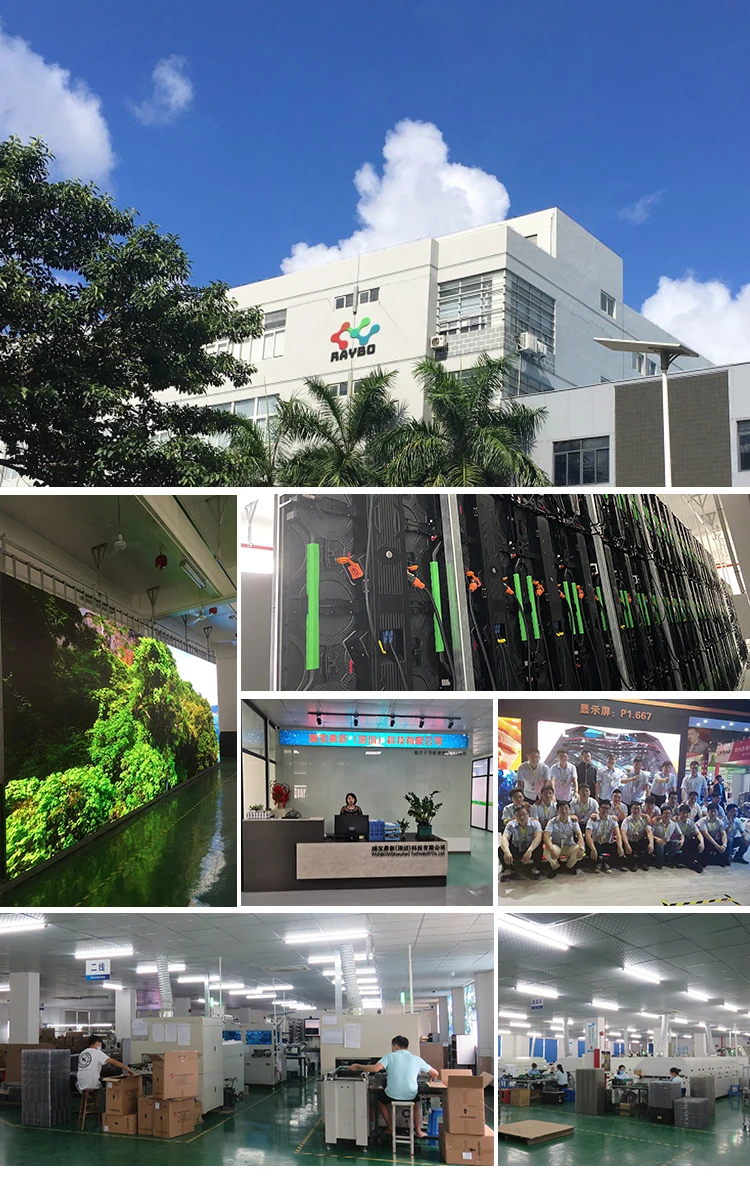

Company Profile
RAYBO LED Display Manufactory Co,. LTD is a manufactory that focus on the global LED market. We have more than 20 years experience in R&D, manufacturing, marketing of different kinds of indoor and outdoor LED display. Providing perfect solutions for our advertising, exhibition, church, stage, bar and stadium, etc industries customers. We are a one-stop solution provider of LED products from raw materials to after-sales services.
With the growth of experience in the industry, RAYBO has became a trendsetter in the LED industry by offering quality, customized and durable products worldwide. Our headquarter is located in Shenzhen, where is the world's largest LED display industry resource concentration center. Here, we have the most creative design team and high educated engeneer team to provide premium solutions. We also have the most advantage automatic production lines and professional test equipments in the industry, which is the fundation of a realiable manufatory.
All of our products are with CCC, CE, FCC, Rohs, etc certificates for global market. We have also passed ISO9OO1 quality certification as a member of China Optics and Optoelectronics Industry Association.
Currently, our products and services have been distributed to over 80 countries. We have valuable partners in US, Canada, Australia, UK, Italy, Mexico, Japan and Indonesia, etc. We have build strong partnership with local industries, and hope you will be the next.
With the growth of experience in the industry, RAYBO has became a trendsetter in the LED industry by offering quality, customized and durable products worldwide. Our headquarter is located in Shenzhen, where is the world's largest LED display industry resource concentration center. Here, we have the most creative design team and high educated engeneer team to provide premium solutions. We also have the most advantage automatic production lines and professional test equipments in the industry, which is the fundation of a realiable manufatory.
All of our products are with CCC, CE, FCC, Rohs, etc certificates for global market. We have also passed ISO9OO1 quality certification as a member of China Optics and Optoelectronics Industry Association.
Currently, our products and services have been distributed to over 80 countries. We have valuable partners in US, Canada, Australia, UK, Italy, Mexico, Japan and Indonesia, etc. We have build strong partnership with local industries, and hope you will be the next.

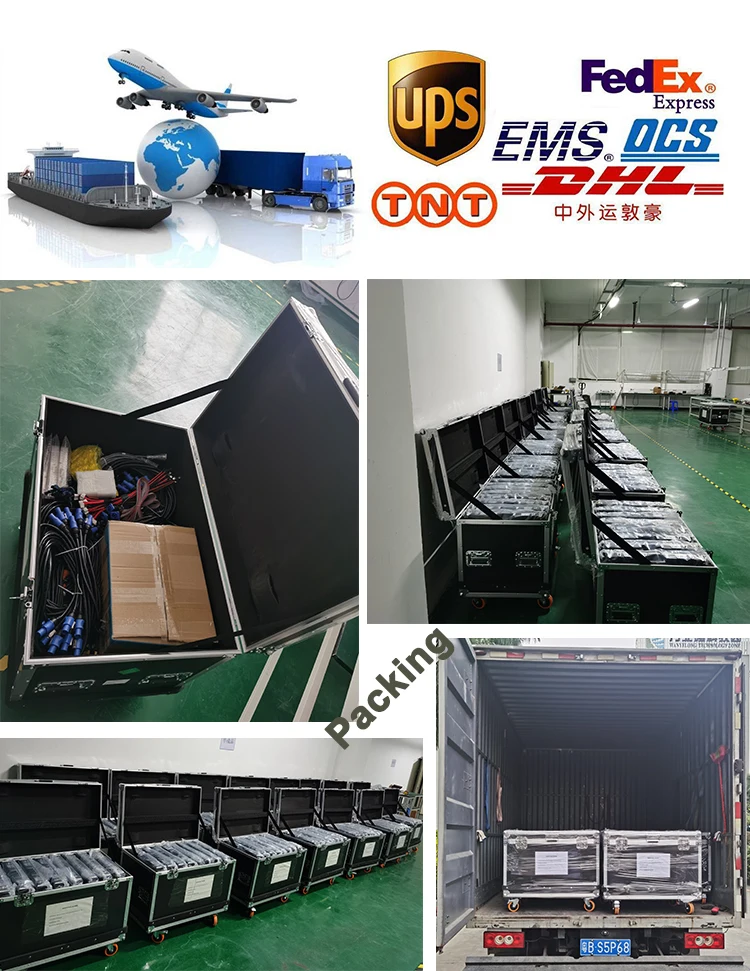

Packing & Delivery
Mode of transportation | Advantage | Disadvantage | advice |
Sea freight | Large volume, low shipping costs, and well-connected waterways. | Slow, the sailing risk is high, and the sailing date is not easy to be accurate | Bulk cargo Bulky cargo Loose time |
Air cargo | Safe, On Time, Shortened Delivery Times | Higher cost | valuable cargo Urgent need |
Land transportation | Fast delivery large capacity | Can only drive on fixed routes, poor flexibility | Select according to the delivery address |
Express | Short transit time | Volume weight restricted | Small cargo Accessories |
FAQ
A: We are based in Guangdong, China, we have more than 20 years experience in LED display screen. Strong technical force to ensure excellent quality.
Q: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How can we guarantee quality?
A: 5 years warranty. Always a pre-production sample before mass production and final Inspection before shipment.
