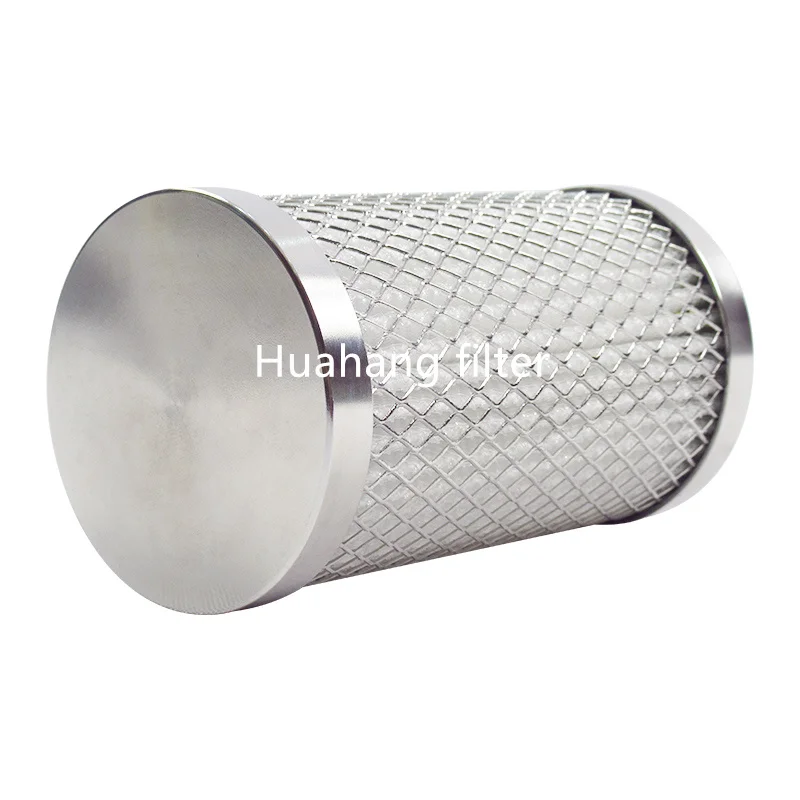

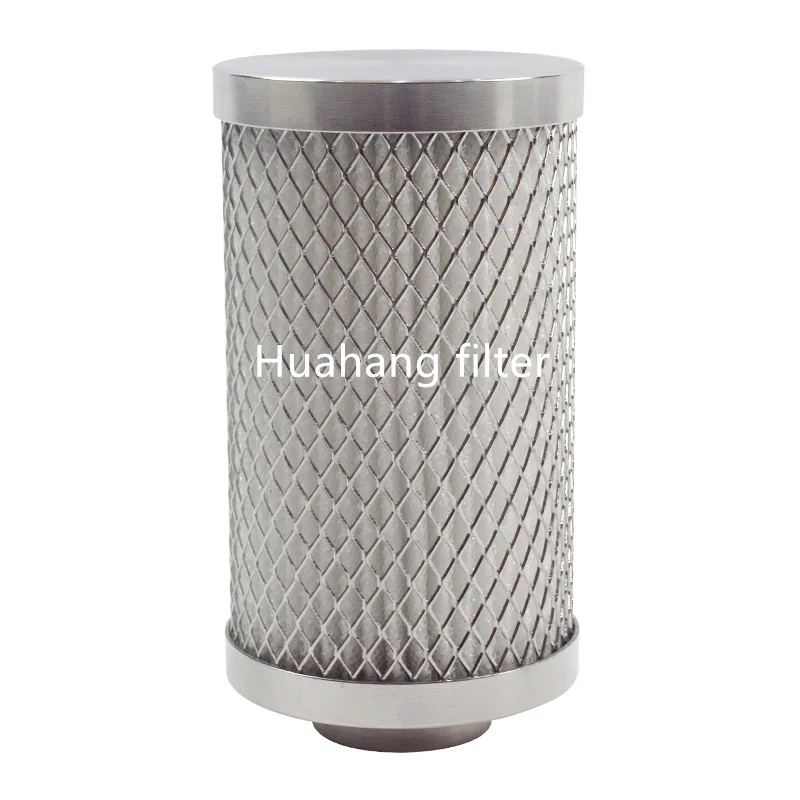

Huahang customized 0.01 micron folding PTFE air industrial filter cartridge for dust collection
- Category: >>>
- Supplier: Xinxiang City Huahang Filter Co. Ltd.
Share on (1601265209441):
Product Overview
Description
Product Description
Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for powder coating or fibrous materials such as wood or fiber glass.
Features
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing,construction industries And sticky dust collection.(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.

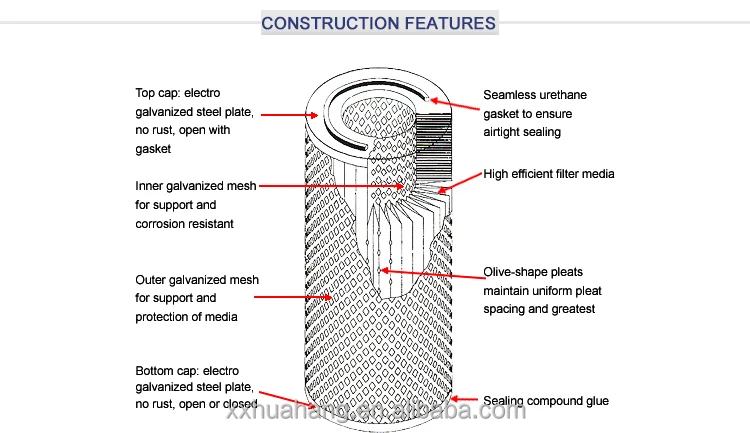

(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

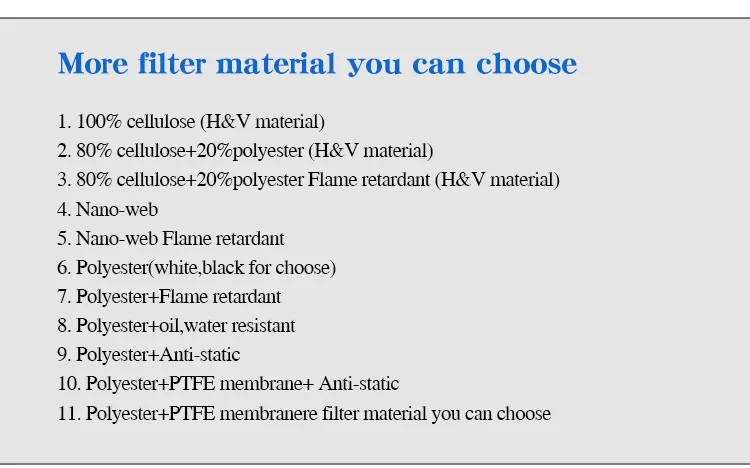

1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order

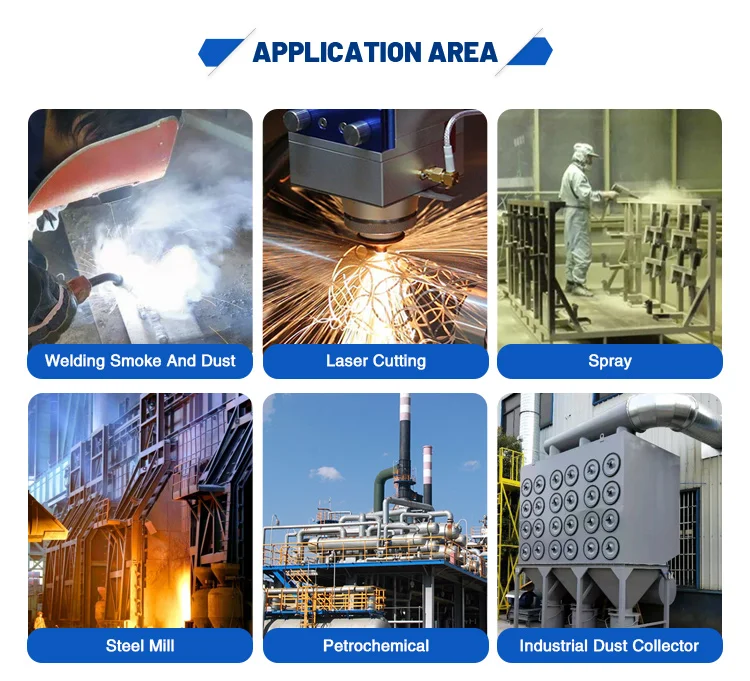

Application
Specifications
Model | O.D | I.D | Length | Filtration surface(m2) |
3266 | Φ324mm | Φ213mm | 660mm | 9.4m2 |
3566 | Φ324mm | Φ241mm | 660mm | 9.4m2 |
3275 | Φ324mm | Φ213mm | 750mm | 10.7m2 |
3288 | Φ324mm | Φ213mm | 880mm | 12.5m2 |
3290 | Φ324mm | Φ213mm | 915mm | 13.0m2 |
Notes:
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.
Associated Products
$ 38.6 -$ 50 / piece
Huahang supply replacement air filter cartridge 5852 624 TI 70-0. for industrial dust collection
$ 20- $ 50 / piece
Huahang supply alternative filter cartridge air filter element 1A51399015440 for dust collection
$ 10- $ 45 / piece
Huahang high perfoermance high flow dust collection Air filter Element for air purification
Why Choose Us
Xinxiang City Huahang Filter Co., Ltd. is a professional industrial filter manufacturer integrating design, production and
marketing. With strong technical force, perfect testing means, and excellent after-sales service, we provide users with a variety
of high-quality products. Our main products include hydraulic filters, air filters and pipe filters. Products are widely used in
petroleum, chemical and metallurgical machinery, textile,automobile, chemical fiber, and air-conditioning.
"Quality first, customer first" is our business objective. We will, as always, offer new and old customers with the best quality
service.
marketing. With strong technical force, perfect testing means, and excellent after-sales service, we provide users with a variety
of high-quality products. Our main products include hydraulic filters, air filters and pipe filters. Products are widely used in
petroleum, chemical and metallurgical machinery, textile,automobile, chemical fiber, and air-conditioning.
"Quality first, customer first" is our business objective. We will, as always, offer new and old customers with the best quality
service.
Packing & Delivery
FAQ
1. who are we?
We are based in Henan, China, start from 2009,sell to North America(29.00%),Central America(15.00%),Northern
Europe(10.00%),Southern Europe(9.00%),Western Europe(7.00%),South Asia(6.00%),South America(6.00%),Domestic
Market(5.00%),Southeast Asia(5.00%),Eastern Europe(4.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Mid East(1.00%).There are total about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hydraulic Oil Filter; Air Filter Cartridge; Sintered Filter; Water Filter Cartridge; Coalescer And Separator
4. why should you buy from us not from other suppliers?
Founded in 2003, Filtration and Separation Industry Association member units, advanced technology, well-equipped, reliable quality and excellent service. Currently leading products include hydraulic filters, air filters, pipe filters, water filters
series.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2009,sell to North America(29.00%),Central America(15.00%),Northern
Europe(10.00%),Southern Europe(9.00%),Western Europe(7.00%),South Asia(6.00%),South America(6.00%),Domestic
Market(5.00%),Southeast Asia(5.00%),Eastern Europe(4.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Mid East(1.00%).There are total about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hydraulic Oil Filter; Air Filter Cartridge; Sintered Filter; Water Filter Cartridge; Coalescer And Separator
4. why should you buy from us not from other suppliers?
Founded in 2003, Filtration and Separation Industry Association member units, advanced technology, well-equipped, reliable quality and excellent service. Currently leading products include hydraulic filters, air filters, pipe filters, water filters
series.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese
If you have any questions, please contact us!
