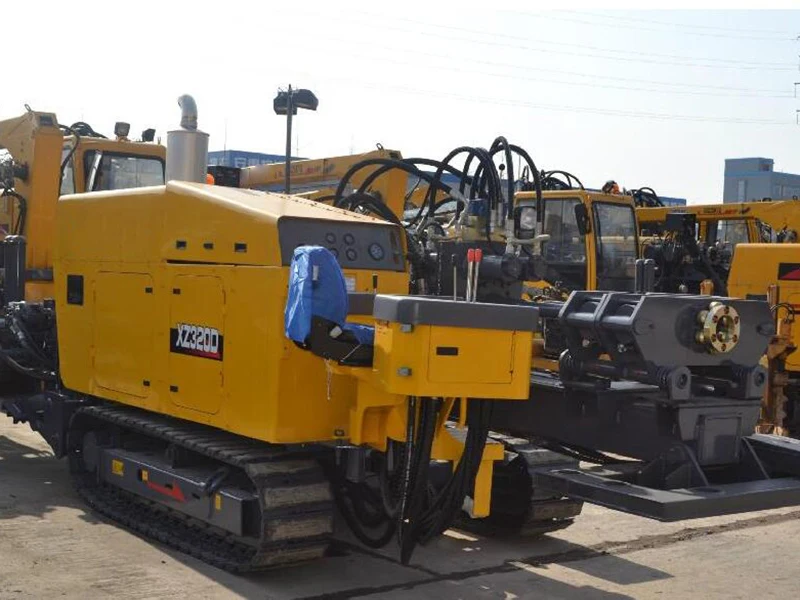

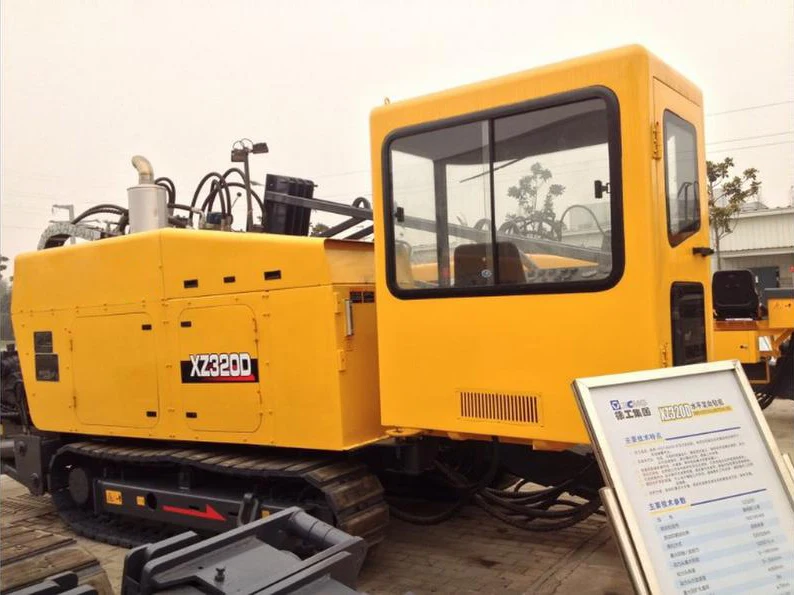

Drilling Machine China Brand XZ320D Horizontal Directional Drill For Sale

Share on (1601265226813):


Price:$18,800.00-34,500.00

Quantity:


Product Overview

Description





Contact Way


Carissa Hu
Sales Manager
Wechat:838965406
Mobile:+86 17626501487
Whatsapp: +86 13918748729
Email: carissa@evangelchina.com
Company website: www.evangelchina.com


Products Description


Dongfeng Cummins (97KW) engine, 180kN of push-pull, 6000N.m of Max.spindle torque, motor dual speed chain push-pull system,self-propelled rubber tracks chassis, automatic loading and unloading drill rod device, rotatable control board, patent technology for floating vice, and onboard high-capacity mud pump (250L/min).








Specification


Model
XZ180
Engine
CUMMINS
Rated power
97kW
Push-pull
Motor
Max.pullback/thrusting
180/180kN
Spindle torque(max)
6000N.m
Spindle speed
0~140r/min
Travelling speed of power head
20m/min
Backreaming diameter
Φ600mm
Pipe length(single)
3m
Pipe diameter
Φ60mm
Entry angle
10-22°
Mud flow ratw(max)
250L/min
Mud pressure(max)
80bar
Overall weight
8500kg
Dimension(LxWxH)
6400x2270x2340mm
