OEM/ODM 4 Channel DVR H.265 CCTV Camera System 4G Mobile DVR GPS Car DVR Kit Mini H.264 CMSV7 Monitor MDVR
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (1601265260973):
Product Overview
Description
NOTE:

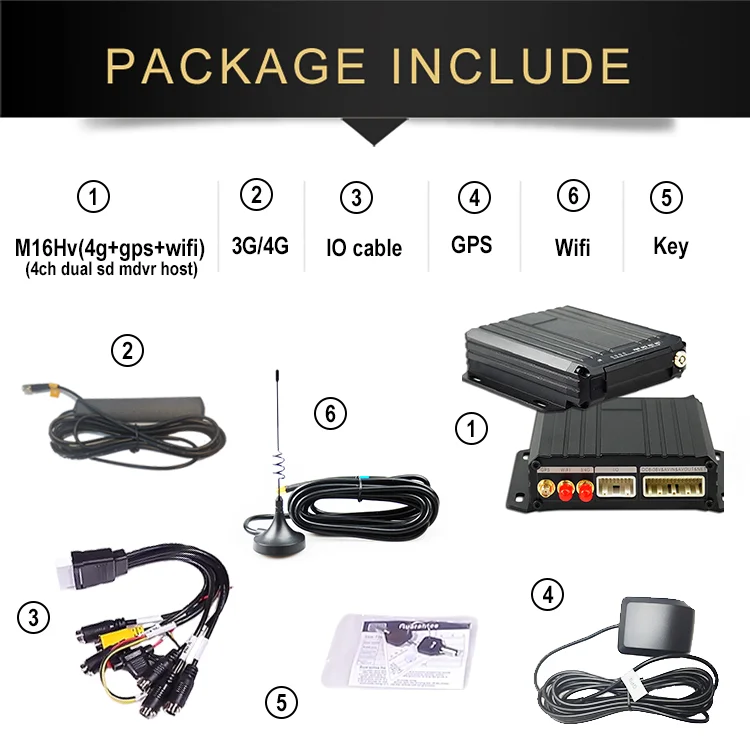

Order only include a 4ch dual sd mdvr host with 4g+gps+wifi
It needs to be used with camera and other accessories.
Product Paramenters
Citops Cctv School Bus Recorder Mobile Dvr 4ch Mdvr 3g 4g Wifi Gps Sd Card 4g Mdvr series uses a mini body, which can be easily installed and used in small Spaces. Support dual SD card, effectively improve the storage space. The products are compatible with mainstream H.265 video decoding technology, 4G network technology, GPS/BD positioning technology, WIFI technology, etc.,Applicable to public security police, financial escort, long-distance passenger transportation, road patrol and other vehicles traveling monitoring field.
Product Advantages
* The on-board interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G, GPS, WIFI function modules
* Rich peripheral interfaces
* Support UI human-computer interface
* Support dual SD card storage
* Support remote system maintenance
* The on-board interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G, GPS, WIFI function modules
* Rich peripheral interfaces
* Support UI human-computer interface
* Support dual SD card storage
* Support remote system maintenance
project | M15HV | M16HV | ||
Audio and video input | video input | AHD input: 4ch 1080P | AHD：4ch 1080 IPC：Scalable 1-4ch | |
audio input | 2 audio inputs | 3ch audio input，Mic input | ||
Audio and video output | video output | Default 1 CVBS output (VGA output optional) | ||
audio output | 1 channel audio output | |||
Audio and video parameter coding | video encoding | H.264 Main Profile/H.265 | ||
Video resolution | 1080P/720P/D1 optional | |||
audio coding | Default G.726, G.711A optional | |||
storage | SD card | Support 1 SD card | support 2 SD card | |
wireless network | 4G wireless | Support 1 SIM card, optional: all mainstream communication modules in the world | ||
WIFI | Not support | 2.4G | ||
Targeting | Beidou/GPS | Support hybrid positioning, speed detection, time synchronization | ||
interface | USB | 1 USB interface, support exporting data | ||
serial port | Support 1 RS232, optional 1 RS485 , external sensor | Support 1 RS232, 1 RS485 can be external sensor | ||
I/O | 4 switch inputs, compatible with 1 analog input | Support 4 level input, 1 output,1 ADC | ||
network port | Not support | Optional | ||
Intercom | Not support | 1 special intercom hand mark interface | ||
Physical Specifications | size | 100 mm (L) * 1 20.8 mm (W) * 32 mm (H) (without tailcord) | 135.5mm（L）*137.7mm（W）*36.5mm（H） | |
weight | Bare metal: 0.6 kg FCL: 0.8kg ( M 15 Hv -SGNE1-L as standard) | NW：0.5kg GW：0.75 kg（M16Hv-DGNE- L as a standard） | ||
working environment | Operating temperature | -20～+70℃ | ||
Working humidity | 8%~90% (non-condensing) | |||
other | operating mode | Remote control, mobile APP, WEB | ||
Gravity Sensing | Not support | Built in G-Sensor | ||
Configurable AI algorithm | Not support | Driver identification, people counting, assisted driving, etc. | ||
