Sun Solax Hybrid Inverter Battery Pack 10kw 10kva 10kwh 15kwh 200ah Solar Generator Inverter with Built in Lithium Battery
- Category: >>>
- Supplier: Keheng New Energy Technology (shenzhen) Co. Ltd.
Share on (1601265267524):
Product Overview
Description
Why choose Keheng lithium ion battery？
keheng was established in 2008, now has a mature industrial chain, strong technical strength and extensive brand influence.With technological innovation，keheng has aquired around 100 technologies patents，able to develop and produce various types of lithium battery products independently.
The products have passed ISO9000 Quality Management system, EU CE,EU ROHS,US FCC,and other certifications,and are sold well in more than 130 countries and regions around the world.
Specification
KH 5KW All in One ESS 【Powerwall】 | ||
Item | Specifications | |
Model | Power Wall AIO 5 | |
Nominal voltage | 51.2V | |
Nominal Capacity | 100Ah | |
Energy | 5KWh | |
Charge Cutoff Voltage | 58.4V | |
Discharge cut-off voltage | 41.6V | |
Charge Current | 100A Max | |
System Type | Wall-mounted, Powerwall | |
Type | All-in-one | |
Communication Port | CAN, RS232, RS485 | |
Grid connection | Off grid | |
Dimension | 860*530*140mm | |
Charging working temperature | 0℃~45℃ | |
Discharge working temperature | -20℃~55℃ | |
Storage temperature | -10℃~45℃ | |
weight | 92KG | |
Customized | Support custom design of your LOGO, laser process or label (ODM) | |
Inverter | ||
Inverter Power | 5KW | |
AC Output | 230VAC,50/60Hz,22A | |
DC Output | 48VDC/115A | |
AC intput | 230VAC,50/60Hz,22A | |
Solar Panel Charge | 6KW | |
Max Solar Charge Voltage | 495VDC | |
MPPT charging voltage range | 60-450V DC | |
Products Description
2 in 1 Wall Mounted Battery
The 51.2V wall mounted lifepo4 battery & inverter all-in-one unit is composed of 3 main parts, which are 51.2V 100Ah lifepo4
battery pack, high quality BMS battery protector, and 5KW MPPT inverter.
battery pack, high quality BMS battery protector, and 5KW MPPT inverter.
51.2V wall mounted lifepo4 battery & inverter all-in-one machine can be better adapted to the home energy storage system, do not have to consider the lifepo battery and the inverter to match the problem between the battery and the inverter also do not have to consider whether the battery and the inverter interface can be matched.
LED Battery Data Monitoring Display
You can see a lot of information about the product on this display, such as the operating status of the battery, the voltage of the battery, the temperature inside the battery, the power consumption data, and the operating status of the battery cells.
When overcharging or overdischarging, the data will be shown in the LED display and the battery protection will automatically adjust the battery's operating status to extend the battery's service life.
When overcharging or overdischarging, the data will be shown in the LED display and the battery protection will automatically adjust the battery's operating status to extend the battery's service life.

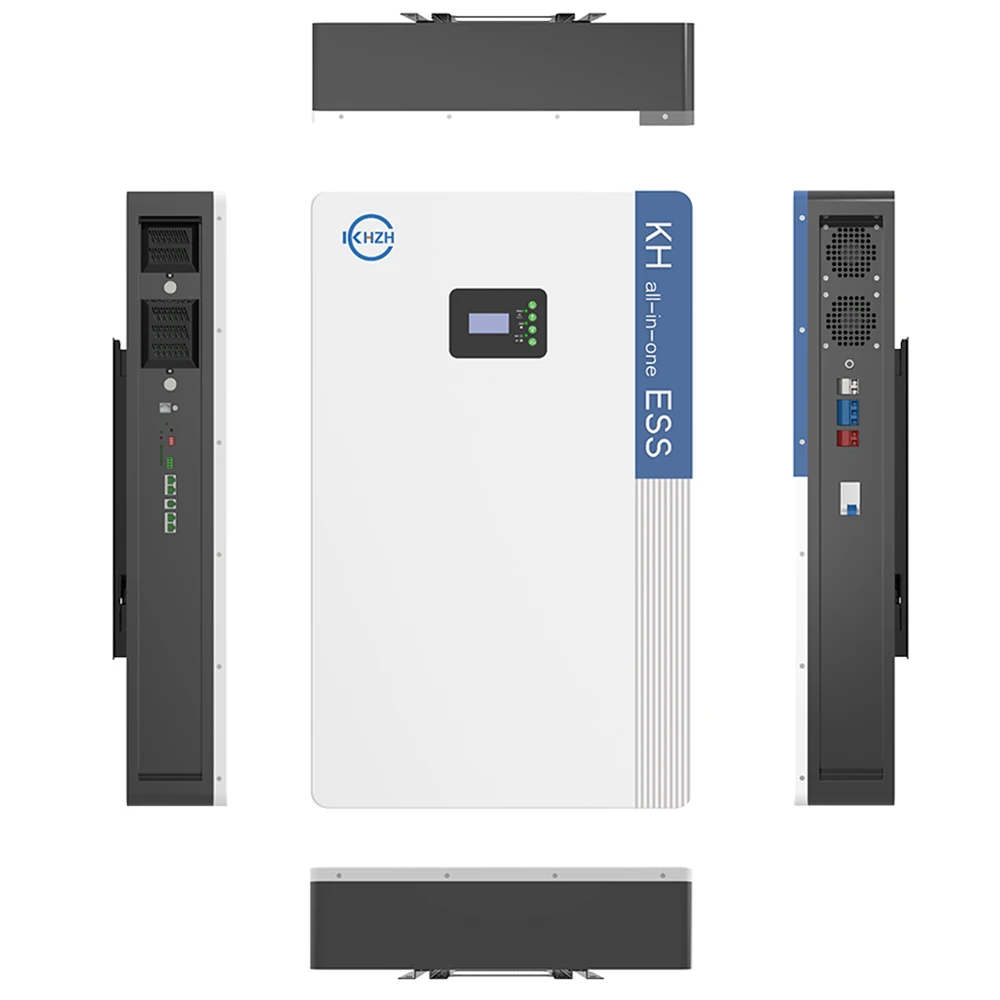

2 in 1 Wall Mount Battery Link Hole and Mounting Bracket
It can easily communicate with the outside world, it has bluetooth and wifi to connect with your cell phone.
There are fixing brackets on the back of it to fix it stably to the wall, easy to operate.
Certificates
Company Information
Keheng New Energy Technology (shenzhen) Co., Ltd. is a professional manufacturer of Lithium Ion batteries, battery packs, LiFePO4 storage battery. With eight advanced manufacturing lines, over 500 engineers and technicians and assembly line workers.
We also provide many other portable power solutions. We have been providing OEM service to customers from USA, Europe, Japan, Korea, Taiwan, Middle East and other countries. We always want to be our customer's long-term partner for sustained growth. Our attention to details, uncompromising demand on quality and continuous improvement for excellence will set you part from your competitors.
We ensure that every customers will enjoy high quality, best price, fast delivery, and good service only provided by us. Trust Khbattery, we want to succeed together with you!
We canproduce 400000 batteries one day within 60000 squares meters. We are MSDS, UN38.3, CE,UL, KC, BIS, CB and ISO9001:2015 certified, KHbattery assures the consistency of the product quality and reliability. Serving a global customer base, it provides top quality batteries for solar Energy storage System, Electric scooter, medical devices, power tools, and RV helicopter, boat, etc.
We also provide many other portable power solutions. We have been providing OEM service to customers from USA, Europe, Japan, Korea, Taiwan, Middle East and other countries. We always want to be our customer's long-term partner for sustained growth. Our attention to details, uncompromising demand on quality and continuous improvement for excellence will set you part from your competitors.
We ensure that every customers will enjoy high quality, best price, fast delivery, and good service only provided by us. Trust Khbattery, we want to succeed together with you!
