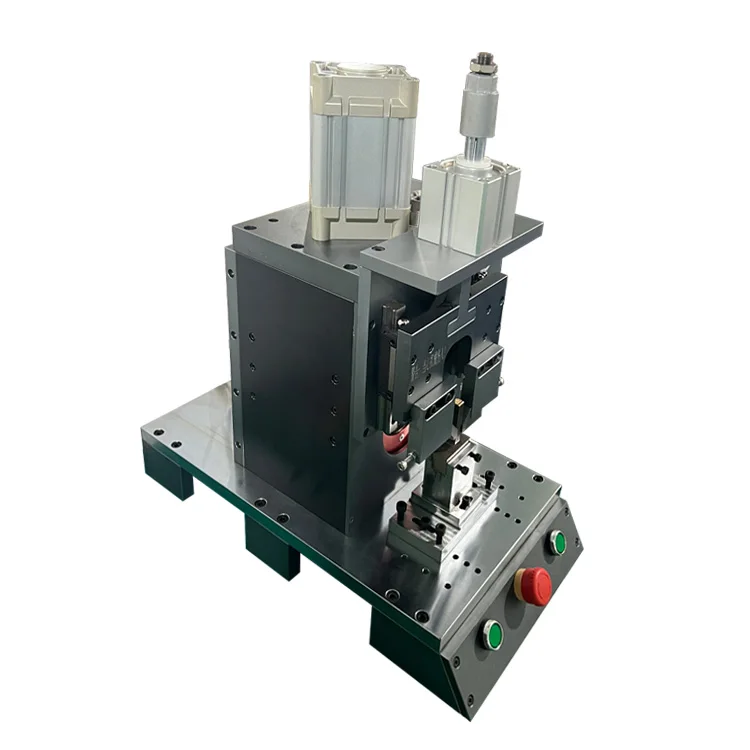

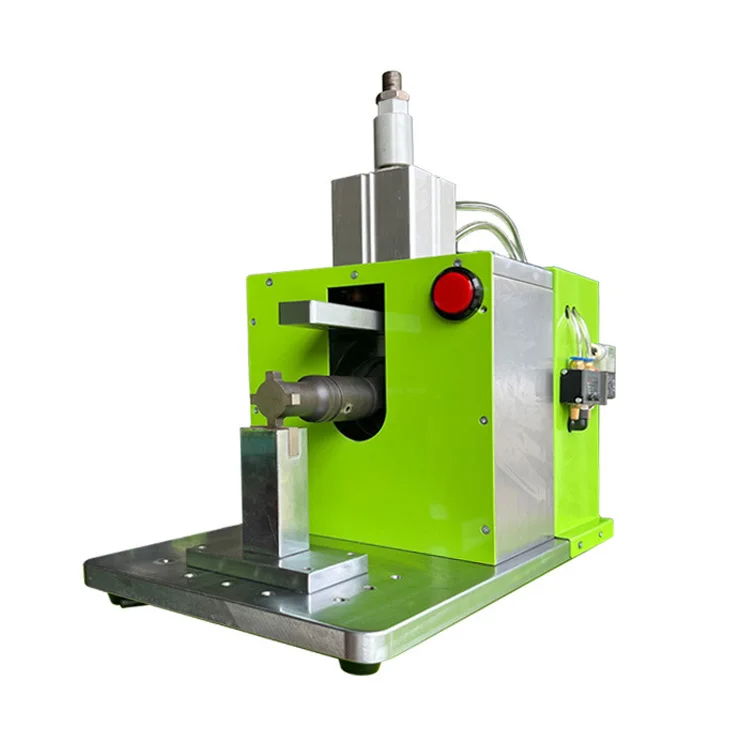

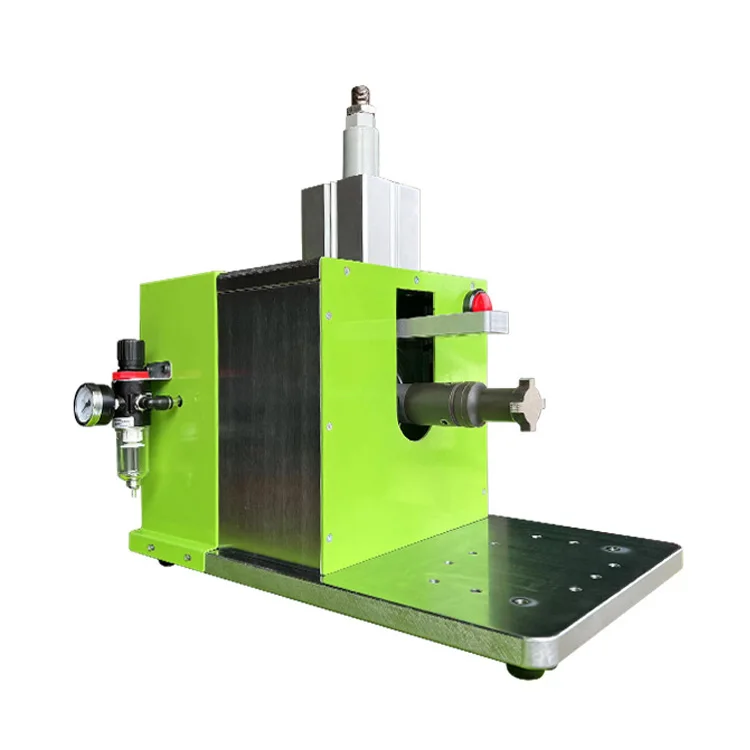

High power ultrasonic metal welding machine wire harness welding machine
- Category: >>>
- Supplier: Dongguan Jieda Ultrasonic Equipment Technology Co. Ltd.
Share on (1601265292980):
Product Overview
Description
Product Description
Ultrasonic metal welding principle:
Ultrasonic generator produces high-frequency alternating current, through the transducer bar high-frequency electrical energy into the corresponding frequency of the mechanical energy, so that the metal piece of heat at the instantaneous, and then the particles in the metal lattice to start, so that the metal piece of molecular infiltration of the joint and fusion of fusion together.
Specification
Ultrasonic power: | 3500-8000W |
Ultrasonic frequency: | 20KHz |
Amplitude adjustable range: | 25μm-75μm |
Pressure adjustable range: | 0.01-0.9Mpa |
Welding time: | 0.01~9.99S |
Rated voltage: | 220V , 50/60Hz |
Equipment features:
1.Adopting advanced constant current and constant voltage circuit technology, automatic frequency chasing ultrasonic generator with adjustable amplitude, stable output and simple operation.
2.Digital touch screen operation interface, welding parameters are easy to adjust, high welding precision. Titanium transducer system adopts imported piezoelectric ceramic sheet, strong output, stable performance.
3.Welding head adopts imported powder high-speed steel, acoustic analysis software simulation, durable.
4.Multiple welding modes, support a variety of applications.
2.Digital touch screen operation interface, welding parameters are easy to adjust, high welding precision. Titanium transducer system adopts imported piezoelectric ceramic sheet, strong output, stable performance.
3.Welding head adopts imported powder high-speed steel, acoustic analysis software simulation, durable.
4.Multiple welding modes, support a variety of applications.
Ultrasonic metal welding advantages：
1.Reliable and stable welding quality: the welding process can be accurately controlled by adjusting the amplitude, energy, time and pressure and other parameters;
2.Fast welding speed: the welding cycle is less than 0.5 seconds in general;
3.Automated production: multiple control communication ports are provided, which can be matched with various automated production;
4.Cost savings: can replace the traditional welding process used in the auxiliary welding materials (such as flux), significant cost savings and very environmentally friendly.
2.Fast welding speed: the welding cycle is less than 0.5 seconds in general;
3.Automated production: multiple control communication ports are provided, which can be matched with various automated production;
4.Cost savings: can replace the traditional welding process used in the auxiliary welding materials (such as flux), significant cost savings and very environmentally friendly.
Welding Applications：

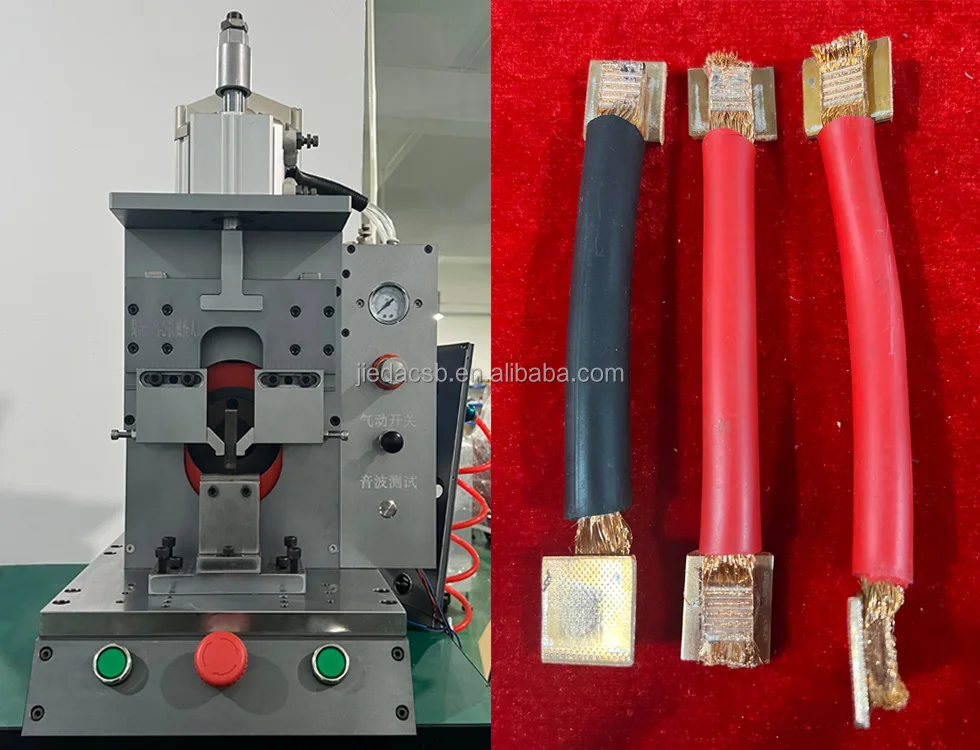

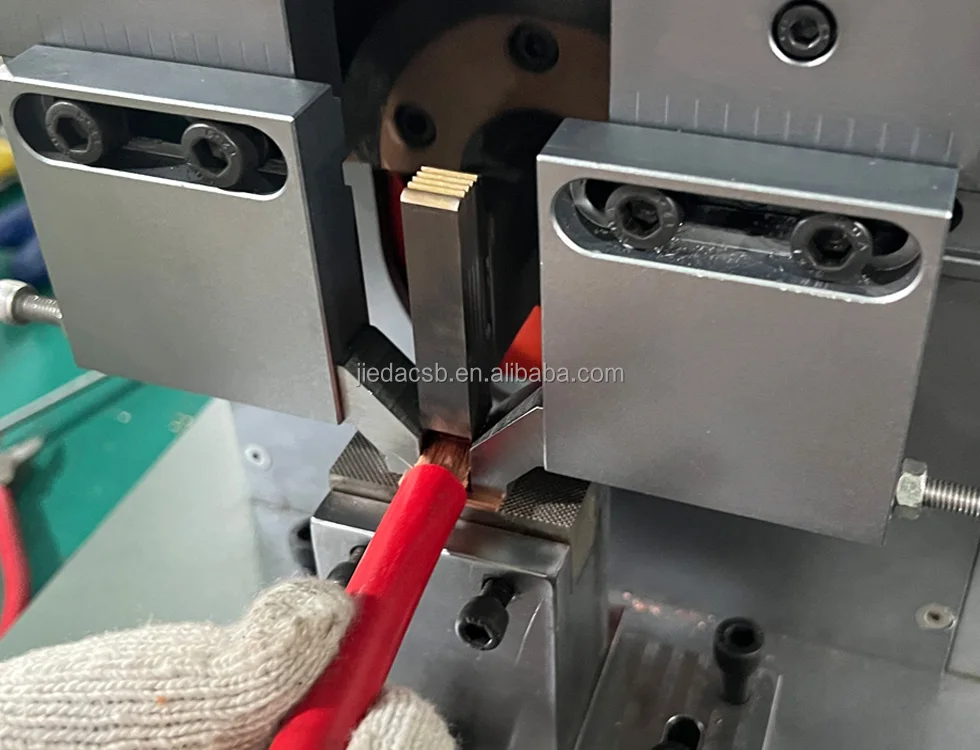

Power / energy storage battery cells Battery collector Battery modules Solar panels Electromagnetic coils Airbag triggers Capacitors Lighting equipment Heat sinks Wires Terminals Transformers Thermal sensors Contactors Switches Motors Relays Heatsinks

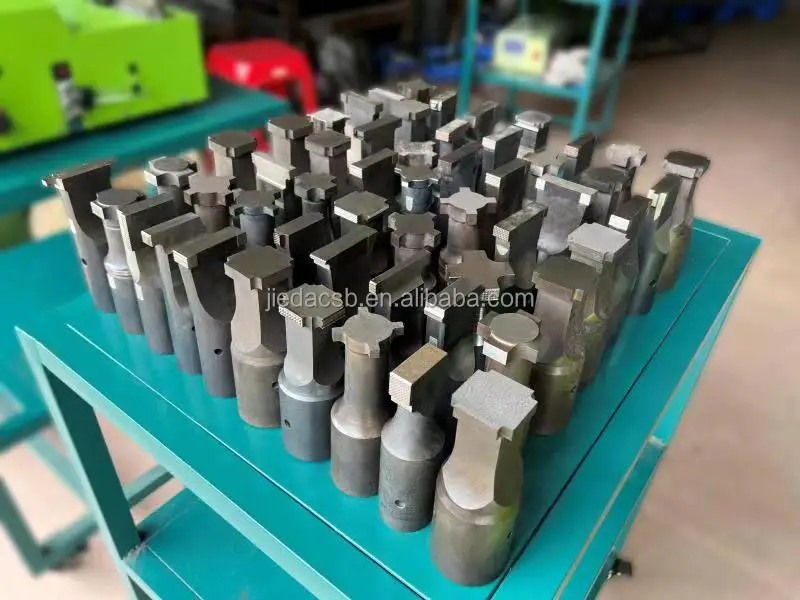

All kinds of ultrasonic metal welding upper and lower molds, frequency 15-40KHz.

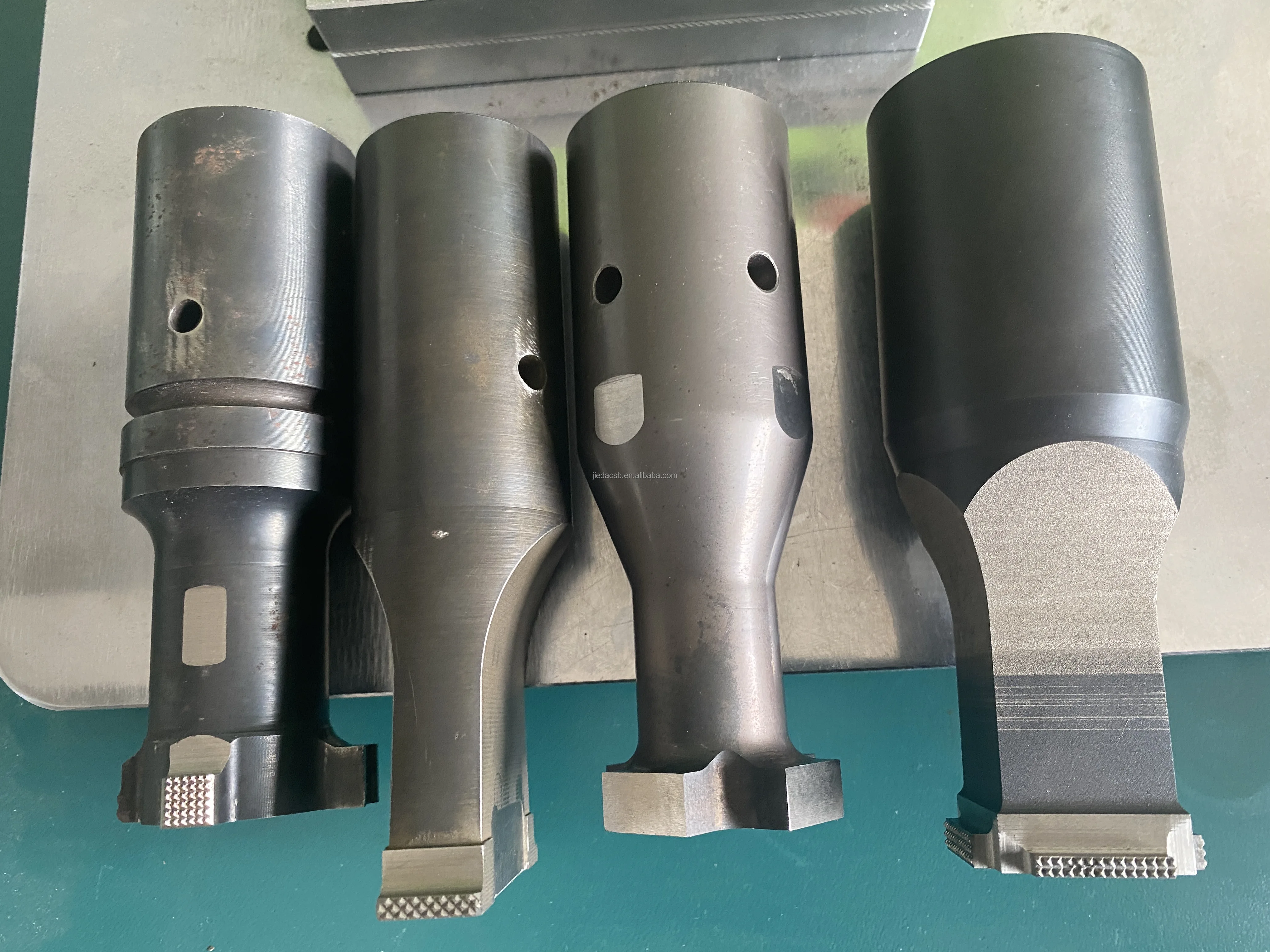

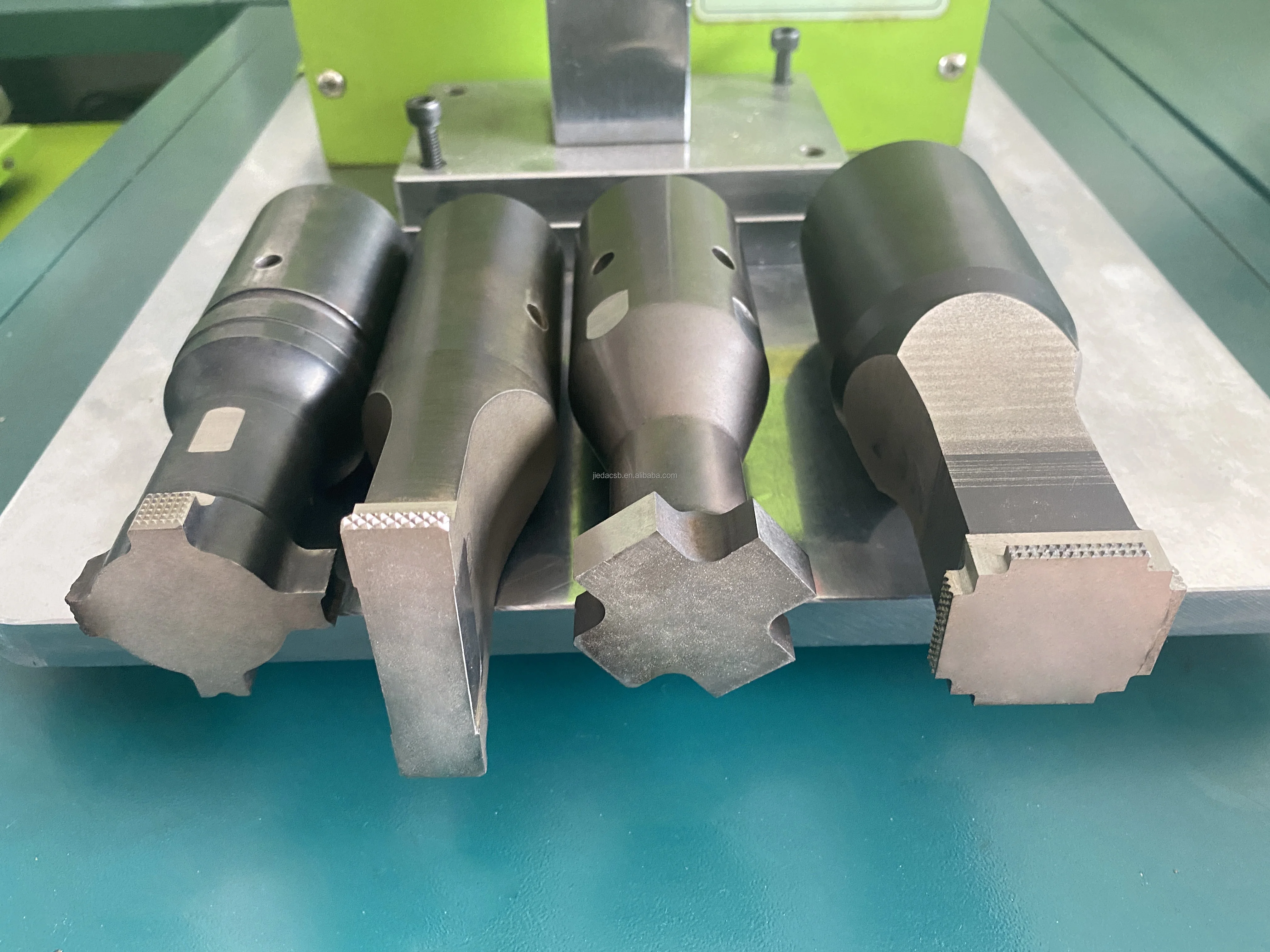

Support weld head customization: rivet point, mesh point, cross weld head can be customized according to the size of welded products and welding requirements.
Support weld head customization: rivet point, mesh point, cross weld head can be customized according to the size of welded products and welding requirements.
