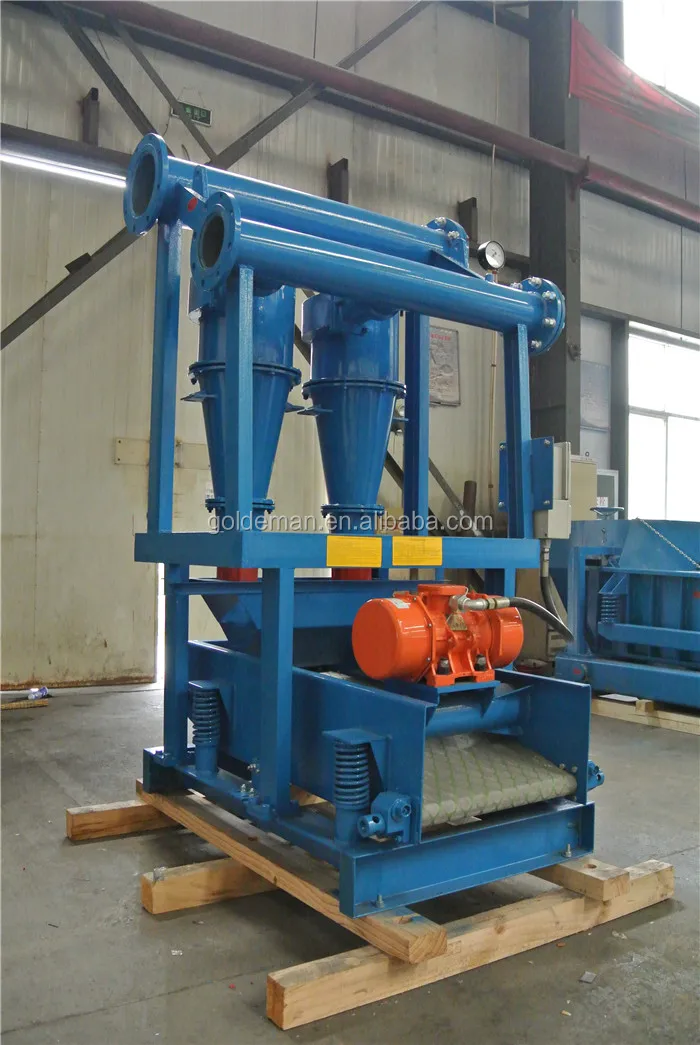

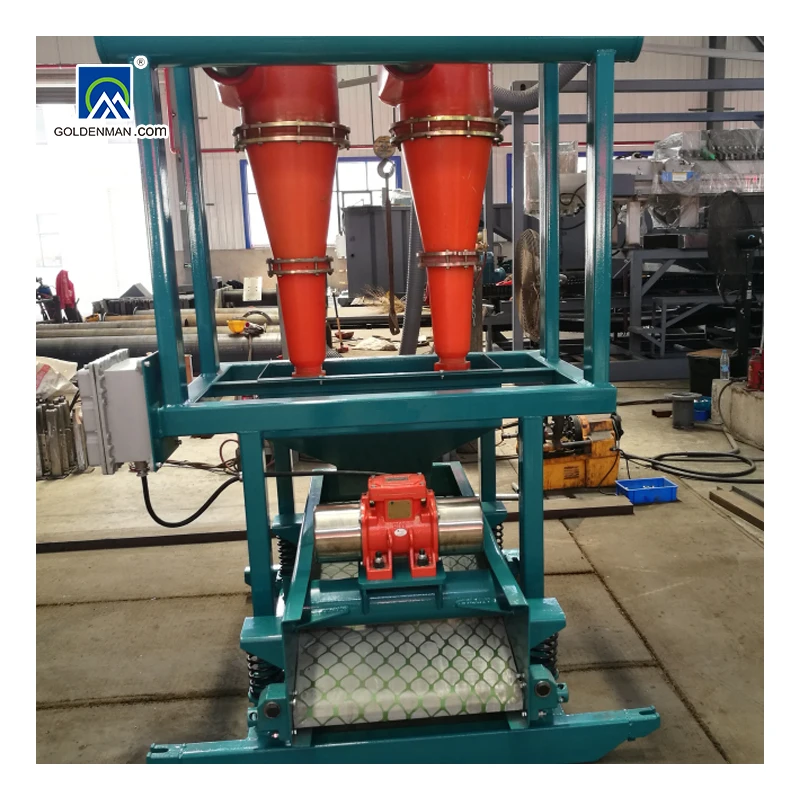

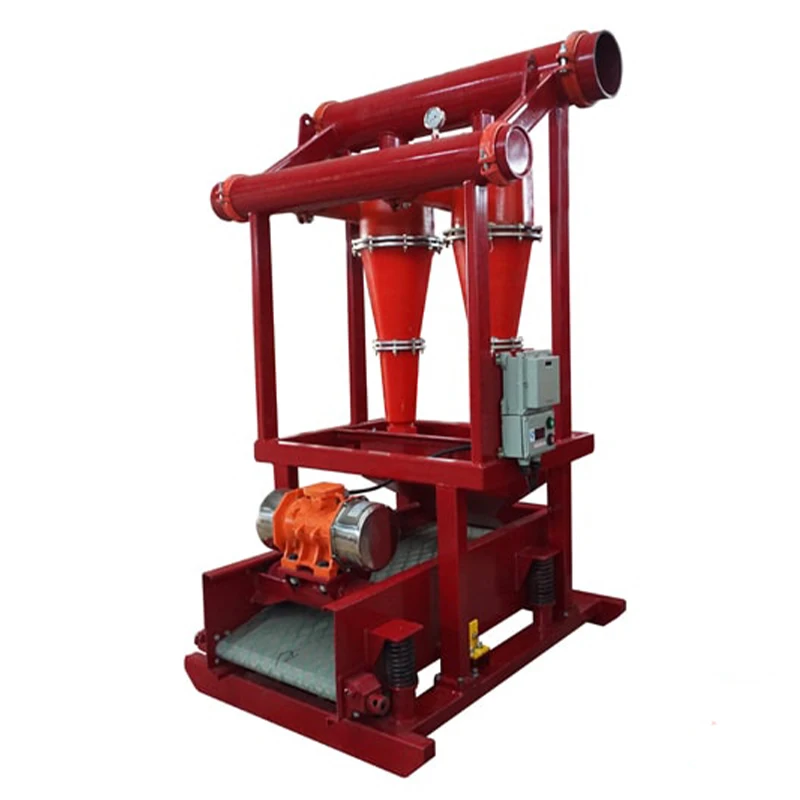

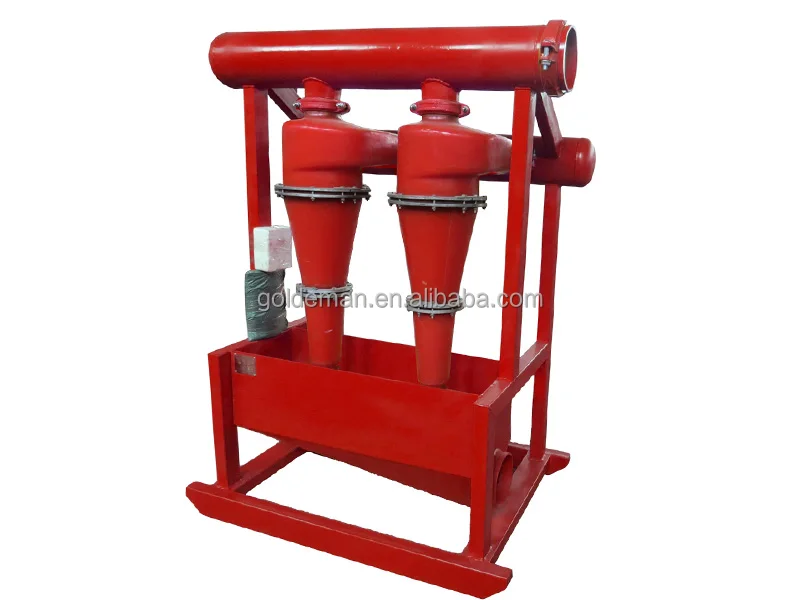

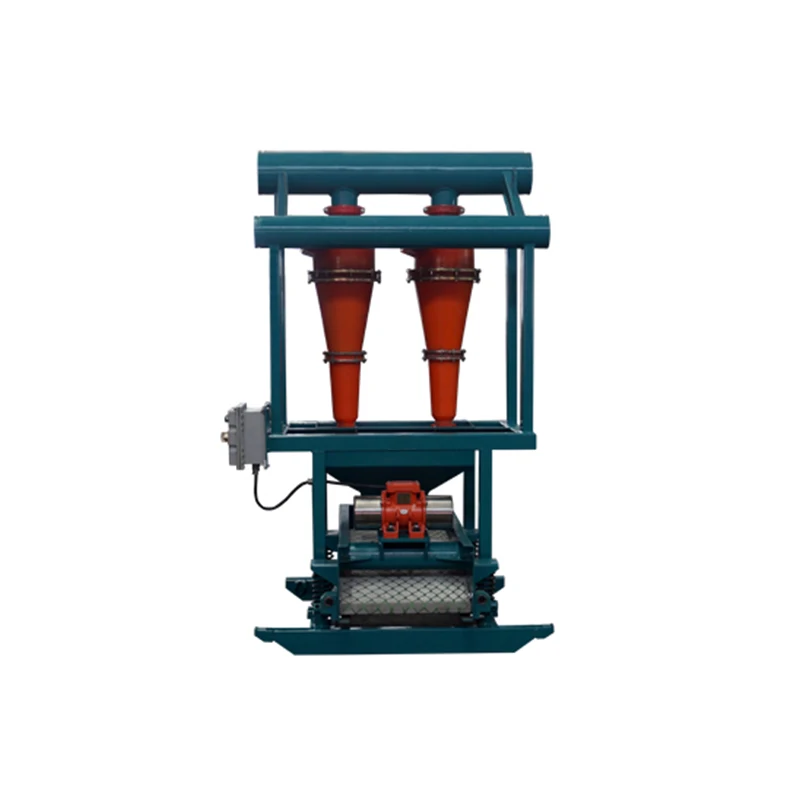

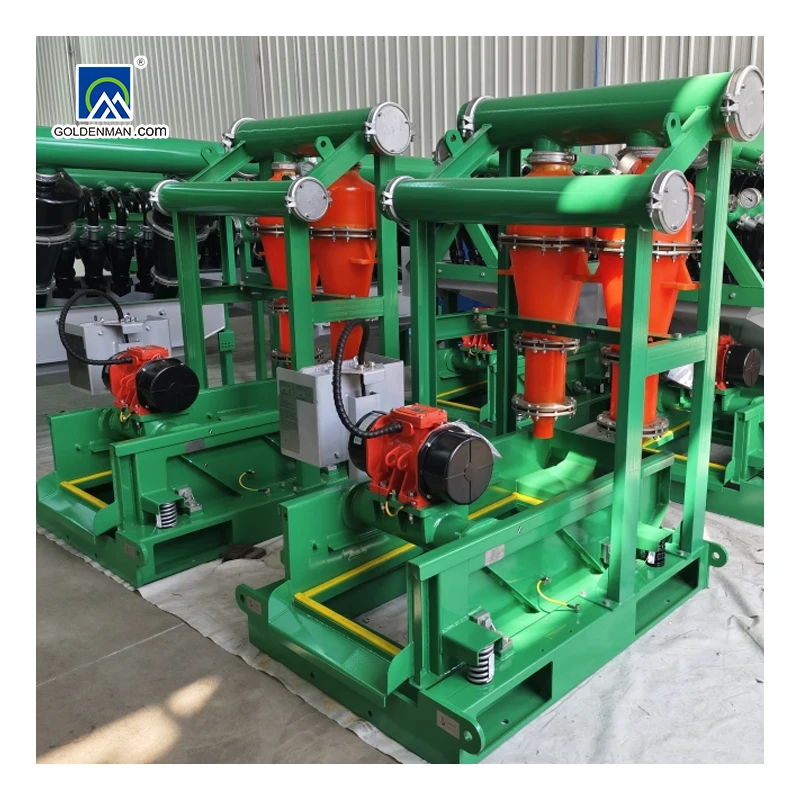

API SWACO Used Hydrocyclone/Desander Cyclone Oil Field Equipment Core Pump Engine Bearing Gear for Drilling Operations

Product Overview

Description

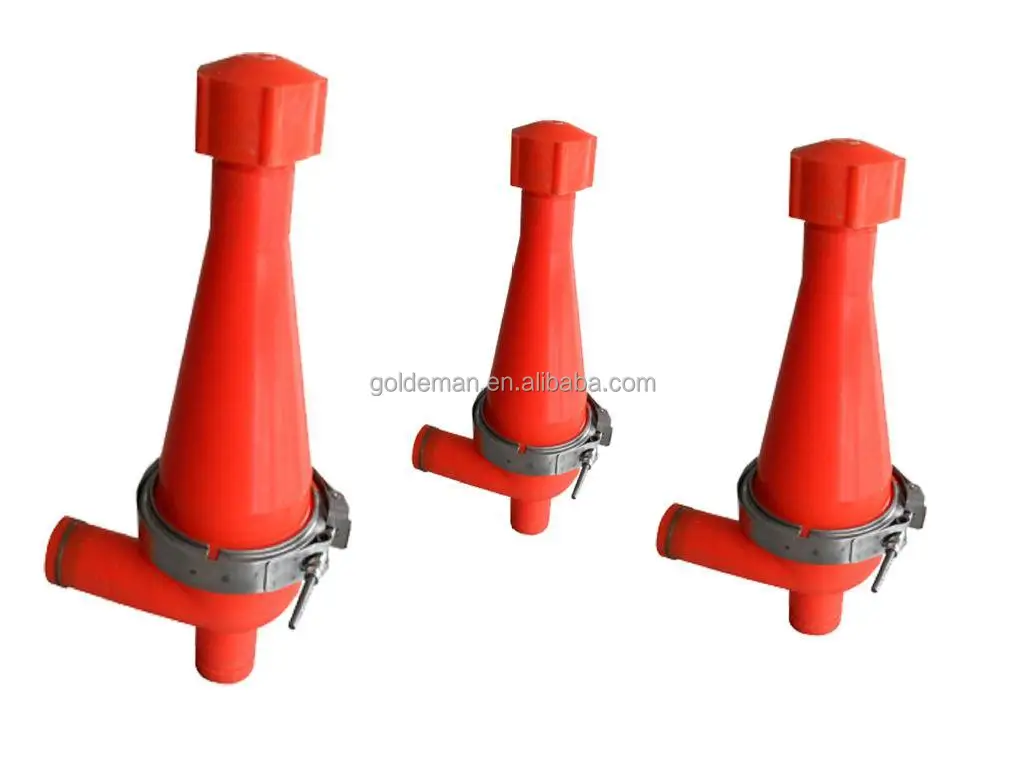

Structural features: The upper part of the Cyclone Desander is cylindrical, the lower part is conical, the center of the cylinder is inserted into a overflow pipe, and the upper part has a tangential tube.



Working principle: The Cyclone Desander is to push the mixture into the cyclone with a certain pressure and generate high-speed rotation inside the cyclone.Mixture quality materials in the role of spiral downward movement, in the cone mouth eduction, lighter material quality, spiral to the centre by hydrocyclone, a vortex from the overflow mouth eduction, so as to achieve the purpose of the separation of two kinds of material.



Product use: Cyclone Desander has been applied in China for many years. Cyclone Desander is mainly used for classification of fine grain grade, pulp concentration and dewatering.





SPECIFICATION FOR HYDROCYCLONE
Specifications	Diameter(mm)	Inlet Pressure(MPa)	Capacity(m3/h)	Cut Size(μm)
FX 660	660	0.04-0.15	250-360	74-220
FX610	610	0.04-0.15	200-300	74-200
FX500	500	0.04-0.2	140-220	74-200
FX400	400	0.04-0.2	100-170	74-150
FX350	350	0.04-0.2	60-105	50-150
FX300	300	0.04-0.2	45-90	40-150
FX250	250	0.04-0.3	40-65	30-100
FX200	200	0.04-0.3	25-40	30-100
FX150	150	0.04-0.3	11-20	30-74
FX125	125	0.04-0.3	8-15	20-100
FX100	100	0.04-0.3	5-12	20-100
FX75	75	0.1-0.4	2-5	5-74
FX50	50	0.1-0.4	1.5-3	10-30
FX25	25	0.1-0.6	0.3-1	2-10
