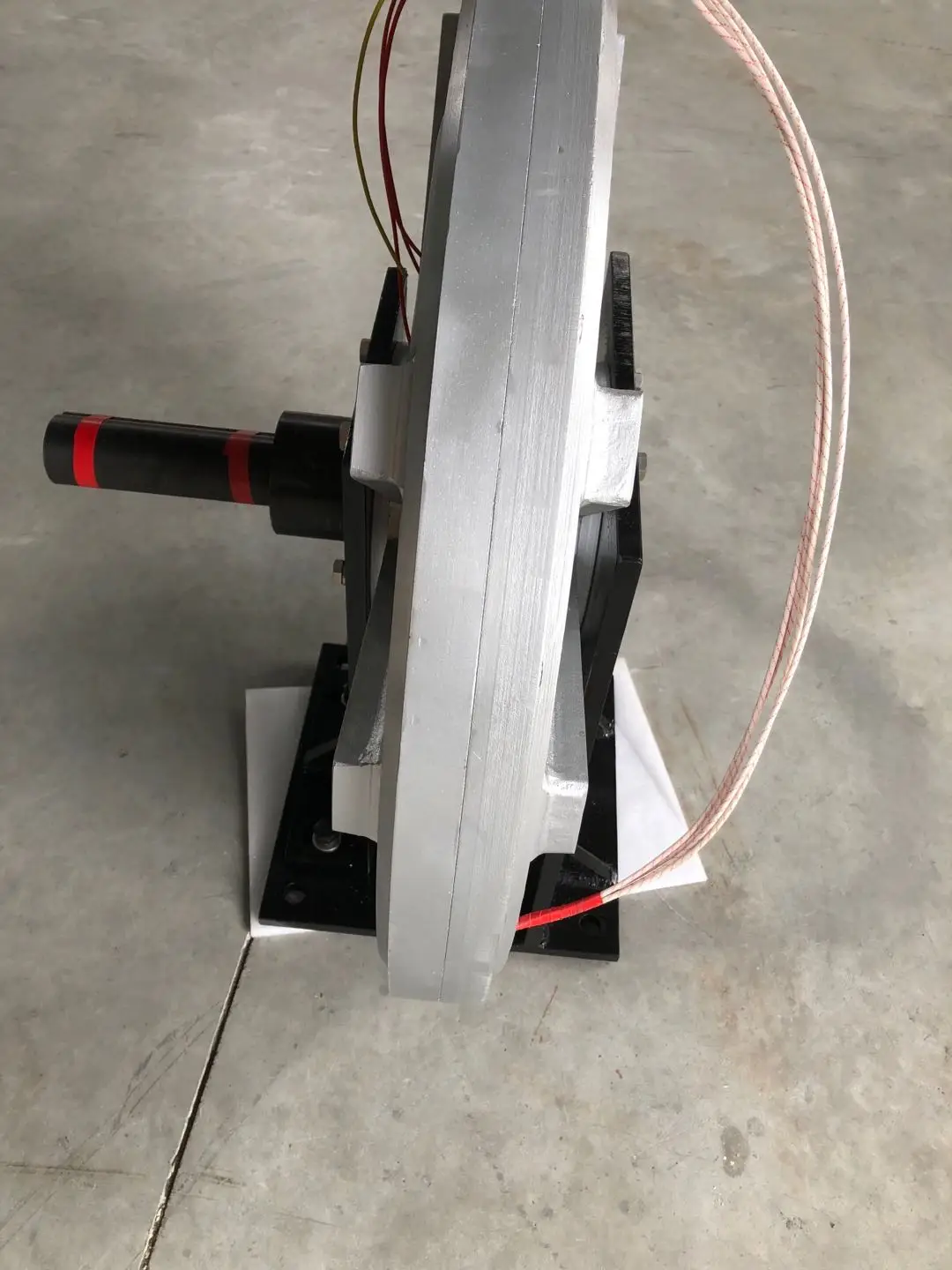

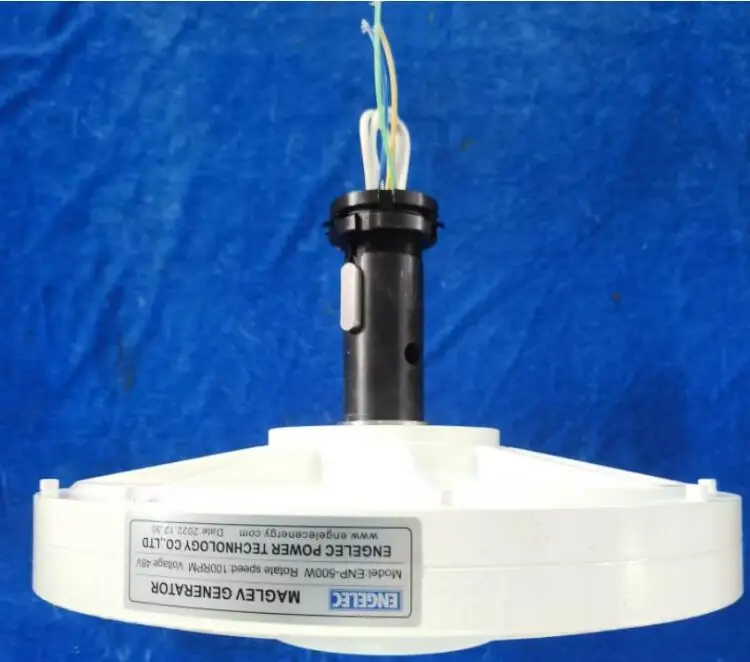

Axial Flux Maglev Generator Pmg Low 100 Rpm 2KW180R/3KW250R/5KW400R Coreless Permanent Magnet Generator
- Category: >>>
- Supplier: Yueqing Engelec Power Technology Co. Ltd.Yueqing Ltd.
Share on (1601265319170):
Product Overview
Description
Axial Flux Maglev Generator Pmg Low 100 Rpm 2KW180R/3KW250R/5KW400R Coreless Permanent Magnet Generator
Products Description
* Coreless, no hysteresis and cogging, no ion loss, low starting torque
* Axial magnetic field structure design is adopted to greatly improve the power density and torque volume ratio.
* The winding adopts unique precision winding process and new polymer material casting, which effectively reduces the copper loss of the winding
* The use of rare earth neodymium iron bring high-strength magnets. High power density and large output power.
* The generator adopts Class F Insulation, which has high protection level and strong overload capacity.
* Cast aluminum alloy housing and built-in compact structure make lighter weight and better stability
* The winding adopts unique precision winding process and new polymer material casting, which effectively reduces the copper loss of the winding
* The use of rare earth neodymium iron bring high-strength magnets. High power density and large output power.
* The generator adopts Class F Insulation, which has high protection level and strong overload capacity.
* Cast aluminum alloy housing and built-in compact structure make lighter weight and better stability
Outer Rotor
Inner Rotor
Product Paramenters
Generator Type | ENM-2K-180R | ENM-3K-250R | ENM-5K-400R | ENM-6K-500R | |||
Structure | Outer rotor/Inner rotor | ||||||
Rated Power | 2000W | 3000W | 5000W | 6000W | |||
Rated Speed | 180RPM | 250RPM | 400RPM | 500RPM | |||
Rectified Rated Voltage | 48V-220V | 48V-400V | 96V-400V | 96V-400V | |||
Start Torque | ＜0.1Nm | ||||||
Rated Torque | 117.9Nm | 127.33Nm | 132.64Nm | 127.33Nm | |||
Generator Diamter | 452MM | ||||||
Weight | 47KG | ||||||
Efficiency | ＞90% | ||||||
Winding Type | Y | ||||||
Insulation Resistance | 500Mohm Min(500V DC) | ||||||
Leakage current | <1 mA | ||||||
Insulation | F class | ||||||
Working Temperature Rise | ≤70°C | ||||||
Working Temperature | -40°C — 120°C | ||||||
Generator | AC 3 phase rare earth maglev generator | ||||||
Stator Type | Coreless | ||||||
Housing Material | Aluminum Alloy | ||||||
Shaft Material | Carbon Steel/Stainless Steel | ||||||
Bearing | NSK or SKF | ||||||
Design Lifetime | >20 years | ||||||

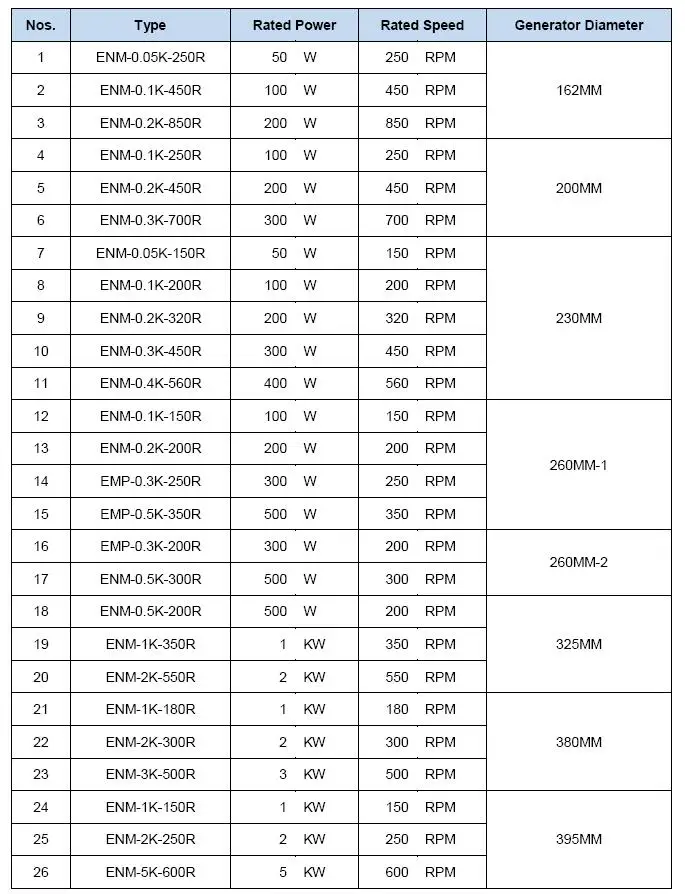

Below the catalogue of the types we have, pls contact us for more information.
Application

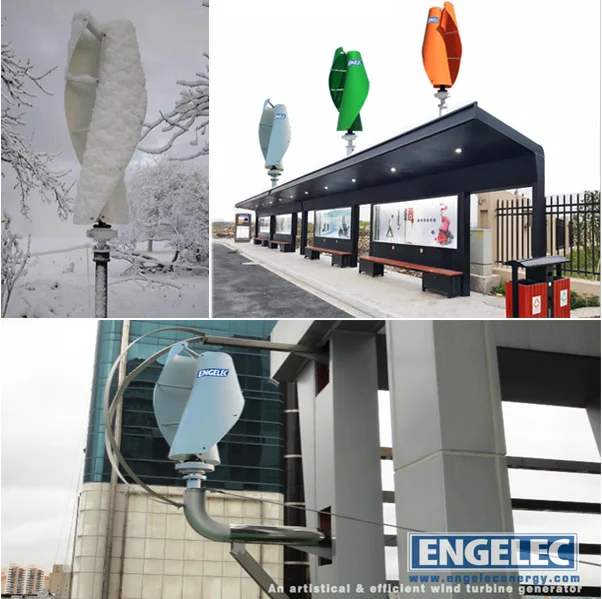

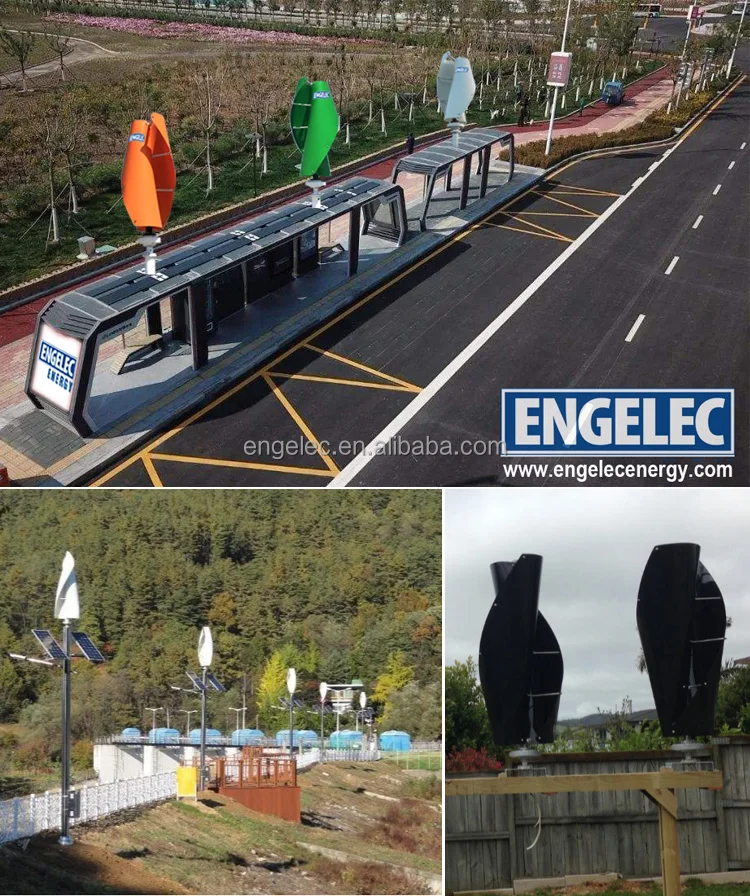

Used for vertical axis wind turbine

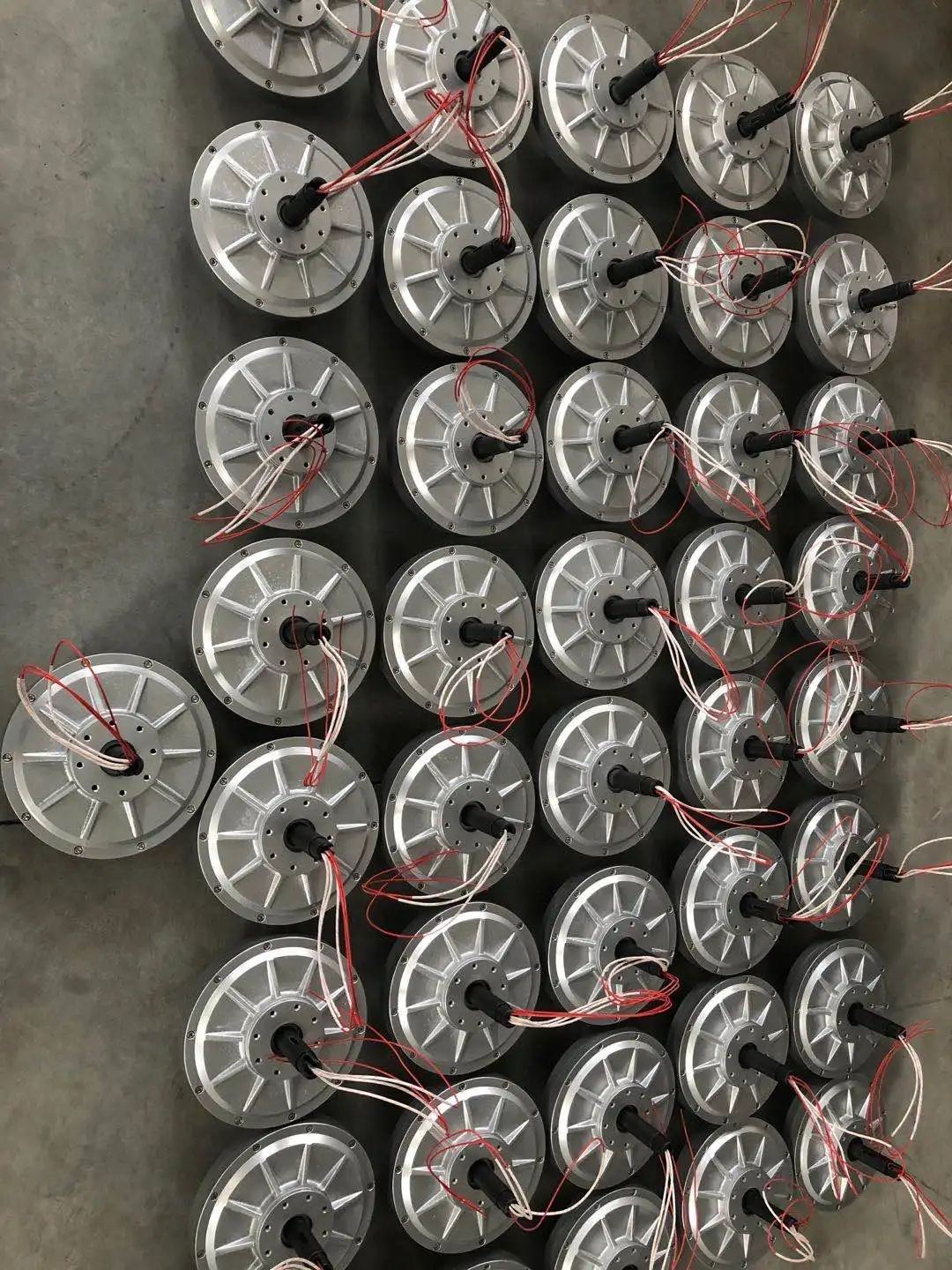

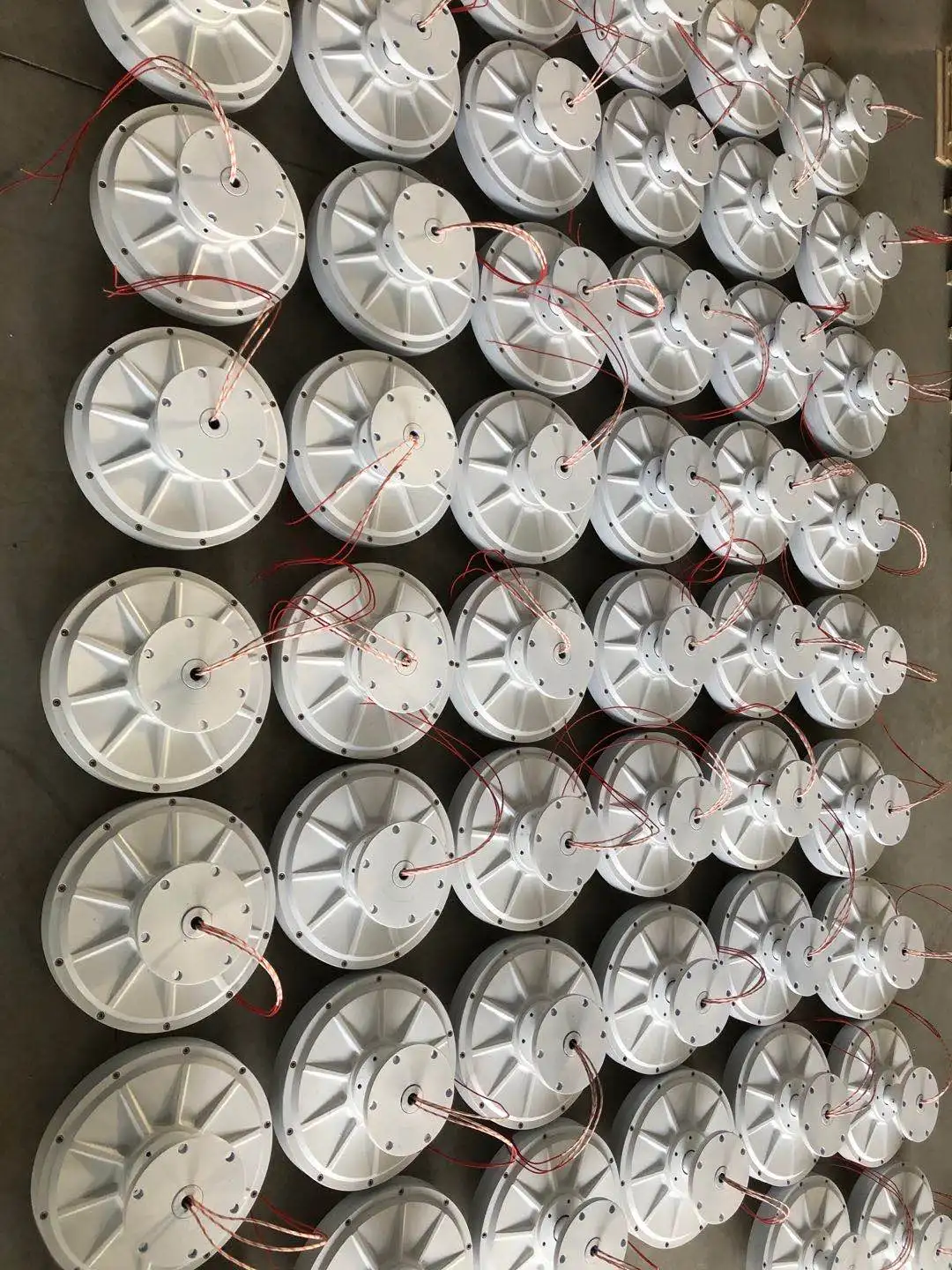

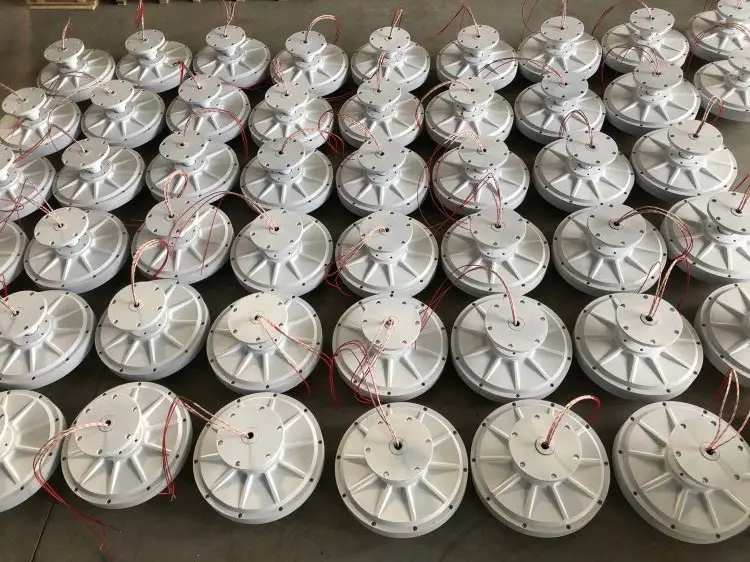

Factory Show

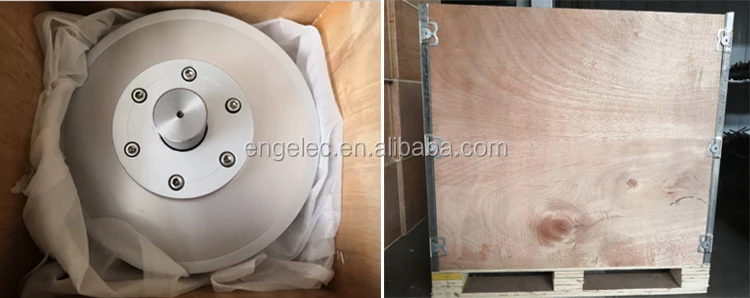

Packing
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 1-3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Sample is available ,but sample should be paid in advance.
Q7. How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 1-3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Sample is available ,but sample should be paid in advance.
Q7. How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
