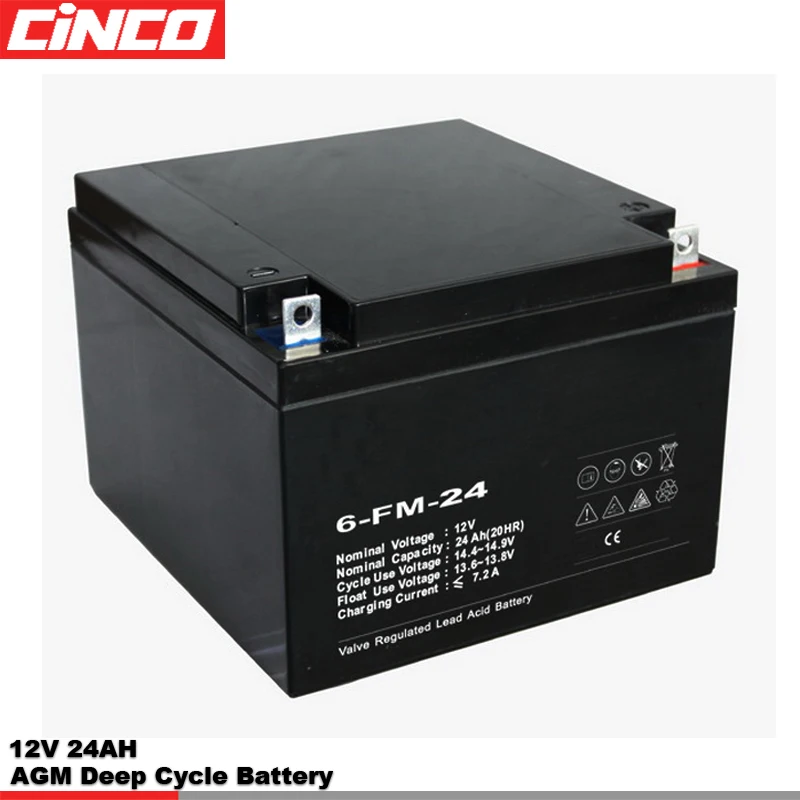

12V 24AH mini portable solar battery Deep Cycle Lead Acid AGM battery for solar system backup battery
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (1601265344069):
Product Overview
Description
AGM Solar Battery
AGM series battery is specially designed for solar pwer system, UPS system,emergency power and security system applications,Using thick plate and high corrosion resistance grid alloy,matching with high-impact AGM separator,the battery maintains high consistency for better performance and reliable standby service life
Application range: solar energy storage, solar Power system, wind energy systems, UPS, EPS, telecommunication /communication systems,electricity power systems etc.
Application range: solar energy storage, solar Power system, wind energy systems, UPS, EPS, telecommunication /communication systems,electricity power systems etc.
Products Description
2. Designed floating service life:10 years at 25℃.
3.Stable performance and small internal resistance,good high performance for the recycle use.
4. Thickened Sn alloy plate and the grid with corrosion resistance.
5. Self-discharge rate: ≤3%/month.
3.Stable performance and small internal resistance,good high performance for the recycle use.
4. Thickened Sn alloy plate and the grid with corrosion resistance.
5. Self-discharge rate: ≤3%/month.
Product Paramenters

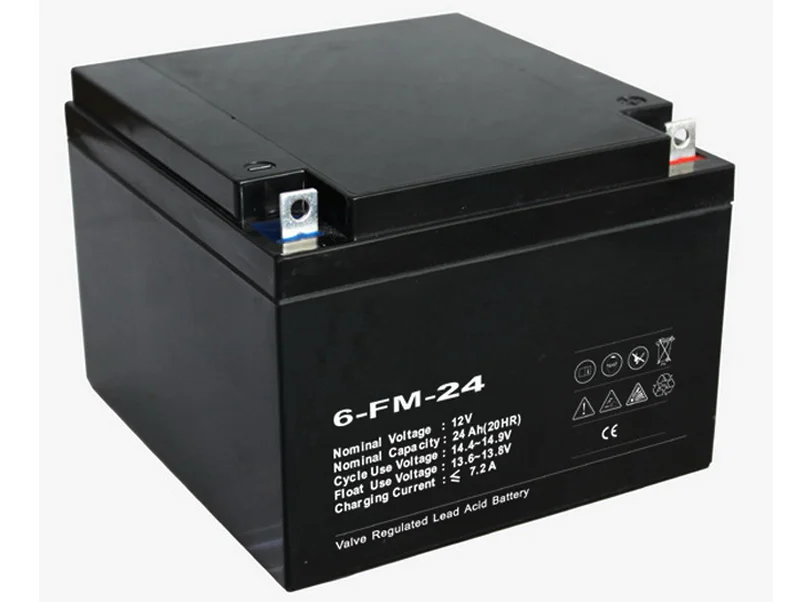

Model | 6-FM-24 | |||||||
Nominal Voltage | 12V | |||||||
Nominal Capacity | 24Ah | |||||||
Design life | 5years | |||||||
Dimension | Length | 176mm | ||||||
Width | 167mm | |||||||
Height | 125mm | |||||||
Total Height | 125mm | |||||||
Reference weight | 7.2kg | |||||||
Charateristics | ||||||||
Rated Capacity | 20Hour rate | 24AH | ||||||
3Hour rate | 18.7AH | |||||||
1Hour rate | 15.8AH | |||||||
Interal resistance(Full charged at 25℃) | 16mΩ | |||||||
Self-discharge (at 25℃.) | 3％ of the capacity per mont | |||||||
Discharge Temperature | -20～50℃ | |||||||
Charge Temperature | -20～50℃ | |||||||
Storage Temperature | -20～50℃ | |||||||
Cyclic charging voltage (at 25℃) | 14.4～15.0V | |||||||
Initinal current (at 25℃) | 6A | |||||||
Temperature Compensation | -30mV/℃ | |||||||
Float Use (at 25℃) | 13.5-13.8V | |||||||
Temperature Compensation (at 25℃) | -20mV/℃ | |||||||
Dimension | ||||||||
Rate Capacity | Lengh(mm) | Width(mm) | Height(mm) | Total Height(mm) | ||||
AGM 12V 38AH | 197 | 165 | 170 | 170 | ||||
AGM 12V 45AH | 197 | 165 | 170 | 170 | ||||
AGM 12V 50AH | 229 | 138 | 212 | 215 | ||||
AGM 12V 65AH | 350 | 166 | 175 | 175 | ||||
AGM 12V 70AH | 260 | 168 | 212 | 215 | ||||

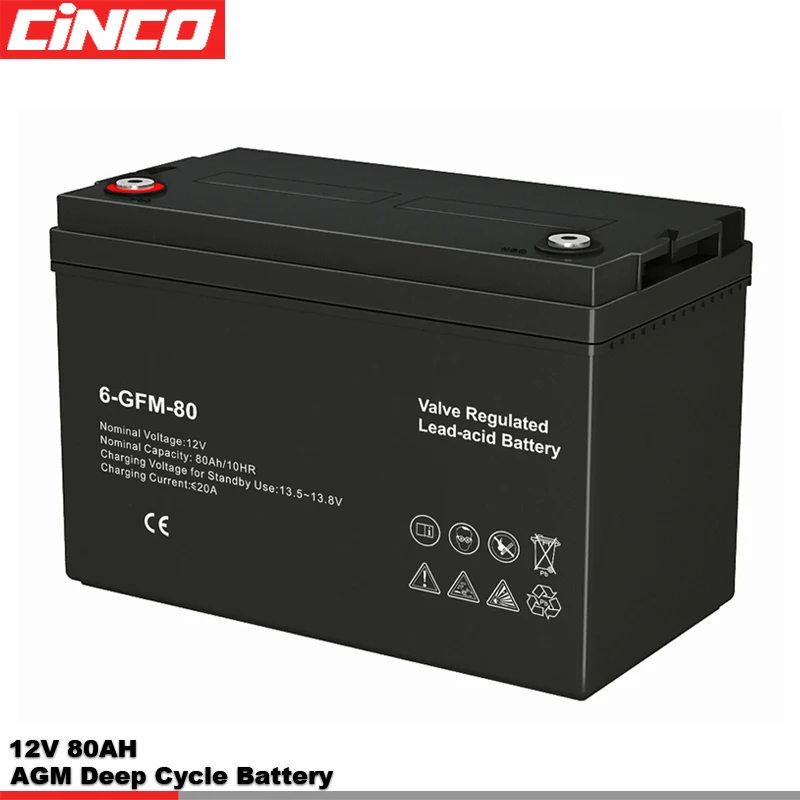

AGM 12V 80AH | 260 | 168 | 212 | 215 | ||||
AGM 12V 90AH | 330 | 171 | 216 | 219 | ||||
AGM 12V 100AH | 330 | 171 | 216 | 219 | ||||
AGM 12V 120AH | 407 | 170 | 220 | 233 | ||||
AGM 12V 150AH | 483 | 170 | 241 | 241 | ||||

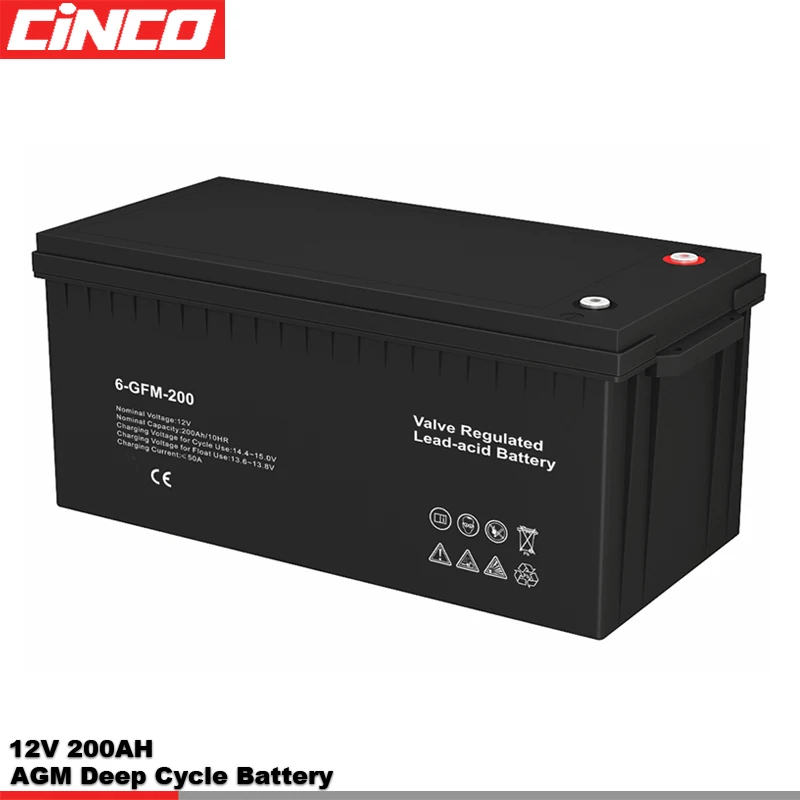

AGM 12V 200AH | 522 | 240 | 219 | 222 | ||||
AGM 12V 220AH | 522 | 240 | 219 | 222 | ||||
AGM 12V 250AH | 520 | 268 | 220 | 223 | ||||

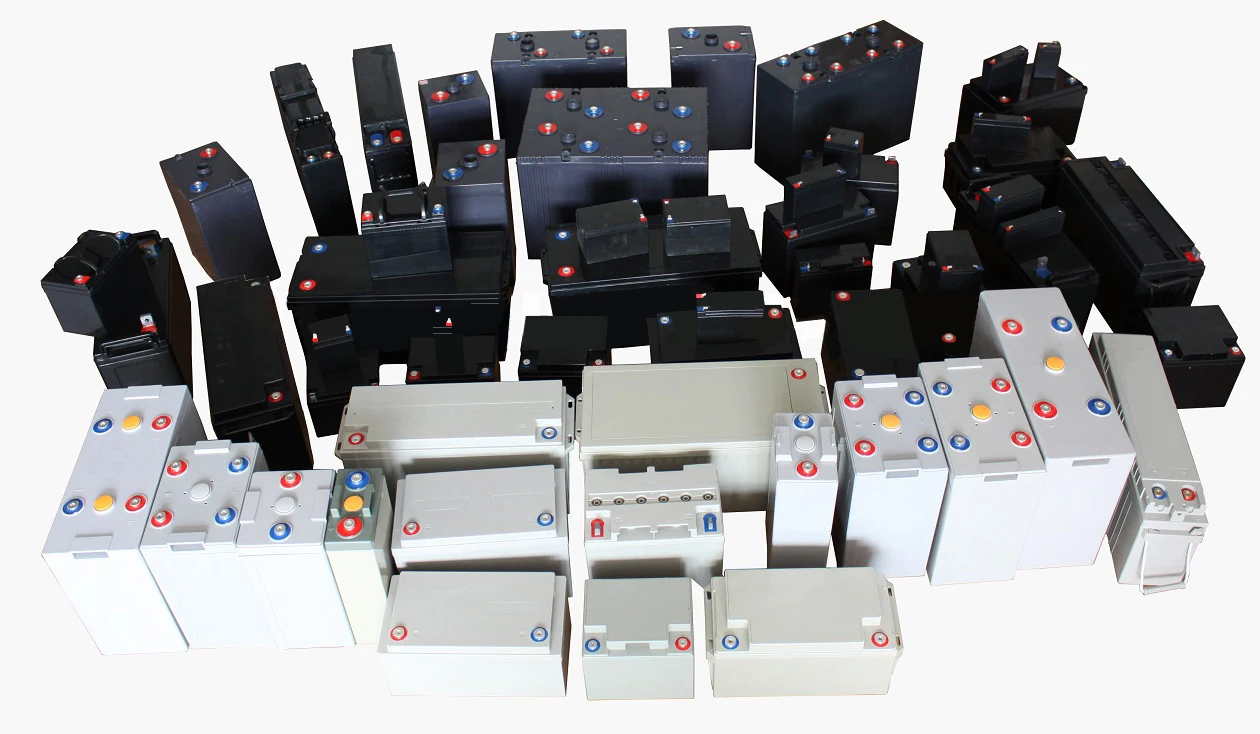

Details Images

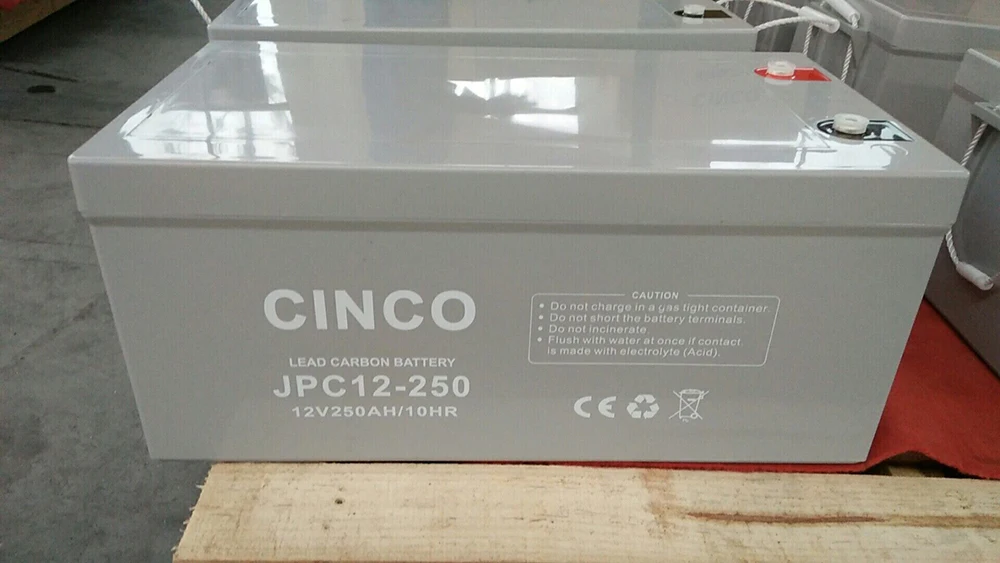

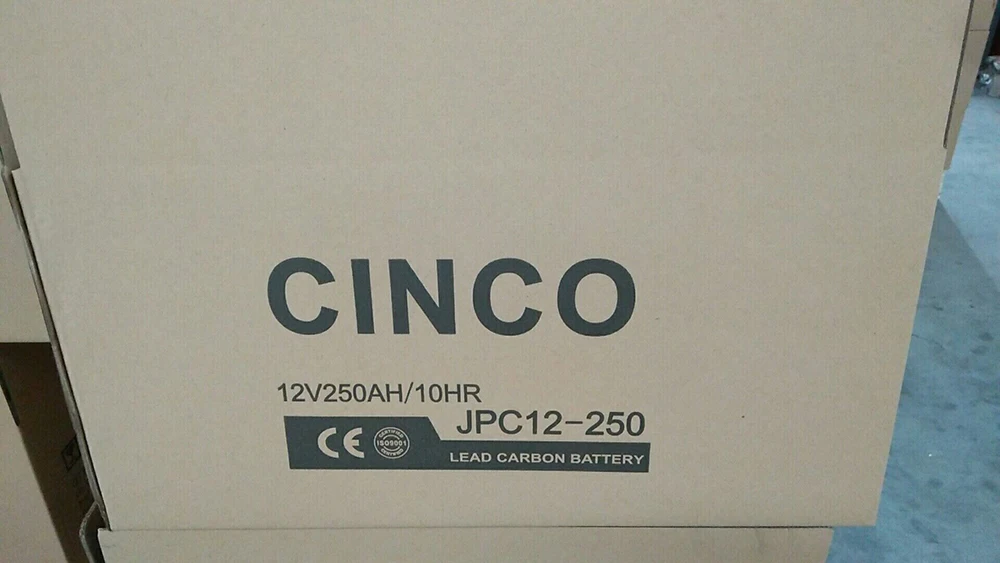

Product packaging
Customer Photos
Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System
Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System
USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station
Ukraine-On Grid Solar System
UK-Ground Solar Power Station
