3Micron PET Film 2000A Copper, Copper Clad Laminates
- Category: >>>
- Supplier: Shijiazhuang Dajia New Materials Technology Co. Ltd.
Share on (1601265366281):
Product Overview
Description
Product Description

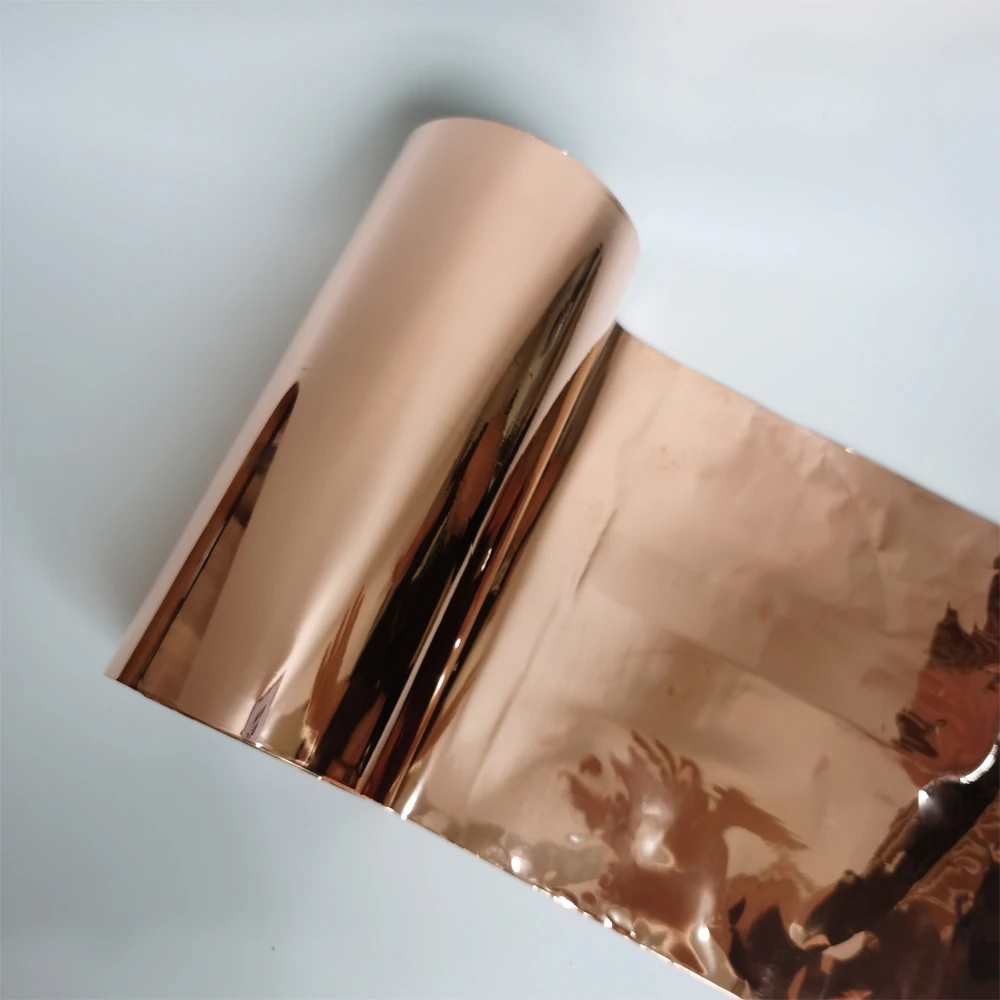

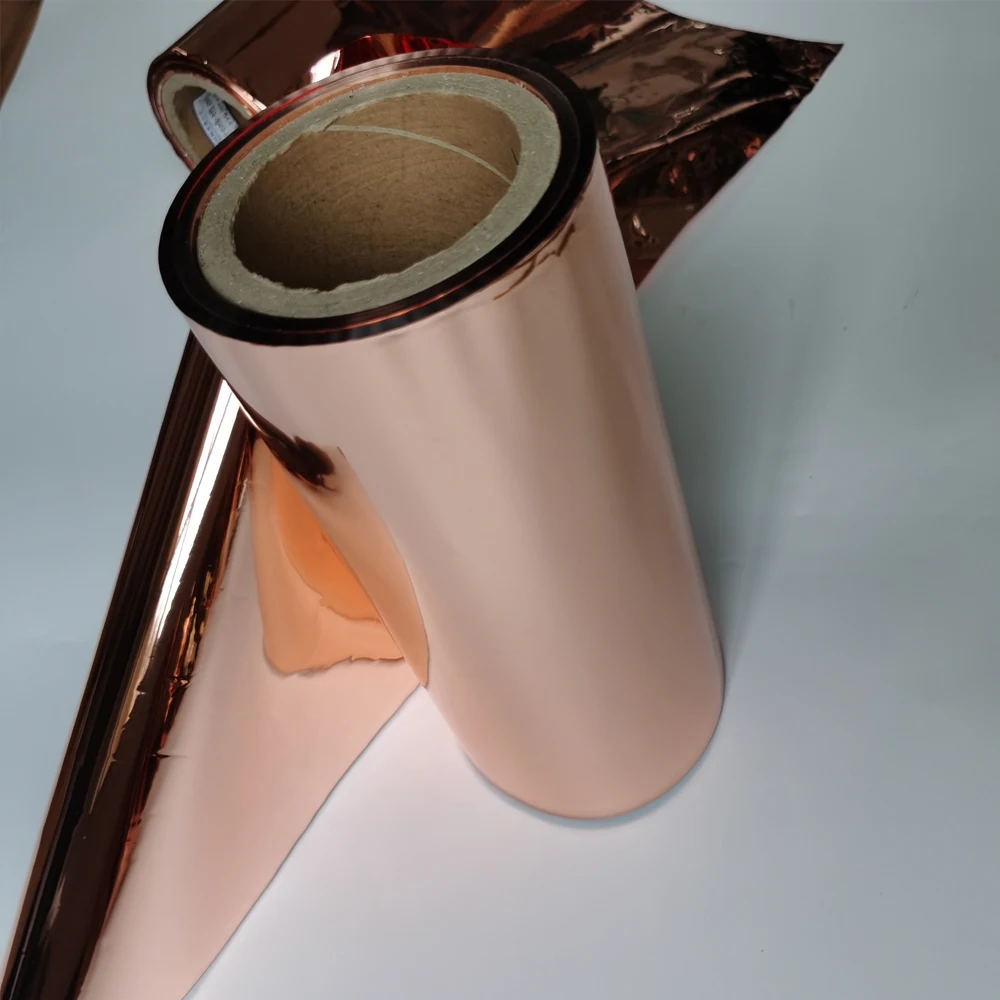

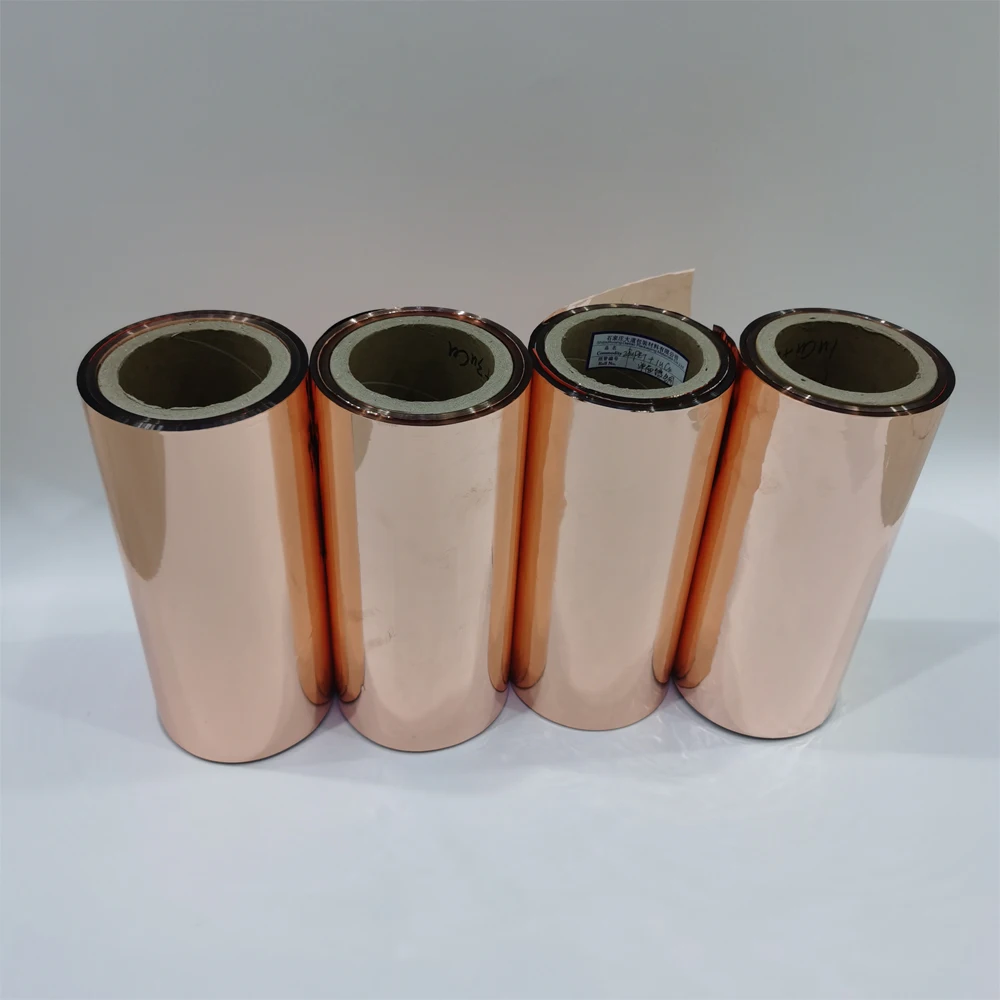

3Micron PET Film +2000A Copper, Copper Clad Laminates
3Micron PET Film +2000A Copper, Copper Clad Laminates is very thin and light. Our 3micron copper clad pet film laminates has excellent conductivity, and thermal conductivity. Excellent conductive pure copper clad PET mylar film laminates is very flexible, and it use magnetron sputter or evaporation coating to deposite the pure layer on the surface of the mylar film.
The copper clad pet film laminates has superior good electrical conductivity, so it is normally used in electric components and fluid collection. The copper side has low loss factor and low resistance, so it runs very well when it collects and conduct electric current, used in devices such as batteries, electric motors, and fuel cells as a result.
The thickness of copper layer and the base film is adjustable on your request. OEM sample is available.
Classification of copper coated pp Film
The copper come ED CU and RA CU. The final FCCL come in with adhesive and without adhesive two type.
Product Part Number System | Thickness of the materials | ||
Bopp | Polypropylene | 12 micron, 23 micron, 25 micron, etc all available | |
PET | Polyester Film | 3μm, 6μm,25μm,50μm,75μm100μm125μm (1mil ,2mils,3mils ,4mils ,5mils) | |
PI | Polyimide Film | 7.5μm, 12.5 μm, 25 μm, 50 μm, 75 μm, 100 μm, 125 μm, 250 μm, etc | |
ED CU | Electrolytic copper | 1μm ,2μm , 3μm , 6μm, etc. | |
RA CU | Rolled copper | 1μm ,2μm , 3μm , 6μm, 12 μm, 18 μm , 24 μm, 36 μm, etc | |
AD | Modified epoxy adhesive | Transparent or White 12.5μm -20.3μm | |
Structure | (D) Single Side FCCL ,(D) Double Side FCCL | ||
Copper Clad Laminates FCCL Application
Excellent conductivity
Thermal management
EMI Shielding film
RF Shielding Film
Thermal management
EMI Shielding film
RF Shielding Film
CCL
Low resistance, low loss factor
Flexible PCB
Detailed Images
Quality zipper
Elastic band for convenient waistline adjustment
Superior polyester material
