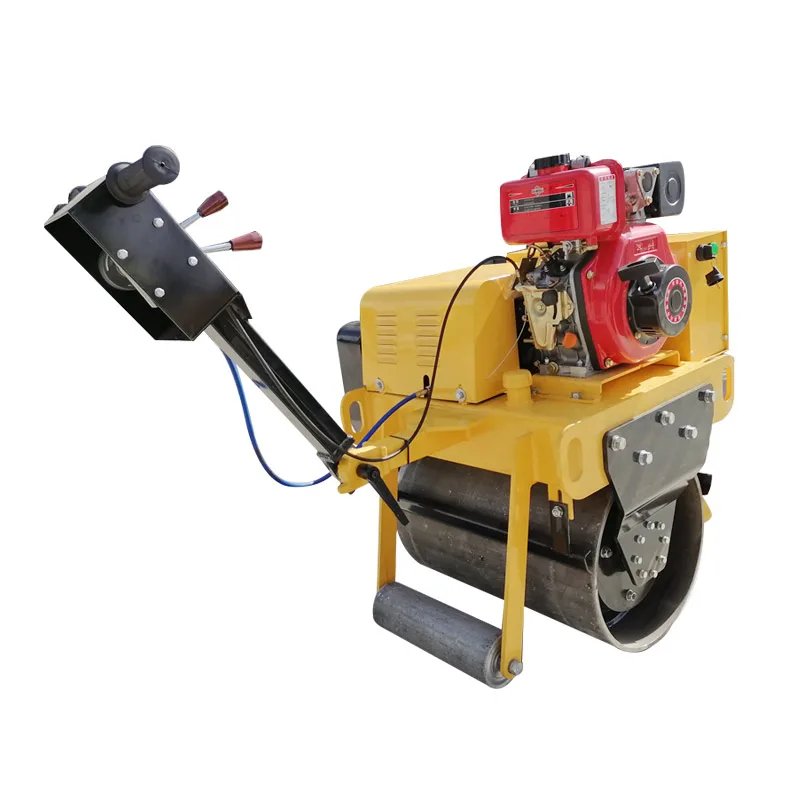

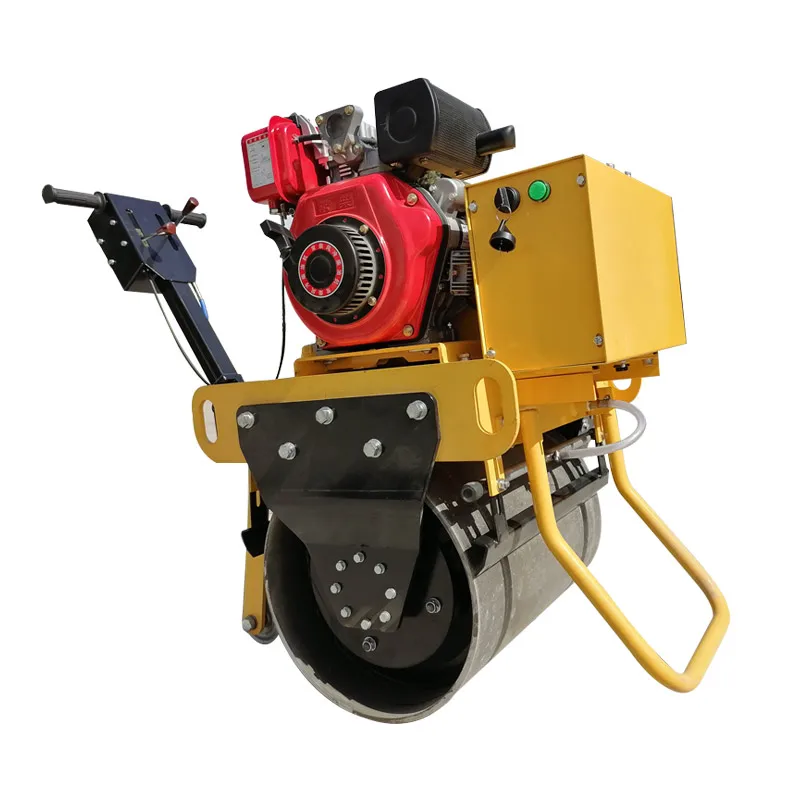

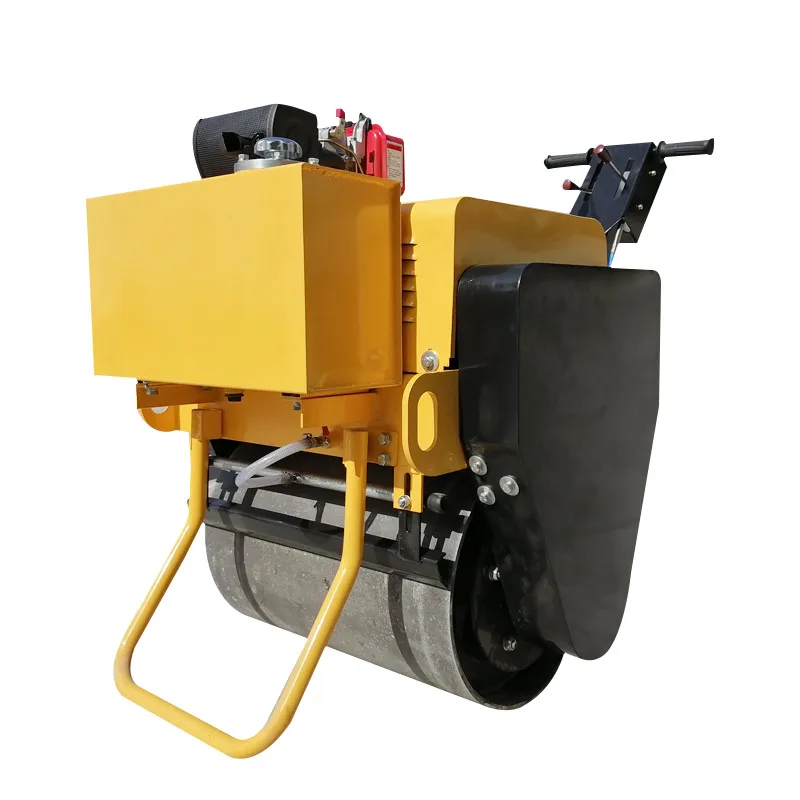

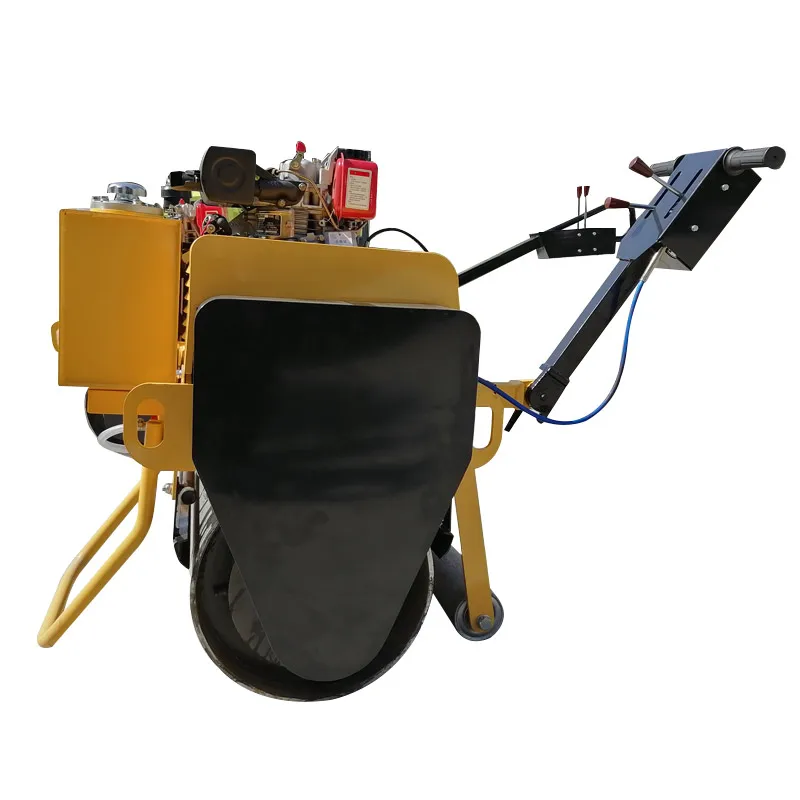

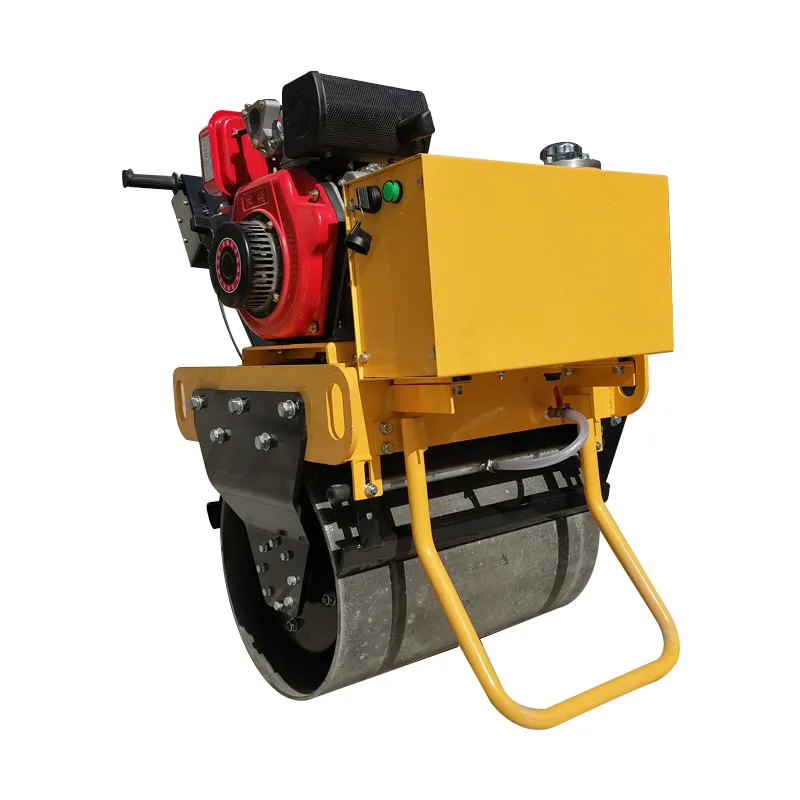

small hand roller compactor vibratory road roller double drum vibrating road roller
- Category: >>>
- Supplier: Yantai Chonho Machinery Technology Co. Ltd.
Share on (1601265376265):
Product Overview
Description
Product Introduction
Walk-Behind Roller | ||||||
Model | CH-30G | CH-30D | ||||

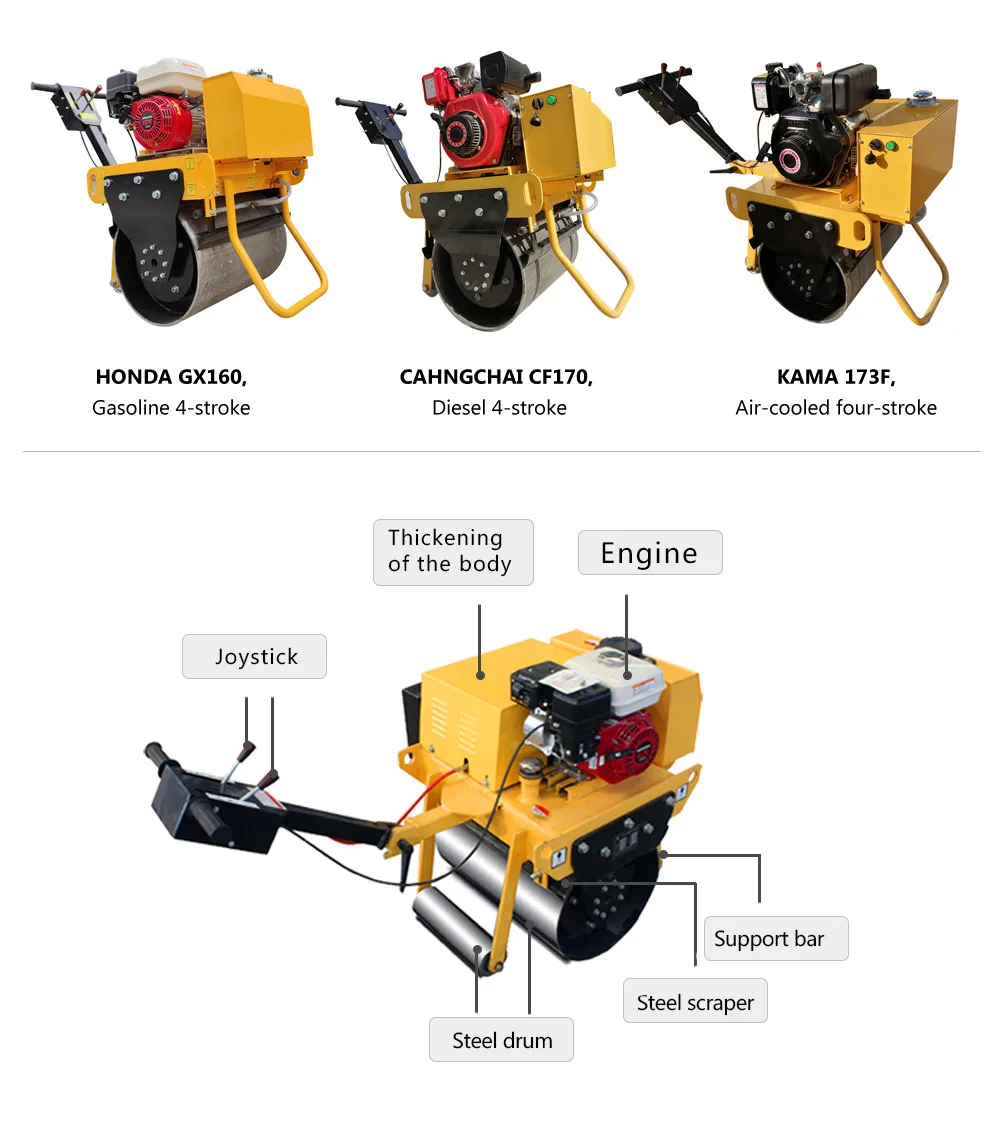

Engine Option | HONDA GX160,Gasoline 4-stroke | CAHNGCHAI CF170, Diesel 4-stroke | KAMA 173F,Air-cooled four-stroke | |||
Power | 4.1kw,5.5hp | 3.1kw, 4.2hp | 3.7kw,5hp | |||
Operation Weight | 330kg | |||||
Static Line Load | 45n/cm | |||||
Steel Wheel Width | 600mm | |||||
Steel Wheel Diameter | 426mm | |||||
Walking Speed | 0-3.8km/h | |||||
Climbing Ability | 30% | |||||
Driving Type | Bidirectional hydraulic, chain drive | |||||
Vibrating Steel Wheel | Single wheel | |||||
Vibrating Frequency | 70Hz | |||||
Excitation Force | 20kn | |||||
Spraying Model | Gravity sprinkling | |||||
Water Tank Volume | 22L | |||||
Fuel Tank Volume | 3.6L | 1.9L | 2.5L | |||
Lubricating Oil Volume | 0.6L | 0.75L | 0.75L | |||
Hydraulic Oil Volume | 15L | 12L | 12L | |||
