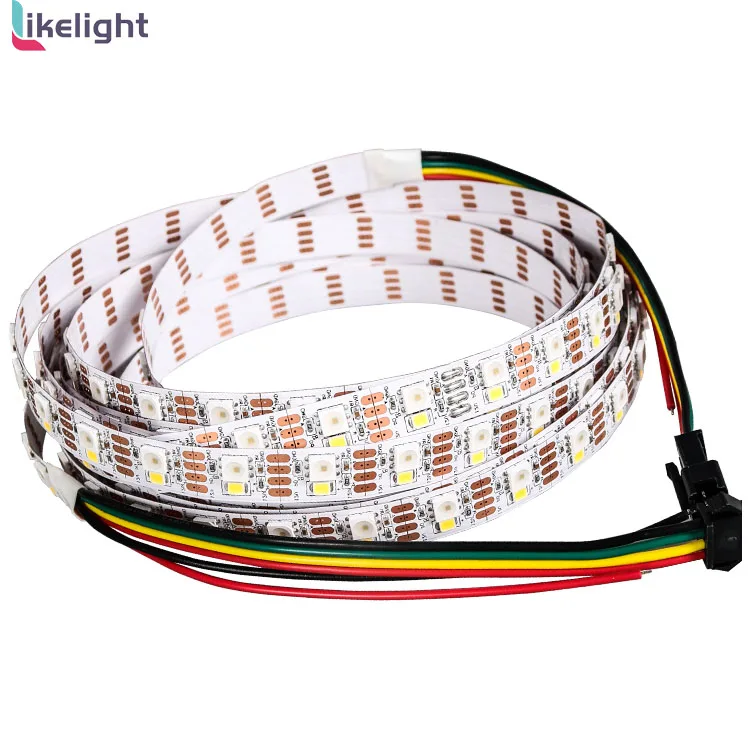

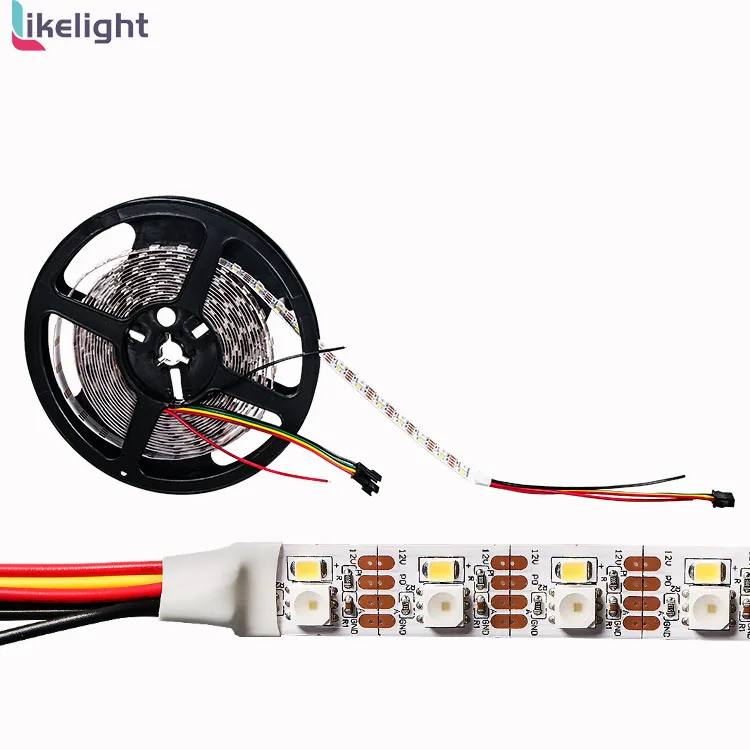

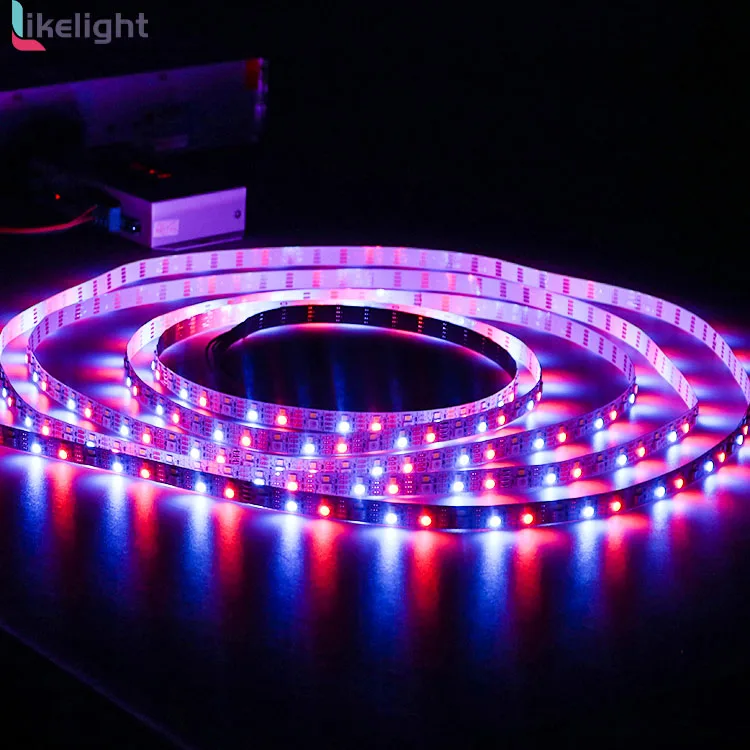

Like Light Smart LED strips DMX digital RGB W full color DC12V SMD5050 60leds SMD2835 LED Strip lights indoor or outdoor use

Share on (1601265383250):


Price:$14.00 - $15.50

Quantity:


Product Overview

Description



Product Description




P/N
L-S-DMX512-60-RGB+W
Emitting color
RGB+W
PCB Width
12mm
Voltage
DC12V
Power
9.6W/M
LED Qty

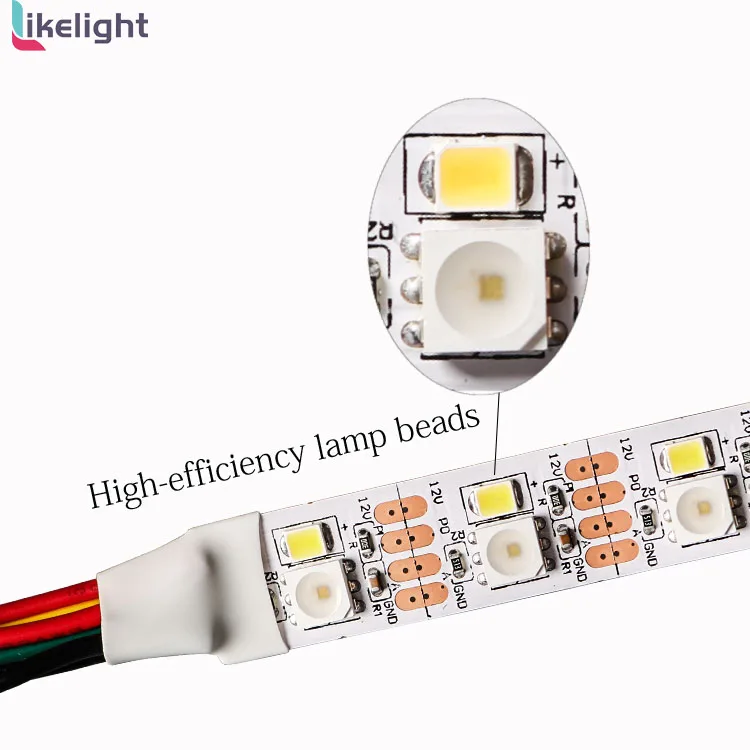

60leds/M SMD5050
IC Chip
DMX512
Length
5m/roll & custom
IP Grade
IP20/IP65/IP67


1. DC12V/24V programmable DMX RGB pixel strip.
2. For DC12V, 60 LEDs/m, 20 pixels/m, 3 LEDs control per section; For DC24V, 60 LEDs/m, 10 pixels/m, 6 LEDs control per section;

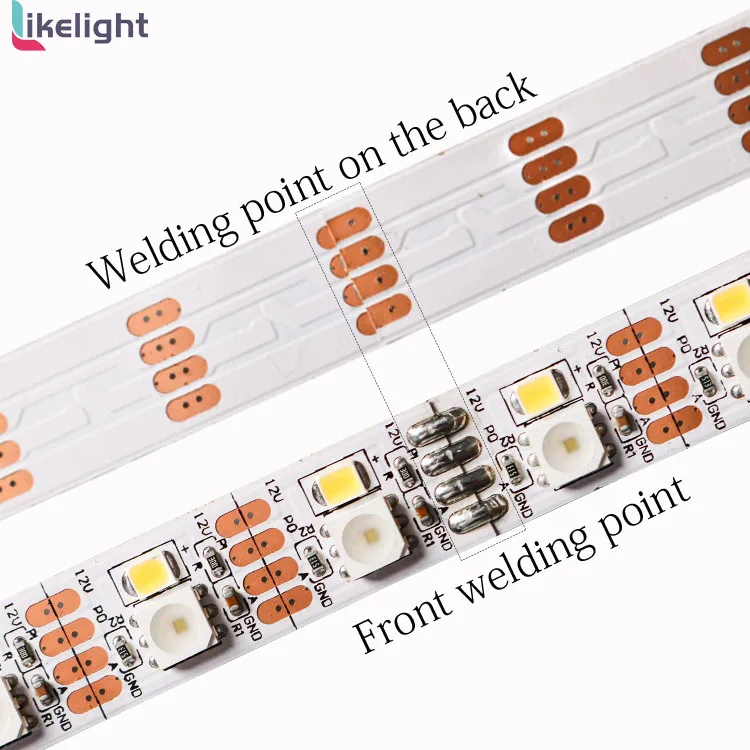

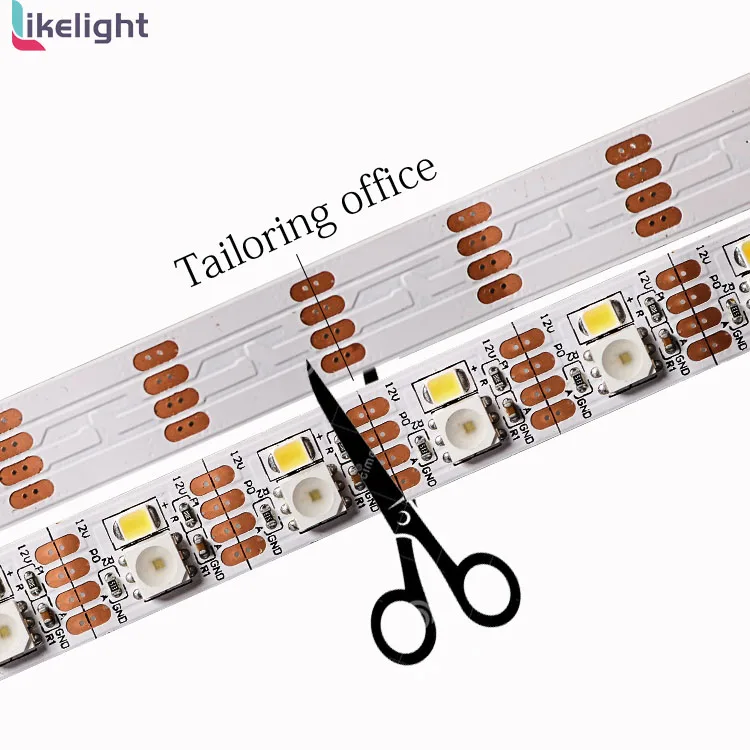

3. Can be cut or joined at each copper tab.

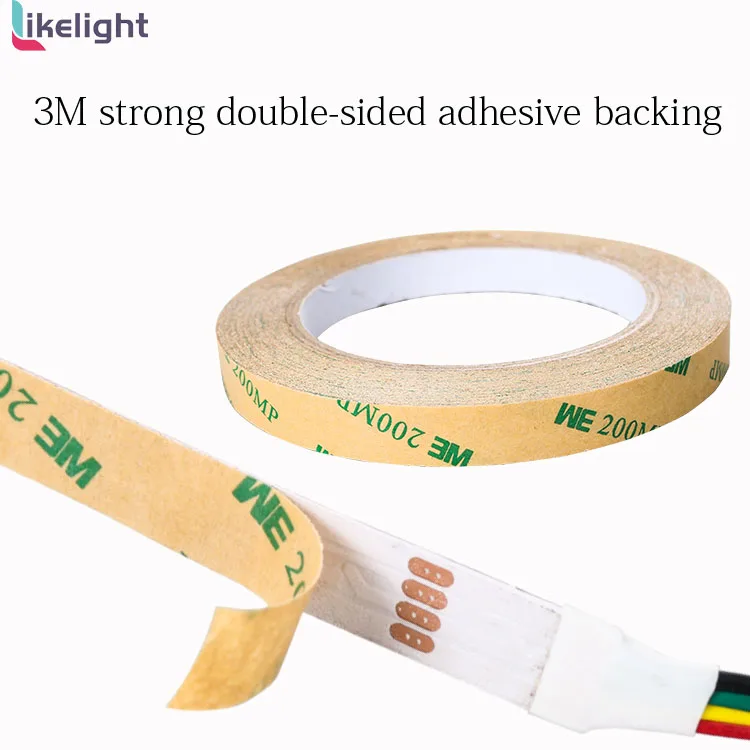

4. 3M adhesive double side tape on the rear.

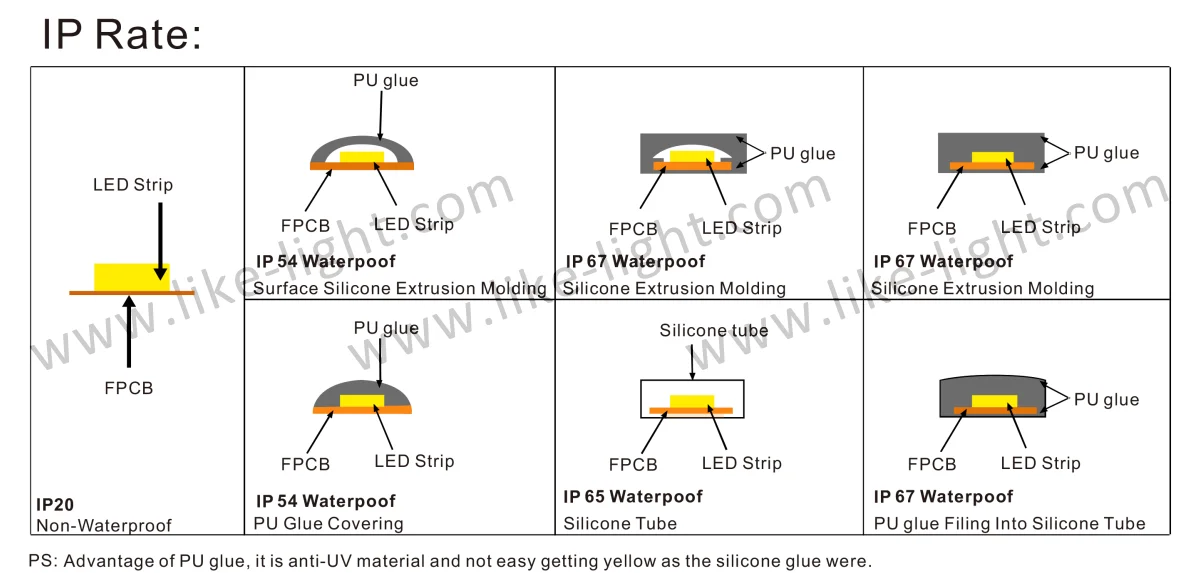

5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues, waterproof ip67 with silicone tube and glues.
6. White PCB or black PCB, usually 2 Oz, can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.
7. Standard length is 5m/roll, custom length is available.
8. Suitable for Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display, etc!

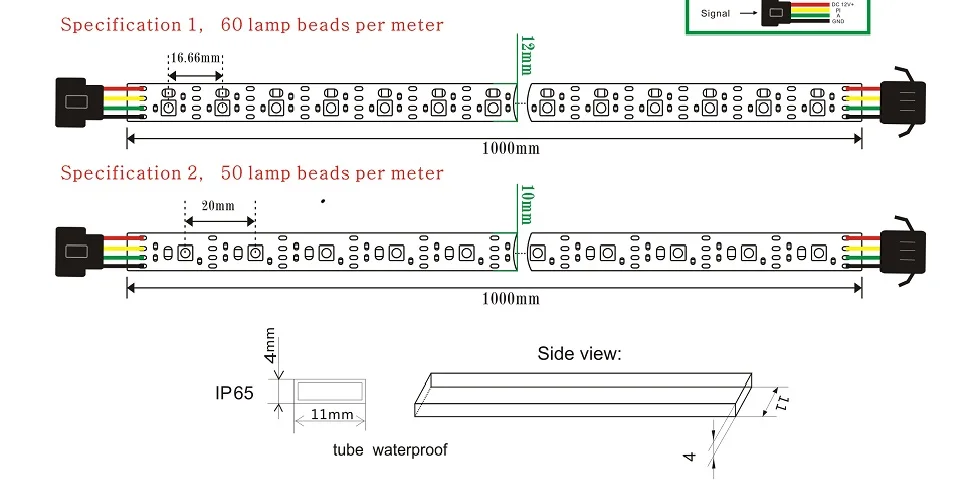

Dimensional drawing & installation

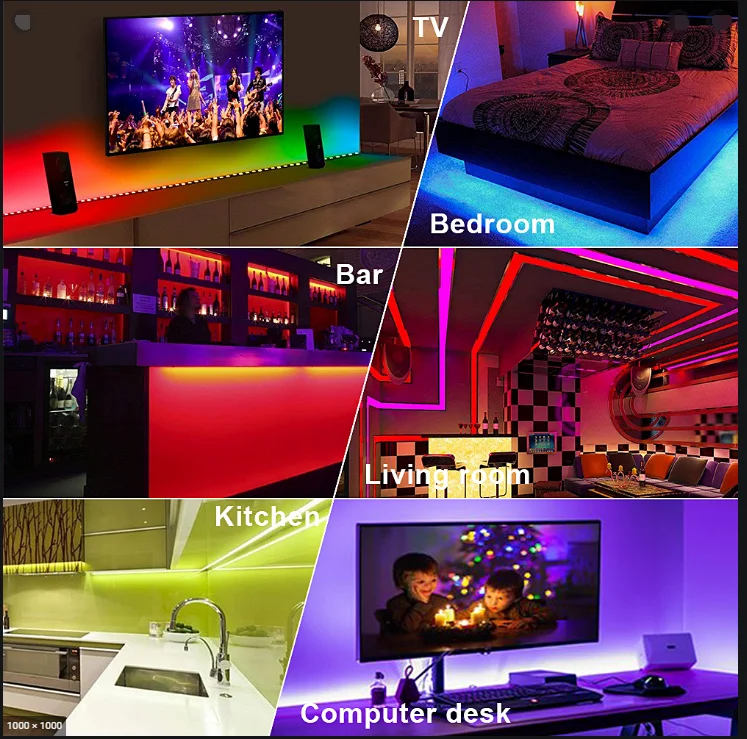

Applications


1.meeting room
2.shopping mall
3.home decoration
4.wedding decoration
5.restuarant & hotel
6.advertisement lighting








Control Components


1. Signal wire:DC+, DAT, GND.
2. DC+ and GND connect to power supplier; DAT, CLK and GND connect to controller.

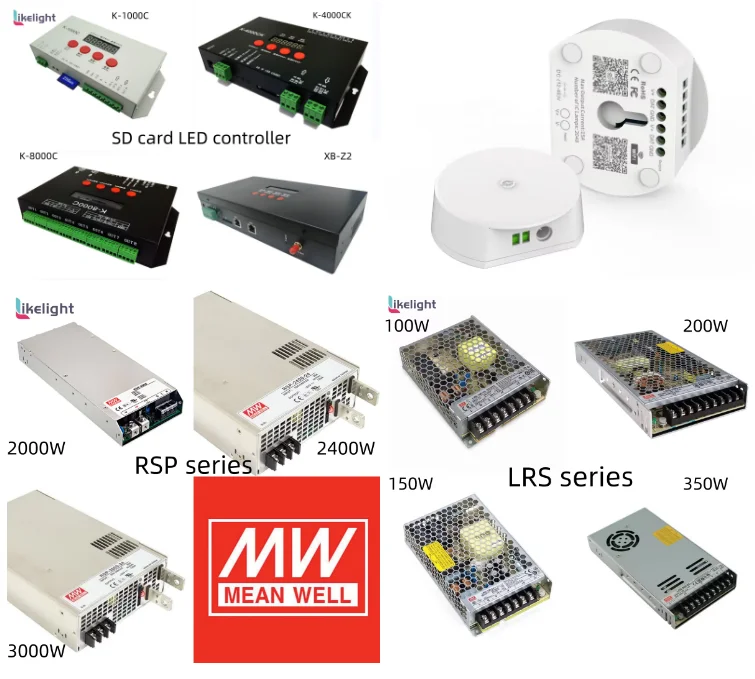

3.Music Bluetooth WIFI controller for mobile phone control ;SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet;Arduino and DMX controller and SPI controller.
4. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX.
5. Meanwell power supply and chuanglian power supply, waterproof/non-waterproof.
6. Contact me for more information.




Company Profile




FAQ


Why choose Like Light?

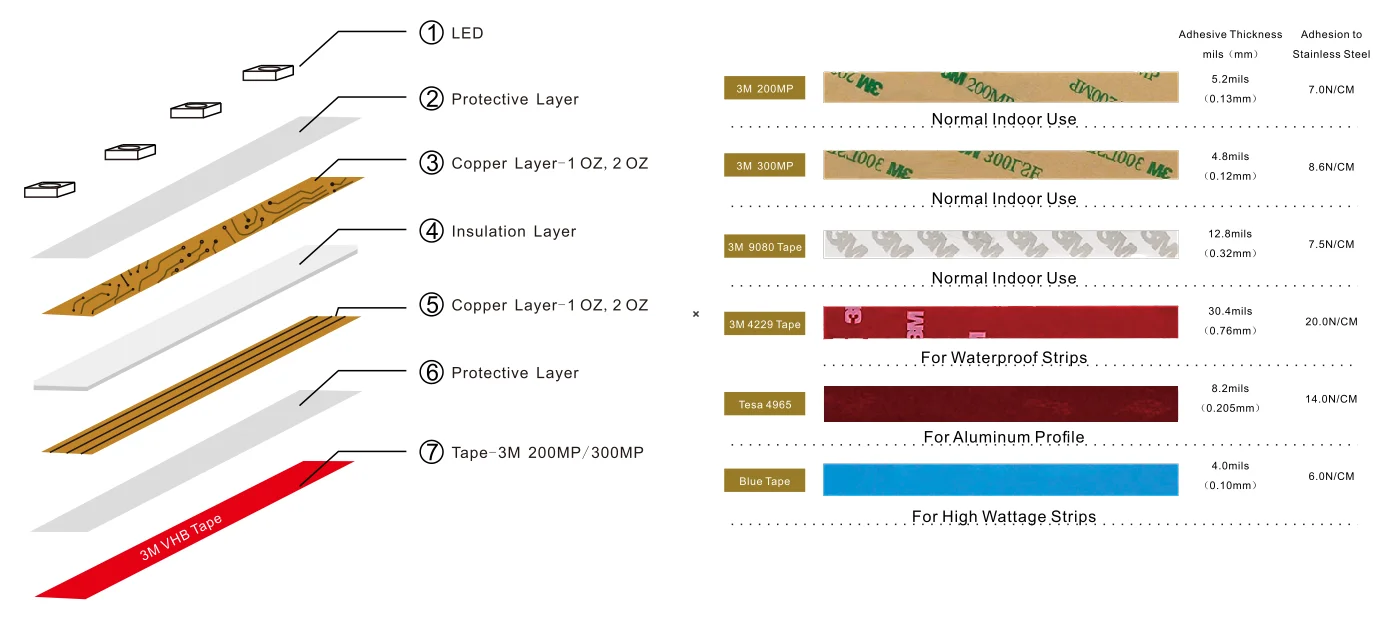

1.PCB board: Like-Lighting use at least 2 ounces PCB, some are 3 ounces and 4 ounces , double-sided copper film for better dissipation. They are 100% pure copper.

2.LED Chip: Epistar brand led chips. Like- Lighting could do other brand chips according to customer's request, such as,
Cree,Samsung, Philips, San'an, Honglitronic and Smalite led chips. We only focus on high quality led chips.Our LED 99% pure gold wire copper bracket, stable function, long life, good heat dissipation

3.Color Rendering Index: Like- Lighting use at least CRI 80 led chips to do our led strip lights,string light ,pixel light. When
we test by the integrating sphere machine, it usually shows CRI 83 for most of our led chips. We also use many CRI 90 and CRI 95 led chips for special projects. We can offer the test report for each batch of our LED strip lights, LED pixel light, LED bar light.

4.Uniformity: It's very important to our customers that Like- Lighting always keep the same bin color temperature for all our LED strip lights, LED pixel light, LED bar light.

5.Waterproof Rating: We could not only offer traditional IP65, IP67, IP68 waterproof process, but also new silicon extrusion process for IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode.

6.Engineer Team: Like- Lighting have our own engineer team. Whatever flexible strip pcb , rigid strip pcb or led pixel module, our engineer team can draw file for customers at first time. We welcome all OEM and ODM orders from all over the world.

7.Service: Like- Lighting LED lights are CE, ROHS, We warranty 2-3 years. Welcome to visit our factory !.
