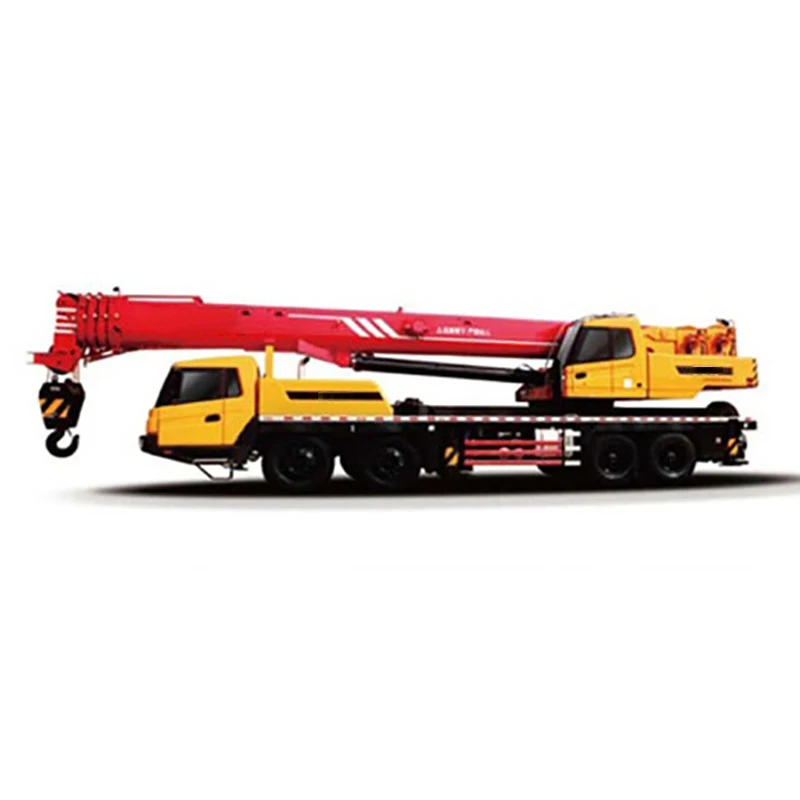

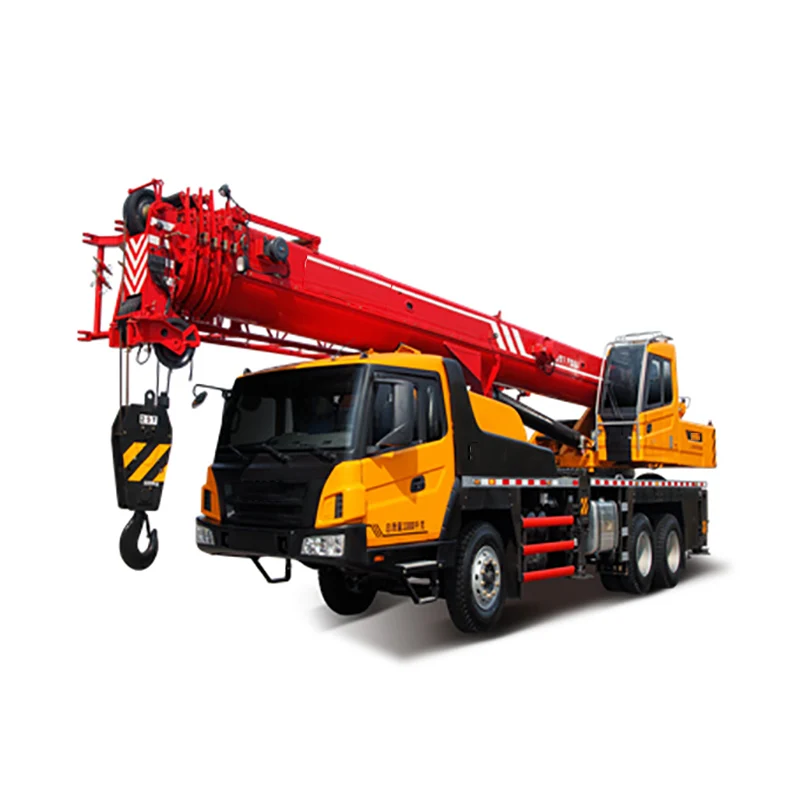

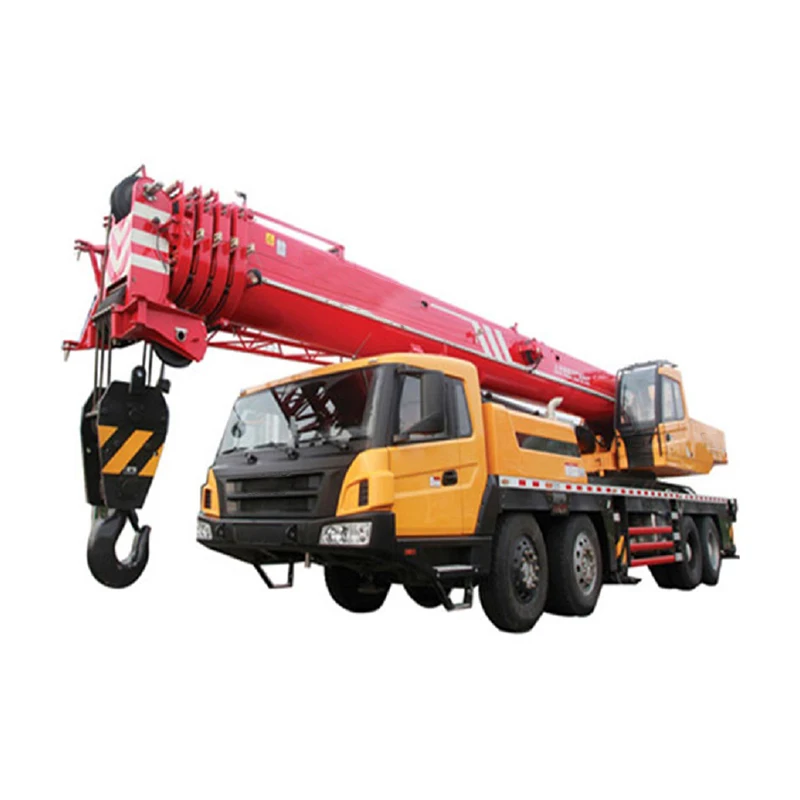

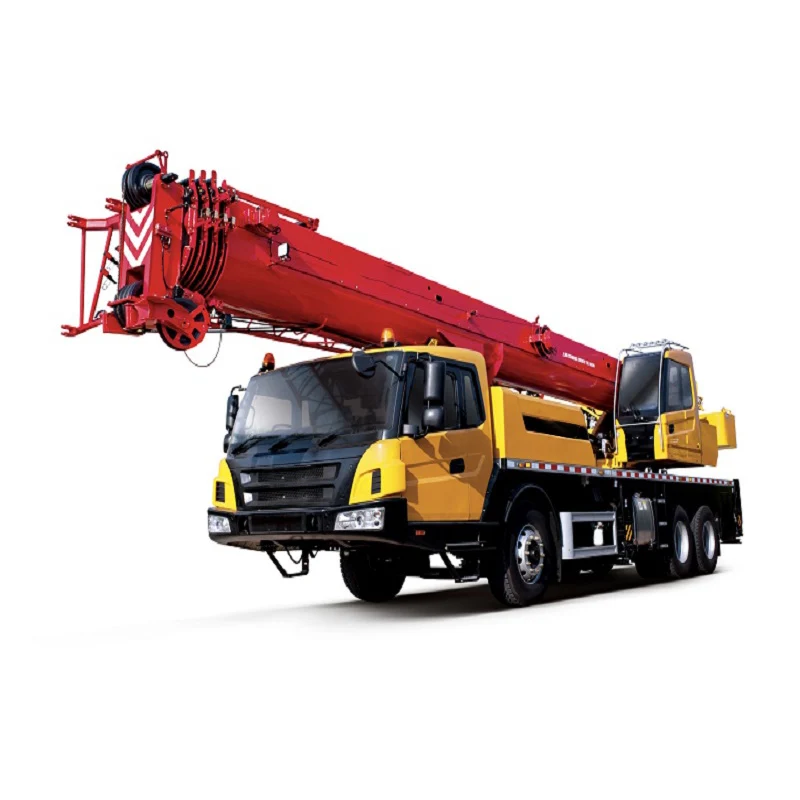

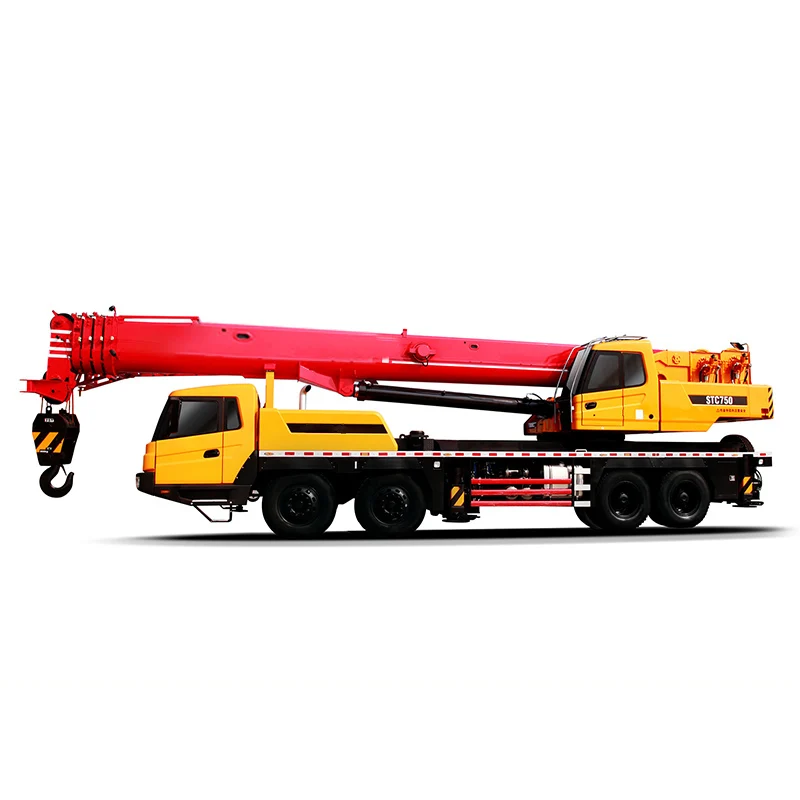

China Factory STC500C5 Used Lattice Boom Truck Crane 50ton Truck Crane Truck Lift Crane
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.
Share on (1601265414819):
Product Overview
Description
Product Overview
50Ton Truck Crane STC500C5-8
Smart Hydraulics
· Larger flow ensures higher efficiency, enabling higher speed of wire rope reeling. Shunted mode of independently controlled combined motions realizes higher stability under simultaneous vibration-free luffing and hoisting movements.
Double Pump Intelligent Flow Distribution System
· The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and small impact shock, energy saving, and environmentally friendly. Precise control: Excellent inching performance, min. The stable speed of a single rope is 1.2m/min and min. The sound speed of slewing is 0.1°/s, realizing precise lifting of mm level. Integrated slewing buffer control: boost buffer, sequential brake, and free swing technology—smooth start and stop.
High-performance Chassis
· Innovative structural frame verified by 200,000 cycling fatigue tests to ensure high reliability.
Smart Control System
·Imported bus system: Controllers, displays, meters, I/O modules, sensors, etc., are integrated into CAN Bus networking and fast-responsive. Fault diagnosis system: Operating device with intelligent controller, body with module, accurately locating the fault point, making the maintenance convenient.
Electrical Control
· Simple harness and steady signal transmission ensures real-time auto monitoring of operation conditions.
· Larger flow ensures higher efficiency, enabling higher speed of wire rope reeling. Shunted mode of independently controlled combined motions realizes higher stability under simultaneous vibration-free luffing and hoisting movements.
Double Pump Intelligent Flow Distribution System
· The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and small impact shock, energy saving, and environmentally friendly. Precise control: Excellent inching performance, min. The stable speed of a single rope is 1.2m/min and min. The sound speed of slewing is 0.1°/s, realizing precise lifting of mm level. Integrated slewing buffer control: boost buffer, sequential brake, and free swing technology—smooth start and stop.
High-performance Chassis
· Innovative structural frame verified by 200,000 cycling fatigue tests to ensure high reliability.
Smart Control System
·Imported bus system: Controllers, displays, meters, I/O modules, sensors, etc., are integrated into CAN Bus networking and fast-responsive. Fault diagnosis system: Operating device with intelligent controller, body with module, accurately locating the fault point, making the maintenance convenient.
Electrical Control
· Simple harness and steady signal transmission ensures real-time auto monitoring of operation conditions.

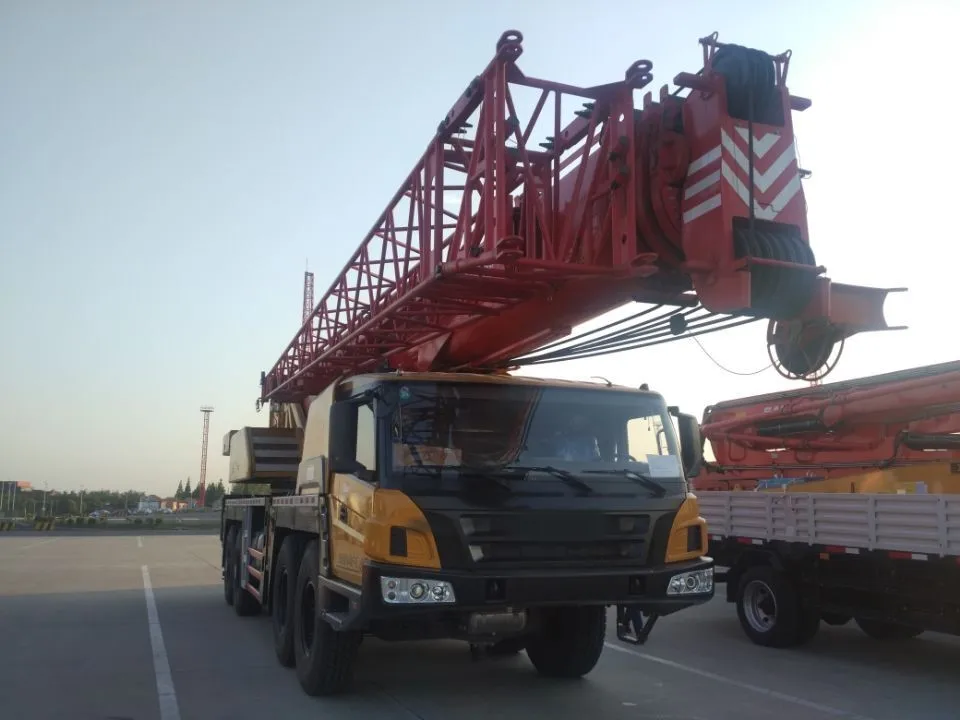

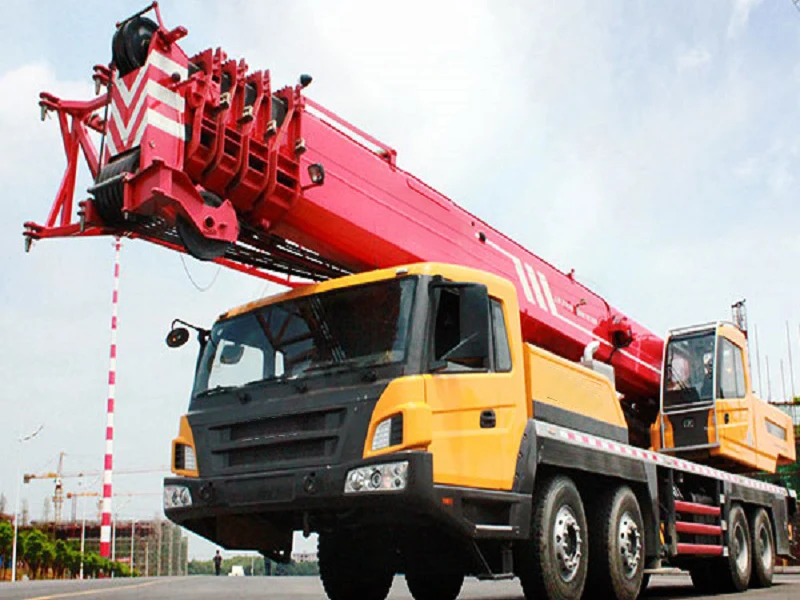

Product Show
PRODUCT SPECIFICATIONS
Overall length | 15290mm |
Overall width | 2800mm |
Overall height | 3880mm |
Maximum engine power | 276/1900Kw/rpm |
Engine maximum output torque | 1800/1000-1400N.m/rpm |
Maximum travel speed | 80Km/h |
Minimum turning radius | 12m |
Approach angle | ≥10° |
Departure angle | ≥14° |
Maximum grade | 44% |
Fuel consumption per hundred kilometers | ≤44L |
Maximum rated total lifting capacity | 80t |
Turntable tail radius of gyration | 4.385m |
Maximum lifting moment-basic boom | 3293kN.m |
Maximum lifting moment-longest main boom | 1803kN.m |
Outrigger span (horizontal × longitudinal) | 8×6.43m |
Boom length-basic boom | 12.96m |
Boom length-longest main boom | 50m |
Boom length-longest main boom + auxiliary boom | 67.5m |
Maximum speed of single rope of main winch (no load) | 130m/min |
Maximum speed of auxiliary winch single rope (no load) | 130m/min |
Boom fully extended/retracted time | 140s/160s |
Full lifting/falling time of boom | 65s/90s |
Swing speed | 0 ~ 1.8r/min |
Total mass of the whole machine | 50000 |
Axle load-one and two axle load | 24000kg |
Axle load-three and four axle load | 26000kg |
