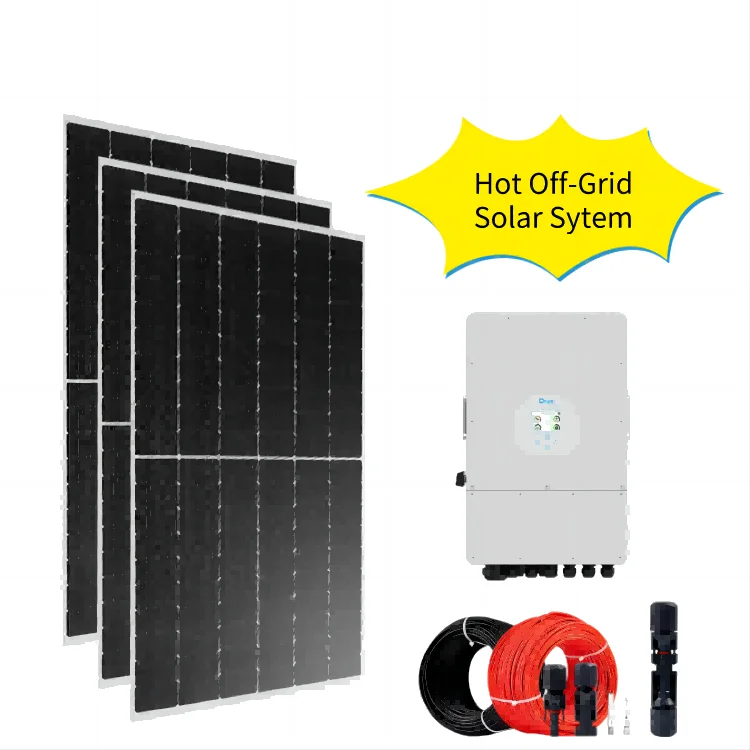

Best Price Solar Energy Systems Home Solar Panel System 10kw Off grid
- Category: >>>
- Supplier: Hebei Mutian Solar Energy Technology Development Co. Ltd.Hebei Ltd.
Share on (1601265487360):
Product Overview
Description
FEATURES AT A GLANCE
ADVANTAGE
Noiseless
Clean energy
Environmental
Safe and reliable
Make full use of your house
Easy to built and get electricity
Clean energy
Environmental
Safe and reliable
Make full use of your house
Easy to built and get electricity
100W-600W solar panel
Off grid inverter
12V gel battery
PRODUCT CONFIGURATION
Solar system for home
Solar Panel
Solar Generator
Cable
PV Bracket
Battery Rack
PRODUCT SPECIFICATIONS
1KW System | 2KW System | ||
Solar Panel | Mono 450WP×2pcs | Solar Panel | Mono 450WP×4pcs |
Solar Generator | MPPT 1KW/24V/60A | Solar Generator | MPPT 2KW/48V/60A |
Gel Battery | 100AH/12V×2Pcs | Gel Battery | 100AH/12V×4pcs |
Cable | 4mm2×40m+10mm2×2m | Cable | 4mm2×40m+10mm2×2m |
PV Bracket | 1KW Matched | PV Bracket | 2KW Matched |
Battery Rack | Matched | Battery Rack | Matched |
Combiner | MC4 2 to 1 2pairs | ||
Performance Average production power daily 4.6kWh Rated output power: 1KW | Pure sine wave: 110V//220V 50Hz/60Hz In case of over-discharge, system can switch to grid power automatically. | Average production power daily 10.5kWh Rated output power: 2KW | Output Power: 110V//220V 50Hz/60Hz In case of over-discharge, system can switch to grid power automatically. |
3KW System | 4KW System | ||
Solar Panel | Mono 540WP×4pcs | Solar Panel | Mono 540WP×6pcs |
Solar Generator | MPPT 3KW/48V/70A | Solar Generator | MPPT 4KW/48V/100A |
Gel Battery | 150AH/12V×4Pcs | Gel Battery | 200AH/12V×4pcs |
Cable | 4mm2×40m+6mm2×6m | Cable | 4mm2×40m+12mm2×6m |
PV Bracket | 3KW Matched | PV Bracket | 4KW Matched |
Battery Rack | Matched | Battery Rack | Matched |
PV Box | 4KW Matched | ||
Average production power daily 15.5kWh Rated output power: 3KW | Pure sine wave: 110V//220V 50Hz/60Hz In case of over-discharge, system can switch to grid power automatically. | Average production power daily 19.6kWh Rated output power: 4KW | Pure sine wave: 110V//220V 50Hz/60Hz In case of over-discharge, system can switch to grid power automatically. |
5KW System | 10KW System | ||
Solar Panel | Mono 540WP×8pcs | Solar Panel | Mono 540WP×16Pcs |
Solar Generator | 5KW/48VV/120A | Solar Generator | 10KW/96V/120A |
Gel Battery | 200AH/12V×4pcs | Gel Battery | 200AH/12V×8pcs |
Cable | 4mm2×50m+14mm2×10m | Cable | 4mm2×80m+14mm2×10m |
PV Bracket | 5KW Matched | PV Bracket | 10KW Matched |
Battery Rack | Matched | Battery Rack | Matched |
PV Box | 5KW 1set | PV Box | 10KW 1set |
Average production power daily 24kWh Rated output power: 5KW | Pure sine wave: 110V/220V/50Hz/60Hz In case of over-discharge, system can switch to grid power automatically. | Average production power daily 49kWh Rated output power: 10KW | Pure sine wave: 110V/220V/380V50Hz/60Hz In case of over-discharge, system can switch to grid power automatically. |
Certifications
SALES AND SERVICE NETWORK
FOR HOME
Successful Project
Project in Russia
Project in England
Project in Brazil
Project in Thailand
Project in USA
Project in Germany
Recommend Products
FAQ
FAQ
Q: How much power solar energy systems can you provide?
A: Home solar energy systems 1KW-5KW, and we also provide higher wattage commercial and industrial solar power systems.
Q:How should we know what power solar system we use?
A:You can told our sales * How many kilowatt-hours do your family use per month?
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO
Q: What is your warranty and after-sales policy?
A: Your order products will be guaranteed for 10 years, and solar panel warranty is 25 years.
A: Home solar energy systems 1KW-5KW, and we also provide higher wattage commercial and industrial solar power systems.
Q:How should we know what power solar system we use?
A:You can told our sales * How many kilowatt-hours do your family use per month?
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO
Q: What is your warranty and after-sales policy?
A: Your order products will be guaranteed for 10 years, and solar panel warranty is 25 years.
