LC Brand Manufacturer CNC Auto Servo Cylindrical Glass Bottle Container Cream Cosmetic Bottle Screen Printing Machine
- Category: >>>
- Supplier: Luen Cheong Printing Equipment Ltd.
Share on (1601265571815):
Product Overview
Description
Product Description

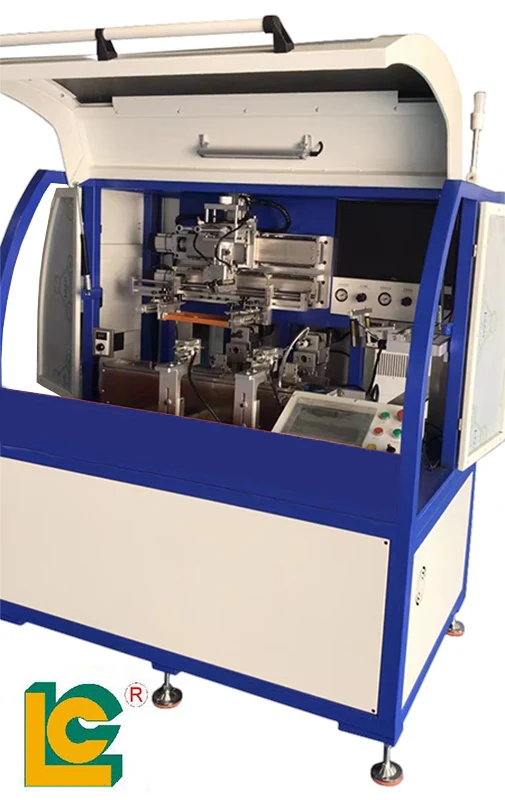

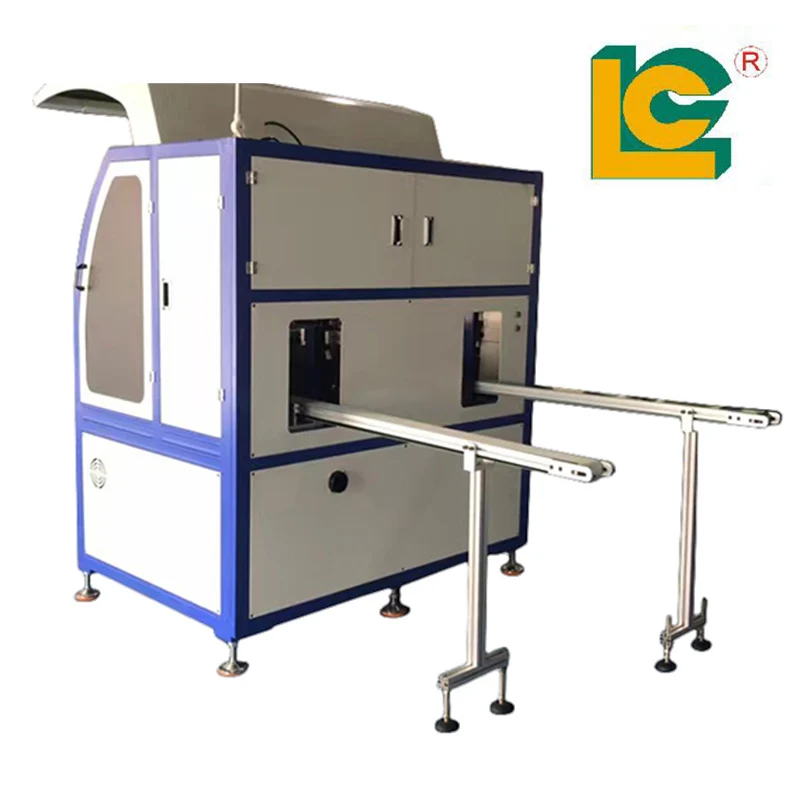

Automatic Bottle Screen Printing Machine
1. This machine is suitable for screen printing of round, oval, square, special-shaped bottles (radians on both sides are different) and double-sided two colors and other special-shaped containers
2. It has the advantages of convenient debugging and installation, stable and reliable operation, strong versatility and high printing efficiency.
3. This machine can be equipped with screen heating, ink scraper heating function and UV light fixing furnace at any time, can use ordinary self-drying ink printing, UV ink printing, high temperature solid ink printing brush, with high adaptability.
2. It has the advantages of convenient debugging and installation, stable and reliable operation, strong versatility and high printing efficiency.
3. This machine can be equipped with screen heating, ink scraper heating function and UV light fixing furnace at any time, can use ordinary self-drying ink printing, UV ink printing, high temperature solid ink printing brush, with high adaptability.

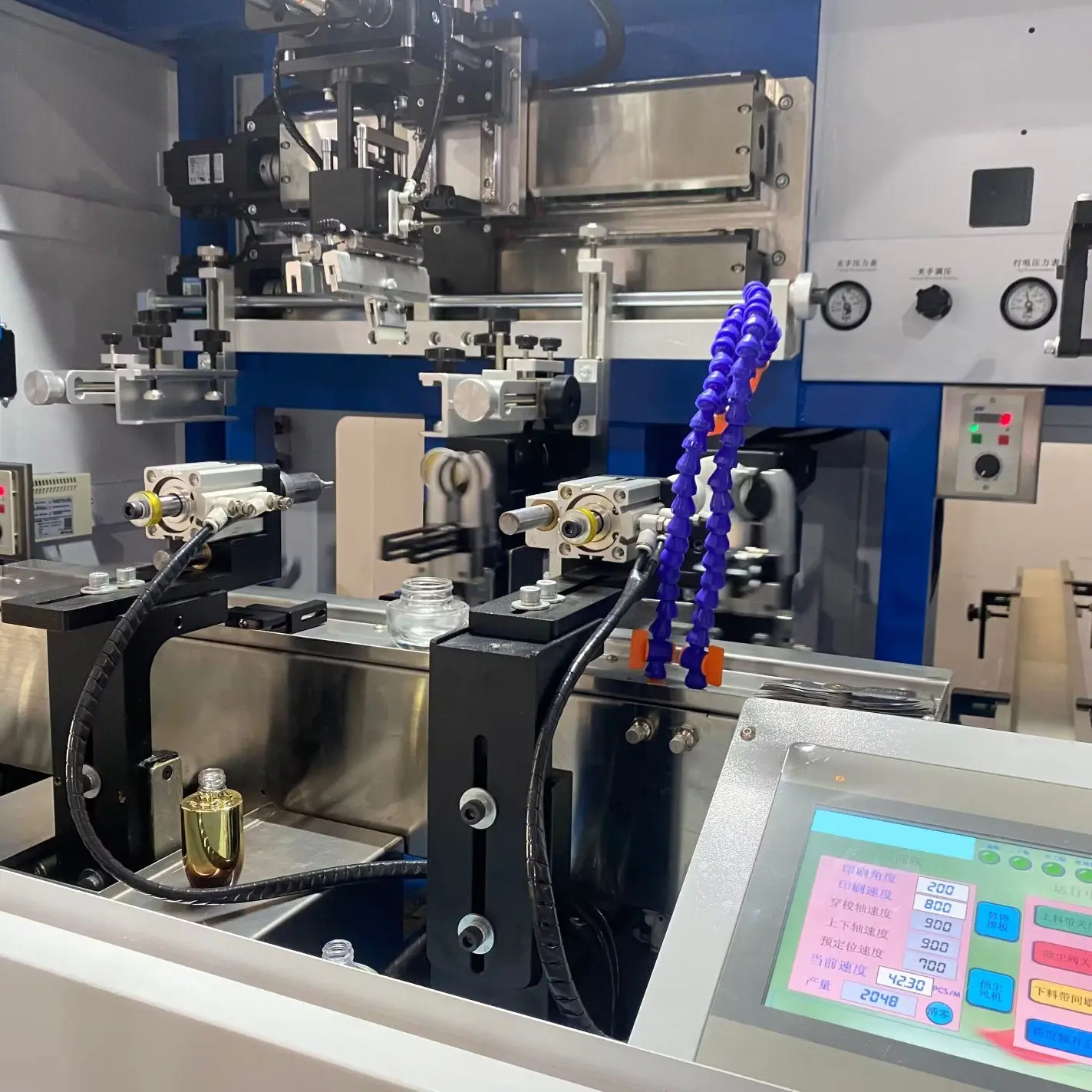

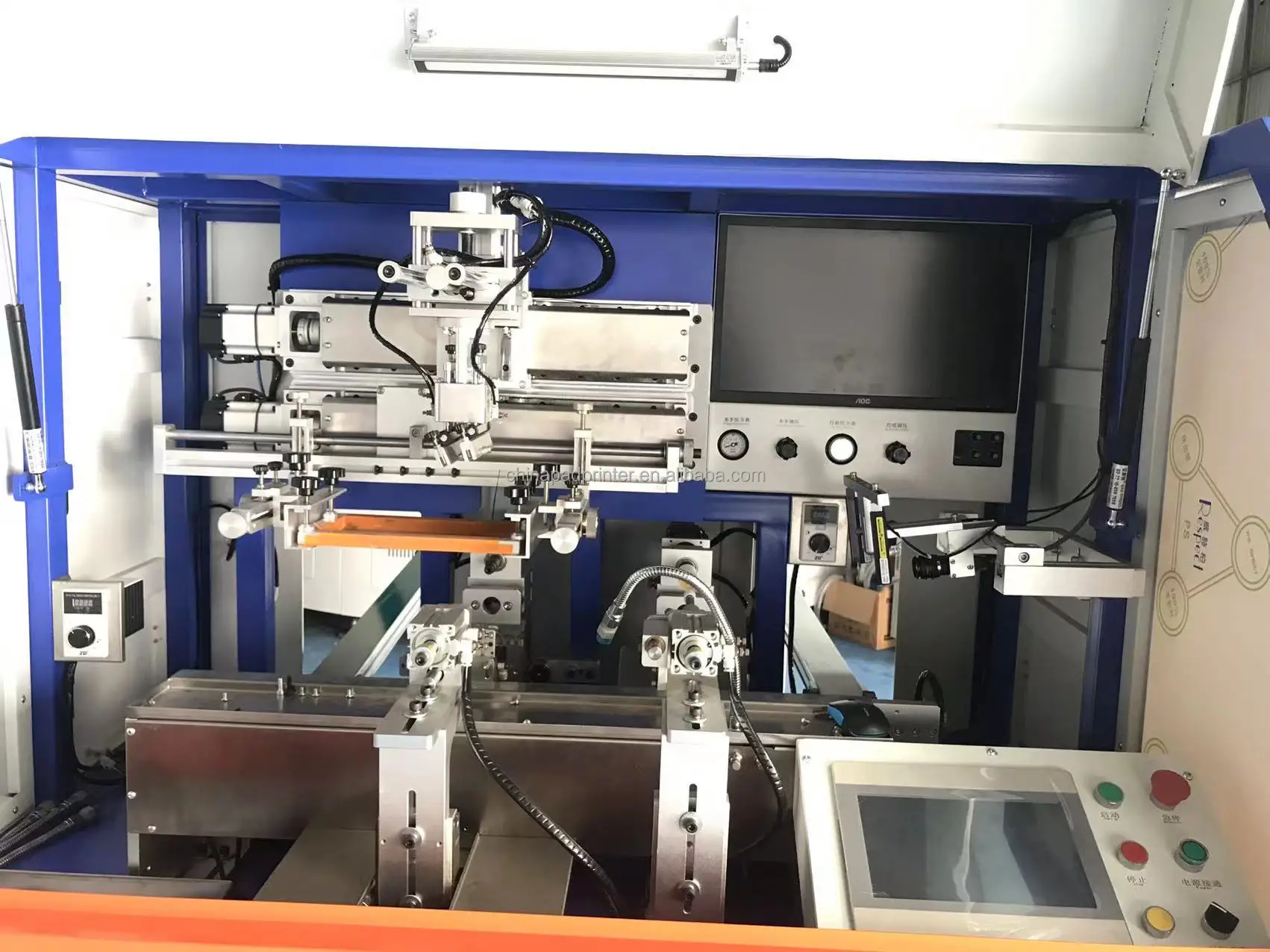

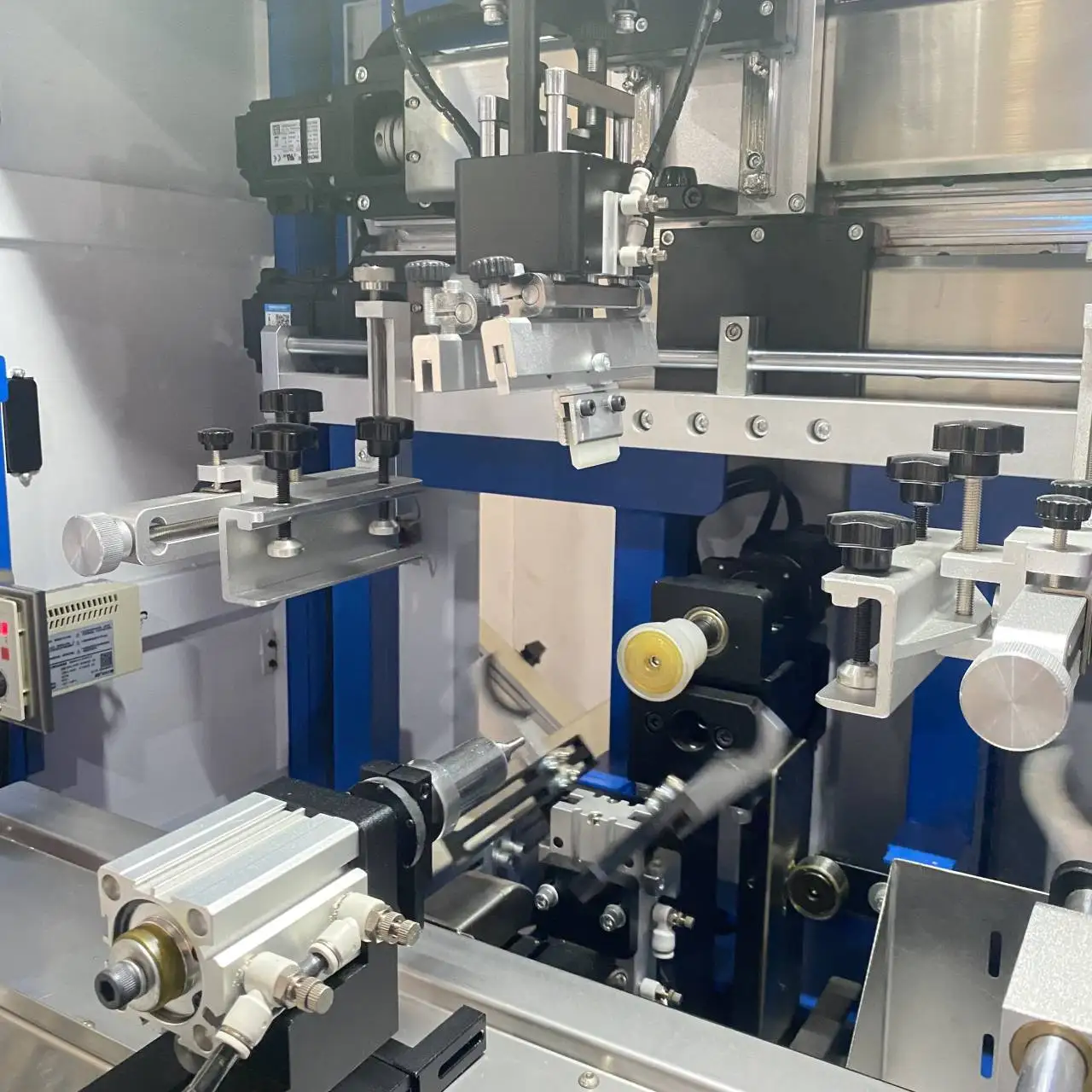

* It is mainly composed of automatic bottle feeding structure, automatic dust removal device, automatic feeding structure of
manipulator, transmission structure of full servo system, automatic printing and brushing main body (printing system).
* Using modular programmable processor and touch screen display control system, running more smoothly.
* The fixture is easy to replace the bottle shape, simple debugging and installation, more convenient operation.
* Machine stability, high precision; You can also choose to install UV light solid treatment system and screen heating system, suitable for UV ink and high temperature ink arbitrary switch.
manipulator, transmission structure of full servo system, automatic printing and brushing main body (printing system).
* Using modular programmable processor and touch screen display control system, running more smoothly.
* The fixture is easy to replace the bottle shape, simple debugging and installation, more convenient operation.
* Machine stability, high precision; You can also choose to install UV light solid treatment system and screen heating system, suitable for UV ink and high temperature ink arbitrary switch.
Outstanding advantages for the following bottle shapes and situations:
* The elliptical bottle can be printed on both sides of the same color at the same time, greatly improving the printing speed,
and can also be printed on one side.
* The square plane bottle can realize one side to four sides of the same color one-time printing, can also choose one side to
four sides of any printing surface.
* The triangular bottle can be printed one time from one side to three sides of the same color, or choose one side of any
printing surface from one side to three sides. 4. Bottles with hexagons, octagons and other polygons can be printed in one time
with the same color from one side to eight sides, or one side of any printing surface from one side to eight sides.
and can also be printed on one side.
* The square plane bottle can realize one side to four sides of the same color one-time printing, can also choose one side to
four sides of any printing surface.
* The triangular bottle can be printed one time from one side to three sides of the same color, or choose one side of any
printing surface from one side to three sides. 4. Bottles with hexagons, octagons and other polygons can be printed in one time
with the same color from one side to eight sides, or one side of any printing surface from one side to eight sides.

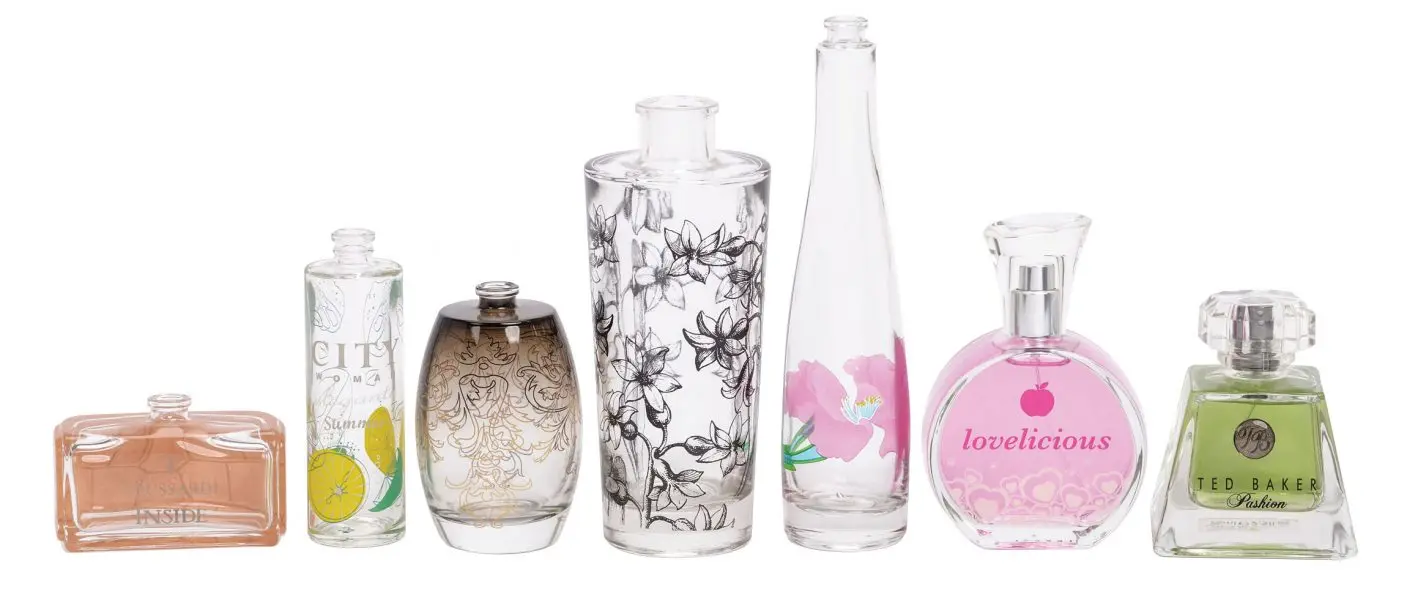

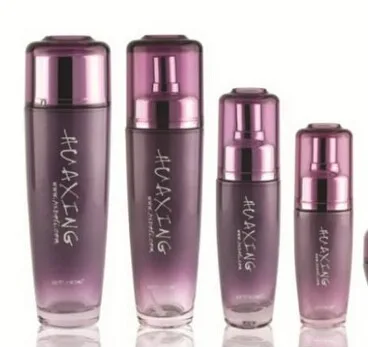

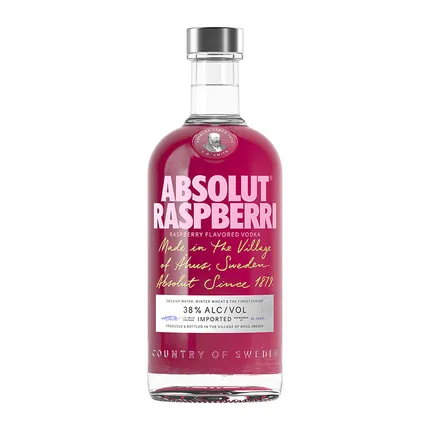

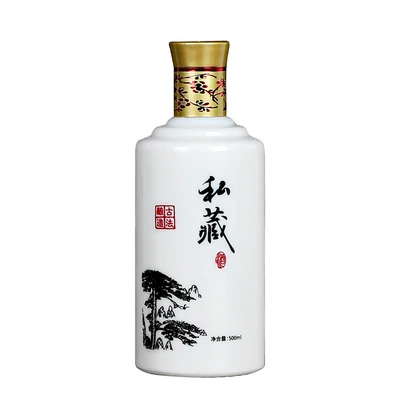

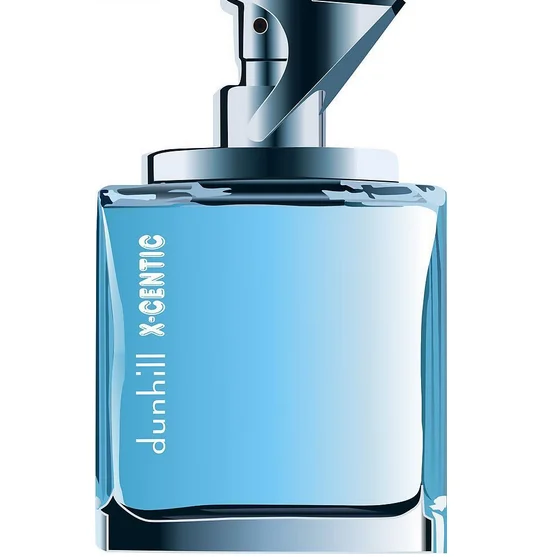

Printing Effect
Specification
Circle printing diameter | ф20mm~ф100mm |
Circular printing height | 20mm~130mm |
Oval printing diameter | R20mm~R100mm |
Oval printing height | 20mm~130mm |
Power requirements | AC220V 1Phase/AC380V 3Phase 50Hz /60Hz |
Rated power | 7.5KW |
Pressure requirements | 5 ~ 8bar |
mechanical weight | about 1240kg |
* The fastest printing speed: when printing circular products, the fastest printing speed is about 50-60pcs/min, when printing flat bottles, the fastest printing speed is 70Pcs/ min (note: with bronzing function, the fastest printing speed is 40-50pcs/min).
