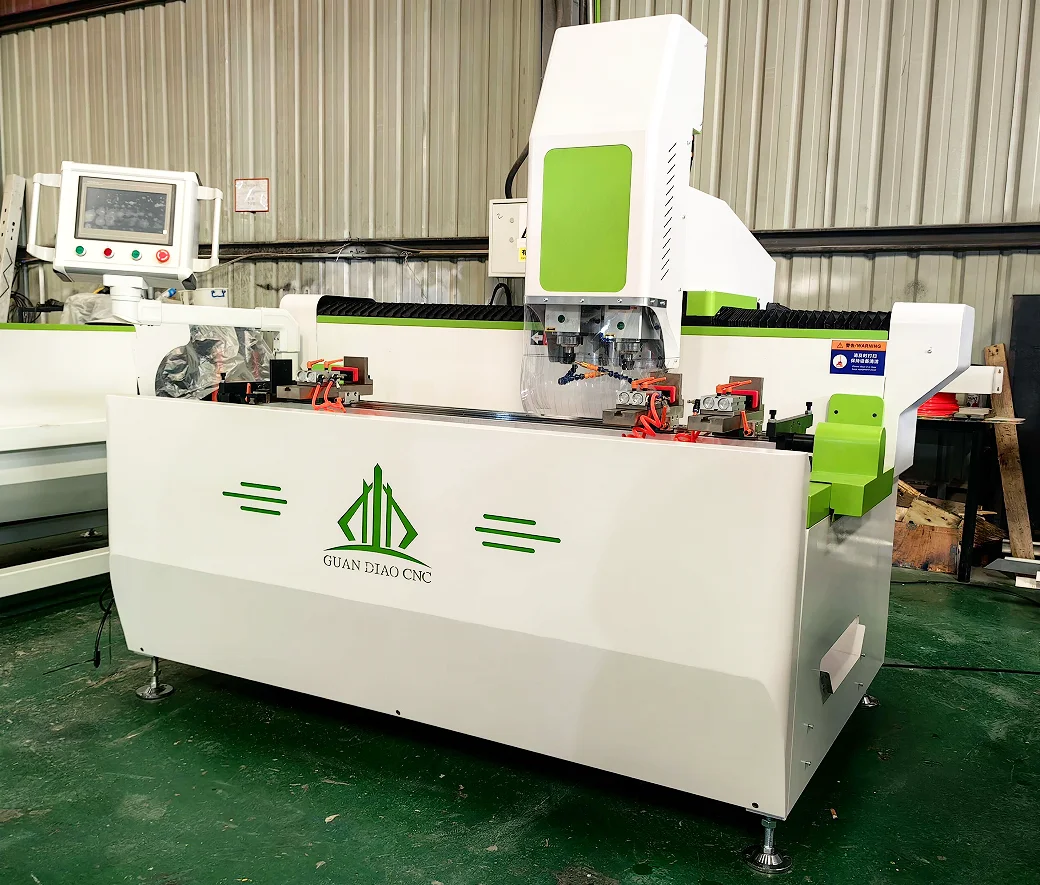

2024 High Speed Metal Door Drilling Holes Machine Aluminum Profile CNC Drilling Milling Machine For Aluminum Windows
- Category: >>>
- Supplier: Shandong Guandiao CNC Equipment Co. Ltd.
Share on (1601265689705):
Product Overview
Description

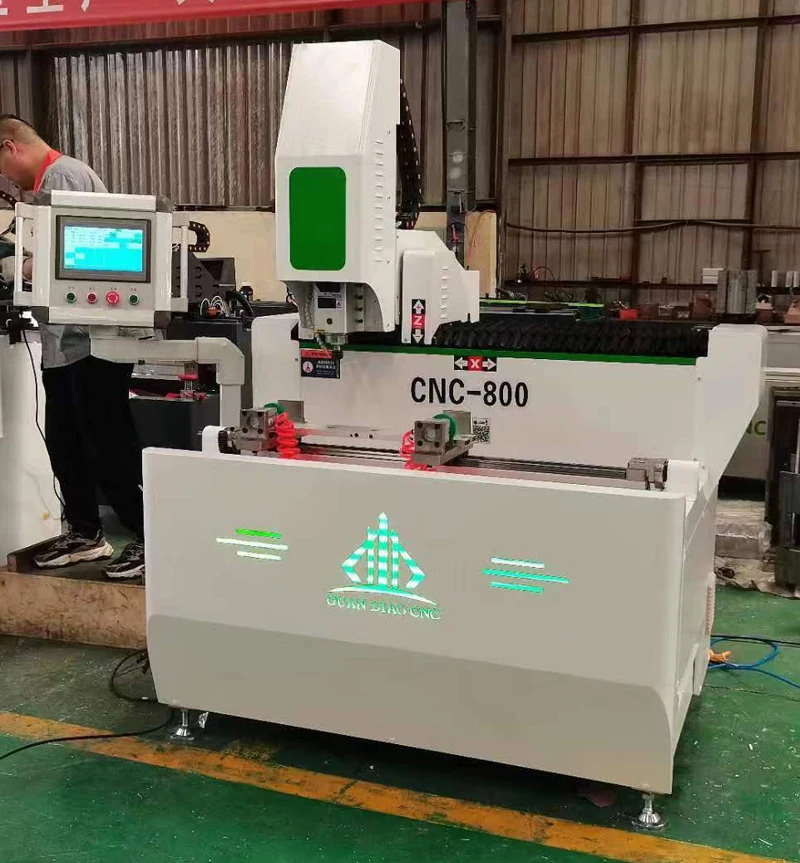

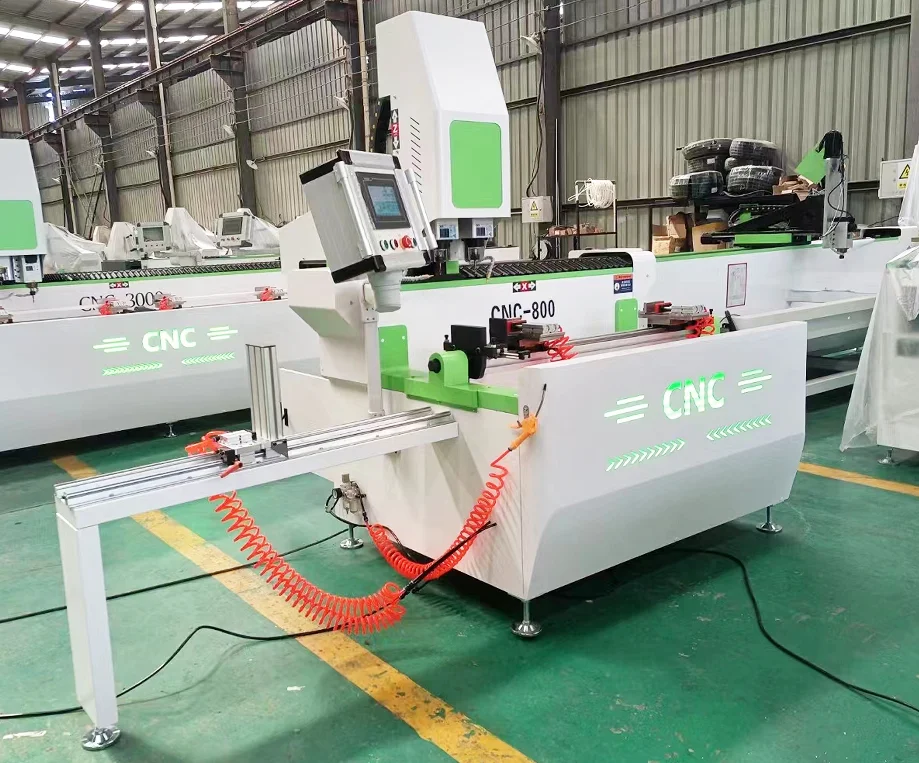

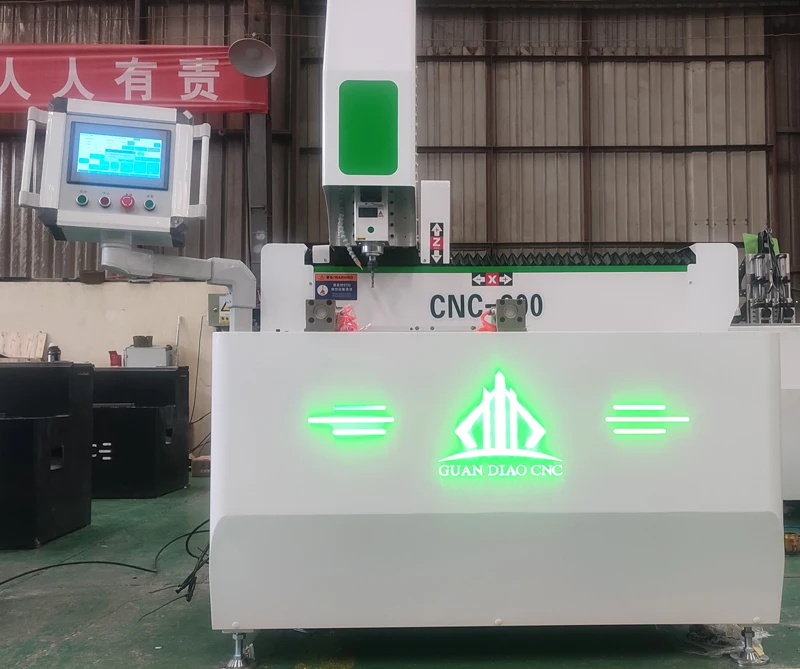

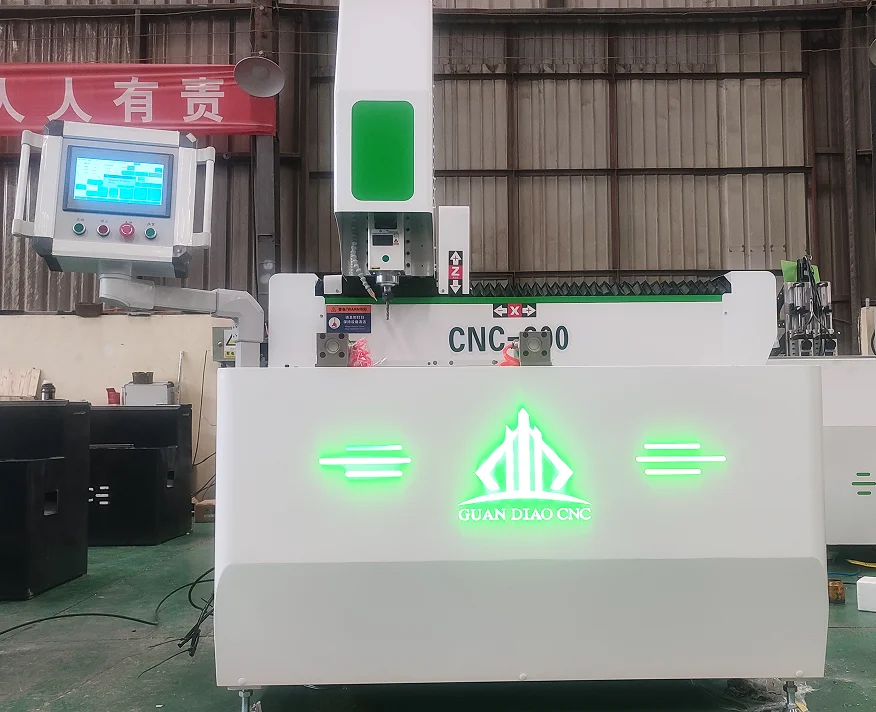

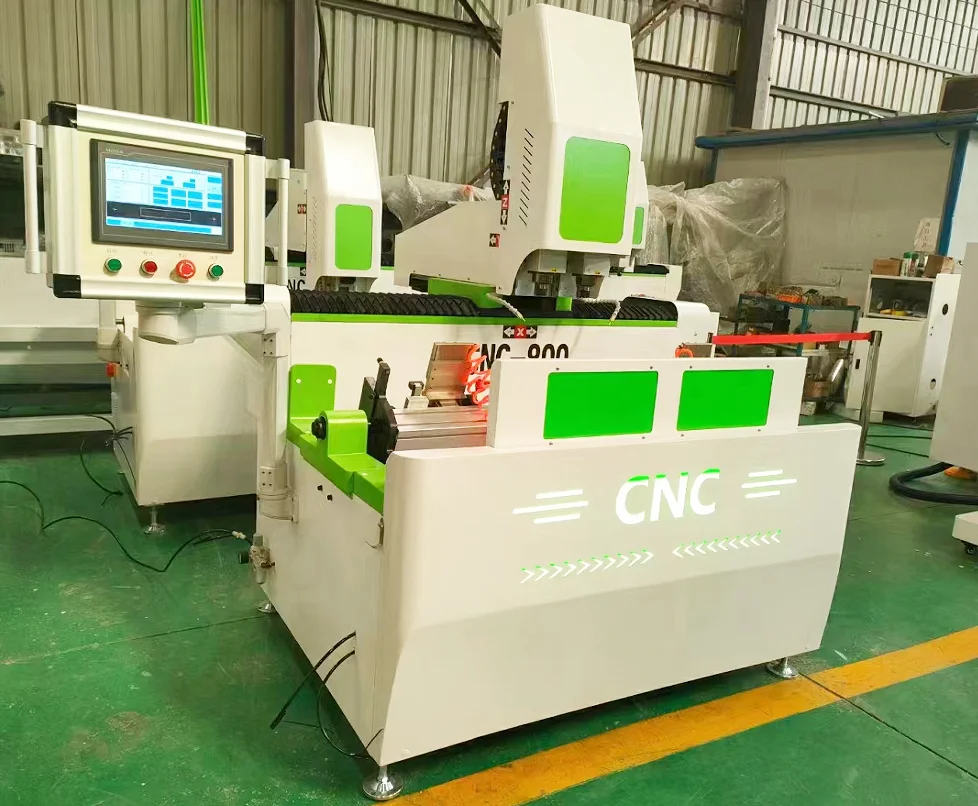

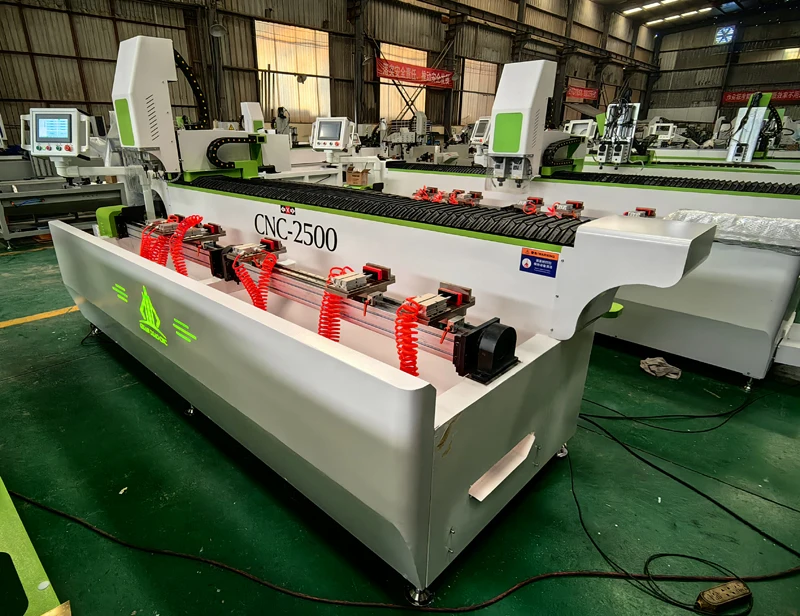

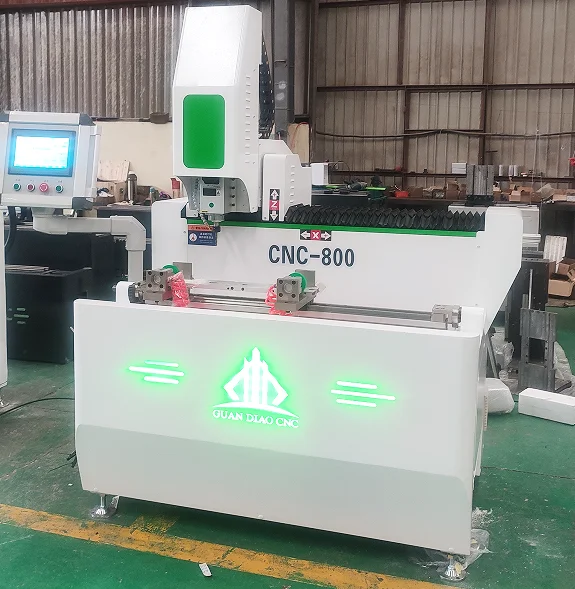

Full Auto Aluminum Window CNC Metal Drilling & Milling Machine
Techinical sheet
Machine voltage | 3PH 380V 50HZ |
Machine size | 1850*1700*1560MM |
Spindle power | 4.5KW |
Machine motor and drivers | High quality stepper motor(servo motor for optional) |
Machine RPM | 24000r/min |
Control system | Touch screen PLC |
Inverter | Best |
Air pressure | 0.6-0.8MPA |
X axis MM | 800mm/1200mm/2000mm |
Y axis MM | 350mm |
Z axis MM | 250mm |
Machine weight | 1000KG |
Specifications

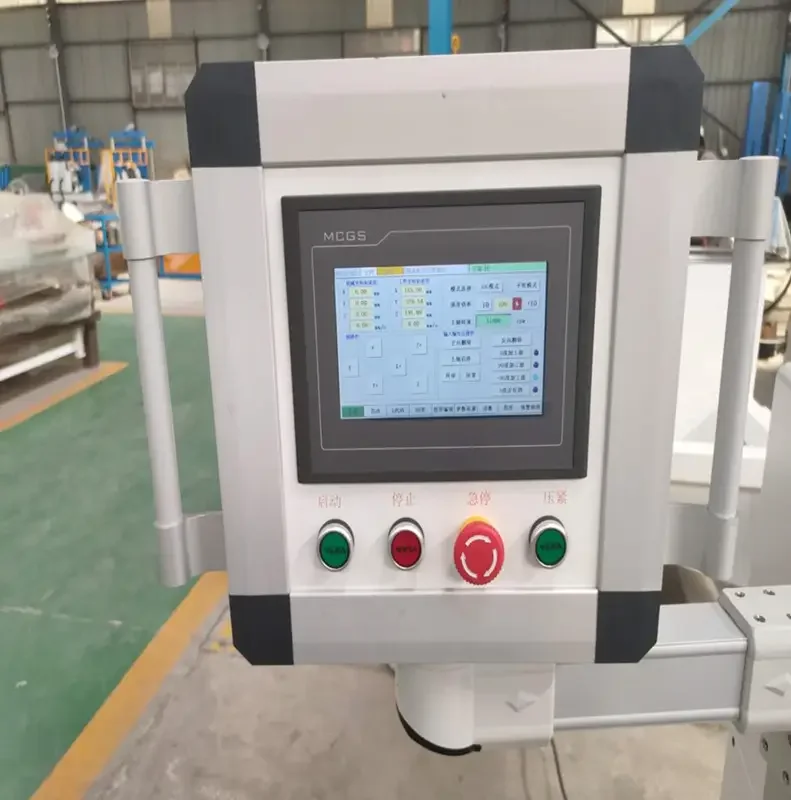

Intelligent touch screen control panels, easy operate,also with multi language

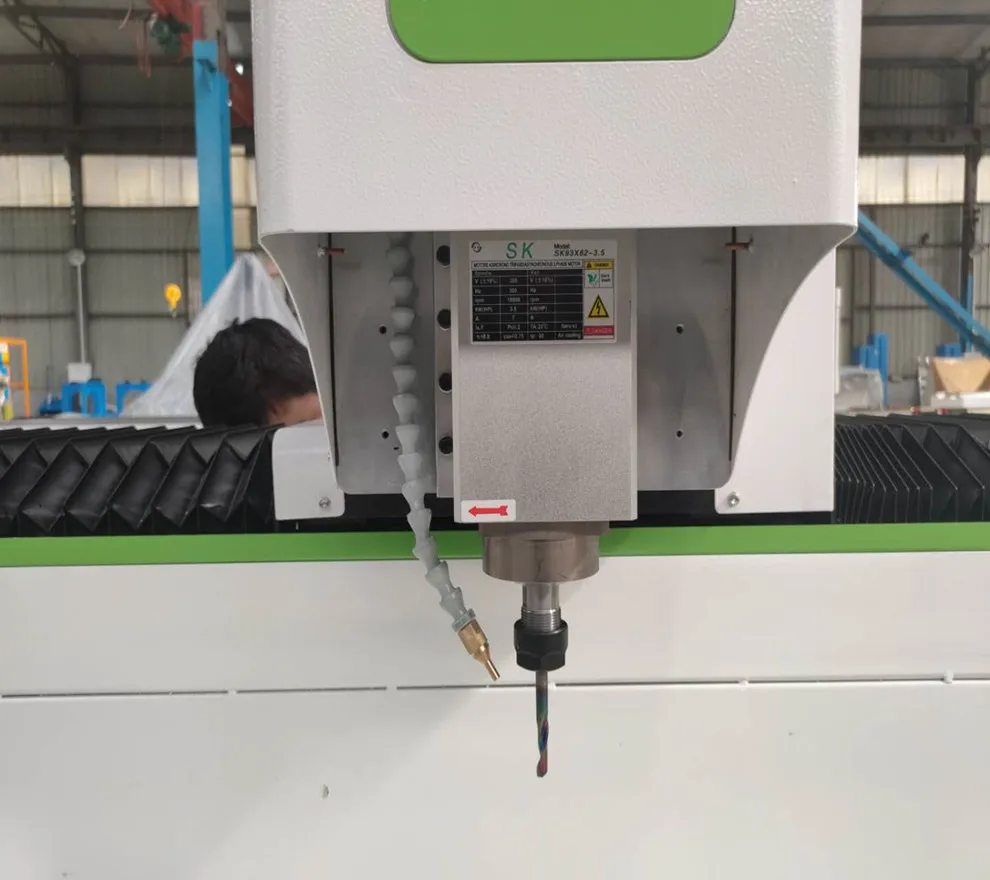

Good quality high power spindle for drilling holes with fast speed and high precision
High quality rack and guide rail ensure the machine working with fast speed and high precision. It can be achieve no any error drilling holes.

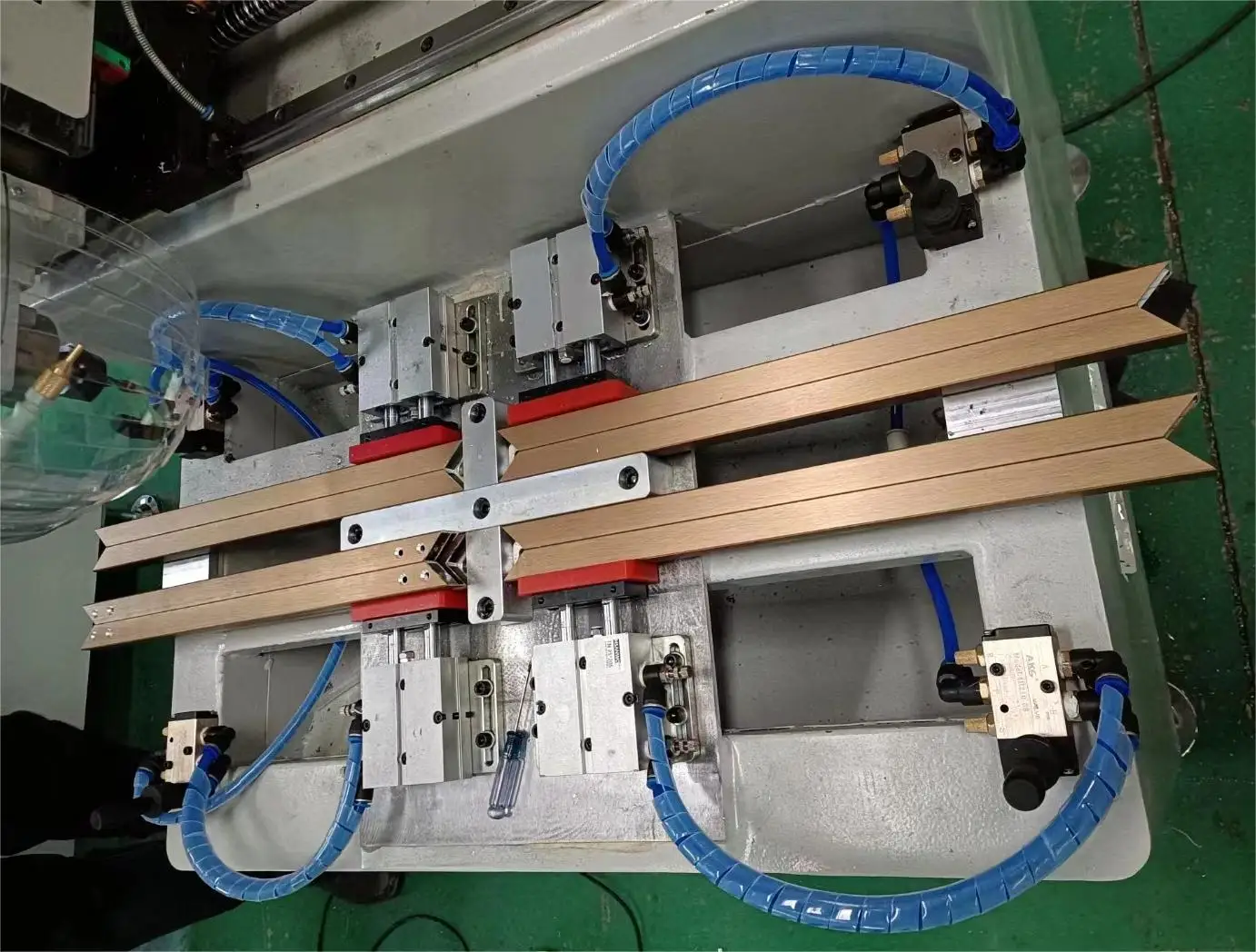

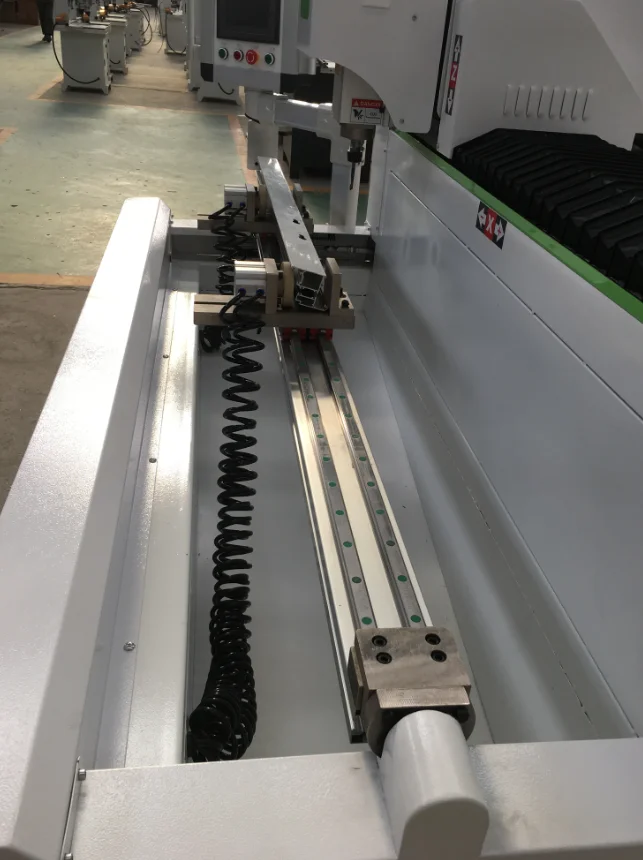

It can fix Aluminum tightly on the machine, then ensure no any error when drilling holes
Features:
1. Kete specific system, easy operation and high stability
2. Thickness welded bed, sprayed with sheet metal, inlaid with light strips
3. Domestic first-line brand electric spindle, high precision, good safety and high reliability
4. The X-axis adopts high-precision helical gear and helical rack drive, and the Y-axis and Z-axis adopt high-precision ball screw drive to ensure smooth operation and high accuracy.
5. Chint electrical components, wire national standard.
6. Flip the beam with square rails, cooperate with the pneumatic locking module, easy to adjust.
7. Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity
8. Turn the table 180 °. -90 ~ 0 ° ~ + 90 °, the profile can be processed on three sides in one clamping, and deep through holes can be processed(Special hole), deep hole processing is realized by turning the worktable, with high efficiency and guaranteed accuracy.
1. Kete specific system, easy operation and high stability
2. Thickness welded bed, sprayed with sheet metal, inlaid with light strips
3. Domestic first-line brand electric spindle, high precision, good safety and high reliability
4. The X-axis adopts high-precision helical gear and helical rack drive, and the Y-axis and Z-axis adopt high-precision ball screw drive to ensure smooth operation and high accuracy.
5. Chint electrical components, wire national standard.
6. Flip the beam with square rails, cooperate with the pneumatic locking module, easy to adjust.
7. Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity
8. Turn the table 180 °. -90 ~ 0 ° ~ + 90 °, the profile can be processed on three sides in one clamping, and deep through holes can be processed(Special hole), deep hole processing is realized by turning the worktable, with high efficiency and guaranteed accuracy.

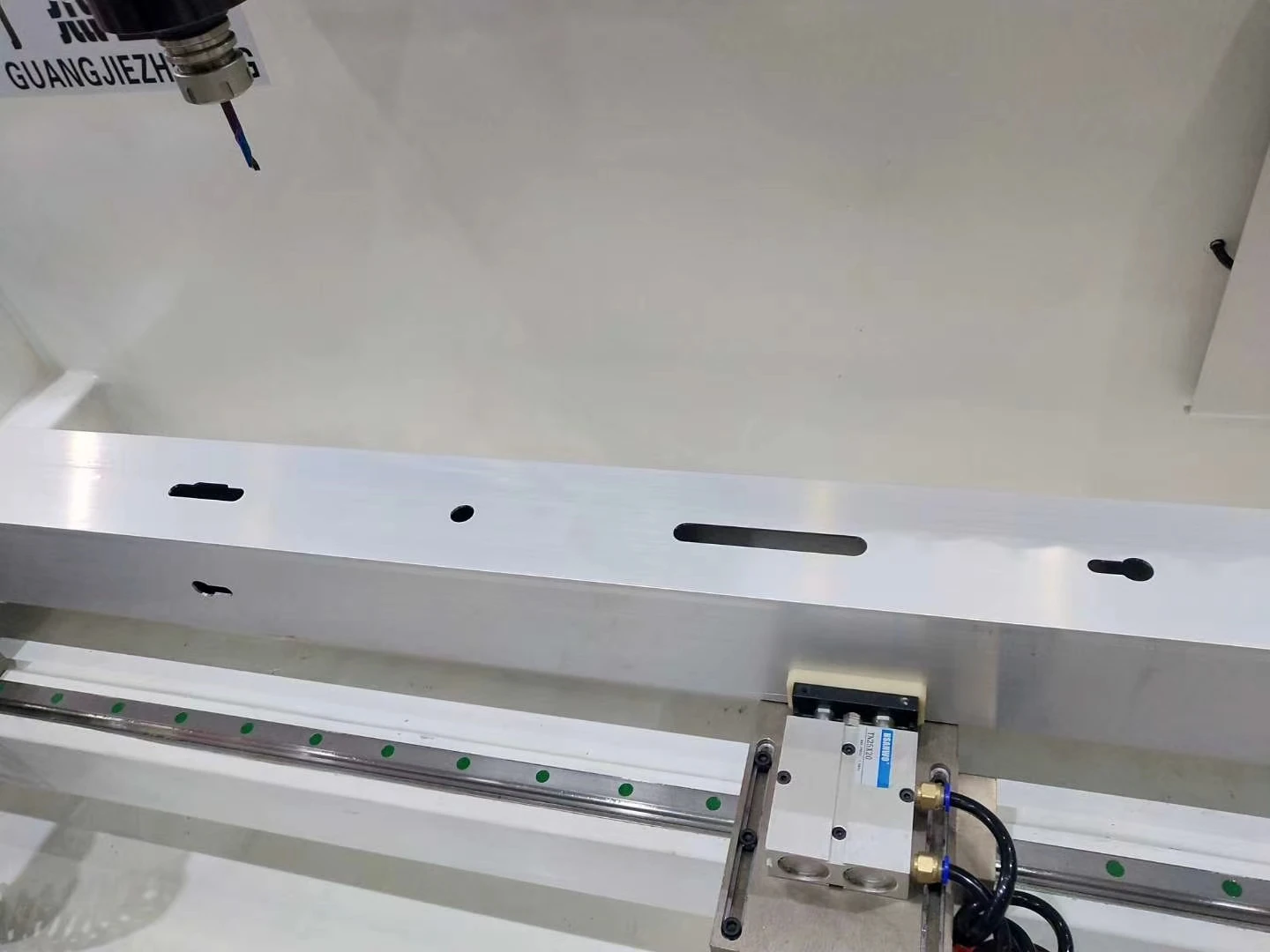

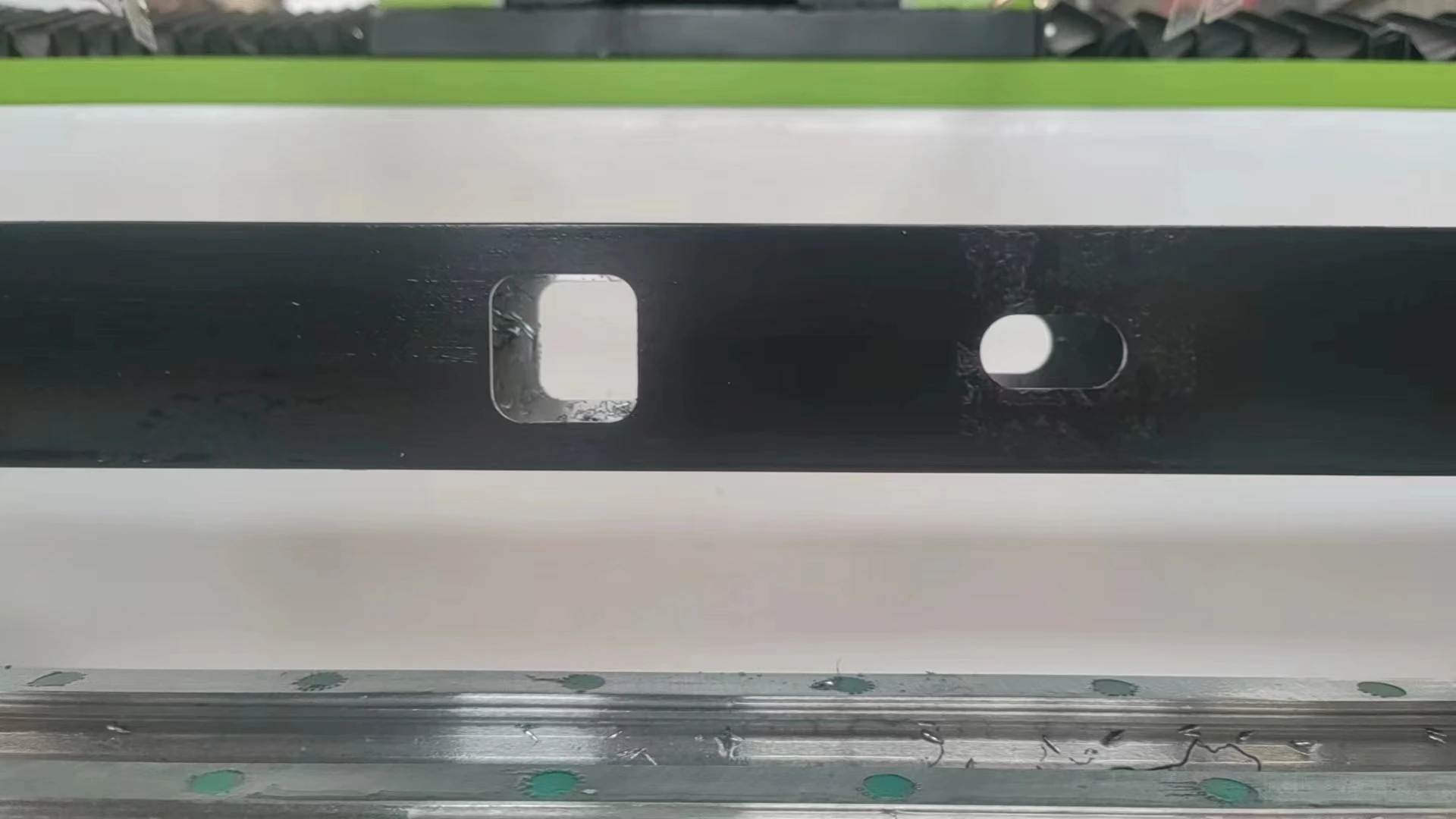

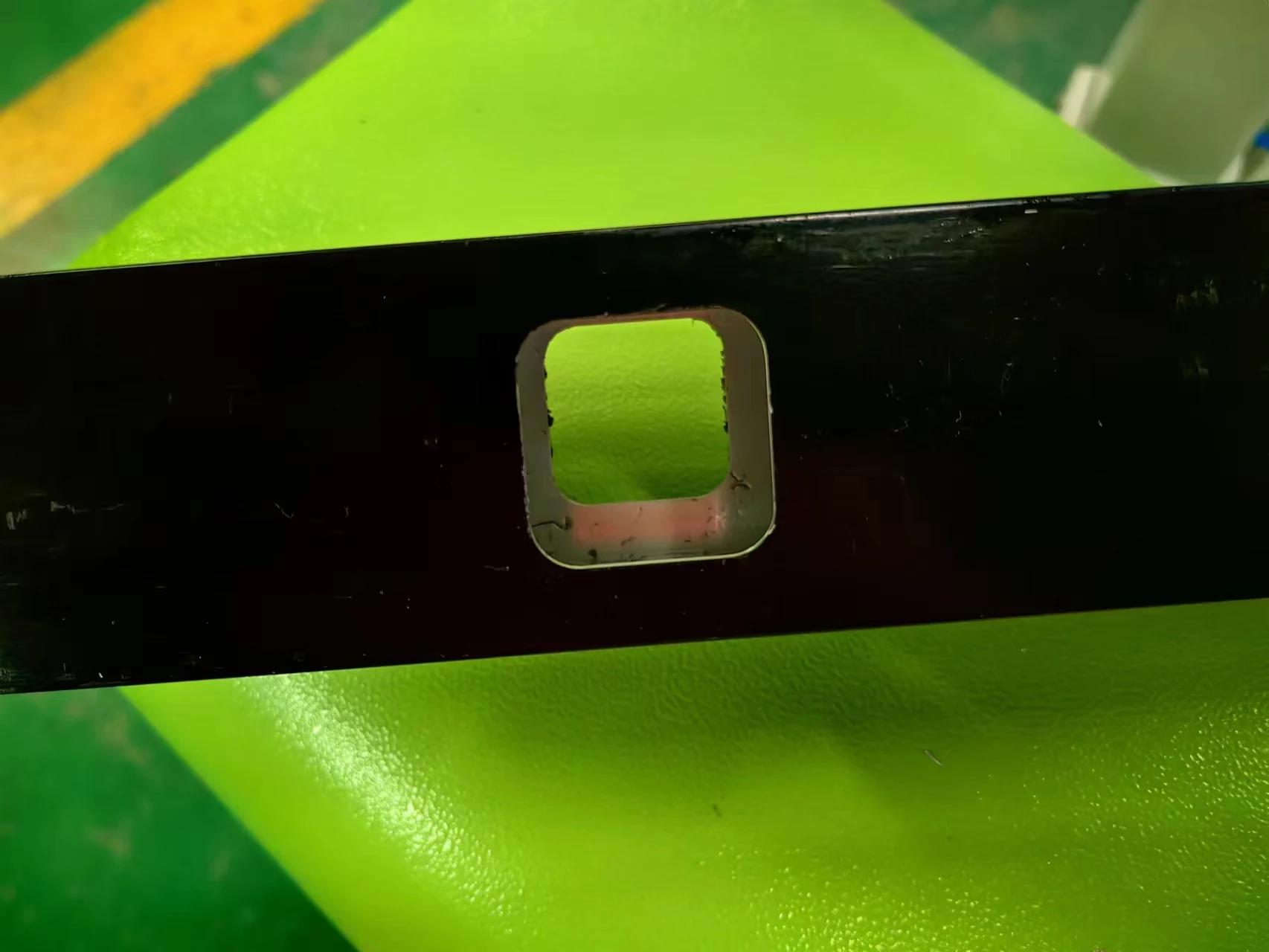

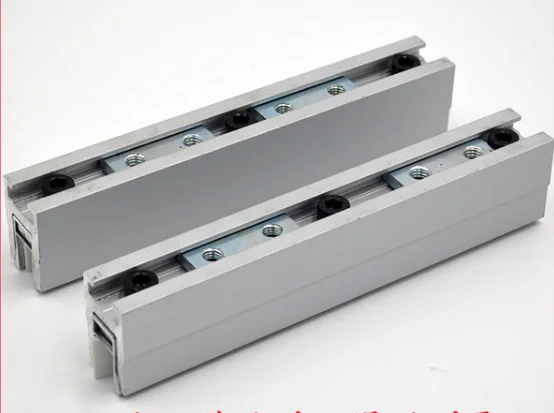

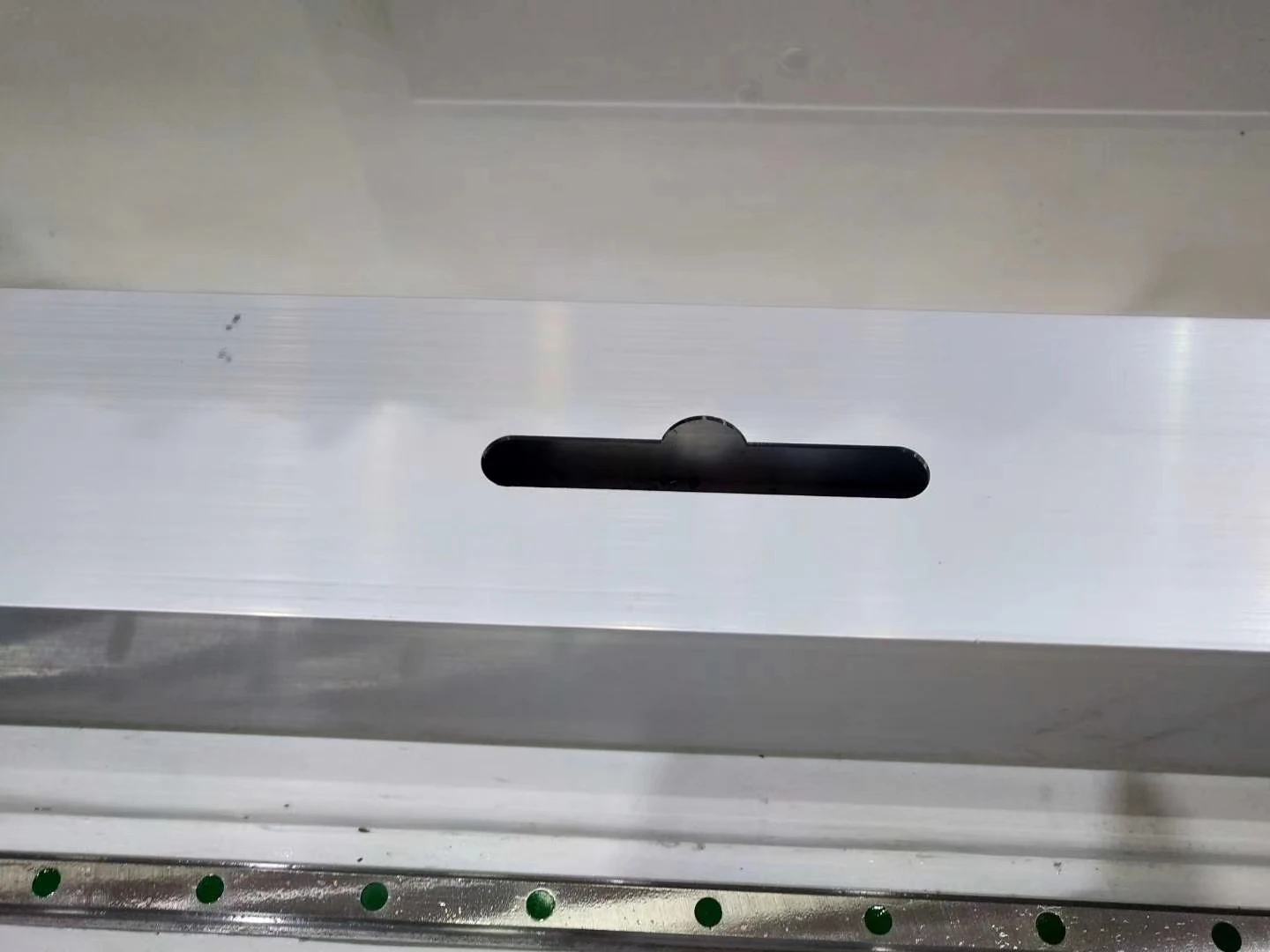

Samples Display
Application:
Suitable for drilling, milling, round holes, special holes of aluminum alloy profiles,
Flat engraving and other processing.
Suitable for drilling, milling, round holes, special holes of aluminum alloy profiles,
Flat engraving and other processing.
Our Service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate.

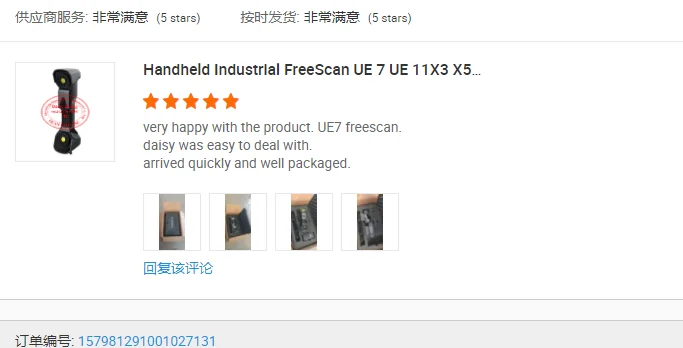

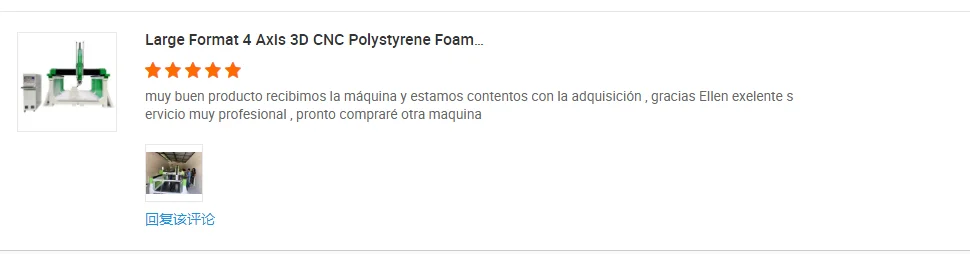

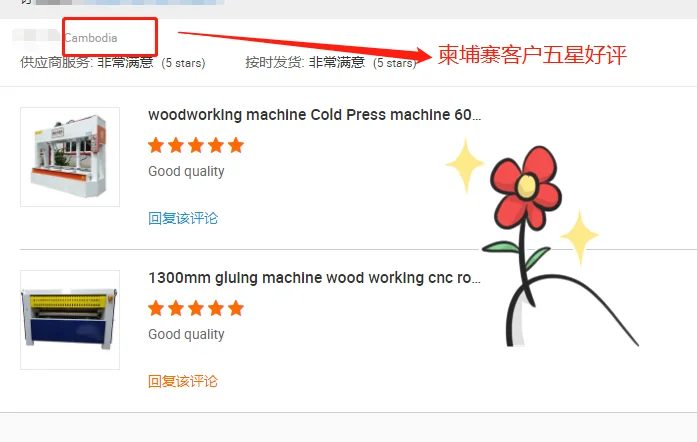

Good Feedback from Customer
Packing & Delivery

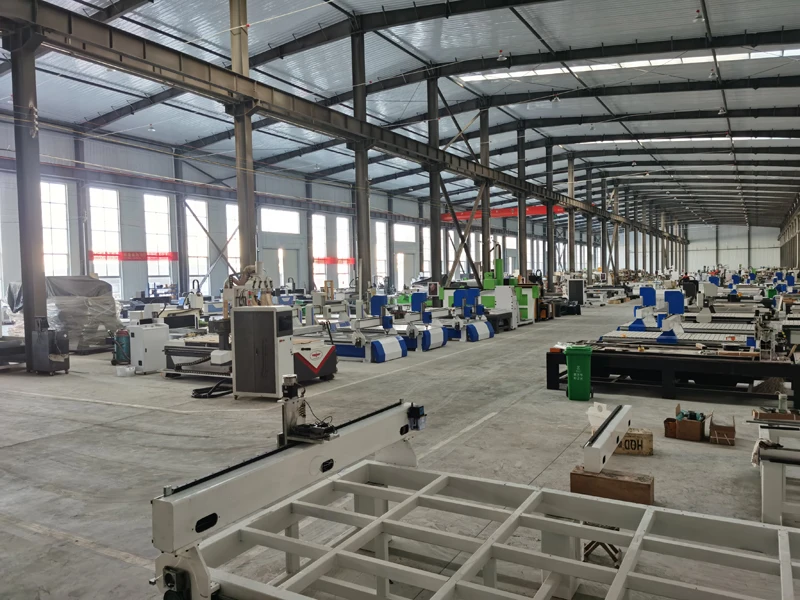

About us
