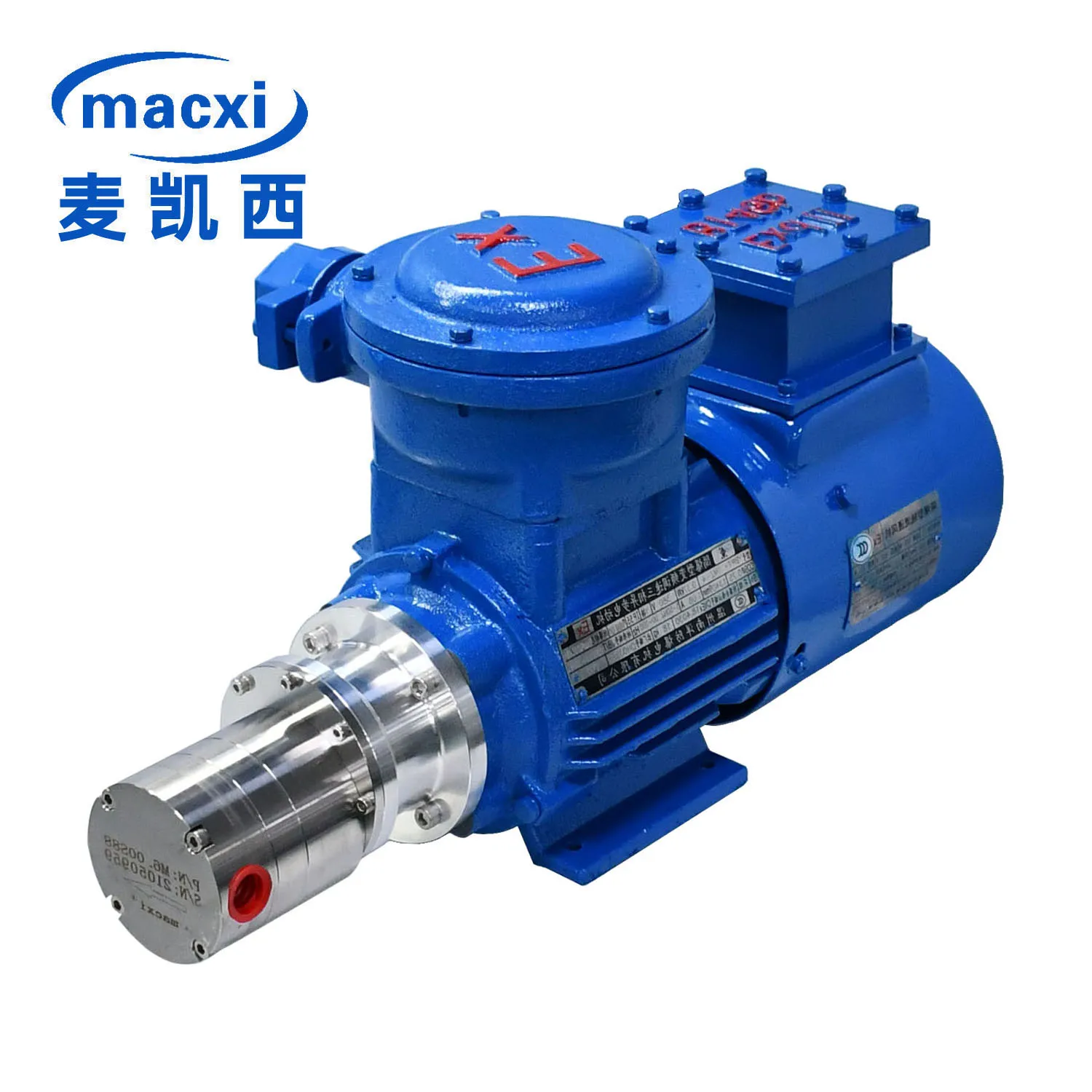

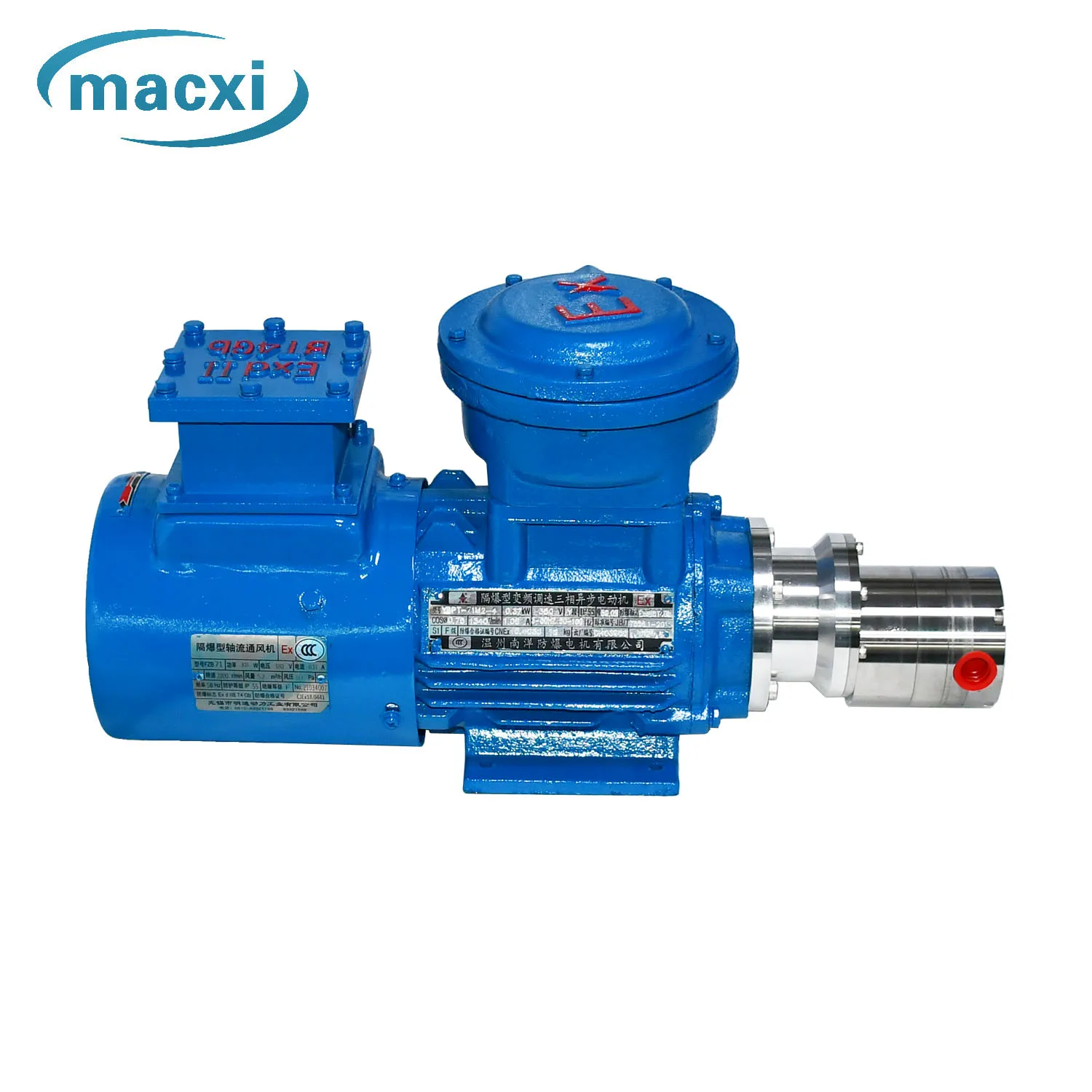

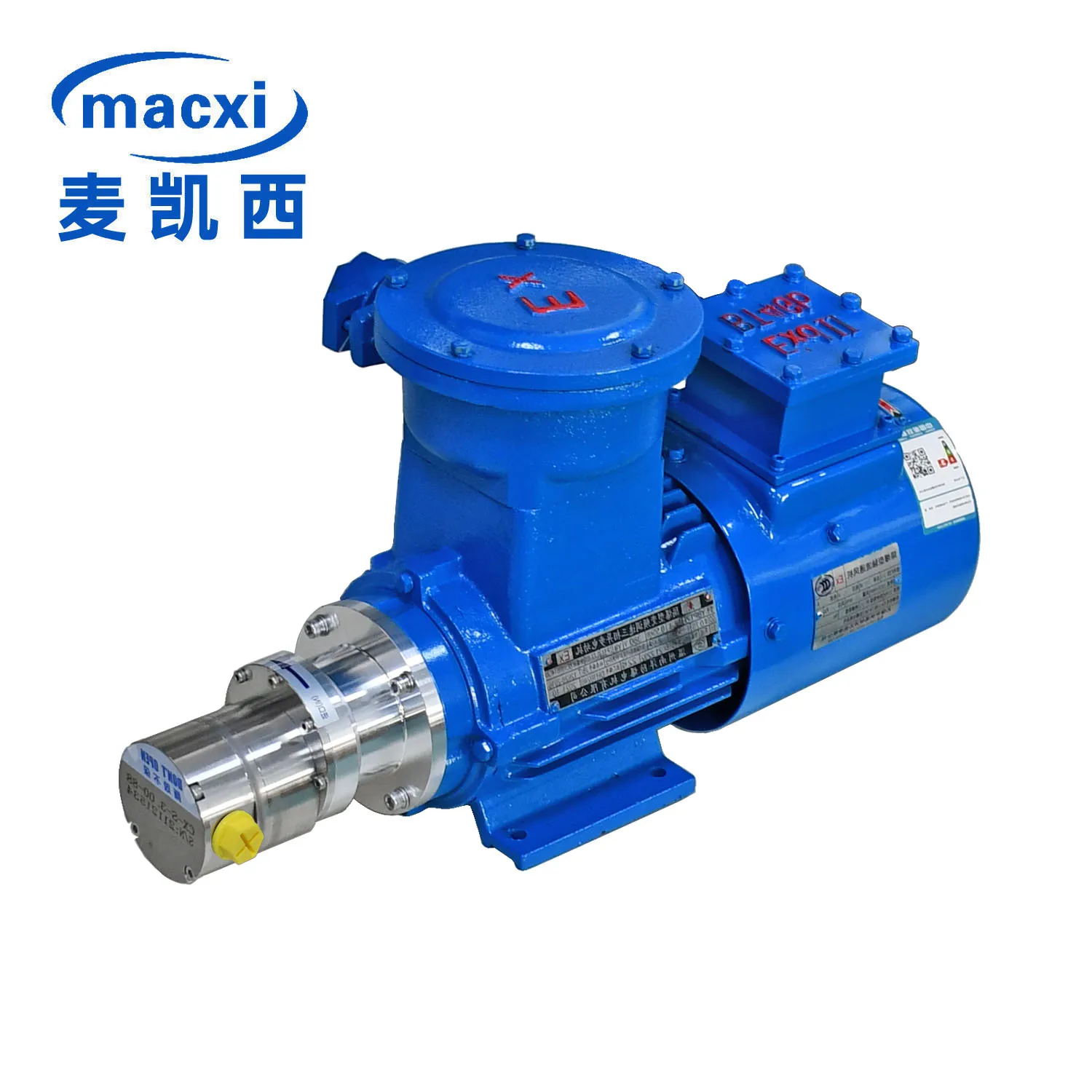

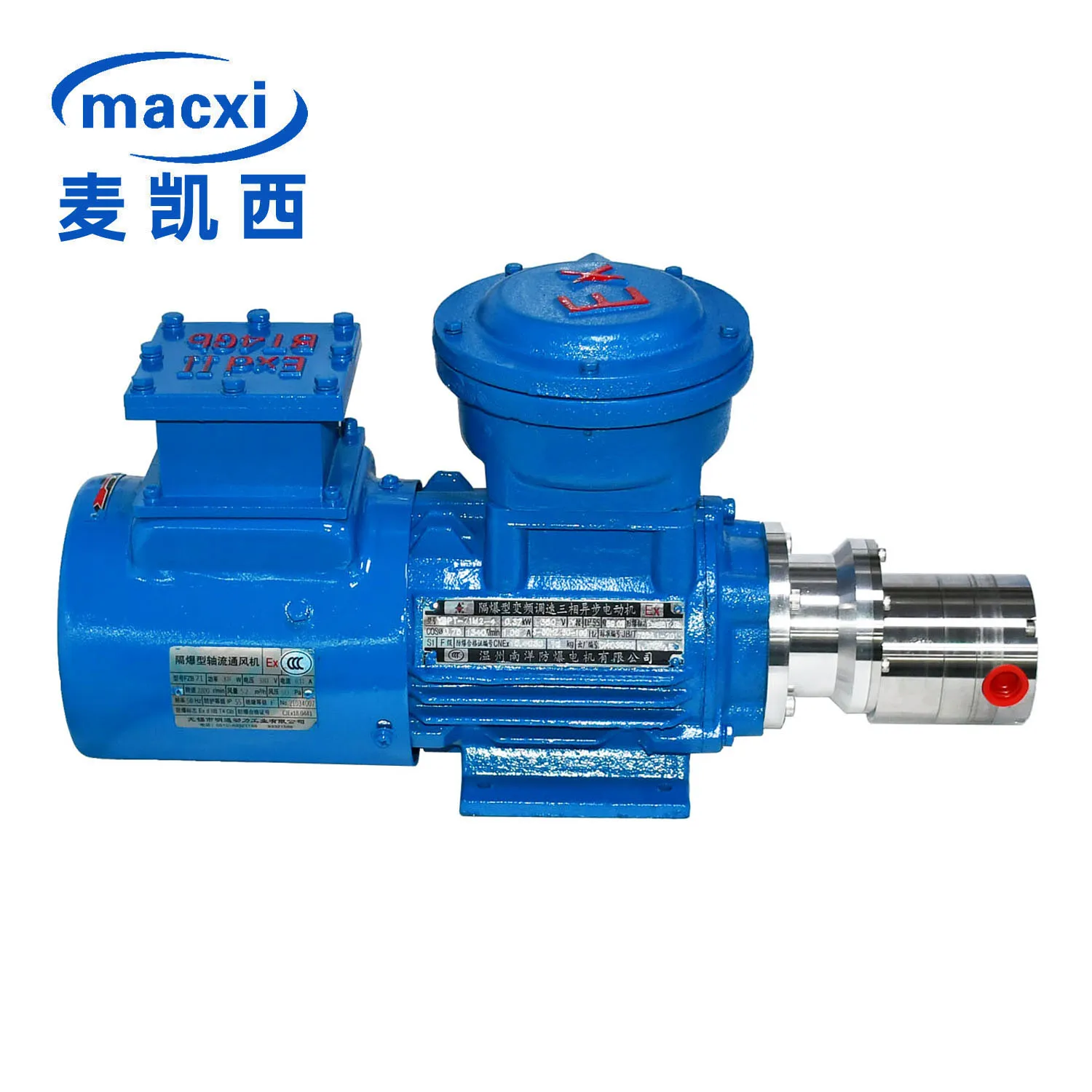

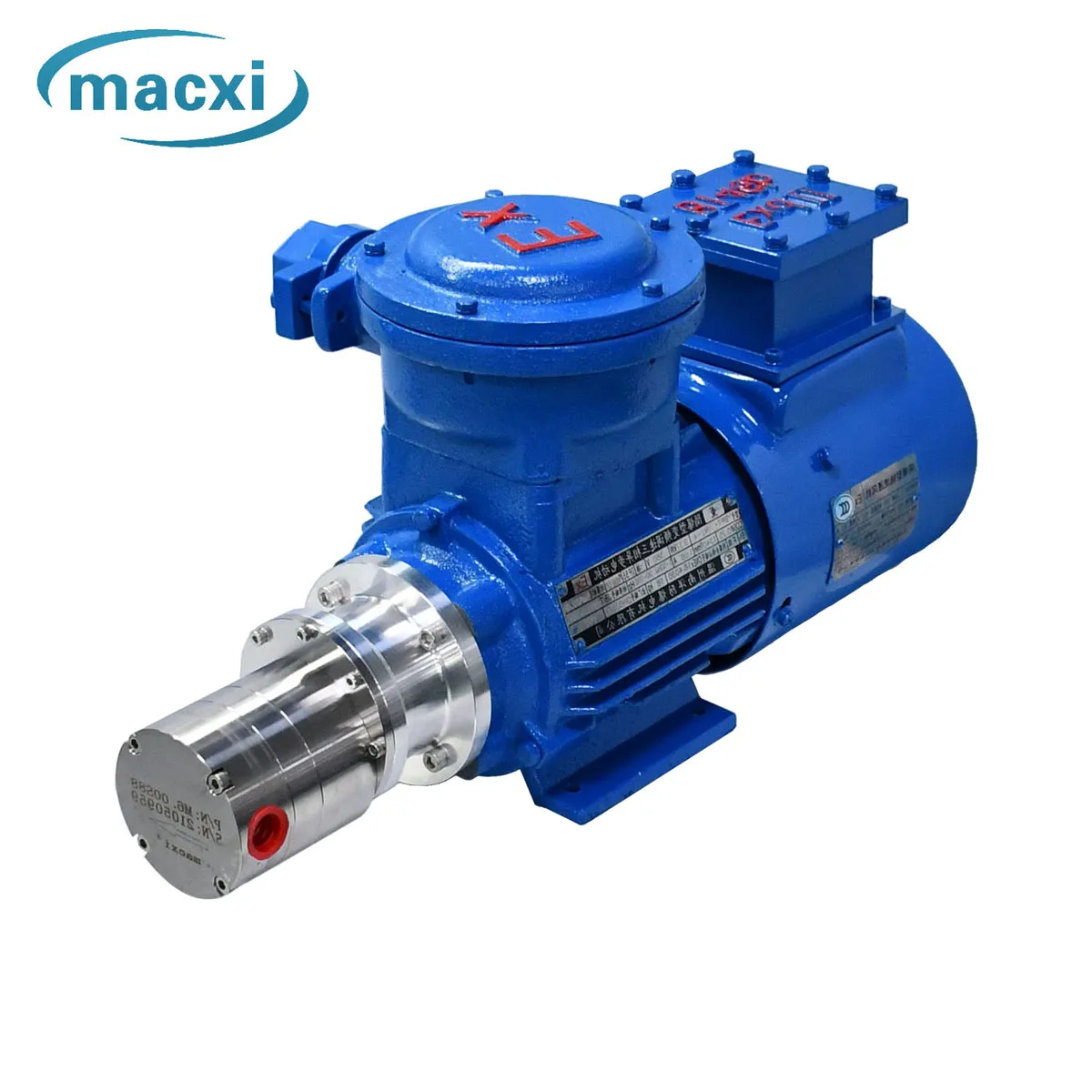

Stainless steel magnetic gear dosing pump for Hydrogen production or distillation
- Category: >>>
- Supplier: Suzhou Macxi Fluid Technology Co. Ltd.
Share on (1601265746133):
Product Overview
Description
Product Model Selection Instruction
Product Instruction
Explosion-proof AC frequency asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is large. It can work stably for a long time. The structure and pressurization capability of the motor are specially designed to adapt to the high speed and higher harmonics. It is easy to use and has low maintenance cost. The flow can be adjusted. It can be used in flammable and explosive situations.
Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.
Product Diagram:

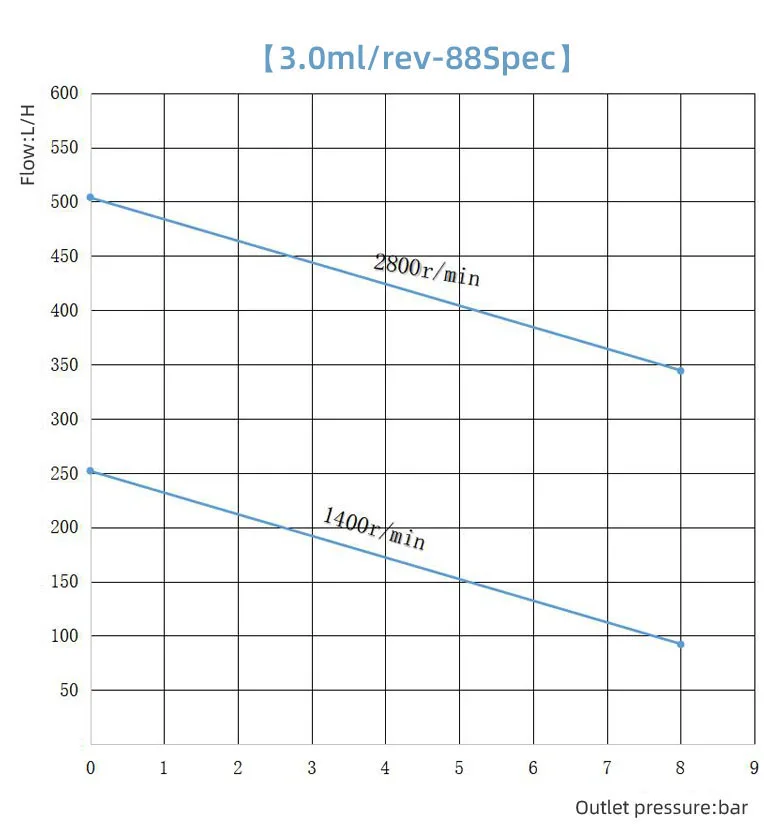

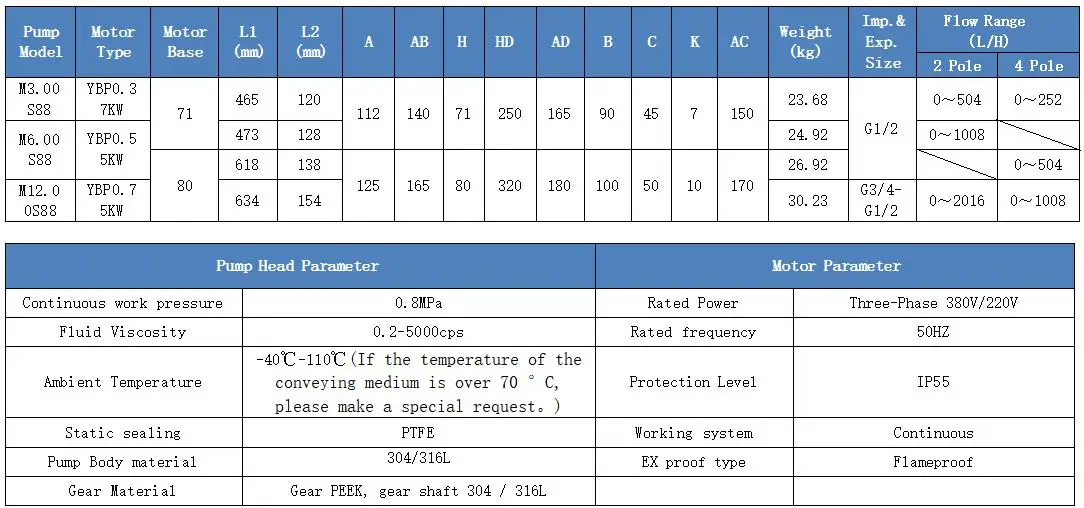

Product Parameters:
The values in this table are for reference only.
Product Characters:
Test medium: Water
Product Characteristics:
1.Smooth transmission, no pulse, accurate measurement;
2.Use magnetic drive structure, static seal, truly achieve zero leakage;
3.Diversified drive, wide application in the industry, complete models;
4.High efficiency and energy saving, easy maintenance, low installation cost and long service life.
Attentions:
It cannot be used to transport fluids with hard particles;
Filter to be installed at inlet.
Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
Applications:
Logistics:
| Industrial machinery and equipment | Water treatment | Food and cosmetics |
| Inkjet printing/painting | Mask making | Food and Beverage filling |
| Oil transportation | Booster pressure | Filling of perfume cosmetics |
| Sand mill/Grinding | Circulating cooling | Quantitative Transport |
Logistics:
CE Certification:
