4.2Ton One Side Manual Lock Release Base Plate Cheap 2 Post Car Lift Repair Hoist CE Certified Garage Car Car Care Equipment

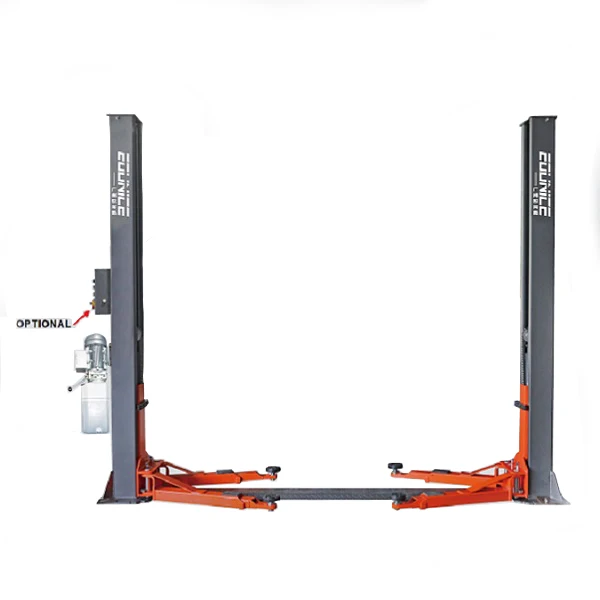

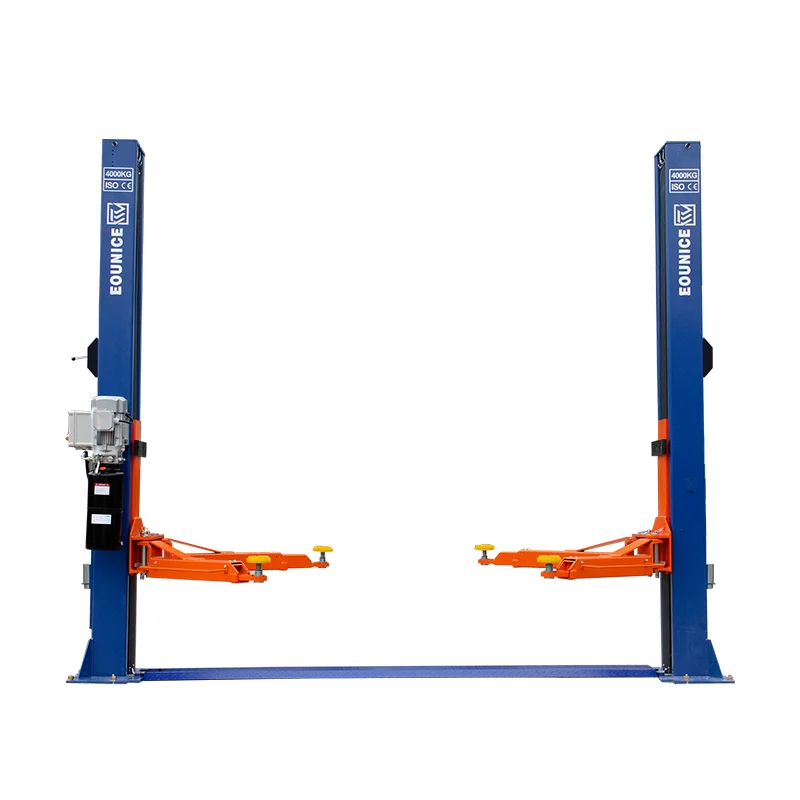

ON-7224D Base Plate Two Post Lift

4,200KG(9,000LBS)/4,500KG(10,000LBS)

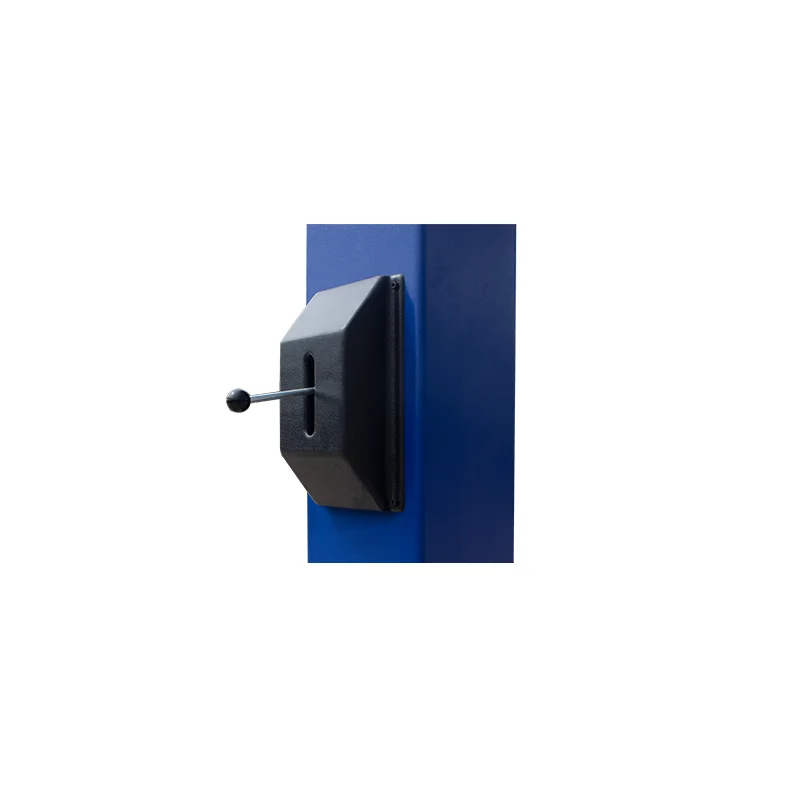

MANUAL lock release and dual chain drive cylinders.

Feature:

• 4,200Kg (9,300LBS.) lifting capacity.


• 1920mm (75 9/16”) lifting height suitable for various operators.


• Electric lock  release and 24volt operation.


• Durable chain drive cylinder in each column carries with anti-surge valves.

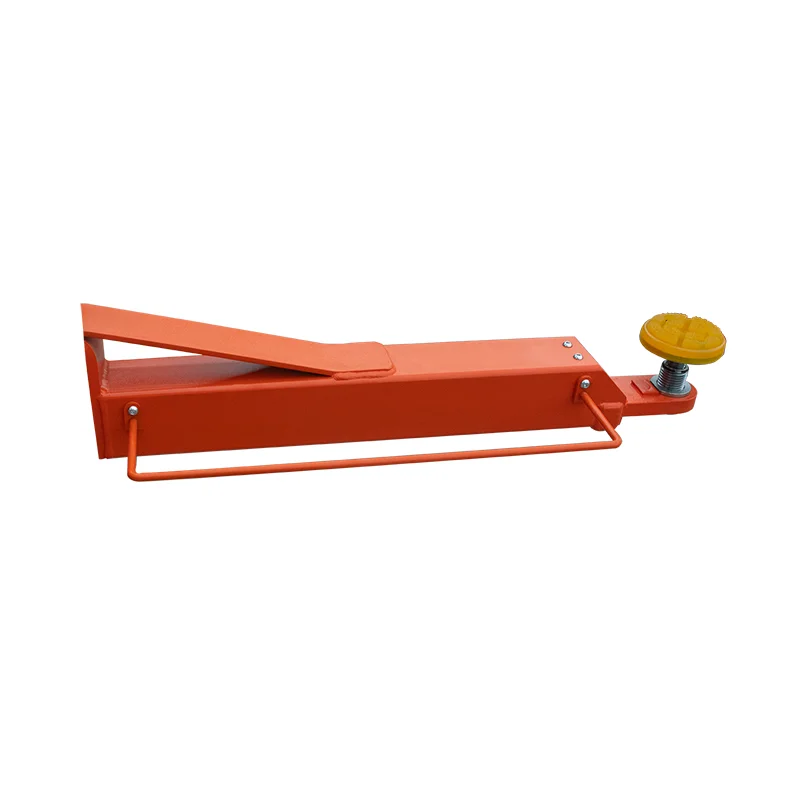

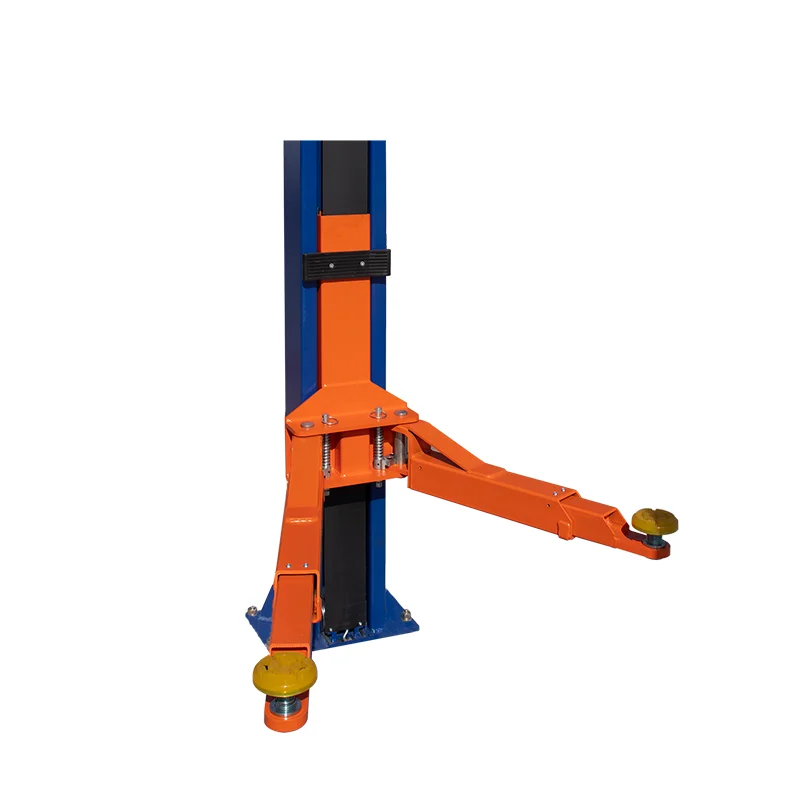

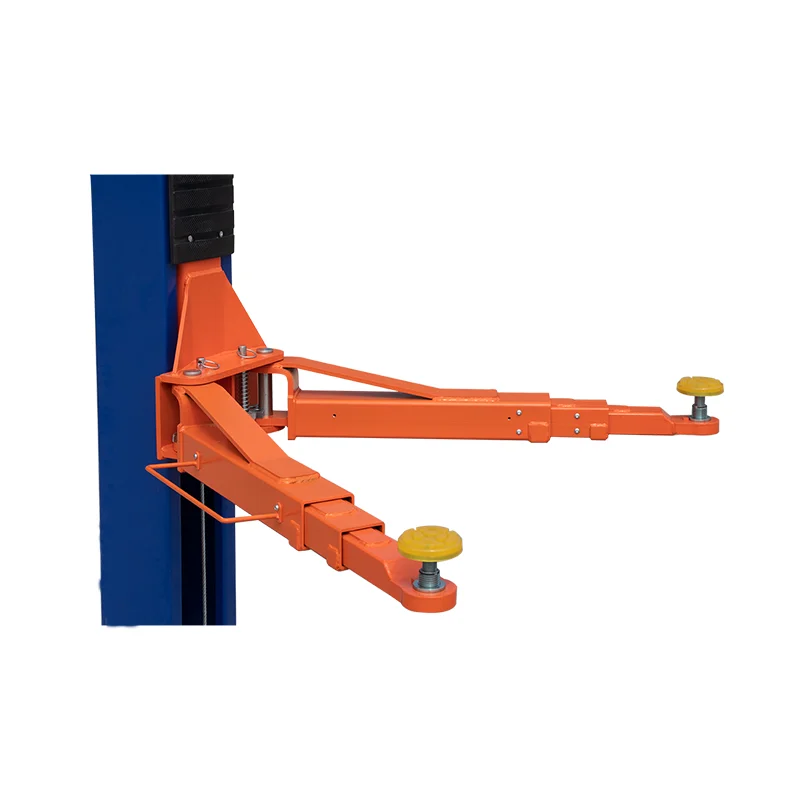

• Standard with 4 two-stage lifting arms.


• Screw-up rubber pads with min height 95mm (3 3/4”).


• Standard with high limit switch.

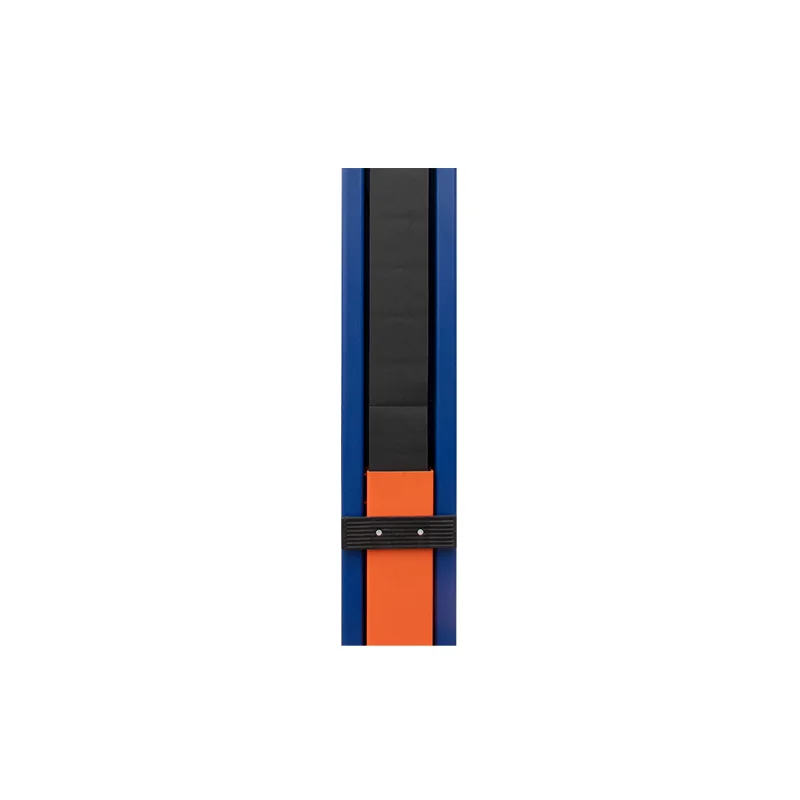

• Standard with curtain inside column and foot guard.

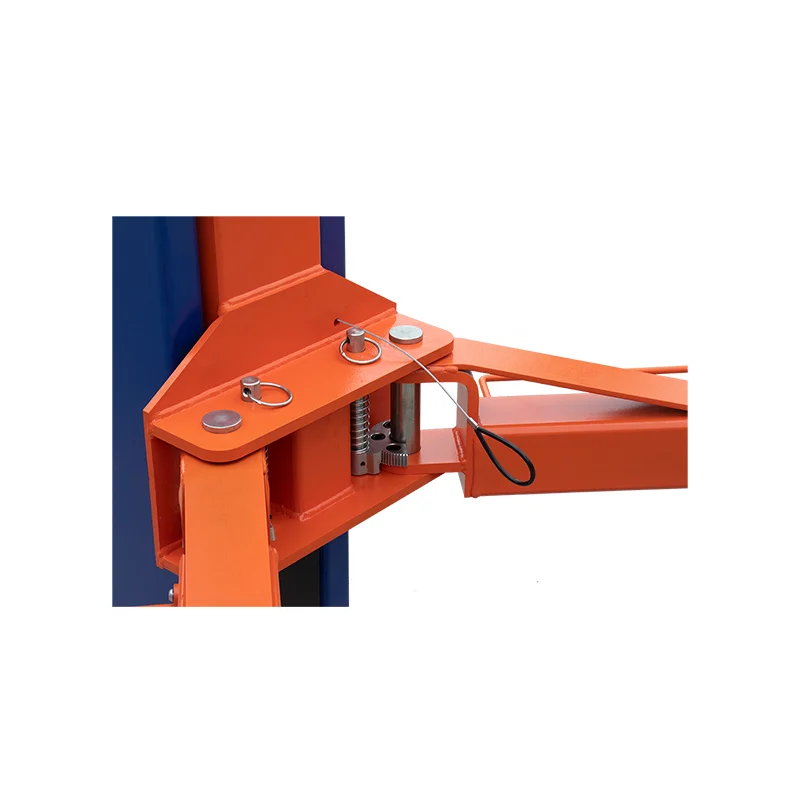

• Automatic arms restraints.


• Professional powder coating.


• CE certificated.







  Technical Data:





























































  Model	7224E
  Lifting Capacity	4,200kgs (9,300LBS)	4,500kgs (10,000LBS)
  Lifting Time	55S	55S
  Lifting Height	1920mm (75 9/16”)	1920mm (75 9/16”)
  Overall Height	2824mm (111 3/16”)	2824mm (111 3/16”)
  Minimum Height	95mm   (3 3 /4”)	95mm   (3 3 /4”)
  Overall Width	3410mm (134 1/4”)	3410mm (134 1/4”)
  Width inside Columns	2850mm (112 1/4”)	2850mm (112 1/4”)

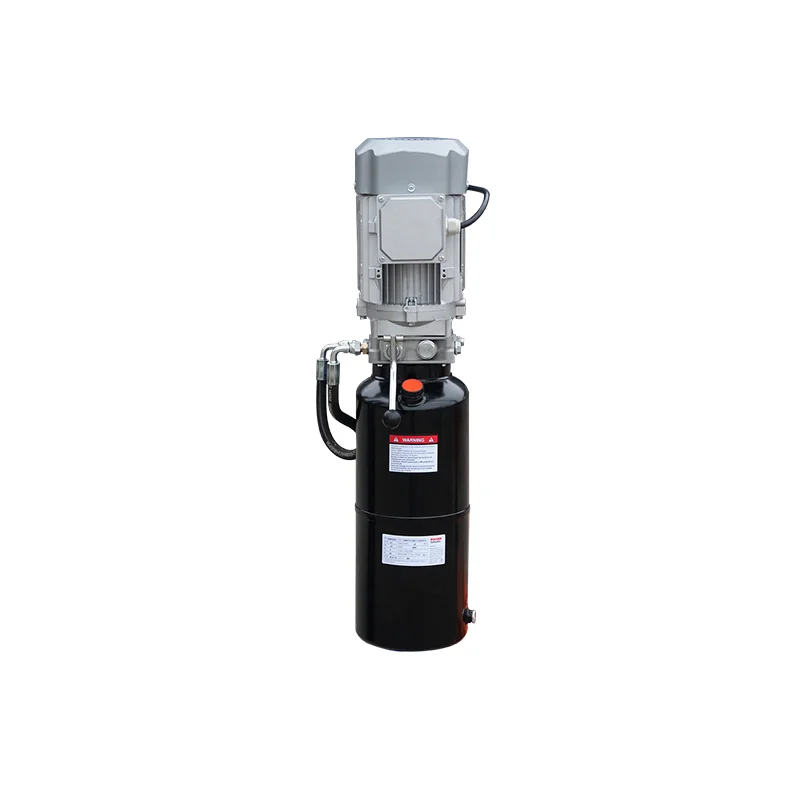

  Motor Power	2.2KW (3HP)	2.2KW (3HP)
  Shipping Weight	588kgs (1,296LBS)	618kgs (1,362LBS)
  Packing  Size	2870*500*740mm	2870*500*740mm

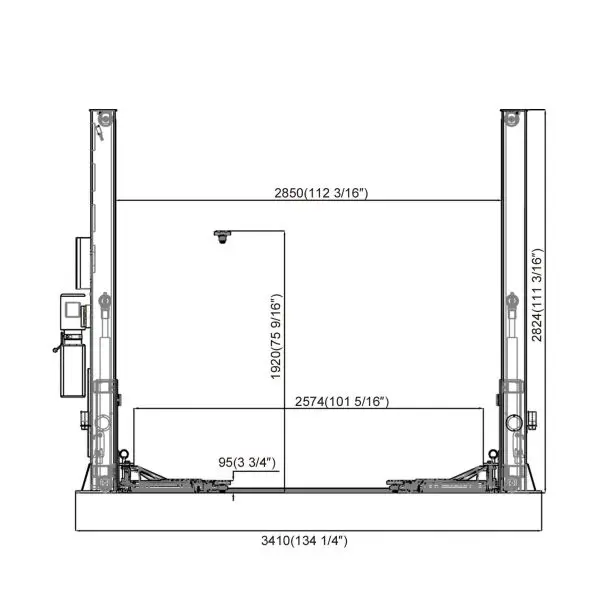

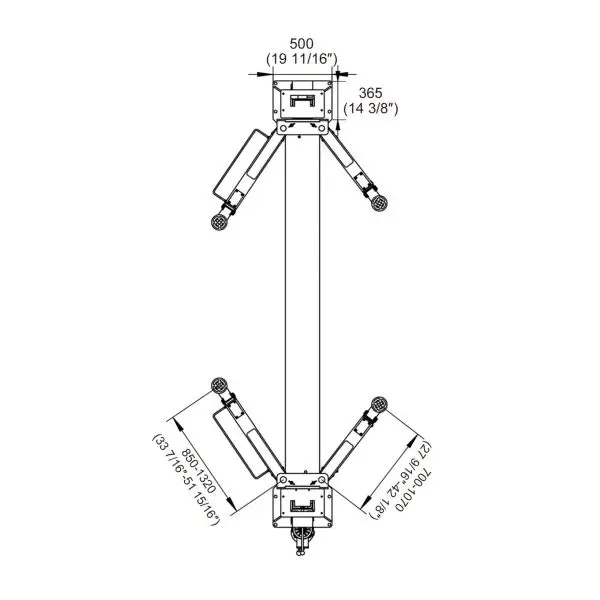

  OVEALL DEMENSION:


•

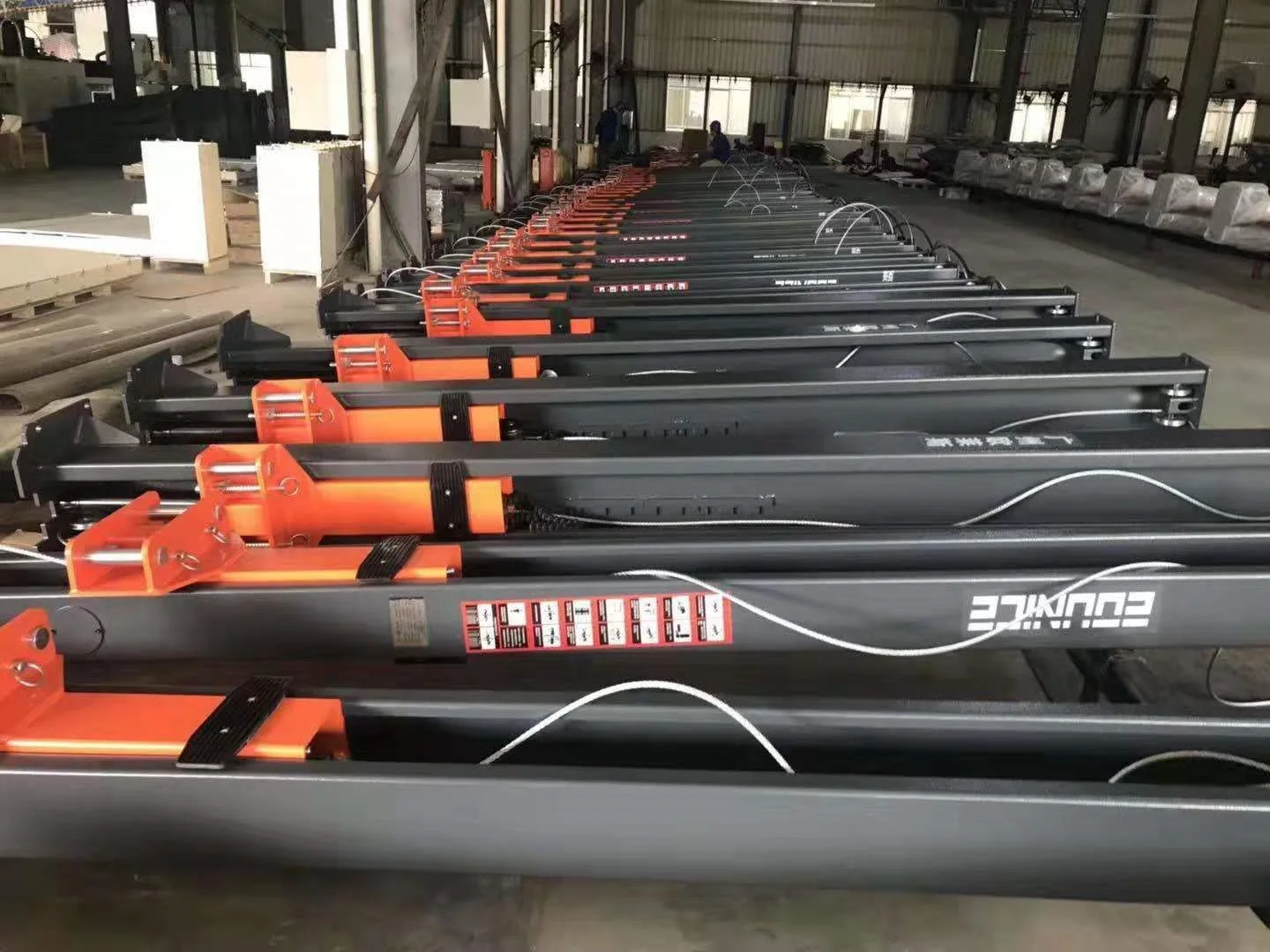

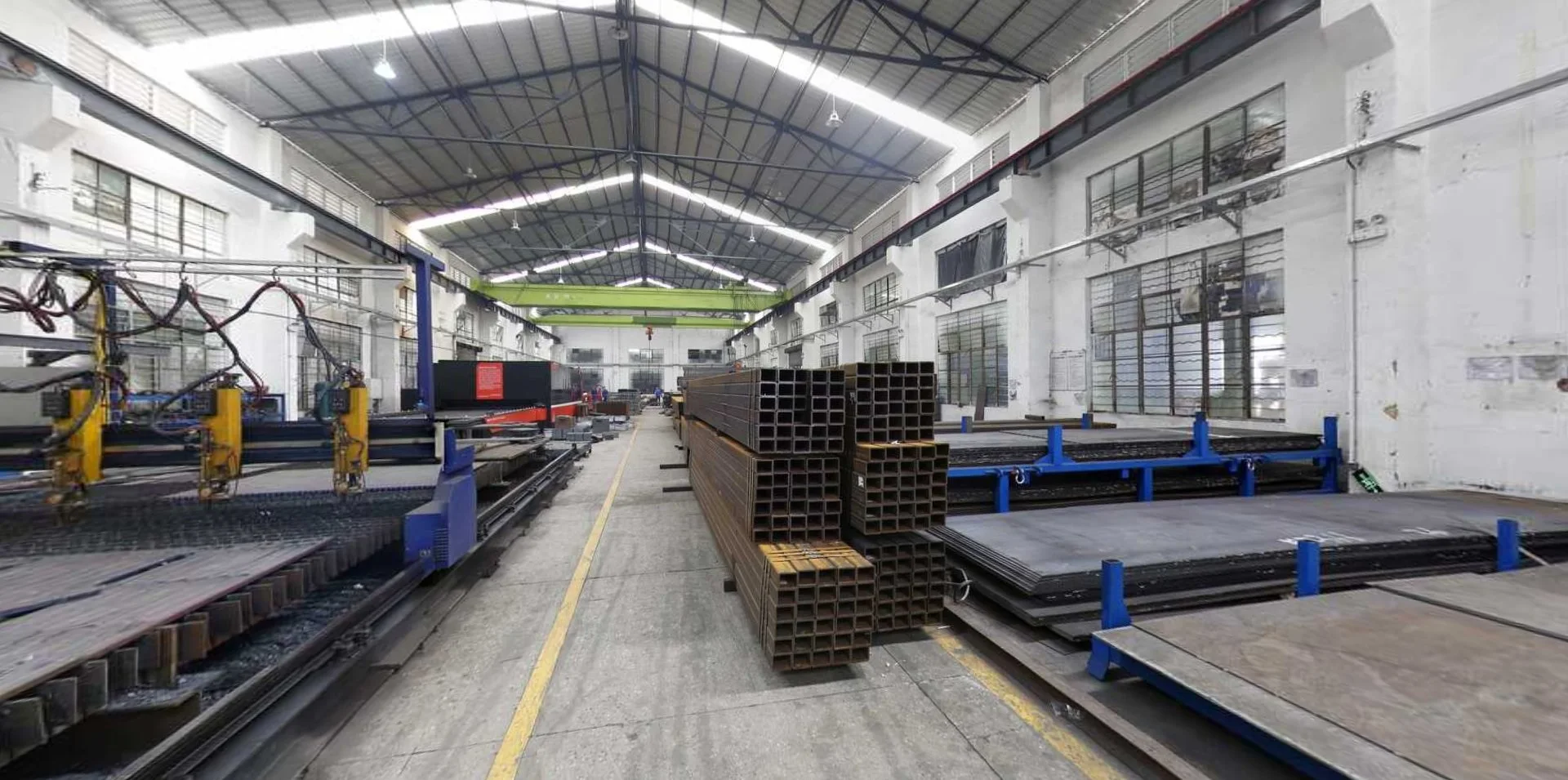

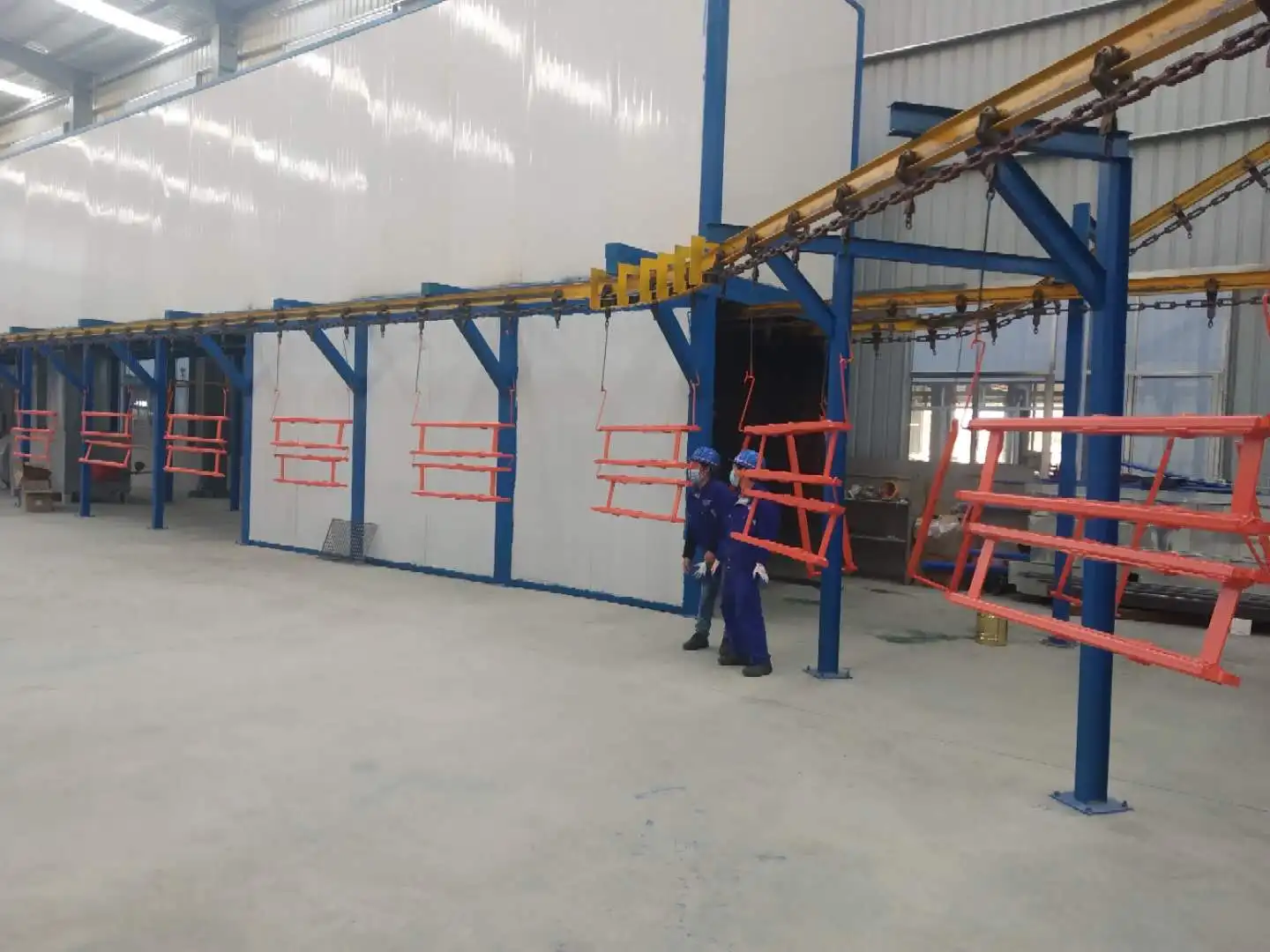

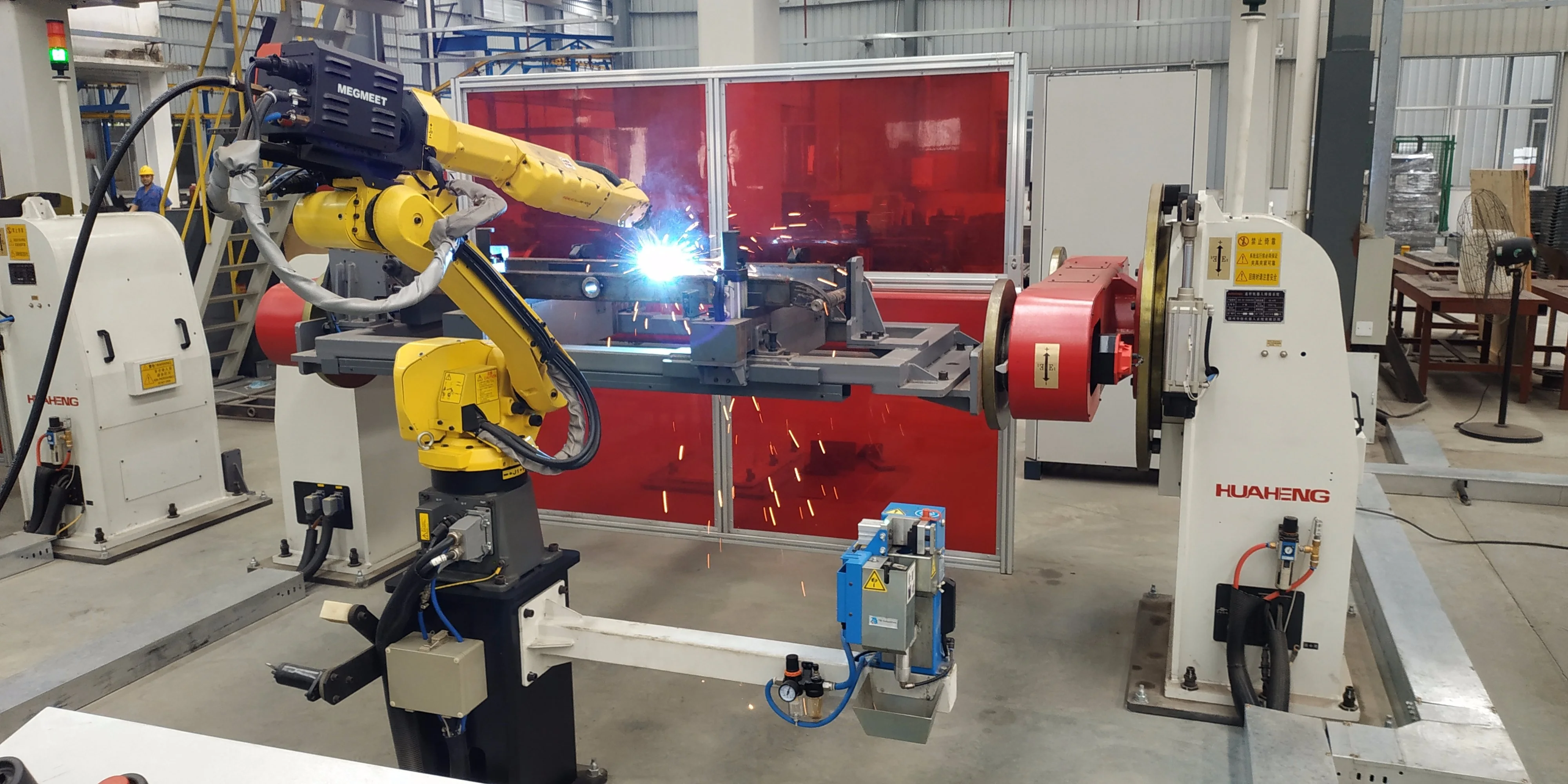

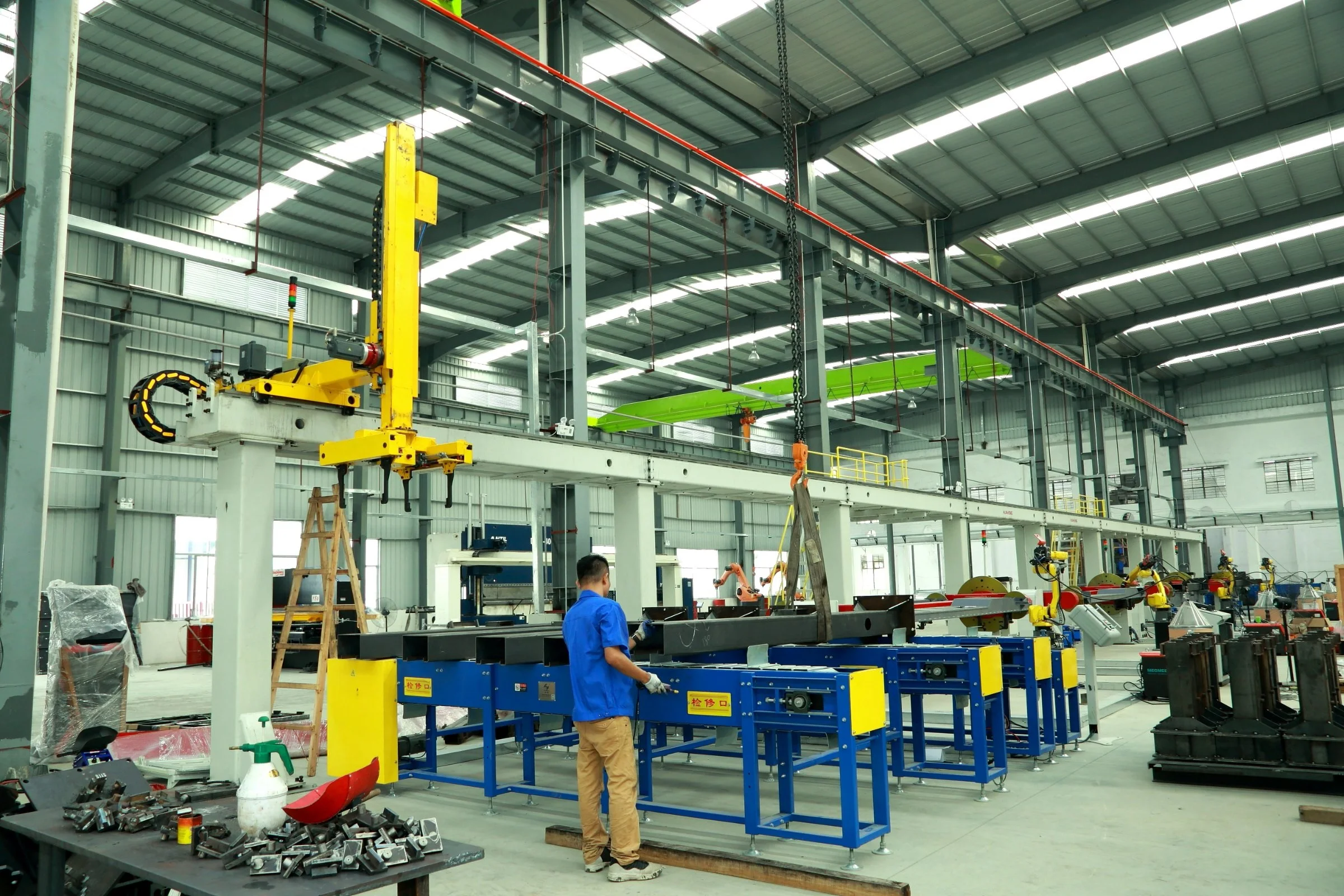

Our factory:

Our Certification:

Our Exhibition:

Packing:

Warranty term:

Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.

  Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,

 Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.

Our Services

Our Company will be Provide to you some Service.

1. OEM ODM service.

2. Customized service.

3. One Year Quality warrant service, during the period spare part supplied free

    if you pay for shipping.

4. Professional team supply service for life long time.

FAQ

 The Some buyer  maybe ask ?

A:You Are Trade Company or Factory?

A: We are manufacturer and we have our own trade company.So pls don`t worry.

B: How long the production can be delivered?

A:  Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,

subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.

C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

    Yes, we can also produce machines with special color according to client's request.

D: Can I order  in any special size?

A:  Yes,you can.

    The size is customized, but should be suitable for the inner size of containers.pls understand.
