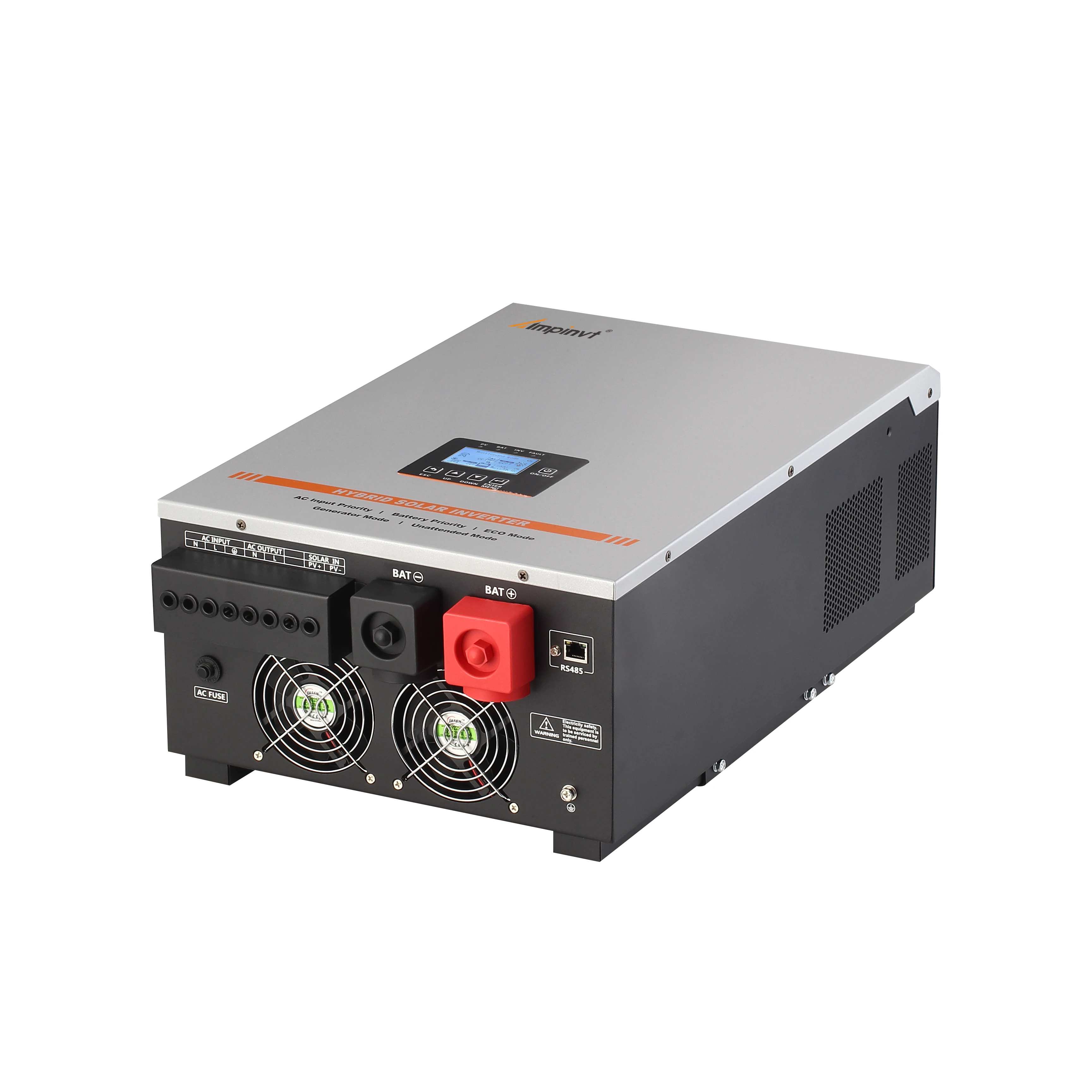

Pure Sine Wave Hybrid solar inverter 1000w 12v 24 Volt To 220 Volt Off Grid Inverter For Solar Power System Ampinvt
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.
Share on (1601265973153):
Product Overview
Description
Products Description

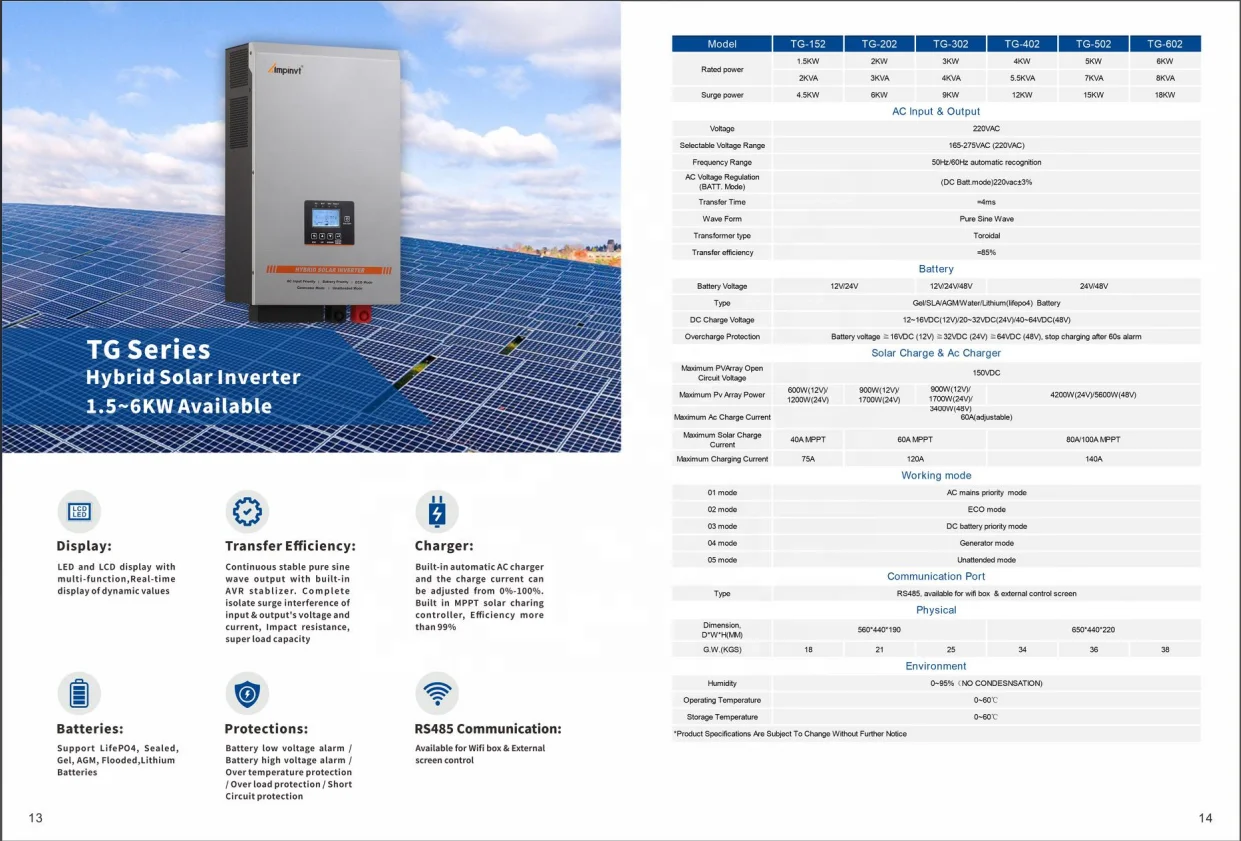

Product Paramenters
Model | TG-152 | TG-202 | TG-302 | TG-402 | TG-502 | TG-602 | ||||||
Rated power | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||||||
2KVA | 3KVA | 4KVA | 5.5KVA | 7KVA | 8KVA | |||||||
Surge power | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | ||||||
AC Input & Output | ||||||||||||
Voltage | 220VAC | |||||||||||
Selectable Voltage Range | 165-275VAC (220VAC) | |||||||||||
Frequency Range | 50Hz/60Hz automatic recognition | |||||||||||
AC Voltage Regulation (BATT. Mode) | (DC Batt.mode)220vac±3% | |||||||||||
Transfer Time | ≤4ms | |||||||||||
Wave Form | Pure Sine Wave | |||||||||||
Transformer type | Toroidal | |||||||||||
Transfer efficiency | ≥85% | |||||||||||
Battery | ||||||||||||
Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||||||||
Type | Gel/SLA/AGM/Water/Lithium(lifepo4) Battery | |||||||||||
DC Charge Voltage | 12~16VDC(12V)/20~32VDC(24V)/40~64VDC(48V) | |||||||||||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm | |||||||||||
Solar Charge & Ac Charger | ||||||||||||
Maximum PVArray Open Circuit Voltage | 150VDC | |||||||||||
Maximum Pv Array Power | 600W(12V)/ 1200W(24V) | 900W(12V)/ 1700W(24V) | 900W(12V)/ 1700W(24V)/ 3400W(48V) | 4200W(24V)/5600W(48V) | ||||||||
Maximum Ac Charge Current | 60A(adjustable) | |||||||||||
Maximum Solar Charge Current | 40A MPPT | 60A MPPT | 80A/100A MPPT | |||||||||
Maximum Charging Current | 75A | 120A | 140A | |||||||||
Working mode | ||||||||||||
01 mode | AC mains priority mode | |||||||||||
02 mode | ECO mode | |||||||||||
03 mode | DC battery priority mode | |||||||||||
04 mode | Generator mode | |||||||||||
05 mode | Unattended mode | |||||||||||
Communication Port | ||||||||||||
Type | RS485, available for wifi box & external control screen | |||||||||||
Physical | ||||||||||||

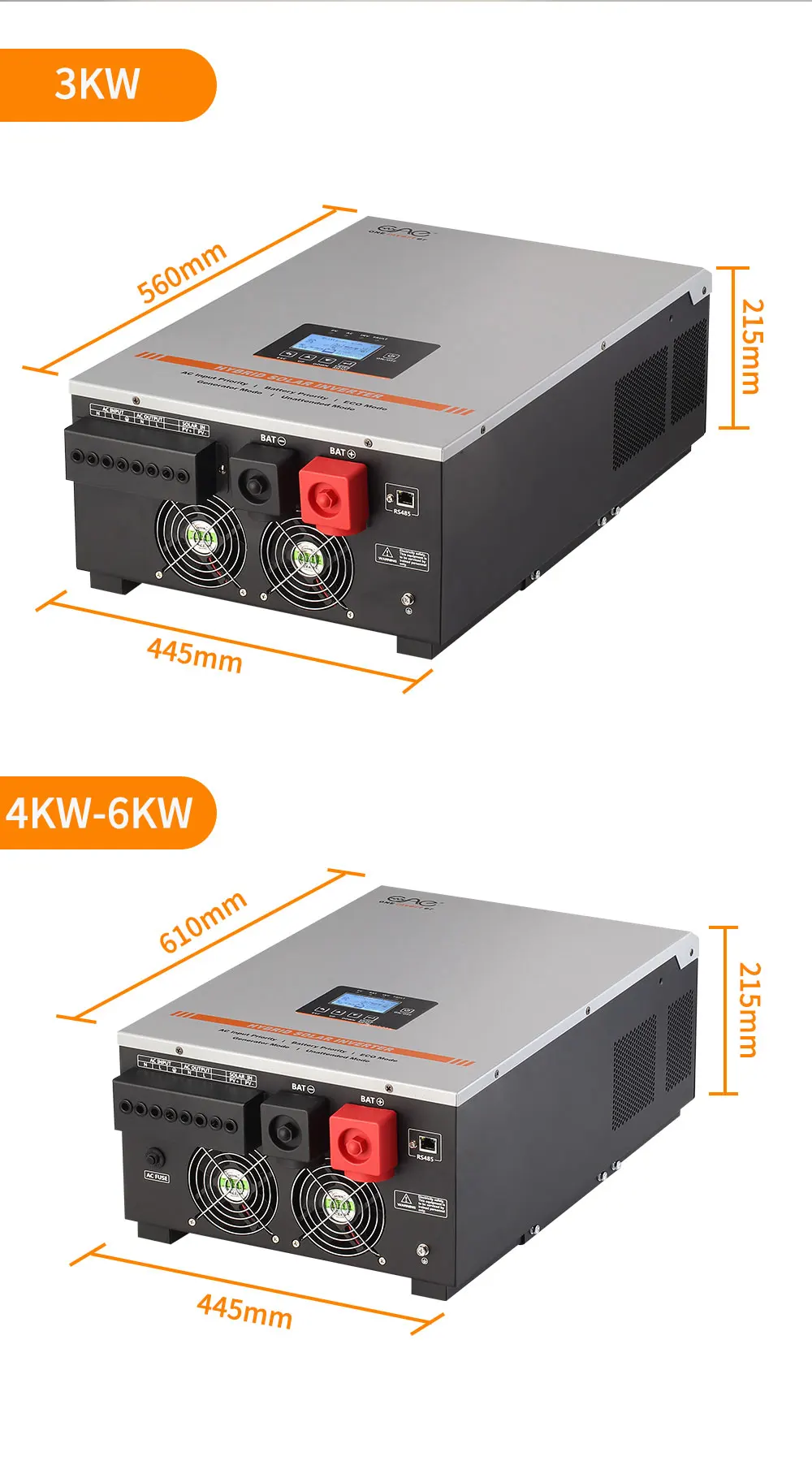

Dimension, D*W*H(MM) | 560*440*190 | 650*440*220 | ||||||||||
G.W.(KGS) | 18 | 21 | 25 | 34 | 36 | 38 | ||||||
Environment | ||||||||||||
Humidity | 0~95%（NO CONDESNSATION) | |||||||||||
Operating Temperature | 0~60℃ | |||||||||||
Storage Temperature | 0~60℃ | |||||||||||
*Product Specifications Are Subject To Change Without Further Notice | ||||||||||||
