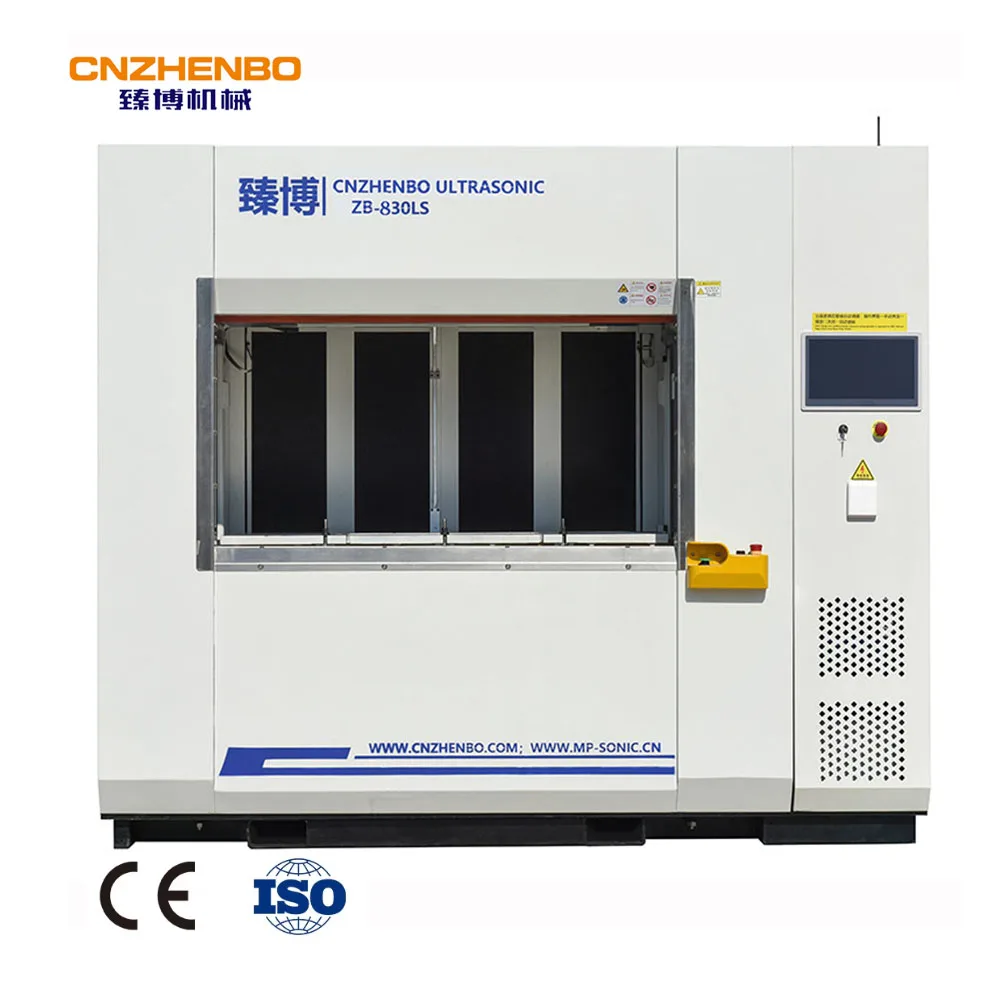

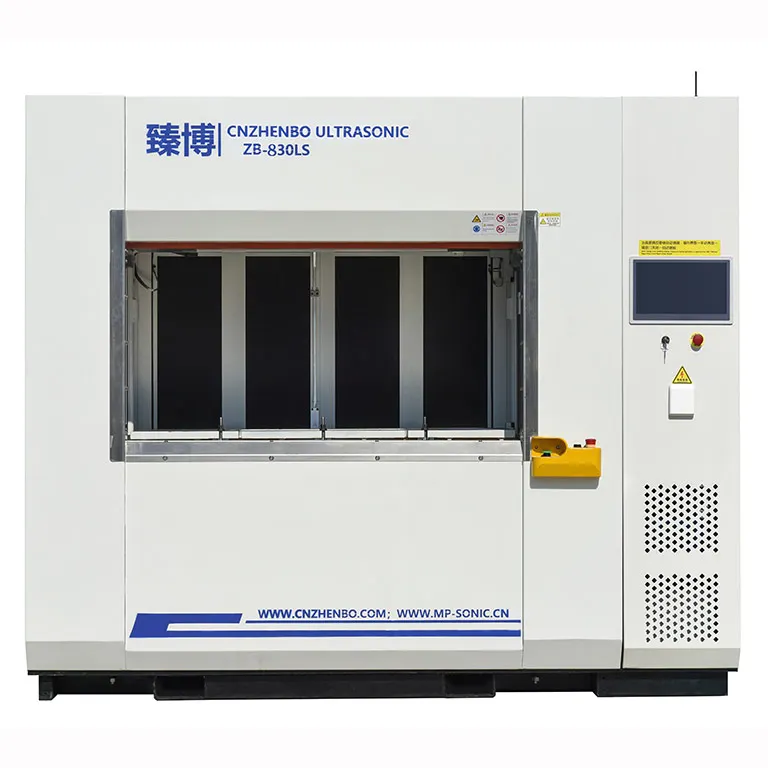

ZB 830LS PP PS PC HDPE PA GF Vibration friction welding machine for Car radiator
- Category: >>>
- Supplier: Chongqing Yongai Technology Co. Ltd.
Share on (1601266004635):
Product Overview
Description
Model | ZB-830LS | |
VibratIon Head | ||
Weight upper tool | 150 Kg | |
Welding area(approx. / for PP) | 490 ㎠ | |
Amplitude(peak to peak) | 1.0∼3.8 mm | |
Frequency | 125∼145 Hz | |
Spring Quantity | 6 | |
Magnetic Quantity | 3 | |
Machine | ||

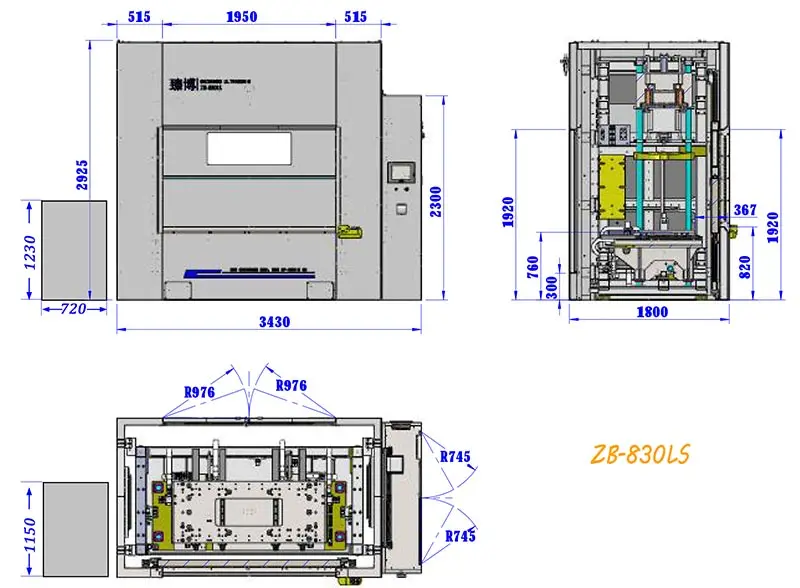

Machine Size : Width | 2980 mm | |
Depth | 1800 mm | |
Height | 2925mm | |
Front Door Opening : Width | 1790 mm | |
Height | 930 mm | |
Drive Platen/upper : Width | 1490 mm | |
Depth | 480mm | |
Lift Table Size : Width | 1700 mm | |
Depth | 720 mm | |
Table stroke/Max. | 800 mm | |
Max. distance between lift table/ | 1200-1500 mm | |
VibratIon head | ||
Table speed | 250 mm/s | |
Clamp force | 32.5 KN | |
Weight | ≒7，200 kg | |
Sound pressure level | ＜85db | |
Electrical | ||
Power consumption | 47 KVA | |
Maximum Power/Out Put | 30Kw | |
1) Main performance:
1. Automatic welding fixture frequency tracking;
2. 8-level welding step control, adapt to different product material characteristics;
3. Welding control mode: time mode and depth mode;
4. 80 groups of welding parameters storage;
5. Welding result judgment;
6. Multi-functional interface control system to achieve equipment safety, setting, management, monitoring and other functions;
7. High precision servo hydraulic system, fast, stable, quiet, extend the service life of hydraulic oil;
8. Cloud service system to achieve remote services, improve service efficiency, reduce equipment service costs.
1. Automatic welding fixture frequency tracking;
2. 8-level welding step control, adapt to different product material characteristics;
3. Welding control mode: time mode and depth mode;
4. 80 groups of welding parameters storage;
5. Welding result judgment;
6. Multi-functional interface control system to achieve equipment safety, setting, management, monitoring and other functions;
7. High precision servo hydraulic system, fast, stable, quiet, extend the service life of hydraulic oil;
8. Cloud service system to achieve remote services, improve service efficiency, reduce equipment service costs.
