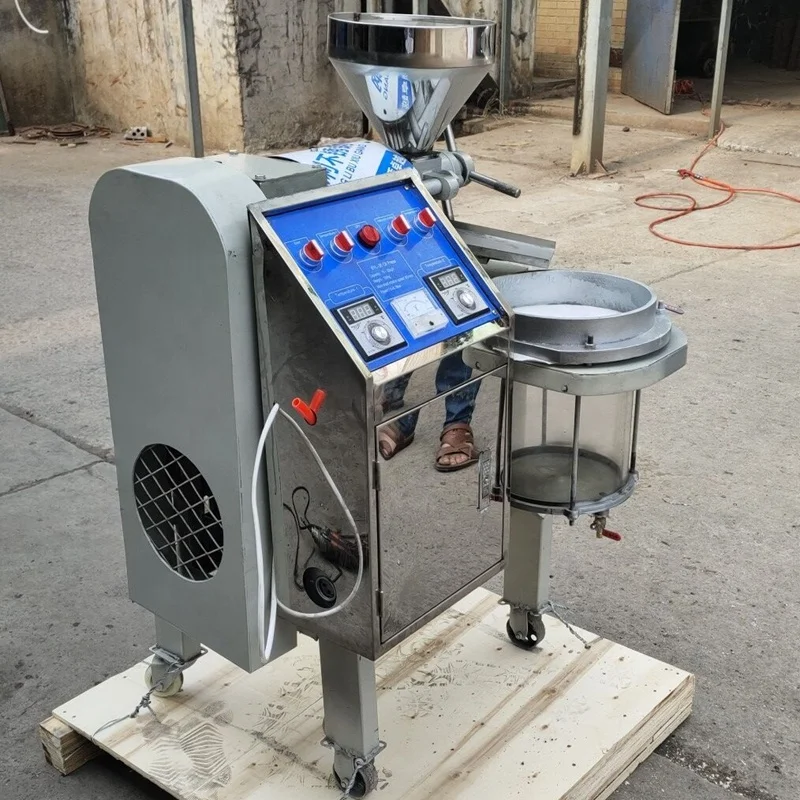

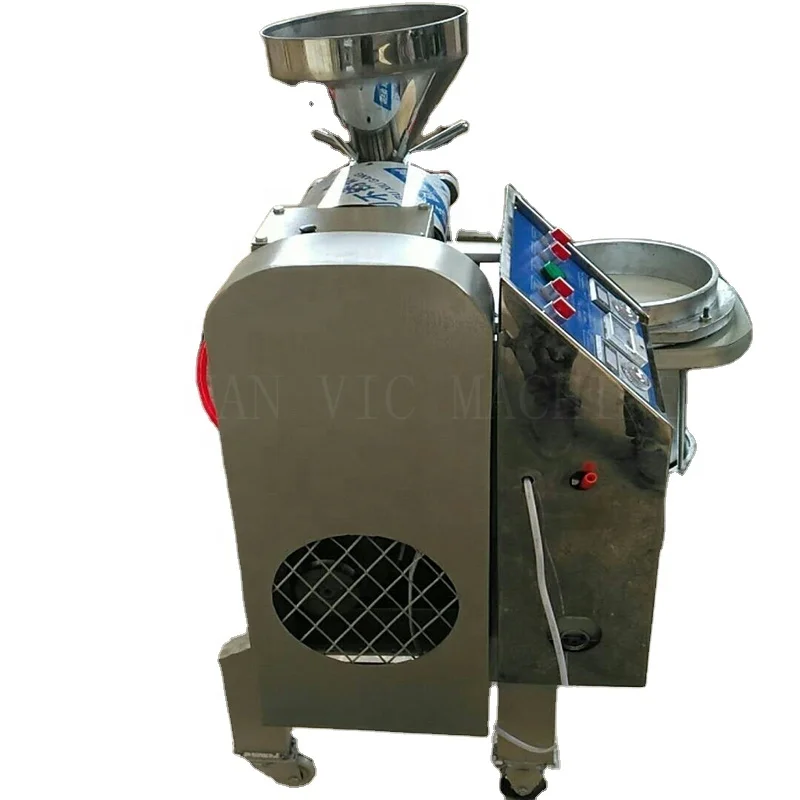

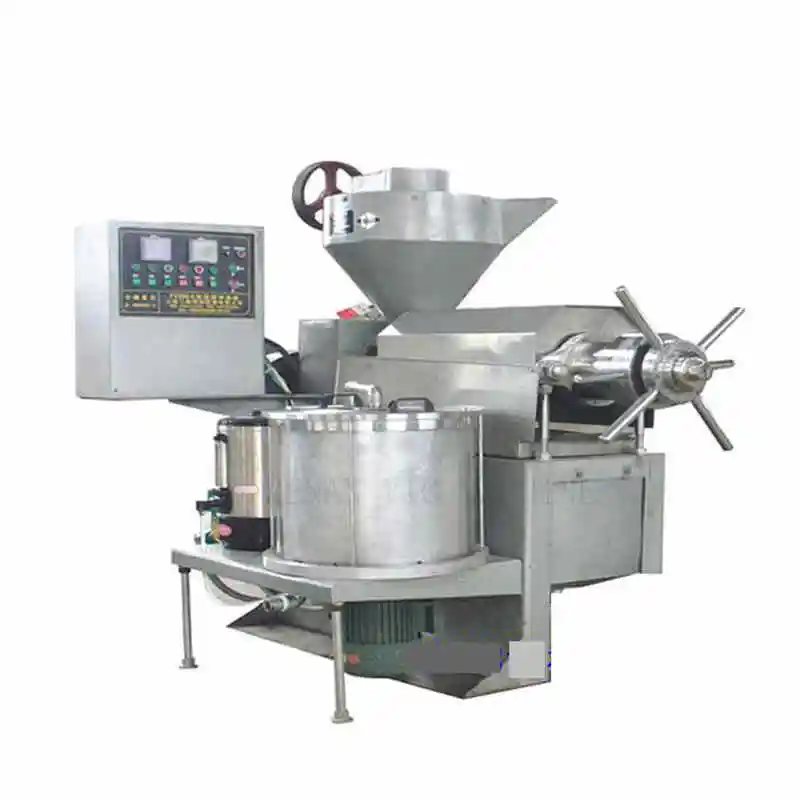

New design 20kg/h home use mini palm coconut mustard cooking oil pressing machine with oil filter

Product Overview

Description

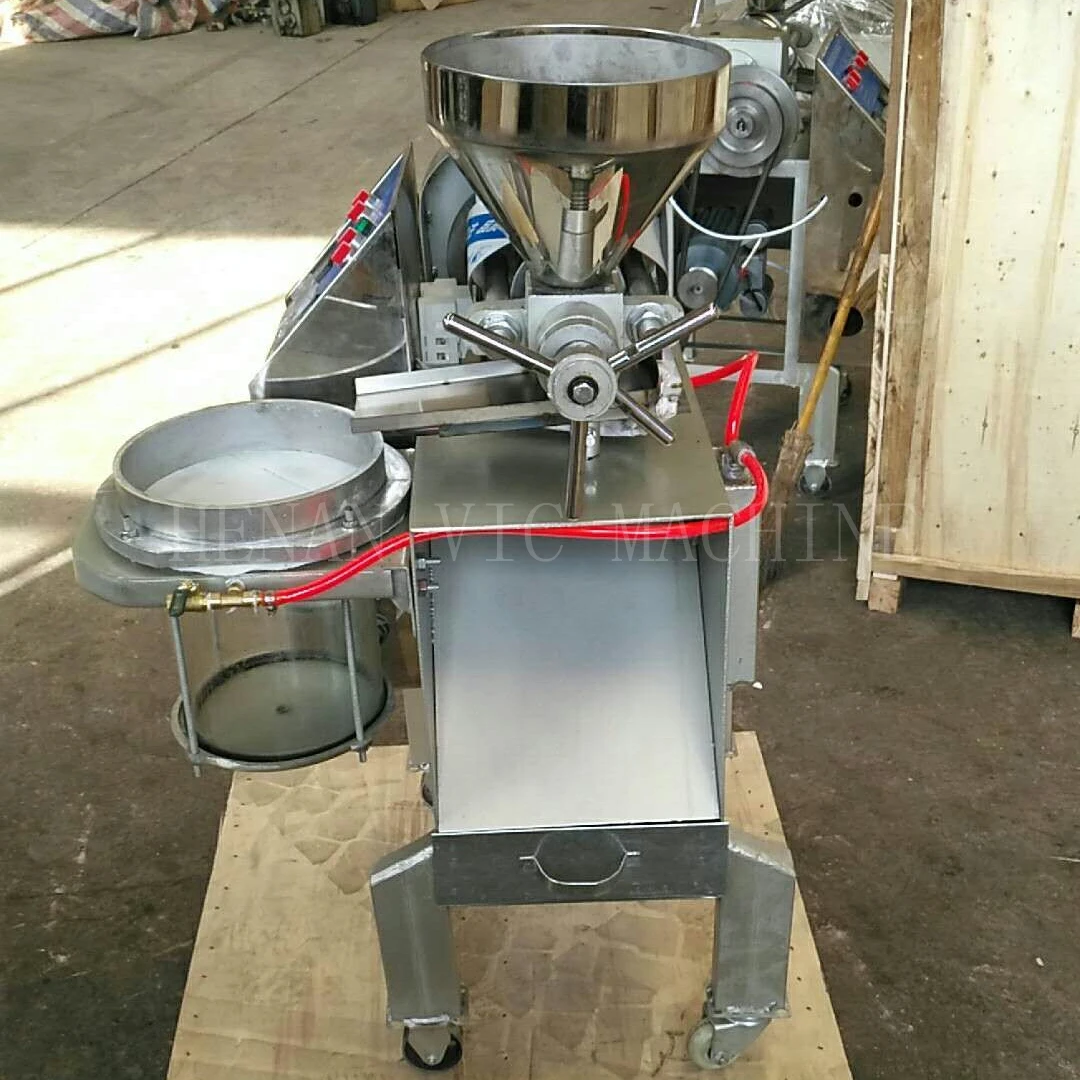

1. 6YL-30A mini oil press machine is a small family use combined oil press machine with single vacuum oil filter

2. The mini oil press machine can be applied to press Rape seed, Tea seed, Soybean, Peanut, Pepper seed, Sunflower seed, Cotton seed, Tung tree seed, Sesame, Jatropha,coconut,palm,olive,mustard etc.

3. This mini oil press machine is with automatic operation and need small space, only one people can operate the oil press machine.

4. The final oil is widely used for home use edible oil, industry, cosmetics and other field.



Main data:

Model	6YL-30A  cooking oil pressing machine
Capacity	10-20kg/h for oil seeds
Oil output rate	42-50% (different according to materials)
Power	1.5kw (220v/50hz/single phase)
Vacuum pump	180w/1.5L
Pressing screw dia	37mm
Shaft speed	60-70r/min
Residue oil in cake	less than 3%
Outer size	700x700x900mm
Net Weight	126kgs





Oil capacity ref.:

Oil seeds	Oil ouptput rate(%)	Thickness of oil cake(mm)	Remarks
Rapeseeds	33-42%	0.4-1	----------
Tea seeds	30-36%	0.8-1.5	20-26% with shell
Soybean	8-12%	0.6-0.8	----------
Peanut	35-40%	0.3-0.6	28-32% with shell
Sesame	38-50%	0.4-0.6	----------
Cottonseeds	10-15%	0.4-0.6	----------
Tung seeds	45-52%	0.6-0.8	----------
Sunflower seeds	45-50%	0.3-0.6	-----------

Note: The above technical parameter is for normal operation of cleaning, crushing and pressing process.

Raw materials and oil:

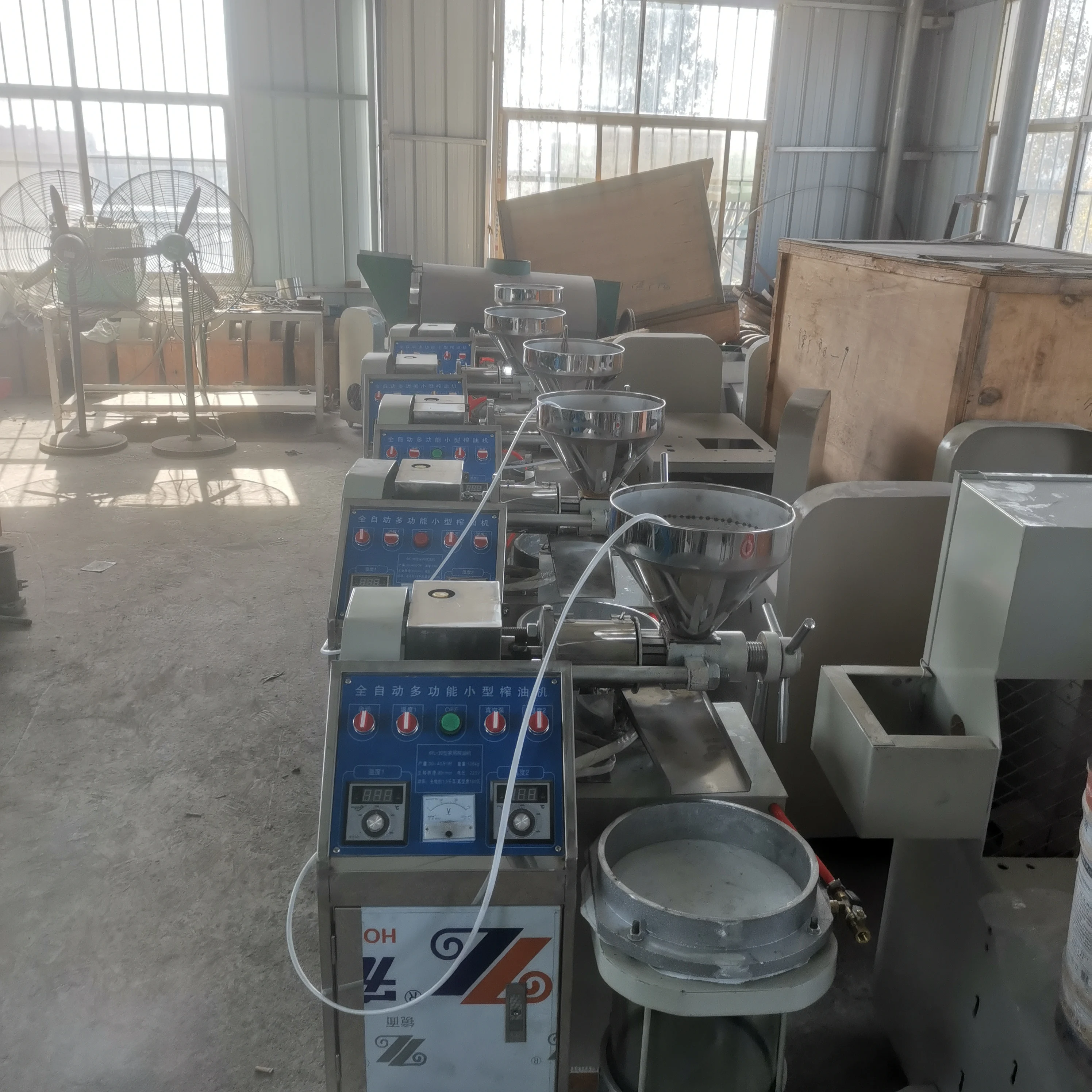

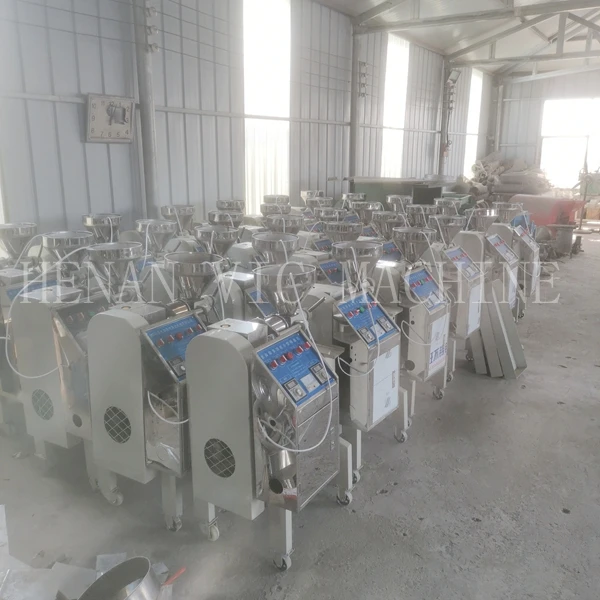

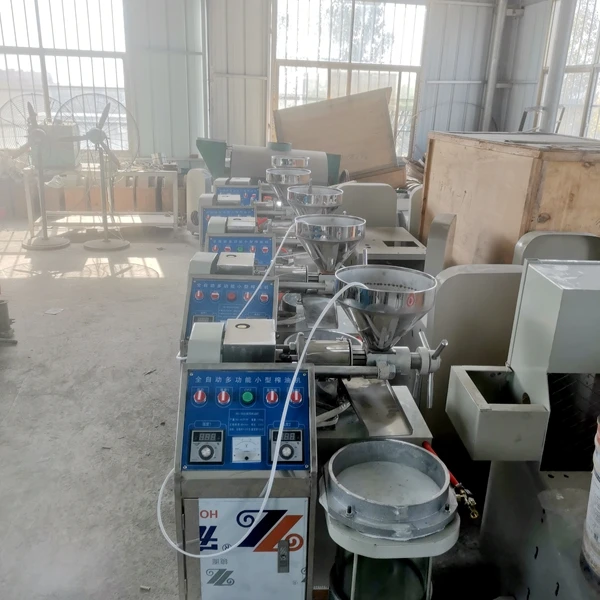

More picture and details about the mini  cooking oil pressing machine with oil filter:

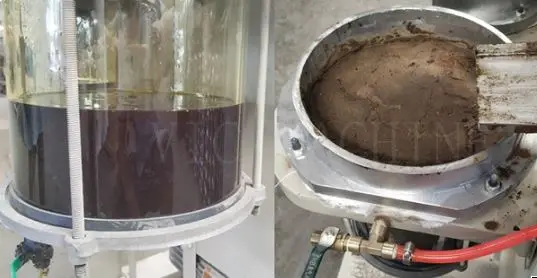

Final oil and residue

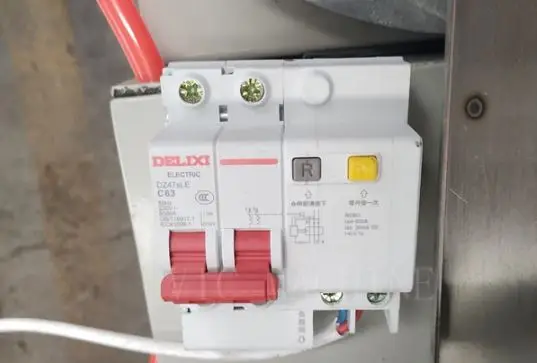

The wiring of the leakage protector presented by the randomizer is safer

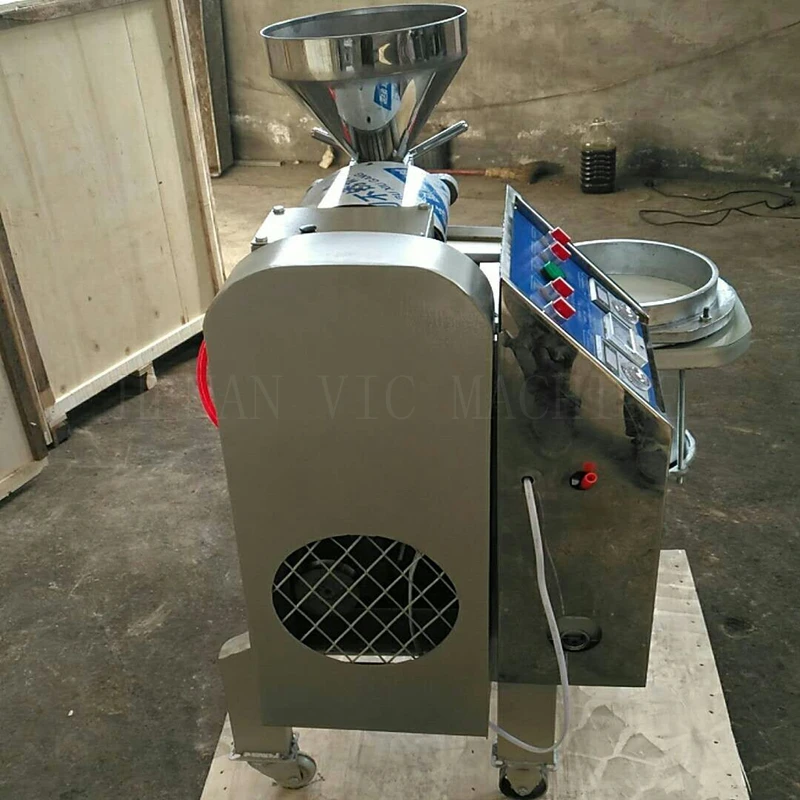

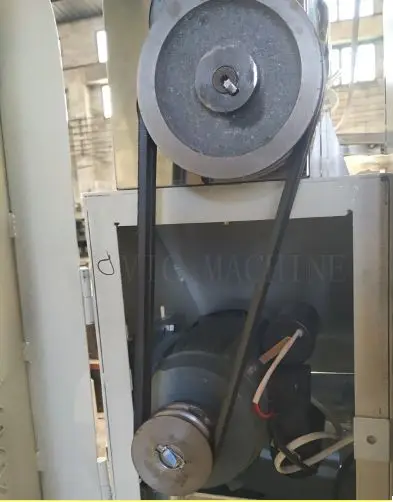

Two V-belts drive more powerful;Strong magnetic door connection is secure to open the door and it is convenient without screwing

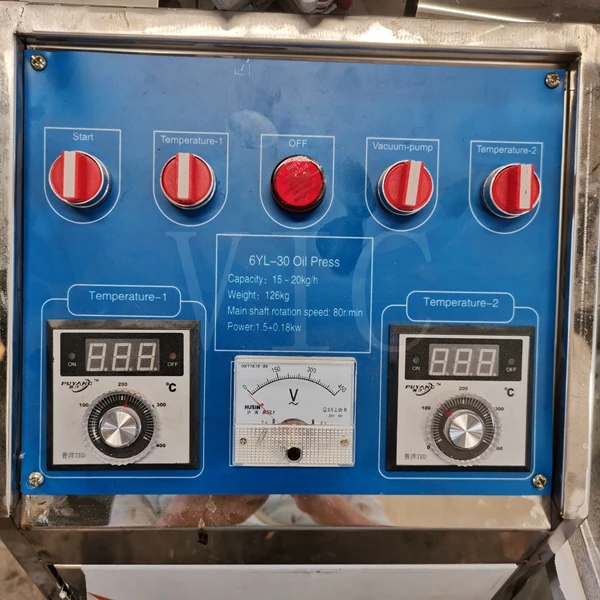

Simple operation electronic control system with temperature controller

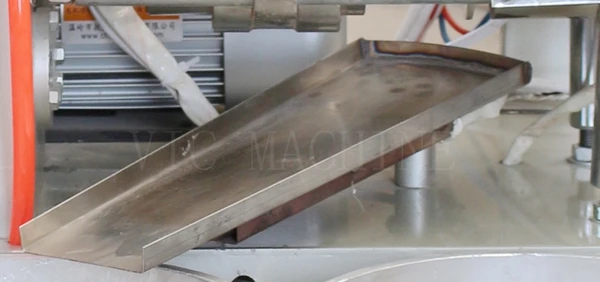

Stainless steel oil pan clean and sanitary

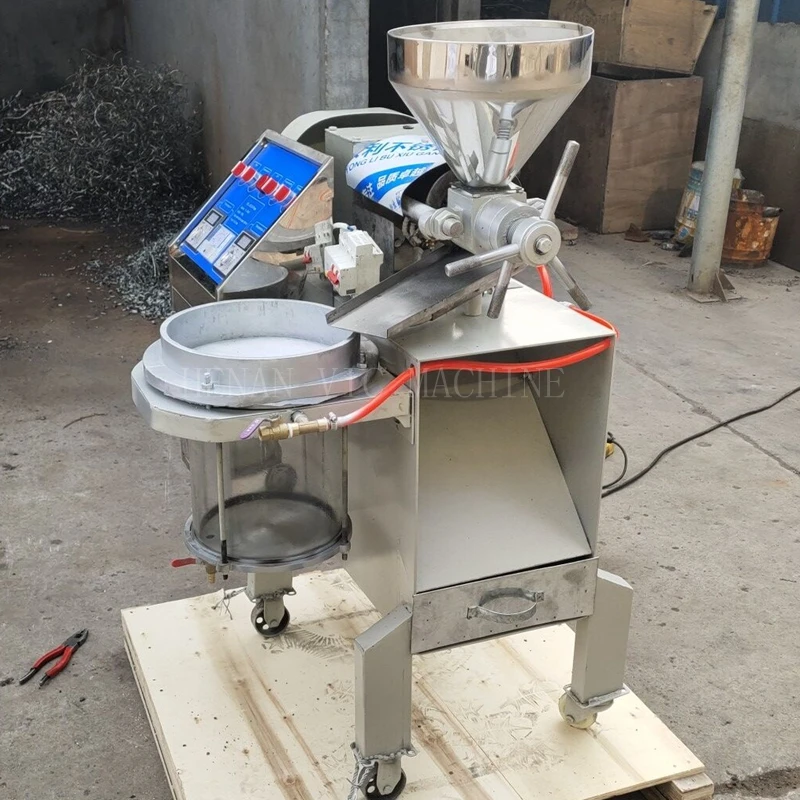

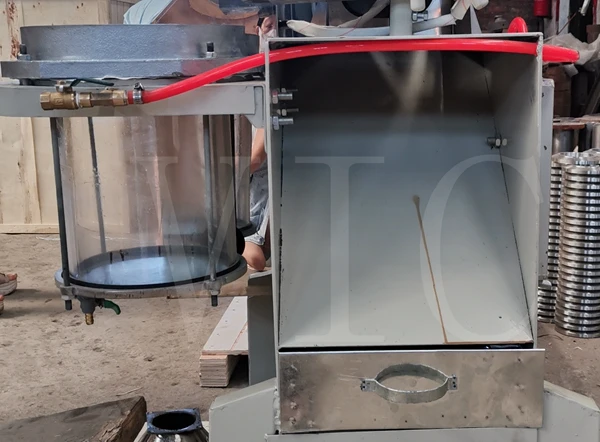

The pull-out drawer can be used to place tools, and it can also be used to catch oil cakes

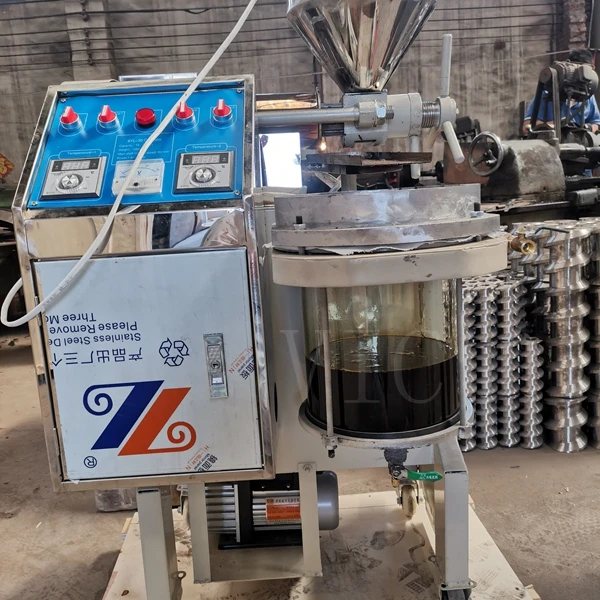

Glass filters are easy to observe and clean

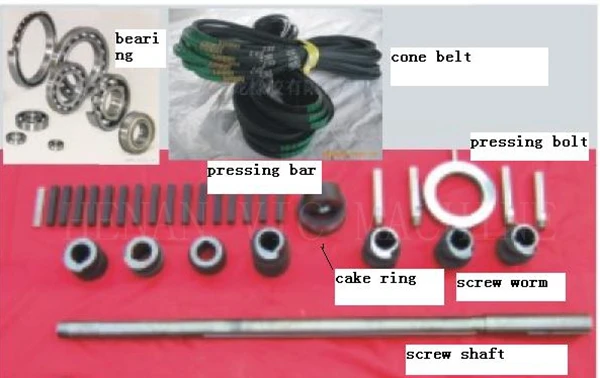

Spare parts:



Different  oil press machine with filter:

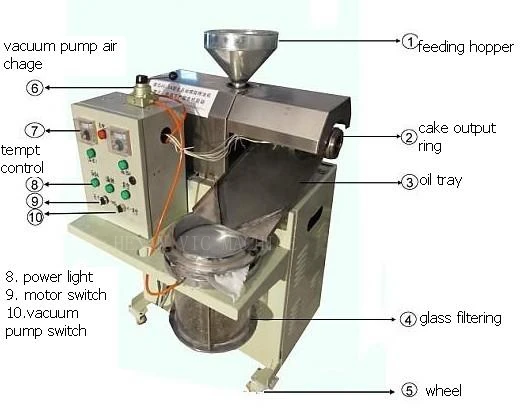

VIC-F3A

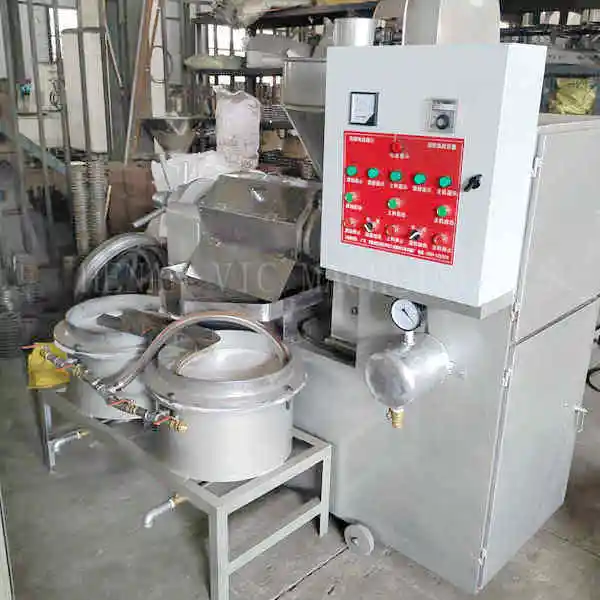

6YL-120B combined oil press machine with oil filter



CY-172 combined oil press machine with oil filter











All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.

Quality guarantee terms:

Quality guarantee is one year. Spare parts we supply at factory cost lifetime.

We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
