Product Overview
Description
Product Description

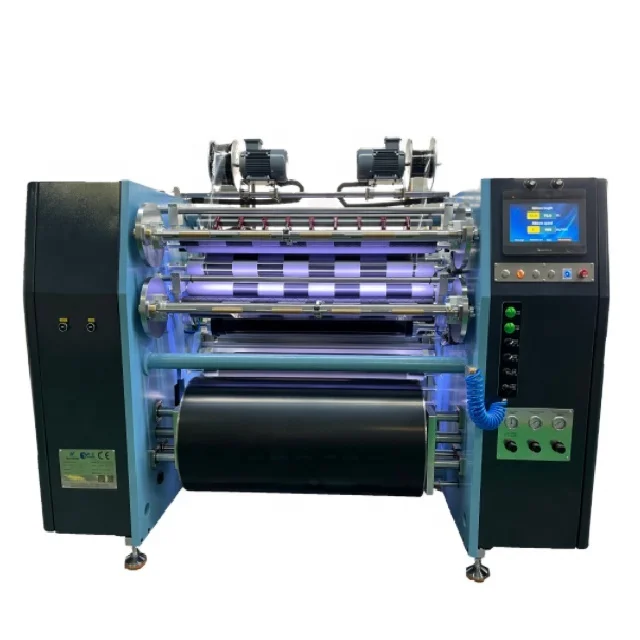

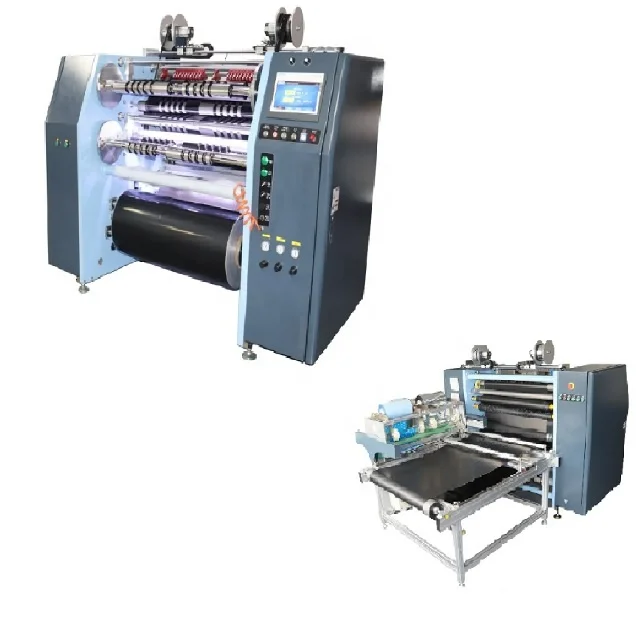

Automatic High Precision TTF TTR Slitter Rewinder Zebra Printer Ribbon Rewinder Thermal Transfer Ribbons Slitting Machine
N1/N2M/N3M
Application
Textile Resin Ribbons Slitting Rewinding Machine is professional for slitting: TTR, Thermal transfer ribbon, Barcode Ribbon, Fax Ribbon,Pigment Foil, Hot Stamping Foil, Carbon Ribbon, other film and foil from 4-20um. It is an important machine for ribbon manufacturers and users all over the world.
Textile Resin Ribbons Slitting Rewinding Machine is professional for slitting: TTR, Thermal transfer ribbon, Barcode Ribbon, Fax Ribbon,Pigment Foil, Hot Stamping Foil, Carbon Ribbon, other film and foil from 4-20um. It is an important machine for ribbon manufacturers and users all over the world.
Havesino Textile Resin Ribbons Slitting Rewinding Machine works by feeding a large roll of thermal transfer ribbon through the machine and cutting it into smaller rolls of ribbons of the required width. The machine is equipped with magnetic blade holder is much more convenient to adjust to the widths. The machine also has a touch screen, which allows the operator to set the parameters easily.
Magnetic Blade Holder
Easy to adjust the different width quickly
4 Servo Motor Control
Automatic stable tension control by servo motors, long life
Trimming Motors
Rewind the trimming along with machine running
Features
A.High speed(Max .400m/min) and stable working performance.
B.Auto Tension Control.
C.Delta Or Sanyo Servo Motor+SIEMENS PLC.
D.Perfect slitting result.
E.The Fastest and Most Cost Effective TTR Slitting Machine in China.
A.High speed(Max .400m/min) and stable working performance.
B.Auto Tension Control.
C.Delta Or Sanyo Servo Motor+SIEMENS PLC.
D.Perfect slitting result.
E.The Fastest and Most Cost Effective TTR Slitting Machine in China.
Product Paramenters
Model | TTR Slitting Machine N1/N2M/N3M |
Slitting Width | 650-1010mm(Optional 1050mm) |
Unwinding Diameter | N1:540mm Max; N2M/N3M:600mm Max |
Unwinding Core | 6 Inch Shaftless |
Rewinding Width | 20mm Width |
Rewinding Diameter | N1:110mm Max; N2M/N3M:140mm Max |
Rewinding Core | 1 Inch & 0.5 Inch |
Blade Type | Magnetic Blade Holder+Razor Blade |
Leader & Trailer Station | Semi-automatic(Optional:Fully-automatic) |
Machine Well Thickness | N1/N2M: 30mm, N3M:40mm |
Motor + PLC | Siemens PLC N1：Taiwan Delta Servo MotorN2M/N3M: Japan Sanyo Servo Motor |
Working(slitting) Speed | N1:250m/min; N2M:300m/min; N3M:400m/min |
Power Supply | 380V, 50Hz,3 Phase (can be changed as required) |
1. 100% test and check before shipment.
2. Detailed instruction handbook.
3. 1 year warranty for key parts.
4. Online installation and operation trainning service.
5. 7*24 hours free technical support for the whole life.
6. Regular on-site routine inspection.
Recommend Products
Company Profile
About Havesino
HAVESINO is one of top suppliers for Semi Automatic and Fully Automatic TTR slitter re-swinders and converting machinery for more than 13 years. We have in excess of hundreds of machine installations all around the world!
HAVESINO is one of the top leaders in design, developing and building of quality, high performance of Foil/Film slitter re-winders
and the support machine . Our company goal is to support you to be different.
HAVESINO is one of the top leaders in design, developing and building of quality, high performance of Foil/Film slitter re-winders
and the support machine . Our company goal is to support you to be different.
We have offered OEM service since 2010, and we can make the product with customer’s specific requirements, and can custom the packaging for customer.
All project will be serviced by our expertise engineer in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department.
We choose the machine structure according to your specific requirements.
We have professional operator dispatch to your esteemed company for training your staff.
We have been served clients all over the world.
We offer quotations within 1-3 days and arrange shipment within 25 days.
All project will be serviced by our expertise engineer in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department.
We choose the machine structure according to your specific requirements.
We have professional operator dispatch to your esteemed company for training your staff.
We have been served clients all over the world.
We offer quotations within 1-3 days and arrange shipment within 25 days.

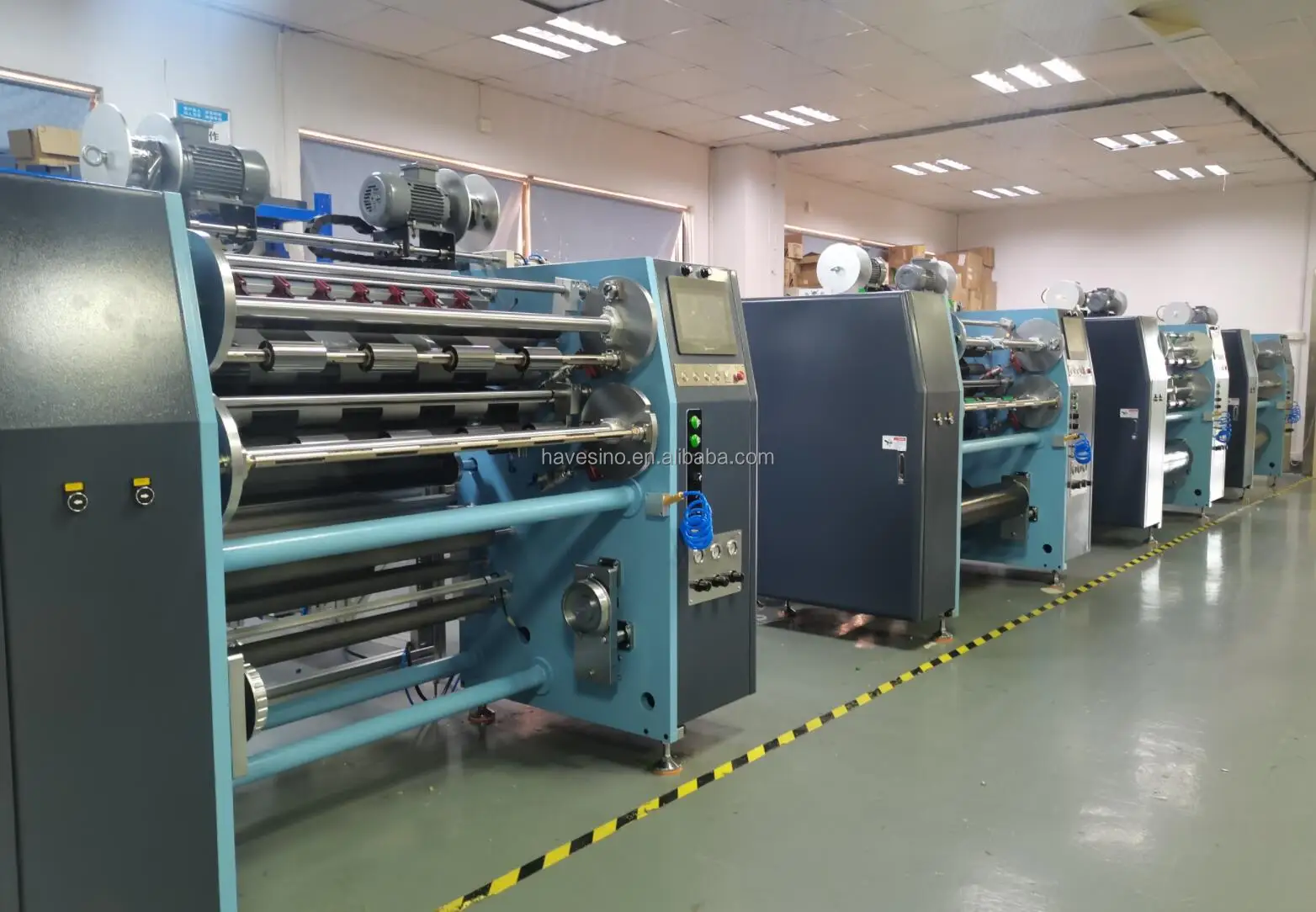

OUR FACTORY
Why Choose Us
Certification&Ehibitions
Package&Shipping
A. Standard seaworthy wooden box and pallet packing
B. Delivery Time: Within 45 days after receiving deposit and order confirm.
B. Delivery Time: Within 45 days after receiving deposit and order confirm.
FAQ
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding qaulity control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Hangzhou,China.You can fly to Hangzhou air port directly or take fast train from Shanghai.We will
arrange to pick you up from train station or airport.
Q.:What’s service or guarantee can you offer?
A.: One year guarantee for key parts of machine;Machine installing and worker training service;Free technical support whole
life;Material support
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding qaulity control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Hangzhou,China.You can fly to Hangzhou air port directly or take fast train from Shanghai.We will
arrange to pick you up from train station or airport.
Q.:What’s service or guarantee can you offer?
A.: One year guarantee for key parts of machine;Machine installing and worker training service;Free technical support whole
life;Material support
Q: Is the machine hard to operate?
A: Our slitter machine is easy to operate and free-installation. It can be immediately started
once the power has been connected. Besides, we still have 24*7 hours on-line service technical support to help you on any problems on operation.
Q:Will it take long time to receive the machine?
A: The lead time will be 7 days after pre-payment has been issued. We will help to delivery the machine at the earliest.
Q:Why do I choose your machine?
A: Our machine is cost effective and lifetime technical support. We have random complaint from the older order client. The goal
of our company is to offer the client most valuable products and make a win-win result.
Q. Without professional technicians, do not know how to choose machine?
A:Our staff is all professional, if you don't know how to choose machine, we can help you select the most proper machine for you.
Q. Do not find the right machine structure to match your currently demand?
A:You can tell us what's your requirements about machine, we suppourt customization for you to meet your demand and we will
provide full sets of solutions for you. We guarantee to solve all your needs, all you need to do is trust us and tell us your
needs.
Q.Don't have professional operator to run the lines?
A:We shipped our machine as a whole, and it is very easy to everybody to operate it, we send all manuals and videos and 7*24 hours service to you. Everybody will learn it in 2 hours.
once the power has been connected. Besides, we still have 24*7 hours on-line service technical support to help you on any problems on operation.
Q:Will it take long time to receive the machine?
A: The lead time will be 7 days after pre-payment has been issued. We will help to delivery the machine at the earliest.
Q:Why do I choose your machine?
A: Our machine is cost effective and lifetime technical support. We have random complaint from the older order client. The goal
of our company is to offer the client most valuable products and make a win-win result.
Q. Without professional technicians, do not know how to choose machine?
A:Our staff is all professional, if you don't know how to choose machine, we can help you select the most proper machine for you.
Q. Do not find the right machine structure to match your currently demand?
A:You can tell us what's your requirements about machine, we suppourt customization for you to meet your demand and we will
provide full sets of solutions for you. We guarantee to solve all your needs, all you need to do is trust us and tell us your
needs.
Q.Don't have professional operator to run the lines?
A:We shipped our machine as a whole, and it is very easy to everybody to operate it, we send all manuals and videos and 7*24 hours service to you. Everybody will learn it in 2 hours.
