Product Overview
Description
Product Introduction:

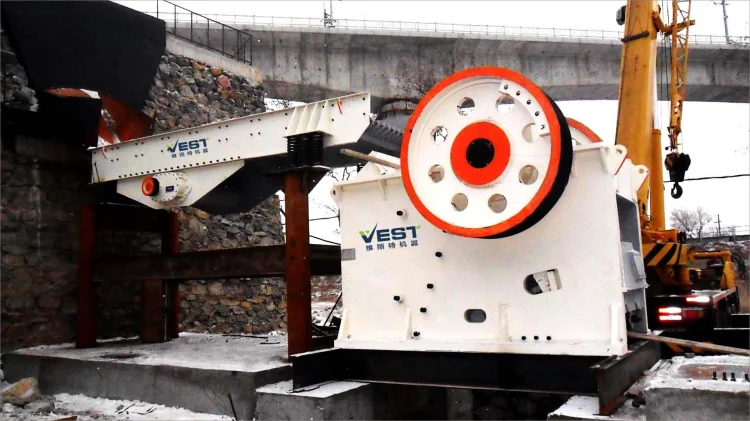

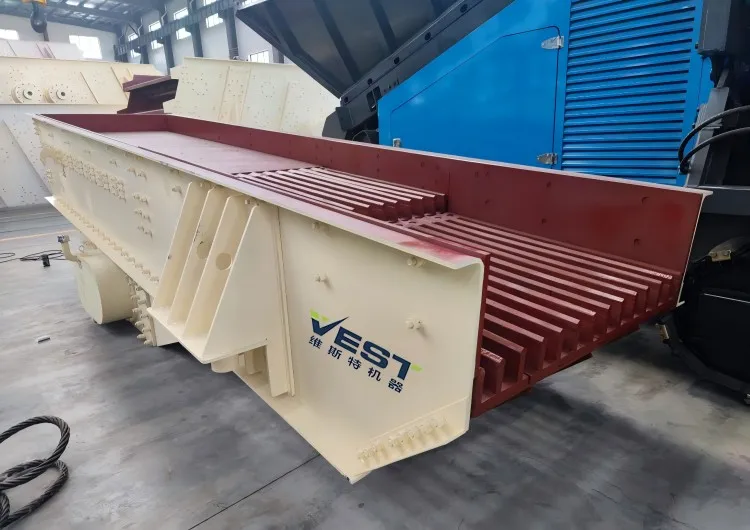

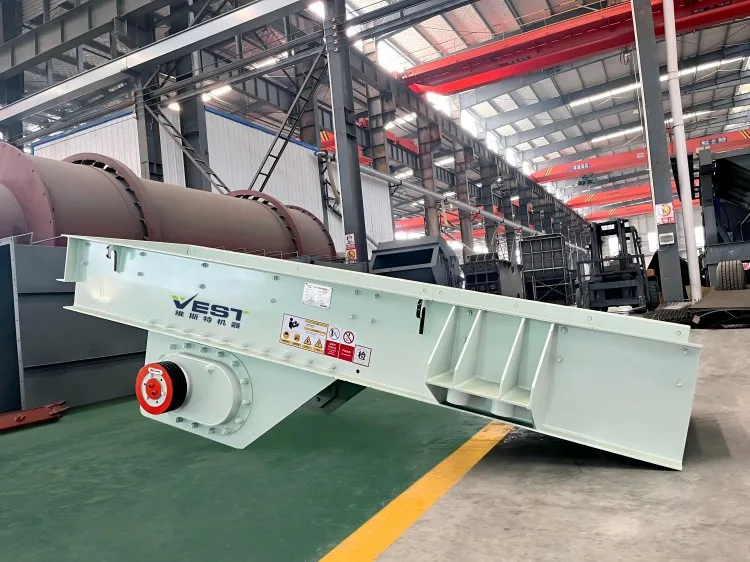

ZSW Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen the fine material and make the crusher more powerful.
• Capacity: 96-1500t/h
• Max Inlet size: 500-1000mm
• Grizzly plate gap: 25-70mm
• Max Inlet size: 500-1000mm
• Grizzly plate gap: 25-70mm
Application Field:
Vibrating feeder is widely used in crushing and screening operations in metallurgy, coal mining, building materials, chemical industry, abrasives, mineral processing, and other industries.
Technical Features:
1. Stable operation, reliable work, long service life, easy installation, convenient maintain and easy automatic control.
2. Adopt double-shaft vibrator and liner vibrator to finish the feeding and screening process at the same time.
3. Continuously and evenly feeding for rough crusher to proceed the coarse screening.
4. Can install the variable-frequency and variable-speed motor to regulate frequency, change the production, and control the feed quantity easily without starting frequently.
2. Adopt double-shaft vibrator and liner vibrator to finish the feeding and screening process at the same time.
3. Continuously and evenly feeding for rough crusher to proceed the coarse screening.
4. Can install the variable-frequency and variable-speed motor to regulate frequency, change the production, and control the feed quantity easily without starting frequently.
Working Principle:

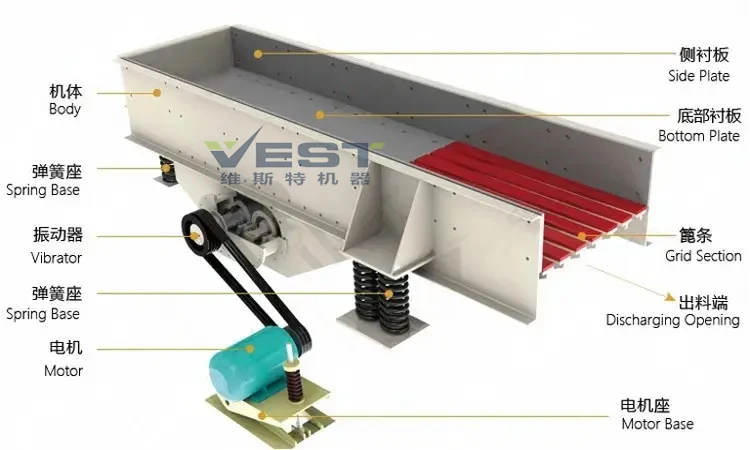

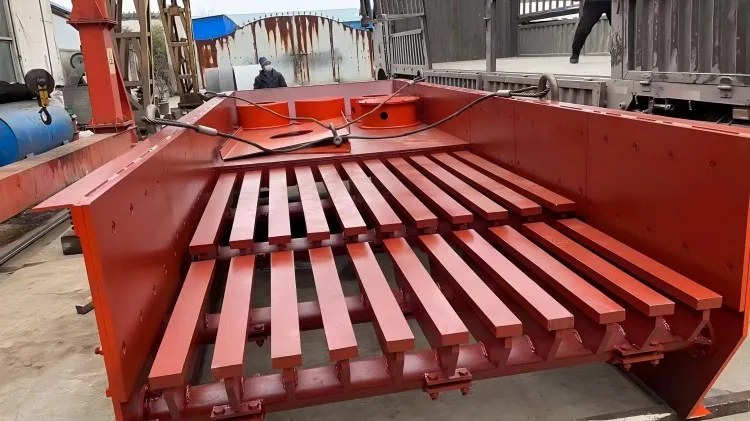

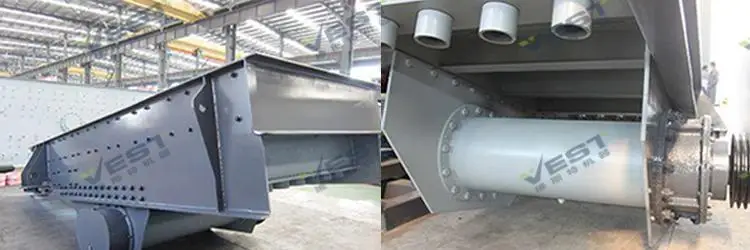

The vibration exciter is composed of two eccentric shafts with particular position. The large linear vibration force produced by motor and the rotation of two eccentric shafts vibrates the machine. The materials are sliding and thrown so that they could move on. When the materials pass the screen bars, the small ore falls through the clearance of screen bars.
Model | Size of Feed Spout (mm) | Max Feeding Edge (mm) | Rotate Speed (r/min) | Motor Power (kw) | Capacity (t/h) |
ZSW0930 | 3000×900 | 450 | 970 | 7.5 | 80~120 |
ZSW3896 | 3800×960 | 600 | 500~800 | 11 | 120~250 |
ZSW4211 | 4200×1100 | 700 | 500~800 | 15 | 180~400 |
ZSW4911 | 4900×1100 | 750 | 500~800 | 18.5~22 | 250~500 |
ZSW5911 | 5900×1100 | 750 | 500~900 | 22~30 | 300~550 |
ZSW4913 | 4900×1300 | 750 | 500~900 | 22~30 | 400~600 |
ZSW6015 | 6000×1500 | 1000 | 500~900 | 37~45 | 550~1200 |
ZSW6018 | 6000×1800 | 1200 | 500~900 | 45~55 | 650~1300 |
ZSW6021 | 6000×2100 | 1500 | 600~900 | 55 | 950~2000 |
ZSW6025 | 6000×2500 | 1600 | 600~900 | 75 | 2000~3000 |
1. Are you a manufacturer or trading company?
We are a factory, founded in 1987 and restructured in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
