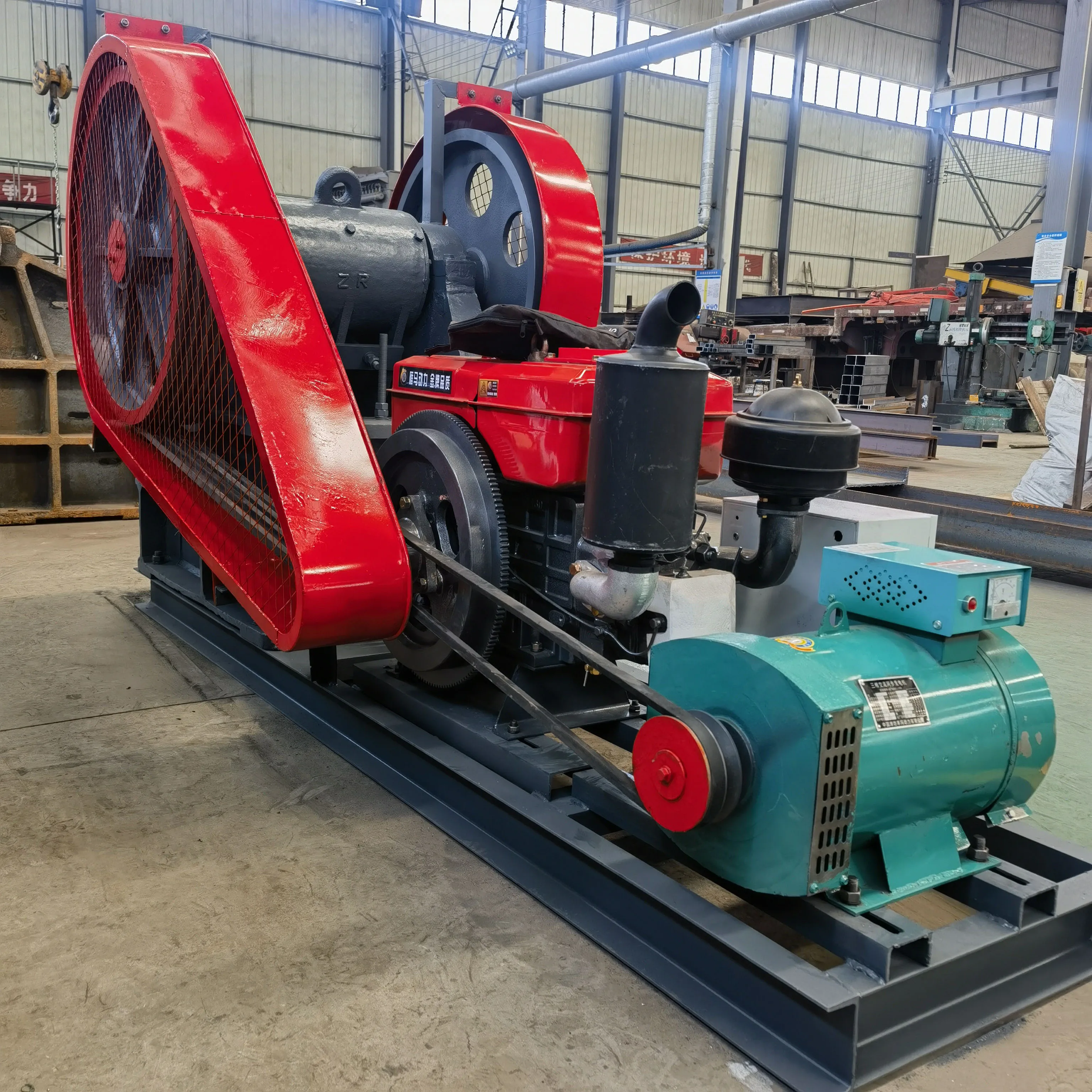

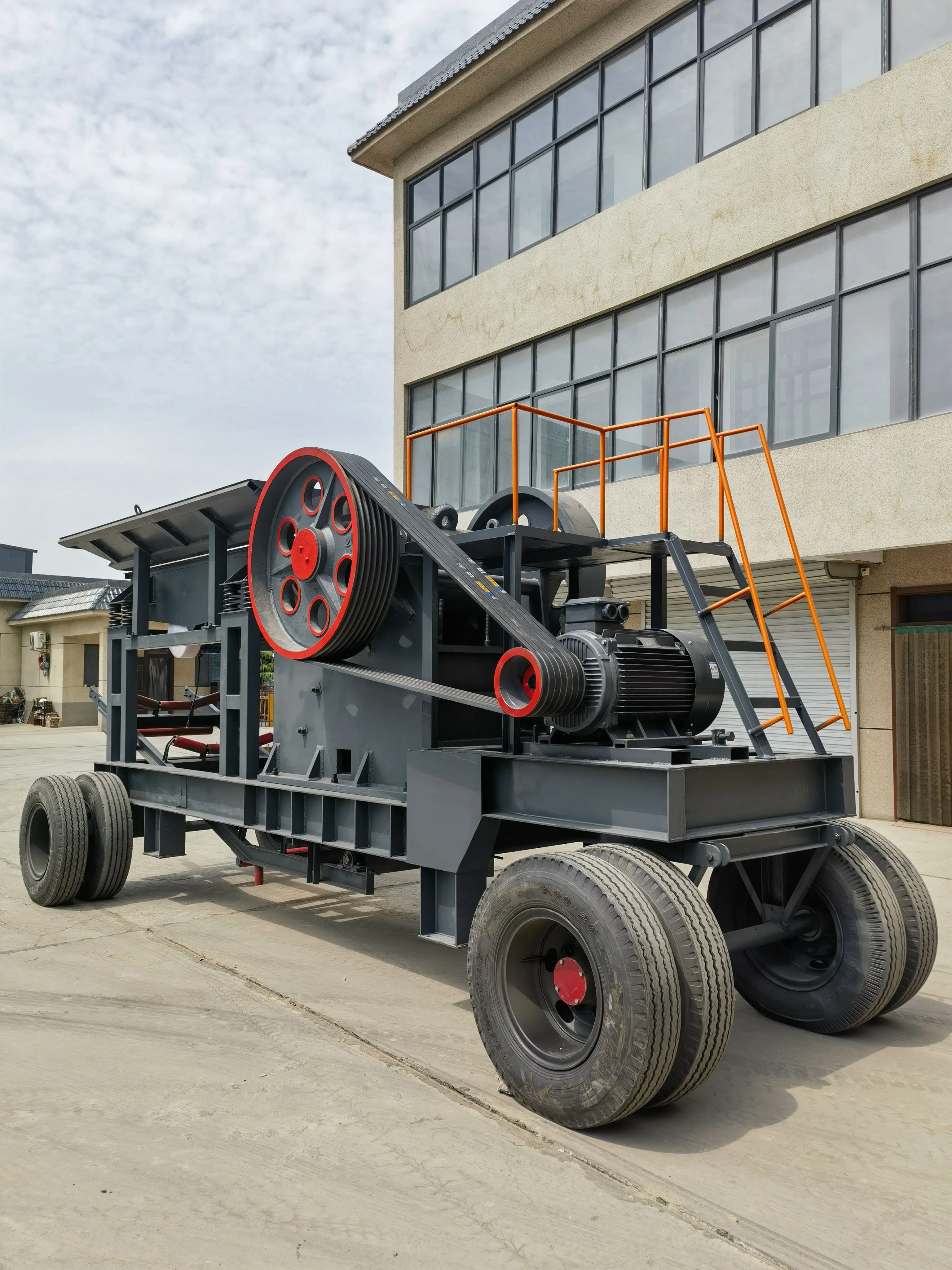

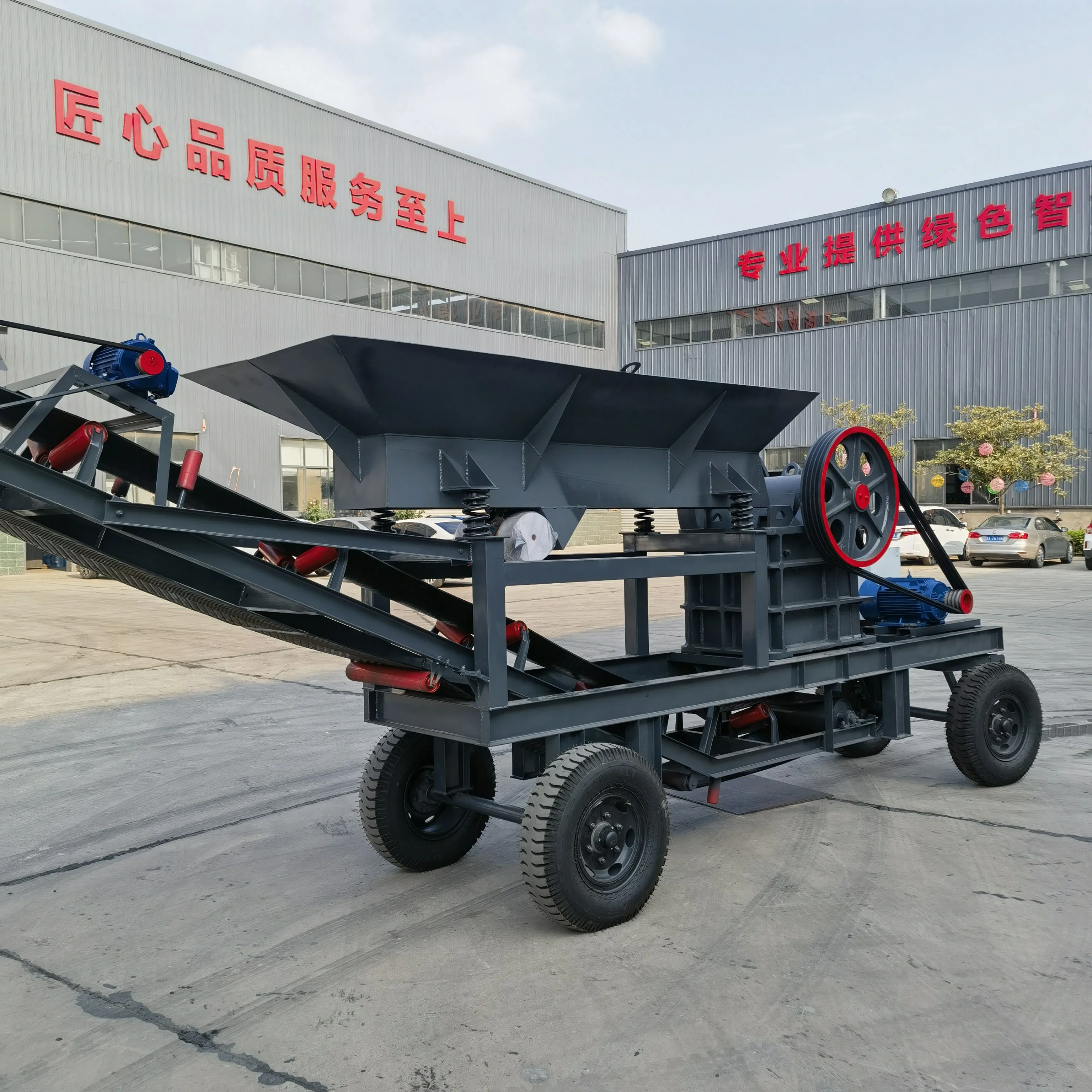

Hot Sale New Diesel Engine Jaw Crusher with Customizable Vibrating Feeder Conveyor for Manufacturing Plants Core Component Motor
- Category: >>>
- Supplier: Zhengzhou Debang Machinery Manufacturing Co. Ltd.
Share on (1601266202095):
Product Overview
Description
Product descriptions from the supplier
Overview
Product Display

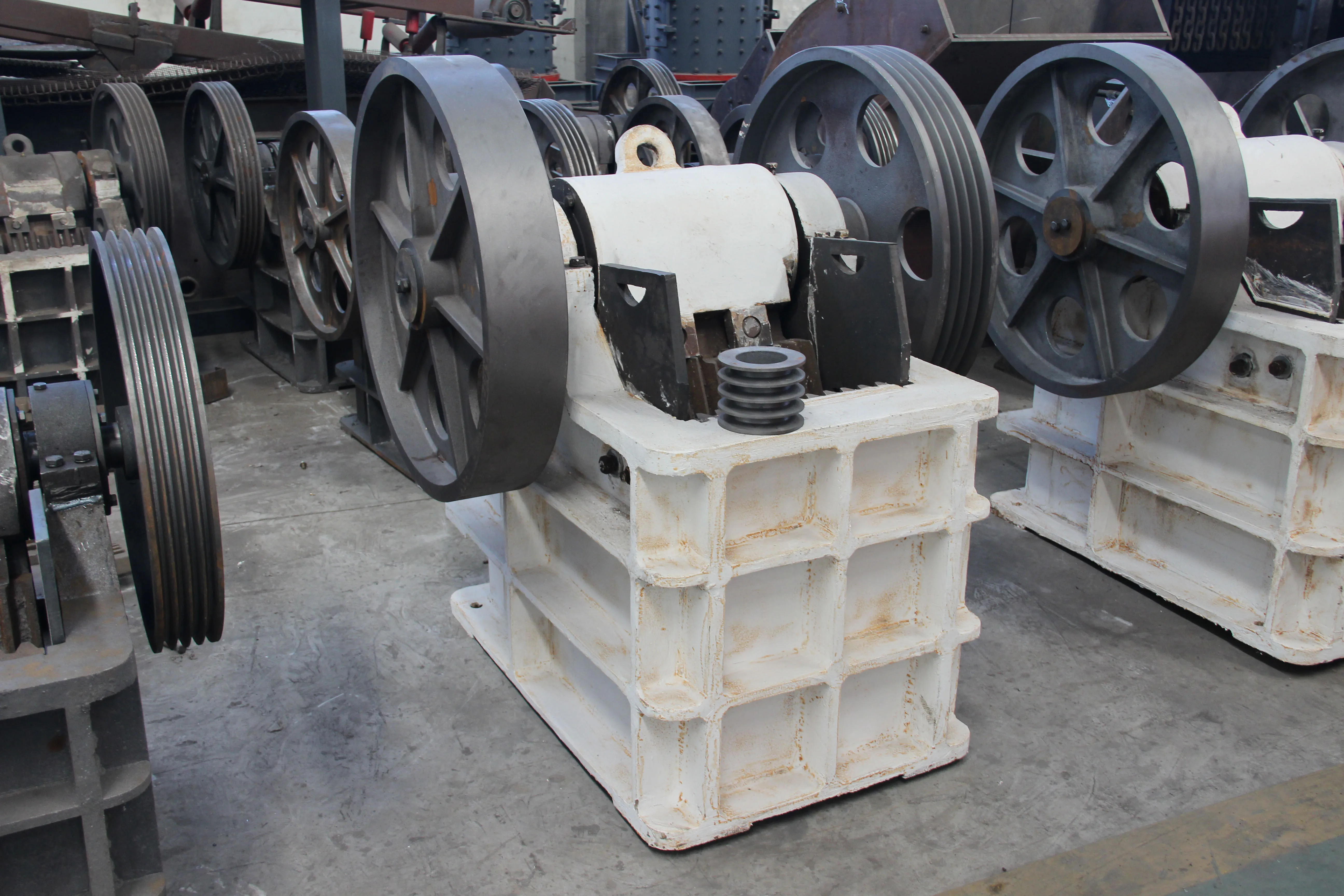

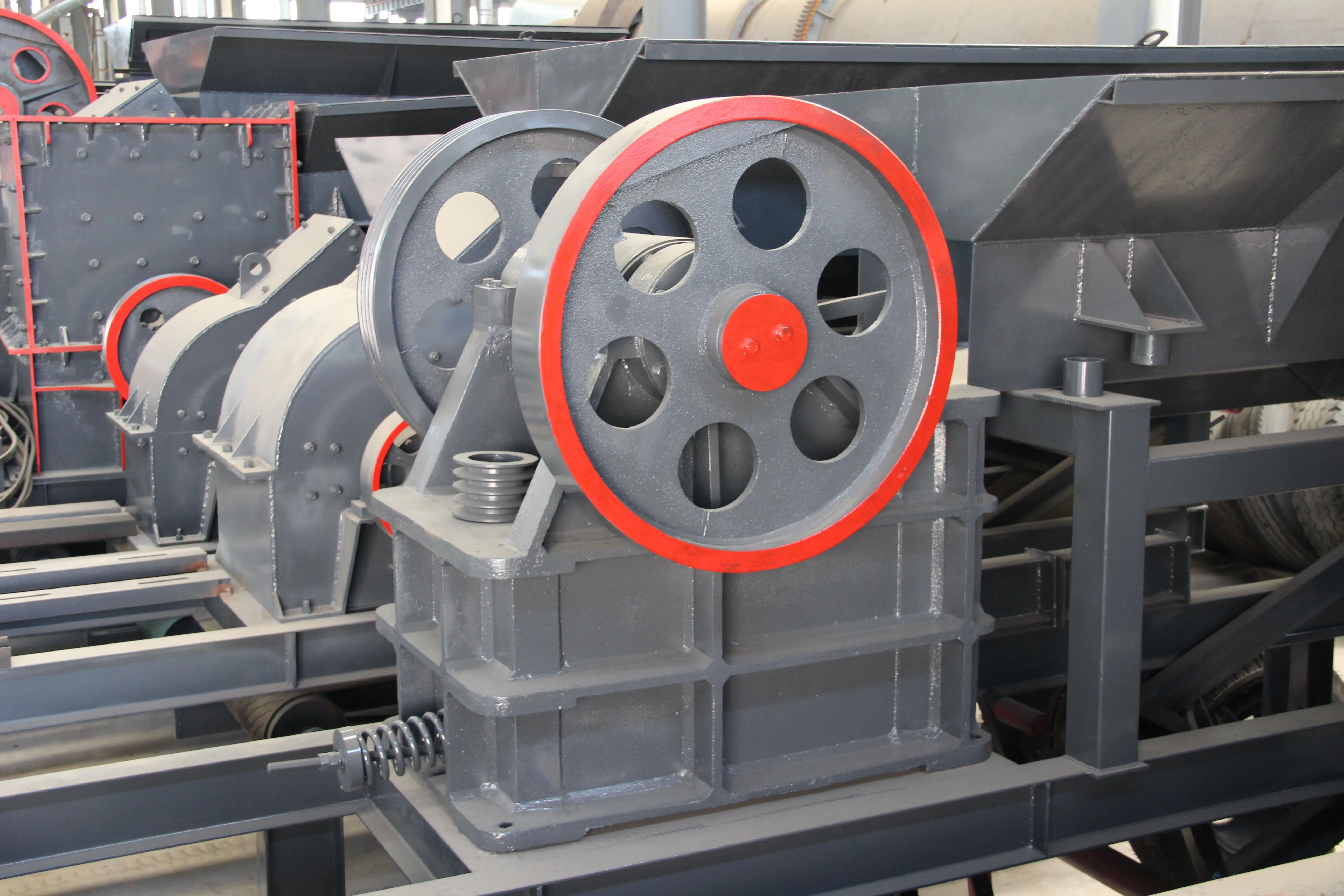

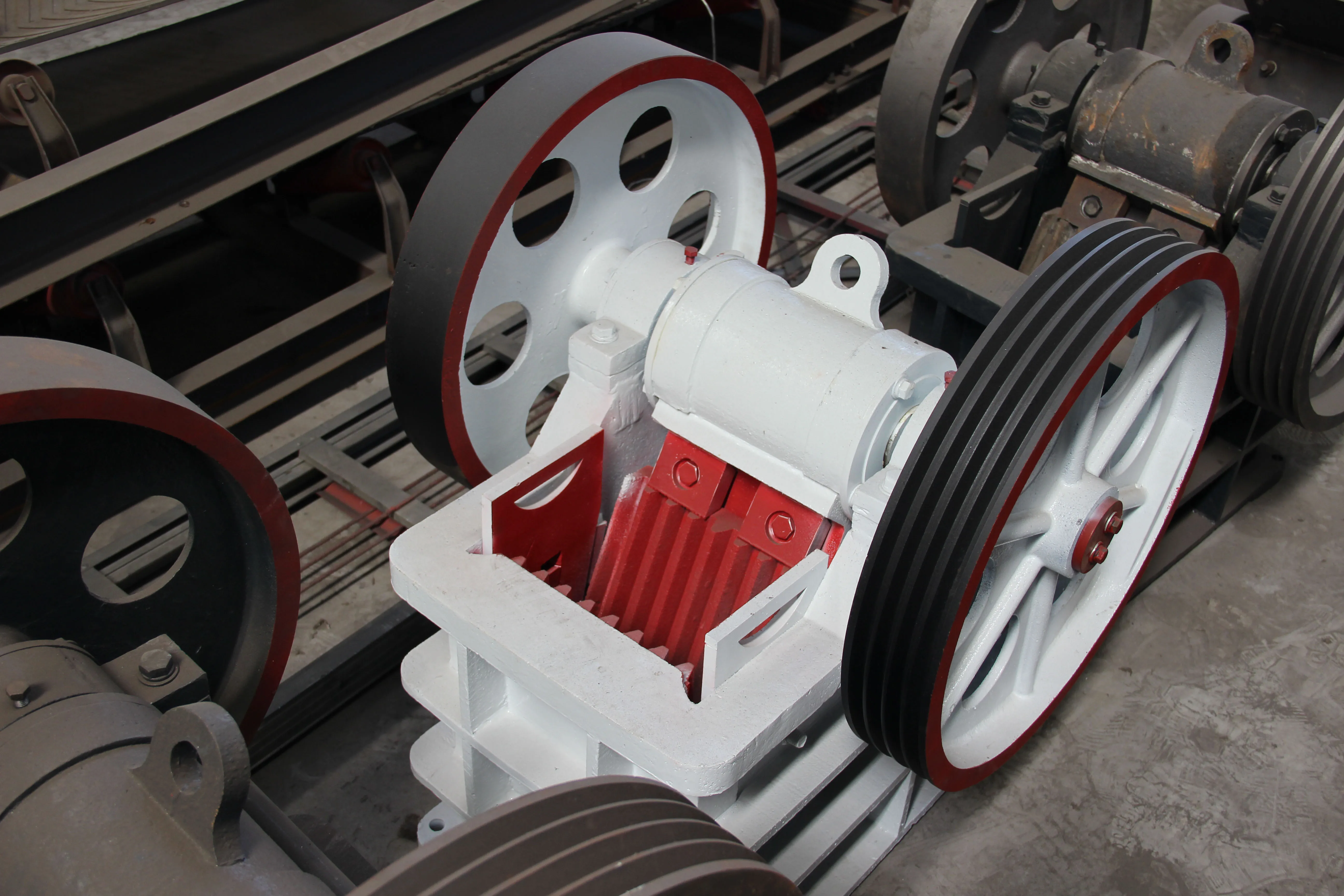

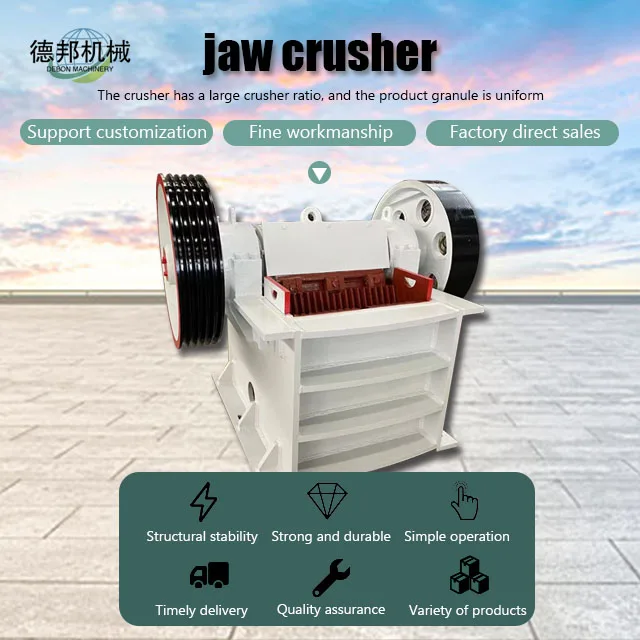

Jaw crusher commonly known as jaw broken, also known as tiger mouth. The crusher is composed of two jaw plates of moving jaw andstatic jaw, which simulates the movement of two jaws of animals to complete material crushing operation.
The jaw crusher is a coarse crushing equipment, discharge size of about 20-100mm, which can crush large stones.achieves.The discharge particle size can be controlled by adjusting the tension spring and adjusting block behind the crusher.
Features

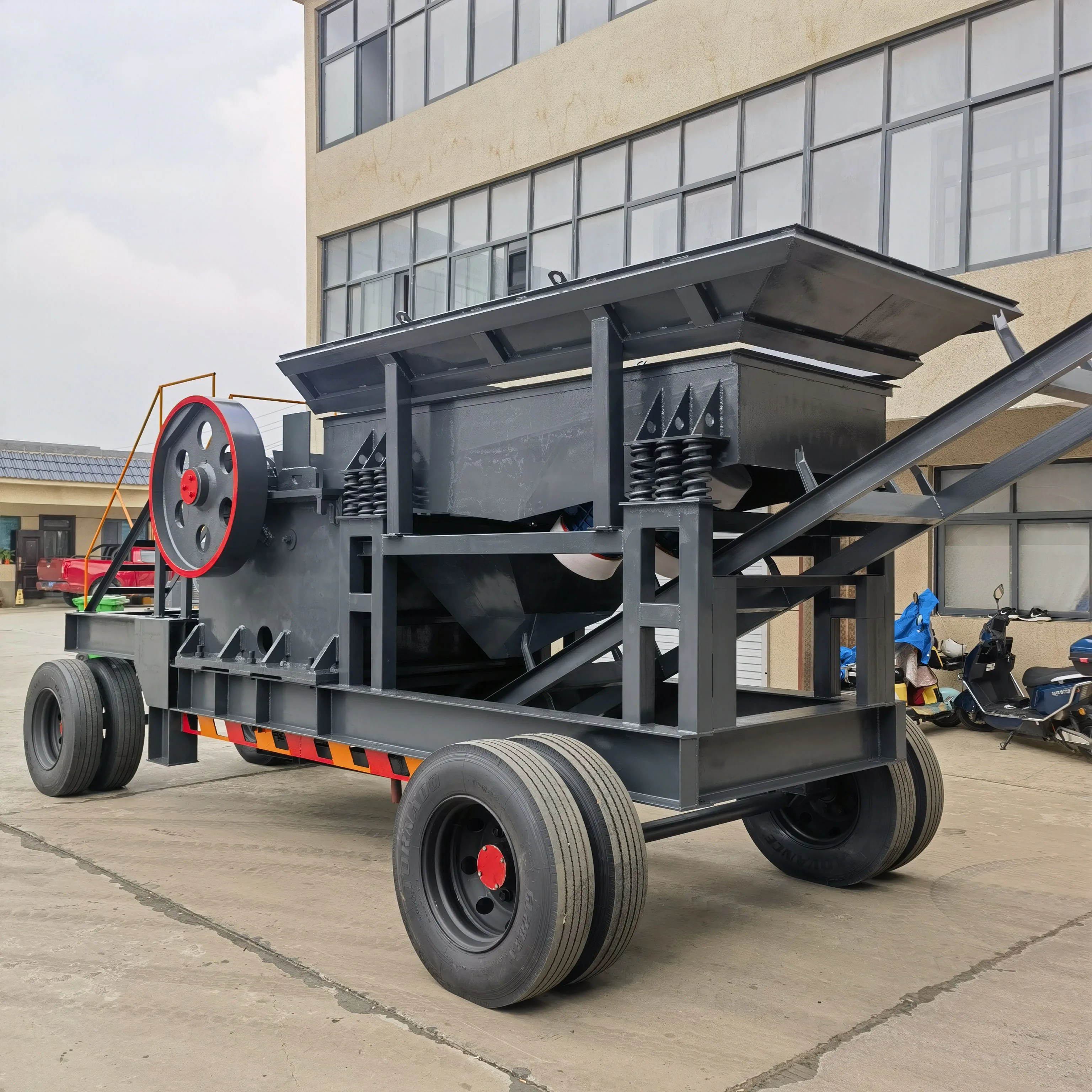

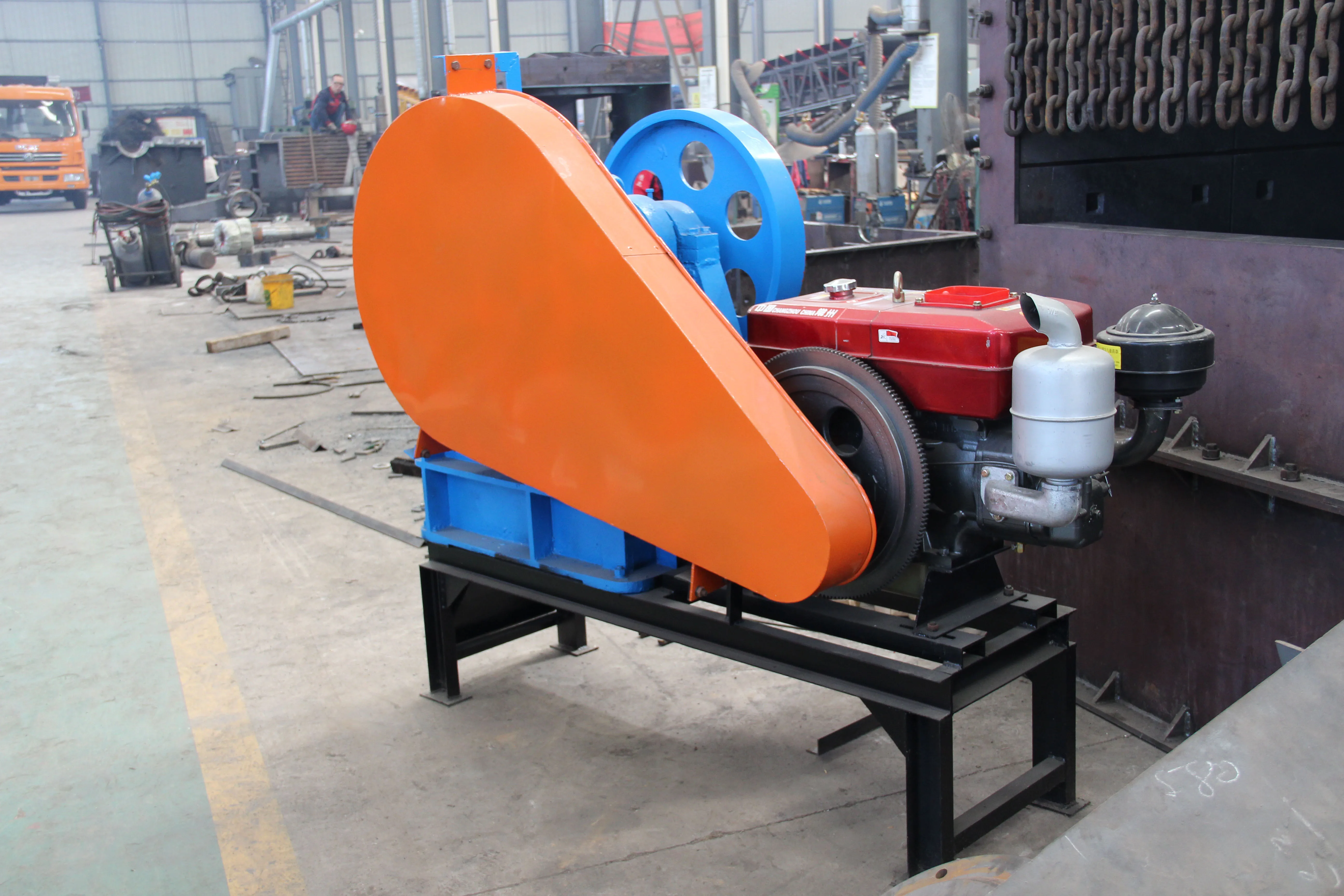

1. Be and drive by diesel engine if the working site is limited
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
3. Large crushing ratio, uniform products particle size
4. Pad-style nesting population adjustment devices, and ease of adjustment range
5. Simple and reliable structure,low operation costs
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
7. Low noise and less dust
1. Be and drive by diesel engine if the working site is limited
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
3. Large crushing ratio, uniform products particle size
4. Pad-style nesting population adjustment devices, and ease of adjustment range
5. Simple and reliable structure,low operation costs
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
7. Low noise and less dust
Product Specifications
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control overthe industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the support. 24 hours service with.
Model | Openingsize (mm) | 0utputadjustmen trange(mm) | Productioncapacity (t/h) | Power(kw) | Power (kw) | Overall dimension(mm) |
PE—250×400 | 250×400 | 20～60 | 5～21 | 6P 15 | 2.8 | 1300×1090×1270 |
PE—400×600 | 400×600 | 40～100 | 16～64 | 6P 30 | 7 | 1730×1730×1630 |
PE—500×750 | 500×750 | 50～100 | 40～110 | 6P 55 | 12 | 1980×2080×1870 |
PE—600×750 | 600×750 | 150～200 | 80～240 | 6P 55 | 15.8 | 2070×2000×1920 |
PE—600×900 | 600×900 | 65～160 | 50～160 | 6P 55 | 17 | 2190×2206×2300 |
PE—750×1060 | 750×1060 | 80～140 | 110～320 | 8P 110 | 29 | 2660×2430×2800 |
PE—800×1060 | 800×1060 | 130～190 | 130～330 | 8P 110 | 29.8 | 2710×2430×2800 |
PE—830×1060 | 830 ×1060 | 160～220 | 150～336 | 8P 110 | 30.7 | 2740×2430×2800 |
PE—870×1060 | 870×1060 | 200～260 | 190～336 | 8P 110 | 31.5 | 2810×2430×2800 |
PE—900×1060 | 900×1060 | 230～290 | 220～380 | 8P 110 | 33 | 2870×2420×2940 |
PE—900×1200 | 900×1200 | 95～165 | 230～390 | 8P 110 | 52 | 3380×2870×3330 |
PE—1000×1200 | 1000×1200 | 195～265 | 315～500 | 8P 110 | 55 | 3480×2876×3330 |
PE—1200×1500 | 1200×1500 | 150～350 | 400～800 | 6P 160～220 | 101 | 4200×3300×3500 |
PE—1500×1800 | 1500×1800 | 220～350 | 500～1000 | 8P 280～355 | 139 | 5160×3660×4248 |
PEX—150×750 | 150×750 | 18～48 | 8～25 | 4P 15 | 3.8 | 1200×1530×1060 |
PEX—250×750 | 250×750 | 25～60 | 13～35 | 6P 22 | 5.5 | 1380×1750×1540 |
PEX—250×1000 | 250×1000 | 25～60 | 16～52 | 6P 30 | 7 | 1560×1950×1390 |
PEX—250×1200 | 250×1200 | 25～60 | 20～61 | 6P 37 | 9.7 | 2140×1660×1500 |
PEX—300×1300 | 300×1300 | 20～90 | 16～105 | 6P 55 | 15.6 | 2720×1950×1600 |

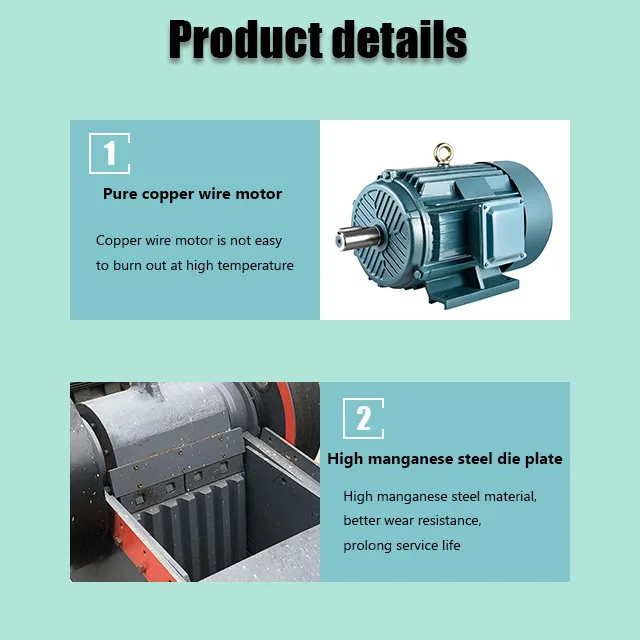

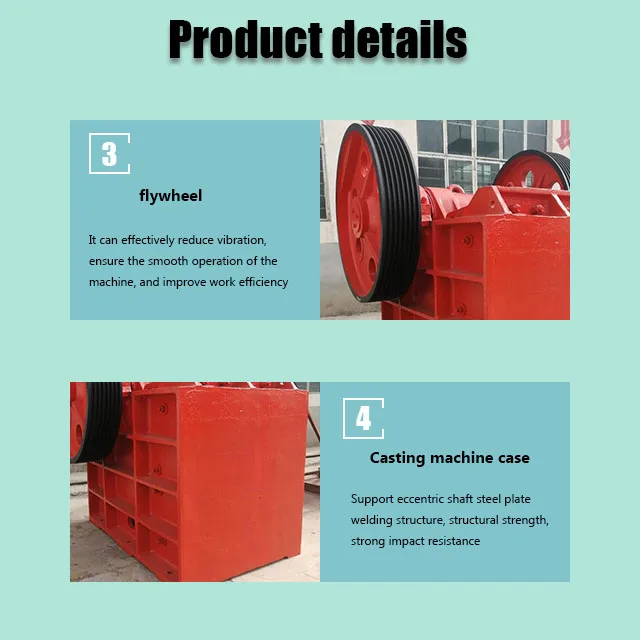

Main Components
PE jaw crusher has a variety of models, among which the most popular models are PE-200 × 300, PE-250 × 400, PE-400x600 and so on.
Usage: Used for primary crushing (coarse crushing) and medium crushing of materials. Feed size: Relatively large stones.
Discharge size: Wide adjustment range of discharge port.
Usage: Used for primary crushing (coarse crushing) and medium crushing of materials. Feed size: Relatively large stones.
Discharge size: Wide adjustment range of discharge port.

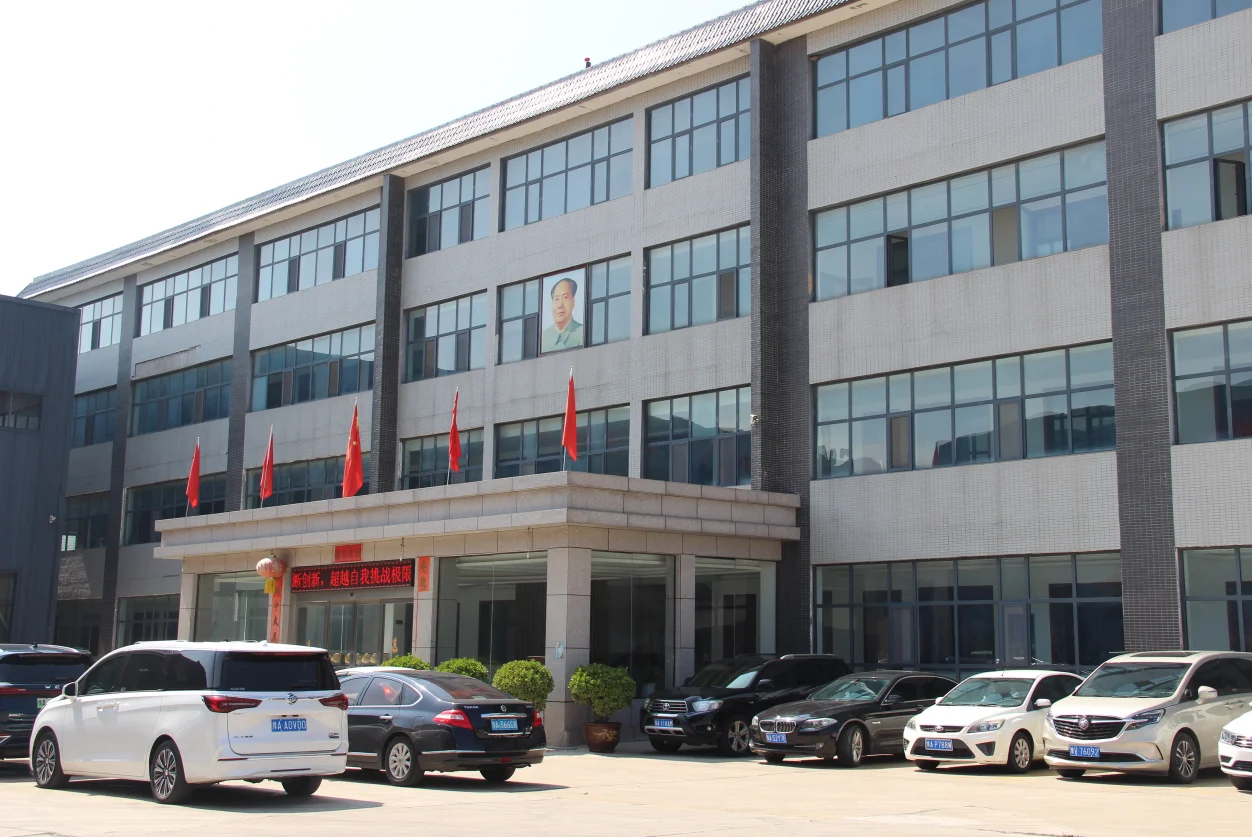

Company information
Zhengzhou Debon Environmental Protection Technology Co., Ltd. is a professional manufacturer of crushing crusher, hammer crusher, box crusher, impact crusher, vibration feeder, belt conveyor and other equipment, widely used in mining, construction and other fields, factory all kinds of metal processing, riveting, assembly, the company has a perfect sales system and after-sales service system, Make sure every customer comes with excitement and satisfaction. The company can choose the equipment model for customers, we can also design and manufacture products according to customer needs, and train technical personnel and operators for customers to ensure customer satisfaction.

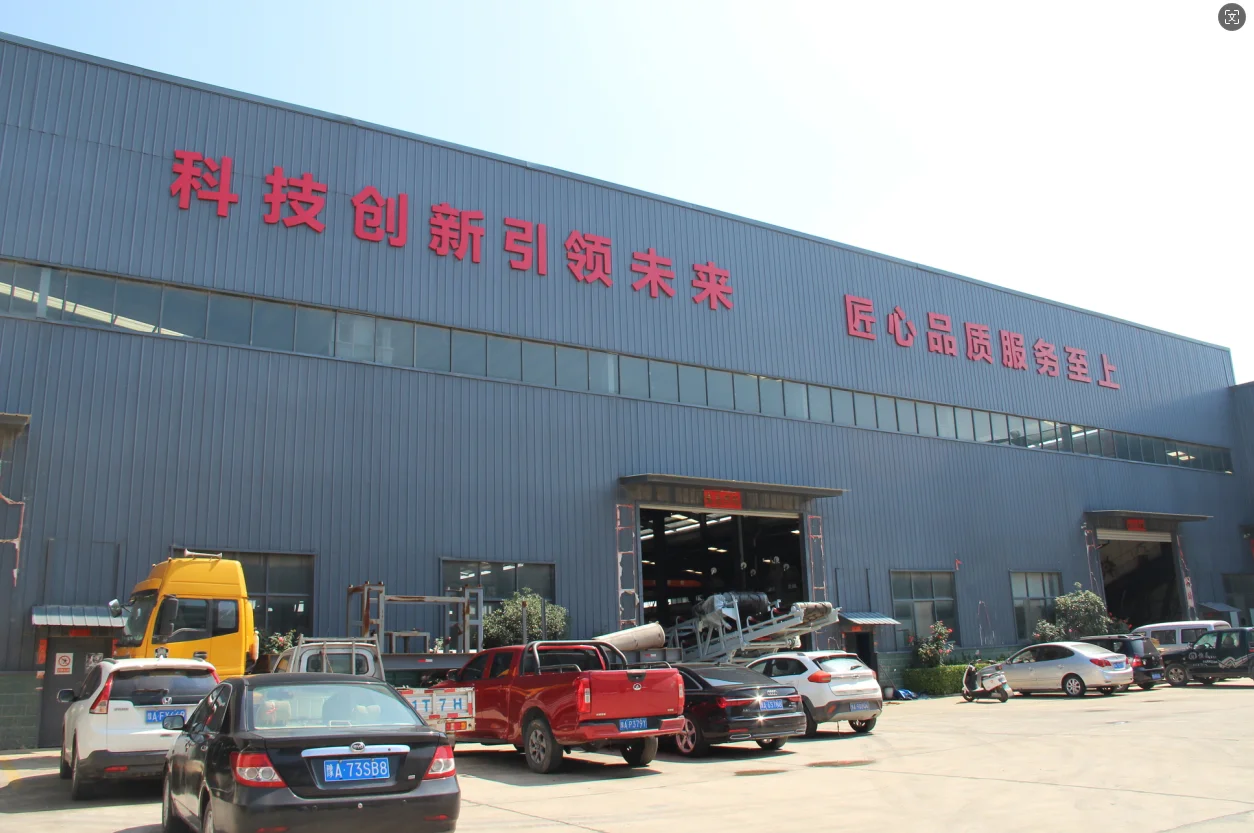

Our factory
Our customers

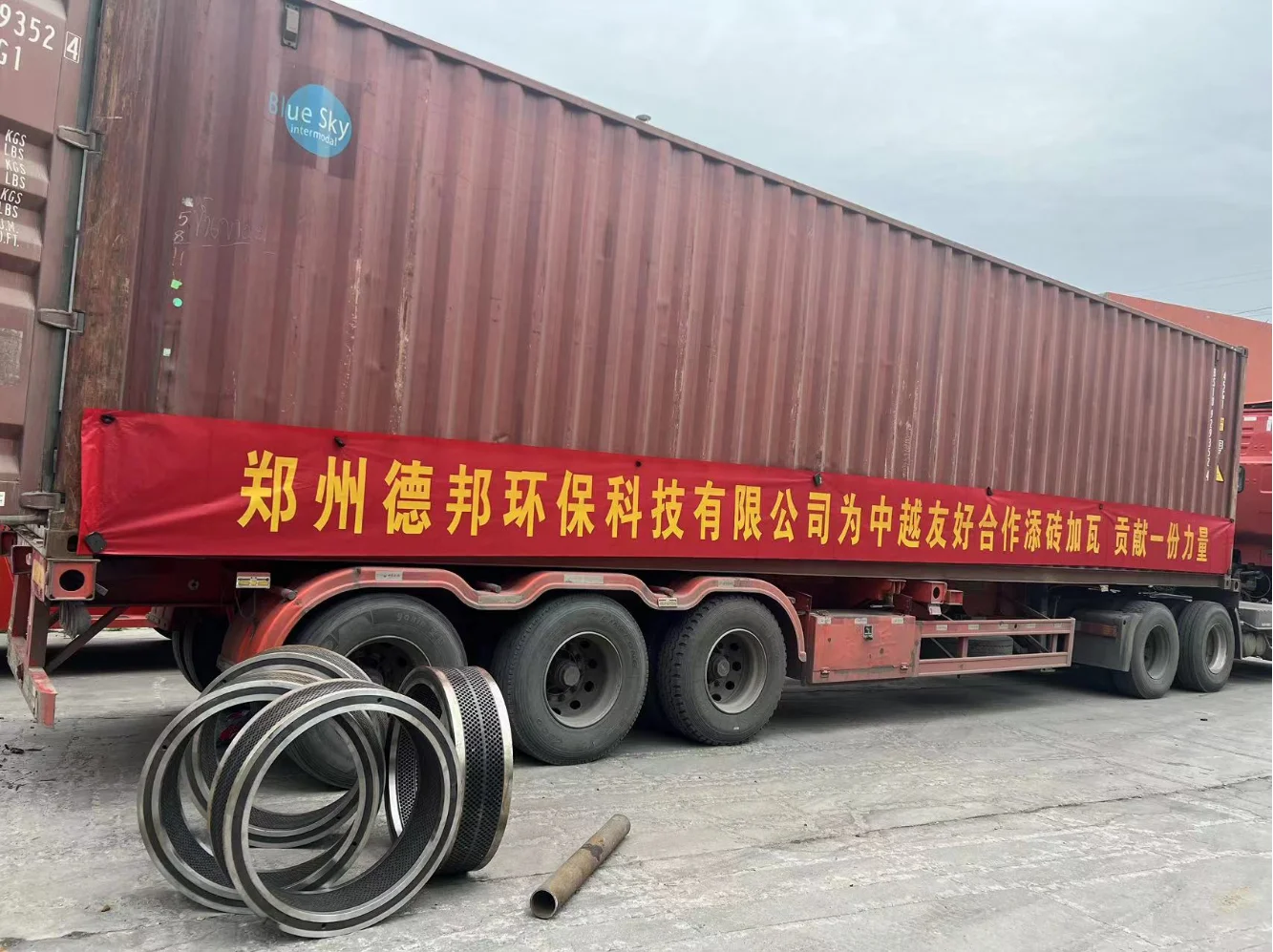

Packing & Shipping

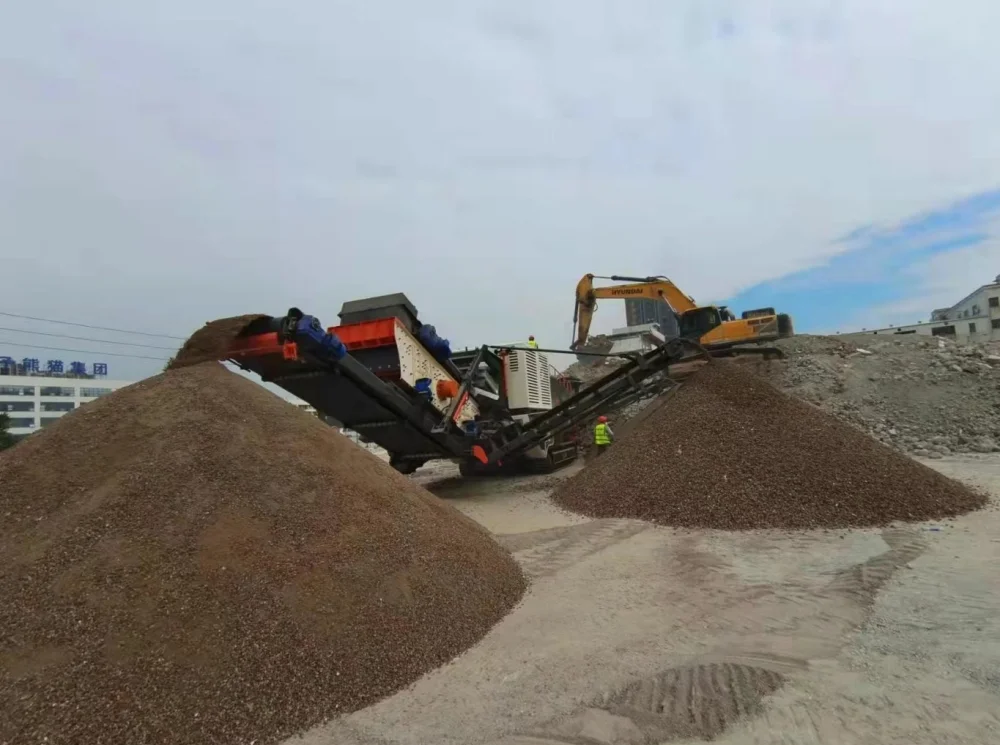

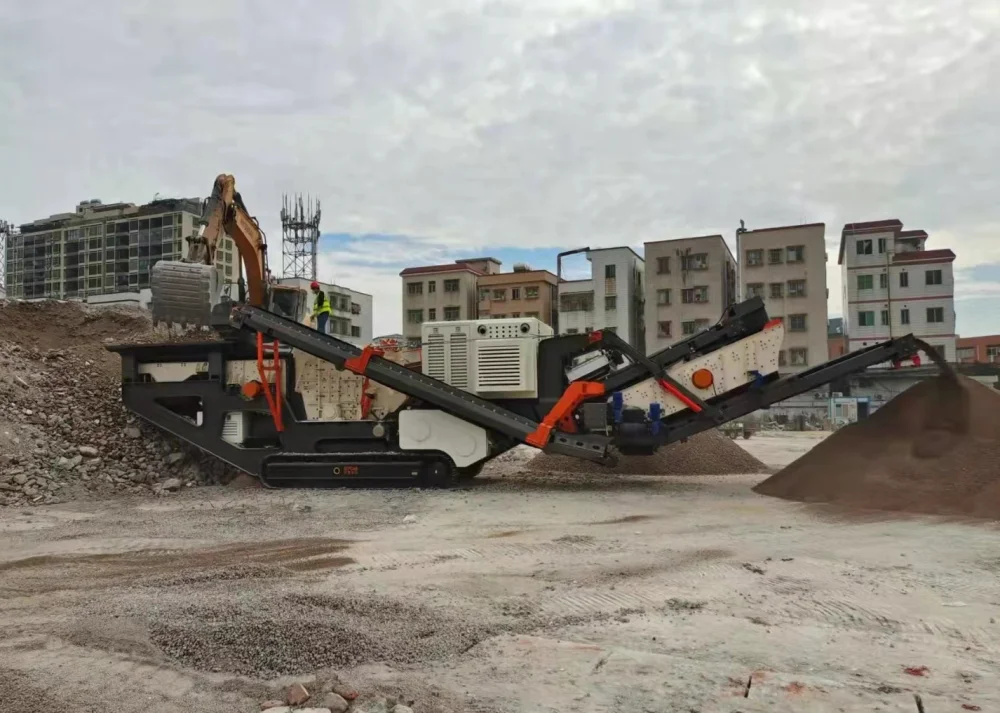

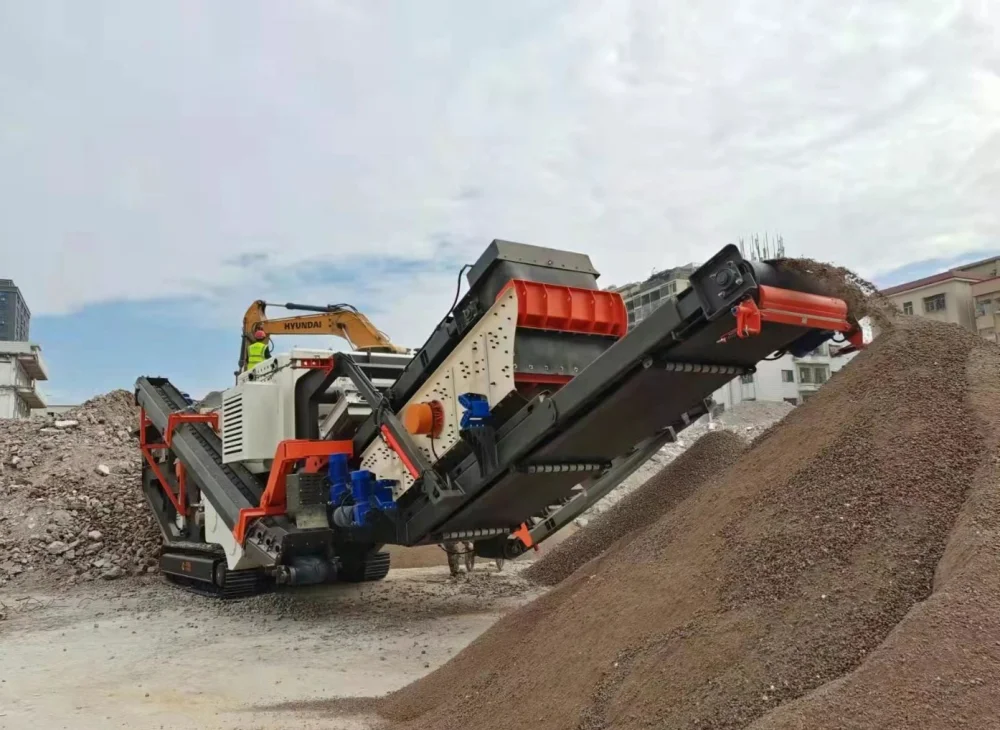

Mobile crushing station display
Our Services
Warranty 100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
Pre-sale services:
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
