Product Overview
Description
Product Description

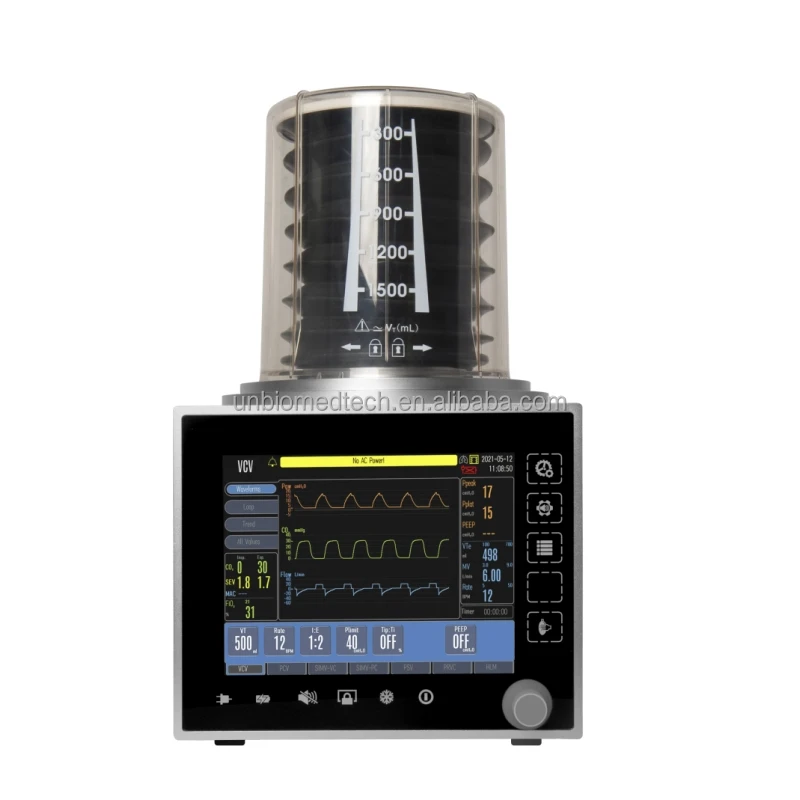

WSvet-7 is a multi-functional, veterinary anesthesia ventilator.
8’ TFT screen with all the parameters displaying.
Sensitive and effective touchscreen makes it convenient to operate.
Comprehensive motoring of animal ventilation state,ensuring safe ventilation.Multiple ventilation modes to support varieties of applications
Comprehensive motoring of animal ventilation state,ensuring safe ventilation.Multiple ventilation modes to support varieties of applications
Ventilation modes:
VCV(Volume-controlled ventilation)
PCV(Pressure-controlled ventilation)
SIMV-PC(Synchronized-intermittent-mandatory ventilation,pressure-controlled)SIMV-VC(Synchronized-intermittent-mandatory ventilation,volume-controlled)
Options:PRVC,AUTO,CT-Mode
PCV(Pressure-controlled ventilation)
SIMV-PC(Synchronized-intermittent-mandatory ventilation,pressure-controlled)SIMV-VC(Synchronized-intermittent-mandatory ventilation,volume-controlled)
Options:PRVC,AUTO,CT-Mode
Features:
To monitor the pressure and respiration under all the ventilation modes 1.2 International standard and standardized design, suitable to various veterinary anesthesia machines.
Three kinds of wave forms: pressure-time.flow-time.volume-time.
Three kinds of wave forms: pressure-time.flow-time.volume-time.
Specification
Features:
·Integrated Design with Pipeline Concealed
Highly compact structure to save space,reducing the impact of exposed pipeline on operations.
·Safe and Reliable APL
Generates a precise airway pressure control and prevents excessive pressures during manual ventilation.
·ACGO
Simultaneously equipped with rebreathing and non-rebreathing circuit systems,and can be shifted by ACGO switch
Auxiliary Common Gas Outlet(ACGO)for use withnon-rebreathing circuit.
·Specially Designed Ca(OH)2Canister
Greatly absorb CO2under rebreathing mode,longer use life,two filters make the animals safer during operation (Options:refillable
or disposable)

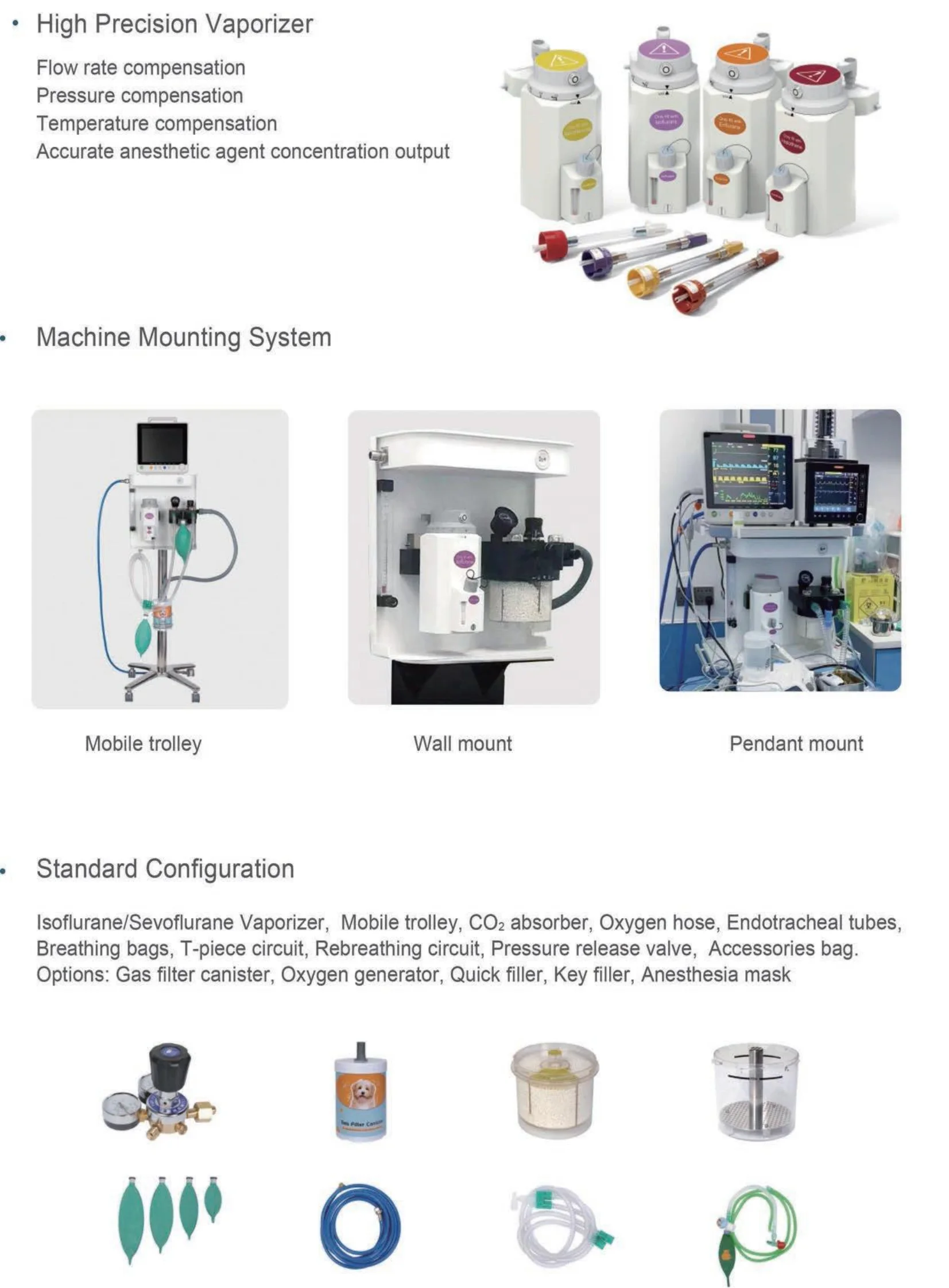

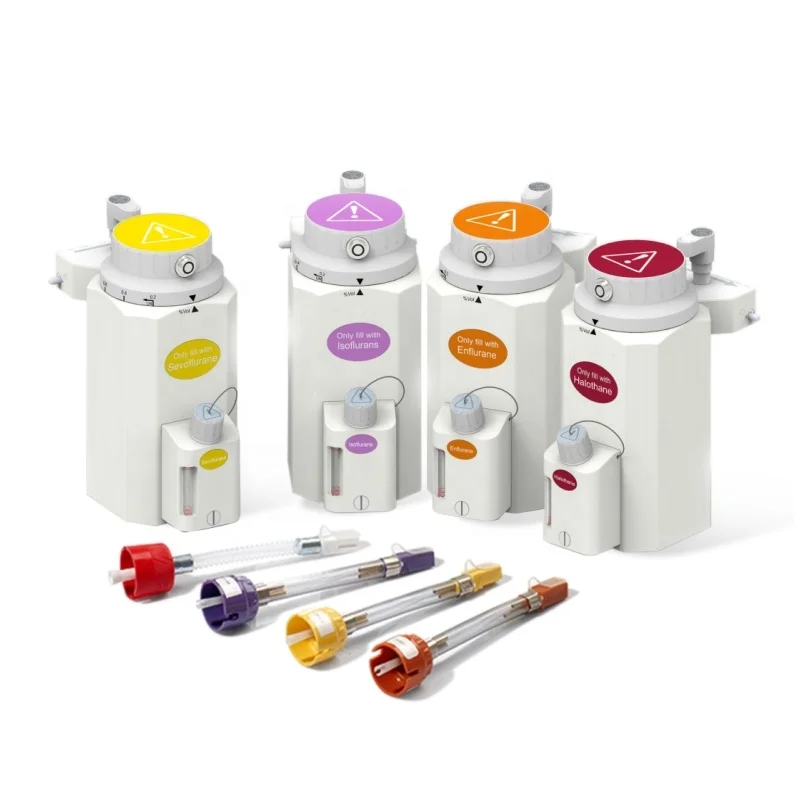

·High Precision Vaporizer
Flow rate compensation
Pressure compensation
Temperature compensation
Accurate anesthetic agent concentration output
·Machine Mounting System
Mobile trolley
Wall mount
Pendant mount
Standard Configuration
Isoflurane/Sevoflurane Vaporizer, Mobile trolley,CO2absorber,Oxygen hose,Endotracheal tubes,Breathing bags,T-piece
circuit,Rebreathing circuit,
Pressure release valve,Accessories bag.Options:Gas filter canister,Oxygen generator,Quick filler,Key filler,Anesthesia mask
Specification
Dimensions(mm) 500(W)X500(D)X1310(H)mm
Weight 43 kg
Materials All materials in contact with patient gas are latex free
Gas supply 0.2-0.4Mpa
Flowmeter O20-4L/min,optional:0-10L
O2flush 25L/min -75L/min
Anesthesia rebreathing circuit
CO,absorber Ca(OH)2canister,1500ml(options:disposable or refllable)
Adjustment range of APL 0-50cm H2O
Vaporizer with flow,temperature and pressure compensation
Vaporizer
Isoflurane 0.2-6VOL%
Sevoflurane0.2-8VOL%
Enflurane 0.2-8VOL%
Vaporizer mounting system
Selectatec@interlock
Breathing bag 0.5L,1L,2L,3L
Breathing system connectors
Exhalation port OD 22mm/conical
Inhalation port OD 22mm/ID 15mm conical
Manual bag port OD 22mm/ID 15mm conical
Airway pressure gauge -20-100cmH2O
AGSS Anesthesia gas scavenging canister,Outdoor drain pipe
·Integrated Design with Pipeline Concealed
Highly compact structure to save space,reducing the impact of exposed pipeline on operations.
·Safe and Reliable APL
Generates a precise airway pressure control and prevents excessive pressures during manual ventilation.
·ACGO
Simultaneously equipped with rebreathing and non-rebreathing circuit systems,and can be shifted by ACGO switch
Auxiliary Common Gas Outlet(ACGO)for use withnon-rebreathing circuit.
·Specially Designed Ca(OH)2Canister
Greatly absorb CO2under rebreathing mode,longer use life,two filters make the animals safer during operation (Options:refillable
or disposable)
·High Precision Vaporizer
Flow rate compensation
Pressure compensation
Temperature compensation
Accurate anesthetic agent concentration output
·Machine Mounting System
Mobile trolley
Wall mount
Pendant mount
Standard Configuration
Isoflurane/Sevoflurane Vaporizer, Mobile trolley,CO2absorber,Oxygen hose,Endotracheal tubes,Breathing bags,T-piece
circuit,Rebreathing circuit,
Pressure release valve,Accessories bag.Options:Gas filter canister,Oxygen generator,Quick filler,Key filler,Anesthesia mask
Specification
Dimensions(mm) 500(W)X500(D)X1310(H)mm
Weight 43 kg
Materials All materials in contact with patient gas are latex free
Gas supply 0.2-0.4Mpa
Flowmeter O20-4L/min,optional:0-10L
O2flush 25L/min -75L/min
Anesthesia rebreathing circuit
CO,absorber Ca(OH)2canister,1500ml(options:disposable or refllable)
Adjustment range of APL 0-50cm H2O
Vaporizer with flow,temperature and pressure compensation
Vaporizer
Isoflurane 0.2-6VOL%
Sevoflurane0.2-8VOL%
Enflurane 0.2-8VOL%
Vaporizer mounting system
Selectatec@interlock
Breathing bag 0.5L,1L,2L,3L
Breathing system connectors
Exhalation port OD 22mm/conical
Inhalation port OD 22mm/ID 15mm conical
Manual bag port OD 22mm/ID 15mm conical
Airway pressure gauge -20-100cmH2O
AGSS Anesthesia gas scavenging canister,Outdoor drain pipe
