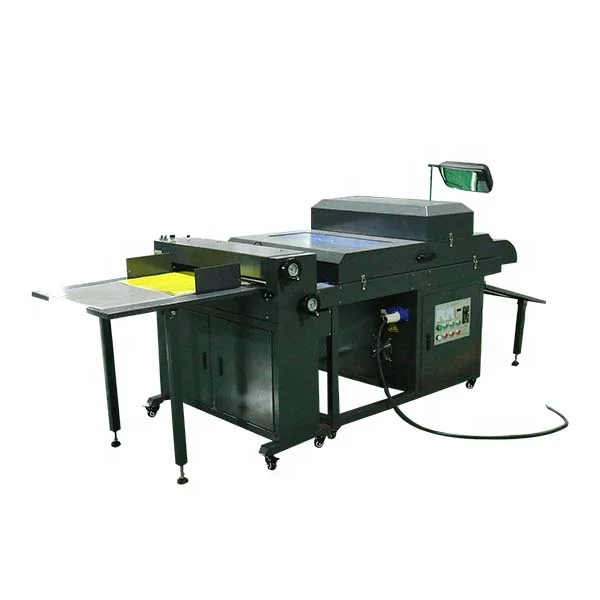

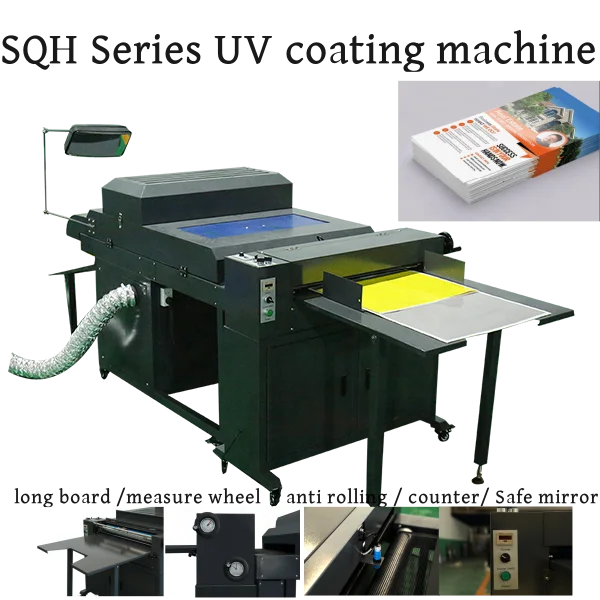

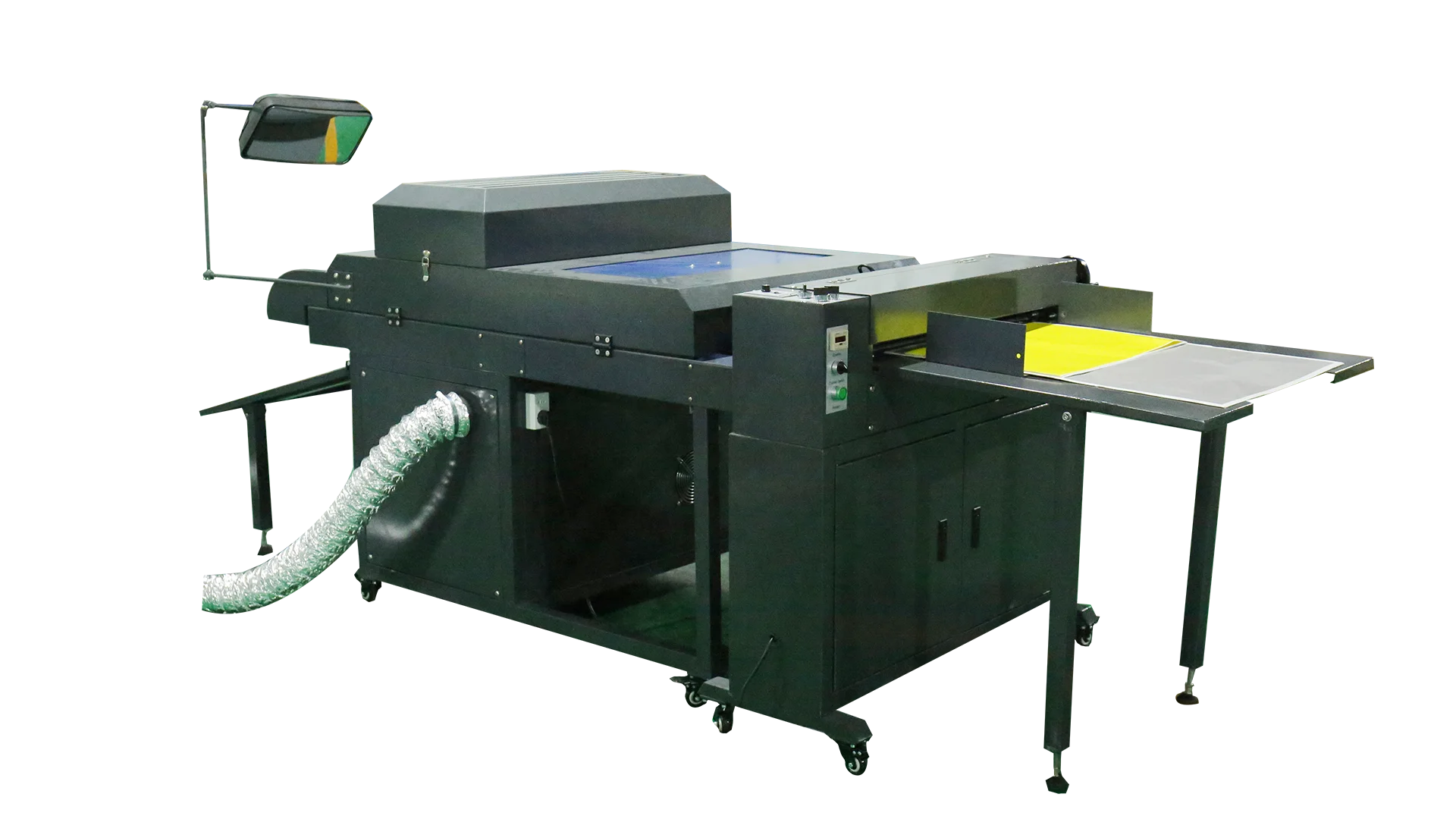

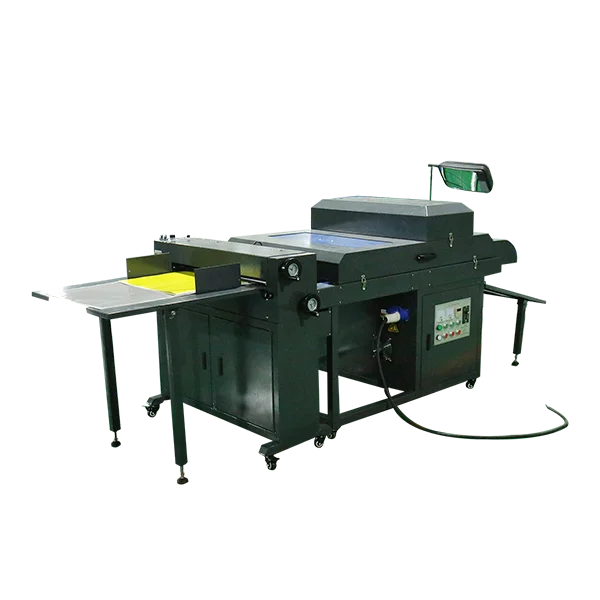

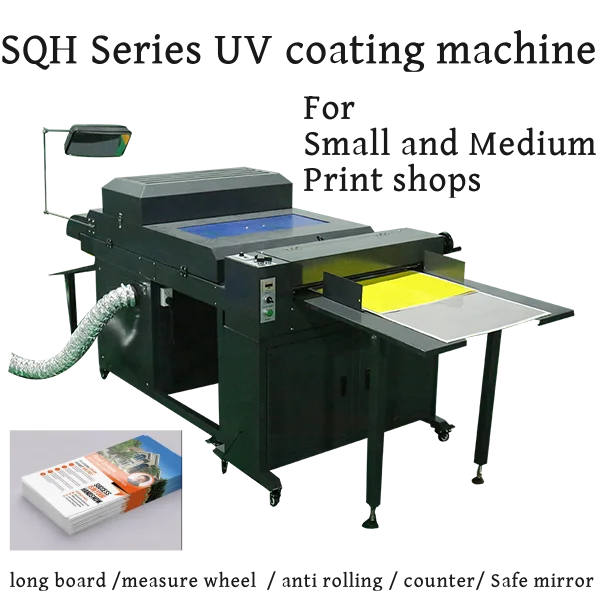

DOUBLE 100 Sheet Fed Uv Flood Coating Machine Europe Uv Coating Machine for paper
- Category: >>>
- Supplier: Qihe Shuangbai Digital Photographic Equipment Co. Ltd.
Share on (1601266271900):
Product Overview
Description
COMPANY INTRODUCTION
◆ Single texture or Multi texture is optional
◆ Consumable cost as low as 0.03USD/sqm
◆ Liquid circle running without any waste
◆ Free of cleaning, and can supplementing the uv liquid automatically
◆ The device of powering off automatically when the temperature is too high, the operation is safe
◆ Low cost and the thickness of coating is flexible
◆ The coating liquid is well-distributed with high clarity
◆ Having vacuum hold down device to make sure the light paper can pass without curling
◆ Two supplementing pump optional to ensure coating with glossy or matt easily.
◆ have eye-protection device to avoid the light get into the eyes
◆ Consumable cost as low as 0.03USD/sqm
◆ Liquid circle running without any waste
◆ Free of cleaning, and can supplementing the uv liquid automatically
◆ The device of powering off automatically when the temperature is too high, the operation is safe
◆ Low cost and the thickness of coating is flexible
◆ The coating liquid is well-distributed with high clarity
◆ Having vacuum hold down device to make sure the light paper can pass without curling
◆ Two supplementing pump optional to ensure coating with glossy or matt easily.
◆ have eye-protection device to avoid the light get into the eyes
Our UV coater should be an ideal solution partner for both digital press users and tranditional offset printer user. we make sure this machine gives your customer upgrade printing quality by perfect UV coating.Also Free standing Preheat-IR unit(Option) gives you a perfect solution for wax based toner coating. Apply UV, Aqueous& Primer Coatings To A Wide Variety Of Substrates To Make Your Prints Stand Out.
QH-Coat Series is a most economical low cost UV coating machine solutions. It has a width range from 18”(48cm) to 36”(90cm).
QH-Coat Series is a most economical low cost UV coating machine solutions. It has a width range from 18”(48cm) to 36”(90cm).
Product After The Use Of Coater Effect

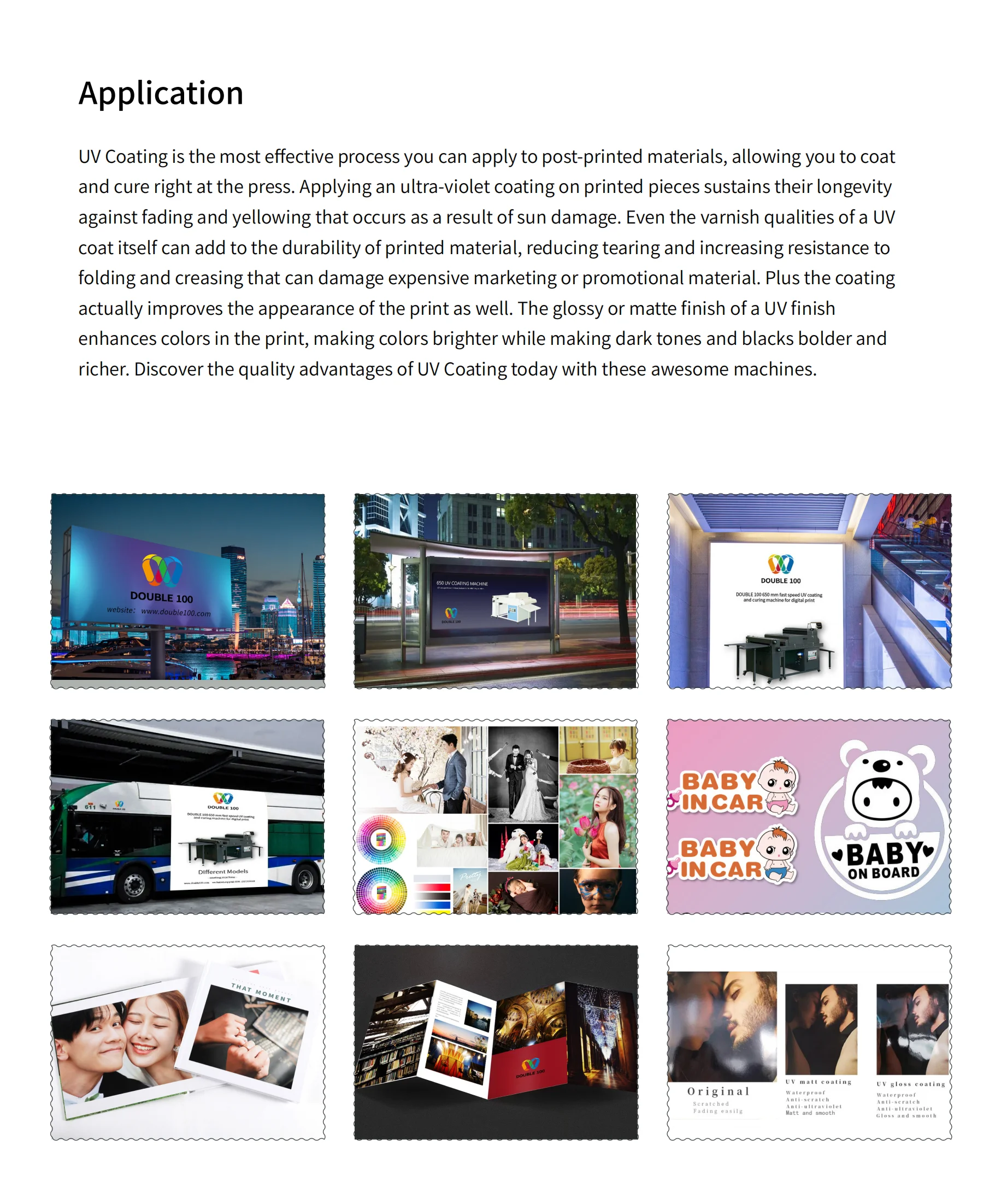

Application
UV Coating is the most effective process you can apply to post-printed materials,allowing you to coat and cure right at the press.Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage.Even the varnish qualities of a UV coat itself can add to the durability of printed material,reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material.Plus the coating actually improves the appearance of the print as well.The glossy or matte finish of a UV finish enhances colors in the print,making colors brighter while making dark tones and blacks bolder and richer.Discover the quality advantages of UV Coating today with these awesome machines.
PRODUCTS SPECIFICATION
Item | Data |
Size | 18" (48cm) Wide |
Max Sheet | 18" (48cm) x Infinity |
Sheet Thickness | 180-600 GSM |
Speed | 0--9m/min |
Power | 220V, 2Ph, 50Hz/60Hz |
Curing | UV |
Compatibility | traditional off print， digital print |
QH-Coat 18" (480mm)UV Coater | QH-Coat 24" (650mm) UV Coater | QH-Coat 36" (900mm) UV Coater | SQH-Coat 24" (650mm) UV Coater | PRO UV Coater 24"（650mm） | |
Max Coating Width | 18" (480mm） | 24" (650mm) | 36" (900mm) | 24" (650mm) | 24" (650mm) |
Min Material Thickness | 180g | 180g | 180g | 180g | 150g |
Max Material Thickness | 800G | 800G/300G | 300G | 300G | 600g |
Speed | 0-9m/min | 0-9m/min | 0-9m/min | 0-18m/min | 0-30m/min |
Curing Way | UV Lamp | UV Lamp | UV Lamp | UV Lamp | UV Lamp |
Feeding Way | manual | manual | manual | manual | manual |
Effect | Glossy/Matt | Glossy/Matt | Glossy/Matt | Glossy/Matt | Glossy/Matt |
texture effect | Optional | Optional | Optional | optional | optional |
Feeder | optional | optional | optional | optional | optional |
Stacker | optional | optional | optional | optional | optional |
Corona | optional | optional | optional | 1 piece | 1 piece |
Lamp No. | 1 piece | 1 piece | 1 piece | 3500w | 3500w |
Power | 2500w | 3500w | 3500w | 370kg | 350kg |
Weight(With Package) | 250kg | 350kg | 465kg | 112*200*132cm | 112*200*132cm |
Dimension(With Package) | 92*130*132cm | 112*200*132cm | 140*200*132cm | Faster type, Additional function, Universal size | Pro type, Universal size |
Key Point | Standard type, Compact size | Standard type, Universal size | Standard type, Bigger size |

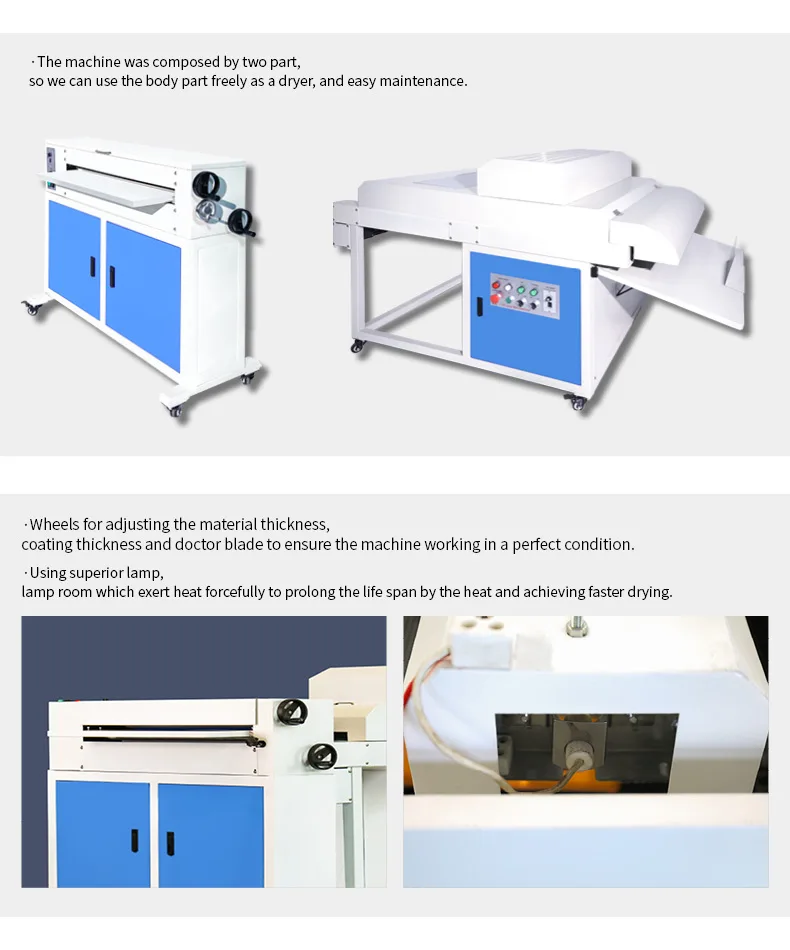

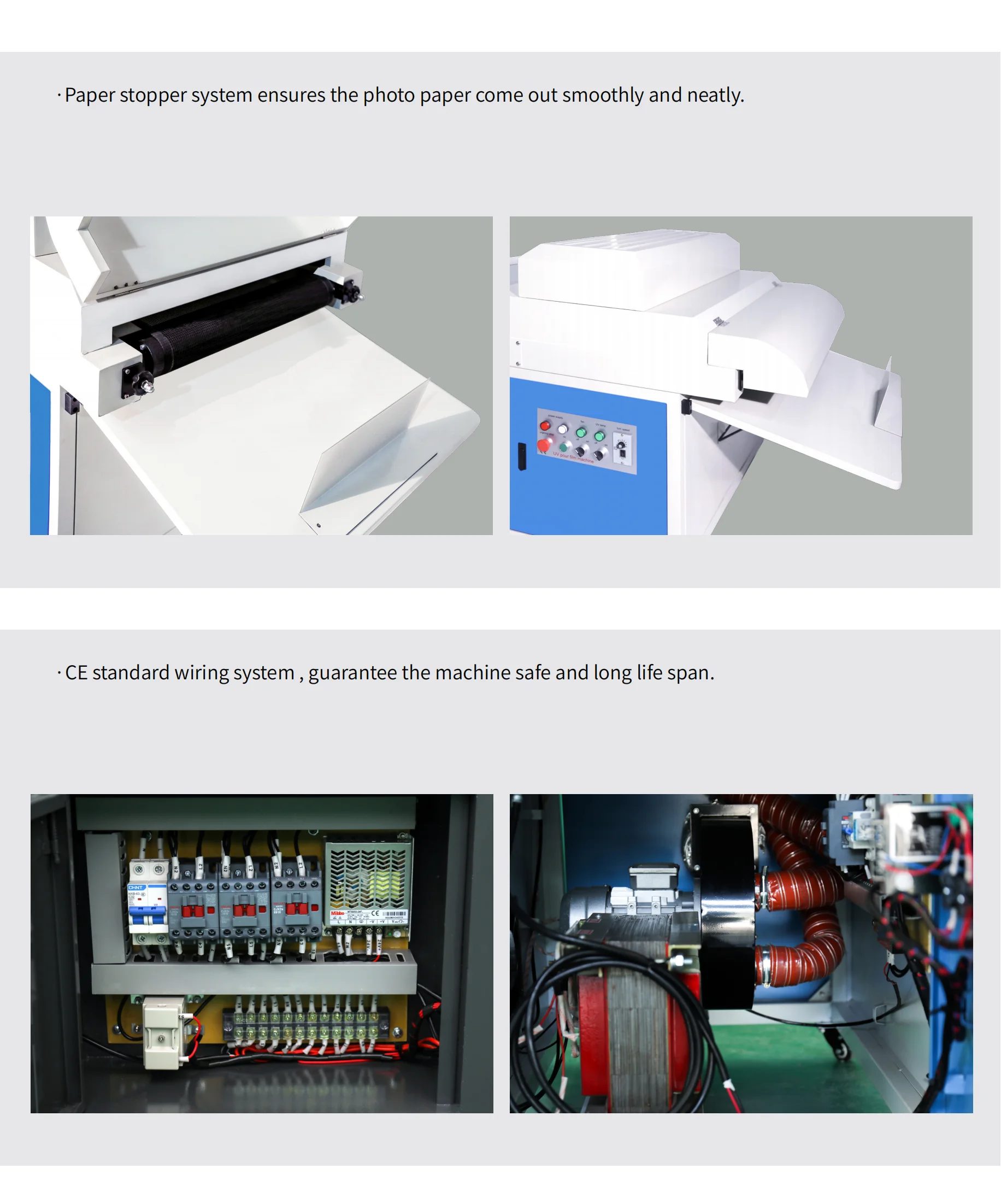

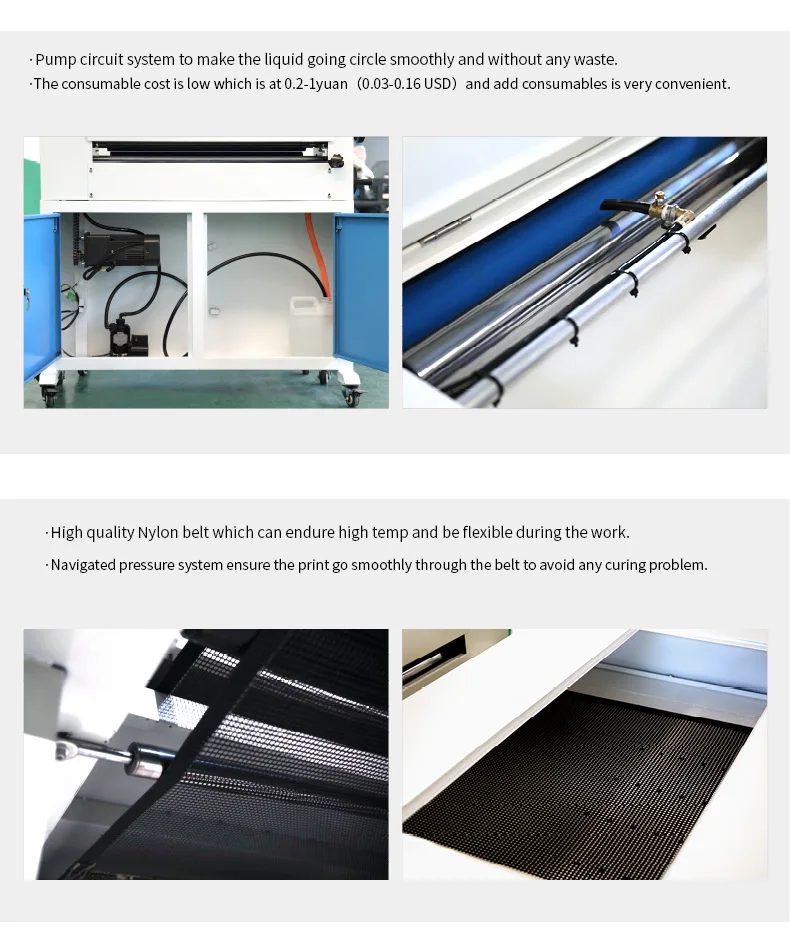

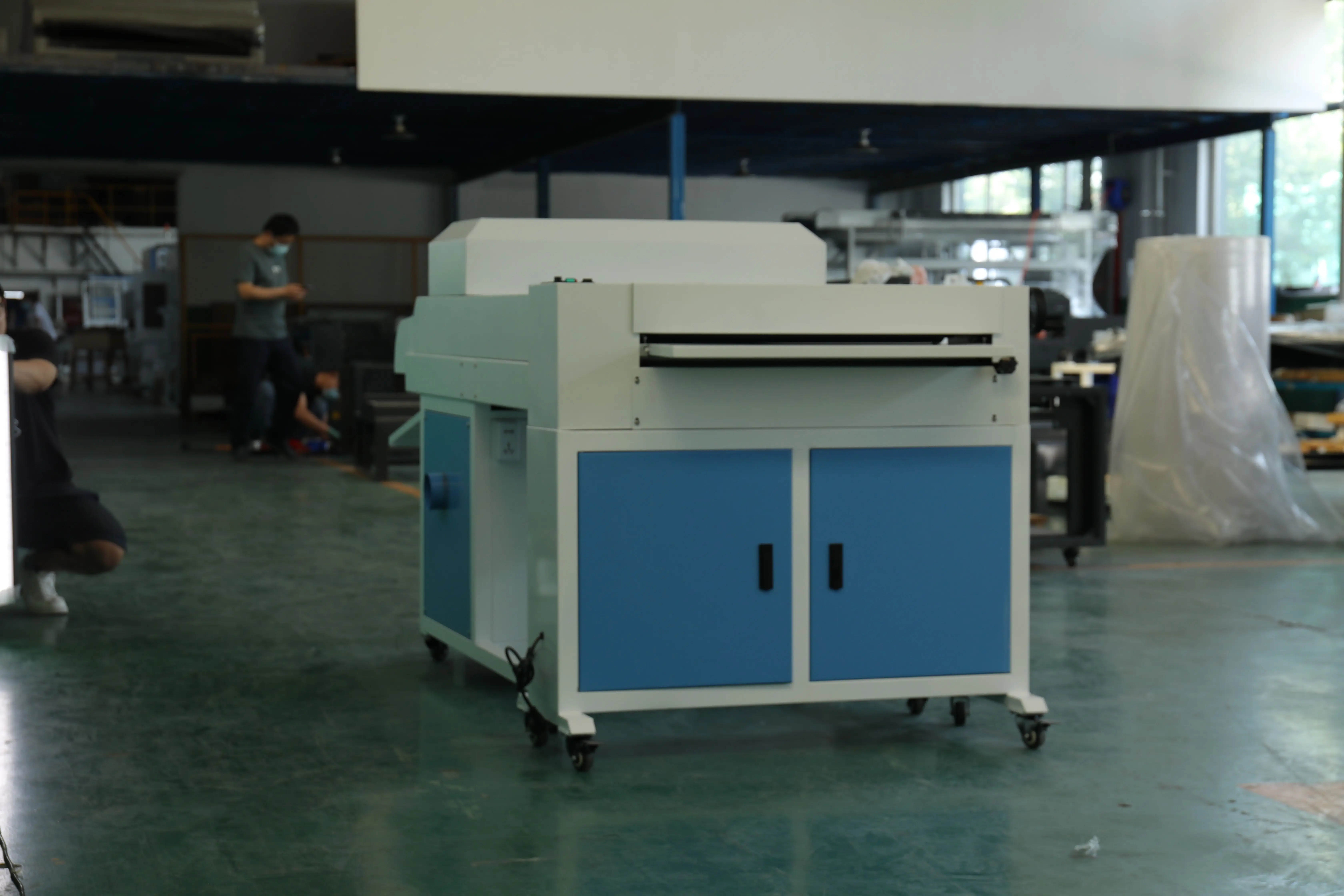

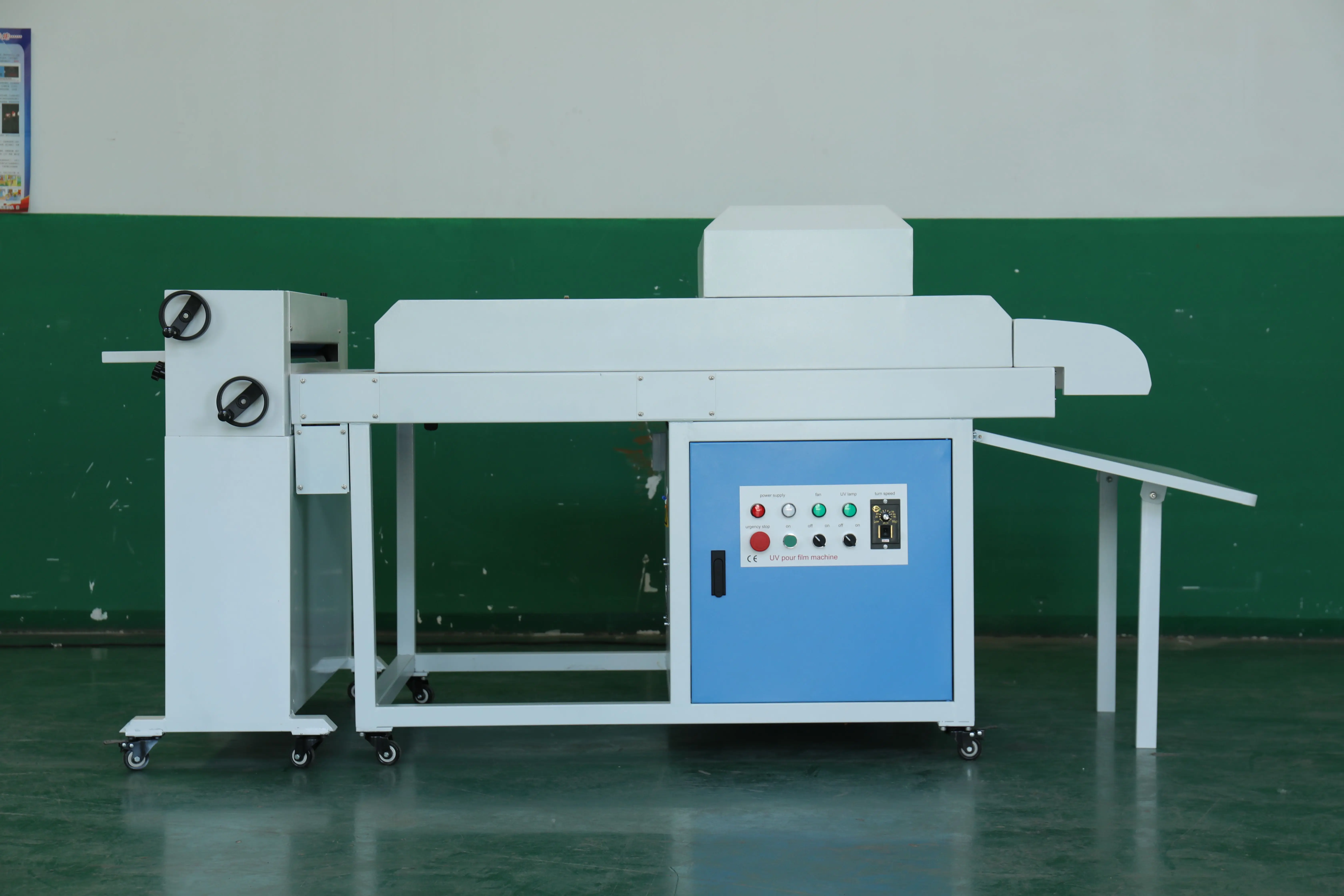

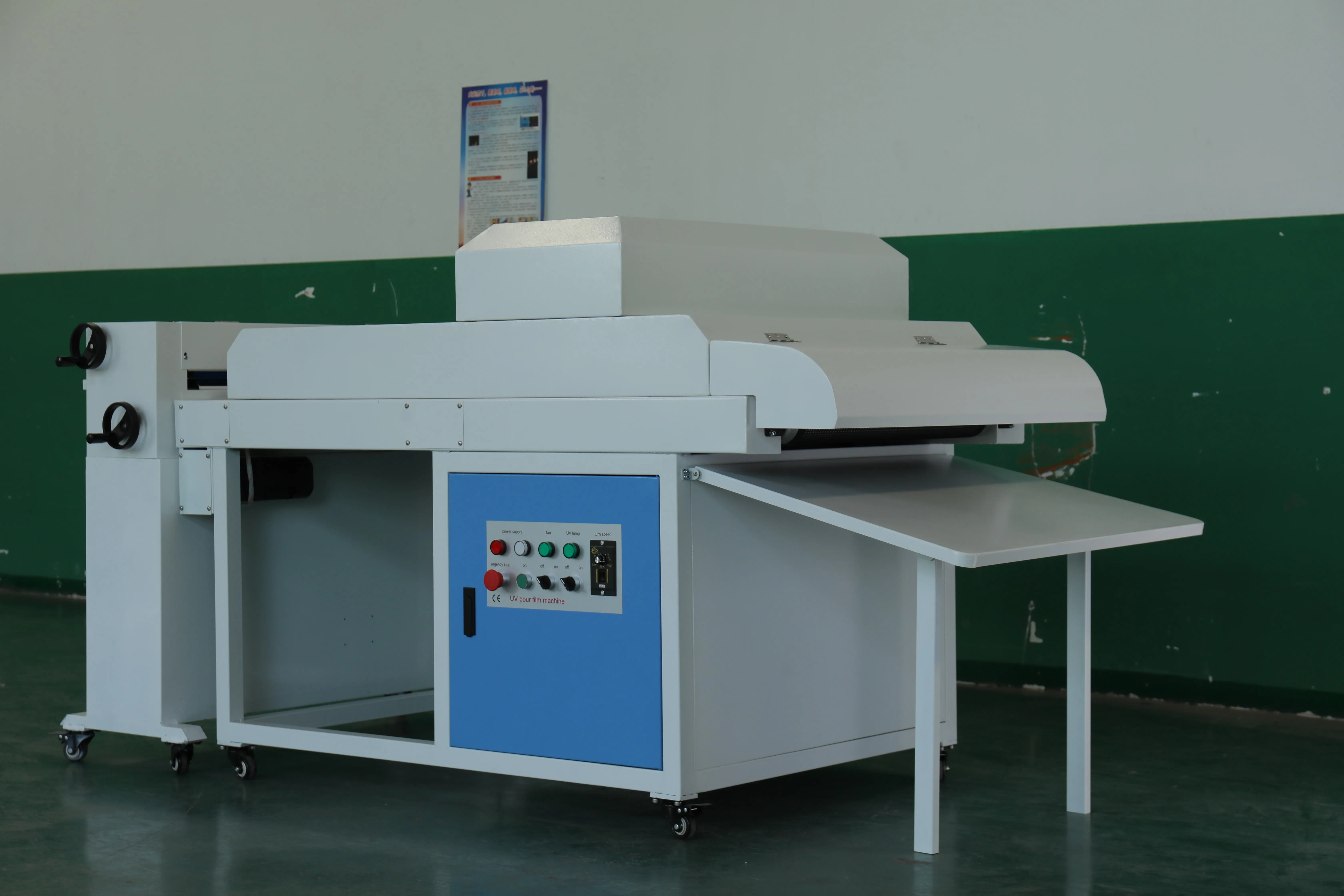

PRODUCT DETAILS
RELATED PRODUCT
Packing&Delivery

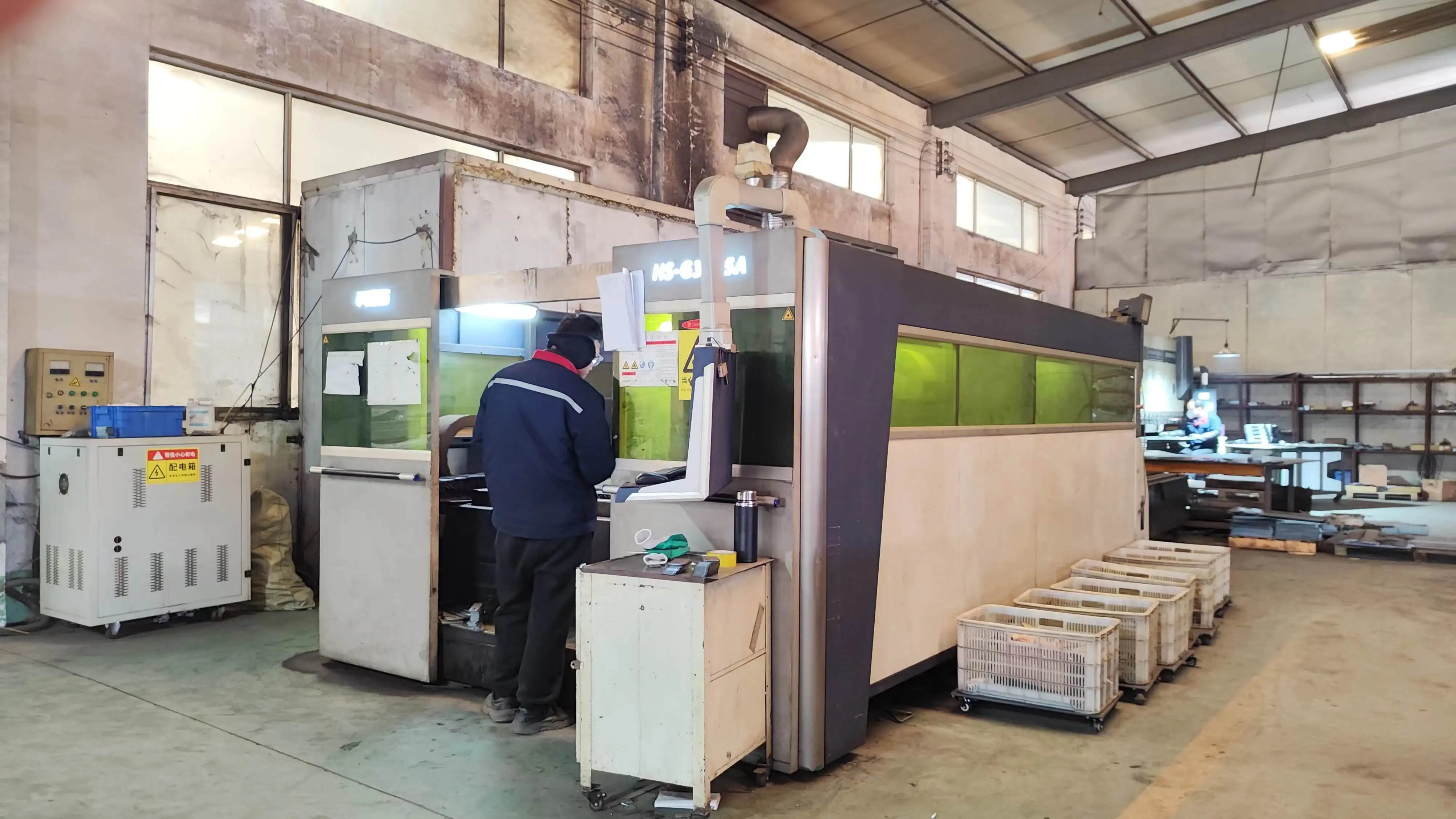

Company Profile
QIHE SHUANGBAI DIGITAL PHOTOGRAPHIC EQUIPMENT CO.,LTD
At Double 100, we are dedicated to providing innovalive solutions for exceptional printing. With a reputaion as a leading supplier of photobook production equipment and consumables, we have sold our products to over 90 countries worldwide. Our partnerships with renowned intemational brands such as HP indigo, Canon, and Konica Minolta ensure that we ofer only the highest quality digital printing solutions to our customers.
WELCOME TO BUY OUR PRODUCTS
We pride ourselves on our commitment to quality, and rigorously test all of our machines and consumables before dispatch.Our consumables undergo a thorough pick-up process before packing, ensuring exceptional performance, and we offer a3-year warranty on all of our products.Our competitive pricing makes us the ideal choice for small and medium-sized print shops, and we ofer customized solutions to suit specific needs. Whether you require manual or fuly automatic machines, we have a range of options to suit your requirements.
In addition to photobook production, we offer various print effect enhancing solutions to elevate your prints.
We are the biggest and most comprehensive supplier for photobook consumables such as insert sheets, lamination film, and photo wood frames.
Choose Double 100 for a trusted worldwide partner in printing solutions,with a commitment to quality and innovation that sets us apart from the competition.
Our company takes part in exhibitions every year. The following three pictures show the exhibitions in Germany, the United States and Shandong Province of China respectively
Customer Praise
FAQ
1.Why the machine is of great value?
You can get full functions of photo book making with a low cost. And the production speed can reach 150-200pcs per day, which is suitable for a small or medium-size workshop.
2.Can the machine produce layflat albums?
Yes, the machine uses layflat technology to ensure photos are displayed seamlessly across two pages.
3.Is the machine customizable?
Yes, we can provide various products combo based on your needs.
4.What is max size of photobook？
48*96 cm(open size)
5.Can the machine work with hot melt sheets？
Yes, the machine has effective hot press function and can work with hot melt sheets of any melting point.
6.Can the machine work with adhesive sheets?
Yes, the machine has effective cold press function can work with adhesive sheets, like adhesive PVC, adhesive
cardboard and adhesive PET.
7.What is the difference between hot melt sheets and adhesive sheets?
The pages of hot melt photobook would be more stiffer and the glue won’t fail easily. Aadhesive sheets can be used in thicker albums and it’s faster when production.
8.Is the binding easy to operate?
Yes, the binding part is equipped with magnetic stop and buffle for layflat gap to make binding easier.
2.Can the machine produce layflat albums?
Yes, the machine uses layflat technology to ensure photos are displayed seamlessly across two pages.
3.Is the machine customizable?
Yes, we can provide various products combo based on your needs.
4.What is max size of photobook？
48*96 cm(open size)
5.Can the machine work with hot melt sheets？
Yes, the machine has effective hot press function and can work with hot melt sheets of any melting point.
6.Can the machine work with adhesive sheets?
Yes, the machine has effective cold press function can work with adhesive sheets, like adhesive PVC, adhesive
cardboard and adhesive PET.
7.What is the difference between hot melt sheets and adhesive sheets?
The pages of hot melt photobook would be more stiffer and the glue won’t fail easily. Aadhesive sheets can be used in thicker albums and it’s faster when production.
8.Is the binding easy to operate?
Yes, the binding part is equipped with magnetic stop and buffle for layflat gap to make binding easier.
