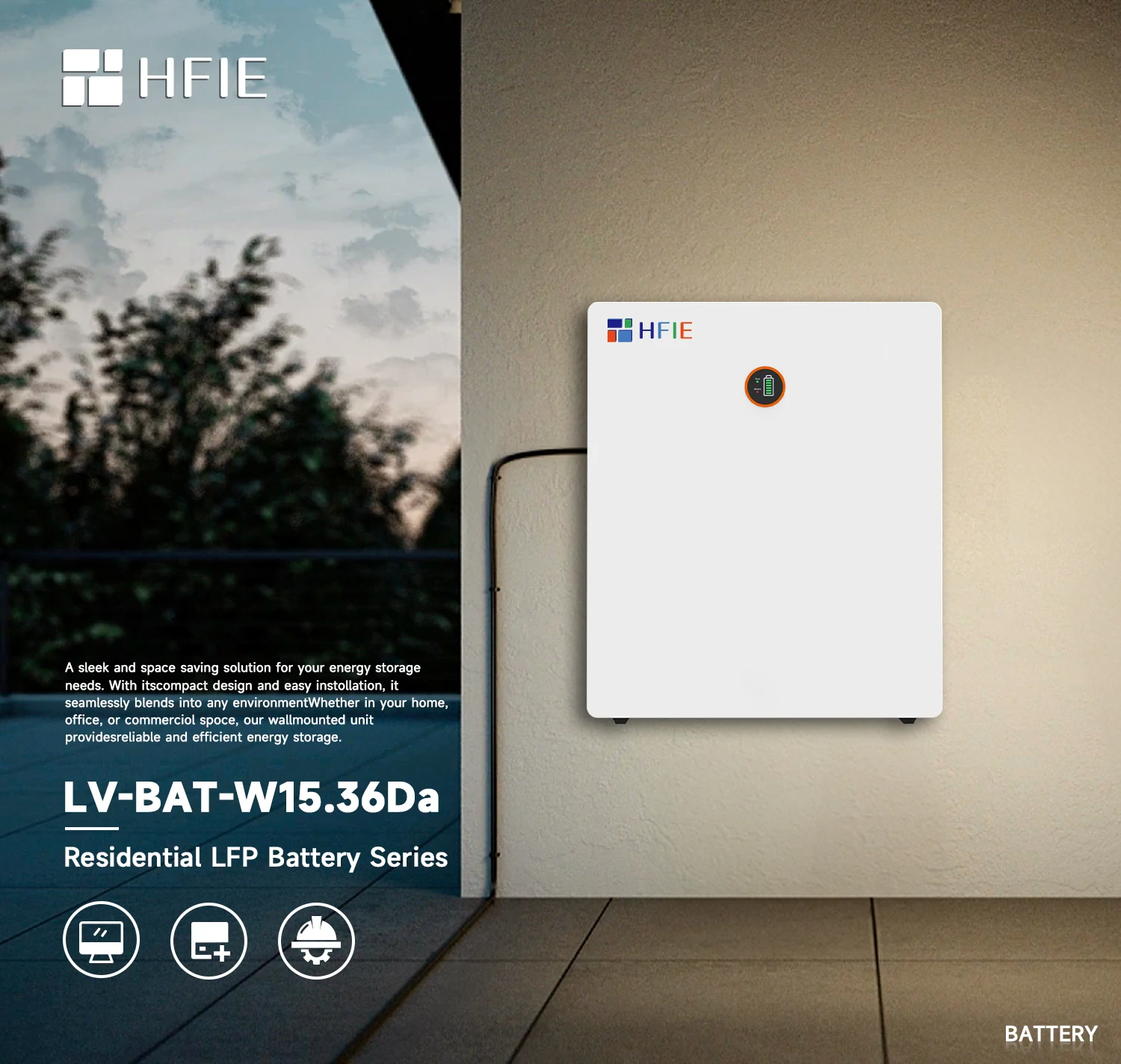

HFIE EU Stock Low Voltage Wall Mounted 48V 300Ah 15kWh Lithium Ion Batteries Lifepo4 Battery For Home Energy Storage
- Category: >>>
- Supplier: Hefei Hefu Import And Export Co. Ltd.
Share on (1601266299724):
Product Overview
Description
Model | LV-BAT-W5.12Da | LV-BAT-W10.24Da | LV-BAT-W15.36Da | |||
Nominal Voltage | 51.2V | |||||
Rated Capacity | 100Ah | 200Ah | 300Ah | |||
Energy | 5120Wh | 10240Wh | 15360Wh | |||
Charging Cut-off Voltage | 56.16 V | |||||
Discharge Cut-off Voltage | 45.6 V | |||||
Recommend charge/discharge current | 50A | 100A | 100A | |||
Maximum continuous charge/discharge current | 100A | 200A | 200A | |||
Instantaneous discharge current | 200A/3S | 400A/3S | 400A/3S | |||
Charge temperature | 0~55°C | |||||
Discharge temperature | –20~60℃ | |||||
20°C ~ 45°C in three months; | ||||||
25±3°C over three months; Humidity:65±20%RH | ||||||
Environment | Indoor | |||||
Installation | Wall mounted | |||||
Cell Technology | Lithium iron phosphate (LiFePO4) | |||||
Cooling | Natural convection | |||||
Protection Rating | IP21 | |||||

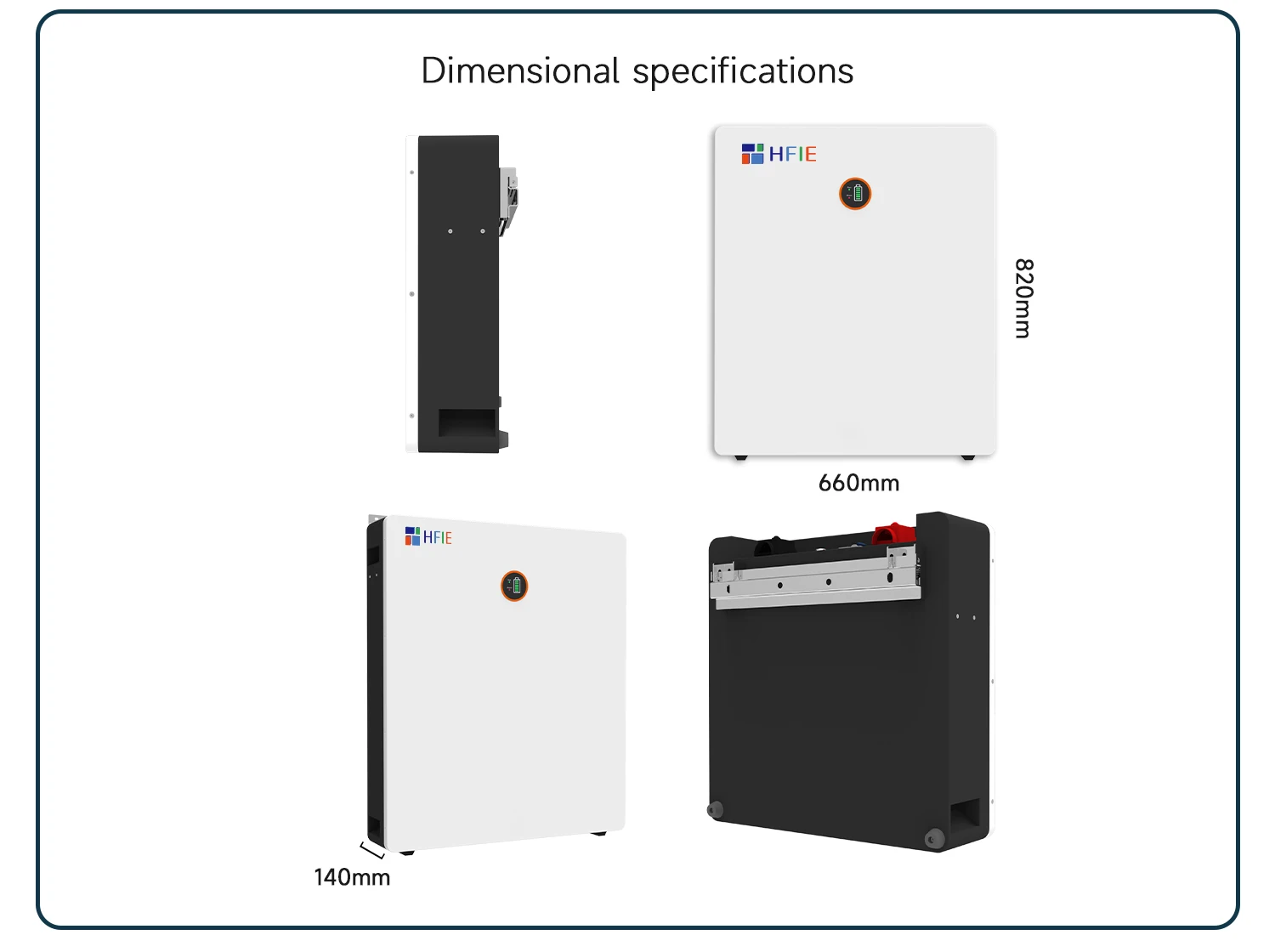

Dimension and Weight | ||||||
Dimension | 442*500*140mm | 442*820*142mm | 660*820*140mm | |||
Weight | 41.88KG | 41.88KG | 120.77KG | |||
Communication Instruction | ||||||
Communication | RS232, CAN, RS485 | |||||

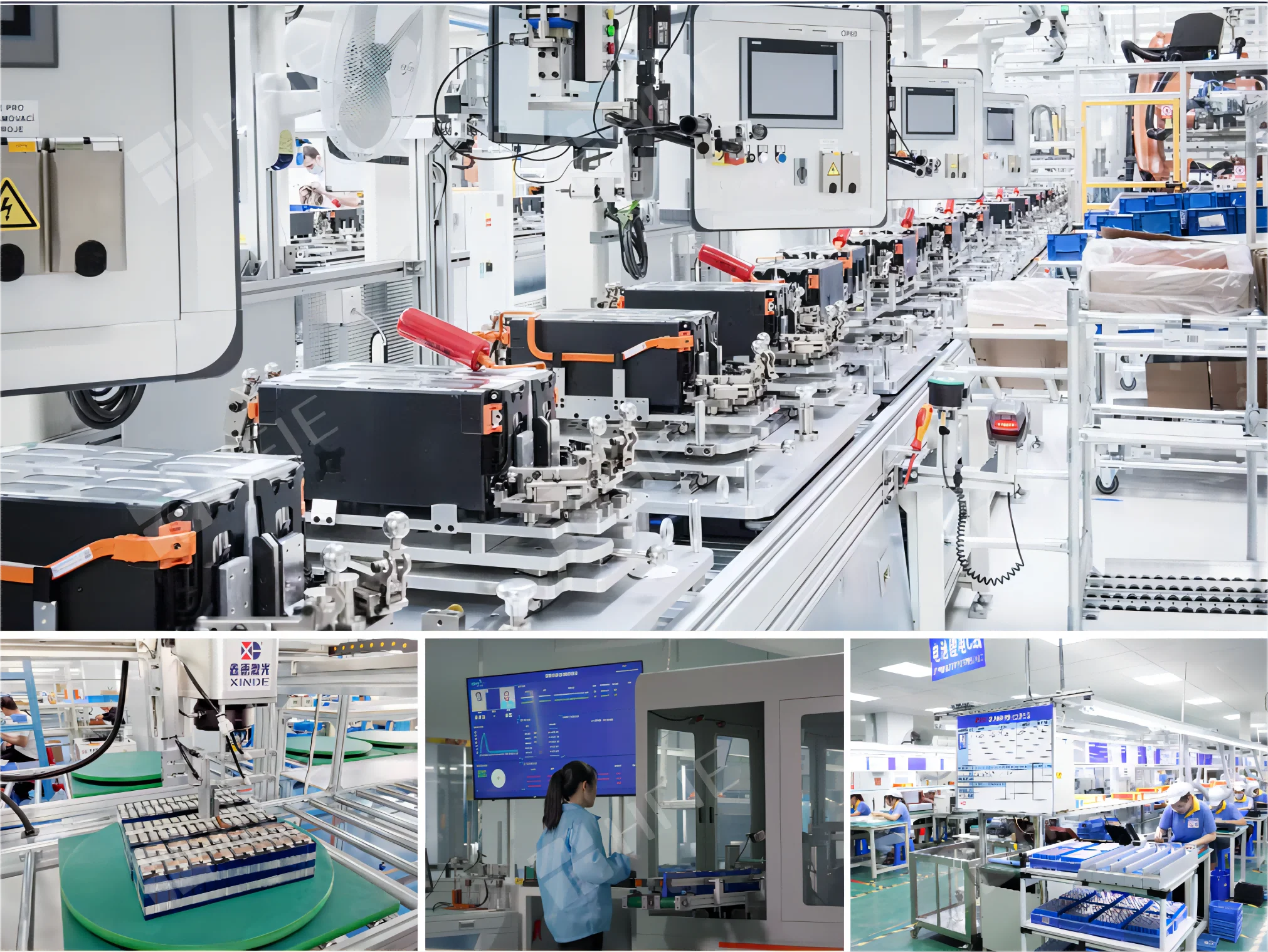

Hfie lithium Battery Production Line
Certifications
Q1:ls the batterv BMS included?
A1:Yes.It's advanced BMS included and very safe to use.
Q2:How do you ship lithium battery?
A2:We can ship by sea.
Q3:Does the battery have overcharge and overdischarge protection?
A3:Yes We use advanced BMS and it can protect the battery well from overcharge and overdischarge.
Q4:What's the lead time?
A4:Sample lead time:3-7 days.Order lead time:12-25 days.
Q5.What is the payment term?
A5:T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
Q6.How can guarantee quality?
A6:Alwavs a pre-production sample before mass production: Always final inspection before shipment.
Q7.Do you provide after-sales serive?
A7:Yes the warranty for lithium battery is 5 years or 10 years optional, if any quality problems on our side in thisperiod.we can send new one as replacement.
