Product Overview
Description
Product Description
Stationary small 50m3 concrete batching plant for sale
Product Description : HZS type concrete batching plant consists of material batching, mixing and electric control system, etc, which produce high quality concrete because of more accurate material measurement. They are widely used in construction projects, road, bridge project, and concrete prefabrication factory.
Details Images

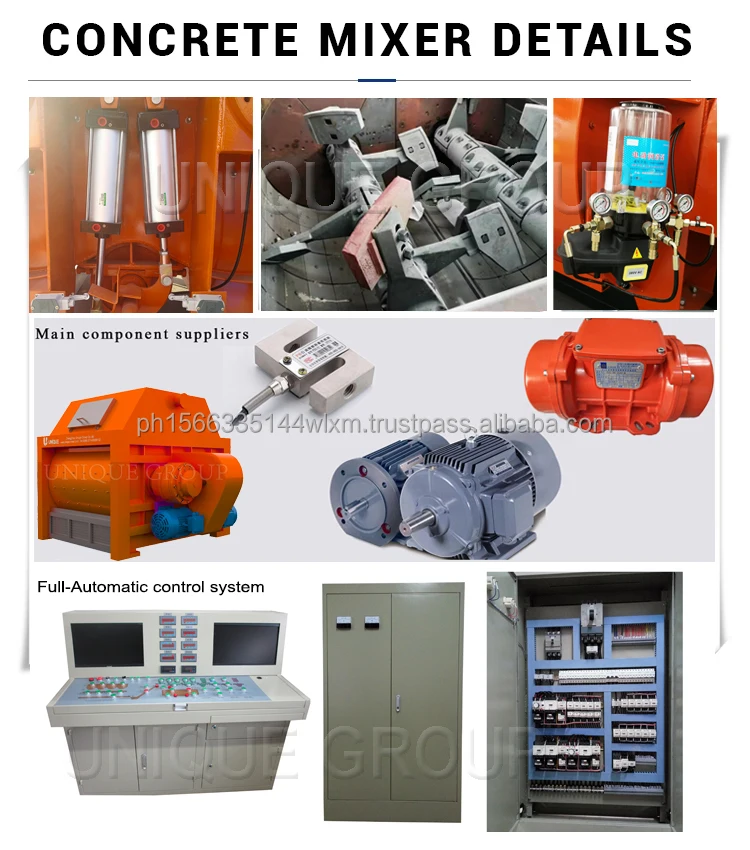

Main Features
1.Horizontal twin shaft compulsory mixer has the strong mixing ability with uniform mixing and big production output. The admixtures are widely mixed by the shafts.
2.The mixing shafts adopt anti-binding technology to prevent the cement from binding on the shafts.
3.Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace. at the same time,improves the machines durability and reliability.
4.The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity; 5.Decelerating system uses high-speed, synchronized, and closed planetary decelerators.
6.The opening of discharge gate can be adjusted by hydraulic system as per specific requirements. 7.Power,water and additive all adopt in electronic scale measuring,it has high accuracy of batching.
6.The opening of discharge gate can be adjusted by hydraulic system as per specific requirements. 7.Power,water and additive all adopt in electronic scale measuring,it has high accuracy of batching.
Specification
Model | HZS25 | HZS35 | HZS50 | HZS75 | HZS100 | ||||
Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h | 100m3/h | ||||
Mixing system | Twin-shaft concrete mixer | ||||||||
Concrete mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 | ||||
Aggregate batching machine | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD3200 | ||||
Aggregate feeder | Bucket ( Skip hopper ) | ||||||||
Discharging height | 3800mm or custom | ||||||||
After-sale service | Erection & commissioning, operator training | ||||||||
Warranty | 18 months | ||||||||
Weighing system | Water, Cement, Additive | ||||||||
Air system | Air compressor, etc | ||||||||
Control system Type | Computer auto-control module ( PLC can be optional item) | ||||||||
Control room | With Air conditioner | ||||||||
Screw conveyor diameter & length | Ø219mm/273mm, L=8000mm/9000mm | ||||||||
Cement silo capacity | 50t/100t/150t/200t | ||||||||
Certifications
Packing & Delivery
Company Profile
UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.
For 40 years, UNIQUE Group relied on scientific and technological innovation, optimize the structure of products. Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine, HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary concrete mixers and so on concrete mixing machinery.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
For 40 years, UNIQUE Group relied on scientific and technological innovation, optimize the structure of products. Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine, HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary concrete mixers and so on concrete mixing machinery.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
Exhibition
FAQ
Q1:Are you original manufacture?
Q3:What about the delivery time?
Q4:Do you supply after-sale service?
Q5:Can I visit your factory?
A:Yes, We are factory and a professional manufacture of concrete batching plant and concrete mixer and we have the whole series products you need.
Q2:What about the warranty time?
A:18 months.
Q3:What about the delivery time?
A:10-15 days after receiving the deposit.
Q4:Do you supply after-sale service?
A: Yes,we have a professional service team that can solve problems ASAP on site or on line.
Q5:Can I visit your factory?
A:Yes. welcome to your visiting or on line any time when you are convenient.
