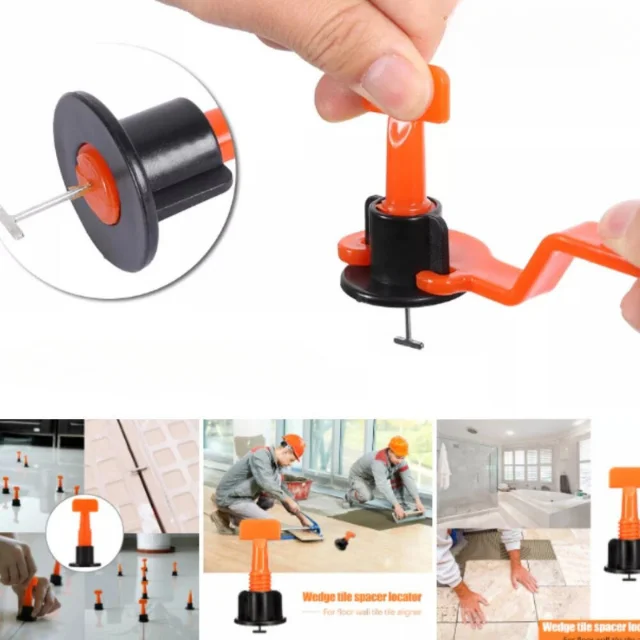

Innovative Reusable Steel Plastic Tile Tool Level System Customized Packaging Fast Delivery Reasonable Price Vietnam
- Category: >>>
- Supplier: THIEN QUANG SMART TOOLS AND EQUIPMENT COMPANY LIMITED
Share on (1601266322010):
Product Overview
Description
Product Description
Specification
Item | Value |
Grade | Industrial |
Warranty | 1 year |
Customized support | OEM, ODM |
Place of Origin | Ho Chi Minh City, Vietnam |
Brand Name | Thien Quang |
Model Number | KEVAN |
Application | Tile Leveling System |
Material | Plastic + Steel |
Applicable Materials | Ceramics, Porcelain, Marble and Granite tiles |
Size | *1.0mm, *1.5mm |
Gross Weight | 0.5 kg |
Supply Ability | 50000 pcs/month |
Payment method | L/C, T/T |
Logistics mode | Ocean, Air, Land |
Shipping origin/ Port | Cat Lai Port, Tan Son Nhat Airport |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Recommend Products
Why Choose Us
FAQ
1. Reasons for Use:
- The leveling clips/screws are simple and the most effective tool for adjusting tiles to be even (completely eliminating the issue of uneven tiles).- They can be reused multiple times, helping workers save costs.
- Quick and easy to use. Fast removal. Even assistants can handle it, optimizing profits for contractors and workers.
- Compact and lightweight, making it easy for tilers to bring to the job site.
- Importantly, it achieves quality results in one go, eliminating the need for costly and time-consuming repairs.

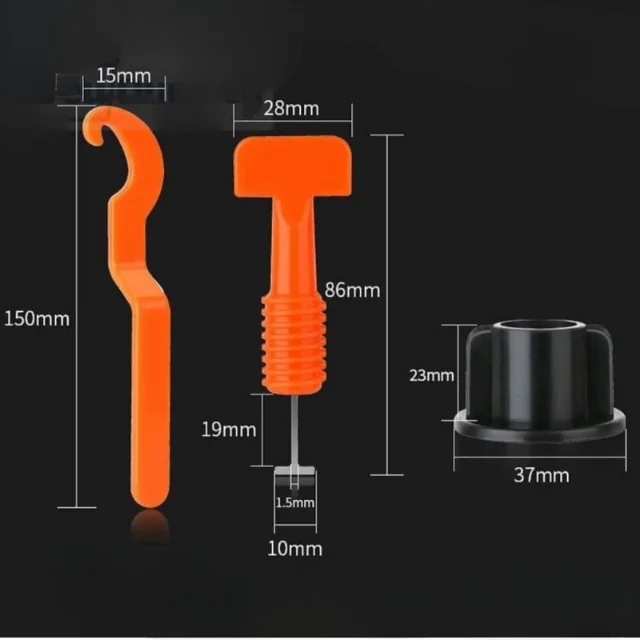

2. Technical Specifications:
- The stainless steel needle is 1.5mm thick and serves as a spacer for tile joints of 1.5-2mm.

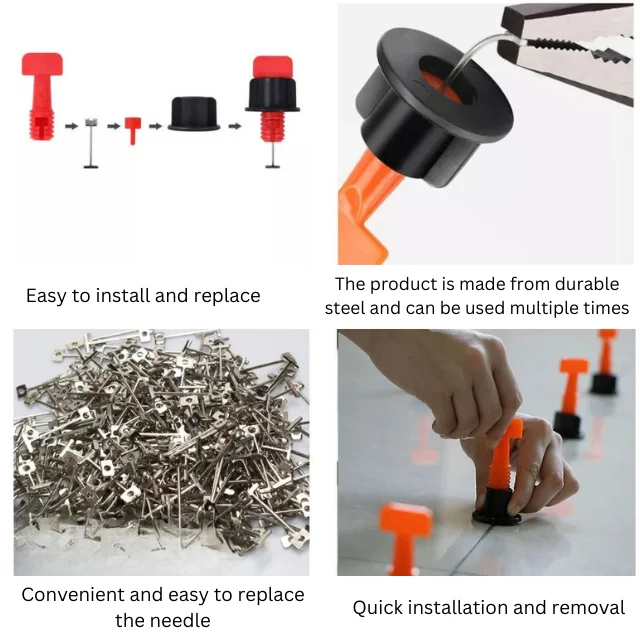

- The steel needle has high durability, and is easy to replace.
- The adjustable nut is made from durable, brightly colored plastic (red/yellow) with a coarse thread for quick operation.
- The entire adjustable nut measures 37x80mm (the taller design allows for easier handling compared to cheaper, shorter nuts).
- Application range: Suitable for tiles with the thickness of 0.3cm – 1.6cm.
- The hook wrench measures 15.5cm x 3cm.
- Step 2: Insert the T-shaped spacer along the gap between the tiles.
- Step 3: Rotate the T-shaped spacer 90° so that the metal end is locked under the two tiles.

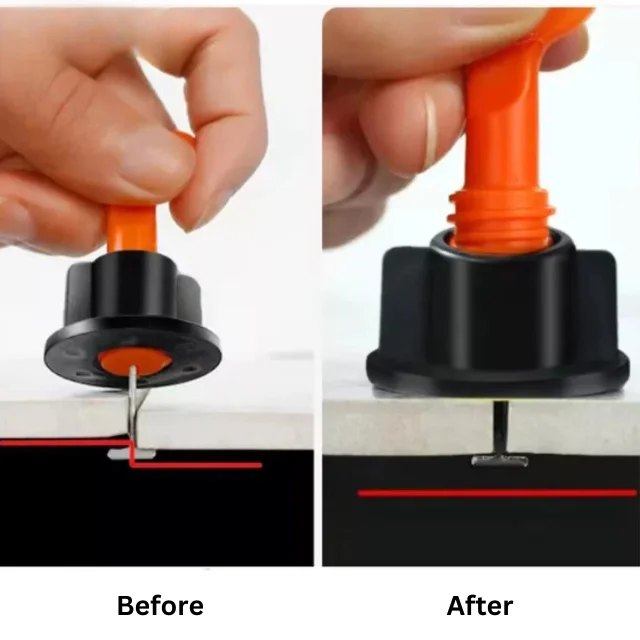

- Step 4: Use the hook wrench to tighten the nut, pressing the joint between the tiles flat.
- Step 5: For tile adhesive, wait about 2-3 hours after fixing the tiles. For oil-based adhesive, wait about 30 minutes to 1 hour after fixing the tiles before removing.
- Step 6: Before the cement/adhesive dries completely, unscrew the nut in the opposite direction and rotate the T-shaped needle 180° until the screw is removed, completing the process.
- The steel needle has high durability, and is easy to replace.
- The adjustable nut is made from durable, brightly colored plastic (red/yellow) with a coarse thread for quick operation.
- The entire adjustable nut measures 37x80mm (the taller design allows for easier handling compared to cheaper, shorter nuts).
- Application range: Suitable for tiles with the thickness of 0.3cm – 1.6cm.
- The hook wrench measures 15.5cm x 3cm.

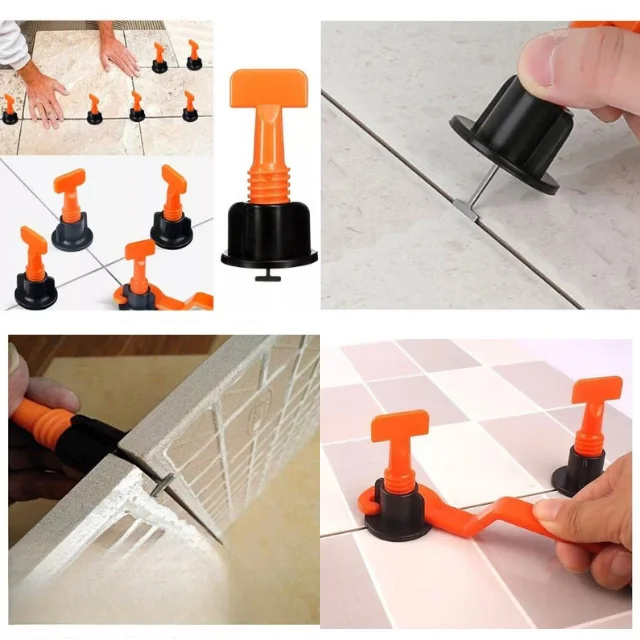

3. How to use?
- Step 1: Leave a gap of at least 0.2mm between the tiles when laying them.- Step 2: Insert the T-shaped spacer along the gap between the tiles.
- Step 3: Rotate the T-shaped spacer 90° so that the metal end is locked under the two tiles.

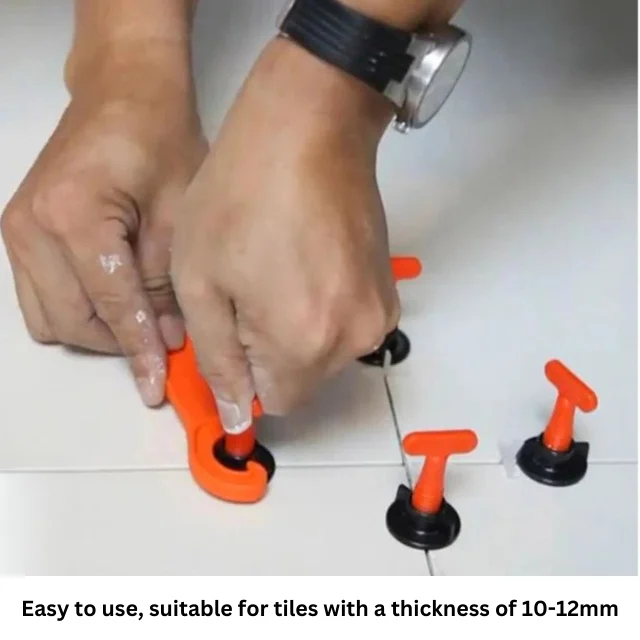

- Step 4: Use the hook wrench to tighten the nut, pressing the joint between the tiles flat.
- Step 5: For tile adhesive, wait about 2-3 hours after fixing the tiles. For oil-based adhesive, wait about 30 minutes to 1 hour after fixing the tiles before removing.
- Step 6: Before the cement/adhesive dries completely, unscrew the nut in the opposite direction and rotate the T-shaped needle 180° until the screw is removed, completing the process.
4. Warranty:
- Thien Quang brand guarantees reliability and quality.
- 3 months warranty.
