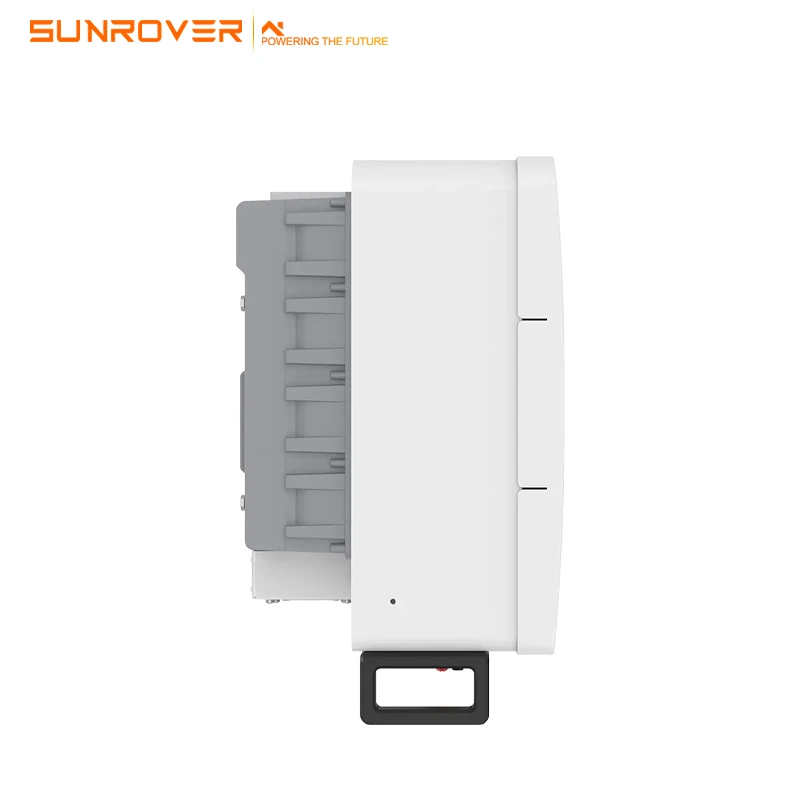

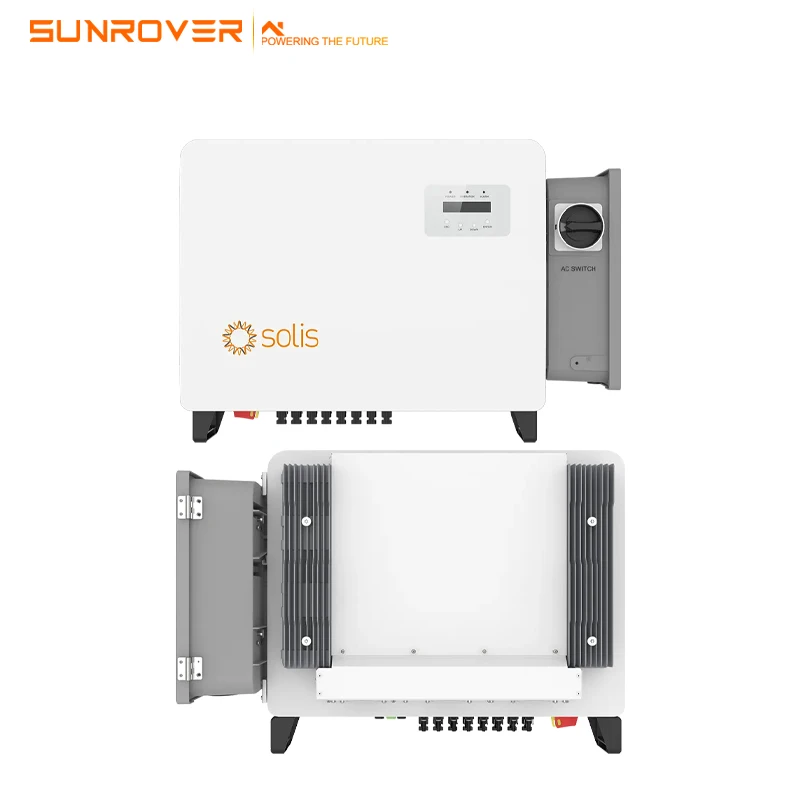

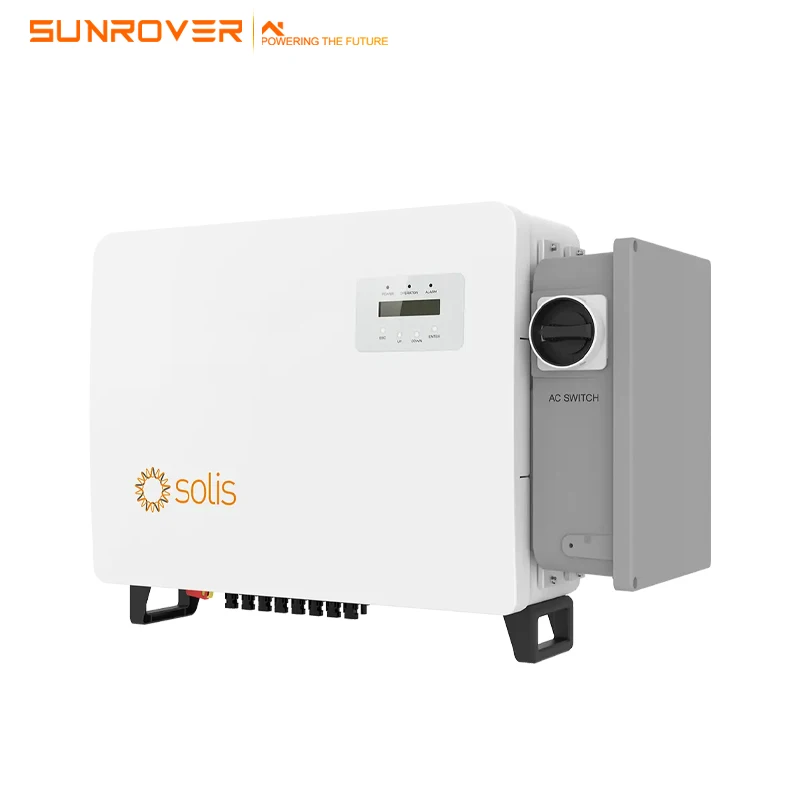

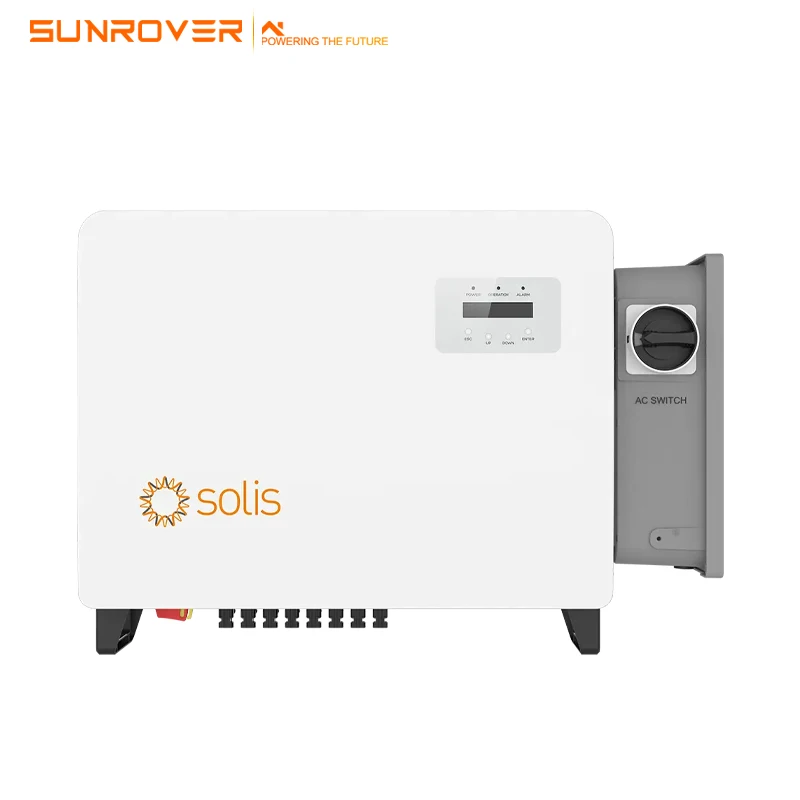

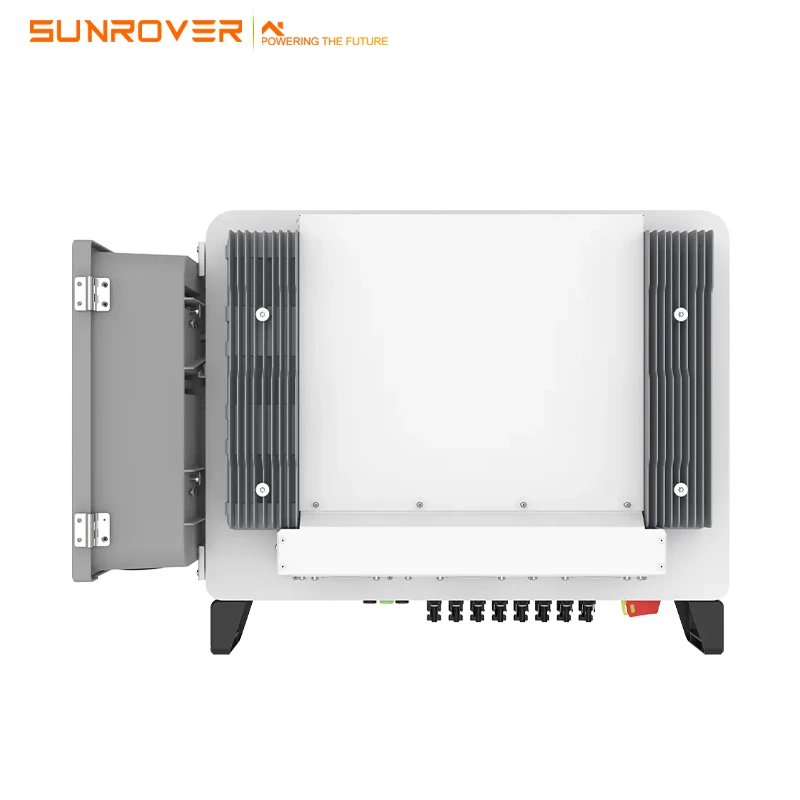

30KW 50KW Inverter S6 GC30K LV US Split phase US version grid tied solar inverter for solar system
- Category: >>>
- Supplier: Sunrover Power Co. Ltd.
Share on (1601266338998):
Product Overview
Description
Products Description
Models | 30K |
Input DC | |
Max. input voltage | 1000 V |
Rated voltage | 600 V |
Start-up voltage | 195 V |
MPPT voltage range | 180-1000 V |
Max. input current | 40 A / 40 A / 40 A |
Max. short circuit current | 63 A / 63 A / 63 A |
MPPT number/Max. input strings number | 3/6 |
Output AC | |
Rated output power | 30 kW |
Max. apparent output power | 30 kVA |
Max. output power | 30 kW |
Rated grid voltage | 3Ф/PE, 208 V |
Rated grid frequency | 60 Hz |
Max. output current | 83.3 A |
Power factor | >0.99 (0.8 leading - 0.8 lagging) |
THDi | <3% |
Efficiency | |
Max. efficiency | 97.7% |
CEC efficiency | 97.0% |
Protection | |
DC reverse-polarity protection | Yes |
Short circuit protection | Yes |
Output over current protection | Yes |
Surge protection | DC Type II / AC Type II |
Grid monitoring | Yes |
Anti-islanding protection | Yes |
Temperature protection | Yes |
Strings monitoring | Yes |
I/V Curve scanning | Yes |
Integrated AFCI | Yes |
Integrated PID recovery | Optional |
Integrated DC switch | Yes |
Integrated AC switch | Yes |
General Data | |
Dimensions (W*H*D) | 30.9*21.6*12.6 in (784*549*320 mm) |
Weight | 103.8 lbs (47.1 kgs) |
Topology | Transformerless |
Self-consumption (night) | <1 W |
Relative humidity | 0-100% |
Operating ambient temperature range | -13°F to 140°F (-25°C to 60°C) |
Ingress protection | TYPE 4X |
Noise emission (typical) | ≤55 dB(A) |
Cooling concept | Natural convection |
Max. operation altitude | 13,120 ft (4000 m) |
Features | |
DC connection | MC4 connector |
AC connection | OT terminal (4 AWG to 3/0 AWG) |
Display | LCD |
Communication | Modbus RTU (Sunspec compliant), RS485, Optional: Cellular, Wi-Fi |
