Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump
Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump
Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump
Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump
Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump
Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump
Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump

Waste Oil Transfer Suction Pump High Pressure 30 Meters Machine Kerosene Burner Pump High Flow Oil Transfer Electric Gear Pump

Share on (1601266374931):


Price:$90.00 - $100.00

Quantity:


Product Overview

Description

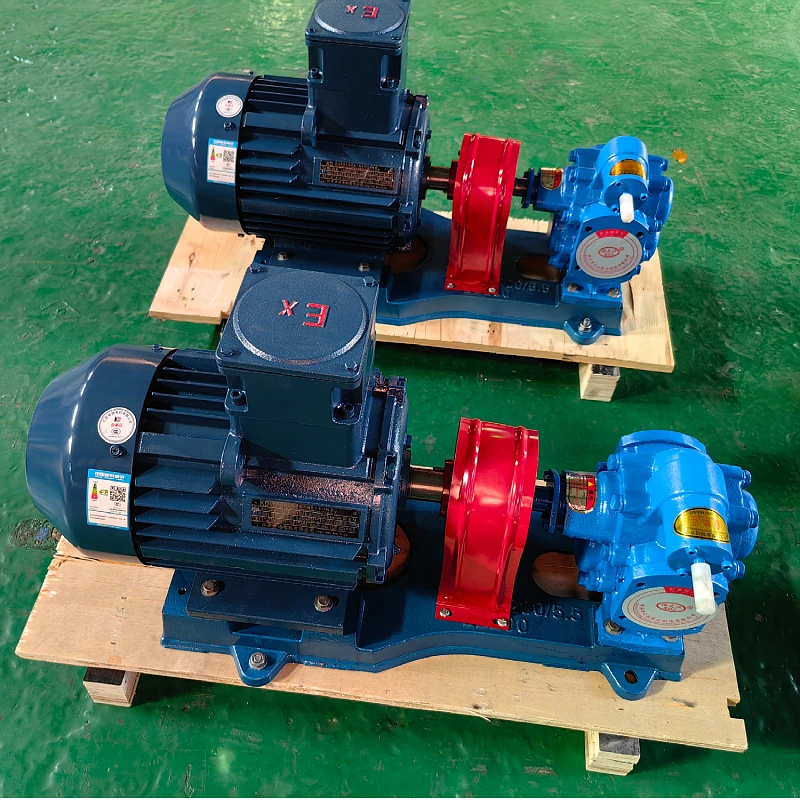

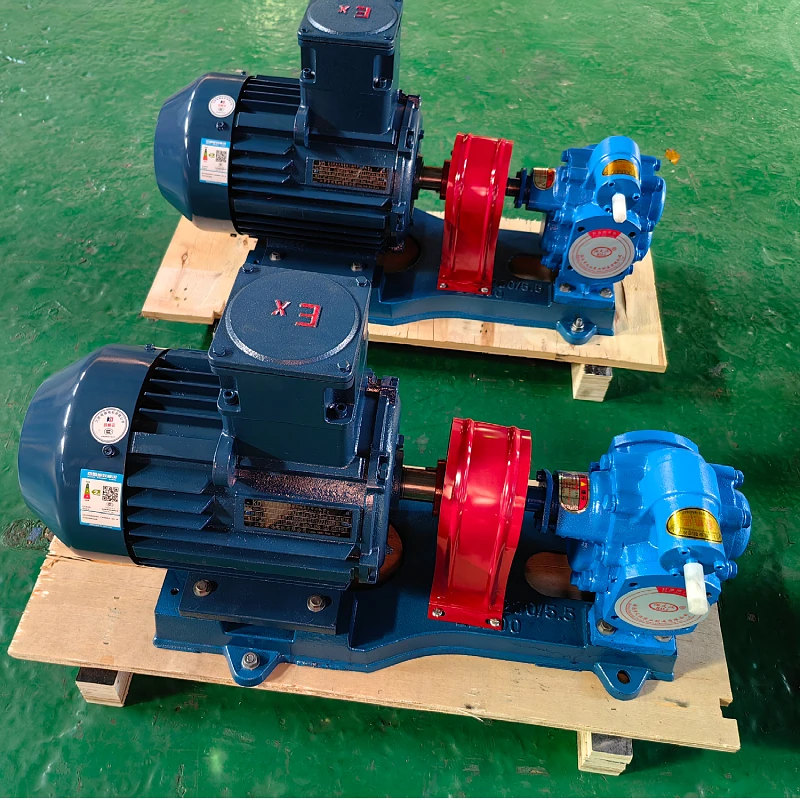

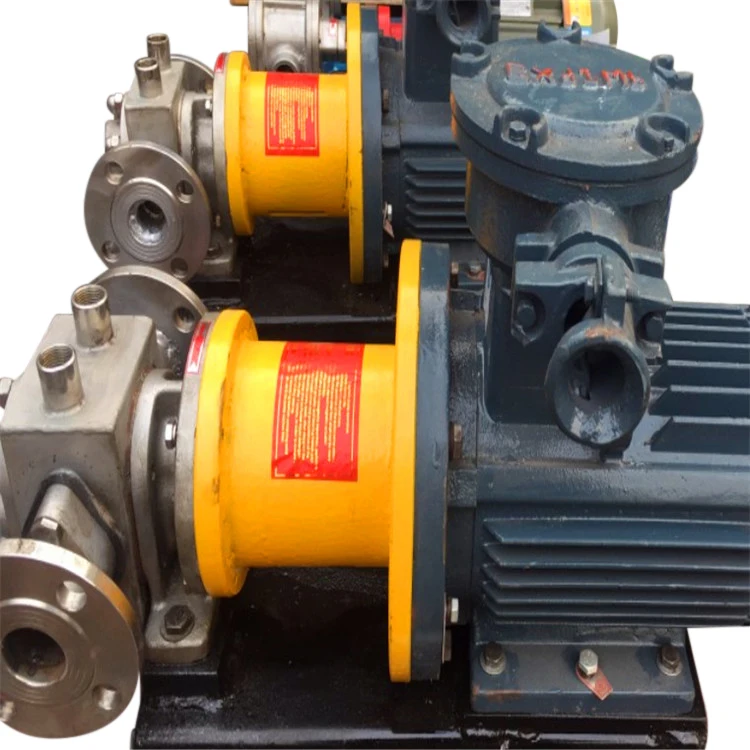

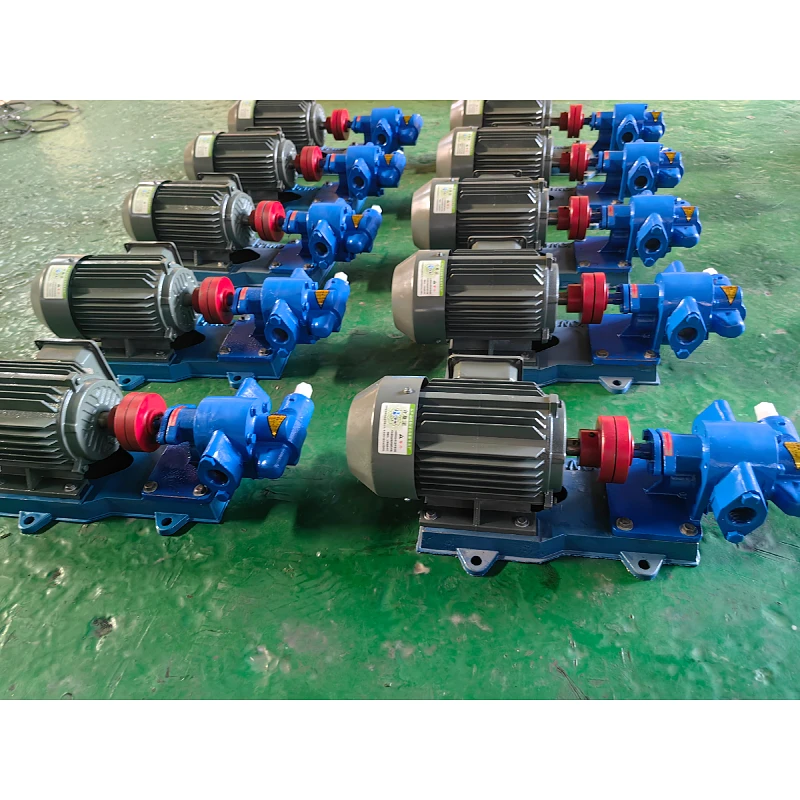

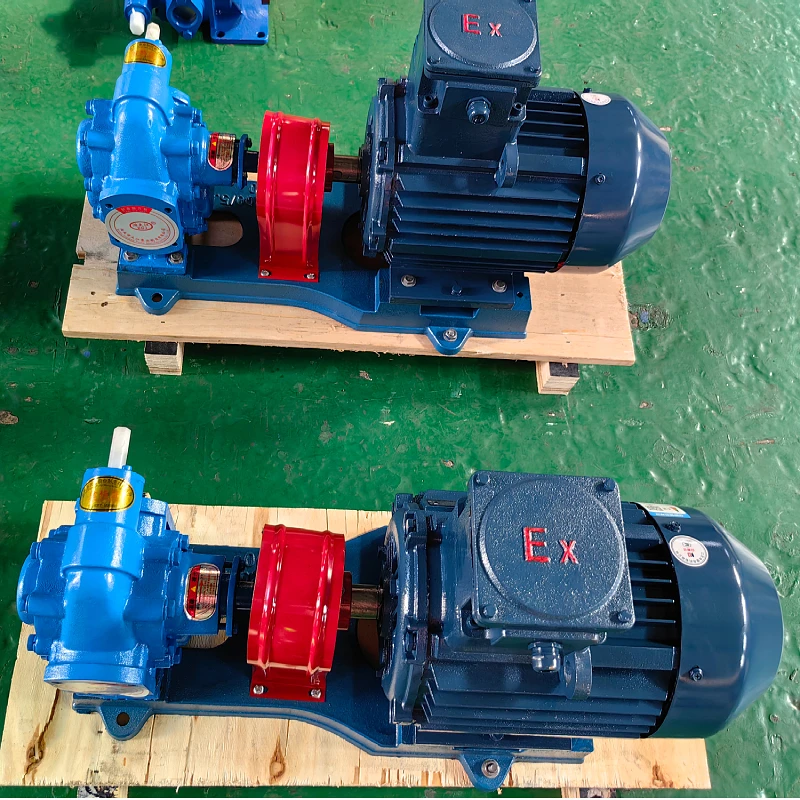

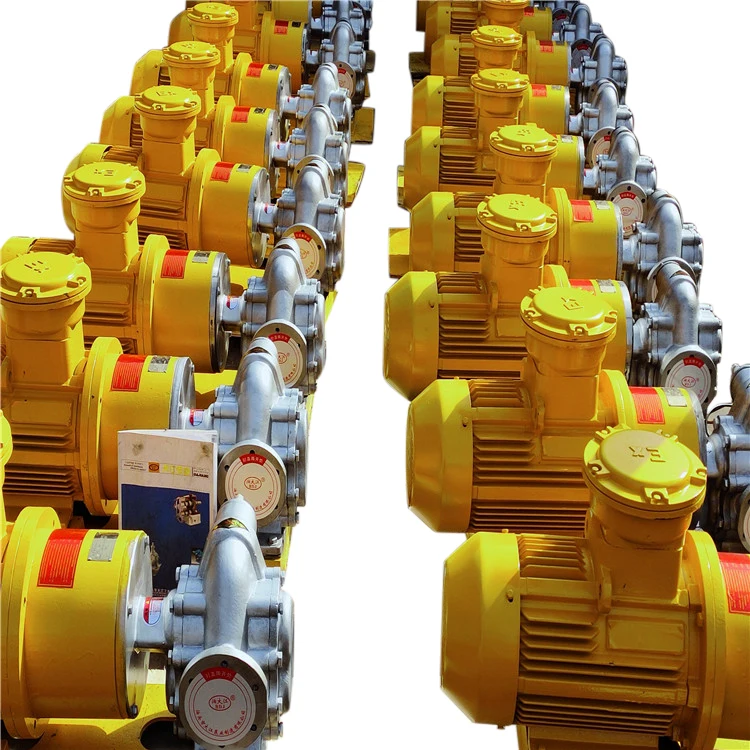

KCBCMagnetic gear pumpMainly used for conveying lubricating oil in machinery and equipment, suitable for conveying lubricating oil with a viscosity of 5X10-6-1.5X10-3m2/s (5-1500cSt) and a temperature below 260℃. The stainless steel series that our factory also producesGear pump, It can transport non-lubricating oils, beverages, and low-corrosive liquids. Gears equipped with copper can transport low-flammability, flammable, explosive liquids, such as gasoline, benzene, etc. In addition to the ordinary motor, the pump can also be equipped with explosion-proof motors of the same specification according to the needs of users and friends. It can also be used as a transmission and booster pump in a fuel delivery system; it can be used as a fuel pump for delivering pressure and pressure in a fuel system; it can also be used as a lubricating oil pump in all industrial fields.

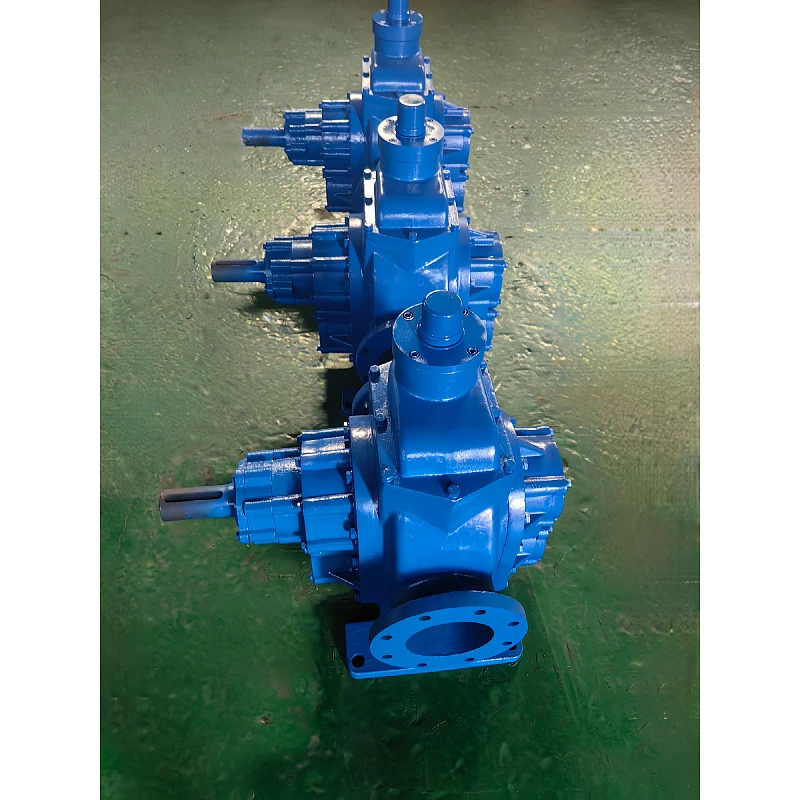

KCBC magnetic gear pump is mainly composed of gears, shafts, pump bodies, valves, and shaft end seals. After the gear is heat-treated, it has high hardness and strength, and is installed together with the shaft in a replaceable sleeve to run. The lubrication of all parts in the pump is automatically achieved by using the output medium when the pump is working.



Installation and use of magnetic drive pump
1,magnetic pumpIt should be installed horizontally, not upright. For occasions requiring vertical installation, the motor must face upwards.
2. Just open the suction pipe valve before starting. If the suction liquid level is lower than the pump axis line, the pipe needs to be equipped with a bottom valve.
3. The pump should be inspected before use. The motor blades should rotate flexibly, without jamming or abnormal noise, and all fasteners should be tightened.
4. Check whether the rotation direction of the motor is consistent with the steering mark of the magnetic pump.




Precautions for the use of KCBC type magnetic drive pump
1. Since the cooling and lubrication of the magnetic pump bearing depends on the conveyed medium, idling rotation is prohibited, and at the same time, avoiding idling operation caused by restarting after a power cut in the middle of the work.
2. If the conveyed medium contains solid particles, a filter should be added to the pump inlet: if it contains ferromagnetic particles, a magnetic filter should be added.
3. When the pump is in use, the ambient temperature should be less than 40℃, and the temperature rise of the motor should not exceed 75℃.
4. The medium to be transported and its temperature should be within the allowable range of the pump material (see attached table for details). The use temperature of the metal pump is 100 degrees -300 degrees, and the particle size is not more than 30×10-6m2/s for liquid without hard particles and fibers.


model
Flow Q
Speed ​​nr/min
Discharge pressure pMpa
steam
Loss margin rm
Efficiency η
Electric motor
m3/h
L/min
Power KW
model
KCB-18.3
1.1
18.3
1400
1.45
5
44
1.5
Y90L-4
2CY-1.1/1.45
KCB-33.3
2
33.3
1420
1.45
5
44
2.2
Y100L1-4
2CY-2/1.45
KCB-55
3.3
55
1400
0.33
7
41
1.5
Y90L-4
2CY-3.3/0.33
KCB-83.3
5
83.3
1420
0.33
7
43
2.2
Y100L1-4
2CY-5/0.33
KCB-135
8
135
940
0.33
5
46
2.2
Y112M-6
2CY-8/0.33
KCB-200
12
200
1440
0.33
5
46
4
Y112M-4
2CY-12/0.33
KCB-300
18
300
960
0.36
5
42
5.5
Y132M2-6
2CY-18/0.36
KCB-483.3
29
483.3
1440
0.36
5.5
42
11
Y160M-4
2CY-29/0.36
KCB-633
38
633
970
0.28
6
43
11
Y160L-6
2CY-38/0.28
KCB-960
58
960
1470
0.28
6.5
43
18.5
Y180M-4
2CY-58/0.28
KCB-1200
72
1200
740
0.6
7
43
37
Y280S-8
KCB-1600
95
1600
980
45
Y280S-6
KCB-1800
112
1800
740
0.6
7.5
43
55
Y315S-8
KCB-2500
150
2500
985
75
Y315S-6
KCB-2850
170
2850
740
0.6
8
44
90
Y315L1-8
KCB-3800
230
3800
989
110
Y315L1-6
KCB-4100
245
4100
743
0.6
8
44
132
Y355M1-8
KCB-5400
325
5400
989
160
Y355M1-6
KCB-5600
330
5600
744
0.6
8
44
160
Y355M2-8
KCB-7600
460
7600
989
200
Y355M3-6
KCB-7000
420
7000
744
0.6
8
44
185
Y355L1-8
KCB-9600
570
9600
989
250
Y355L2-6










Botou Dajiang Pump Manufacturing Co., Ltd. researches and develops pump products . It mainly produces and develops water pumps, rotor pumps , gear oil pumps , high temperature oil pumps , screw pumps, magnetic pumps, heat preservation pumps, sliding vane pumps and more than 20 products. The company has established a perfect Our marketing network continuously meets the needs of the domestic market and exports to overseas markets. Products are used in many fields such as pressurization, petroleum, metallurgy, industry, marine, food, sewage treatment, chemical industry, etc. Welcome foreign friends to consult.
