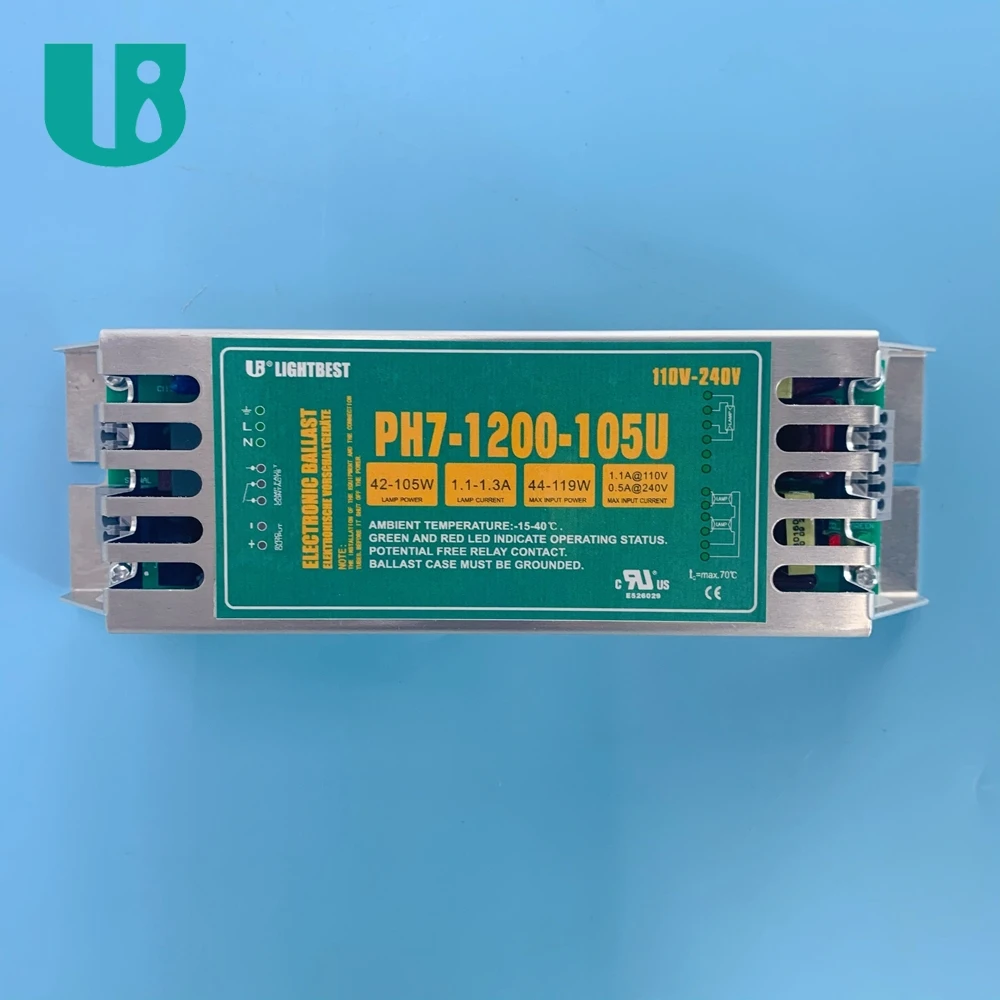

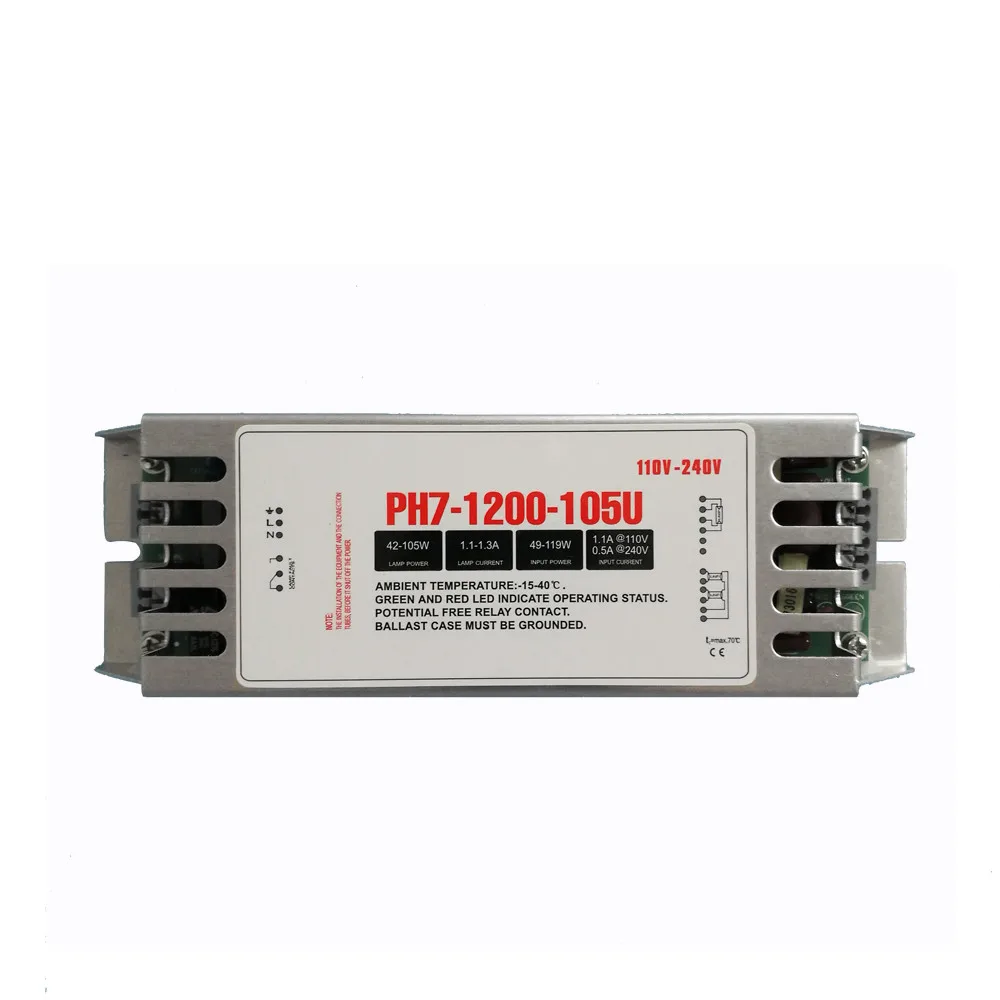

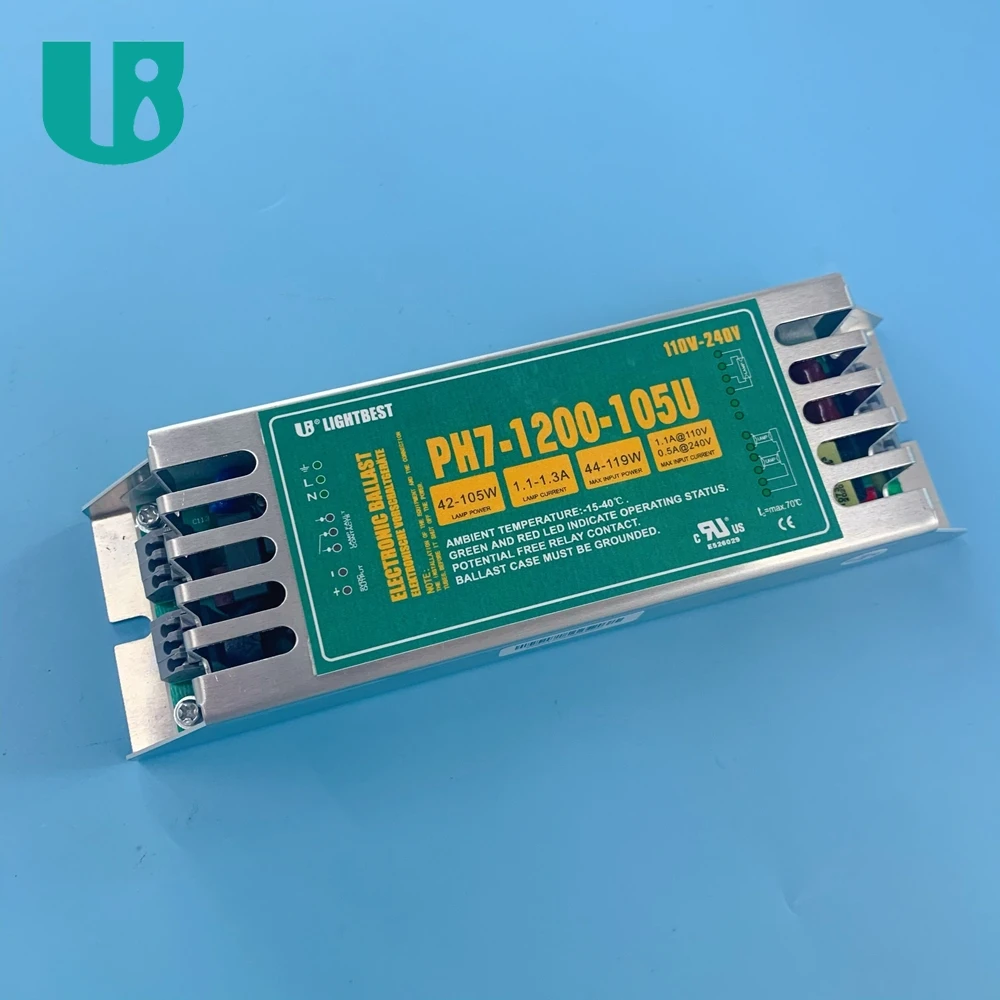

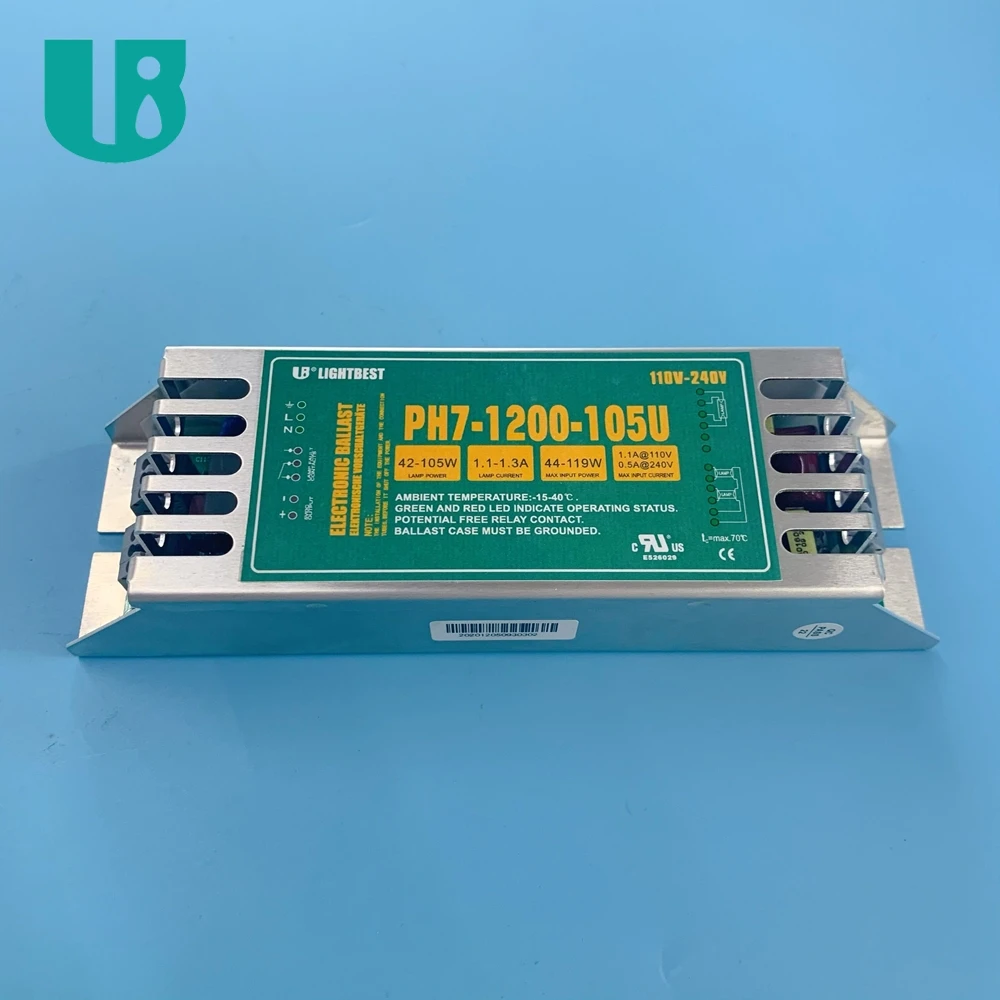

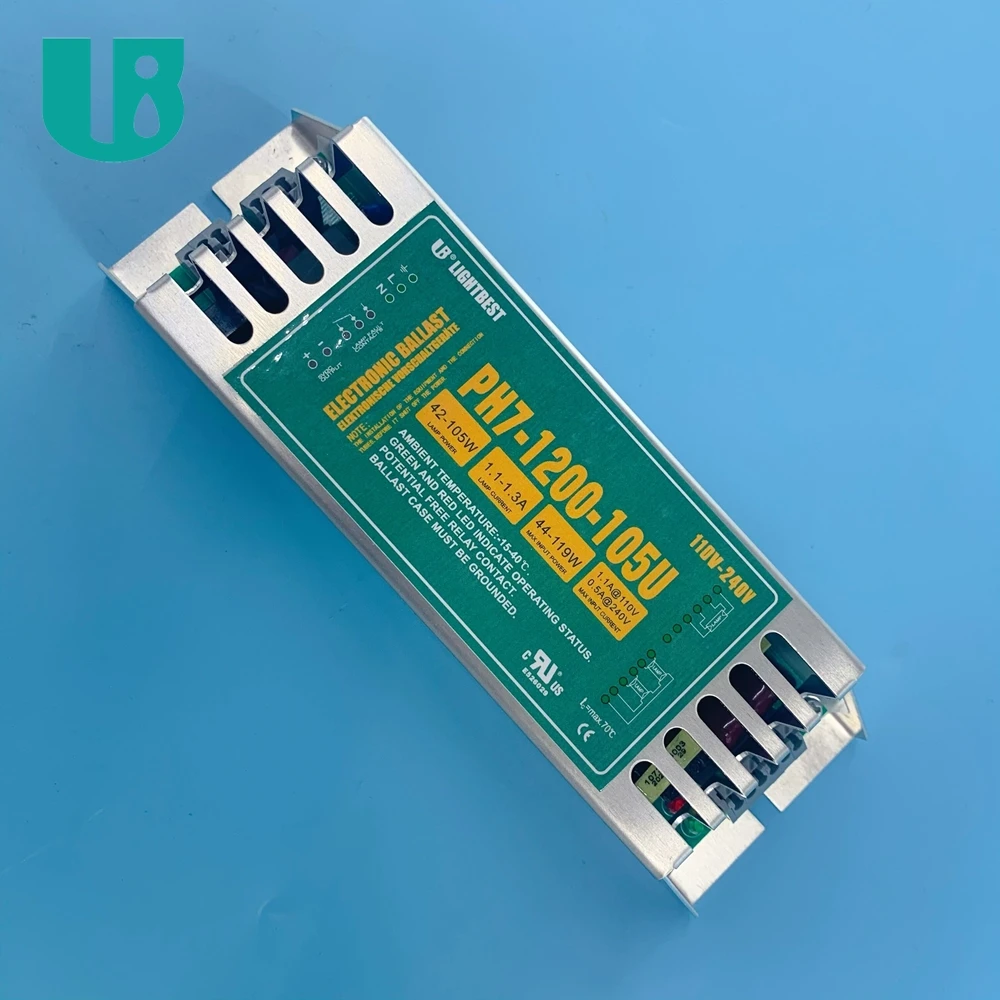

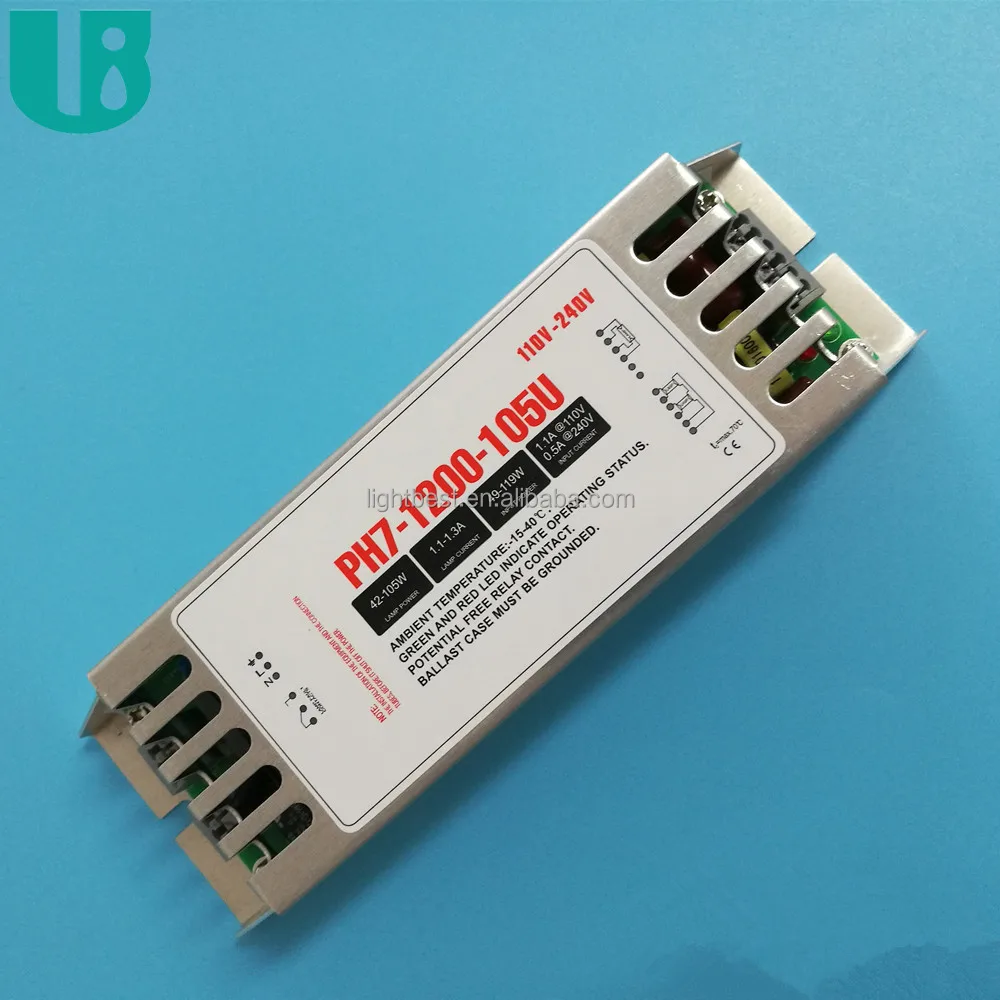

PH7 1200 105U Manufacturer 42w 105w gpha843t5l germicidal uvc amalgam lamp electronic ballast ce

Share on (1601266456565):


Price:$29.99-44.19

Quantity:


Product Overview

Description



Product Description


PH7-1200-105U  UL.jpgPH7-1200-105U  UL4.jpgPH7-1200-105U  UL2.jpgPH7-1200-105U.jpgPH7-1200-105U 01.jpg 105U Manufacturer 42w -105w gpha843t5l germicidal uvc amalgam lamp electronic ballast ce





The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.





There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.







  Wiring Diagrams












l PH7-425-75U

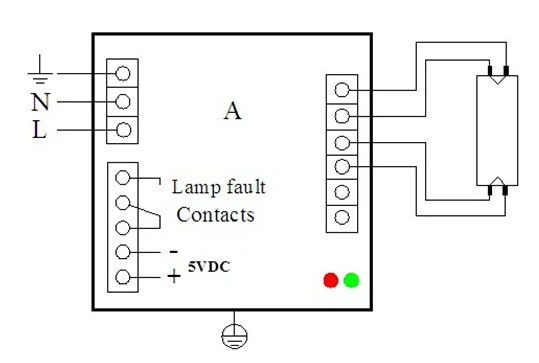

1*Lamp  Type: GPH1148T5  GPH1554T5  GPH1630T5  TUV64T5  G64T5


Wiring Diag:A

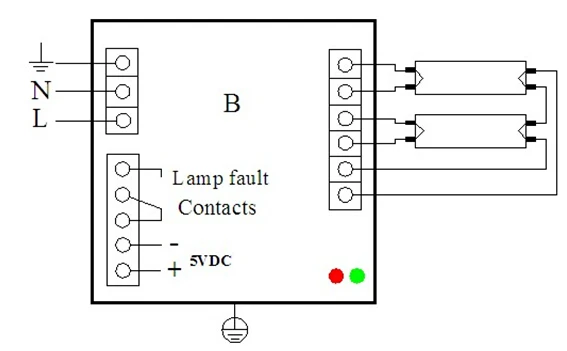

  2*Lamp  Type: GPH793T5  GPH843T5  TUV36T5  G36T5


Wiring Diag:B


lPH7-800-95U


1*Lamp  Type:GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV55WHO TUV75WHO


Wiring Diag:A


  2*Lamp  Type: GPH436T5HO  TUVPL-L35WHO


Wiring Diag:B


lPH7-1200-105U


1*Lamp Type: GPHA843T5


Wiring Diag:A


2*Lamp Type: GPHA357T5


Wiring Diag:B


lPH7-1500-80U


1*Lamp Type:NNI80/36U  NIQ75/34  UVL80W/T5


lPH7-1800-57U


Lamp Type:GPHA357T6

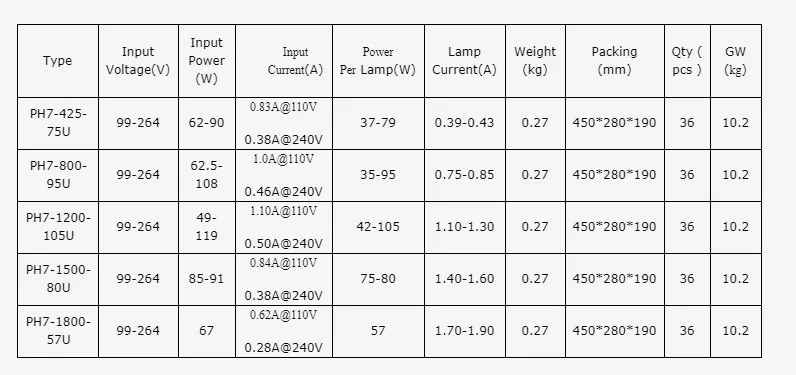

lTechnical specifications


Mains Voltage:110-240VAC±10%


Mains Frequency:50/60Hz


Power Factor: >0.98


Efficiency: >90%


Operating Frequency: 40-60KHz


Dimensions: 185*56*38 mm


lLamp status indication via LED indication


Green LED:Lamp on


Red LED:Lamp fault


lLamp status forwarding


Potential free relay contacts for lamp on/lamp fault..


lInstallation requirement


Wire Gauge:0.5-1.5mm2


Max.cable length between ballasts and lamp:5m


Relay contacts:potential free,load:50…500mA at 24…230V AC;


              50…500mA at 5…60V DC


lMounting restrictions


Disconnect Input Power Before Installing or Servicing.


Ballast Case Must Be Grounded.


Don’t short any two wires of the four outputs.


lFeatures


Starting:Preheat


Add buzzer function


Buzzer function:The buzzer will sound when the lamp fault..


UV lamp can be connected to external LED.


    Two isolated 5V output,;


This product is in stock, order cycle is 20 days, when ordering, please note this function .





Applications


=>Air purification


=>Industrial water treatment


=>Kitchen purification




  1. UV Lamp Replacement Parts






















   uv lamp p1.jpg   T5 4P1uv germicidal lamp.jpg   uv lamp p3.jpg
Quartz Sleeve uvc germicidal lamp Lamp Socket/base holder
























   uv lamp pl.jpg   AM   s1.jpg
Compact PL LightAmalgam LightUV water sterilizer

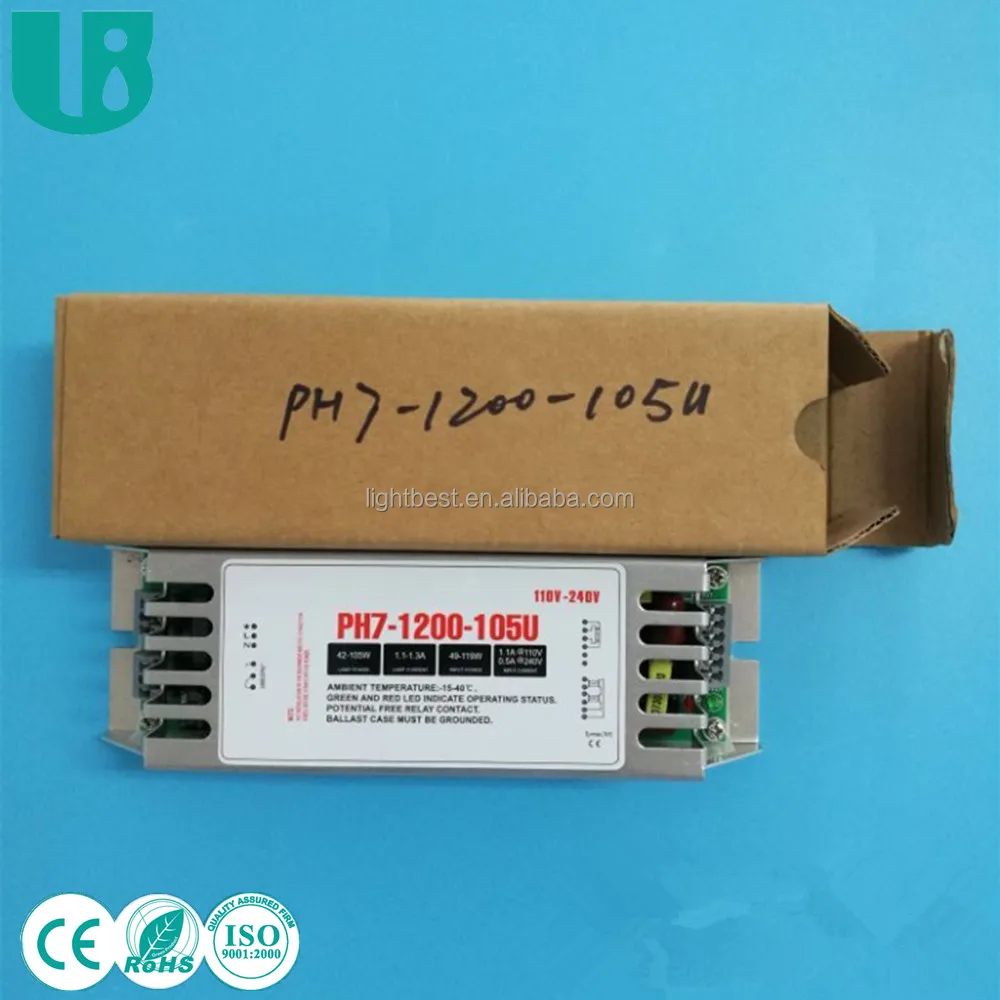

Packaging & Shipping


 eb pack








Our Services


Lightbest provided: OEM service


                                Buyer Logo /Label
                                Custom Design Service


Guarantee:
A: Manufacture is to ISO9001:2000 standard.
B: Product is guaranteed for 12 months after lamp purchase.
C: According to the International Standard:
AQL tolerance is within 2% of the total quantity per order.
D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will be deducted from the next order.
E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.








Company Information


Lightbest concentrates on water purification treatment and supplies customers with one-stop service and solution on water treatment fields. We specialize in UV germicidal lamps, UV water sterilizers, electronic ballasts, booster pumps, ion exchange resin, FRP tanks, PP filter etc., and adhere on the principle of fighting, upholding, sharing and win-win together. We have been a supplier of water treatment with high-quality products, perfect service, professional operation and reasonable price both in China and the globe.


pic8-office 2.jpg


pic9-certificate


Our factory has established a strict product quality control system and has gained the ISO9001-2000 certificate and introduced 5S quality management system from Japan. Our products have successfully passed CE and RoHS certifications. Our products are best-sellers in foreign and domestic markets, and exported to many countries and regions such as America, Germany, Italy, Holland, Romania, Russia, Indonesia, Vietnam, Malaysia, Singapore, Japan, Korea, Brazil, Chile, Hong Kong, Taiwan and so on.

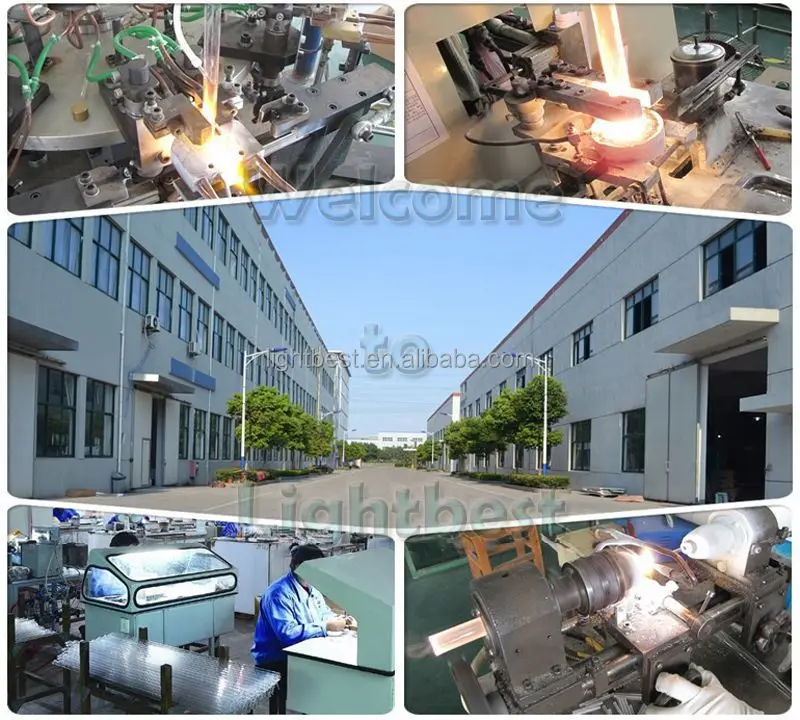

pic23-production
