Energy Storage Lifepo4 Battery Pack With BMS Iron Phosphate 12V 24V 100ah 200Ah diy 48V 10Kwh Lithium Iron LifePo4 Battery 300ah
- Category: >>>
- Supplier: Dongguan Zhiyuantong New Energy Co. Ltd.Dongguan Ltd.
Share on (1601266507866):
Product Overview
Description
Product Data

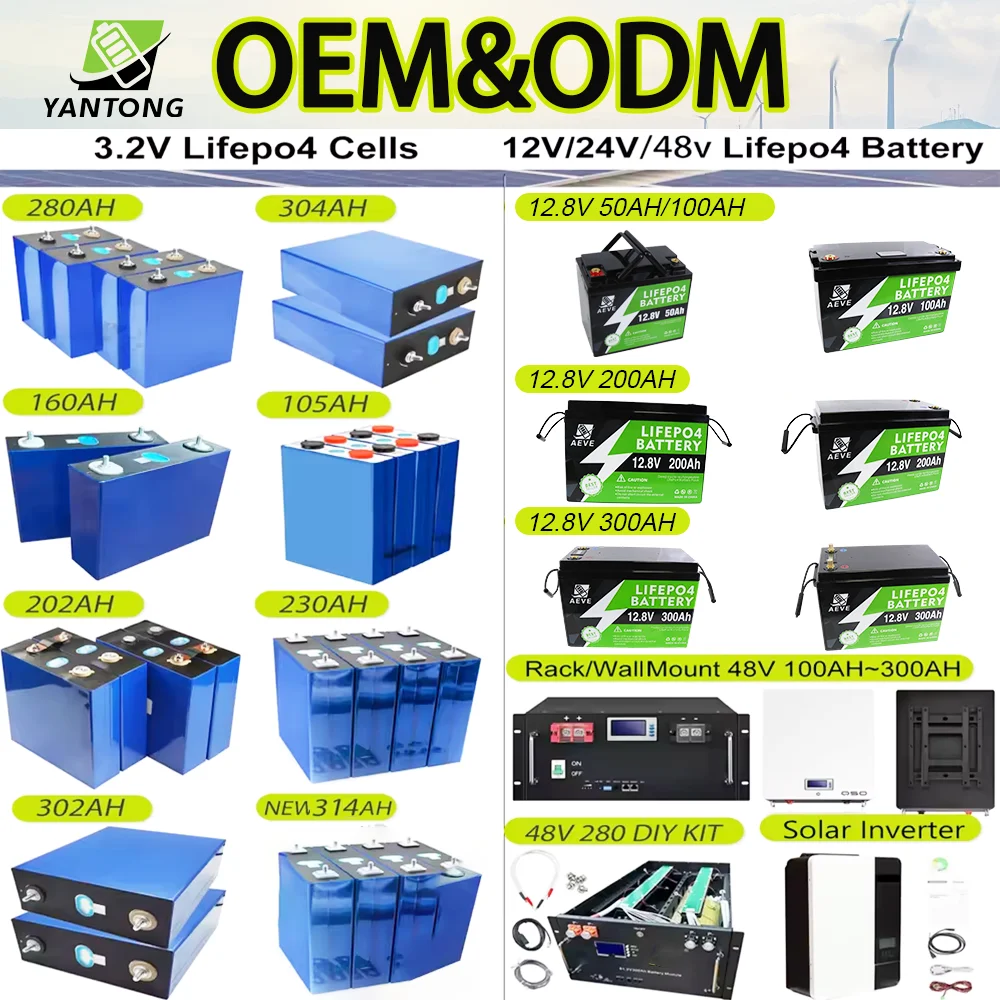

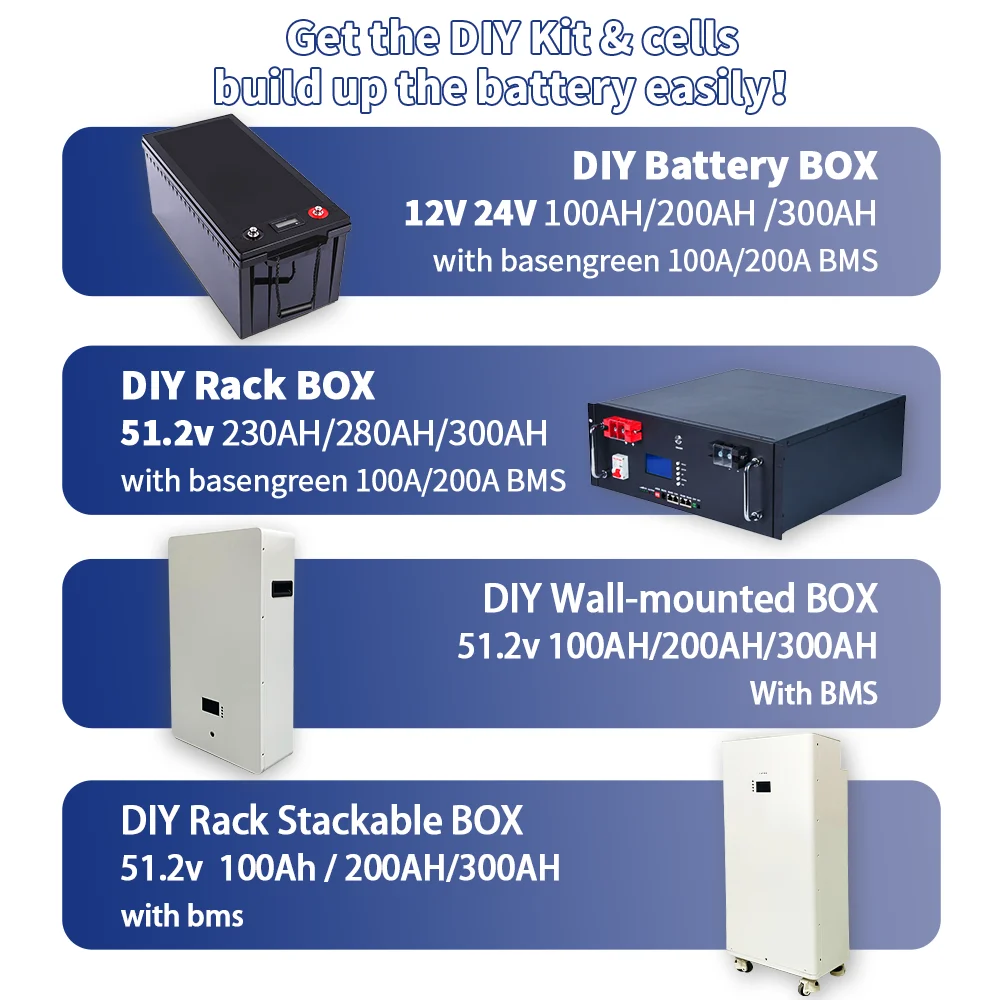

Best Selling 12V 24V 48V Multipurpose Energy Storage Battery ，50Ah 100Ah 200Ah 300Ah DIY custom 5kwh 10kwh 15kwh 25kwh Lithium Iron LifePo4 Battery With BMS，
For more Details and Capacity& discount OR【 Modify Freight 】
ODM&OEM - Please click to Contact supplier. Thank you

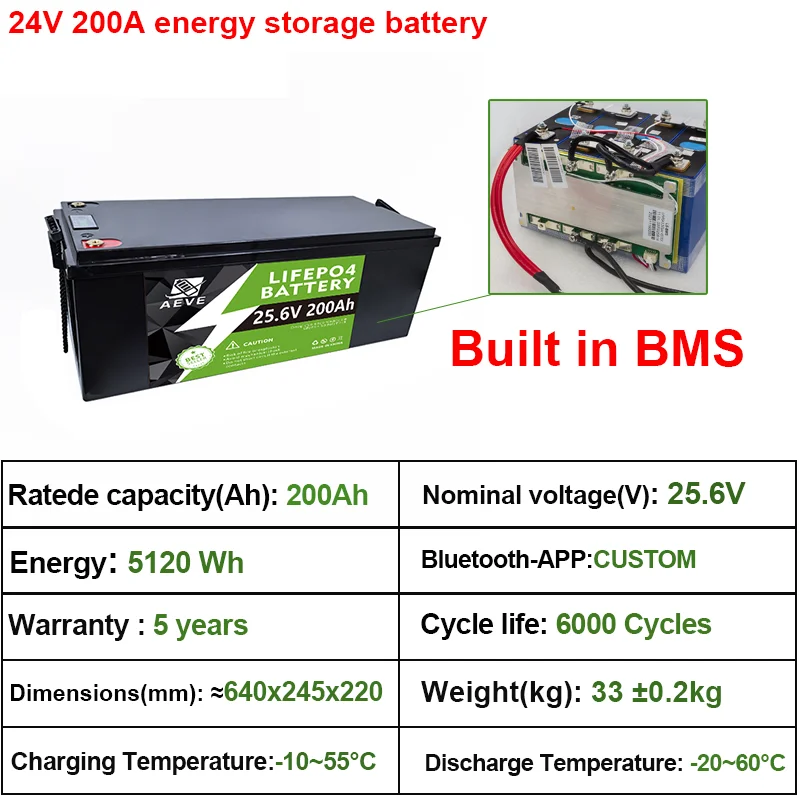

Nominal Voltage | 12.8V | 12.8V | 12.8V | 25.6V | 25.6V | ||||
Nominal Capacity | 200Ah | 300Ah | 100Ah | 100AH | 200AH | ||||
Energy | 2400Wh | 3840Wh | 1280Wh | 2560Wh | 5120Wh | ||||
Size（L*W*H）） | 345*190*245 mm | 345*190*245 mm | 339*185*218 mm | 335*180*235mm | 640*245*220mm | ||||
Self Discharge | < 3% / Month | < 3% / Month | < 3% / Month | < 3% / Month | < 3% / Month | ||||
Maximum Charge Current | 100A | 150A | 100A | 150A | |||||
Recommend Charge Voltage | 14.6V | 14.6V | 14.6V | 29.2V | |||||
BMS Charge Cut-off Voltage | Cut-off Voltage：14.6V Cut off Recover：14±0.05V | Cut-off Voltage：14.6VCut off Recover：14±0.05V | Cut-off Voltage：14.6VCut off Recover：14±0.05V | Cut-off Voltage: 25.6V Cut off Recover: 25±0.05V | |||||
Max Continuous Discharge Current | 100A | 150A | 100A | 100A | 150A | ||||
Protection BMS Short Circuit | 250μs | 1800±360A | 1400±280A | ||||||
BMS Low-Voltage | Low Voltage Protection：10.8±0.05V Low Voltage Recover：11.6±0.05V | ||||||||
BMS High Temperature: | Cut：55±2 °C Recovery：50±2 °C | ||||||||
Application： | Home Energy Storage, RV Caravans, Small Boat Motors, Golf Carts | ||||||||

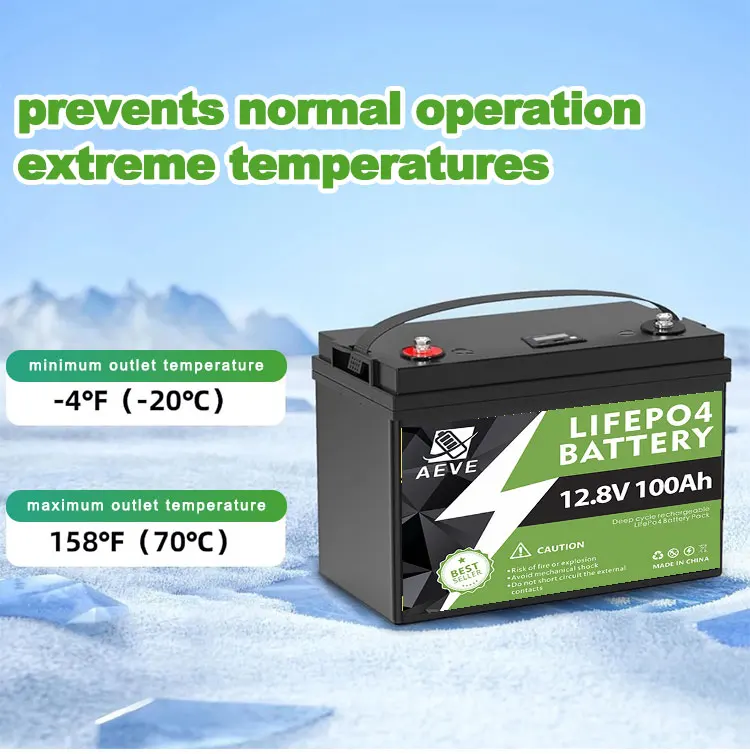

Operating Temperature： | Discharge: -20 ~ 60 °C Charge :0 ~ 55 °C Storage :10~35°C | ||||||||
Certifications | CE,MSDS,UN38.3 | ||||||||
Products Description

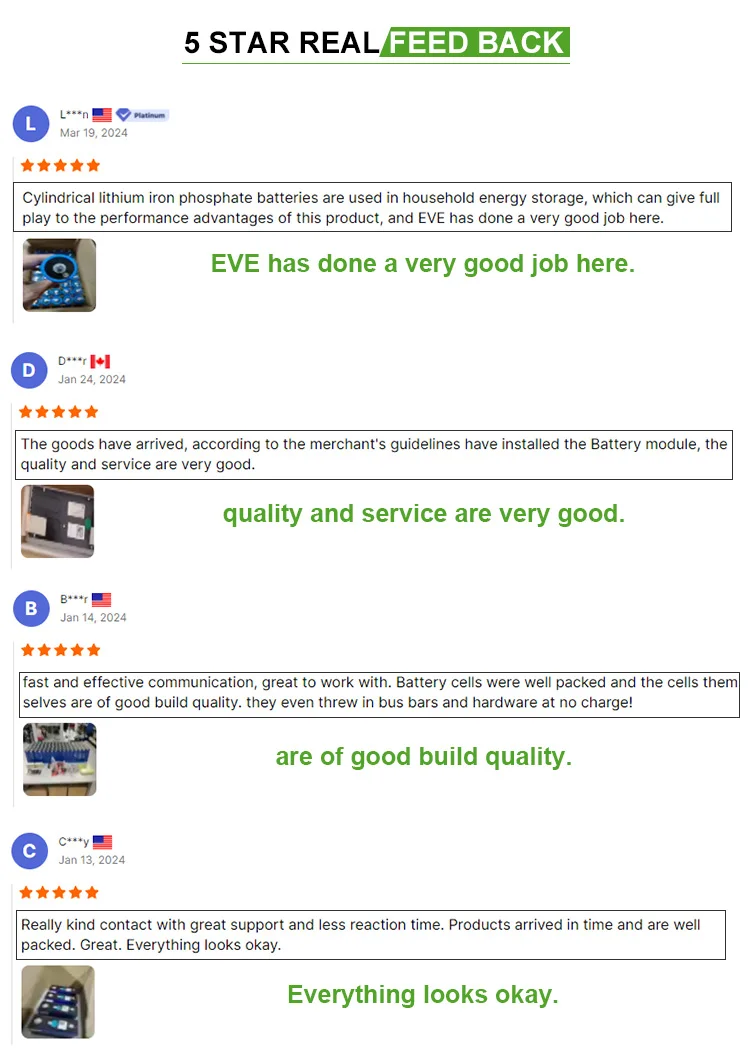

Customer Review
