RO Membrane reverse osmosis 200 GPD for water machine
RO Membrane reverse osmosis 200 GPD for water machine
RO Membrane reverse osmosis 200 GPD for water machine
RO Membrane reverse osmosis 200 GPD for water machine
RO Membrane reverse osmosis 200 GPD for water machine
RO Membrane reverse osmosis 200 GPD for water machine
RO Membrane reverse osmosis 200 GPD for water machine

RO Membrane reverse osmosis 200 GPD for water machine

Share on (1601266561876):


Price:$5.85 - $6.00

Quantity:


Product Overview

Description



Product Description

2012-200-05

2012-200-04







Specification




























































































Residential Reverse Osmosis Specification
ModelStable Rejection RateMinimum Rejection RateAverage Permeated Flow
C-MAT1807-50G98%96%50
C-MAT1808-50G98%96%50
C-MAT1809-50G98%96%50
C-MAT1810-50G98%96%50
C-MAT1810-75G98%96%75
C-MAT1810-80G98%96%80
C-MAT1812-50G98%96%50
C-MAT1812-75G98%96%75
C-MAT1812-80G98%96%80
C-MAT1812-100G98%96%100
C-MAT2012-100G98%96%100
C-MAT2012-150G98%96%150




Testing Conditions                                                     Operation Limits and Conditions


Inlet Pressure ------------------------- 60Psi(0.41MPa)                        Max. Working Pressure --- 125Psi(0.86MPa)


Inlet Temperature ---------------------- 25℃                                        Max. Inflow Temperature ---------- 45℃


Concentration of Testing Solution ---- 250PPm                                SDI  Max. Inflow SDI ----------------- 5


Inlet PH value ------------------------- -- 7.5-8                                      Residual Chlorine ----------------- < 0.1PPm


Recovery Rate -------------------------- 15%                                       PH Range of Feedwater ----------- 3-10


                                                                                                        PH Range of Cleaning ------------- 2-12


                                                                                                        Max. Pressure Drop ---------10Psi(0.07MPa)





1.Permeate flow for each RO membrane element would be 15% floating up and down according to the feed water under the           standard test condition.
2.Above data is subject to a continuous test running of 30 minutes.
3.Able to provide personalized, customized products by request.

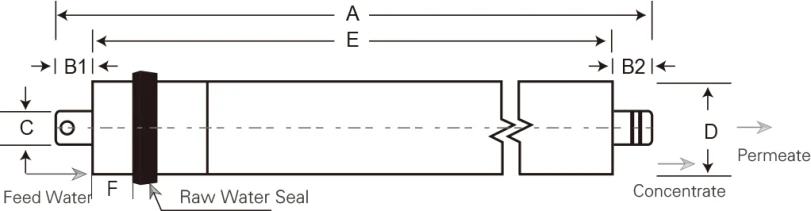

Model






























































































































ModelOverall Dimension
AB1B2CDEF
C-MAT2012-150G11.73(298)0.59(15)0.83(21)0.67(17)1.89±0.02(48±0.5)10.30(262)1.57(40)
C-MAT2012-200G11.73(298)0.59(15)0.83(21)0.67(17)1.89±0.02(48±0.5)10.30(262)  1.57(40)
C-MAT2512-200G11.73(298)0.59(15)0.83(21)0.67(17) 2.48±0.02(63±0.5)10.30(262) 1.57(40)
C-MAT2812-300G11.73(298)0.59(15)0.83(21)0.67(17) 2.76±0.02(70±0.5)10.30(262) 1.57(40)
C-MAT3012-400G11.73(298)0.59(15)0.83(21)0.67(17)2.95±0.02(75±0.5)  10.30(262) 1.57(40)
C-MAT3012-500G11.73(298)0.59(15)0.83(21)0.67(17)2.95±0.02(75±0.5)10.30(262)1.57(40)
C-MAT3012-600G11.73(298)0.59(15)0.83(21)0.67(17)2.95±0.02(75±0.5)10.30(262)1.57(40)
C-MAT3013-400G13.11(333)0.59(15)0.70(18)0.67(17)2.72±0.02(69±0.5)11.81(300)1.57(40)
C-MAT3013-500G13.11(333)0.59(15)0.70(18)0.67(17)2.72±0.02(69±0.5)11.81(300)1.57(40)
C-MAT3013-600G13.11(333)0.59(15)0.70(18)0.67(17)2.72±0.02(69±0.5)11.81(300)1.57(40)







Customization











Company Information


_02


photobank3

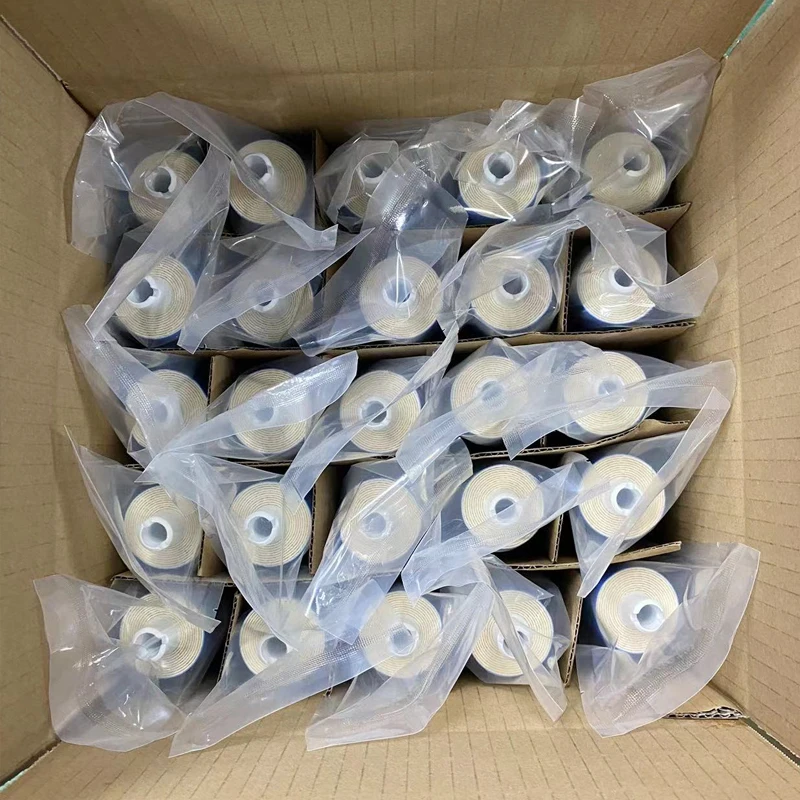

Packaging & Shipping
