  • IRF9630 Single FETs MOSFET P Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO 220AB

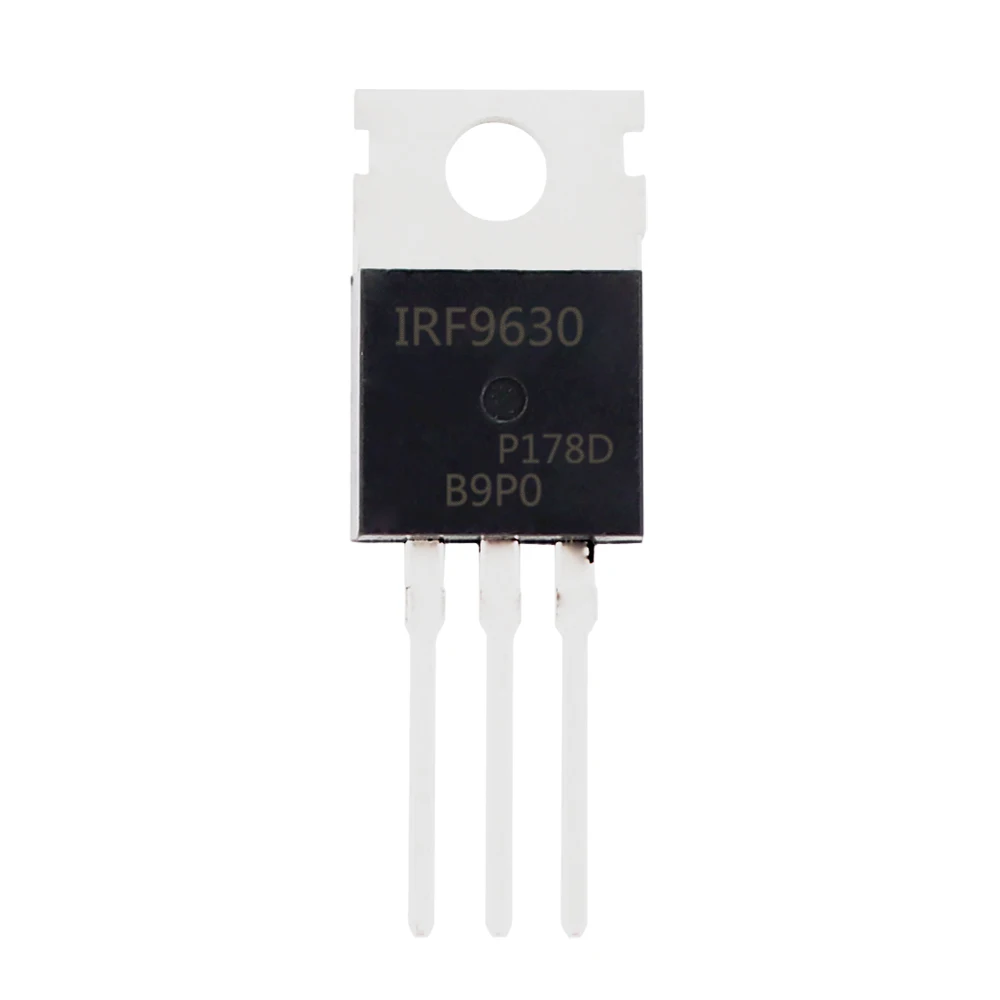

IRF9630 Single FETs MOSFET P Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO 220AB
IRF9630 Single FETs MOSFET P-Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO-220AB
IRF9630 Single FETs MOSFET P-Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO-220AB
IRF9630 Single FETs MOSFET P-Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO-220AB
IRF9630 Single FETs MOSFET P-Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO-220AB
IRF9630 Single FETs MOSFET P-Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO-220AB
IRF9630 Single FETs MOSFET P-Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO-220AB

IRF9630 Single FETs MOSFET P Channel 200V 6.5A (Tc) 74W (Tc) Through Hole TO 220AB

Share on (1601266576802):


Price:$0.48 - $0.81

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Type
Single FETs, MOSFETs
Operating Temperature
-55°C ~ 150°C (TJ)
Series
IRF9630
Mounting Type
Through Hole
Description
MOSFET P-CH 200V 6.5A TO220AB
Model Number
IRF9630
Type
MOSFET
Place of Origin
China
Brand Name
Original brand
D/C
Newest
Package Type
Throught Hole
Application
General Purpose
Supplier Type
Original manufacturer
Media Available
datasheet, Photo
Brand
IRF9630
Power - Max
74W(Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Through Hole
Package / Case
TO-220-3
FET Type
P-Channel
Drain to Source Voltage (Vdss)
200 V
Current - Continuous Drain (Id) @ 25°C
6.5A(Tc)
Rds On (Max) @ Id, Vgs
800mOhm @ 3.9A, 10V
Vgs(th) (Max) @ Id
4V @ 0.25mA
Gate Charge (Qg) (Max) @ Vgs
29 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
700 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Packaging
Tube
Standard Package
50 Pcs


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






Shenzhen Zhoujin Technology Co., Ltd. was founded in 2006, is a professional independent stocking distributor of electronic components and support BOM service, after 15+ year's development, has become the reliable partner for the domestic and foreign OEM manufacturers.Our OEM Excess Inventories enable us to offer Hard to Find & Obsolete Electronic Components throughout the world.The company's main brands are. ST, TI, ADI, XILINX, CYPRESS, ALTERA, ATMEL, JRC, MAXIM, NXP, HITACHI, RENESAS, NEC, IR, INFINEON, FREESCALE and other world-renowned brand chips, consumer, communications, automotive electronic components and Push button switches, rocker switches, signal lights, relays, toggle switches, overload circuit breakers, fuses, insulators, terminals, etc. .
With full experience in export field, we have distributed our products to more than 30 countries and regions, including the Europe, USA, Canada, Russia, Brazil , Colombia, Peru, Bolivia ,Panama,South Africa and Japan, South Kerea, and middle east some countries, and more .
Sincerely hope all friends from the world can cooperate happily with us !


FAQ


1. who are we?
We are based in Guangdong, China, start from 2022,sell to Northern Europe(25.00%),Southern Europe(20.00%),South America(10.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
World-renowned brand chips, consumer, IC communications, automotive electronic components and Push button switches, fuse & Fuse
holder, rocker switches, signal lights, relays, toggle switches, overload circuit breakers, fuses, insulators, terminals, etc.

4. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
