Best Selling Brand SWDM600 Rotary Drilling Rig with Best Price for Sale
- Category: >>>
- Supplier: Skymard Construction Machinery (Hunan) Co. Ltd.Skymard Ltd.
Share on (1601266594261):
Product Overview
Description
Product Overview
3.5m Diameter And 145m Depth Rotary Drilling Rig SWDM600
Product Features
Strong construction ability
Facing the construction of super large deep hole pile for cross-sea bridge and high-speed railway, the power head torque and main roll lifting force are large, and the rock entry is strong and efficient.
Self-loading chassis
Equipped with self-loading and unloading auxiliary cylinder, to solve the overall transportation of oversized machines overweight, ultra-wide and shipping problems.
Patented braking technology
The industry's original patented rotary brake device and its control technology ensure high equipment stability and high vertical drilling accuracy when drilling in large torque or complex formations.
Strong driving force
High-power engine matching large flow hydraulic system, power head multi-gear control for all kinds of strata, fuel
efficiency is better than the same class of products.
self-lubrication
Standard centralized lubrication system, timed quantitative lubrication, maintenance more worry.
Facing the construction of super large deep hole pile for cross-sea bridge and high-speed railway, the power head torque and main roll lifting force are large, and the rock entry is strong and efficient.
Self-loading chassis
Equipped with self-loading and unloading auxiliary cylinder, to solve the overall transportation of oversized machines overweight, ultra-wide and shipping problems.
Patented braking technology
The industry's original patented rotary brake device and its control technology ensure high equipment stability and high vertical drilling accuracy when drilling in large torque or complex formations.
Strong driving force
High-power engine matching large flow hydraulic system, power head multi-gear control for all kinds of strata, fuel
efficiency is better than the same class of products.
self-lubrication
Standard centralized lubrication system, timed quantitative lubrication, maintenance more worry.
Product Parameters
parameter | model | SWDM600 | ||
drilling | Maximum drilling diameter | mm | 3500 | |
Maximum drilling depth | m | 145/95 | ||
engine | brand | Famous brand | ||
model | TAD1643VE-B | |||
rated power | kW@rpm | 565@1900 | ||
Power Head | Maximum torque | kN.m | 600 | |
Rotating speed | rpm | 5〜32 | ||
High-speed dumping (optional) | rpm | - | ||
Main winch | Maximum lifting force | kN | 640 | |
Maximum lifting speed | m / min | 65 | ||
Wire rope diameter | mm | 46 | ||
Pressurized system | Maximum pressure | kN | 480 | |
Maximum lifting force | kN | 500 | ||
Maximum stroke | mm | 10000 | ||
Vice winch | Maximum lifting force | kN | 110 | |
Maximum lifting speed | m / min | 65 | ||
Wire rope diameter | mm | 24 | ||
Drill mast | Tilt angle | ° | ±4 | |
Inclination | ° | 90/15 | ||
Chassis | Track width | mm | 1000 | |
Crawler telescopic width | mm | 6000 | ||
Chassis length | mm | 7640 | ||
Whole machine | Working height | mm | 36286 | |
Working weight | t | 212 | ||

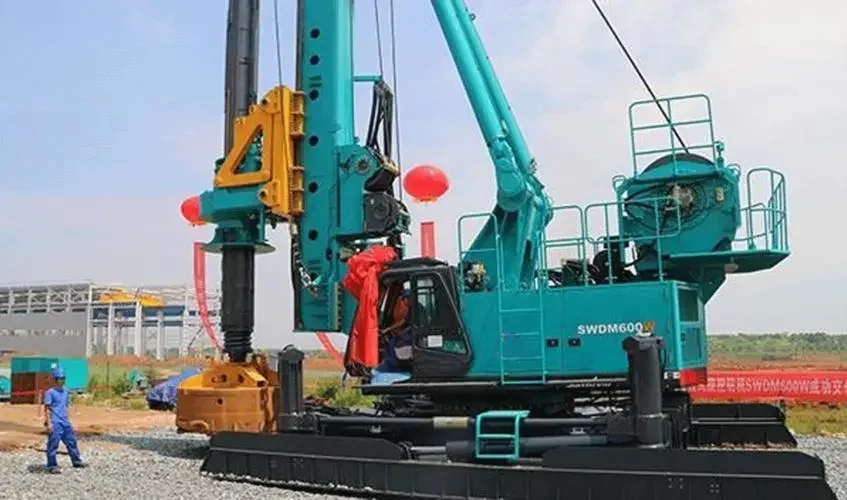

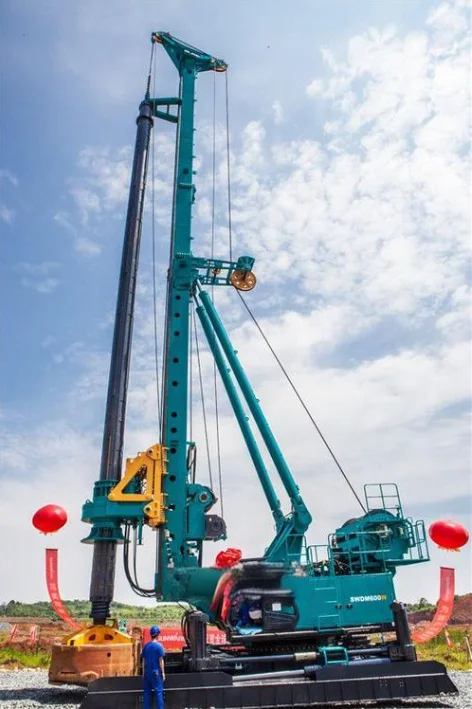

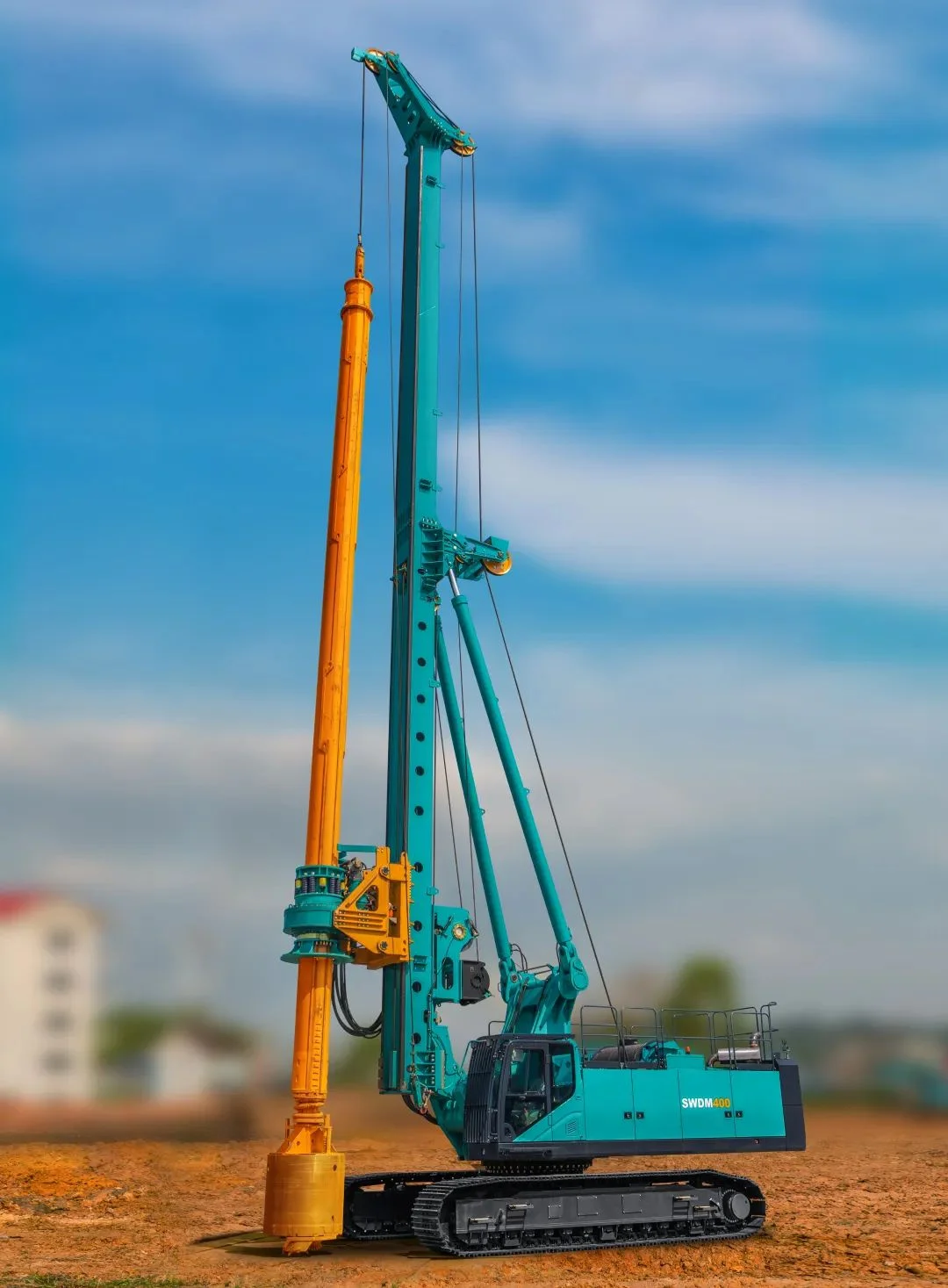

Details Images
Why Choose Us

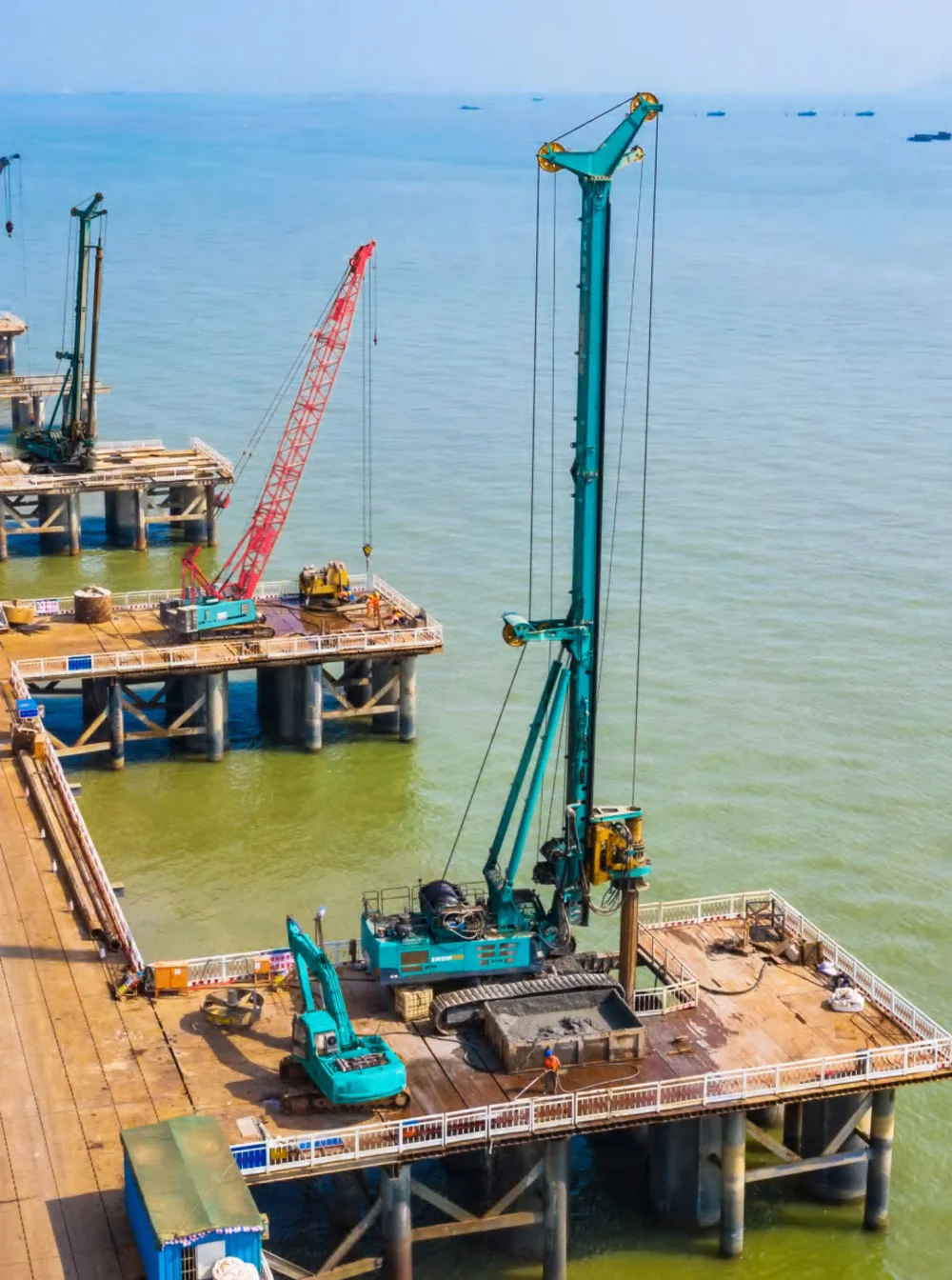

Successful Case
