LK270AC electric hydraulic lifting 2.5T cargo motor tricycle mini wheel dumper mobile cargo truck for sale
- Category: >>>
- Supplier: Zhengzhou Lianke Machinery Manufacture Co. Ltd.Zhengzhou Ltd.
Share on (1601266597593):
Product Overview
Description
Product Descriptions
electric mini dumper tractor for sale, Chinese electric dumper for sale, small electric mini dumpers

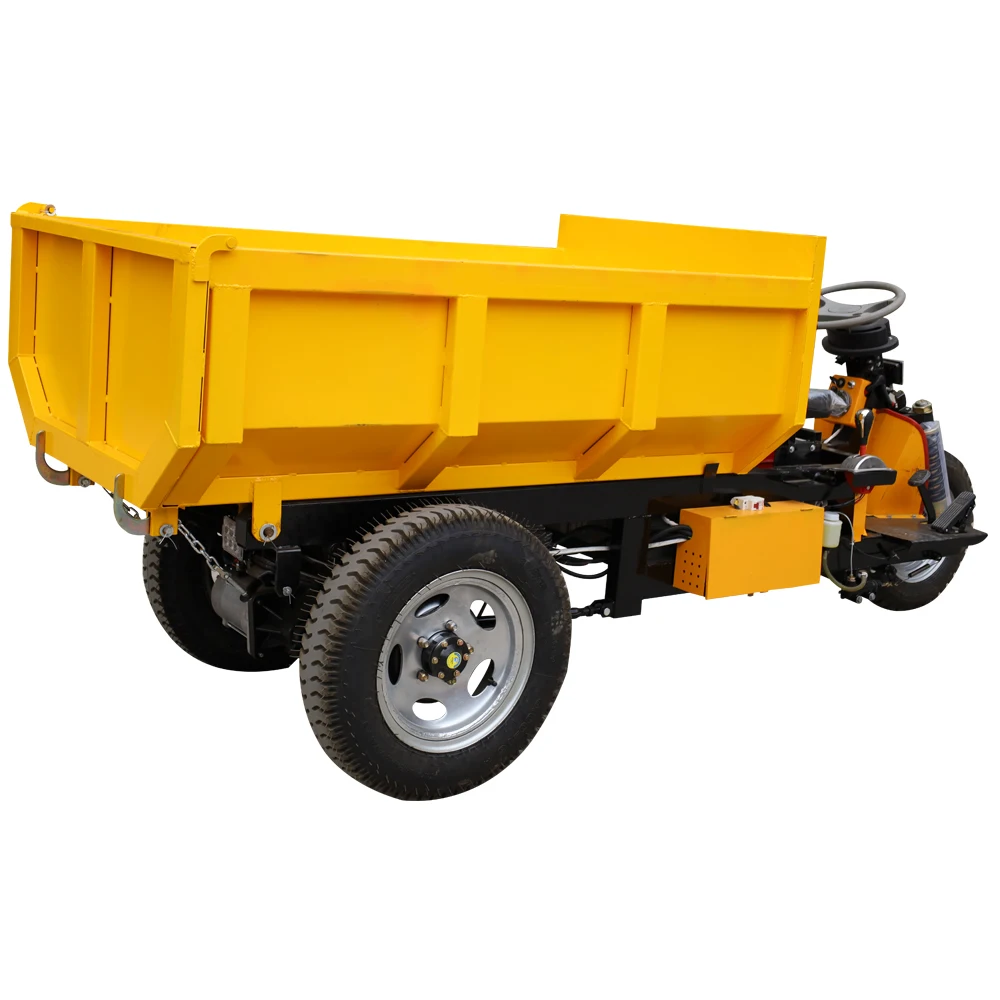

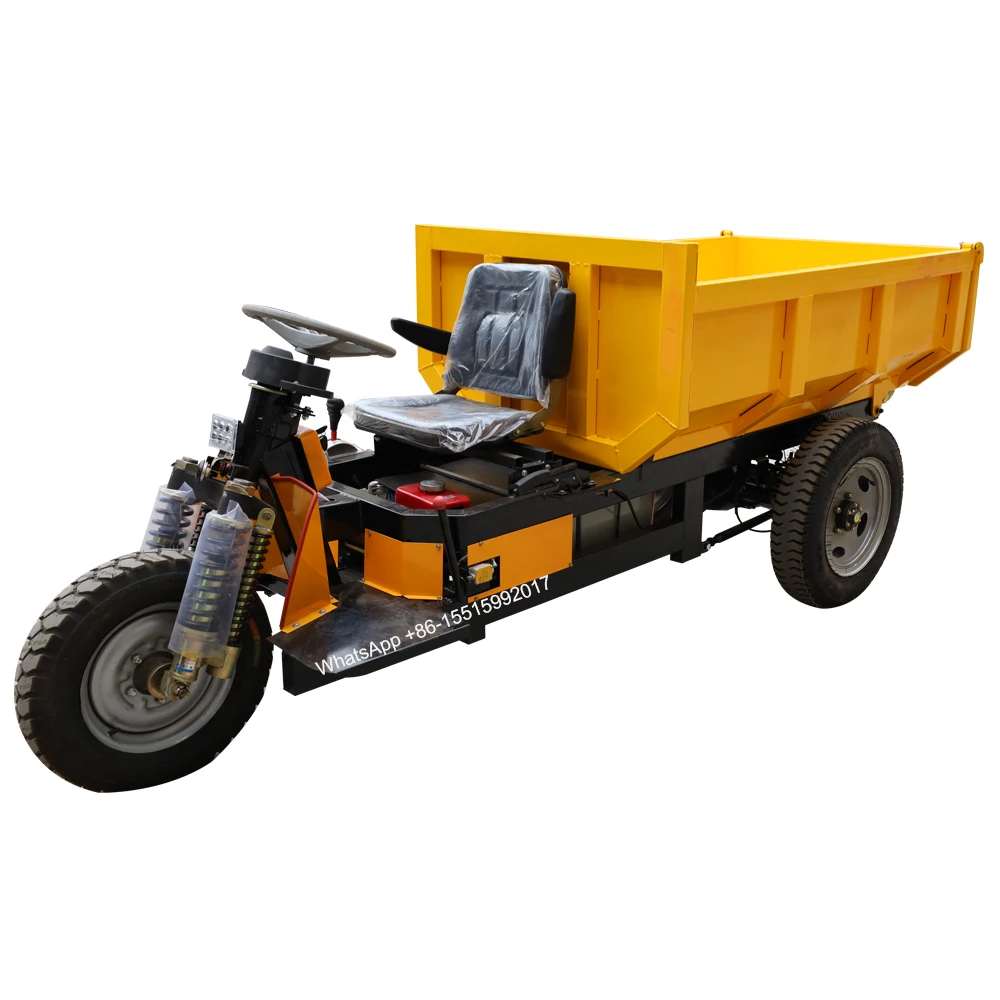

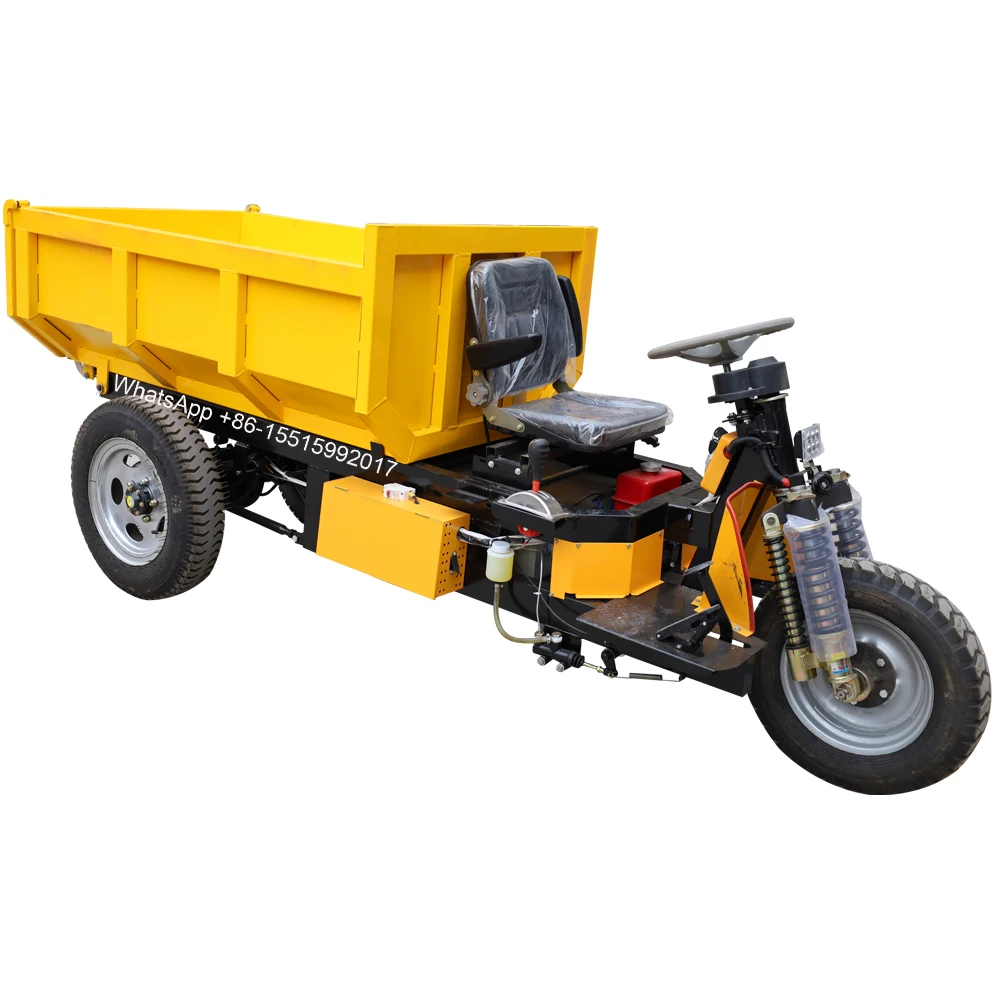

Our company is Zhengzhou Lianke Machinery Manufacturing Co., Ltd.,Here are our latest products for 2024, LK270AC electric mini dumper .This vehicle uses 4KW motor,the max loading capacity of this vehicle is 2.5tons.
There may be differences between the price of the product and the pictures. For the final quotation, please send us inquiry or click on the TM consultation on the right. You can also add my phone number at the end of the article and add me directly.
Feedback from customers
Here are feedback from customers from different countries in South America

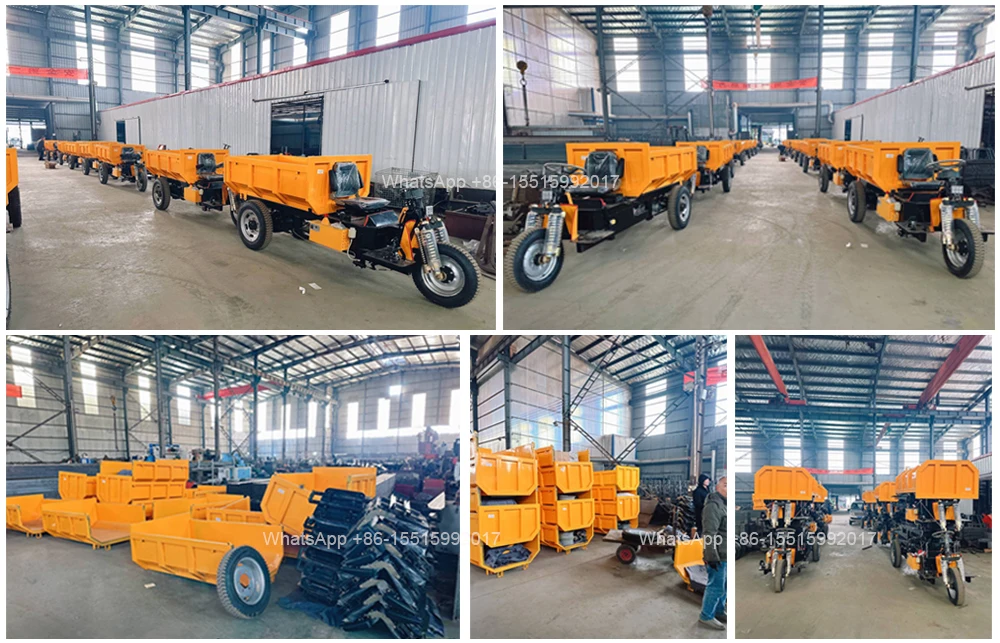

FCL delivery

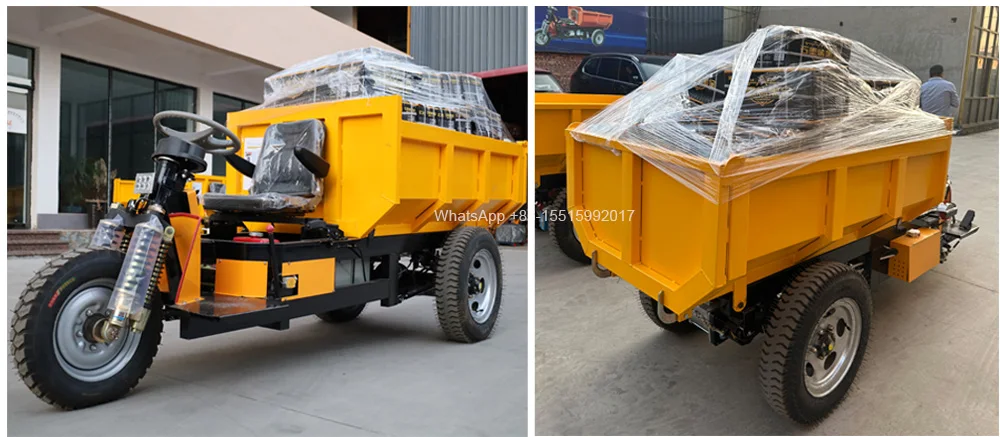

A 40'HC can load 20 LK270AC and a large number of spare parts.. Here are our shipments and the display of vehicles.
We mainly ship to Peru, Chile, Bolivia, Colombia, and Ecuador, and have our sample base and after-sales service point in Peru to provide customers with urgently needed spare parts.

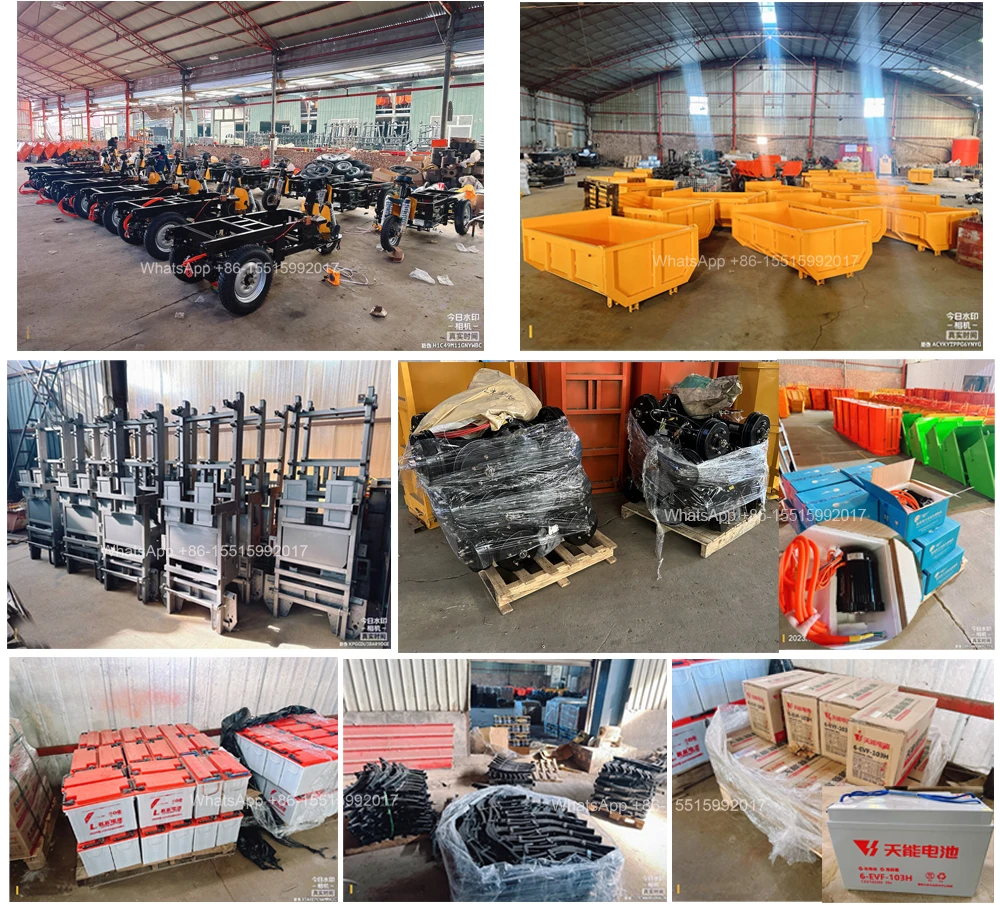

Workshop and production line
We have professional production lines that can produce vehicles according to customer requirements.
Specification
The max load of LK270AC is 2500KG
The vehicle's hopper is filled with 2500kg cargo, which is a load test conducted for customers before the vehicle leaves the factory.
Technical parameters of lianke machinery Electric Dumper | ||||||||
Items | LK135 | LK200 | LK200E | LK270 | ||||
Loading capacity | 1500KG | 2000KG | 2000KG | 2500KG | ||||
Dimension (L*W*H) | 2850*1000*1250mm | 3300*1100*1400mm | 3200*1050*1450mm | 300*1150*1400mm | ||||
Hopper size | 1450*900*400mm | 1800*1100*500mm | 1600*1050*600 mm | 1800*1150*500mm | ||||
The Shadow fonts are the height of the inner side of the tailgate of the hopper, this height can be customized | ||||||||
Thickness of hopper bottom plate | Thicknesses of 3mm, 5mm, 6mm, or 8mm can be customized | Thicknesses of 5mm, 6mm, or 8mm can be customized | ||||||
Battery | 48V/60V/72V | 60V/72V | 72V | 72V | ||||
Driving motor | 2KW/3KW | 3KW/4KW | 4KW | 4KW | ||||
Lifting motor | 1000W/1300W | |||||||
Warranty | 15 months' warranty, Calculated after the goods arrive at the destination port. We have after-sales service points in Peru, and parts that require warranty can be shipped from the warehouse in Peru. | |||||||
Detailed Images
Direct coupling way rear axle
Driving type:Direct coupling way rear axle,the motor directly acts on the rear axle, without the friction of the chain, high speed, strong climbing ability.

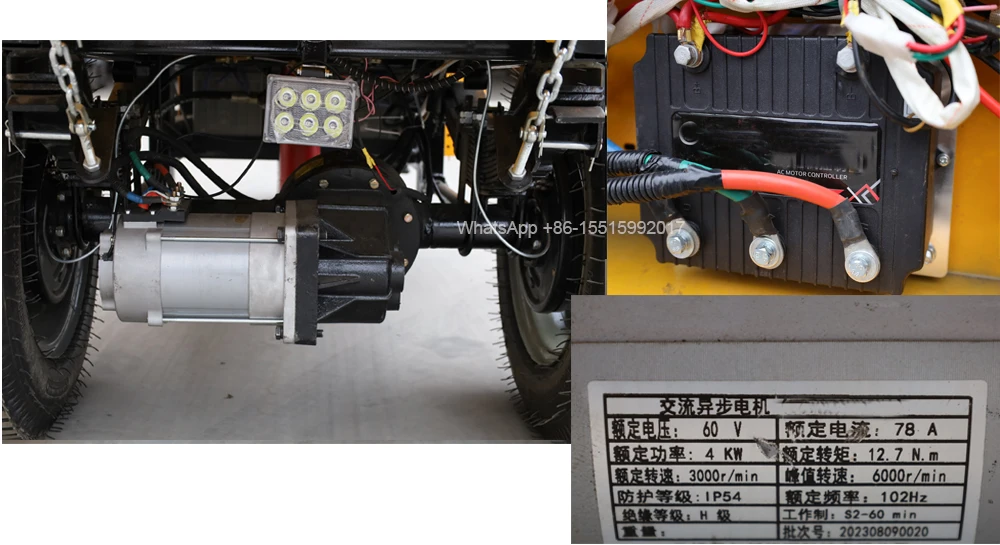

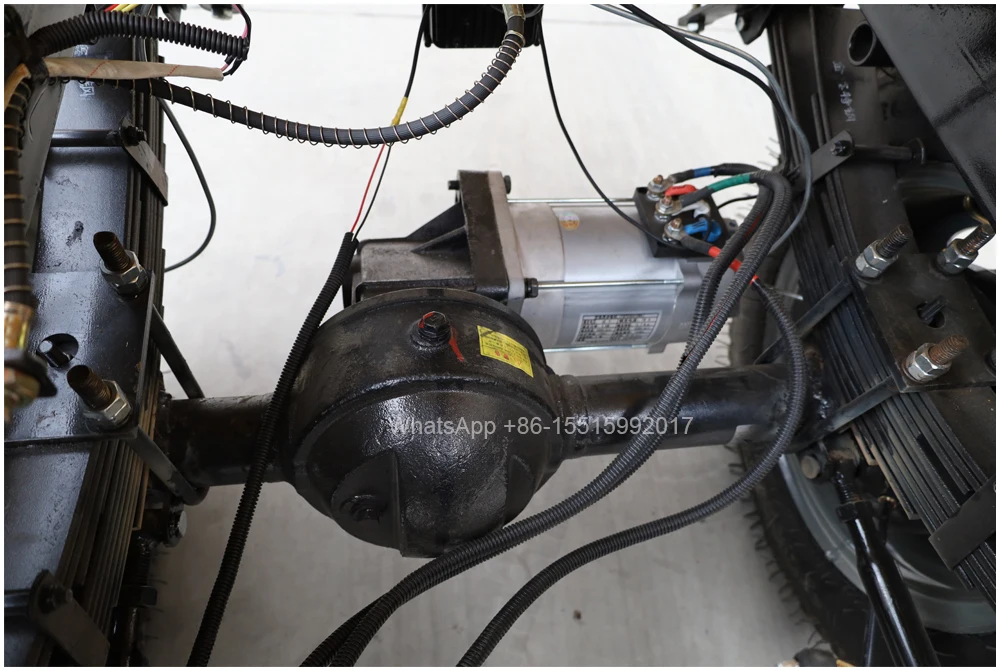

Alternating current motor
LK270AC electric dumper equip with 4000W Alternating current motor,Compared to DC motors, AC motors have stronger power, especially in terms of climbing ability, which is better than DC motors

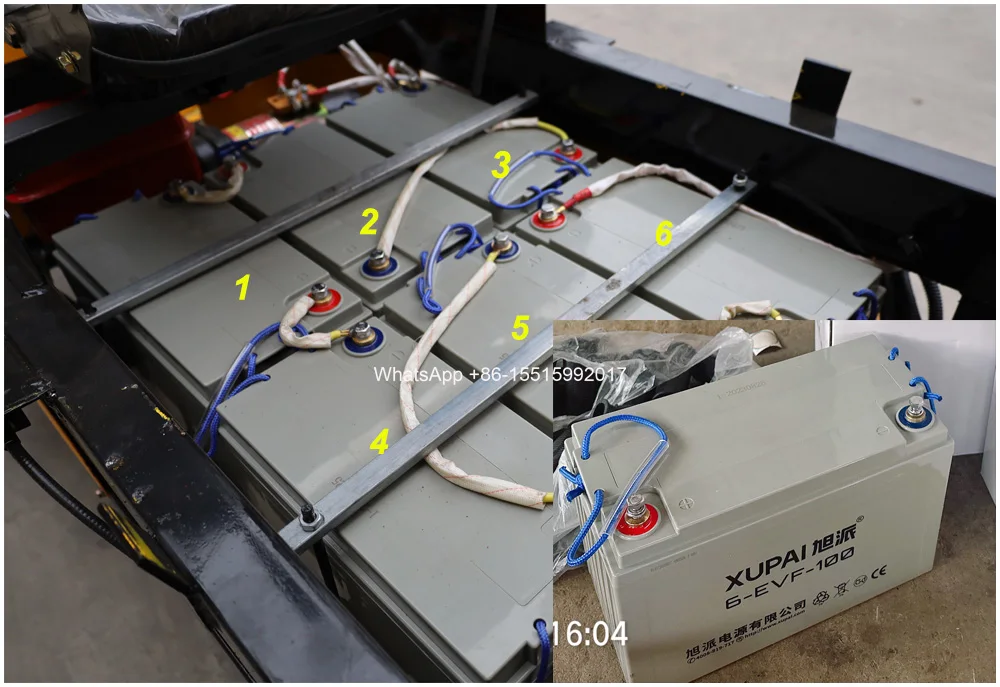

Equip with lead-acid dry battery
Batteries of different capacities can be customized, such as 80Ah, 100Ah, and 120Ah.

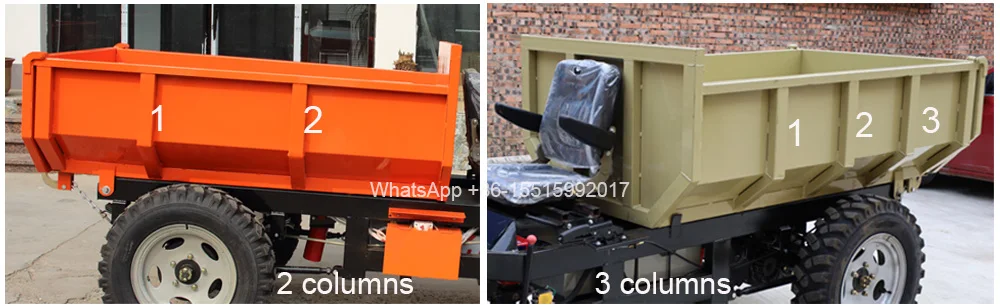

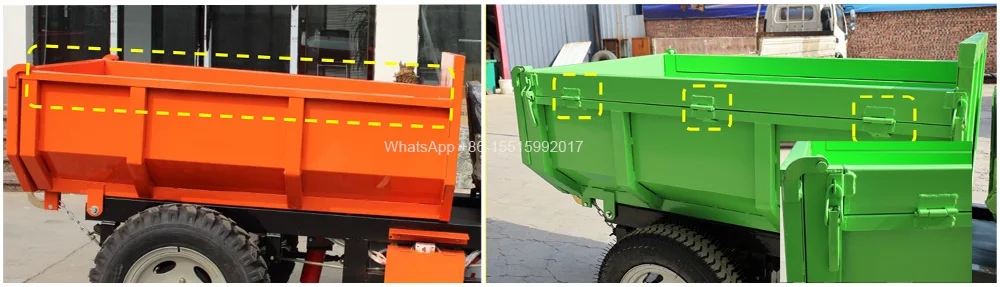

The number of columns on the hopper side plate can be customized
The number of columns on the hopper side plate can be customized, 2 columns, or 3 columns,you can choose as your need.
Hinges can be added to the side panel of the hopper
Hinges can be installed on the hopper of LK200 electric dumper. Opening the hinge can lower the height of the hopper, making it convenient for manual loading and unloading

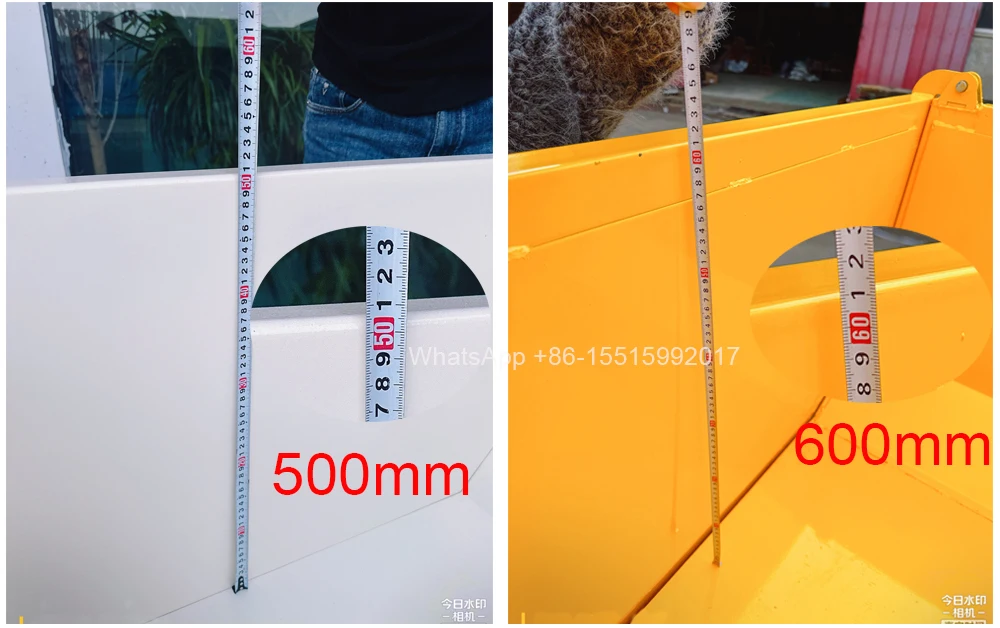

The internal height of the LK270AC hopper can be customized
The internal height of the LK270AC hopper can be customized, with a standard height of 500mm. The maximum height of the hopper can be increased to 600mm,The left is the standard height and The picture on the right is a custom-made hopper, with an internal height of 600mm
