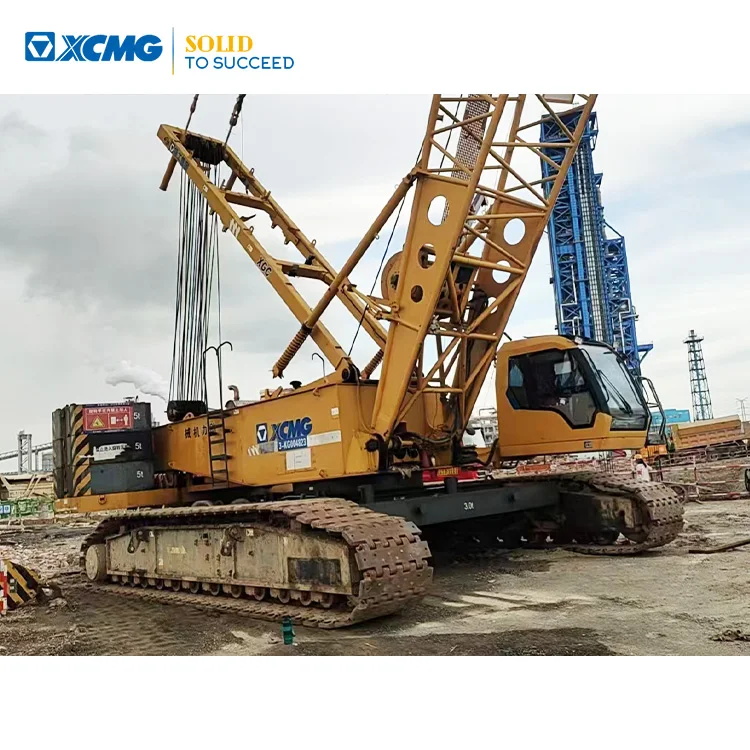

XCMG 150 Ton Mobile Crawler Crane XGC150 Used Hydraulic Boom Crawler Crane Price
- Category: >>>
- Supplier: XCMG E-Commerce Inc.
Share on (1601266608935):
Product Overview
Description
Product Description
XCMG 150 Ton Mobile Crawler Crane XGC150 Used Hydraulic Boom Crawler Crane Price
XGC150 is another new generation crawler crane developed by XCMG. Inheriting the features of high safety and high reliability from XCMG products, at the same time, during its development, this model pays more attention to the lifting improvement and cost control of the product, application and promotion of new technologies and structures, as well as standardization, seriation and universality of crane structures and components.
In this way, the price performance ratio of this product has been improved substantially. Compared with the previous products, this crane has obvious break through in disassembly transport and manufacturing.
1. High lifting performance Boom max. lifting capacity/radius 150t/5m，boom max. load moment 927.4t.m. Fixed jib max. lifting capacity 24t.
2. Optimized design of transport and assembly/ disassembly
* Fully equipped self-assembly/disassembly system (Optional) can easily achieve: rear counterweight self assembly/disassembly, track frame self-assembly/disassembly, and boom base self-assembly/disassembly.
* Largest single unit transport weight is controlled within 30t, transport width not more than 3m, so as to meet the transport requirement of global accessibility.
* Fixed jib can be three-piece integrated transport, and transport design of inserted boom sections, maximize the use of transport space, and save transport costs.
3. More optimized structural design
* Superstructure is a large box-type structural design, with heavy load bearing capacity, light weight, and good rigidity.

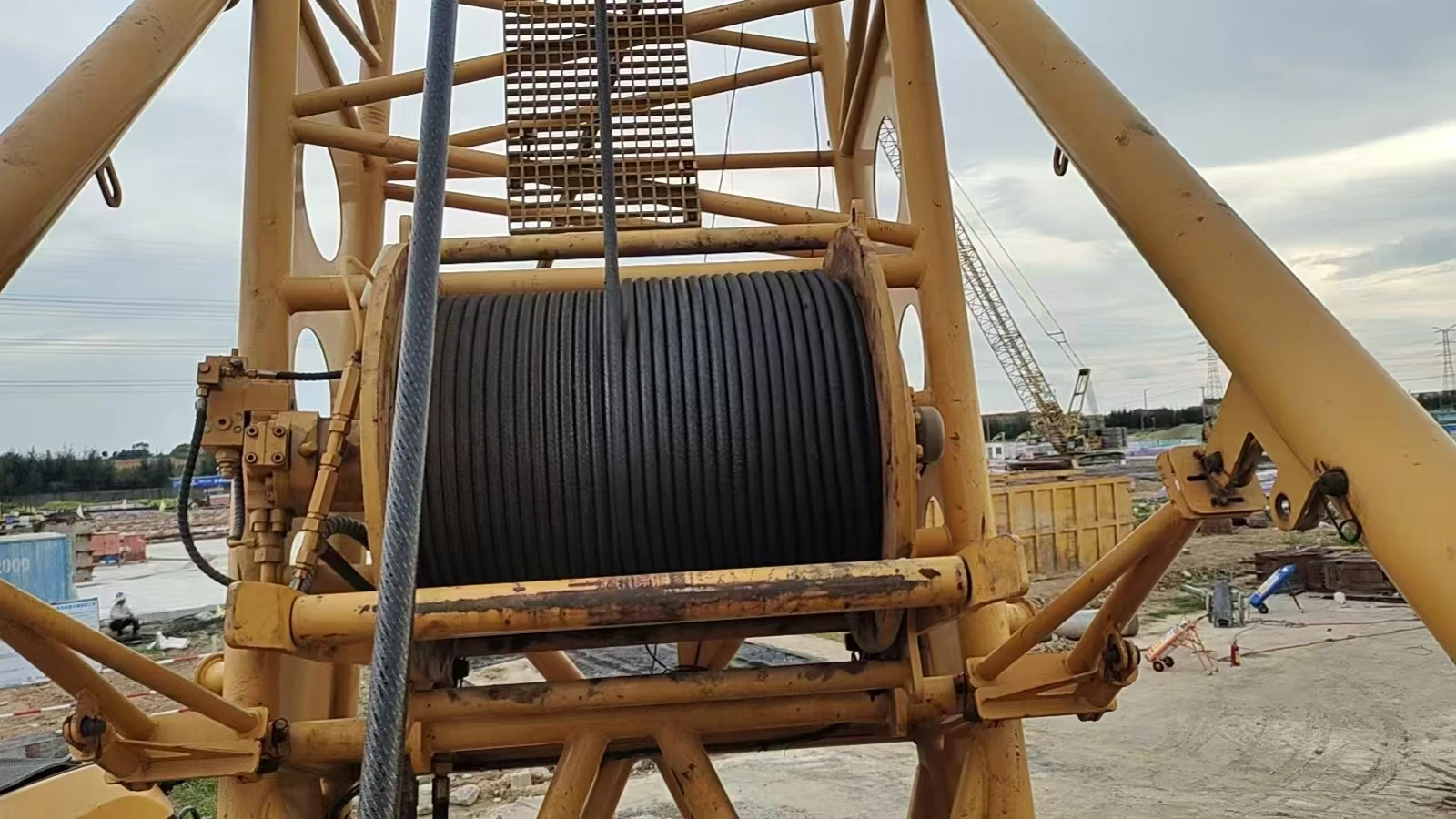

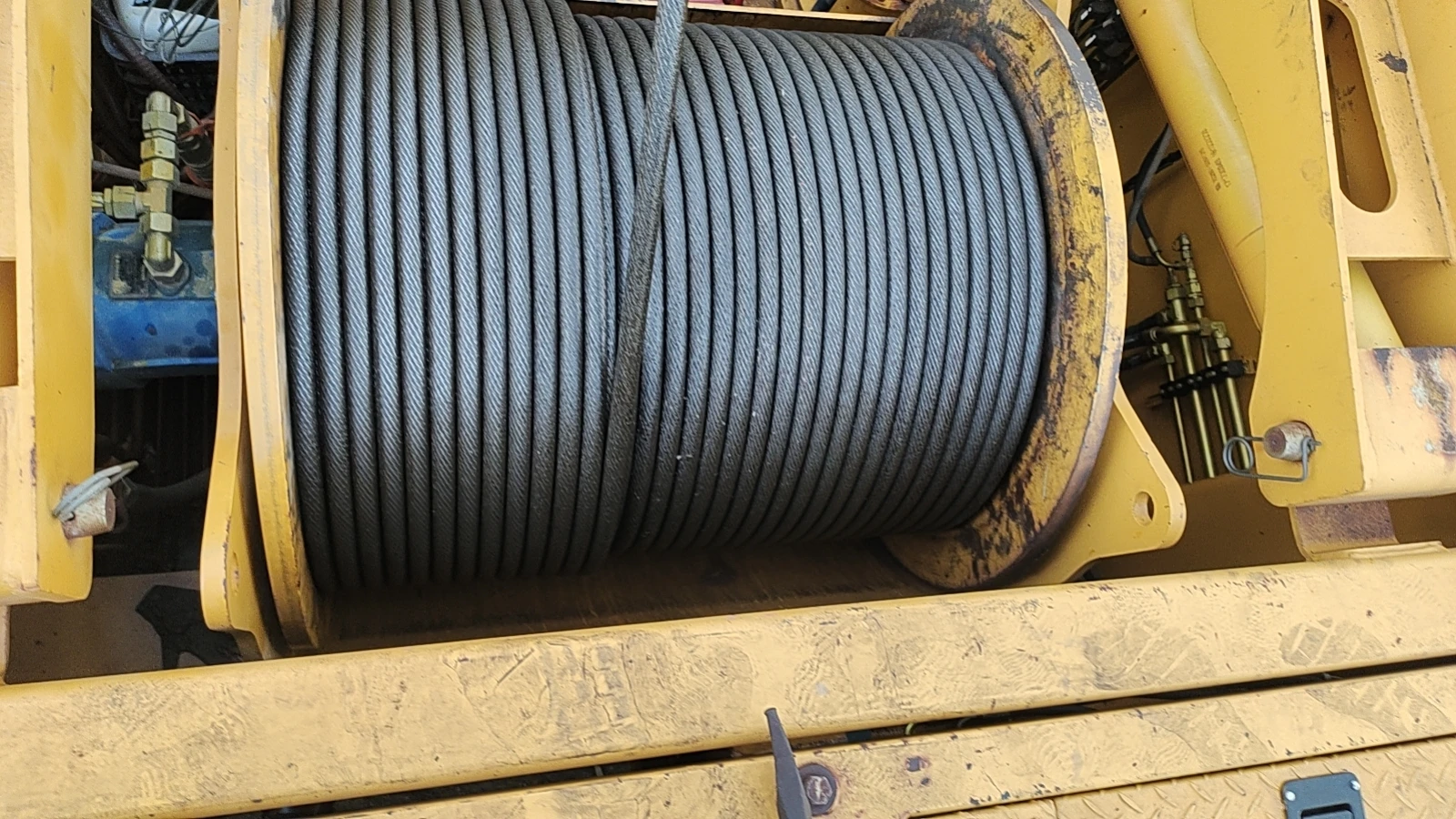

* Auxiliary hoisting winch is placed in boom base, with relaxed arrangement for turntable, easy maintenance.
Product Paramenters
Item | Unit | XGC150 |
Max. rated lifting capacity for boom | (t) | 150 |
Max. rated lifting capacity for fixed jib | (t) | 24 |
Max. load moment | (t.m) | 927.4 |
Max. rated lifting capacity for boom single top | (t) | 13 |
Boom length | (m) | 18~81 |
Boom luffing angle | (°) | 30~80 |
Fixed jib length | (m) | 13~31 |
Max. dimension of single unit in transport state (L×W×H) | (m) | 11.0×3.0×3.3 |
Fixed jib offset angle | (°) | 15,30 |
Max. single line speed for hoist mechanism | (m/min) | 110 |
Max. single line speed for boom luffing mechanism | (m/min) | 2×32 |
Max. slewing speed | (r/min) | 1.5 |
Max. travel speed | (km/h) | 1.3 |
Grade ability | (%) | 30 |
Mean ground pressure | (MPa) | 0.102 |
Model | - | SC9DK280G3 |
Engine power | (kW) | 206 |
Emission | - | National III |
Overall crane mass | (t) | 154 (main hook, all counterweights, 18m boom) |
Max. mass of single unit in transport state | (t) | 37 |
Product Show
Company Profile
FAQ
1.What’s the warranty policy for XCMG reconditioned machines?
The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump, distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.
2.How about the quality of your machine?
The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.
3.Are you the original manufacturer?
Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.
4.Can you satisfy my special requirement?
As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).
5.What is accpetable payment terms?
Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
If any other questions, please feel free to contact with us.
2.How about the quality of your machine?
The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.
3.Are you the original manufacturer?
Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.
4.Can you satisfy my special requirement?
As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).
5.What is accpetable payment terms?
Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
If any other questions, please feel free to contact with us.
