Post Tensioned Flat Arc Prestress Anchorage 2/3 piece Wedge for Railway Construction Material Prestressed Banana Anchorage

Product Overview

Description



  Production Description

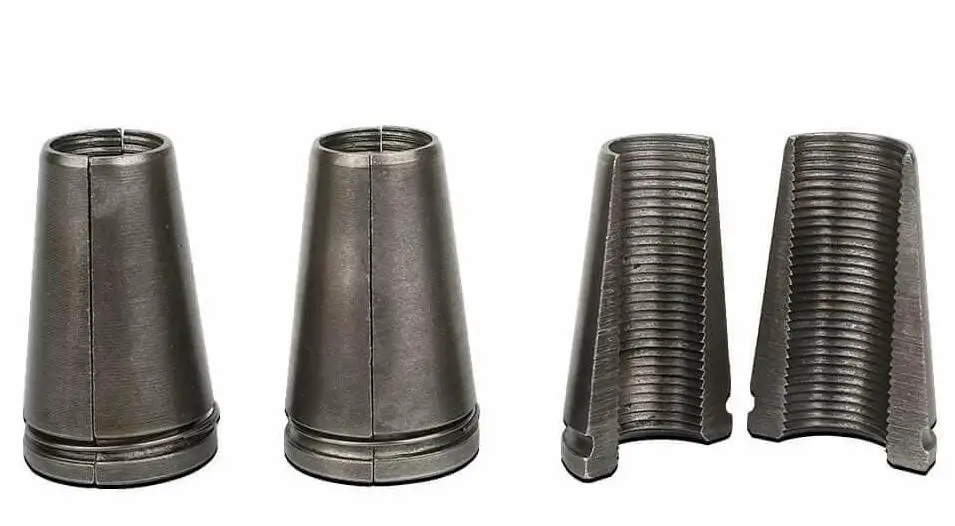

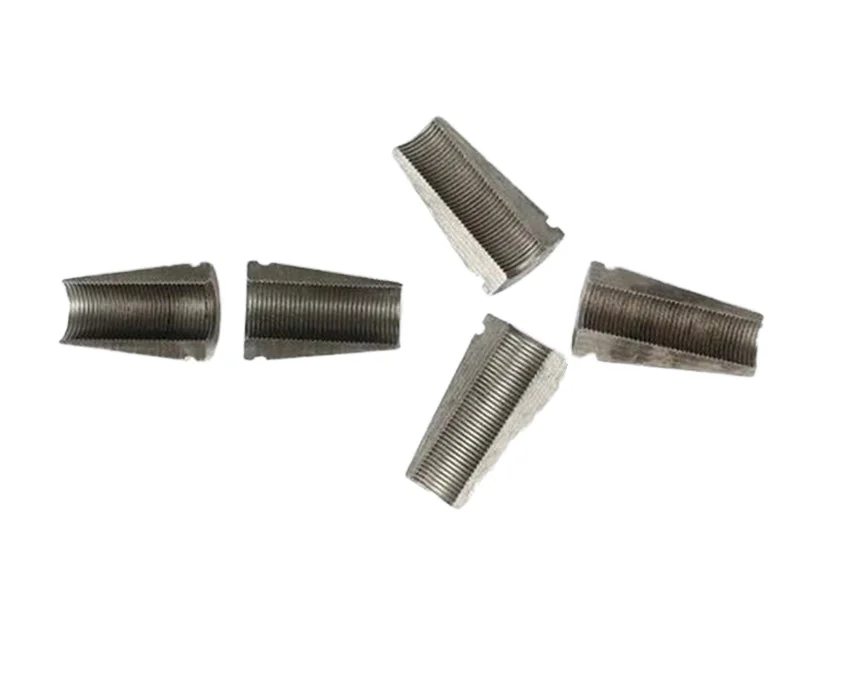

Prestressed concrete anchor wedge













Name	Size	Type	Weight
Wedge	12.7mm	2PC	62g
		3PC
	15.24mm	2PC	82g
		3PC

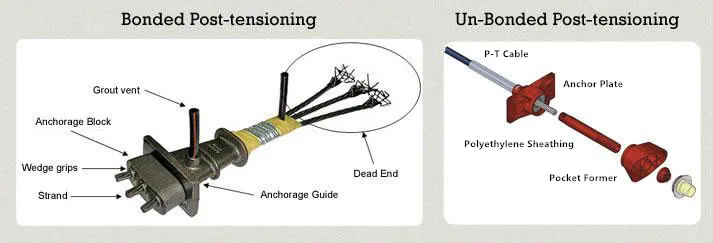

      Anchor Barrel (also commonly known as Wedge Plate) is an important part of the post tensioning system. It works in tandem with the Wedge that holds the individual tensile element. The prestressing load is then transfer to the Bearing Plate. For some small tendon sizes, this prestressing force can be transferred directly to the structure without the need of Bearing Plate.

      Wedge is the key part of anchor system, which is made by high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip. The system apply to the two-chip YJM15 series, it can be used for round anchorage, flat anchorage, but also used for porous coupler.







Working Process

1.Wedge Raw Materials---2.Wedge Materials Drilling---3.Wedge Materials Peeling---4.Wedge Materials Fine Turning---5.Wedge Cutting---6.Wedge Selecting---7.Wedge Fitting---8.Wedge Testing---9.Wedge Packaging---10.Packaging---11. Package by Wood Box--done

Other Products



Unbonded Monostrand Anchor Castings







   We provide wide range of anchor castings for unbonded post-tensioning application. Anchor casting are suitable for 0.5” and 0.6” strand. Special anchor casting also can be manufactured by your requirement.





Bonded 3S Flat Slab Anchorage



      Bonded 3S Flat Slab Anchorage use 2 No. 15.24mm seven-wire prestressing strand or 3 No. 12.7mm seven-wire prestressing strand and can reach high tensile strength.



Bonded 5S Flat Slab Anchorage





      Bonded 5S Flat Slab Anchorage use 4 No. 15.24mm seven-wire prestressing strand or 5 No. 12.7mm seven-wire prestressing strand and can reach high tensile strength.

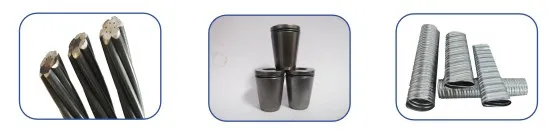

      Also Anchor Wedges, Metal Corrugated Duct, PC Strand can be provided for you. Here, you can realized one-stop purchasing for all you want.

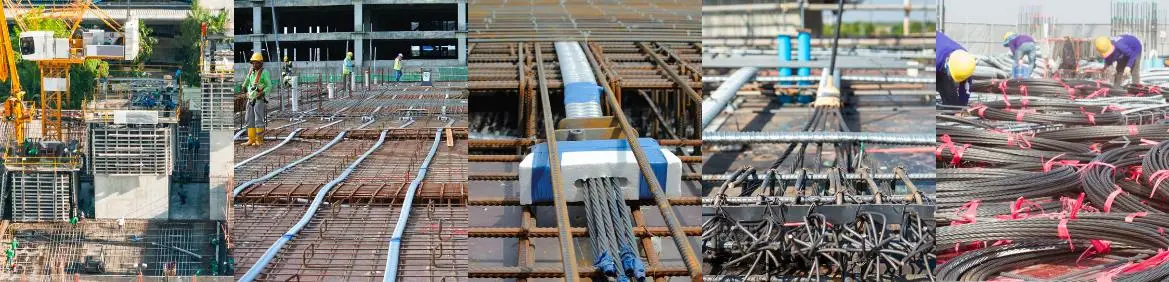

Application

--Prestressed Concrete Post Tensioning PC Steel Wire PT Anchor Wedges

--Prestressed Anchor system is a completed, independent building measure researched, it has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.

--It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials.







Package And Shipment



Company Introduction

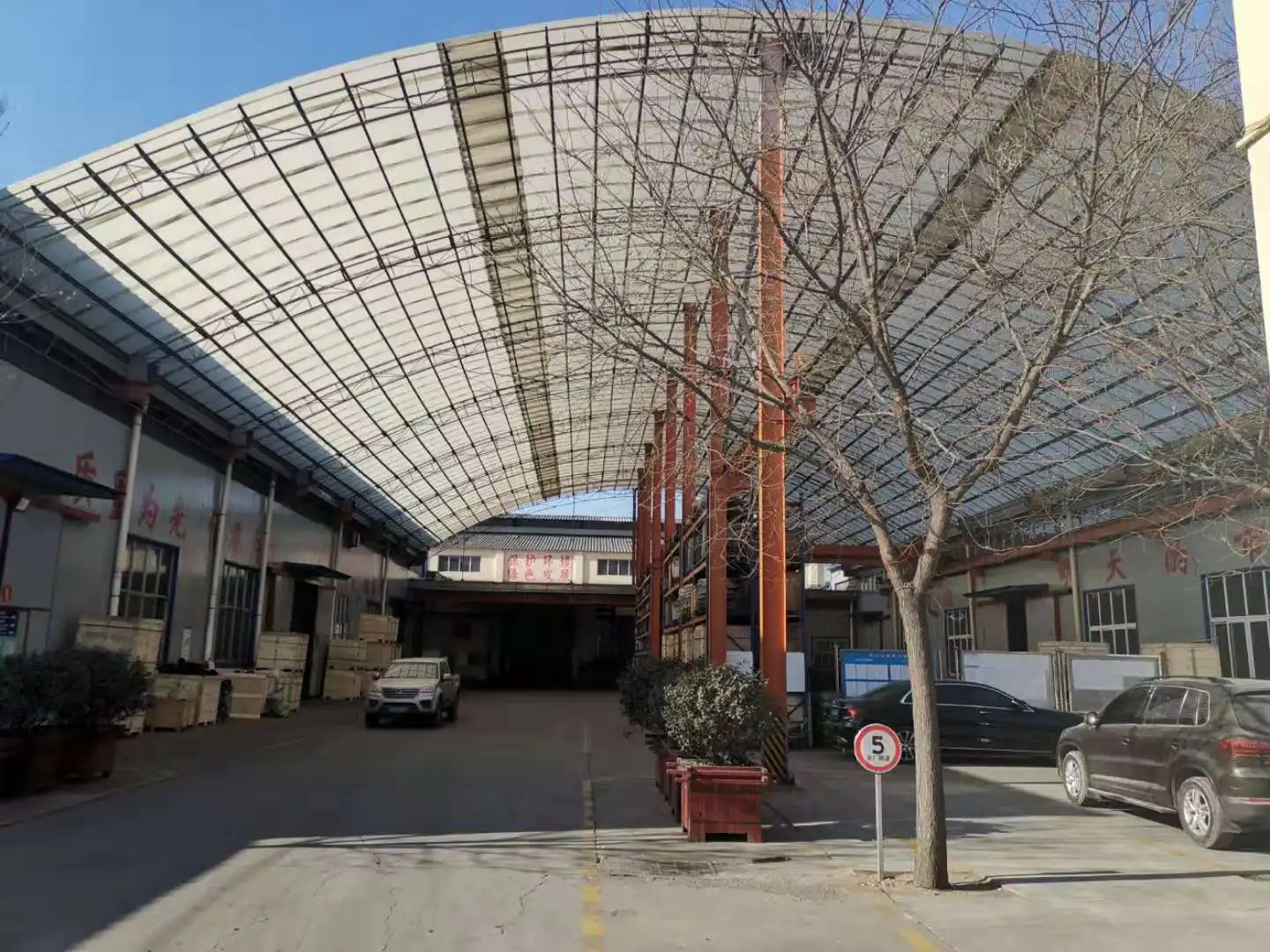

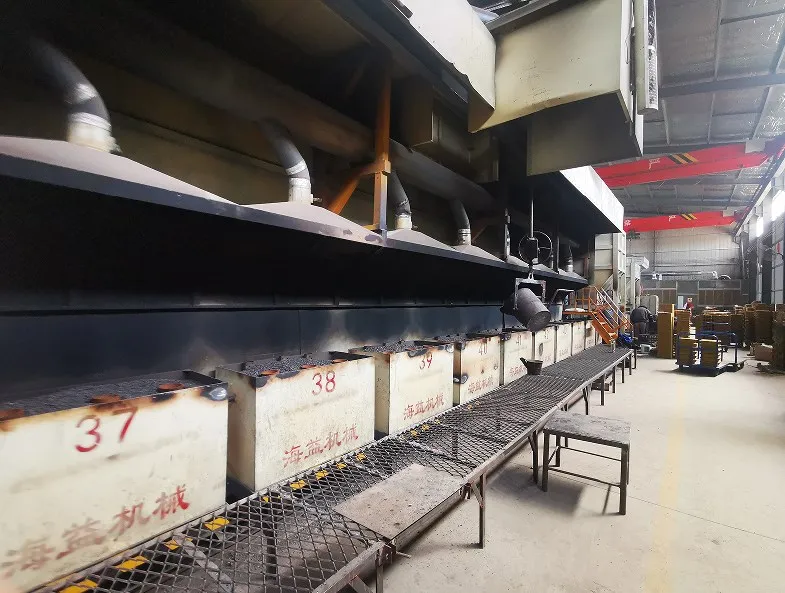

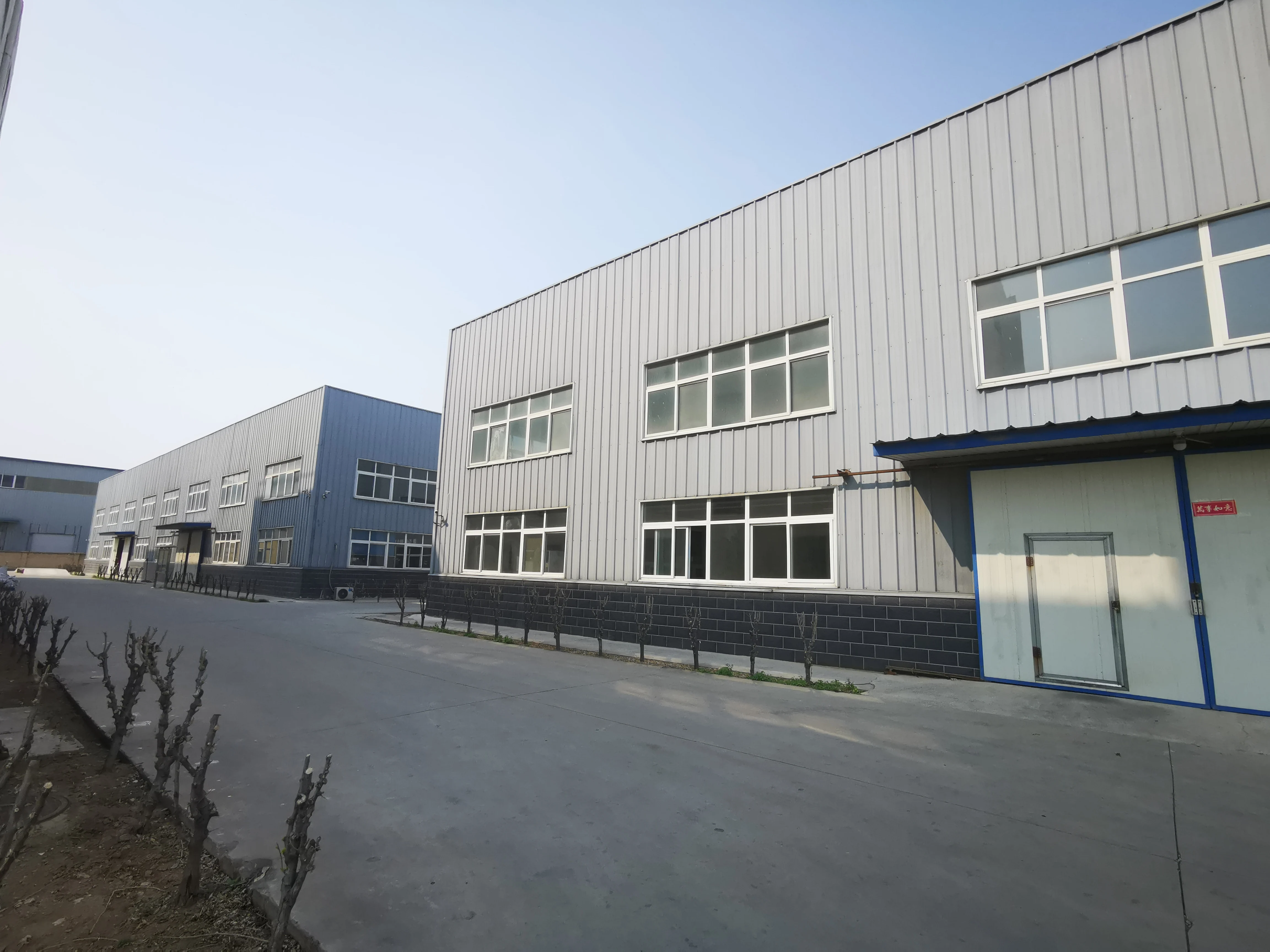

      Cangzhou XinBoLi Metal Products Co.,Ltd is located in Zhifangtou Industrial Zone, Cangxian County, Cangzhou City, Hebei Province, China and integrates design, production,machine and sale. There are several main bussiness areas in XinBoLi:



     1.Formwork and Scaffolding Accessories System ( Tie Rod, Wing Nut, Anchor Nut, Water Stopper, Prop Nut, Jack Nut, Rapid Clamp, Cuplock Scaffolding Accessories, Ringlock Scaffolding Accessories and Others)

    2. Post Tension Flat Anchorage System (Flat Anchorage,Block,Wedge,PC Strand , Metal Corrugated Duct and Others )

    3.Others (Ductile Iron Pipe Fittings, DIN&BS Gate Valve, Manhole Cover And Grating ; Customized Castings).

     Our foreign trading bussiness has developed for 8 years and products are sold to many countries all over the world and are awarded with high praise.



FAQ:



Q:Why choose us ?

A: We are a manufacturer for more than 20 years of iron castings production experience and have rich products range for you to one-stop buy.







Q: Can I get samples from your factory?

A: Yes, Free samples within 7 days.



Q:Do you have any MOQ limit for valve order?

A:No limitation.



Q:What’s your production capacity?

A: More than 5000 tons / annually .



Q:How about delivery time?

A: 15-30 days.



Q:What is your payment term?

A: T/T 30% advanced payment, balance against copy of B/L. or L/C.



Q: If products have some quality problems, how would you deal with?

A: We will responsible for all the quality problems.
