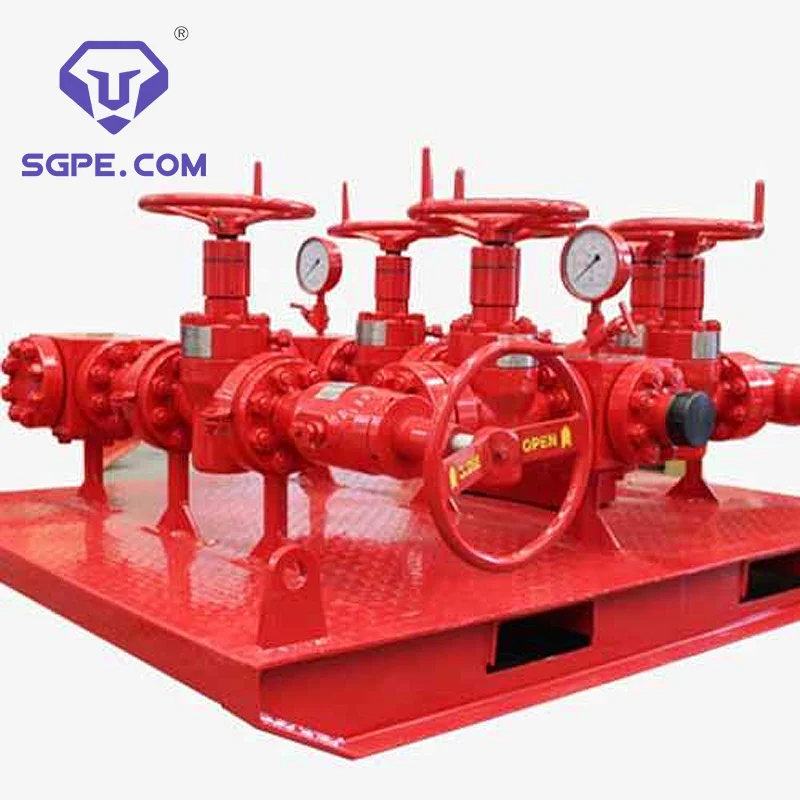

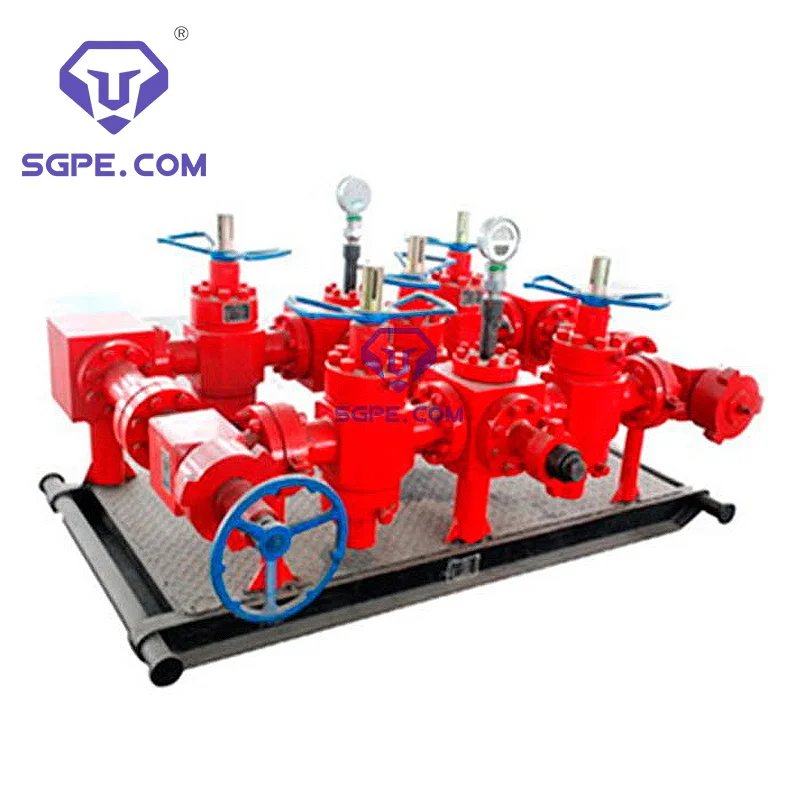

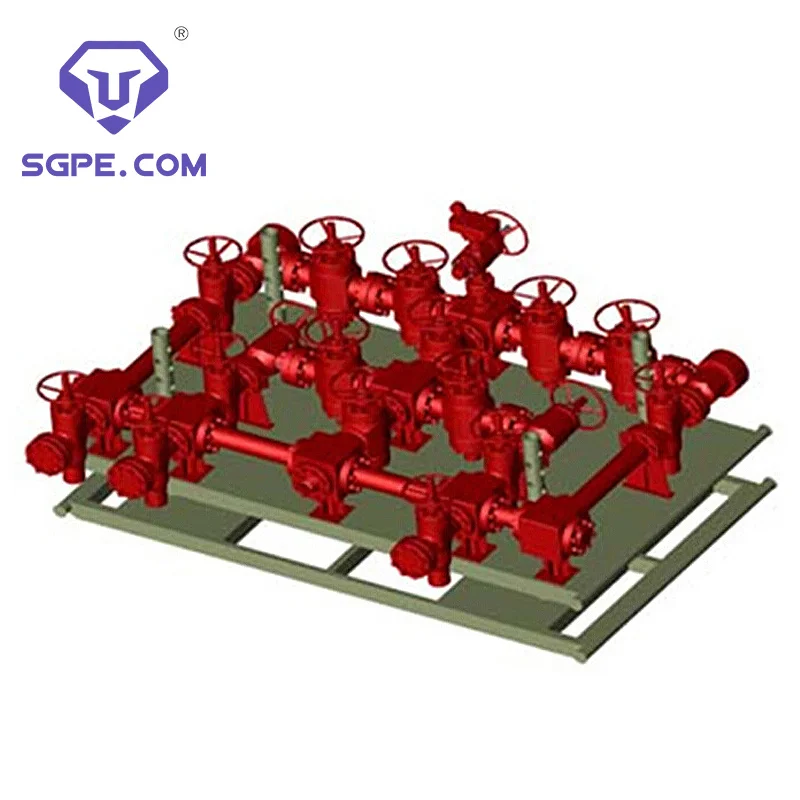

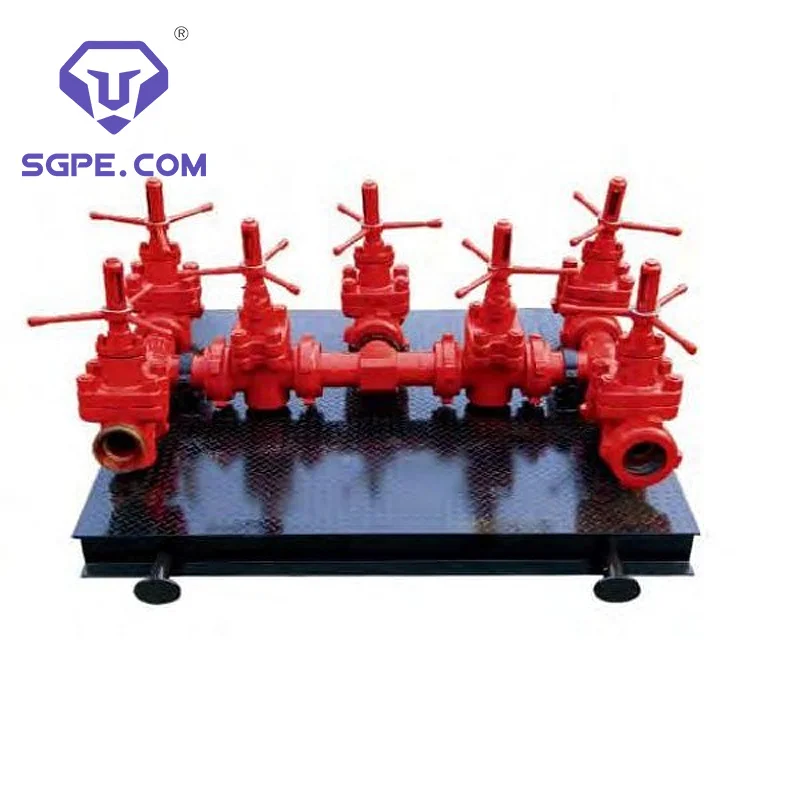

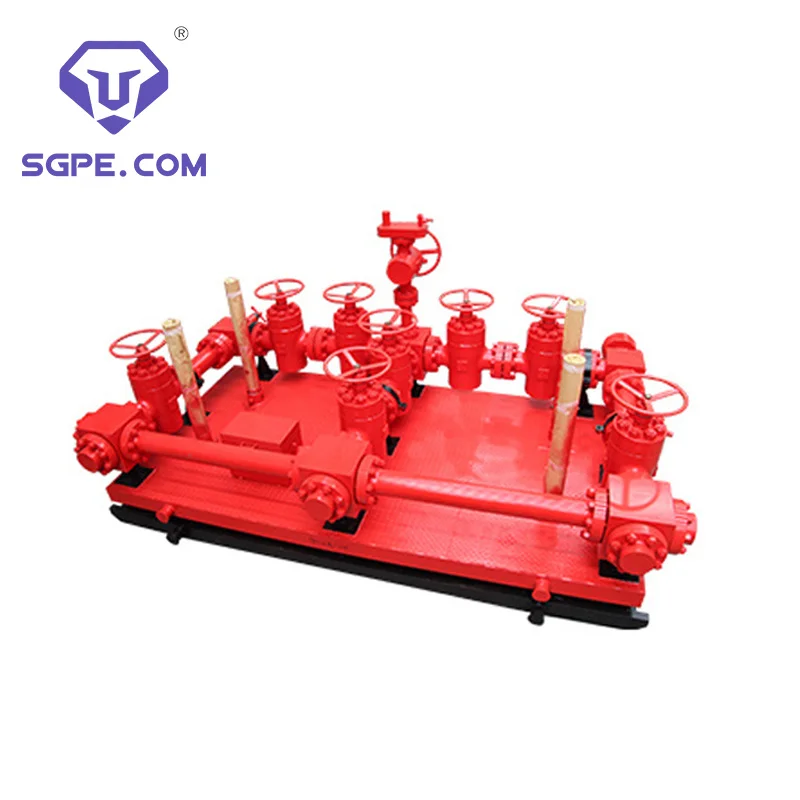

High Performance API 16C Choke And Manifold Ideal for Oil and Gas Industry Operations
- Category: >>>
- Supplier: Gpe Oil Machinery Co. Ltd.
Share on (1601266799249):
Product Overview
Description
Products Description
About GPE
We are a premier and integrated supplier of petroleum equipment, dedicated to providing high-quality products and outstanding
services. With years of expertise and a deep commitment to excellence, we offer a comprehensive range of petroleum equipment that
meets the diverse needs of our global clients.
services. With years of expertise and a deep commitment to excellence, we offer a comprehensive range of petroleum equipment that
meets the diverse needs of our global clients.
Title goes here.
API 16C High Quality Choke and for Oil Well Control
Well control choke manifold
Application
Our choke manifold is a necessary device to control the well kick successfully ,and execute the pressure control technology on
oil/gas well in the course of drilling.
In fact, we use this device to realize the new drilling-wells technique of balance pressure. which can prevent the pollution of
oil-layer, improve the speed of drilling, and control blowout effectively. One end of the device connects with the side flange of
the BOP spool.
When BOP closes:
it can control the finite pressure from the casing by adjusting the choke valves opening, so balanced drilling can work under
minimum pressure difference.
* Assembly & structure
* Our API 16C choke manifold consists of choke valve, gate valve, pipeline, fittings and pressure gauge, etc.
* Working principle
* When the pressure rising in the well, fluid in the well can be released,in the utilization of the choke valve opening/closing
in the Stopcock to control casing pressure.
* which can directly blow out through,we are the gate valve as the casing pressure is quite high.
* Operation requirements
(1)The working pressure of all components in our Stopcock,we should be matched with the working pressure of the BOP stack used.
(2) Stopcock should be installed at the place where operator approach it conveniently, pressure test should be executed as
installation, while the sealing test pressure should equal to the rated working pressure;
(3) We’re at work,pipeline should be so smooth and straight as possible, the corner of the pipeline should be made of 120°shaped
forged steel bent pipe, which should have an adequately large bore.
(4) The working pressure gauge should be installed.
(5) In winter, the Stopcock is able to work under a low-temperature condition.
* Technical specifications
* Working pressure: 2,000psi – 15,000psi
Nominal bore size: 2 1/16″ to 4 1/16″
Product specification level: PSL1~PSL4
Material class: AA-FF
Performance level: PR1~PR2
Working medium: Gas, crude, drilling fluid
Well control choke manifold
Application
Our choke manifold is a necessary device to control the well kick successfully ,and execute the pressure control technology on
oil/gas well in the course of drilling.
In fact, we use this device to realize the new drilling-wells technique of balance pressure. which can prevent the pollution of
oil-layer, improve the speed of drilling, and control blowout effectively. One end of the device connects with the side flange of
the BOP spool.
When BOP closes:
it can control the finite pressure from the casing by adjusting the choke valves opening, so balanced drilling can work under
minimum pressure difference.
* Assembly & structure
* Our API 16C choke manifold consists of choke valve, gate valve, pipeline, fittings and pressure gauge, etc.
* Working principle
* When the pressure rising in the well, fluid in the well can be released,in the utilization of the choke valve opening/closing
in the Stopcock to control casing pressure.
* which can directly blow out through,we are the gate valve as the casing pressure is quite high.
* Operation requirements
(1)The working pressure of all components in our Stopcock,we should be matched with the working pressure of the BOP stack used.
(2) Stopcock should be installed at the place where operator approach it conveniently, pressure test should be executed as
installation, while the sealing test pressure should equal to the rated working pressure;
(3) We’re at work,pipeline should be so smooth and straight as possible, the corner of the pipeline should be made of 120°shaped
forged steel bent pipe, which should have an adequately large bore.
(4) The working pressure gauge should be installed.
(5) In winter, the Stopcock is able to work under a low-temperature condition.
* Technical specifications
* Working pressure: 2,000psi – 15,000psi
Nominal bore size: 2 1/16″ to 4 1/16″
Product specification level: PSL1~PSL4
Material class: AA-FF
Performance level: PR1~PR2
Working medium: Gas, crude, drilling fluid

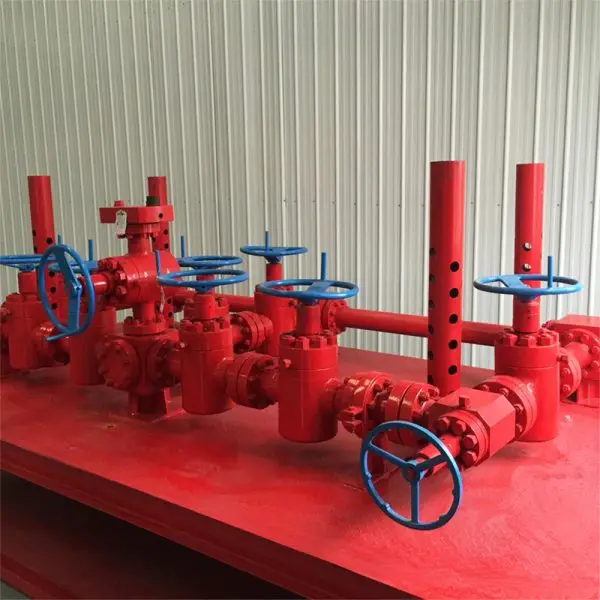

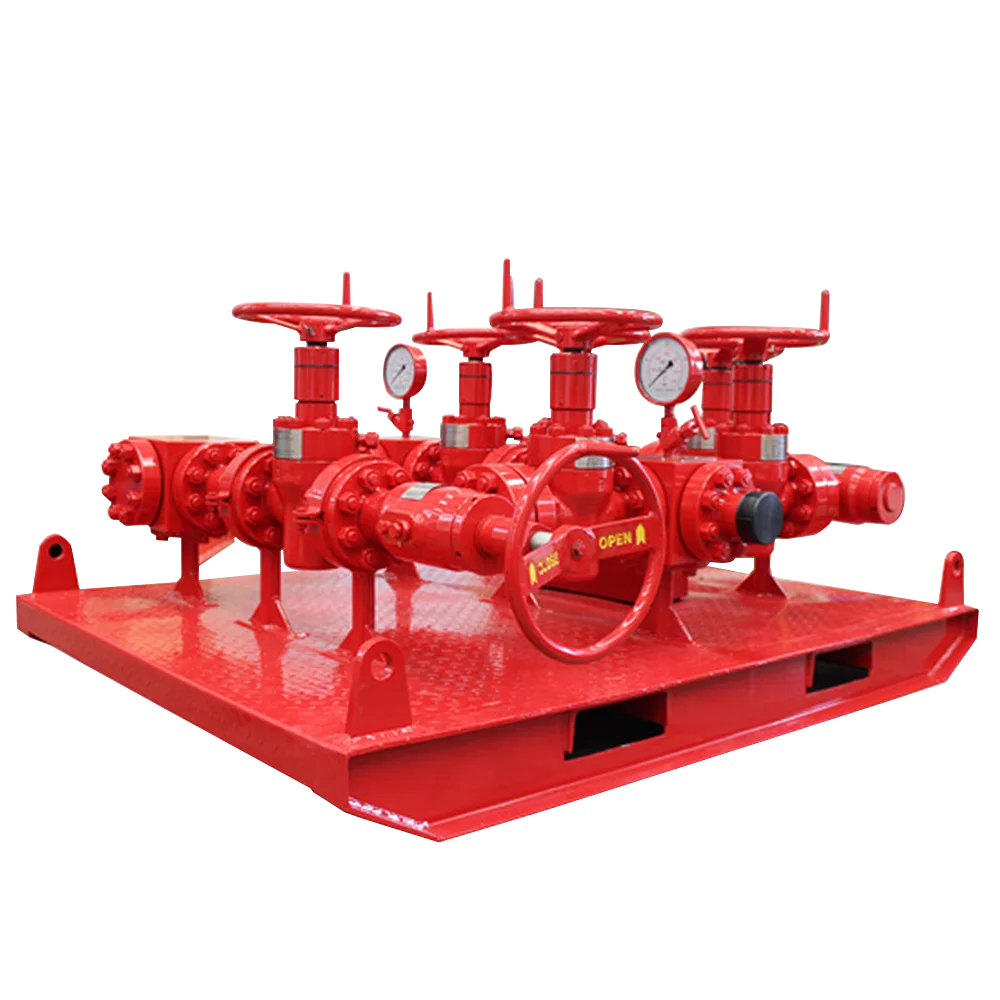

Product display
Product Paramenters
Pressure | 35MPa(5000psi) | 70MPa(10000psi) | 105MPa(15000psi) |
Color | Blue | Yellow | Red |
Model | JG/S52-35 | JG/S78-70 | JG/S78-105 |
Design Pressure | 35MPa | 70MPa | 105MPa |
Weight | 2530kg(5578lb) | 3580kg(7892.5lb) | 4630kg(10260lb) |
Dimension(L×W×H) | 1802×1339×680mm | 2516×1824×799mm | 3270×2371×1038.7mm |
Material Level | EE | EE | EE |
Product specification level | PRL3 | PRL3 | PRL3 |
Working Temperature | PU(-29℃~121℃) | PU(-29℃~121℃) | PU(-29℃~121℃) |
Product performance level | PR1 | PR1 | PR1 |
Nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle |
Characteristics | Five gate design | Five gate design | Five gate design |
work medium | Mud,oil and drilling fluid | Mud,oil and drilling fluid | Mud,oil and drilling fluid |
Connection type | Flange | Flange | Flange |

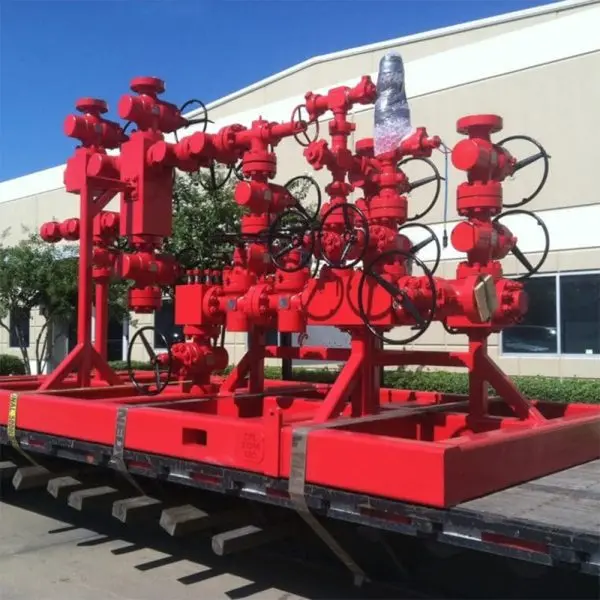

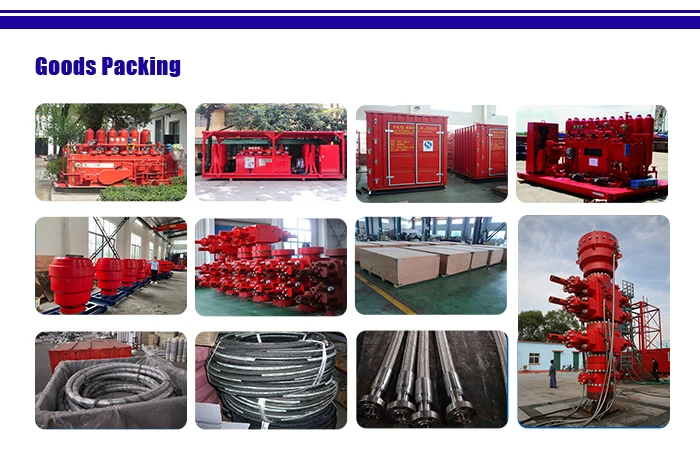

Product packaging
Certifications
Material | Alloy |
Place of Origin | China |
Province | Shandong |
Brand Name | GPE |
Model Number | Rotary Table |
Application | the oil industry |
DFeatures | Durable and high-quality petroleum equipment |
Condition | New |
Production Capacity | 200 |
Warranty | 1 Year |
Dimension(L*W*H) | 210.00cm * 85.00cm * 85.00cm |
Applicable Industries | Energy & Mining |
Weight (KG) | 105 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1 Year |
Core Components | Rotary Table |
Product name | Rotary Table |
Type | Skid Mounted |
Usage | Oilfield Drilling Equipment |
Our Honors
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures,industrialvoltage, planned output, and our engineers will provide solutions and quotations in time.
Q2. How about your delivery time?
A2: Generally, it will take 35 working days after receiving your deposit payment. The specific deliverytime depends on the
items and the quantity of your order, Sometimes we have standard machines instock.
items and the quantity of your order, Sometimes we have standard machines instock.
Q3. What is the warrantee period of the machine?
A3: We can supply 1 year warranty for our machines, We can provide internet or calling service at anytime. We can also send engineers to your place if the production has big quality problems.
A3: We can supply 1 year warranty for our machines, We can provide internet or calling service at anytime. We can also send engineers to your place if the production has big quality problems.
Q4. after-sales service
A4: 1. Installation: Free installation and commissioning, travel expense is on foreign(Including round ticket and accommodation cost) customer 2. Personnel training: Our engineers will give your employees free machine training when they cometo your company to assemble the machines, and welcome to our factory to learn how to operate ourmachine. Q5. What services can we provide?
A5: Accepted Delivery Terms: FOB, CFR, CIF, EXW,FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery,DAF, DES; Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY,CHF;Accepted Payment Type: T/T, L/c,D/P D/A, MoneyGram, Credit Card, PayPal, Western UnionCash,Escrow; Language Spoken: English,Chinese, Spanish, Russian
