Product Overview
Description
Product Description

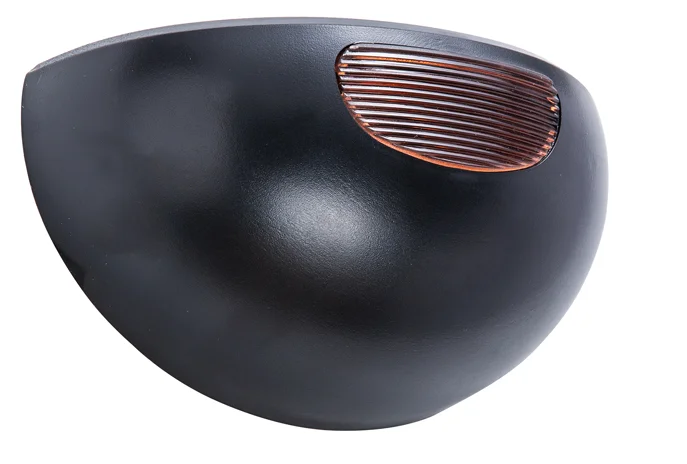

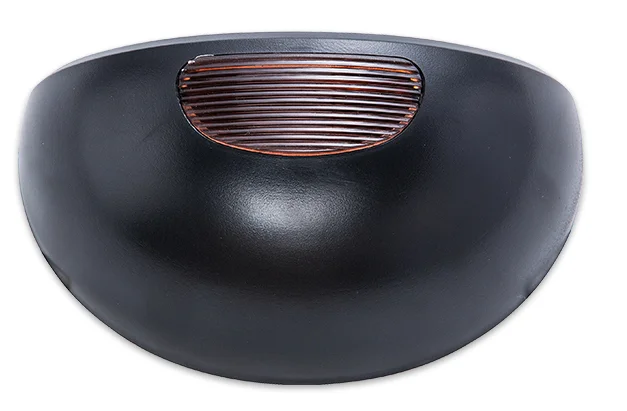

Doortec MS03 microwave sensor motion sensor for automatic sliding door
Product features:1.Germany Innosent detecing chip,24.125GHZ.
2.Electric filter provide a good capacity of resisting disturbance from raining ,wind,lighting and so on .
3.safe ,beautiful ,economic ,comfortable
Technical parameters
Realization technology | Microwave and microprocessor |
Launch frequency | 24.125GHZ |
Launch power | <20 dBm EIRP |
Launch frequency density | <5mW/cm² |
Assemble an altitude maximal | 3m |
Assemble a dip angle | 15° ,30° ,45° , 60° |

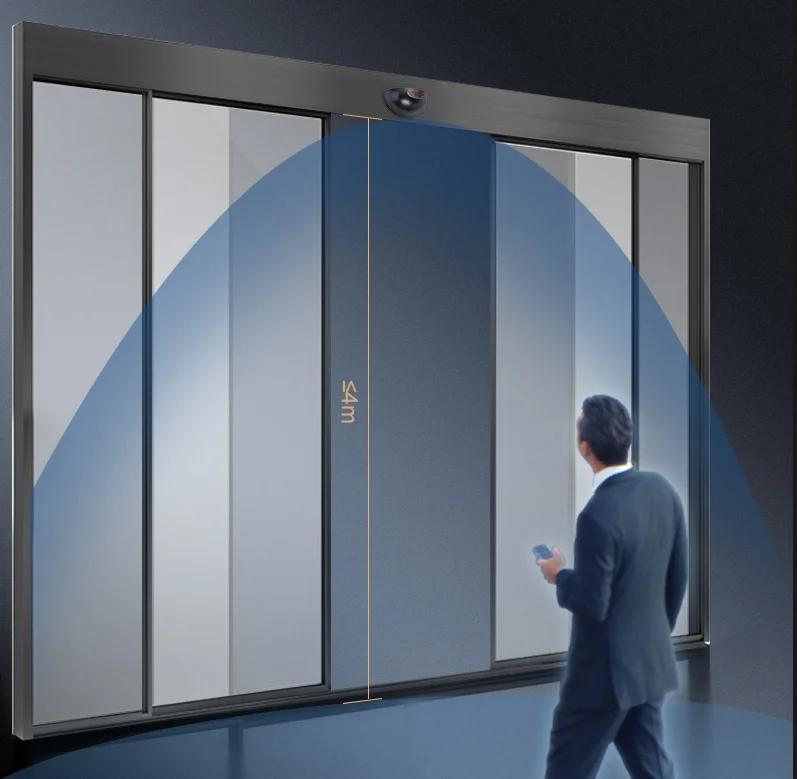

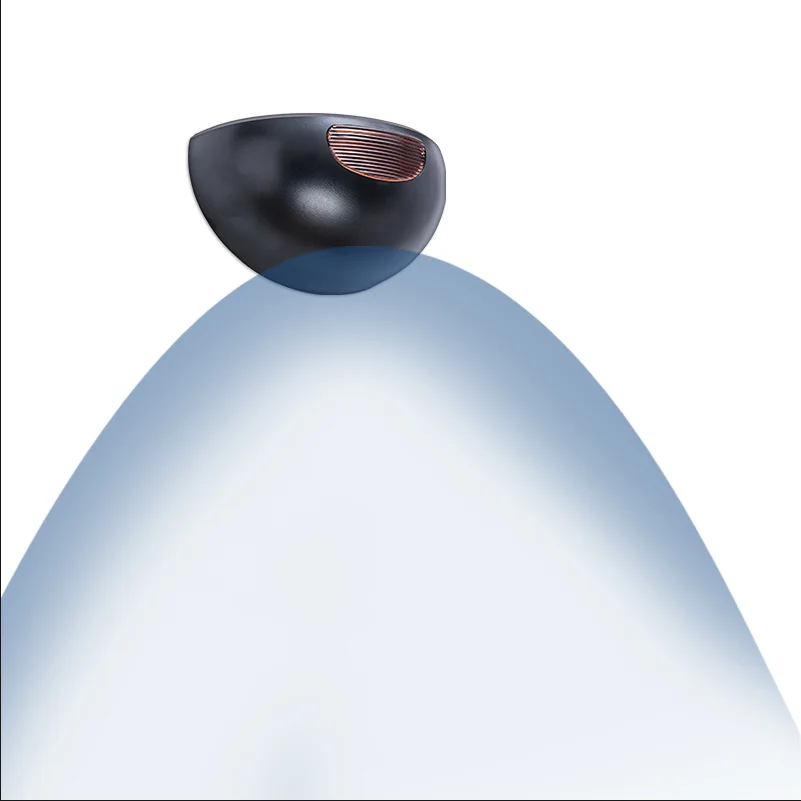

The maximum checks range (while assembling 2.2 meters of altitude | 4m(W) *2m(H) |
Checking pattern | Move |
The minimum checks speed | 5cm/s (Along the longitudinal axis of air wire to tests) |
Power source frequency | 50-60 HZ |
Maximal contact voltage | 42V AC-60V DC |
Maximal contact electric curren | 1A (Electric resistance) |
The maximum change power | 30W(DC) / 60VA(AC) |
Output retention time | 0.5 second |
Temperature range | -20°C to +55°C |
Protection rate | IP 52 |
Outer covering material | ABS Plastic |
Outer covering color | Black, Silver gray |
External form dimension | 128mm(L) * 66mm(W)* 60mm(H) |
Weight | 0.100kg |
Conducting wire length | 2.5m |
