MT Medical Practical Veterinary CT Scanner CBCT Instrument for Pet Diagnosis Vet Computed Tomography Scanner for Sale
- Category: >>>
- Supplier: Hefei Mt Medical Co. Ltd.Hefei Ltd.
Share on (1601266994702):
Product Overview
Description
You Maybe Also Like
Product Description
Specification
Blue-Standby Orange-Expose Red-Emergency stop Green-Prepare
Radiography
MT CBCT has the capability to capture two-dimensional mages the same as conventional digital radiography, enhancing the benefits of this sought-after equipment.
Clinical Application: Its clinical applications encompass the musculoskeletal, respiratory, and genitourinary systems. However, the effectiveness is limited in the imaging of cardiovascular and central nervous systems,where more advanced imaging tools need to be chosen for diagnosis.
Fluoroscopy
Fluoroscopy enhances diagnostic efficiency and reduces the risk of missed or incorrect diagnoses by analyzing moving anatomical structures.
Clinical Application:It's primarily used in clinical settings for real-time multi-angle observation of moving organs(such as the lungs, diaphragm,and digestive tract), orthopedic surgical interventions, contrast studies of the digestive system, and imaging of the urinary system, Respiratory, and
genitourinary systems. However, the effectiveness is limited in the imaging of cardiovascular and central nervous systems, where more advanced imaging tools need to be chosen for diagnosis.
genitourinary systems. However, the effectiveness is limited in the imaging of cardiovascular and central nervous systems, where more advanced imaging tools need to be chosen for diagnosis.
Maximum Intensity Projection (MIP)
Maximum Intensity Projection(MIP)technology selects the maximum density pixels for composite projection, displaying blood vessels, calciflcations,bones, and soft tissues in different shades of gray. It is mainly used for the detection of pulmonary nodules,observation of blood vessel
paths, fractures, tumors,osteoporosis, etc.
paths, fractures, tumors,osteoporosis, etc.
Multiplanar Reconstruction(MPR)
MPR is a post-processing method that 2D images of any tissue or organ level from original axial images. It can display internal structures and lesions,making it particularly useful for complex anatomical structures and organs. It is advantageous for diagnosing bone fractures, arterial dissection, and gallbladder and ureteral calculi.
Curved Planar Reformation (CPR)
CPR is a post-processing tool that allows for the creation of a 2D panoramic image from the 3D volumetric data obtained from CBCT and helps visualize curved anatomical structures in a single image which is commonly used for dental evaluation.
VR- Skeletal Reconstruction
Skeletal reconstruction can present a 3D, intuitive, and clear representation of the normal physiological state of the bones. It has high clinical value for the development and evaluation of surgical plans for orthopedic and plastic surgery, especially in cases with complex anatomical structures and positions.

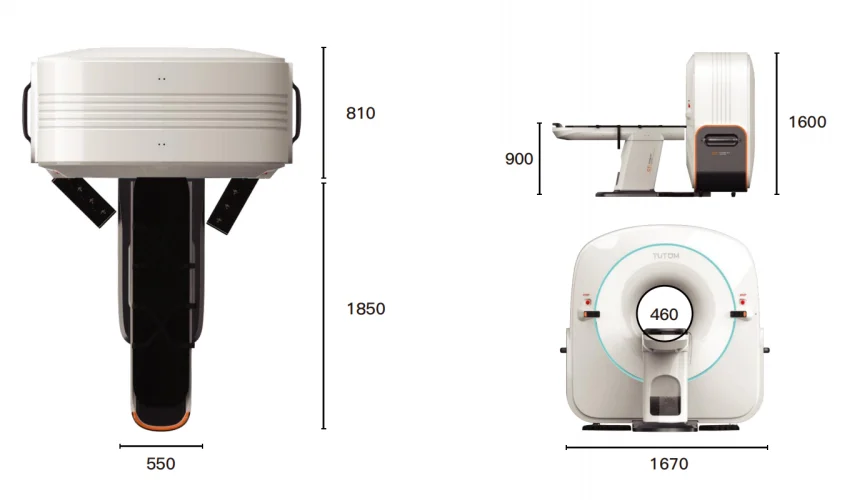

Technical Specifications | ||||||
X-ray Source | Rotating anode | Scan Duration | 24s | |||
FOV | 20cmx17cm | Exposure Duration | 8s | |||
Tube Voltage | 40-125 kV | Weight | 260kg | |||
Tube Current | 1-16mA | Scan Mode | 360°rotational scanning | |||
Focal Spot | 0.3mm、0.6mm | Spatial Resolution | 1.7 lp/mm | |||
Rotational Center Aperture | 460mm | Power Supply | 220VAC±10%/110VAC±10% | |||
Weight Bearing of Bed | <60kg | 50HZ /60HZ | ||||
Pixel Pitch | 120μm | Slice Thickness | 0.24mm | |||
Company Profile
MT MEDICAL focus on OR & ICU Room Solutions, our main products: operation table, operation lamp, ceiling pendant, hospital bed,medical trolley, patient monitor,x-ray film viewer, medical cabinets, Digital x-ray machine, and other hospital furniture and veterinary equipment. We have a professional marketing team and After-sales team.Every year we have new product research and development. our main markets are 10% North American, 10% South American, 15% Middle East, 15% Southeast Asia, 10% Europe, 10% the Commonwealth of the Independent States, 10% Oceanic and others 5%. if you want to get more information, pls contact us.
Exhibition
Packaging &Shipping
FAQ
Q: Are you manufacturer?
A: Yes, we have our own R&D team and sales team, We provide you one-stop service.Q: Do you have CE, ISO13485?
A: Yes, our products are approved by CE, ISO13485
Q: Is OEM &ODM available in your factory?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight
2.T/T: 30% deposit by T/T, 70% balance by T/T before shipment
3.Trade term: EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package, standard export packages
2.All of the productions are inspected carefully by QC before delivery
Q: What is your Min.order?
A: There's no minimum quantity.
A: Yes, we have our own R&D team and sales team, We provide you one-stop service.Q: Do you have CE, ISO13485?
A: Yes, our products are approved by CE, ISO13485
Q: Is OEM &ODM available in your factory?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight
2.T/T: 30% deposit by T/T, 70% balance by T/T before shipment
3.Trade term: EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package, standard export packages
2.All of the productions are inspected carefully by QC before delivery
Q: What is your Min.order?
A: There's no minimum quantity.
