Product Overview
Description
Overview
R5-10KLNA/R12-16KLNA:
The Low-Voltage North American hybrid inverter series is specifically designed for home energy storage, operating at 48V with a split-phase configuration. With support for parallel connection of up to 6 devices, Megarevo 48V split-phase inverters, coupled with an intelligent display, offer enhanced convenience for operation and maintenance.Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification.
New Upgrade Advantages
This is a new and upgraded product which becomes more friendly and flexible. Compared to the old model, it has new upgrades in appearance, installation, function and safety.
Technical Specifications
Model | R5KLNA | R6KLNA | R7K6LNA | R8KLNA | R10KLNA | |||||
Max.DC input power (kW) | 7.5 | 9 | 12 | 12 | 15 | |||||
No. of MPPT trackers | 4 | |||||||||
MPPT voltage range (V) | 120~500 | |||||||||
MAX.DC input voltage (V) | 500 | |||||||||
MAX. input current (A) | 14 | |||||||||
Battery input | ||||||||||
MAX.charging/discharging current (A) | 120/120 | 135/135 | 190/190 | 190/190 | 190/210 | |||||
Battery voltage range (V) | 40-60 | |||||||||
Battery type | Lithium /Lead-acid | |||||||||
Charging strategy for Li-lon battery | Self-adaption to BMS | |||||||||
AC output(on-grid) | ||||||||||
Output voltage range (V) | (110~120)/(220~240)split phase, 240V single phase | |||||||||
Output frequency (Hz) | 60(55 to 65) | |||||||||
Nominal AC current output to grid (A) | 20.8 | 25 | 31.7 | 33.3 | 41.7 | |||||
Max. AC current output to grid (A) | 22.9 | 27.5 | 34.8 | 36.7 | 45.8 | |||||
Max. grid passthrough current (A) | 100 | |||||||||
Output THDi | ＜3% | |||||||||
AC output(back-up) | ||||||||||
Nominal output voltage L-N/L1-L2 (V) | 120/240 | |||||||||
Nominal output frequency (Hz) | 60 | |||||||||
Automatic switchover time (ms) | ＜20 | |||||||||
Output power factor | 0.8leading~0.8lagging | |||||||||
Output THDi | ＜2% | |||||||||
General data | ||||||||||
Mppt. efficency | 99.9% | |||||||||
Europe efficiency (PV) | 96.5% | |||||||||
PV to grid efficiency (PV) | 97.2% | |||||||||
Battery to load efficiency | 95.2% | |||||||||
PV to battery charing efficiency | 96.1% | |||||||||
Grid to battery charing efficiency | 95.0% | |||||||||
Output conduit (mm) | 25.4 | |||||||||
PV input conduit (mm) | 25.4 | |||||||||
BAT input conduit (mm) | 35.4 | |||||||||
Operating temperature range (℃) | -25~+60 | |||||||||
Relative humidity | 0-95% | |||||||||
Operating altitude | 0~4,000m(Derating above 2,000m altitude) | |||||||||
Ingress protection | IP65/NEMA 3R | |||||||||
Built-in breaker | Optional | |||||||||
Weight (kg) | 48kg(50kg with breaker) | |||||||||
Dimensions W*H*D (mm) | 450 x 820 x 240 | |||||||||
Cooling | FAN cooling | |||||||||
Noise emission (dB) | 38 | |||||||||
Display | LCD,Touch panel(optinal) | |||||||||
Communication with BMS/Meter/EMS | RS485, CAN | |||||||||
Supported communication interface | RS485, WLAN, 4G (optional) | |||||||||
Self-consumption | ＜25W | |||||||||
Safety | UL1741SA all options, UL1699B, CSA 22.2 | |||||||||
EMC | FCC part 15 class B | |||||||||
Support diesel generator | YES | |||||||||
Grid connection standards | IEEE 1547, IEEE 2030.5, Hawai rule 14H, Rule 21 phase I,Il,III | |||||||||
Product Advantages
The Megarevo hybrid inverter 48V can meet power demands of up to 10KW for various home energy storage applications.
Recommend Products
Sunket is officially authorised by Megarevo, one of only 5 suppliers in North America, to perfectly match the self-developed LFP 16kWh/LV low voltage batteries. Our one-stop product service saves you the extra manpower and money spent on purchasing matching batteries. Adiitionally, we provide Megarevo original after-sales service to guarantee every customer's experience, reliable quality and worry-free after-sales.

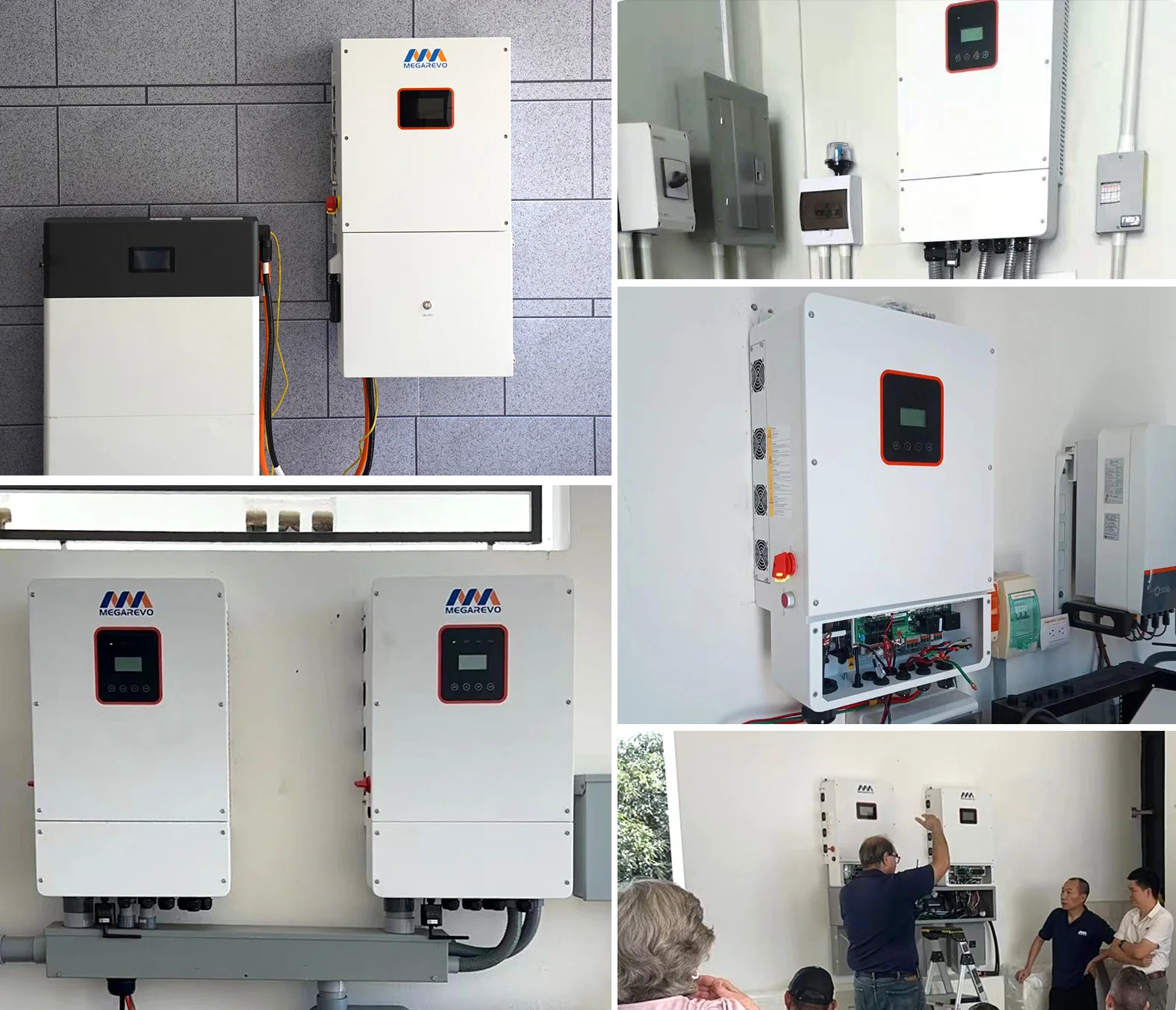

Project Cases
