Bolida Hot Sale wood sawdust making machine/PLC control Waste Wood Branch Shredder Crusher Price
- Category: >>>
- Supplier: Shandong Bolida Machinery Co. Ltd.
Share on (1601267157973):
Product Overview
Description
Products Description
Wood Hammer Mill/PLC control biomass wood waste recycle machine to making sawdust sawdust hammer mill manufacturer

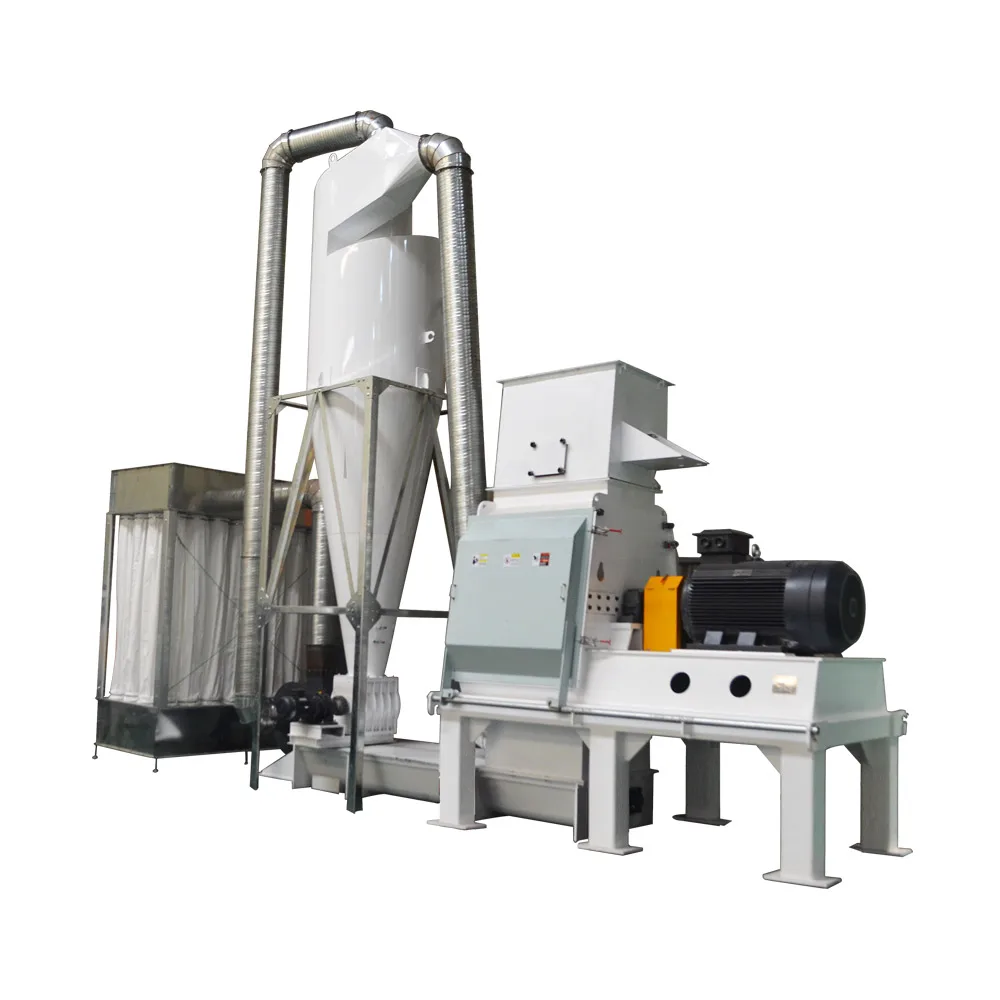

Wood hammer mill, also called wood crusher, wood sawdust making machine, is mainly used to grind wood chips into 4-12mm sawdust. For wood hammer mill, when working, it used to work together with air lock, fan blower, cyclone and bag dust collector. Wood hammer mill is widely used in biomass pellet plant.
Product Paramenters
Model | Power(KW) | Capacity(t/h) | Hammers(pcs) | Weight(t) |
BDFS65*27 | 22 | 0.5-0.8 | 24 | 0.6 |
BDFS65*55 | 37/45 | 1-2 | 72 | 1.5 |
BDFS65*75 | 55/75 | 2-3 | 108 | 1.8 |
BDFS65*100 | 90/110 | 4-5 | 144 | 2.4 |
BDFS120*75 | 132/160 | 4-6 | 108 | 5 |
BDFS120*100 | 185 | 5-8 | 144 | 5.5 |

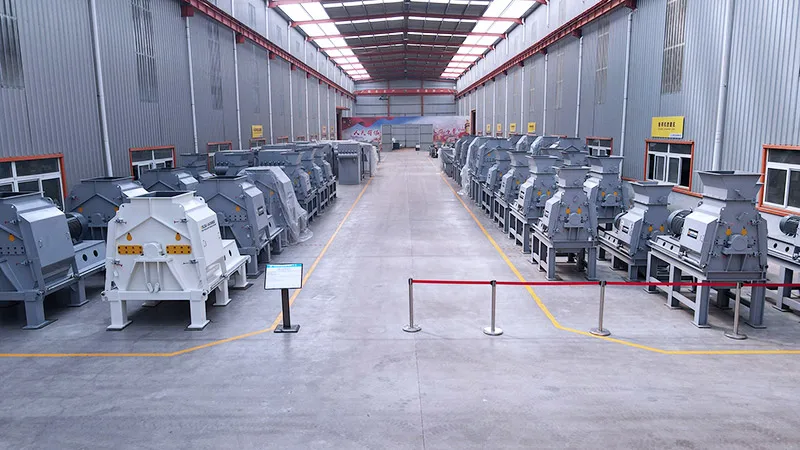

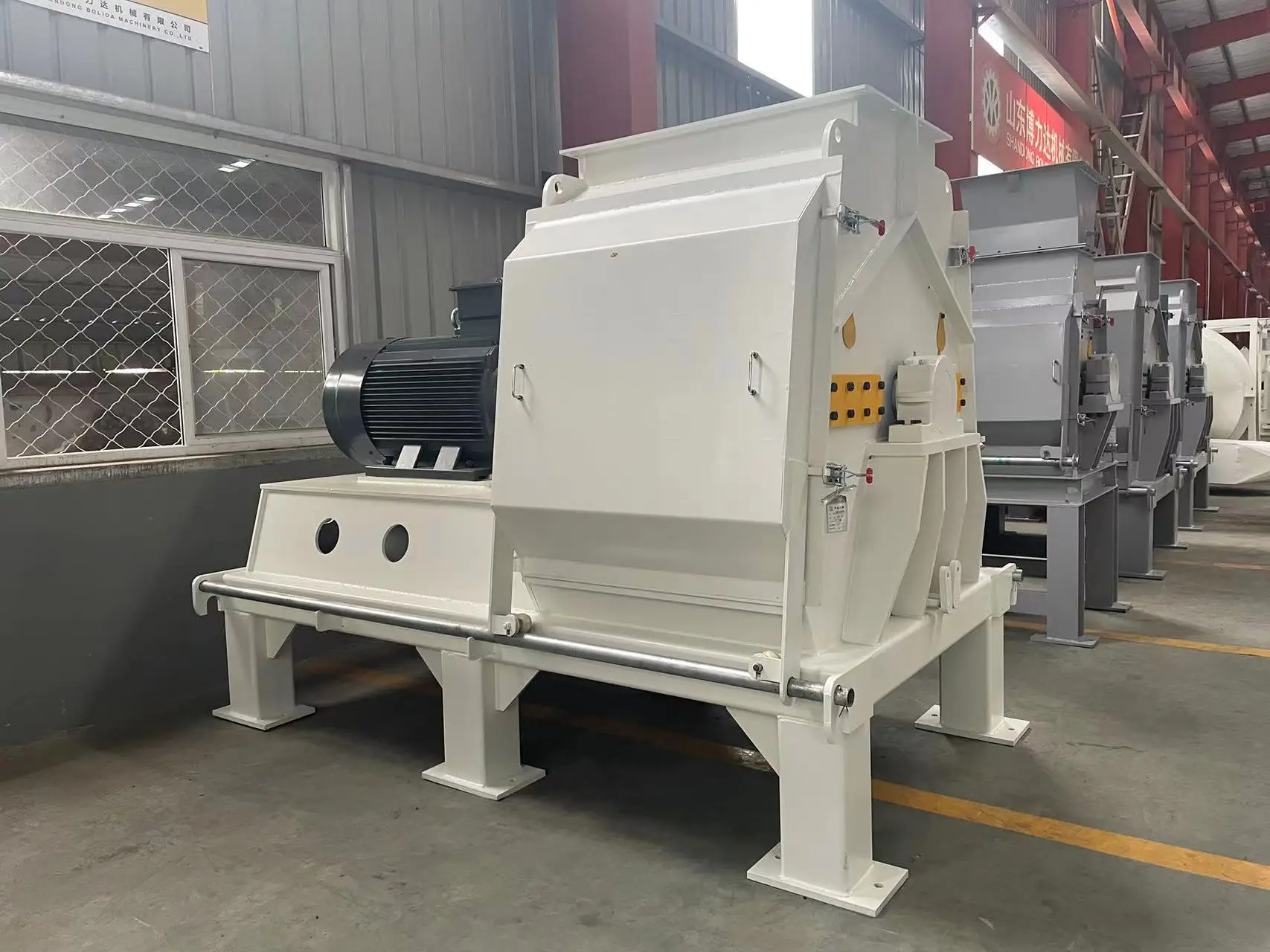

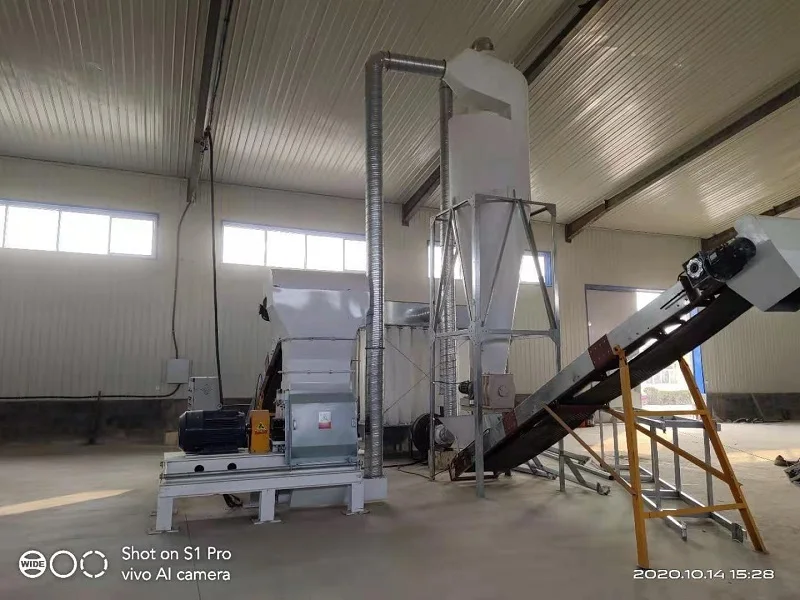

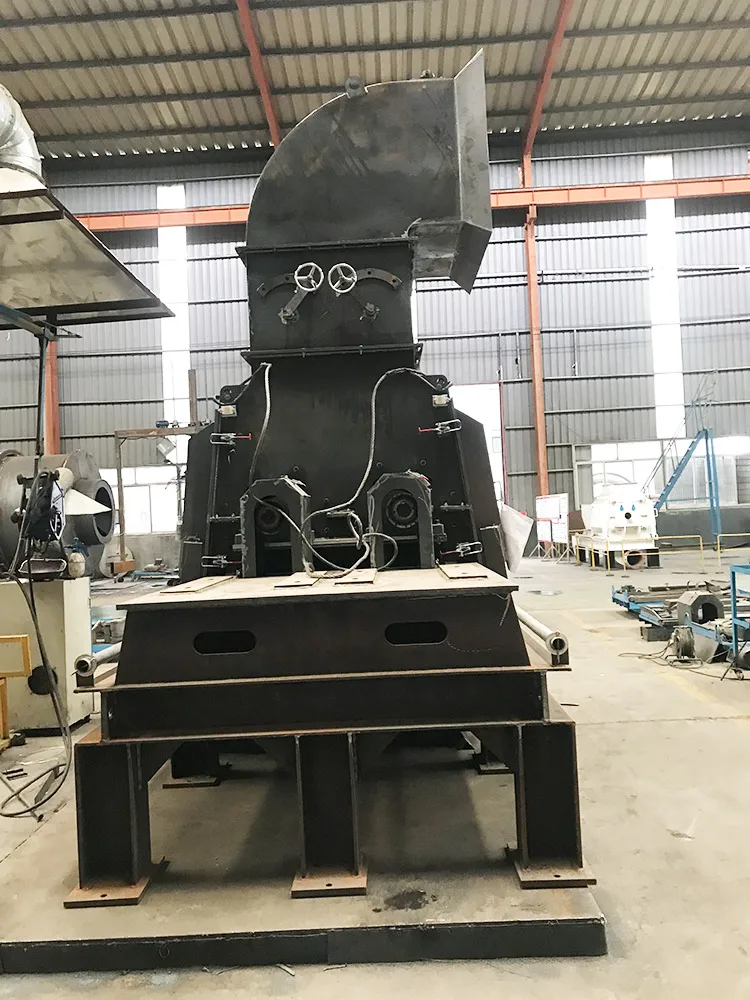

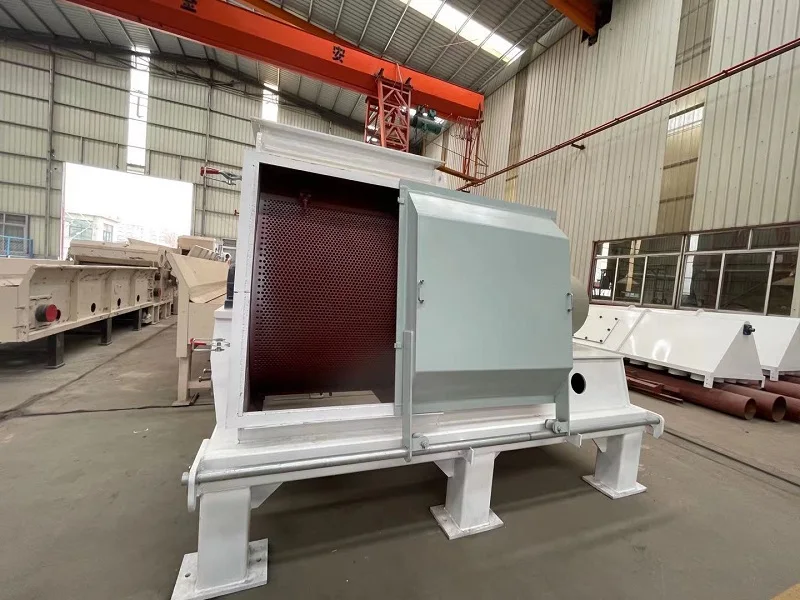

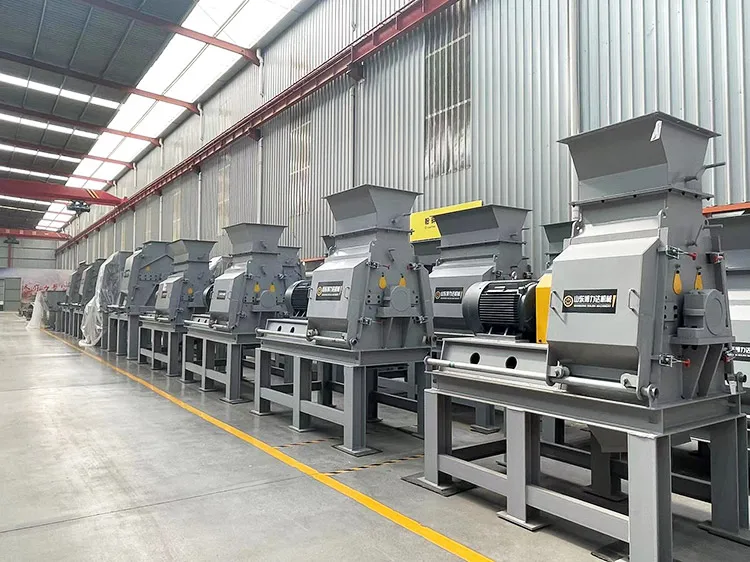

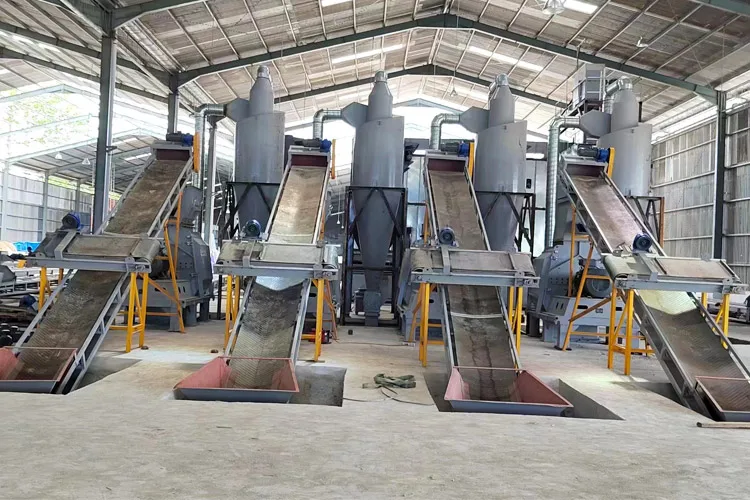

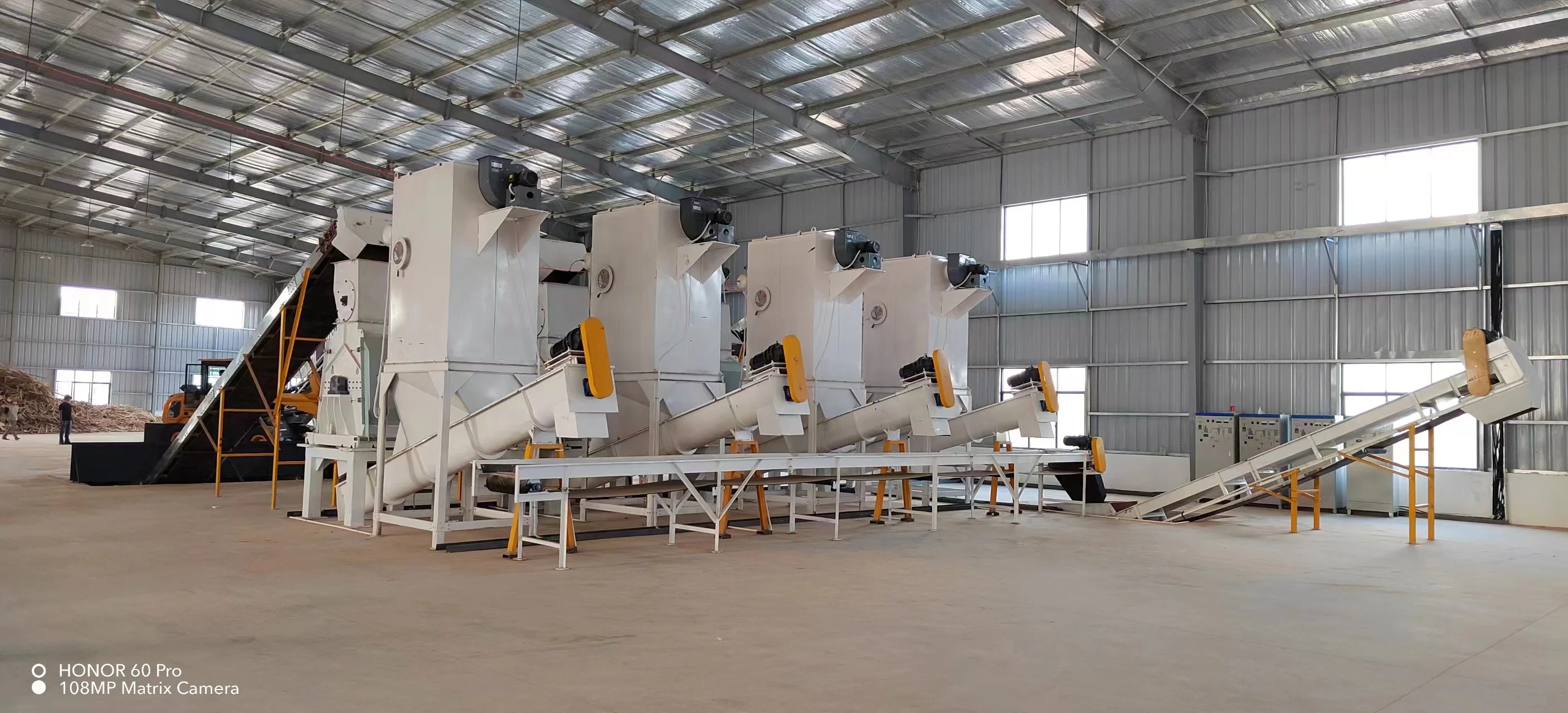

Some Photos of Hammer Mill
Advantage of Bolida Wood Hammer Mill
(1) Heavy body, carbon steel material, long using life and machine running stable.

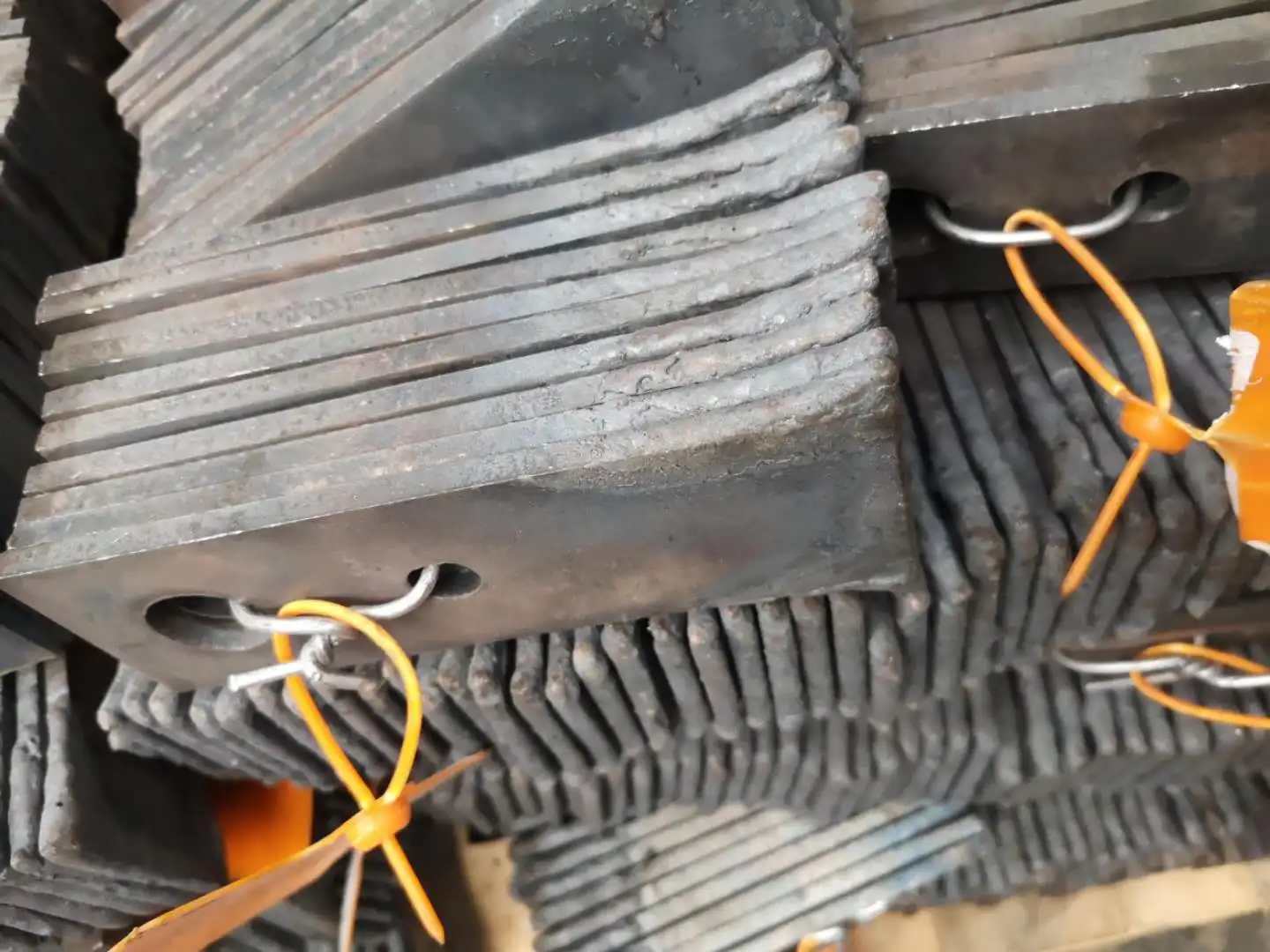

(2). Hammer mill material is tungsten carbide spot welding, long wear parts service life will save your money and save your time.

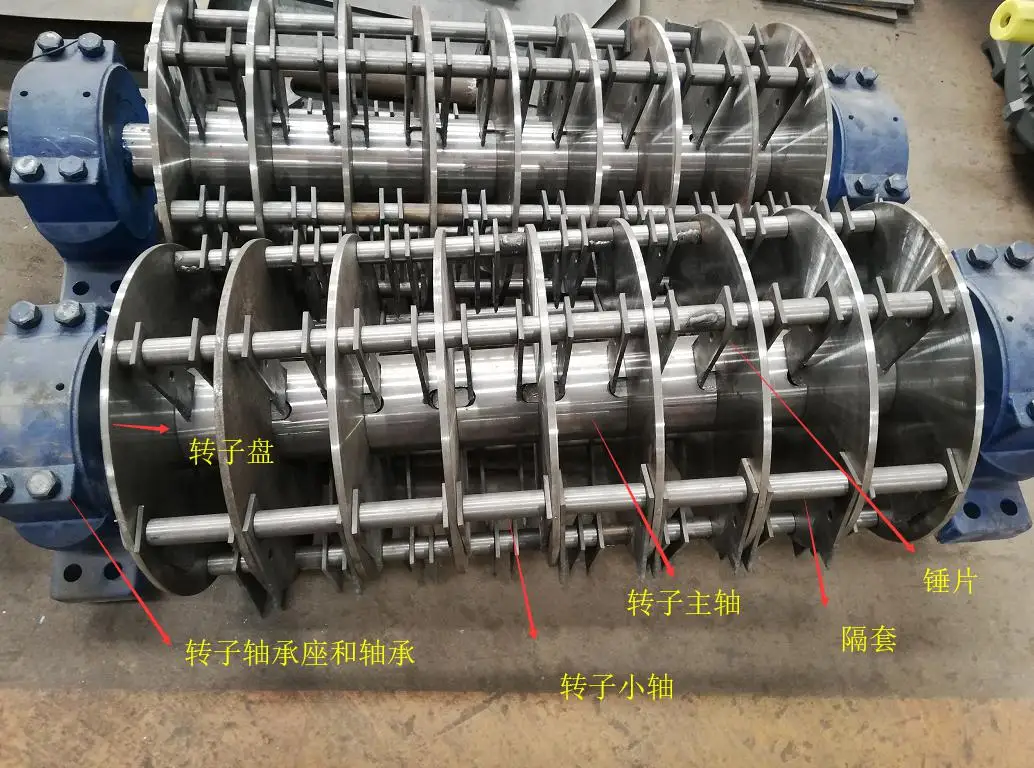

(3) Rotor thickness is larger than others, and weight is heavy. Better protection of machines.
(4)Cyclone and bag dust collector system.
(5)Stable structure, reliable, easy to install and operate, no vibration, high output.
(6).All of our rotors pass an accurate dynamic balancing test, low noise and smooth running. Per tested, double rotor hammer mill no-load noise is 102 decibels, load noise is 95 decibels.
(7)SIEMEN'S brand motor.
(2). Hammer mill material is tungsten carbide spot welding, long wear parts service life will save your money and save your time.
(3) Rotor thickness is larger than others, and weight is heavy. Better protection of machines.
(4)Cyclone and bag dust collector system.
(5)Stable structure, reliable, easy to install and operate, no vibration, high output.
(6).All of our rotors pass an accurate dynamic balancing test, low noise and smooth running. Per tested, double rotor hammer mill no-load noise is 102 decibels, load noise is 95 decibels.
(7)SIEMEN'S brand motor.
Raw Material and Application

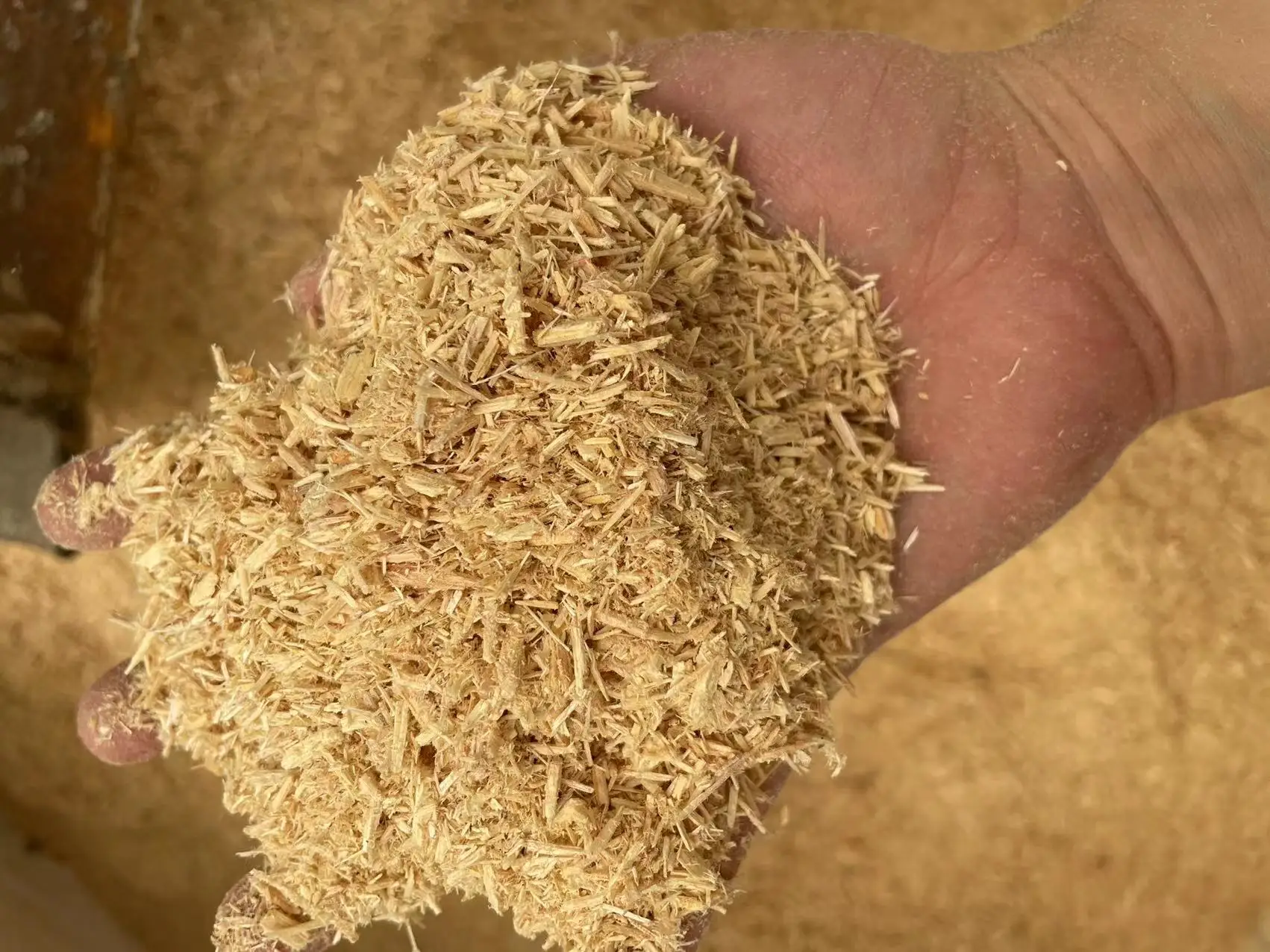

Finished Products from Wood Hammer Mill/PLC control sawdust grinding machine for pellet plant use sawdust hammer mill manufacturer

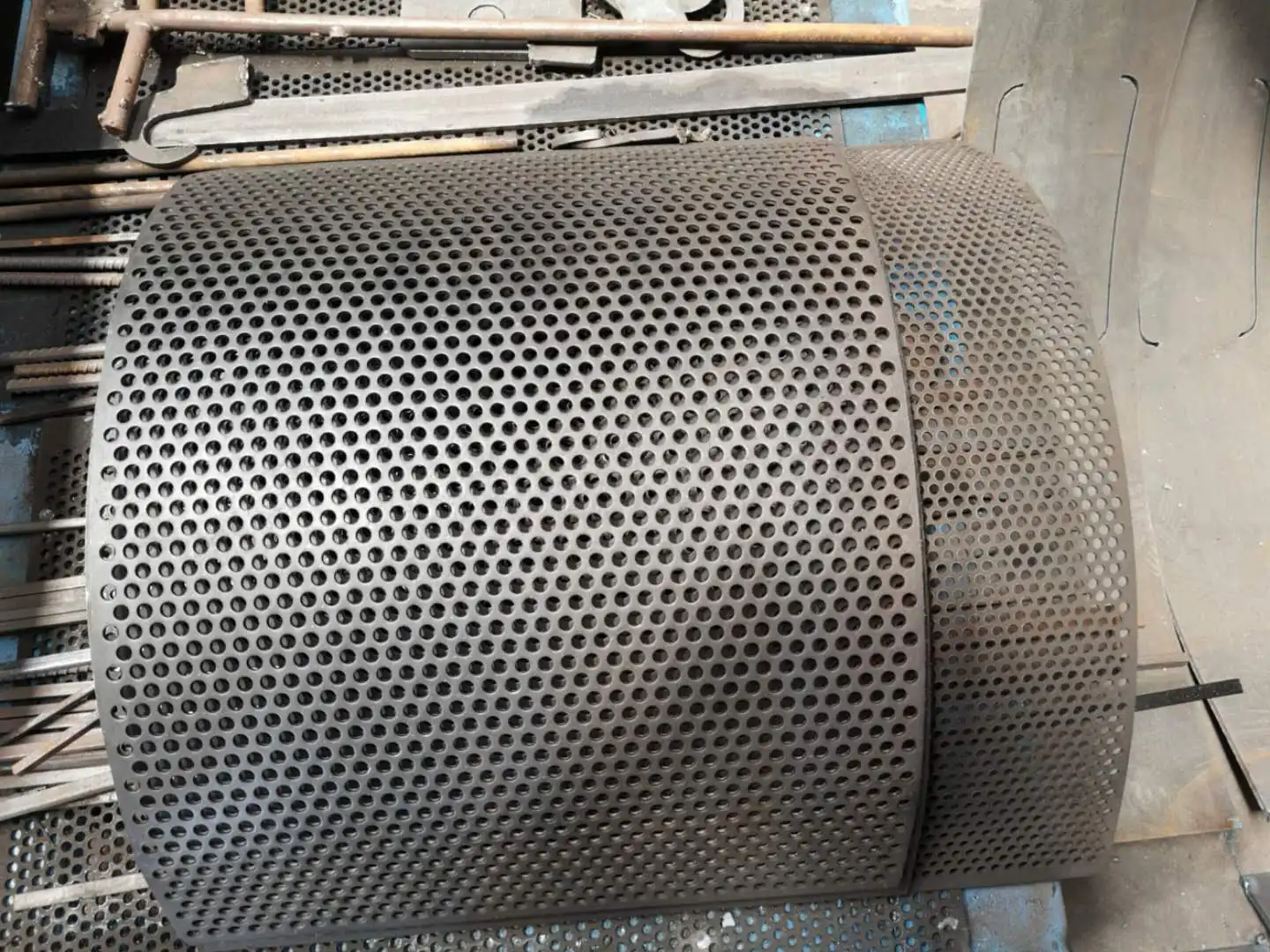

For wood hammer mill/wood crusher, it is used to make sawdust. The finished size of wood sawdust is 4mm-12mm. The size is depended on the hole of screener.
When wood chips comes into grinding room, wood chips is hit by high rotation speed hammers.
BOLIDA Hot Products
Bolida Biomass Wood Pellet Mill Machine
Bolida vertical ring die biomass pellet mill machine is key products, it is used to press wood sawdust, wood shaving, rice husk, wheat straw, peanut shell... into biomass pellets.
Bolida Drum Wood Chipper Shredder Machine
Bolida electric type wood chipper comes with big capacity, it comes with 4m feeding chain conveyor and discharging belt conveyor, could chip wood log or bamboo into 3-5cm chips.
Three Cylinder Dryer/Drum Rotary Dryer
Rotary dryer is a key equipment in biomass wood pellet plant, also comes with highest cost .It mainly used to dry wood chips wood sawdust into suitable moisture content before pressing into pellets.
Rotary Cutter
Rotary Cutter is used to cut big bulk wheat straw into small size .Usually, wheat straw is packing into 2m diameter big bundle. So rotary cutter is the right equipment to grind into 10-30mm size.
Biomass Wood Pellet/Chips Burner
Biomass pellet burner is used to offer heat for steam boiler and other places, The fuel is mainly use wood pellets, rice husk pellets, wood chips..
Mobile Diesel Wood Chipper Shredder
Diesel type wood chipper machine comes with wheels, so it could movable to anywhere.Diesel wood chipper shredder machine is widely used in shortage of electricity area.
Certifications
CE Certifications of Bolida Products
Bolida products, such as wood chipper, diesel wood chipper, wood hammer mill/wood crusher,. wood pellet mill machine, biomass pellet burner,rotary drum dryer, wood pellet production line, all comes with CE Certifications.

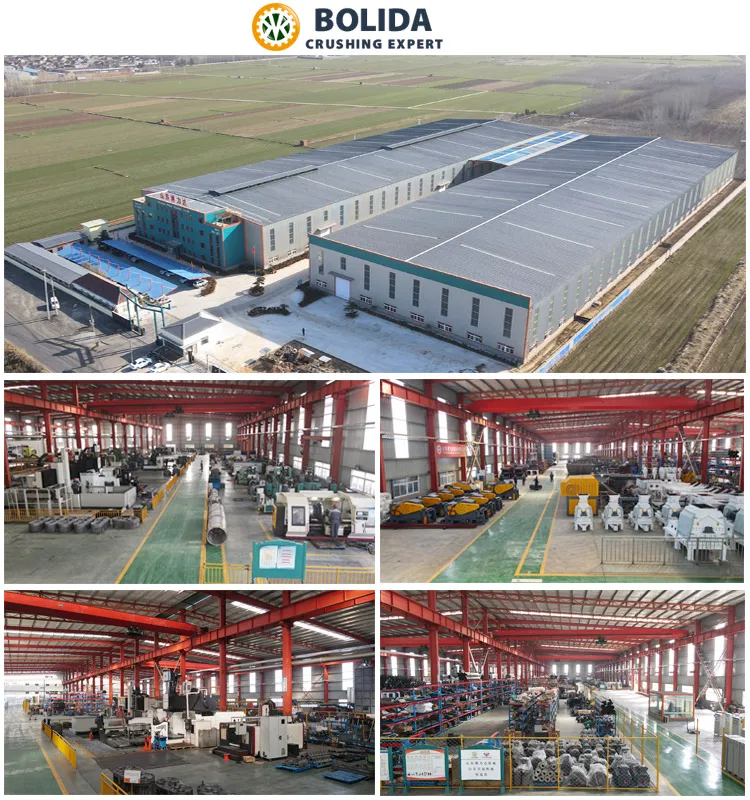

Company Profile
Bolida
Bolida is a professional manufacturer for biomass processing equipment. The main hot products include:
1. Pre-treatment equipment in biomass wood pellet plant:Debarker,wood splitter, wood chipper,diesel type mobile wood chipper, wood hammer mill,drum rotary dryer ,fuel system such as biomass pellet burner, hand stove ,chain stove.
2.Key products: Wood pellet mill machine
3.Post treatment equipment: cooler and packing machine. and other auxiliary equipment
