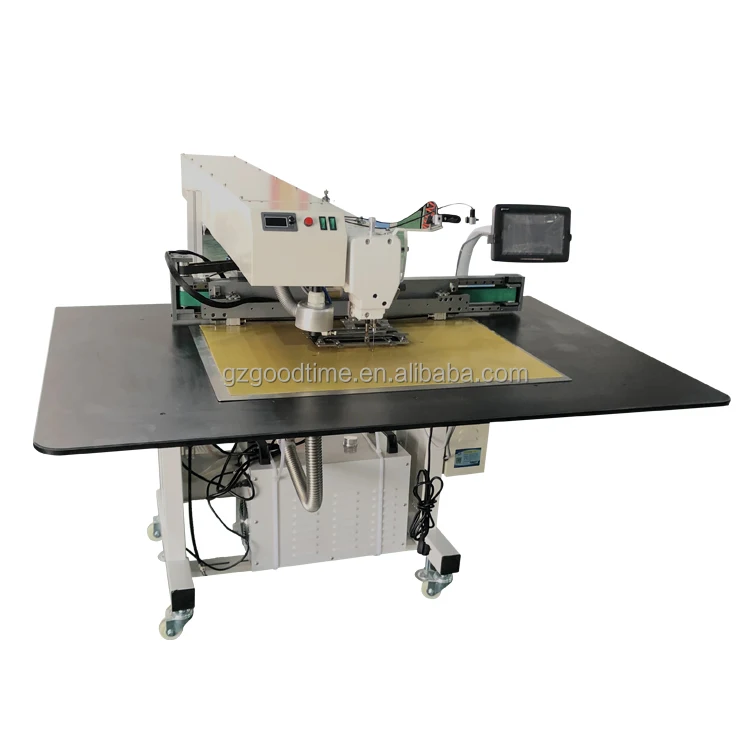

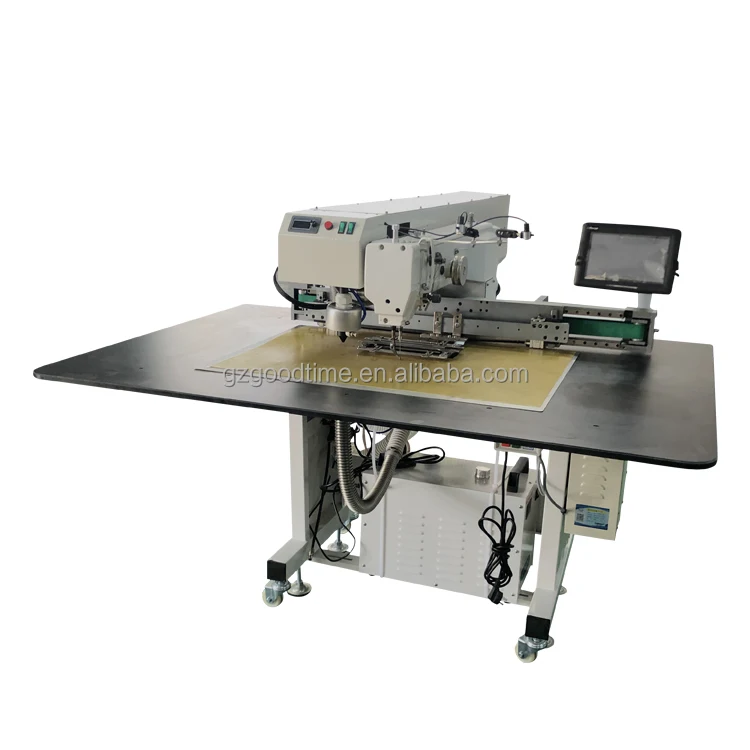

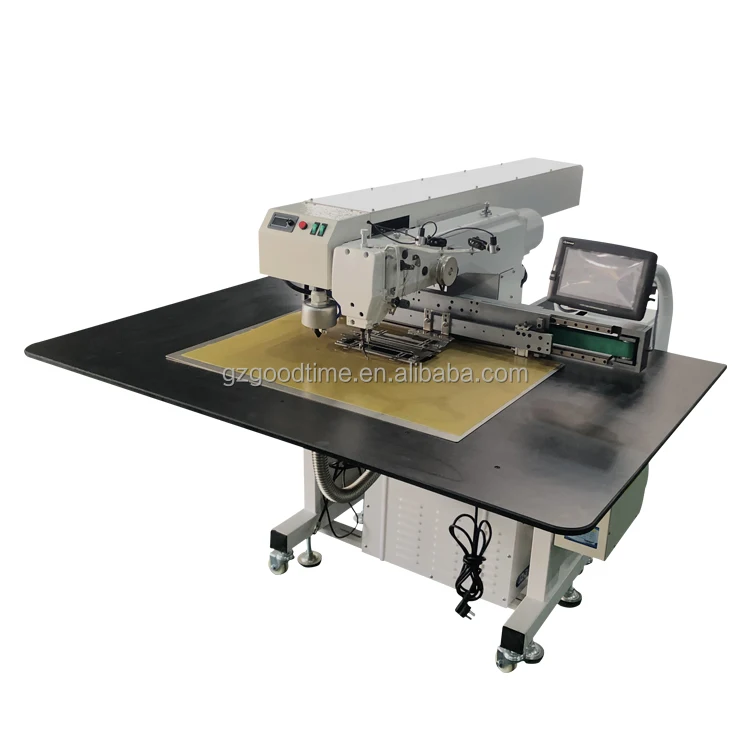

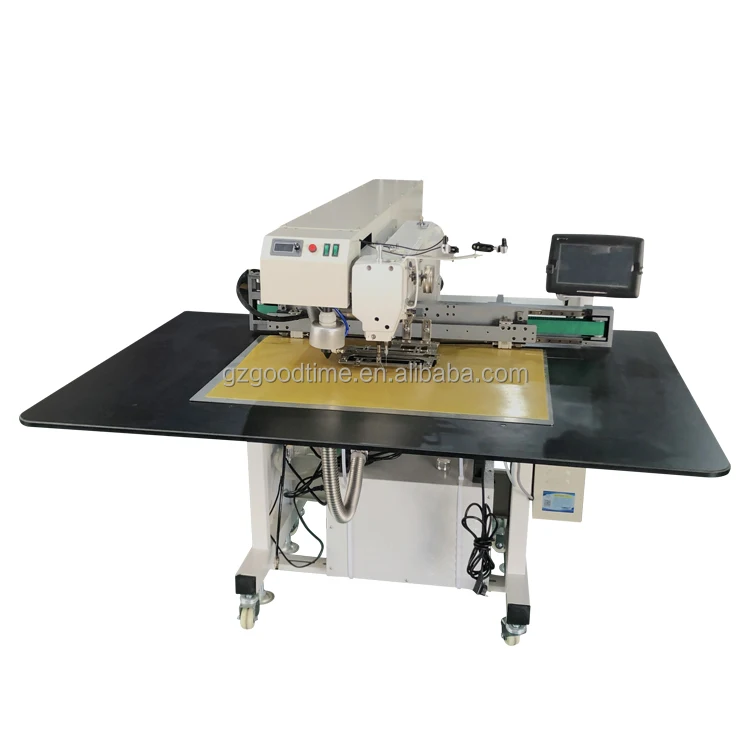

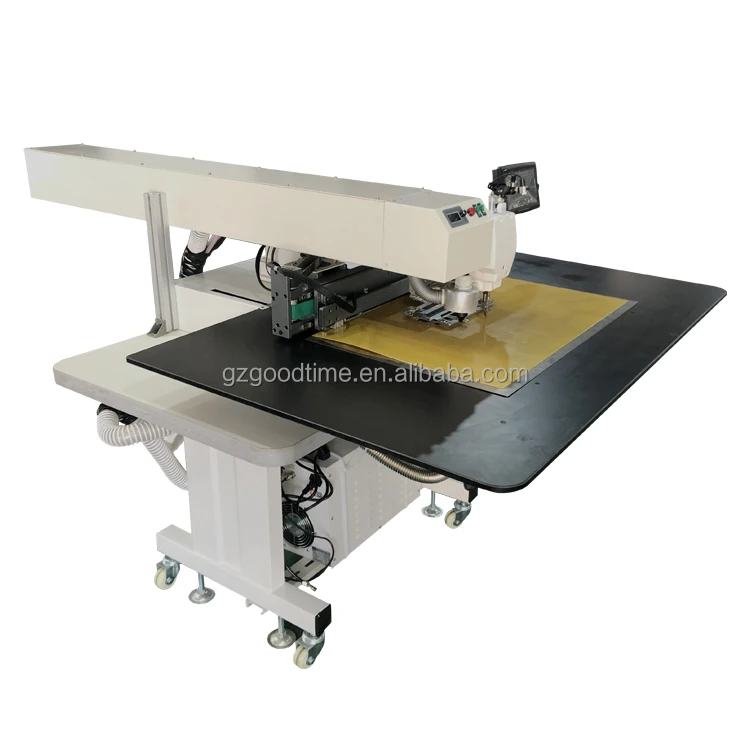

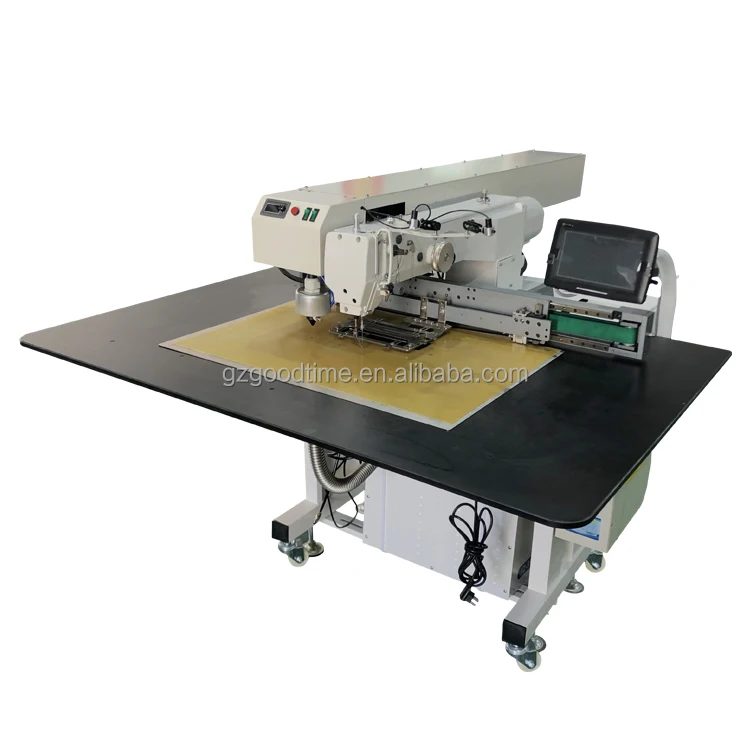

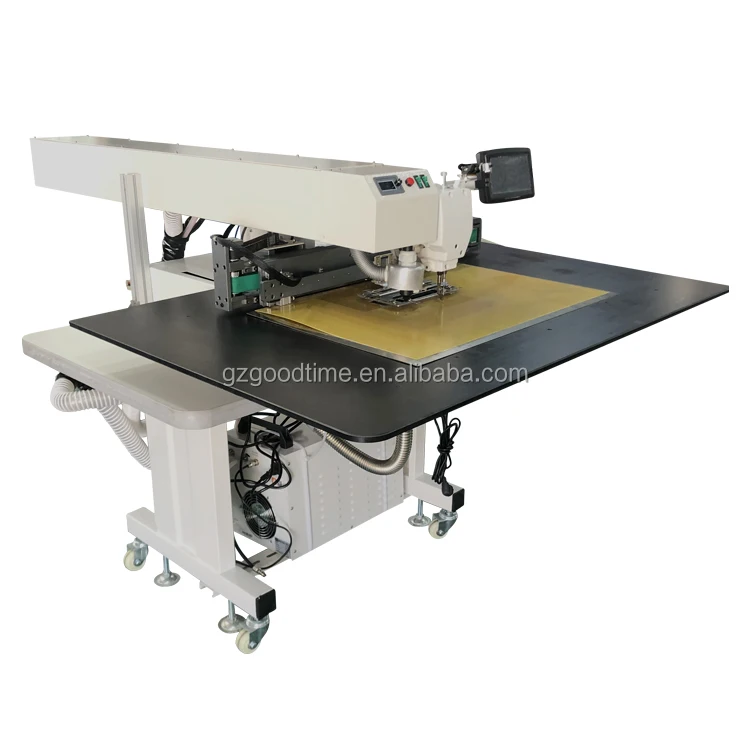

CYCLONE SEWING 6040 Pocket laser cutting zipper sewing machine automatic jacket pocket setter sewing machine

Share on (1601267178190):


Price:$5,749.00-5,879.00

Quantity:


Product Overview

Description


CYCLONE SEWING 6040 Pocket laser cutting zipper sewing machine automatic jacket pocket setter sewing machine.






Product Character

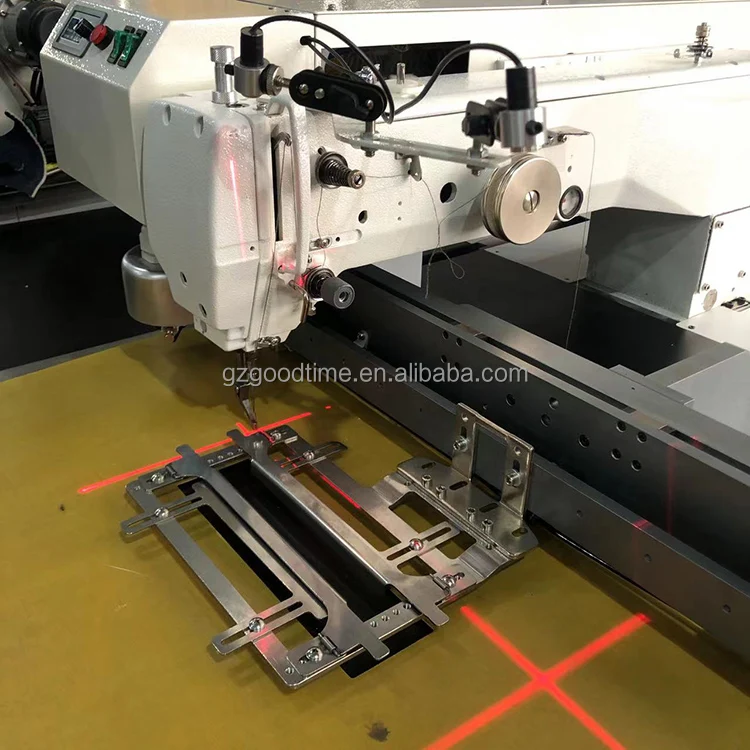

1. Infrared positioning, compared with manual bag opening, infrared positioning is not only more accurate, but also saves the manpower and material resources of manual marking, greatly improving the efficiency.





2. Automatic clip, incision, sewing, all in one.





3. High power laser pocket opening, adjustable power, universal thickness fabric, can be used for trousers, jeans, tooling, down jacket, cotton padded jacket, jacket, shoulder, casual pants, etc.





4. Digital sewing, DAHAO electronic control, free programming.





5. One machine is multi-purpose. In addition to opening pocket, it can also be used for opening flap (need to change fixture) and pattern sewing (need to change fixture).





6. Working principle: the opening pocket function of laser template machine is skillfully grafted on the computer pattern machine, and the fastest time is 20 seconds to open a pocket, realizing low cost, high efficiency and high quality automatic opening pocket.





7. Mainly used in back pocket of trousers, jacket pocket, leather bag, clothing and shoes, car decoration, it has stable performance and beautiful lines.





8. Laser cutting, smooth cutting, no burr, no crack after washing.








Technical data





Technical Specifications:















































































Item No:



   6040      3520        3525       4020



Opening pocket size :



50x38cm   25X 18cm     25x23cm    30x18cm



Sewing speed :



3000rpm/min (intermittent feed 3.0mm )



Work holder lift :



30mm



Presse foot lift :



20mm



Stepping foot stoke :



4mm -10mm



Hook :



Double size rotary hook SPIN



Memory figure number :



Max: 99999



Memory count :



Each pattern 8,000 needles.



Needle :



DP*17 ( #16-#23 )



Operation screen :



7 inch LCD touch control panel



Pressure system :



Pneumatic action system



Scale up/down function :



X aixs, Y aixs 10-200%



Motor:



750W direct drive servo motor



Voltage :



Single-phase 220-240V,with earth wire protection. 50-60Hz.



Memory device :



USB



Gross weight :



350kgs










Detail Image





8

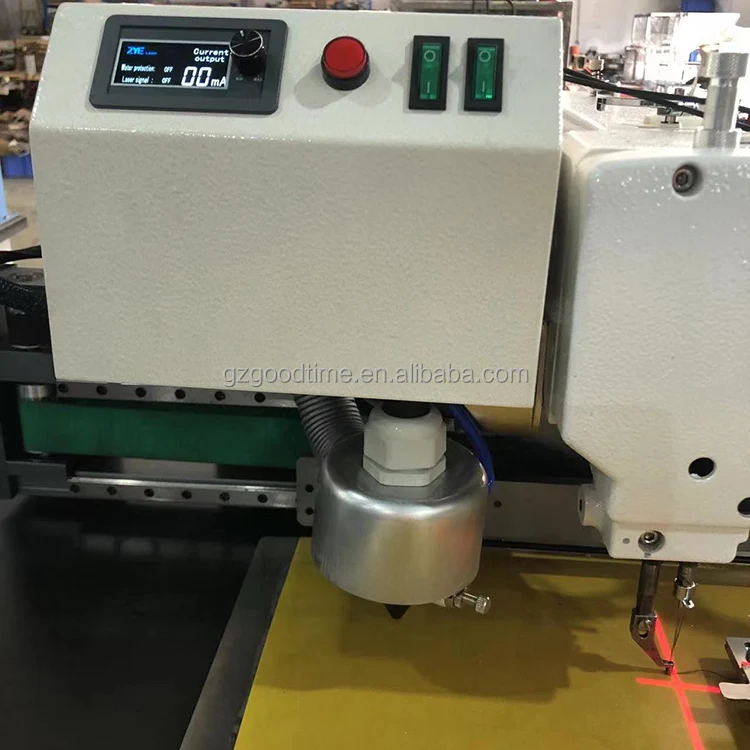

 Standard 100W power laser tube, according to the needs of users with higher power laser tube.





water





With circulating water cooling system, the laser tube can work continuously for a long time.


water 1

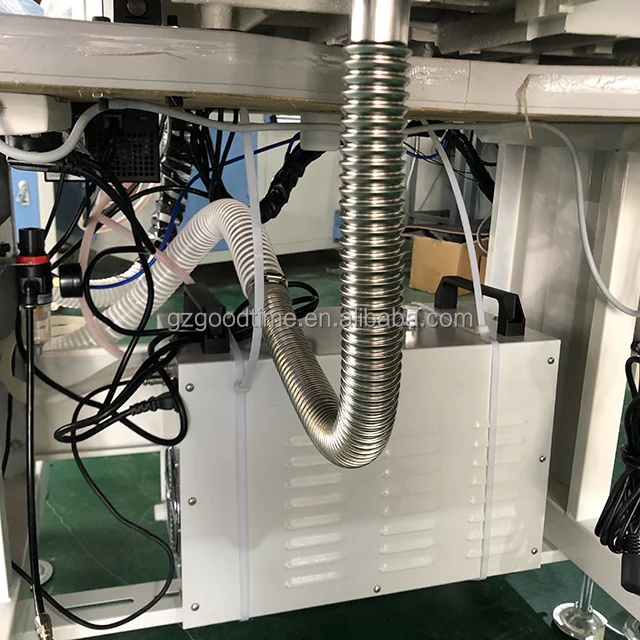

The full-time silent suction device can clean the smoke and wool generated in the cutting process, which is safe, environmentally friendly and clean.





3





7 inch LCD touch screen, voice prompt, advanced human-computer interaction, "fool" operation.





6040 pokcet l

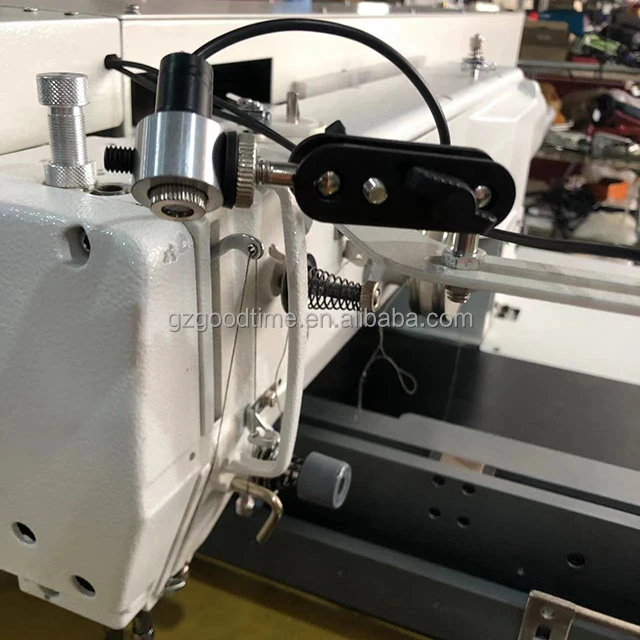

Automatic wire cutting, automatic wire sweeping and electronic wire clamp.





triple hook

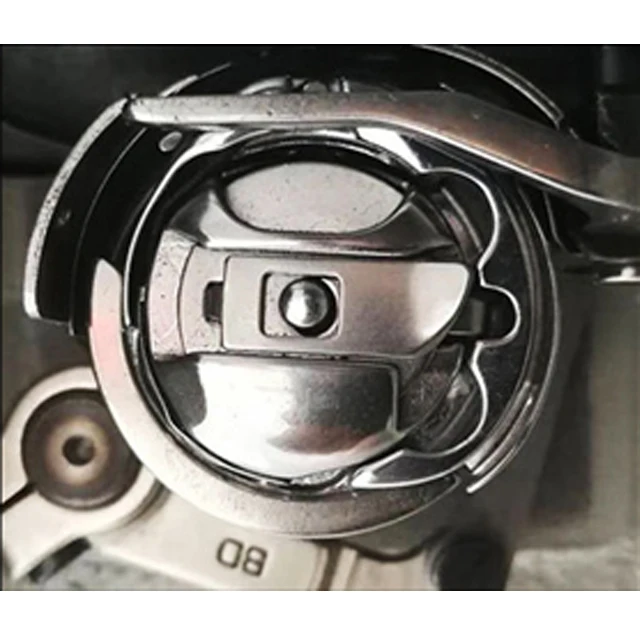

Double rotary shuttle, saving thread changing time.





6040 pocket i





Micro oil needle rod, clean sewing.





116040 pocket j

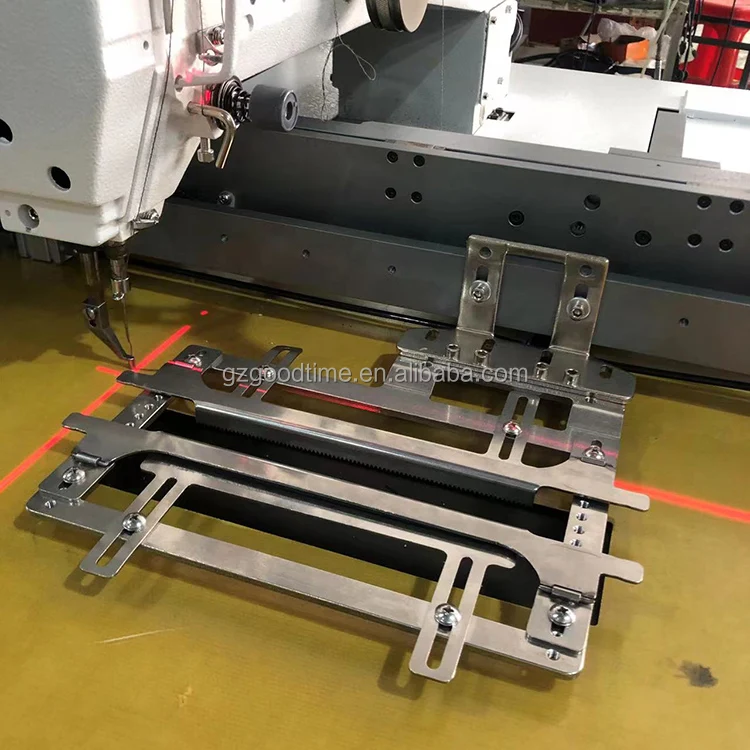

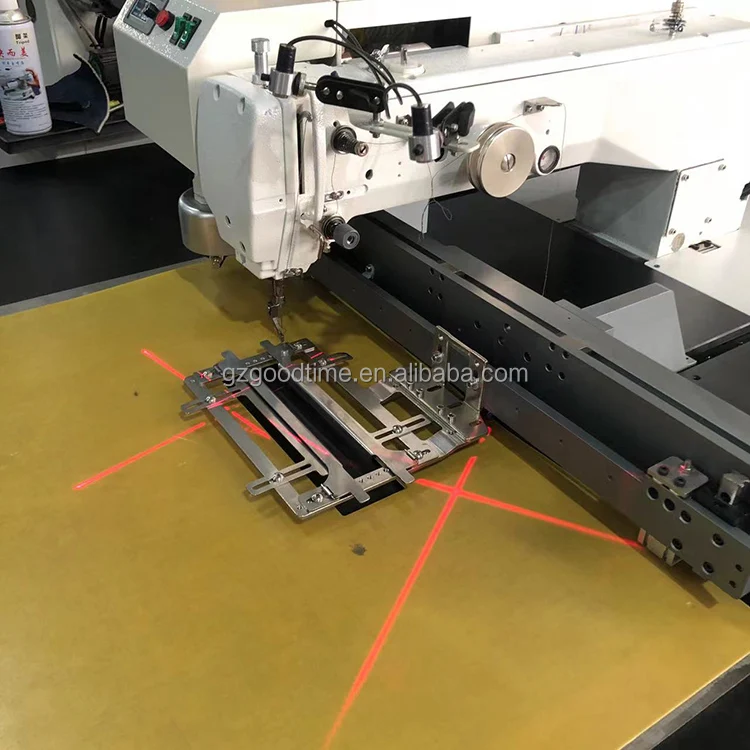

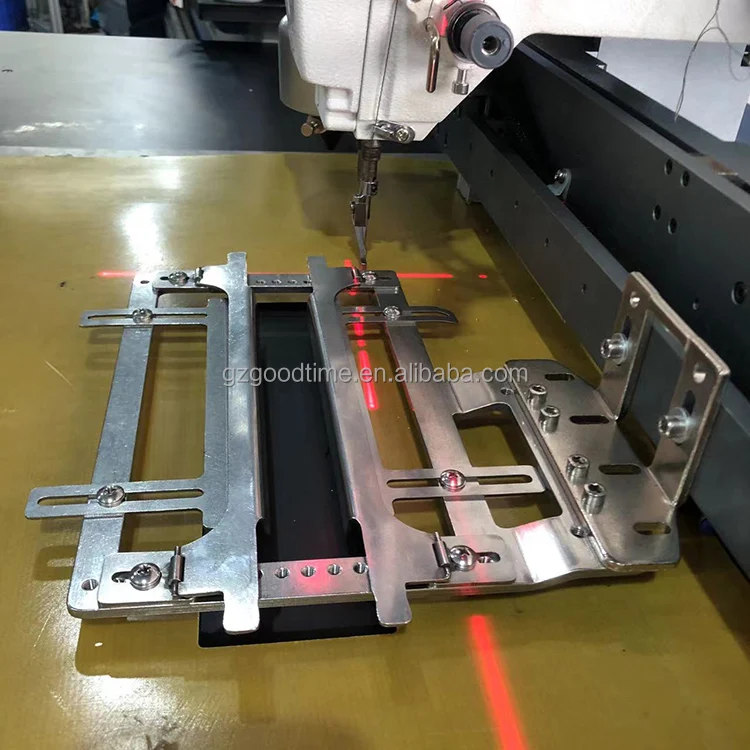

Infrared positioning, automatic clamping; Laser pocket / placket opening and digital sewing.





5





DAHAO electronic control, free programming.





6040 pocket m





CNC cutting, angle in place, accurate position, uniform size, zero error.





7


water 1

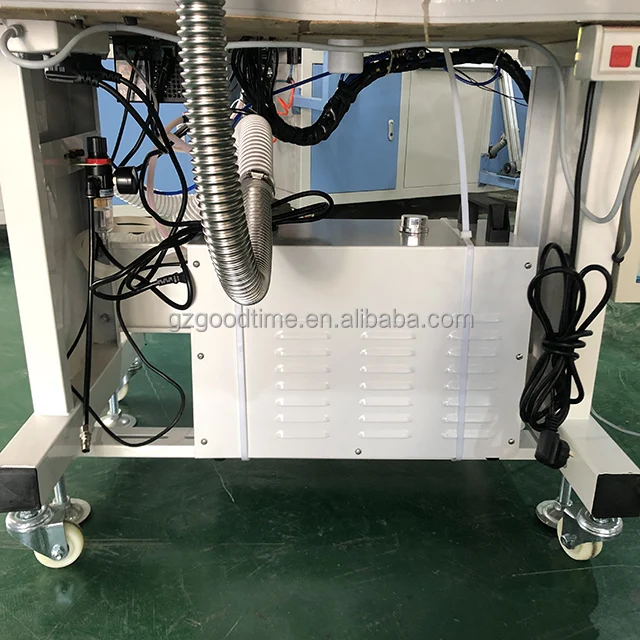

There is a smoking pump above and a dust box below, which is safe and environmentally friendly.





6040 pocket m





6040 pocket b





It can open automatically and design all kinds of single eyebrow and double eyebrow (can be made with zipper and bag/pocket cover).No need for skilled workers, simple and easy to operate, a day can do 800-1100pcs.









Our Services





Guangzhou Good Time Trading Co., LTD is both a manufactures and a trading company, located in Hua Du district, Guangzhou, Guangdong province, China. We focus on manufacturing and selling all kinds of intelligent automatic sewing equipment. We have exported our machines to more than 30 countries like America, Europe, Asia, South Africa and Latin America, and are welcomed with great popularity.


We always adhere to the corporate philosophy of focusing on quality and creating value.


We are committed to providing the most comprehensive and high-quality intelligent sewing equipment for customers all over the world.


Guangzhou Good Time Trading Co., LTD is always pursuing on high quality machines, we are honor to set up long term cooperation with all of clients all over the world.





We are looking forward to building up mutually beneficial business relationships with your companies in the future!





Recommended Products


















































Application display





The Laser Automatic Pocket Sewing Opening Machine has high speed. It can be suitable for a lot of garments pocket & placket. For example, the Down jacket pocket, suits down pocket, sports pans pocket, jeans pocket, etc.

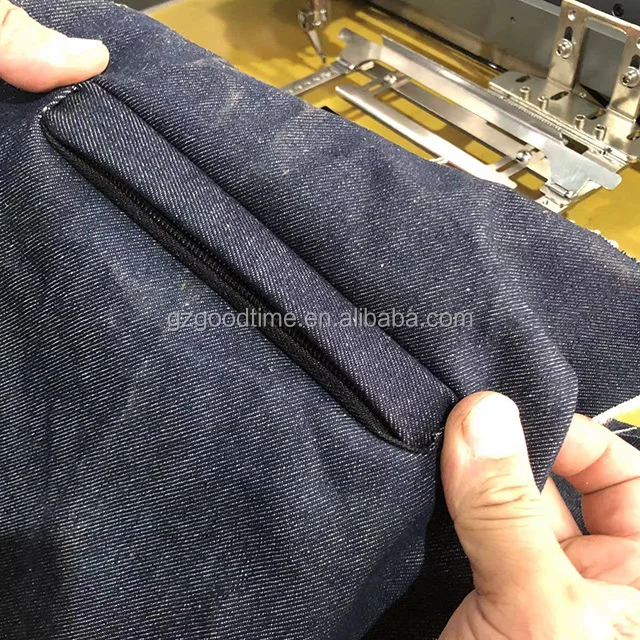

pocket welding result





Company Information


-1_02


1_07





2


-








FAQ




-1_03




Q1. Are you a factory?
  Re. Yes.  we are both a trading company an
d a factory, and we only focus on excellence sewing machine.


Q2.How about your machine quality?


  Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.


Q3. How about your price?


  Re. Our price not expensive, but also not very cheap, in general, quality is better than price


Q4. How long could your sewing machine be used?
  Re. Generally, more than 6 years.


Q5. What is the shipping port?
  Re. We ship the goods via Guangzhou port or as you like


Q6. How about payment ?


  Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment


Q7. Can you do OEM or ODM for us?


  Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.


Q8. Can you supply spare parts?


  Re. Yes, of course we can.


Q9.  What guarantee you can supply ?


Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.
