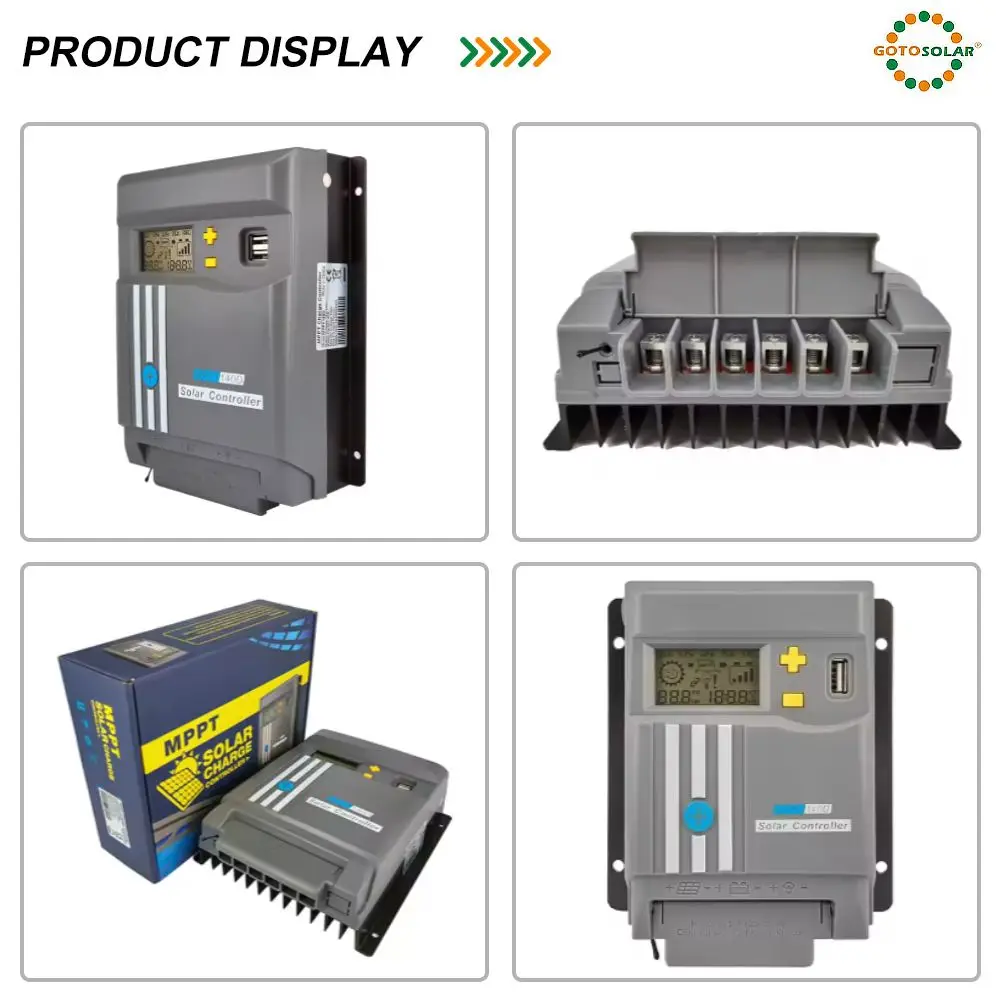

GOTO SOLAR Factory Price MPPT130D 30A 12/24V Auto MPPT Solar Charge Controller
- Category: >>>
- Supplier: GOTO SOLAR TECHNOLOGY LIMITEDGOTO LIMITED
Share on (1601267213775):
Product Overview
Description
Product Paramenters
Model | MPPT110D | MPPT120D | MPPT130D | MPPT140D | ||||
Input | ||||||||
PV voltage | ≤100V | |||||||
Rated current | 10A | 20A | 30A | 40A | ||||
Output | ||||||||
System voltage | 12/24V | |||||||
LVD | GEL,SLD,FLD:10.8V(10V~14V) | |||||||
LVR | GEL,SLD,FLD:12.6V(10V~14V) | |||||||
Float charge voltage | GEL,SLD,FLD:13.8V(13V~15V) | |||||||
Absorption charge voltage | SLD:14.4V(13V~15V);GEL:14.2V(13V~15V);FLD:14.6V(13V~15V) | |||||||
Duration of absorption charge | 2hrs | |||||||
Equalization charge voltage | SLD:14.6V(13V~15V);GEL:Null;FLD:14.8V(13V~15V) | |||||||
Duration of equalization charge | 2hrs | |||||||
Charging mode | MPPT | |||||||
Load working mode | Regular Controller Mode/Light & Time Control Mode / Light Control Mode | |||||||
Battery type | AGM/GEL/SLD/FLD/LiFePO4,Lithium and USr(default) | |||||||
USB output | 5V/1.5A ×1 | 5V/1.5A ×2 | ||||||
Other | ||||||||
Wiring | PCB terminal ≤10mm² | PCB terminal ≤16mm² | ||||||
Working Temperature | -20℃~55℃ | |||||||
Storage Temperature | -30℃~80℃ | |||||||
Working humidity | 10% -90%, No Condensation | |||||||
Dimension | 155.5×127×42.5 mm | 174.5×145×50 mm | 195×160×60 mm | 215.5×174×65 mm | ||||
Net weight | 360g | 525g | 835g | 1125g | ||||
Products Description

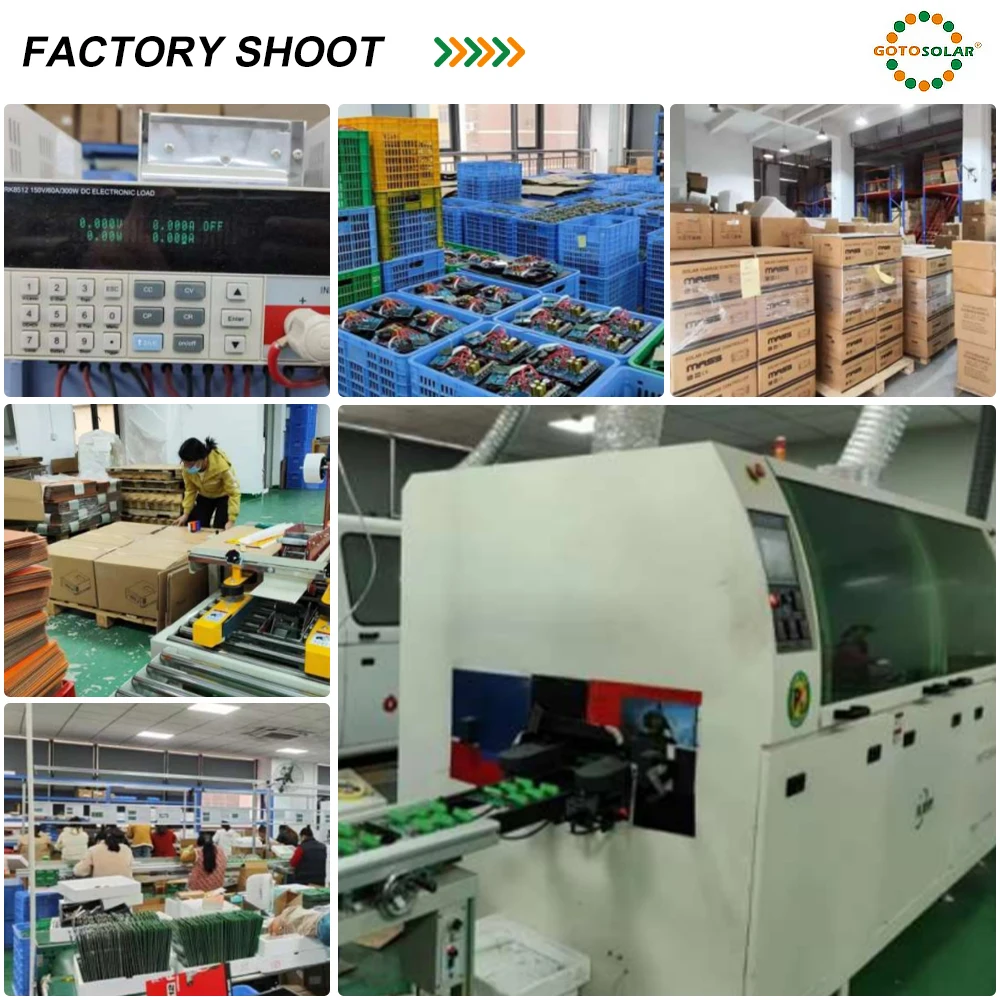

Supplier Strength
FAQ
The product images and information above are for reference only. Please consider the actual product as the standard. We reserve the right to make final interpretations. | ||||||||
