Product Overview
Description
Product Description
Concrete Batching Plant
Through ingenious design, the batching system, weighing system, mixing host, storage, unloading and automatic control system of the batching plant are concentrated in one trailer unit, and the movement of the batching plant is realized through the trailer. It also has the advantages of flexible movement, simple and quick disassembly and assembly, and stable performance. For on-site engineering such as railways, highways, ports, bridges, hydro power projects, etc.

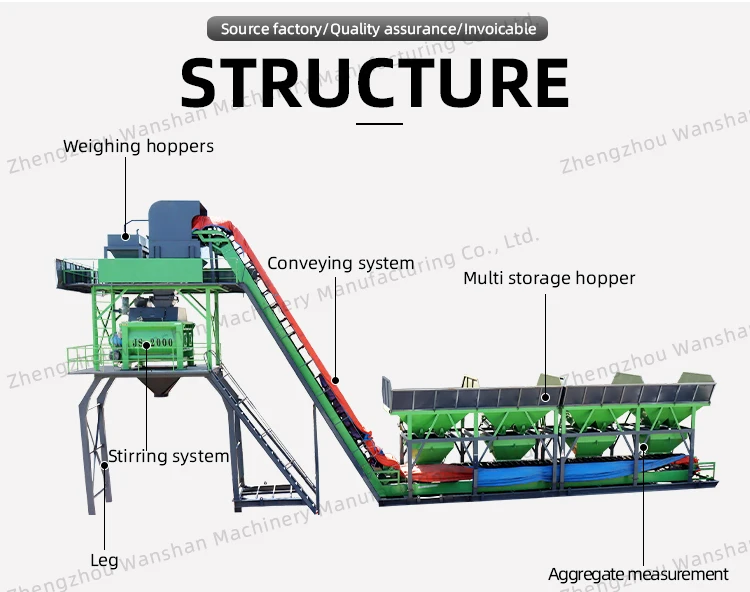

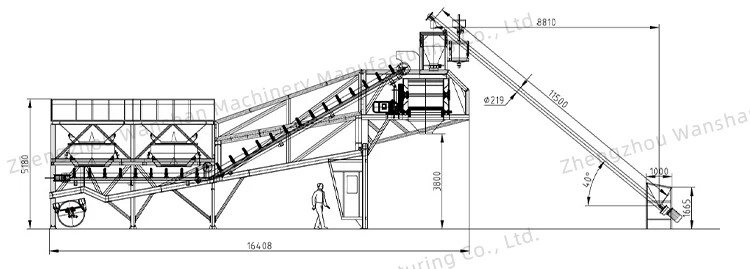

Structure

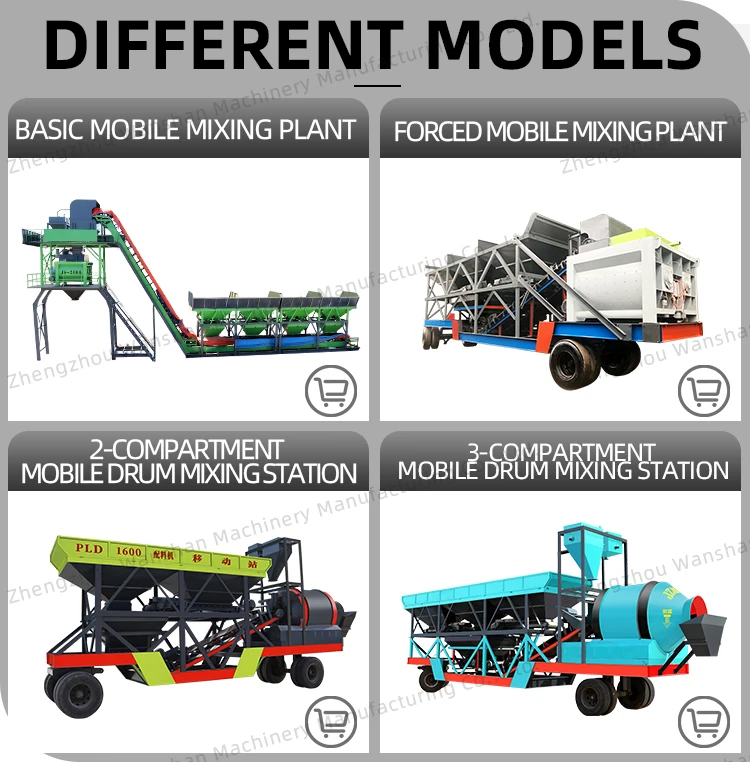

Various models
Model | HZS20 | HZS30 | HZS60 | HZS100 |
Production capacity (m3/h) | 20 | 30 | 60 | 100 |
Concrete mixer | JZM500 | JZM750 | JZM1500 | JZM2000 |
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
Discharging height(m) | 4.2 | 4.2 | 4.2 | 4.2 |
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
Control system | Panel | Computer | Computer | Computer |
Total power (kw) | 42 | 46 | 67 | 77.5 |
Total weight(tons) | 12 | 13 | 14.5 | 26 |

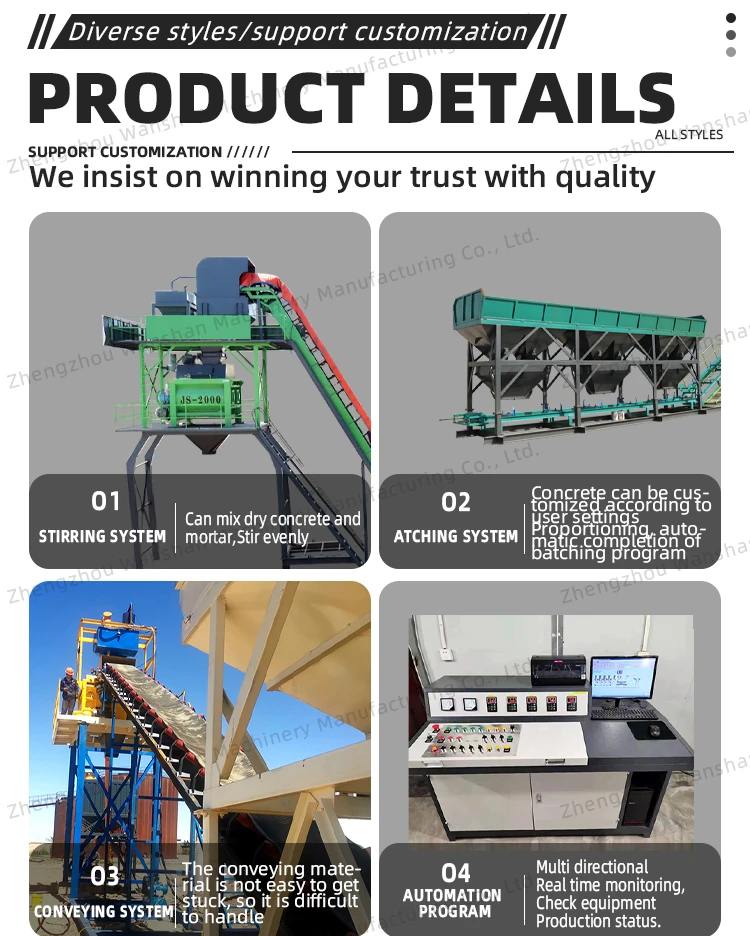

Product details

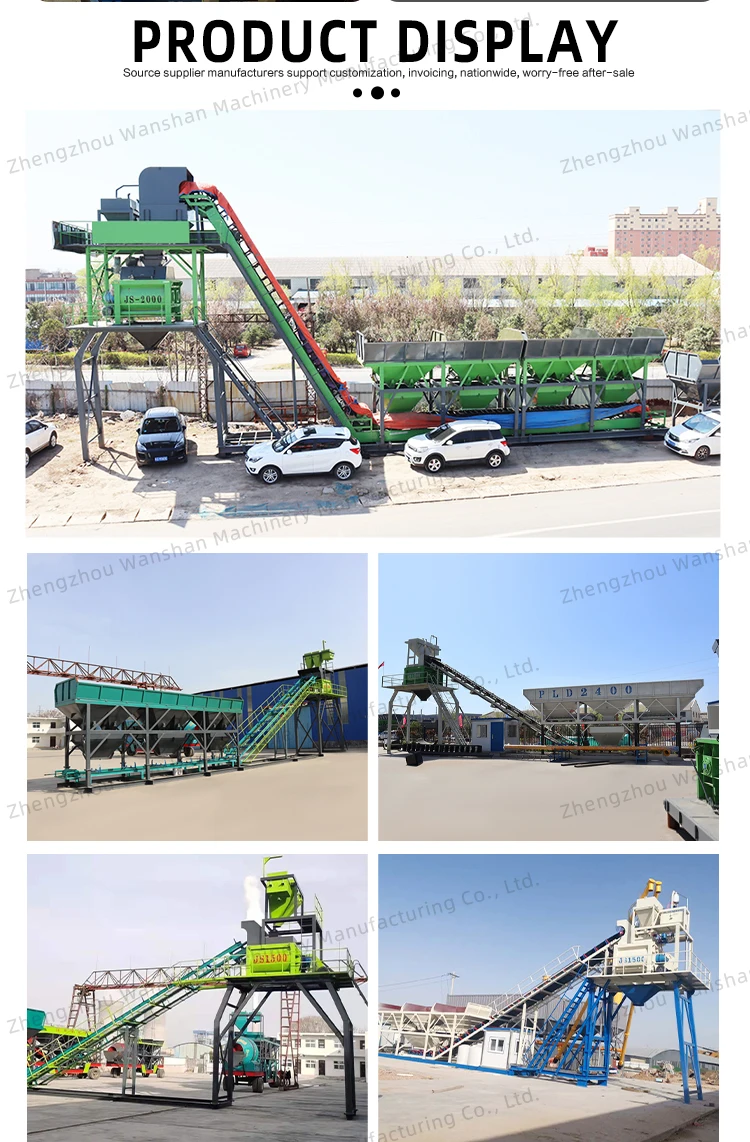

Product display
