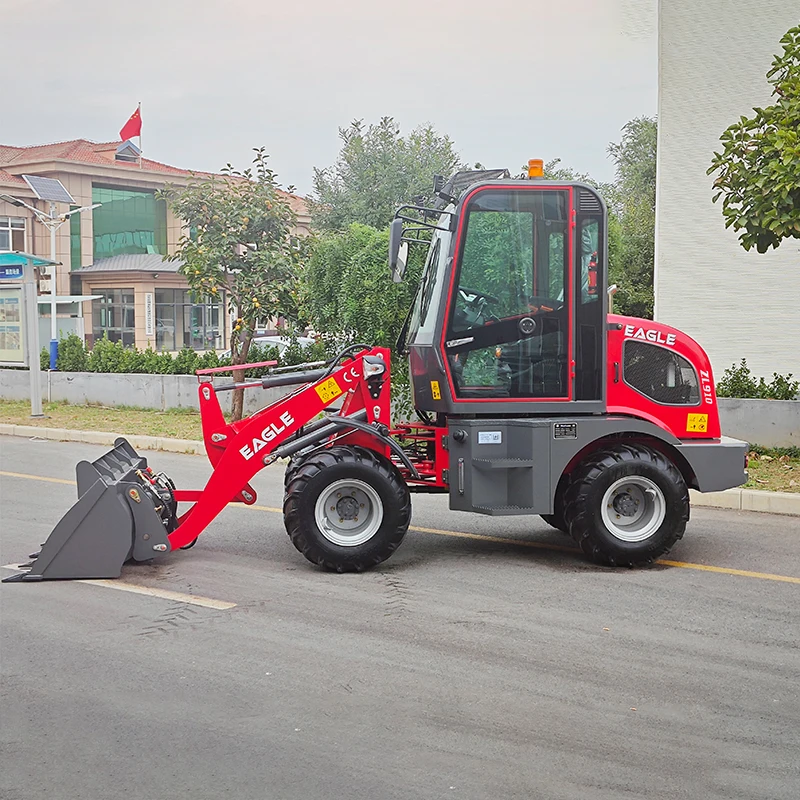

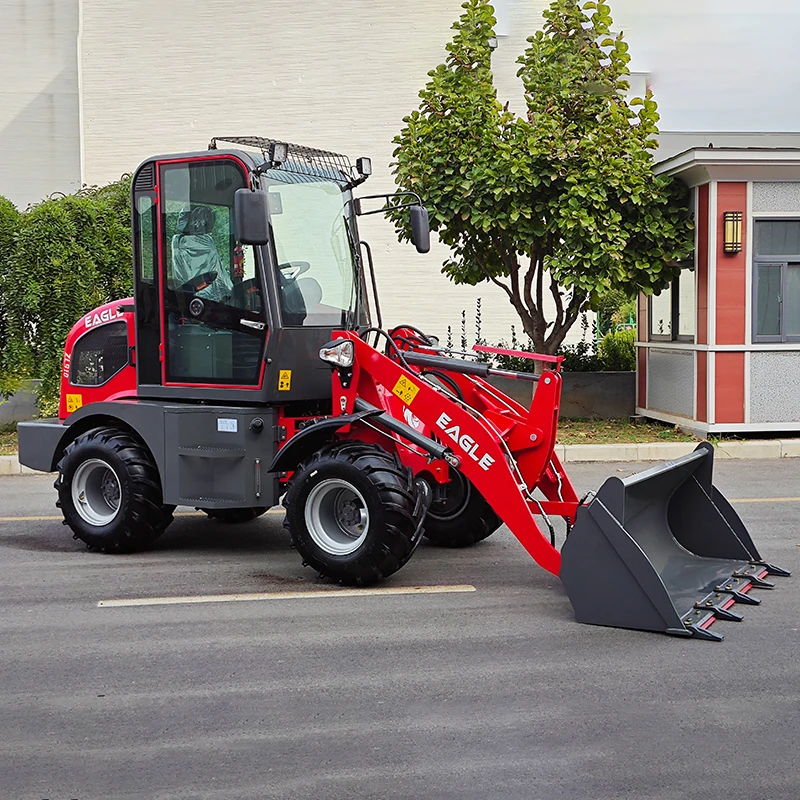

Epa New Design 4x4 Mini Wheel Loader Zl910 Used With 1 Ton Rated Load And Attachments Free Shipping For Sale
- Category: >>>
- Supplier: Shandong Eagle Construction Machinery Co. Ltd.
Share on (1601267282916):
Product Overview
Description
Product Description

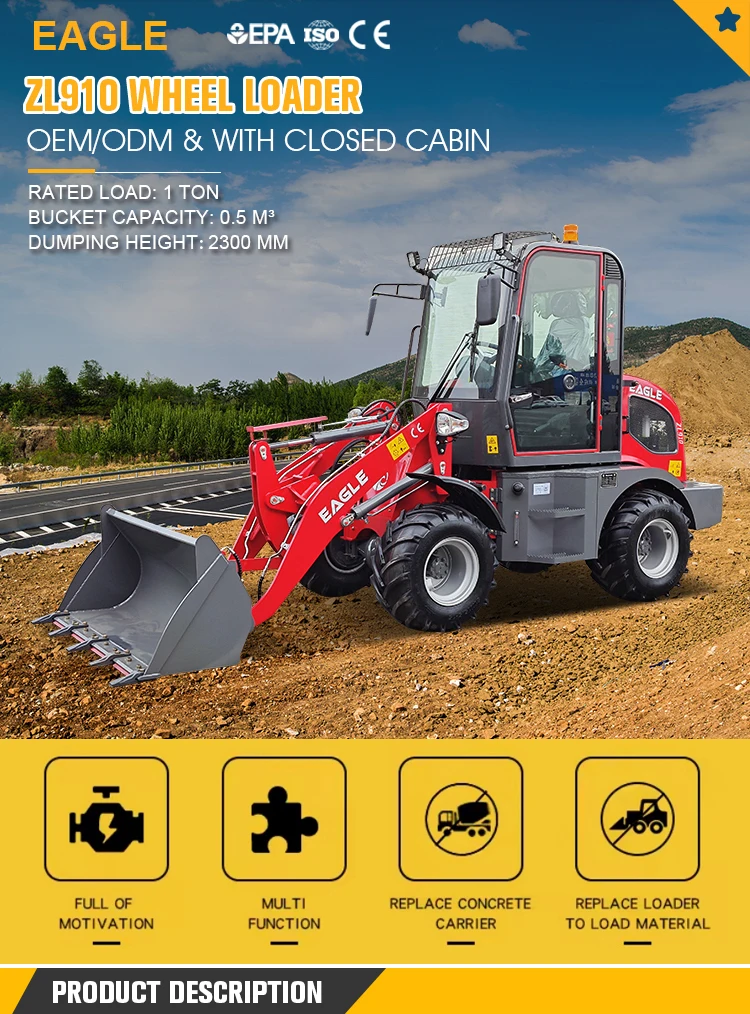

ZL910 Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
Specifications for ZL910 Mini Wheel Loader | ||||
Overall Performance | Rated Load | 1000 kg | ||
Operating Weight | 2500 kg | |||
Bucket Capacity | 0.5 m3 | |||
Bucket Width | 1600 mm | |||
Dumping Height | 2300 mm | |||
Dumping Reach | 900 mm | |||
Max. Gradeability | 30% | |||
Dimensions | Wheelbase | 1830 mm | ||
Tread | 1190 mm | |||
Mini. Turning Radius | 3200 mm | |||
Mini. Ground Clearance | 250 mm | |||
Overall Size | 4760x1600x2580mm | |||
Engine Equipped | Brand | YUNNEI | ||
Model | YN25GB | |||
Rated Power/Speed | 37 kW/ 2400 rpm | |||
Max. Torque/ Speed | 115 N.m /1600 rpm | |||
Borex Stroke | 90 x100 mm | |||
Displacement | 2.5 L | |||
Type | 4-Cylinder, 4-Stroke, In-line, Direct Injection, Water-cooled and Naturally-aspired | |||
Emission Standard | EURO II, China State II | |||
Engine Optional | ISUZU | 36.8 kW , Euro 3 | ||
KUBOTA (V1505 ) | 18.5 kW, EPA4, Euro 5 | |||
Transmission & Drive System | Torque Converter | YJ240 (Integrated Type) | ||
Gearbox Type | Counter-shaft , Power-shift | |||
Gear Shift | 2 Forward Shift , 2 Reverse Shift | |||
Max. Drive Speed | 30 km/h | |||
Drive Mode | 4 x4 | |||
Transmission Mode | Automatic Transmission | |||
Drive Axle | Shorten Isuzu Axle | |||
Hydraulic System | Displacement of Work Pump | 32 mL/r | ||
Displacement of Walk Pump | 16 mL/r | |||
Working Pump | 16 MPa | |||
Brake & Tyre | Service Brake | Oil Brake | ||
Parking Brake | Drum-type Shoe Brake | |||
Tyre Size | 31.5x15.5-15( Tubeless) | |||

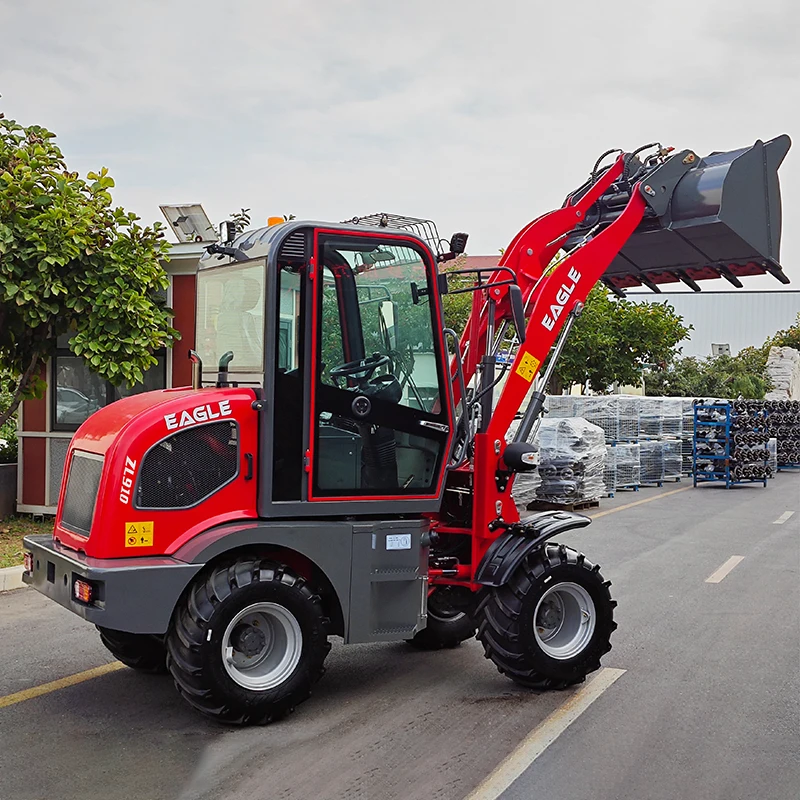

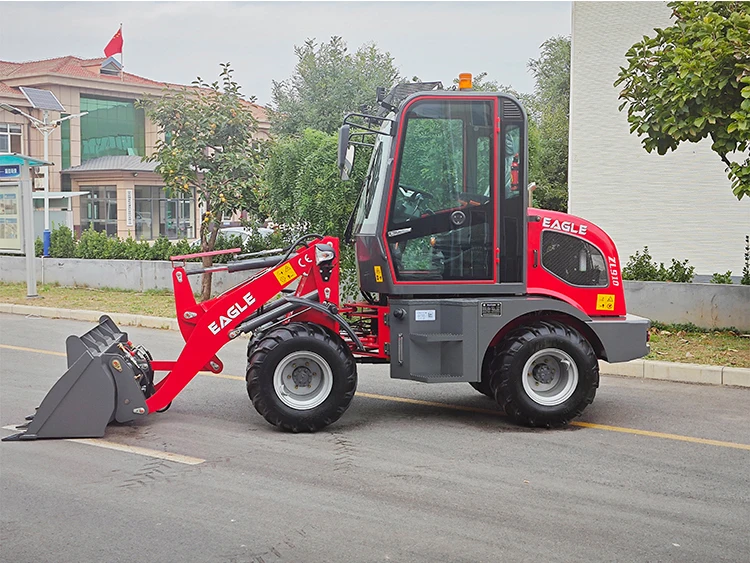

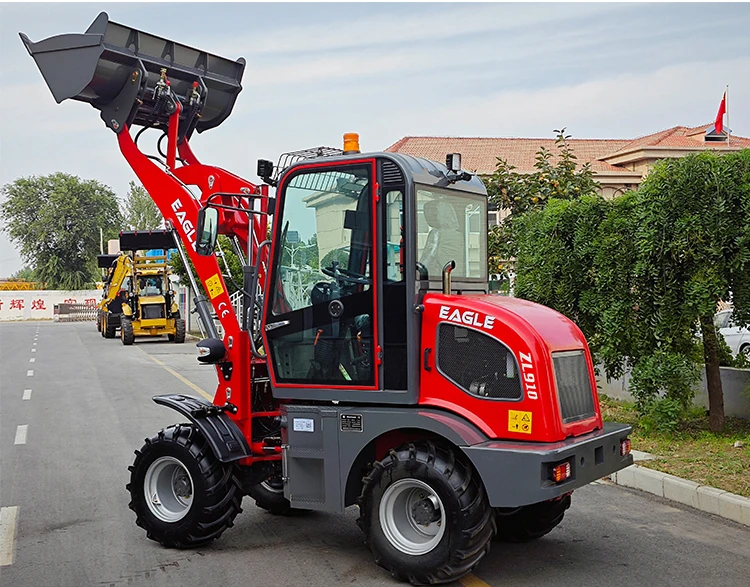

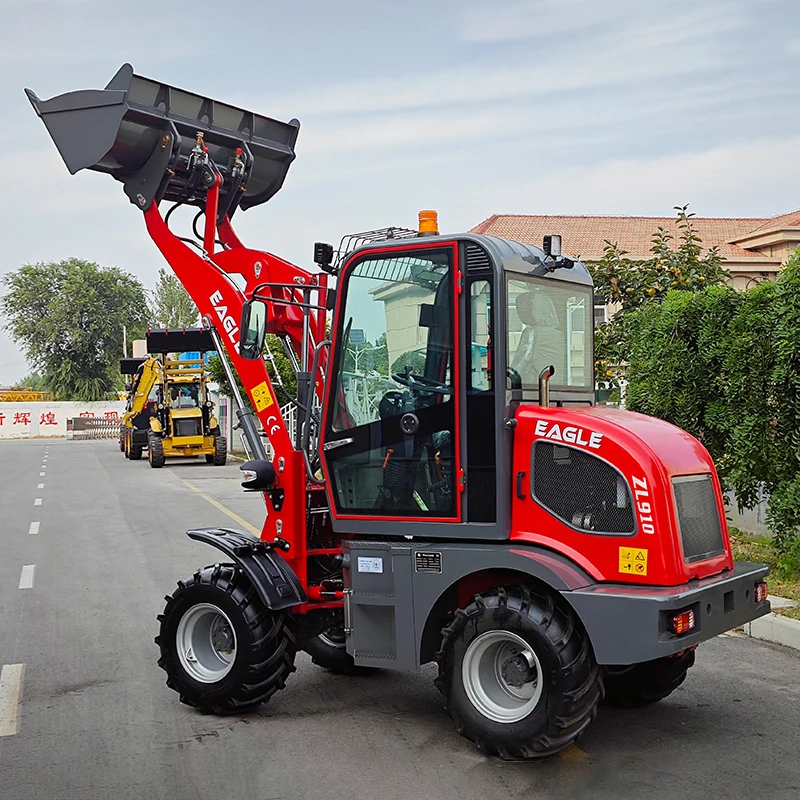

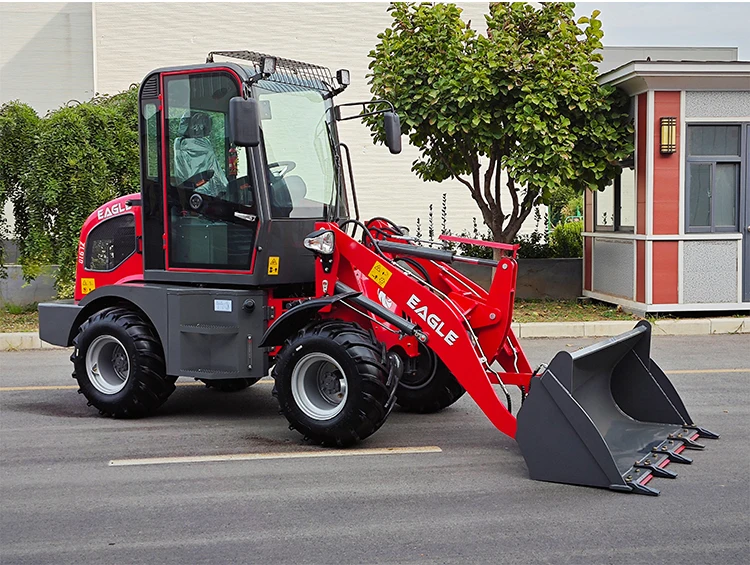

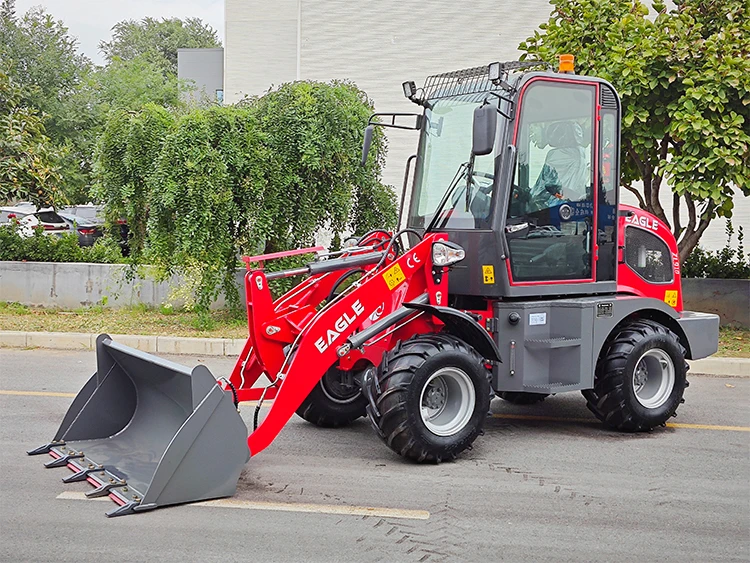

Product Display

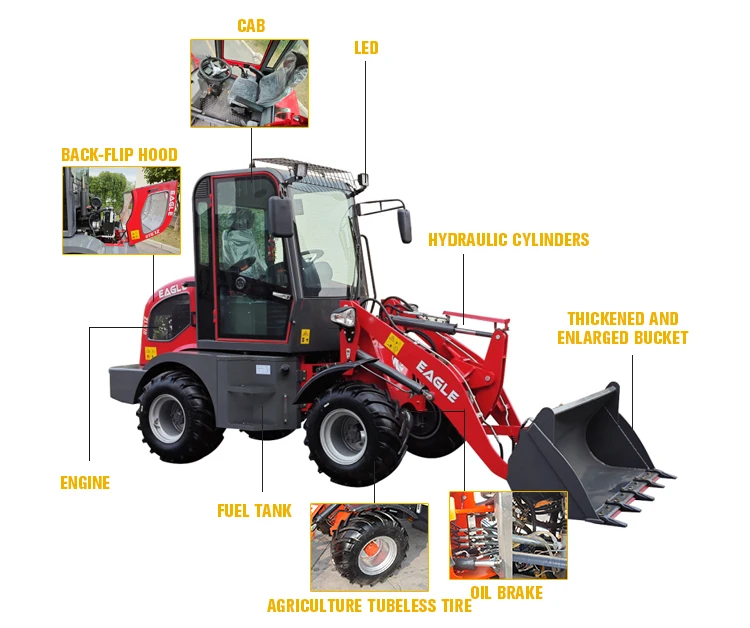

This wheel loader has a hydraulic-mechanical transmission that adjusts automatically to external loads, preventing engine stalls and reducing vibration for longer machine life and better efficiency.
With a central articulated frame and hydraulic steering, it has a short turning radius, making it easy to operate in tight spaces and offering safe, flexible performance.
The four-wheel drive, off-road tires, and pendular rear axle give it strong off-road ability and traction. The enclosed cab with a suspension seat provides comfort, with optional air conditioning.

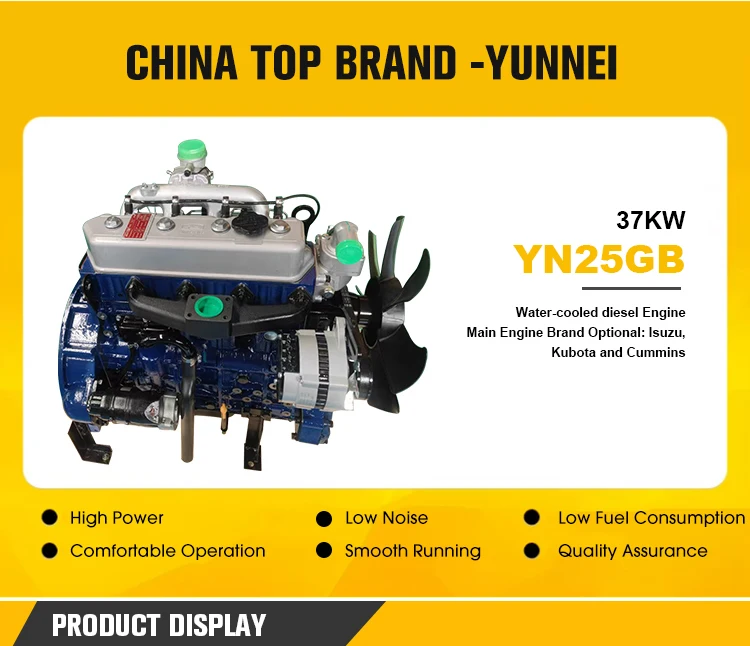

Powered by a 37 kW YUNNEI engine, it can use a quick hitch system to switch between various attachments like forks and snow plows, increasing versatility.

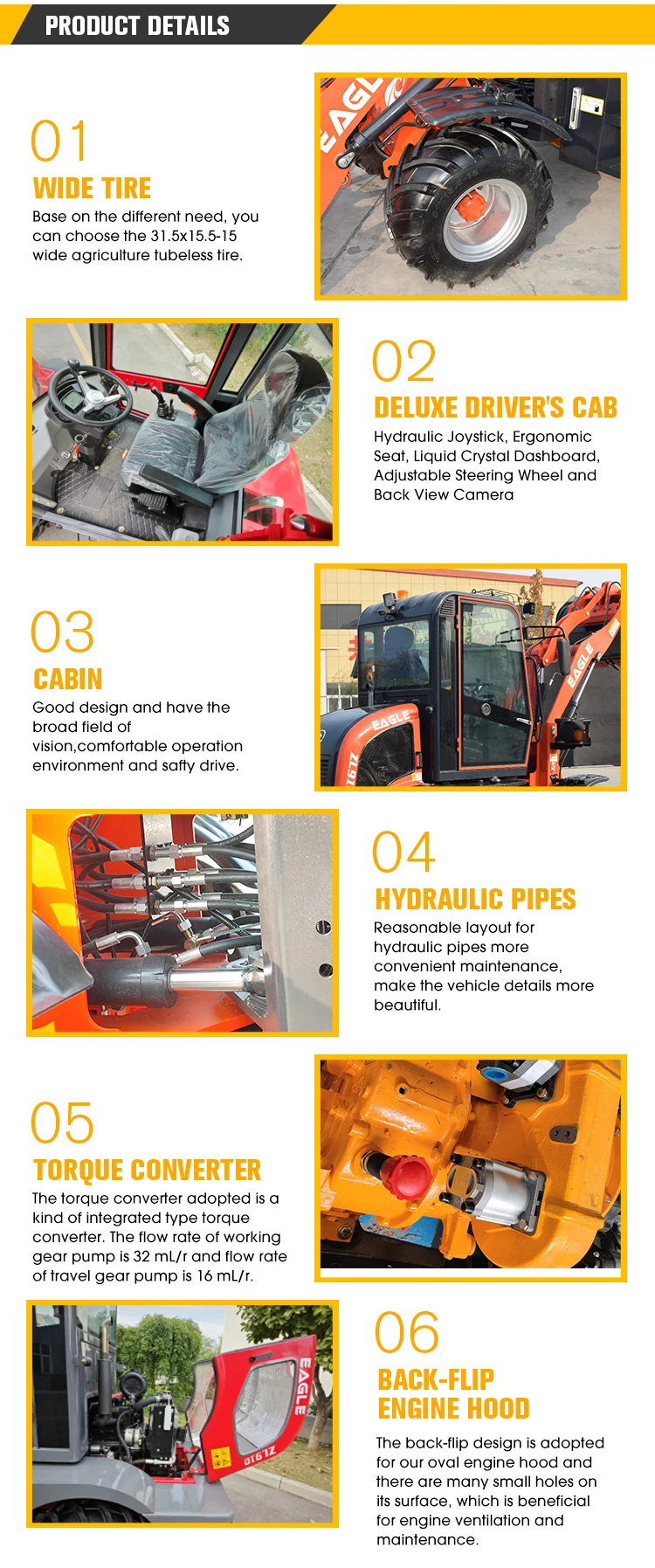

Product Details

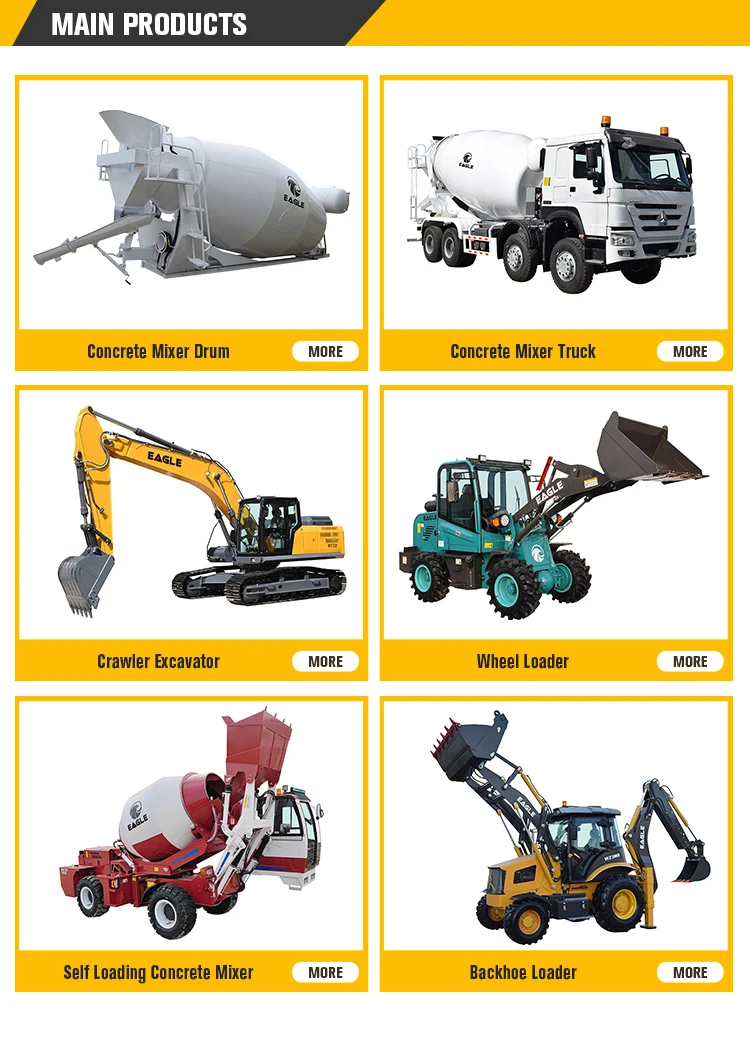

Main Products

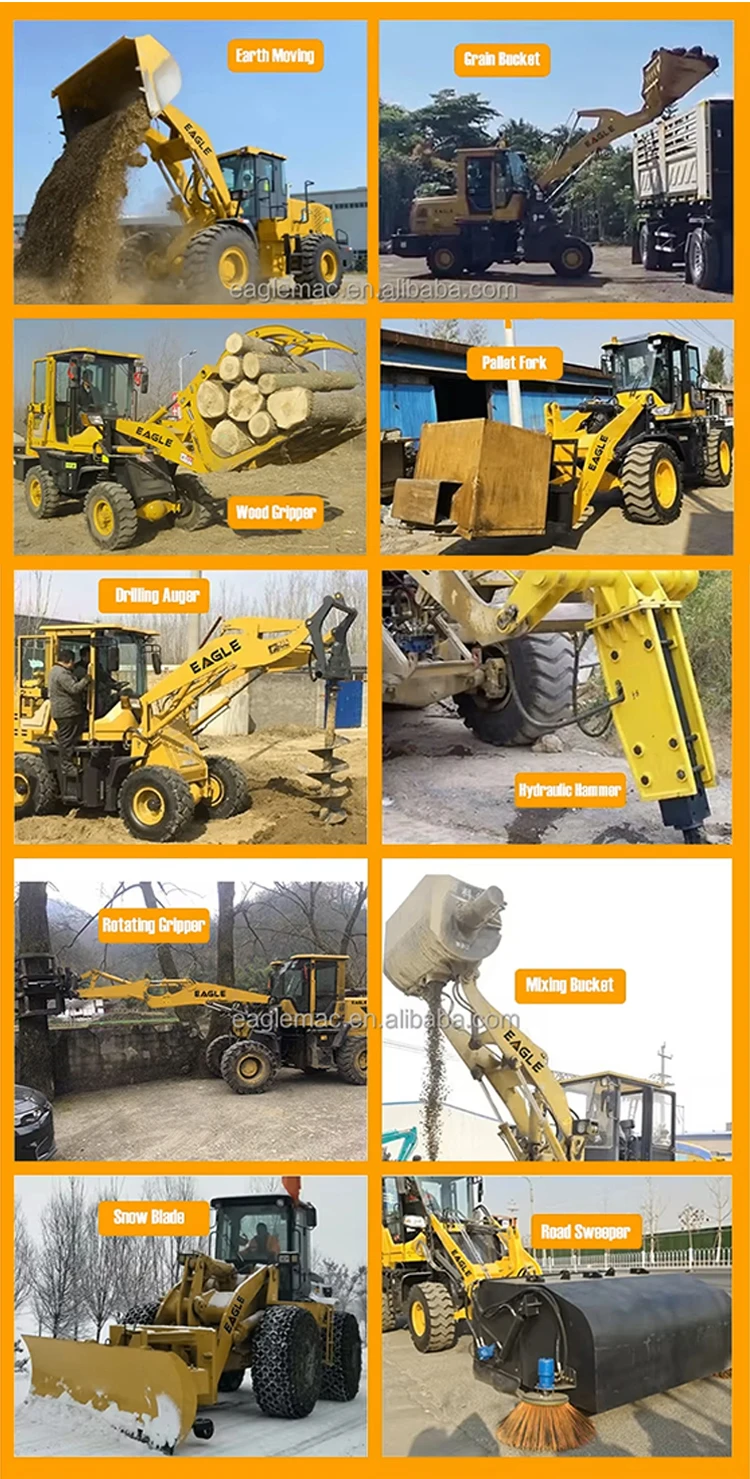

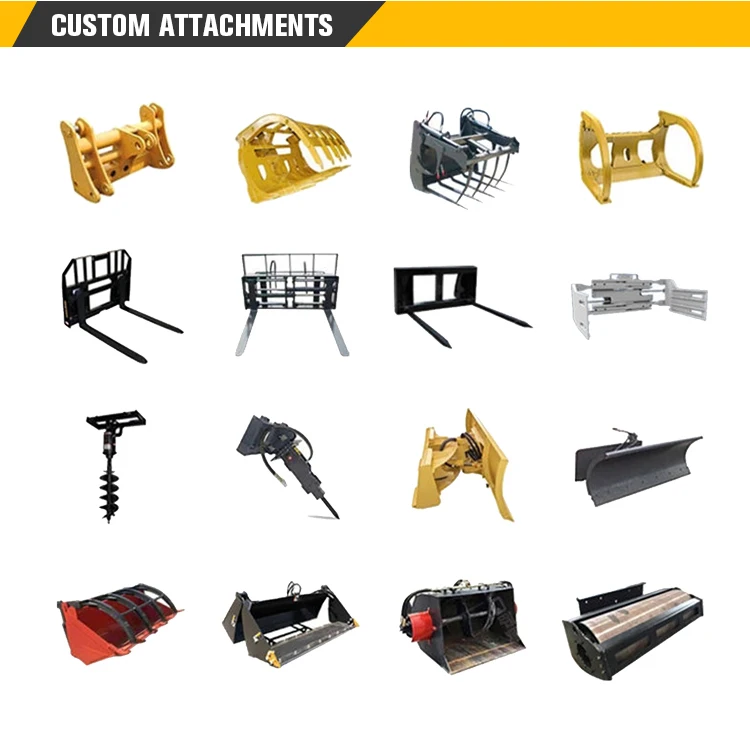

Custom Attachments
This compact wheel loader could be equipped with quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
Application Scene
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products,interchangeability of good, reliable, well-resourced parts.
Worldwide Sales, Marketing and Service Network
During the past 15 years, we have exported over 5,000 units of different kinds of construction equipment to over 50 countries in Southeast Asia, Middle East, Africa, Europe, Australia and South America. Our overseas authorized dealers and service dealers are all around the world.

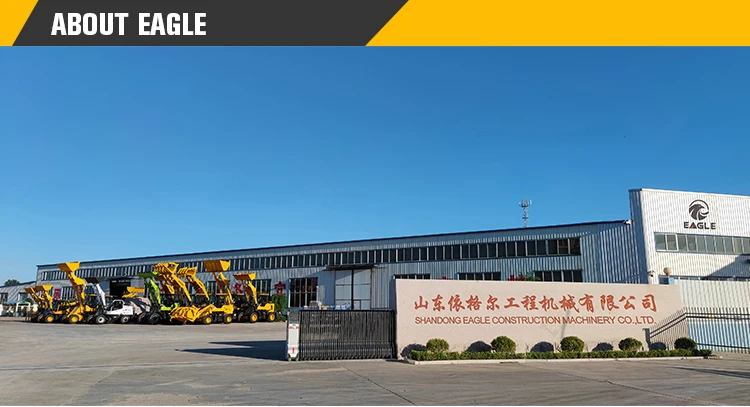

Shandong Eagle Construction Machinery Co.Ltd. Is the leading enterprise specializing in sales and manufacturing of construction machinery and equipment in China. Through many years’ development, , our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.

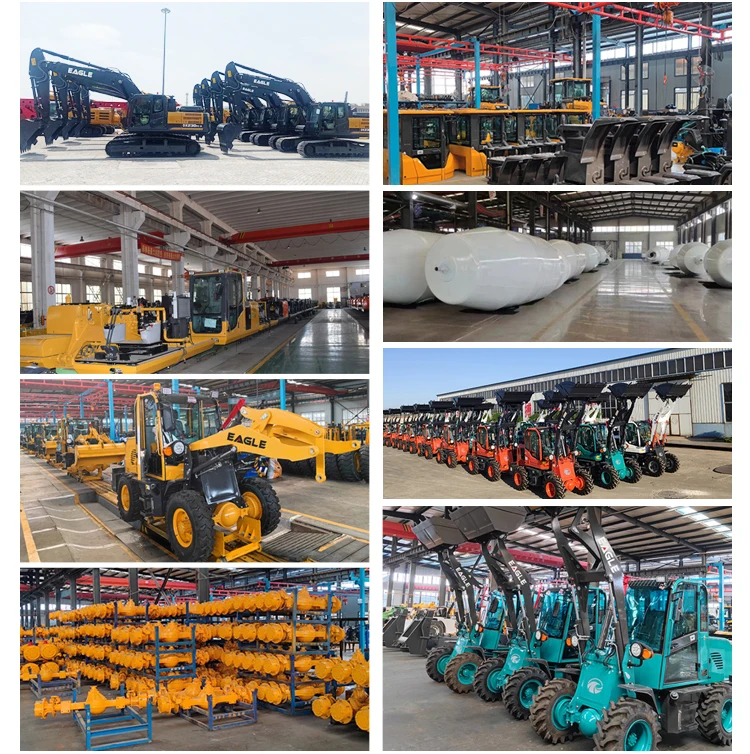

With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
We have been constantly improving and updating our products according to customer’s feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatch inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer’s trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan,Mongolia, Thailand,Indonesia, Middle East, Kenya, Uganda, Algeria and Poland etc.
FAQ
Q: What's your trade terms?
A: EXW, FOB, CFR, CIF.
Q: What's loading port?
A: Qingdao, Shanghai, Tianjin, Ningbo, Xiamen, Shenzhen, Guangzhou, Dalian.
Q: What's your MOQ?
A: 1 set.
Q: What's your delivery time?
A: We have ready stocks.
Q: What's your warranty?
A: 1 year.
Q: Do you have after-sales service?
A: Yes, we have.
Q: What's your payment terms?
A: T/T, L/C, Alibaba Trade Assurance, PayPal, Western Union, Credit Card, Sinosure.
Q: Are you manufacturer?
A: Yes, we are.
A: EXW, FOB, CFR, CIF.
Q: What's loading port?
A: Qingdao, Shanghai, Tianjin, Ningbo, Xiamen, Shenzhen, Guangzhou, Dalian.
Q: What's your MOQ?
A: 1 set.
Q: What's your delivery time?
A: We have ready stocks.
Q: What's your warranty?
A: 1 year.
Q: Do you have after-sales service?
A: Yes, we have.
Q: What's your payment terms?
A: T/T, L/C, Alibaba Trade Assurance, PayPal, Western Union, Credit Card, Sinosure.
Q: Are you manufacturer?
A: Yes, we are.
