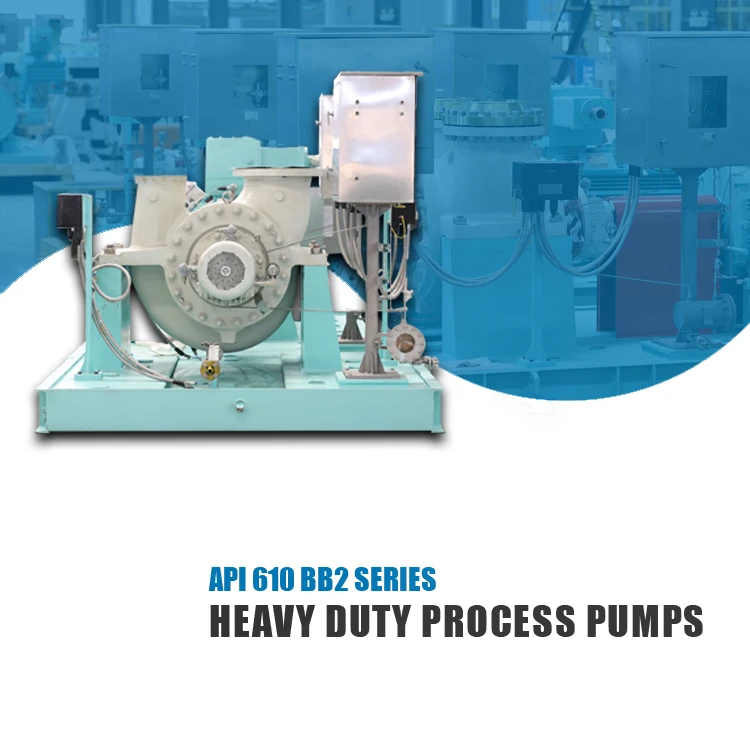

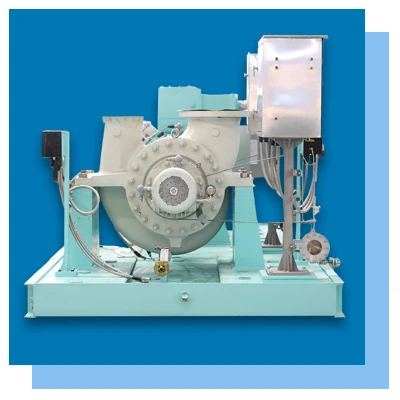

Oil Pump Huasheng API 610 BB2 Industrial Chemical Process Pump for Petroleum Industry
- Category: >>>
- Supplier: Hefei iMaster Electrical Technology Co. Ltd.Hefei Ltd.
Share on (1601267295737):
Product Overview
Description
SPECIFICATIONS:
Flows to 7,500m3/h (33,000 GPM)
Heads to 500m (1,633 ft)
Temperatures to 450℃(840℉)
Pressures to 150 bar (2,175 PSIG)
♦ Xylene bottom pump (PX)
♦ Adsorption tower circulating pump (PX)
♦ Atmospheric bottom pump
♦ Vacuum bottom pump
♦ Fractionation bottom pump
♦ Radiation feed pump
♦ Crude oil transfer pump, etc
FEATURES:
♦ Between bearings, centerline mounted, minimize displacement by heat expansion and cold contraction.
♦ Double volute, dynamically balanced, self-venting design.
♦ Top suction and top discharge, full access case cover for both ends.
♦ Shaft designed working in tensile stress preventing rotors play.
♦ API 682 seal chamber accommodates multiple seal types and pipe plan.
♦ Radially split casing with spacer coupling, replacement to impeller, seal or bearing without dismounting pump casing.
♦ Double volute, dynamically balanced, self-venting design.
♦ Top suction and top discharge, full access case cover for both ends.
♦ Shaft designed working in tensile stress preventing rotors play.
♦ API 682 seal chamber accommodates multiple seal types and pipe plan.
♦ Radially split casing with spacer coupling, replacement to impeller, seal or bearing without dismounting pump casing.
Product solution design
We have a strong independent research and development ability and design production capacity, according to your needs for you to put forward reasonable suggestions and targeted solutions.
Pumps/Valves/Spare parts OEM/ODM
Customers could send us application data, we will design for you, or clients could send us drawings, we are well in OEM and ODM, according to the prompts to tell us your needs, we will provide you with excellent design solutions and products
Technical support
At present, the company's technical team has 90 members. Many experts in the core team have a high influence in the petrochemical industry. They are in a leading position in the industry in terms of innovative design capabilities for petrochemical pumps and valves, improvement and update capabilities for in-use equipment, and diagnosis capabilities for on-site products.
On site installation
Huasheng Pumps & Valves is headquartered in Hefei, Anhui Province, and has offices and agencies in other parts of China, Russia, and the Middle East. We can provide on-site installation services.
After sales service
We have professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
♥ If you haven't found what you want, please tell me what's you need, Huasheng have many kinds of pumps, we can help you. |
